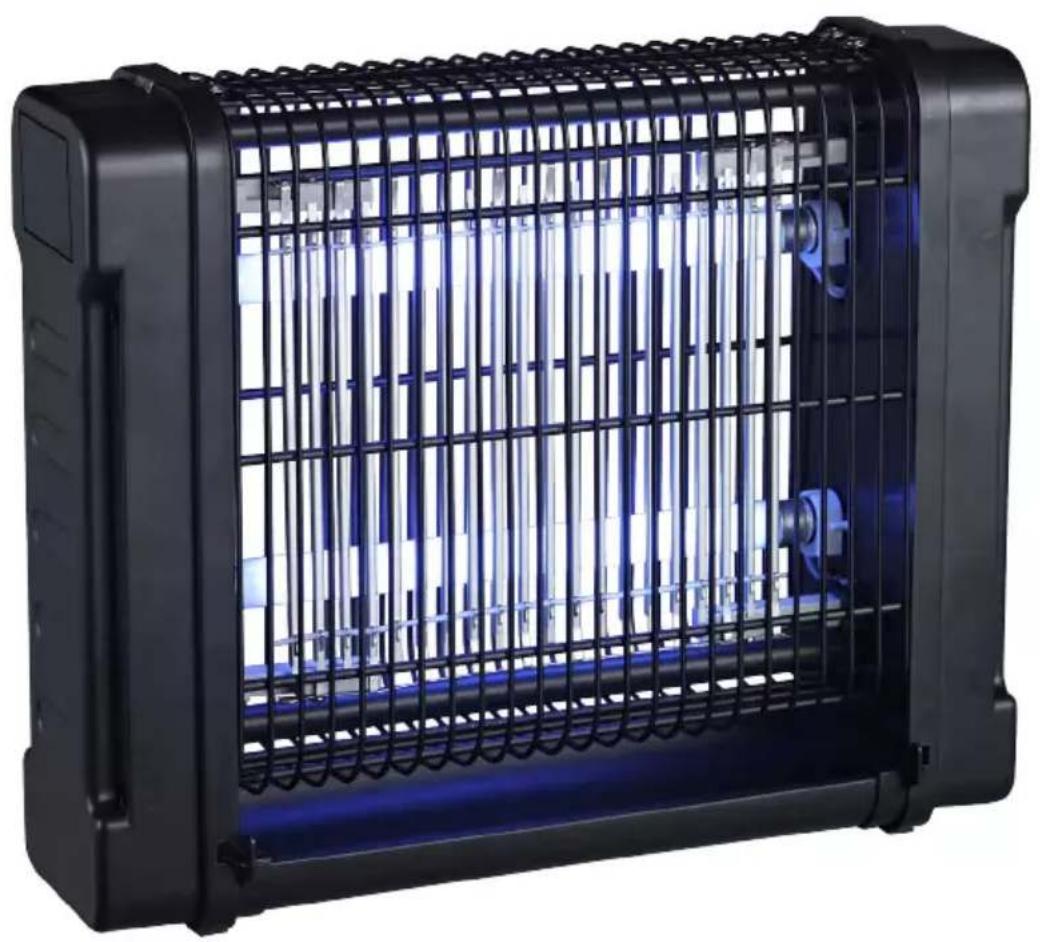

FK8412 - Pest control Duronic - Free user manual and instructions

Brand	Duronic
Model	FK8412
Type	UV electric insect killer
Power supply	AC 220-240V, 50/60Hz
Power	12 W
Bulb type	UV tube FK8412-6WT5
Bulb life	8000 hours
Attraction method	Ultraviolet rays
Elimination method	High-voltage electrified grids
Mounting	Wall-mount (with hooks and chain included) or on flat surface
Collection tray	Yes, removable for emptying
Cleaning	Empty tray weekly; clean grid with dry cloth after unplugging
Safety	High voltage; do not touch grids; keep out of reach of children
Warranty	1 year (Shine-Mart Ltd)
Certifications	CE, WEEE
Usage	Indoor household use only
Switch	On/Off
Included accessories	Chain and hanging hooks
Bulb replacement	Unplug, unscrew 4 screws, replace bulb, re-screw grid
Material	Plastic and metal

Frequently Asked Questions - FK8412 Duronic

How to install the Duronic FK8412?

The device can be mounted on the wall using the provided hooks and chain, or placed on a flat, stable surface. Make sure it is out of reach of children and away from flammable liquids.

How to clean the insect killer?

Unplug the device before any cleaning. Empty the collection tray weekly. Clean the plastic surface and grid with a dry cloth. Do not use water or chemicals.

How to replace the UV bulb?

Unplug the device. Unscrew the 4 screws on top to separate the grid. Unscrew the defective bulb and replace it with a FK8412-6WT5 bulb. Re-screw the grid. Bulb life is 8000 hours.

What is the coverage area of this model?

Coverage is not specified by the manufacturer, but for a 12W device, it is generally suitable for a medium-sized room (up to about 30-50 m²) indoors.

Does this product use chemicals?

No, this insect killer uses ultraviolet rays to attract insects and electrified grids to eliminate them. It emits no odor and does not use chemicals, sprays, or poisons.

Is it safe for pets?

The device delivers high voltage. Although the grids are protected, it is recommended to place it out of reach of animals to avoid any risk of electric shock. Attracted insects do not pose a danger to pets.

Does the device make noise?

Operation is silent. You only hear a crackling sound when insects are electrocuted, which is normal and confirms the device is working.

What is the warranty?

The Duronic FK8412 comes with a 1-year warranty from the date of purchase, covering electrical or manufacturing defects, provided the device is used according to the manual and for household use. Proof of purchase is required.

Can I use the device outdoors?

No, this device is designed for indoor household use only. It should not be exposed to moisture, rain, or flammable gases.

What to do if the device does not turn on?

Check that the device is plugged into a working outlet (220-240V). Ensure the switch is in the on position. If the problem persists, check the bulb: if it is burnt out, replace it with a new one. If nothing works, contact customer service.

USER MANUAL FK8412 Duronic

Creative Consumer Products

FK8412/16/20 Electronic Insect Killer

DURONIC

Contents

English Manual 5

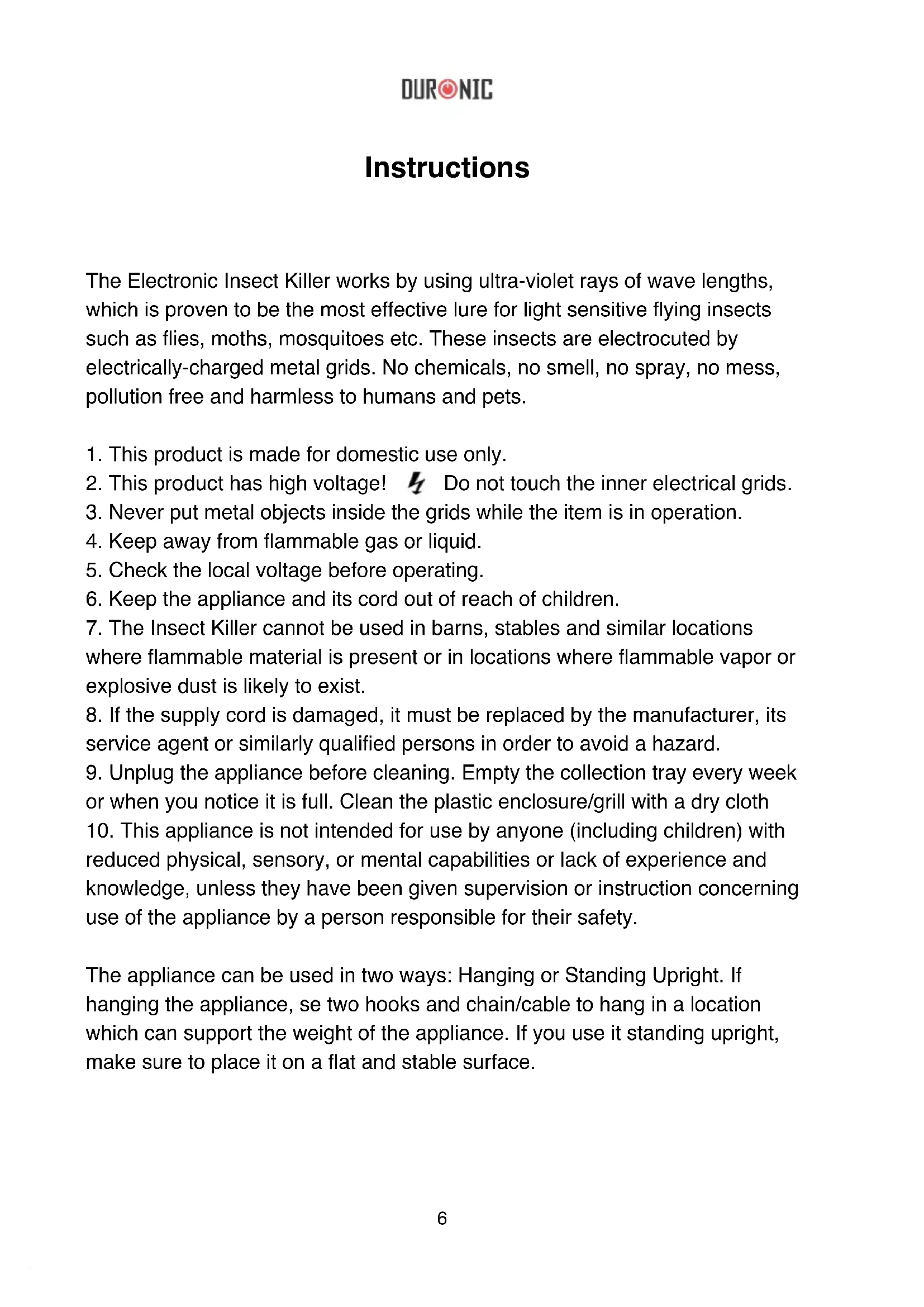

The Electronic Insect Killer works by using ultra-violet rays of wave lengths, which is proven to be the most effective lure for light sensitive flying insects such as flies, moths, mosquitoes etc. These insects are electrocuted by electrically-charged metal grids. No chemicals, no smell, no spray, no mess, pollution free and harmless to humans and pets.

1. This product is made for domestic use only.
2. This product has high voltage! Do not touch the inner electrical grids.
3. Never put metal objects inside the grids while the item is in operation.
4. Keep away from flammable gas or liquid.
5. Check the local voltage before operating.
6. Keep the appliance and its cord out of reach of children.
7. The Insect Killer cannot be used in barns, stables and similar locations where flammable material is present or in locations where flammable vapor or explosive dust is likely to exist.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. Unplug the appliance before cleaning. Empty the collection tray every week or when you notice it is full. Clean the plastic enclosure/grill with a dry cloth
10. This appliance is not intended for use by anyone (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

The appliance can be used in two ways: Hanging or Standing Upright. If hanging the appliance, se two hooks and chain/cable to hang in a location which can support the weight of the appliance. If you use it standing upright, make sure to place it on a flat and stable surface.

Replacing The Bulbs

The average working life of each bulb is 8000 hours. After this length of time the bulb will need replacing. The bulb model numbers are as follows:

FK8412-6WT5

FK8416-8WT5

FK8420-10WT5

To replace the bulb, follow these simple instructions:

• Switch the appliance off
• Unscrew the 4 screws at the top the product to separate the mesh grill
• Unplug the faulty bulb
• Replace with the new bulb and reattach the mesh grill

Technical Details: Input AC: 220-240V 50/60Hz. Wattage: FK4812 - 12W, FK4816 - 16W, FK4820 - 20W

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste

Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked

waste to your Local Authority Civic waste site,

where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
