FKWS18 - Pest control Duronic - Free user manual and instructions

Product Type	Ultrasonic Pest Repeller
Brand	Duronic
Model	FKWS18
Dimensions (approx.)	12 x 8 x 5 cm
Weight (approx.)	150 g
Power Source	AC 220-240V, 50/60 Hz
Power Consumption	5 W
Coverage Area	Up to 100 m²
Main Functions	Ultrasonic waves to deter pests; LED indicator; night light optional
Frequency Range	20 – 65 kHz (varying)
Target Pests	Mice, rats, cockroaches, ants, spiders, mosquitoes
Operation	Plug into wall socket; continuous operation
Maintenance	Wipe with dry cloth; do not use water or chemicals
Cleaning	Disconnect from power before cleaning; use soft dry cloth
Safety Features	Overheat protection; child-safe design (no accessible live parts)
Spare Parts / Repairability	No user-serviceable parts; contact customer support for issues
Certifications	CE, RoHS
Environmental	Chemical-free pest control solution
Warranty	2 years
Package Contents	1 x FKWS18 unit, user manual

Frequently Asked Questions - FKWS18 Duronic

How does the FKWS18 work to repel pests?

The FKWS18 emits ultrasonic sound waves at varying frequencies that are unpleasant to common pests like rodents and insects, driving them away. The sound is inaudible to humans and pets.

Which pests does the FKWS18 target?

It effectively repels mice, rats, cockroaches, ants, spiders, mosquitoes, and other household pests. However, effectiveness may vary depending on the species and infestation level.

Is the FKWS18 safe for humans and pets?

Yes, the ultrasonic frequencies are safe for humans. For pets, it is generally safe for cats and dogs, but may affect rodents like hamsters or guinea pigs. Keep away from small caged pets.

How should I install the FKWS18?

Simply plug the device into a wall socket in the room you want to protect. For best results, place it in an area where pests are active, not behind furniture. Ensure the outlet is not obstructed.

Does the FKWS18 work immediately?

Results may take a few days to a few weeks. Pests gradually leave the area as they find the sound irritating. Persistent infestation may require additional units or other methods.

How many units do I need for my house?

Each FKWS18 covers up to 100 m² (approximately 1000 sq ft) in an open area. For larger homes or multiple rooms, consider using one unit per room or per 100 m².

Can I leave the FKWS18 on all the time?

Yes, the device is designed for continuous operation. It has low power consumption and overheat protection, so it is safe to leave plugged in 24/7.

How do I clean and maintain the FKWS18?

Disconnect from power, then wipe with a soft dry cloth. Do not use water, solvents, or abrasive cleaners. Avoid exposure to moisture.

What should I do if the FKWS18 is not working?

Check that it is properly plugged into a working socket. Ensure the LED indicator is on. If not, contact Duronic customer support. Do not attempt to repair yourself.

Is the FKWS18 environmentally friendly?

Yes, it is a chemical-free pest control solution. It does not use poisons or traps, making it safe for the environment and household.

USER MANUAL FKWS18 Duronic

Creative Consumer Electronics

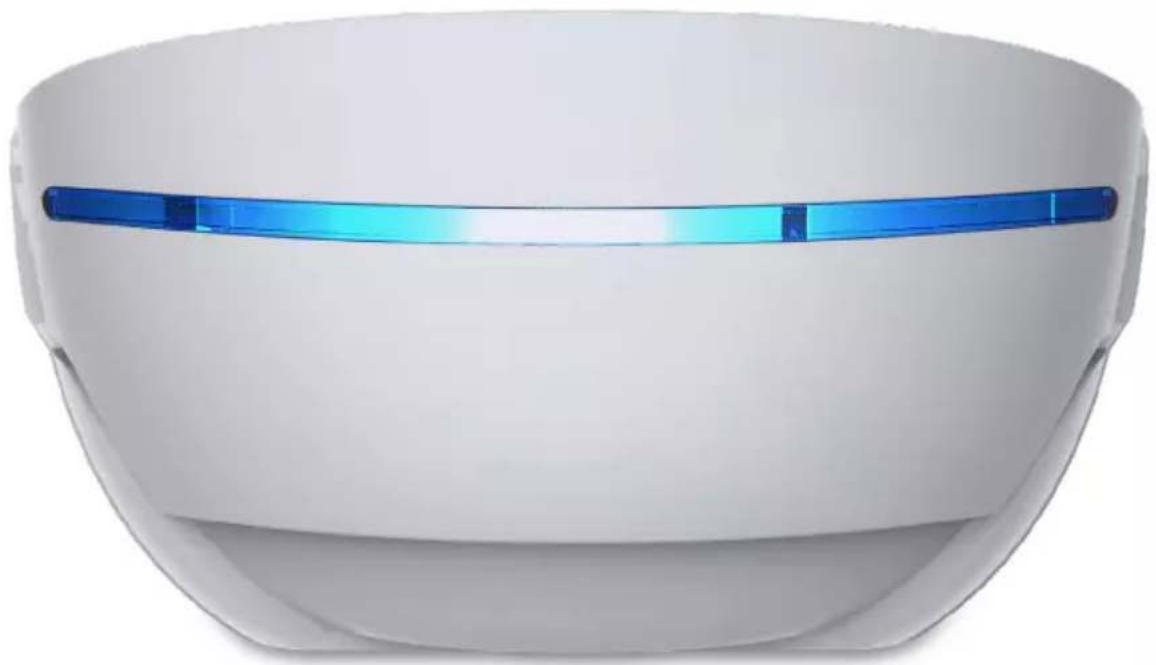

White modern bowl with a blue horizontal stripe at the center (no text or symbols visible)

FKWS18 - Wall Sconce

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Contents

English Manual 3

Please read these instructions fully and keep for future reference.

• This appliance is for indoor/household use only. Do not use outdoors.
• This fly trap is not to be used in garages, sheds, barns, horse stables or any out-house building where flammable material is present, or in any locations where flammable vapour or explosive dust may exist.

- This appliance is not designed for commercial or industrial use; it is for household use only.

- Make sure the electrical voltage is the same as that indicated on the rating plate of the appliance.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be closely supervised at all times to ensure that they do not play with the appliance.

- Never carry the appliance by the power cable.

WARNING: If the machine is operated with a defective or damaged mains cable, there is a potential danger of fatal electric shock.

Never use a machine which is damaged or has a damaged mains cable.

- If either the appliance or power cable are damaged, return it to Duronic for service or repair by professional technician.

DURONIC

- Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

- Never try to replace the parts and repair the unit by yourself, apart from replacing the bulb and adhesive boards.

- Do not modify the machine in any way that is not described in the instructions for use. The machine contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.

• Always operate the appliance on a dry, smooth, even and stable surface. Do not place the unit on a damaged wall or a wall covered in damp/mould.

- Do not operate the machine or handle the plug with wet hands.

- Do not immerse in water or other liquids. Cleaning should be done as per instructions in this manual.

- Keep the light away from flammable objects such as curtains, and away from flammable liquids of gases as there is a danger of explosion.

- When installing, position the light away from windows or doors to avoid interference from draft and daylight.

- For hygeine reasons, it is best that this light is not positioned near places where food will be prepared or served.

• This appliance is only suitable for wall mounting.

DURONIC

Specifications

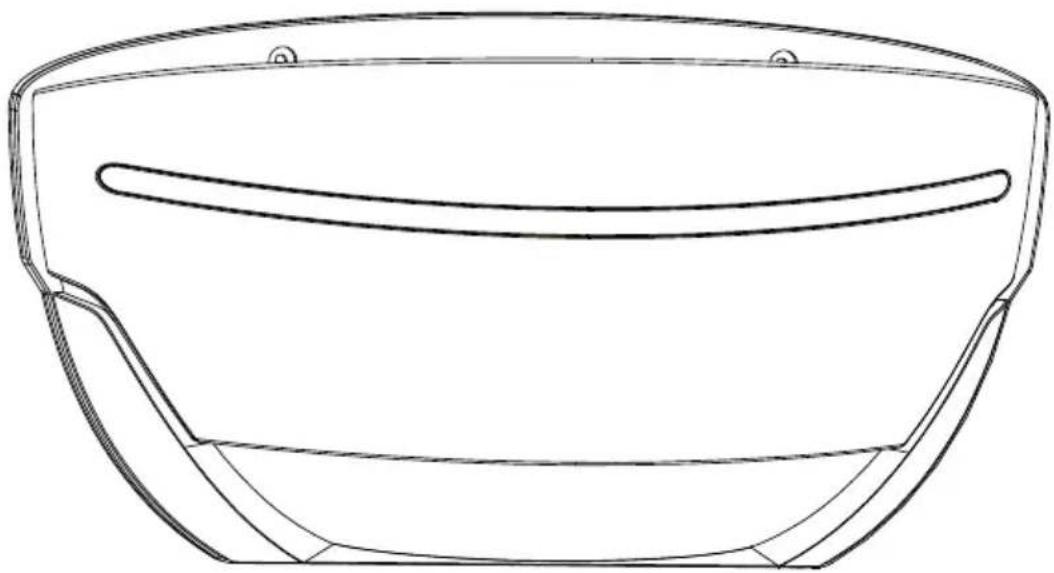

Line drawing of a bowl with a flat lid and side handles (no text or symbols)

Model: FKWS18
Power: 18W
Size: 37.5 x 14 x 19.6 cm
Weight: 1.16 kg
Bulb type: UV bulb: 18W	PL BL
Glue boards included: 5

Included in the Box

- Wall sconce fixture

- 5x glue boards

- 2x screws

- 1x UV bulb

- 2x raw plugs

DURONIC

About the FKWS18 Wall Sconce

Flying insects are naturally attracted to ultra-violet light. This fly catcher has an ultra-violet (UV) bulb that proves to be utterly irresistible to flying insects. Once the flies are attracted into the device, they will come to rest on the adhesive-coated glue board inside and become permanently captured. Once the board is full, it can quickly and easily be replaced. It is easy to check as the front of the device lifts up to enable easy access to the adhesive board.

Your FKWS18 comes with 5 adhesive sheets. If you need more, you can order these separately from Duronic (Shine-Mart Ltd).

Designed with an ornate elegant design, this light fixing will fit in beautifully with any interior design.

No chemical substances are involved, so this appliance is safe to use for humans and pets. The ultra-violet light provides an odorless, noiseless and safe method of ridding your home of pesky flying insects.

Before Installing

1. Remove the device from the package carefully. Check the body and parts for any potential shipping damage.
2. Check the position of the bulb and the glue board to see if they are positioned correctly.
3. Connect the device to the nearest mains electrical socket to test the light.
4. If the bulb lights up immediately, proceed to installing the lamp.
5. If the bulb doesn't light up, refer to the troubleshooting section to determine the issue.

DURONIC

Installation

Preparation:

• Ensure that the light is installed above eye level (at least 70 inches from the floor) so that it is out of the line of anyones sight, and so that no one can bump into the fixture.
  • Install the light close to the area where flies come in, but away from any draft or wind.
• Choose a location with high insect density, close to an electrical outlet (hard wired availability) and easy serviceability.
• Do not install the lamp near any competing light sources, such as bright sunlit windows, indoor lighting fixtures etc. as this will render the FKWS18 light useless.
• The distance between the lamp and the ceiling should be 24" or more for maximum light attraction.

Instruction:

1. Lift the front cover and remove the UV bulb to avoid causing any damage to it during the installation.
2. Hold the back plate of the fixture against the wall in your chosen location. Determine the location you would like to install the light and mark the screws' locations with a pencil.
3. Place the fixture aside. Drill holes on the marked locations and insert the plastic raw plugs.
4. Next reposition the light fixing over the top of the holes you have prepared, and insert one screw and tighten with a screw driver. Then repeat this for the next screw.
5. Install the bulb and the sticky glue board. Note that the sticky side of the board should be placed facing up.
6. Close the cover of the light.
7. Plug in the power cable into the mains power socket and switch on. Your light should immediately illuminate.

NOTE: If you do not use the appliance for an extended period, ensure you remove the plug from the electrical socket.

DURONIC

Maintenance

Replacing the Adhesive Glue Board

It's recommended to replace the glue board every 1-2 months.

To replace the glue board:

1. Unplug the power cable and wait for 5 minutes for the bulb to cool down.
2. Lift the front cover and remove the old sticky glue board.
3. Install a new sticky glue board with the sticky side facing the bulb.
4. Close the front shell.
5. Re-connect the power cable by plugging it back into the mains socket and switching on.

Replacing the UV Bulb

It is recommended to replace the UV bulb after around 5000 hours of normal operation.

To replace the bulb:

1. Unplug the power cord and wait for 5 minutes for the bulb to cool down.
2. Lift the front cover and remove the old UV bulb by rotating it.
3. Insert the new UV bulb in reversed rotation.
4. Close the front cover.
5. Re-connect the power cable by plugging it back into the mains socket.

IMPORTANT: Ensure that disposal of the old UV bulb is done responsibly and in line with the local council's waste and recycling regulations.

Maintenance (continued)

Cleaning:

Before cleaning, ensure the power cable is unplugged from the mains socket.

To clean the light fixing, use a dry dusting cloth to remove any dust and dirt that has collected over time.

When finished, check the bulb and glue board are in the correct position, then plug the cable back into the plug socket.

Troubleshooting Guide

Issue Solution/s
The bulb doesn’t light up when I connect it to the mains socket.	A. Check if the bulb has popped out of the correct seating position during shipping.B. Check if the power cable is plugged into the mains plug socket.C. Unplug the power cable, lift the front cover of the light and rotate the bulb slightly to adjust the contact point between the bulb and the bulb holders.
The light flickers when it lights up. It’s	normal for a new fluorescent light bulb to flicker when used for the first time.Unplug the power cable and plug it back after a few seconds. Leave the lamp on for 48 hours and the flicker should not occur again.If the issue persists after 48 hours, please contact Duronic Customer Care Team for further assistance.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

CE

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
