FK8416 - Pest control Duronic - Free user manual and instructions

Product type	Electric pest control
Brand	Duronic
Model	FK8416
Power supply	220-240 V, 50/60 Hz
Power	16 W
Capture mode	UV light attraction then electrocution
Installation	Wall-mounted (hooks and chain included) or placed on flat surface
Bulb type	FK8416-8WT5 (8 W, 8000 hours lifespan)
Bulb replacement	Unplug, unscrew the 4 top screws, replace bulb, screw the grid back
Cleaning	Unplug, empty the tray weekly, clean the surface and grid with a dry cloth
Safety	Do not insert metal objects, keep out of reach of children and flammable liquids/gases
Usage	Indoor use only
Warranty	1 year (Shine-Mart Ltd)
Standards	CE, WEEE (recycling)
Included accessories	Mounting hooks, chain
Color	Not specified (usually white or black)

Frequently Asked Questions - FK8416 Duronic

How to install the FK8416 unit?

The unit can be mounted on the wall using the two hooks and chain provided, or placed on a flat and stable surface. Make sure it is out of reach of children and flammable materials.

What is the power of the unit?

The FK8416 model has a power of 16 W. Other models in the series exist: FK8412 (12 W) and FK8420 (20 W).

How to replace the UV bulbs?

Unplug the unit, unscrew the 4 top screws to separate the grid, unscrew the defective bulb and replace it with a bulb of type FK8416-8WT5. Screw the grid back on and plug in.

What is the lifespan of the bulbs?

The bulbs have a lifespan of approximately 8000 hours. After this period, it is advisable to replace them to maintain effectiveness.

How to clean the insect killer?

Unplug the unit before any cleaning. Empty the tray weekly or when full. Clean the plastic surface and grid with a dry cloth. Do not use liquid.

Can the unit be used outdoors?

No, the unit is intended for indoor domestic use only. It must not be exposed to rain, moisture, or flammable gases.

What are the safety precautions?

Do not touch the live inner grids. Do not insert metal objects. Keep the unit out of reach of children and flammable liquids/gases. Unplug before cleaning.

What is the required power supply?

The unit operates on a 220-240 V, 50/60 Hz power supply. Check that this voltage matches that of your area.

What to do if the unit is damaged?

If the power cord is damaged, it must be replaced by Duronic or a qualified technician. For any other problem, contact customer service under the 1 year warranty.

How to recycle the unit at end of life?

The product bears the WEEE symbol. It must not be thrown away with household waste. Take it to an approved recycling center for electrical and electronic waste.

USER MANUAL FK8416 Duronic

FK8412/16/20 Electronic Insect Killer

DURONIC

Contents

English Manual 5

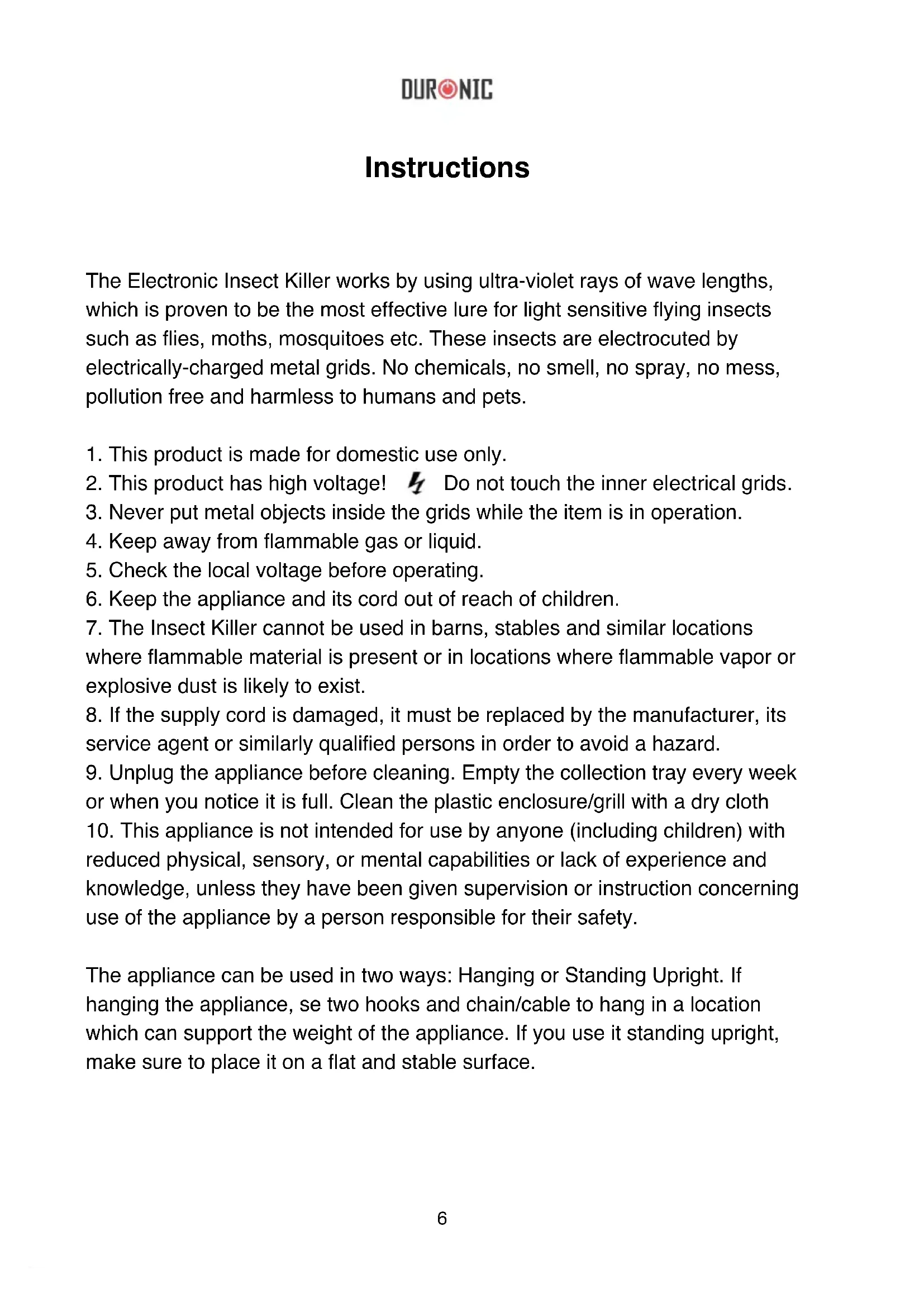

The Electronic Insect Killer works by using ultra-violet rays of wave lengths, which is proven to be the most effective lure for light sensitive flying insects such as flies, moths, mosquitoes etc. These insects are electrocuted by electrically-charged metal grids. No chemicals, no smell, no spray, no mess, pollution free and harmless to humans and pets.

1. This product is made for domestic use only.
2. This product has high voltage! Do not touch the inner electrical grids.
3. Never put metal objects inside the grids while the item is in operation.
4. Keep away from flammable gas or liquid.
5. Check the local voltage before operating.
6. Keep the appliance and its cord out of reach of children.
7. The Insect Killer cannot be used in barns, stables and similar locations where flammable material is present or in locations where flammable vapor or explosive dust is likely to exist.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. Unplug the appliance before cleaning. Empty the collection tray every week or when you notice it is full. Clean the plastic enclosure/grill with a dry cloth
10. This appliance is not intended for use by anyone (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

The appliance can be used in two ways: Hanging or Standing Upright. If hanging the appliance, se two hooks and chain/cable to hang in a location which can support the weight of the appliance. If you use it standing upright, make sure to place it on a flat and stable surface.

Replacing The Bulbs

The average working life of each bulb is 8000 hours. After this length of time the bulb will need replacing. The bulb model numbers are as follows:

FK8412-6WT5

FK8416-8WT5

FK8420-10WT5

To replace the bulb, follow these simple instructions:

• Switch the appliance off
• Unscrew the 4 screws at the top the product to separate the mesh grill
• Unplug the faulty bulb
• Replace with the new bulb and reattach the mesh grill

Technical Details: Input AC: 220-240V 50/60Hz. Wattage: FK4812 - 12W, FK4816 - 16W, FK4820 - 20W

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse. Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it

is to be disposed of, it must be treated as Waste

Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site.

where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
