BS403 - Scale Duronic - Free user manual and instructions

Brand	Duronic
Model	BS403
Product type	Body scale
Maximum capacity	180 kg (397 lb / 28 st:5 lb)
Minimum weight	5 kg
Graduation	0.1 kg / 0.2 lb / 1 lb
Weight units	kg, lb, st:lb
Display	LCD screen
Power supply	2 AAA batteries (not included)
Autonomy	Automatic shutdown after about 10 seconds
Surface material	Glass (probably)
Approximate dimensions	30 x 30 x 2 cm (estimate)
Device weight	Approximately 1 kg (estimate)
Power on	By pressing on platform or UNIT button
Unit selection	UNIT button on the back
Low battery indicator	Display "Lo"
Overload indicator	Display "Err"
Recommended use	Hard and flat surface, avoid carpets
Cleaning	With a slightly damp cloth, then dry. No chemicals.
Water resistance	No, do not expose to moisture
Warranty	1 year (Shine-Mart Ltd)

Frequently Asked Questions - BS403 Duronic

How do I change the weight unit (kg, lb, st)?

Press the UNIT button on the back of the scale to switch between available units: kg, lb and st:lb. The selected unit is displayed on the screen.

What should I do if the scale displays 'Lo'?

The 'Lo' display indicates low batteries. Replace both AAA batteries with new ones. The scale will turn off after a few seconds.

What does 'Err' on the screen mean?

'Err' means the scale is overloaded. Remove the weight immediately to protect the sensors. The maximum capacity is 180 kg.

Why does the scale turn off by itself?

The scale has an automatic shutdown function after about 10 seconds of inactivity to save batteries. This is normal.

How do I clean the scale?

Clean the scale with a slightly damp cloth, then wipe it with a dry cloth. Never use chemicals or abrasives.

Can I use the scale on a carpet or rug?

No, the scale must be placed on a hard and flat surface (tile, wood). Soft surfaces distort measurements and may damage the device.

What is the minimum measurable weight?

The minimum weight is 5 kg. Below that, the scale may not detect the mass.

How do I get an accurate measurement?

Place the scale on a hard and flat surface. Step onto it to turn it on, step off and wait for the display to show 0.0, then step back on and stand still until the number stabilizes.

Is the scale waterproof?

No, the scale is not water resistant. Do not expose it to moisture and ensure your feet and the surface are dry before use to avoid slipping.

What should I do if I don't use the scale for a long time?

Remove the batteries to prevent any risk of leakage and prolong the device's life.

USER MANUAL BS403 Duronic

Creative Consumer Products

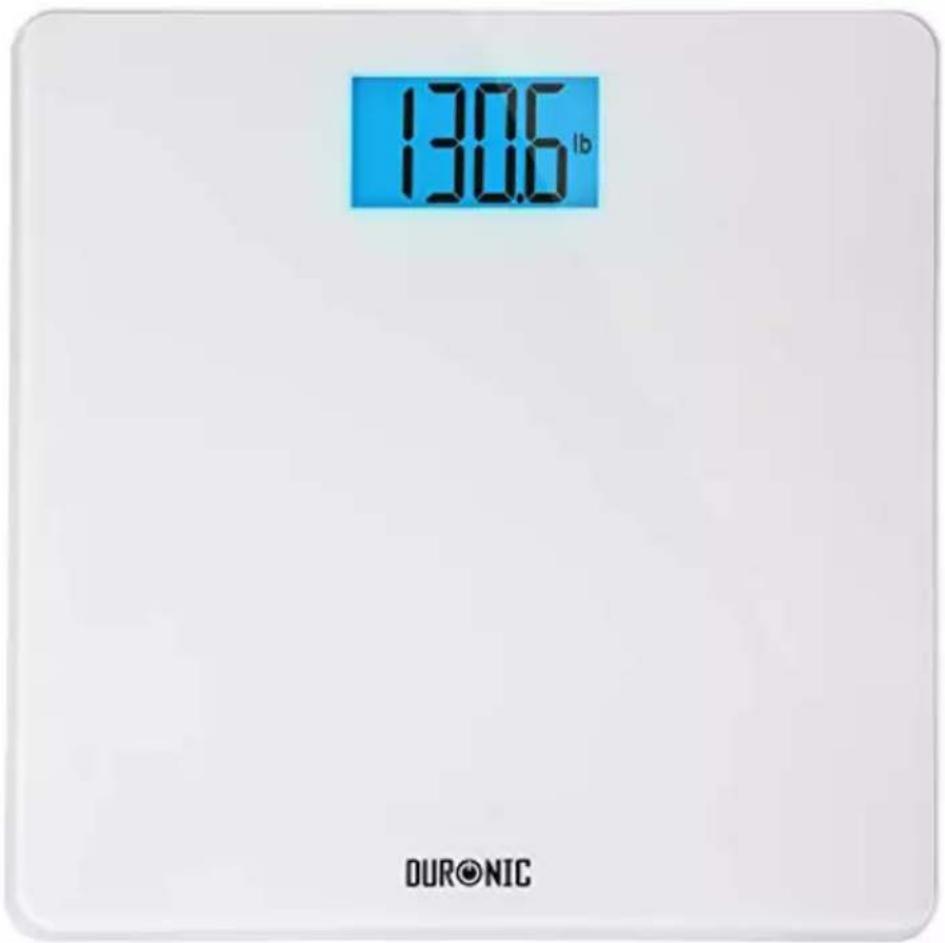

130.6 lb DURONIC

DURONIC

BS403 Bathroom Scale

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 4

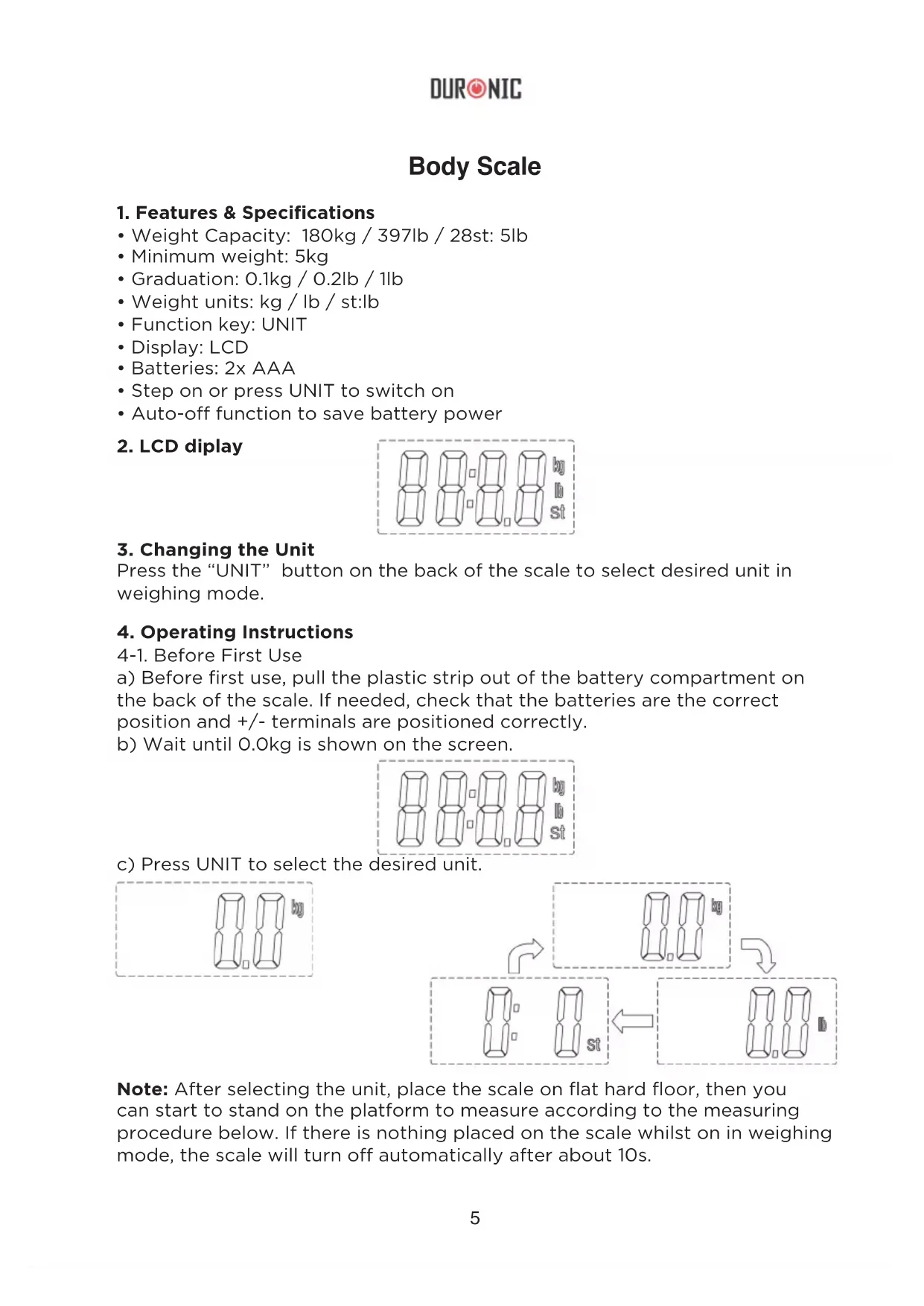

1. Features & Specifications

• Weight Capacity: 180kg / 397lb / 28st: 5lb
• Minimum weight: 5kg
• Graduation: 0.1kg / 0.2lb / 1lb
• Weight units: kg / lb / st:lb
- Function key: UNIT
- Display: LCD
- Batteries: 2x AAA
- Step on or press UNIT to switch on
• Auto-off function to save battery power

2. LCD display

by th st

3. Changing the Unit

Press the "UNIT" button on the back of the scale to select desired unit in weighing mode.

4. Operating Instructions

4-1. Before First Use

a) Before first use, pull the plastic strip out of the battery compartment on the back of the scale. If needed, check that the batteries are the correct position and +/- terminals are positioned correctly.

b) Wait until 0.0kg is shown on the screen.

bg lb st

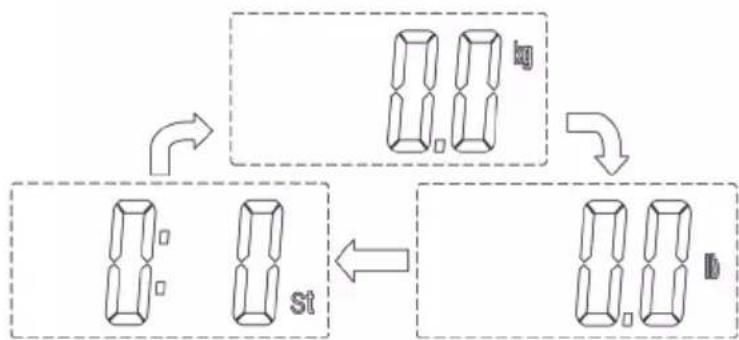

c) Press UNIT to select the desired unit.

8.8 bg

Note: After selecting the unit, place the scale on flat hard floor, then you can start to stand on the platform to measure according to the measuring procedure below. If there is nothing placed on the scale whilst on in weighing mode, the scale will turn off automatically after about 10s.

4-2 Measuring

a) Place the scale on flat hard ground.
b) Stand on the platform to switch on the scale.

Diagram showing foot and object placement before and after adjustment, with a 8.0 kg weight reference.

c) Step off of the scale and wait for 0.0 to show on the display.

68.8 妇

d) Step back on the scale and stand still. The weight data will blink first, then lock in place when stable. The scale will turn off automatically after about 10 seconds.

Note: If you want to measure once again, step off of the scale, then step on the platform again.

5. Error Messages

5-1. Low battery indication. When "Lo" is shown, it means the battery is low. The scale will turn off after a few seconds. You will then need to replace the batteries.

Simple line drawing of two connected geometric shapes resembling L and a prism (no text or symbols)

5-2 Overload indication. When "Err" is shown, remove the weight from the scale to protect the sensors.

E...

6. Safety Instructions

6-1 Ensure the scale is on a flat, even and firm ground surface. Avoid carpet or soft surfaces.
6-2 The surface of the scale will be slippery if wet. Please make sure both the glass and your feet are dry before use.
6-3 This scale is not waterproof. Do not expose it to moisture.
6-4 Clean the scale with a slightly damp cloth, then wipe again with a dry cloth. Do not use any chemical/abrasive cleaning agents to clean the scale.
6-5 If the scale is not being used for a long period of time, remove the batteries before storing away.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

CE

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
