Product type	Juice extractor (centrifugal)
Brand	Duronic
Model	JE7C
Power supply	220-240 V, 50/60 Hz, European plug with 3 A fuse
Speeds	2 speeds: slow (I) and fast (II)
Pulp container capacity	Approximately 1 L (estimated)
Opening	Large, allows inserting whole fruits and vegetables
Motor protection	Overheat protection (automatic shutdown after 10 min of continuous operation)
Safety devices	Lockable handle and lid; only works if properly assembled
Materials	Robust plastic, stainless steel sieve
Net weight	Approximately 3 kg (estimated)
Dimensions (L x W x H)	Approximately 30 x 25 x 35 cm (estimated)
Cleaning	Removable parts (pusher, lid, sieve, central ring) dishwasher-safe; wipe base with damp cloth
Warranty	1 year (Shine-Mart Ltd)
Usage	Juice extraction of fruits and vegetables only
Included accessories	Pusher, lid, sieve, central ring, motor base, juice container, pulp container
Repairability	Spare parts available via Duronic customer service; power cable replaceable by manufacturer

Frequently Asked Questions - JE7C Duronic

How to assemble the Duronic JE7C juice extractor?

Place the central ring on the base by locking it, insert the sieve, then the lid by locking it. Raise the handle and lock it onto the lid. Make sure the switch is on 'O' before plugging in.

How to use the speeds (I and II)?

Slow speed (I) is suitable for soft fruits like oranges or watermelons. Fast speed (II) is for hard fruits like apples or carrots. Use the pusher with moderate force.

The appliance stops by itself, what to do?

This is normal: the motor is protected against overheating. Turn off the appliance, unplug it and let it cool down for 15 to 30 minutes before using it again.

How to clean the sieve correctly?

The sieve is very sharp. Rinse it under water immediately after use, without touching it with your hands. Use a non-abrasive sponge or a soft brush. It is also dishwasher safe.

Can I extract citrus fruits with the Duronic JE7C?

Yes, this extractor is perfect for citrus fruits. Use slow speed (I) for better yield. Be sure to remove seeds if possible.

The appliance gives off a burning smell, is this normal?

Yes, during first uses, a slight burning smell may appear due to dust on the new motor. It disappears after a few uses. If it persists, contact Duronic customer service.

Which foods should not be used in the extractor?

Insert only fruits and vegetables. Do not put hard nuts, ice, meat or any non-food items. This would damage the motor and void the warranty.

How to know if the lid is properly locked?

The handle must be raised and locked onto the lid until you hear a click. The lid snaps onto the central ring. If the appliance does not start, check the locking of the handle and lid.

Can I put the parts in the dishwasher?

Yes, all removable parts (pusher, lid, sieve, central ring, pulp container) are dishwasher safe. The motor base should be cleaned with a damp cloth.

What is the warranty of the Duronic JE7C?

The appliance comes with a 1-year warranty from the date of purchase, covering manufacturing and electrical defects. Keep your proof of purchase. The warranty does not cover normal wear, misuse, or unauthorized repairs.

USER MANUAL JE7C Duronic

Creative Consumer Products

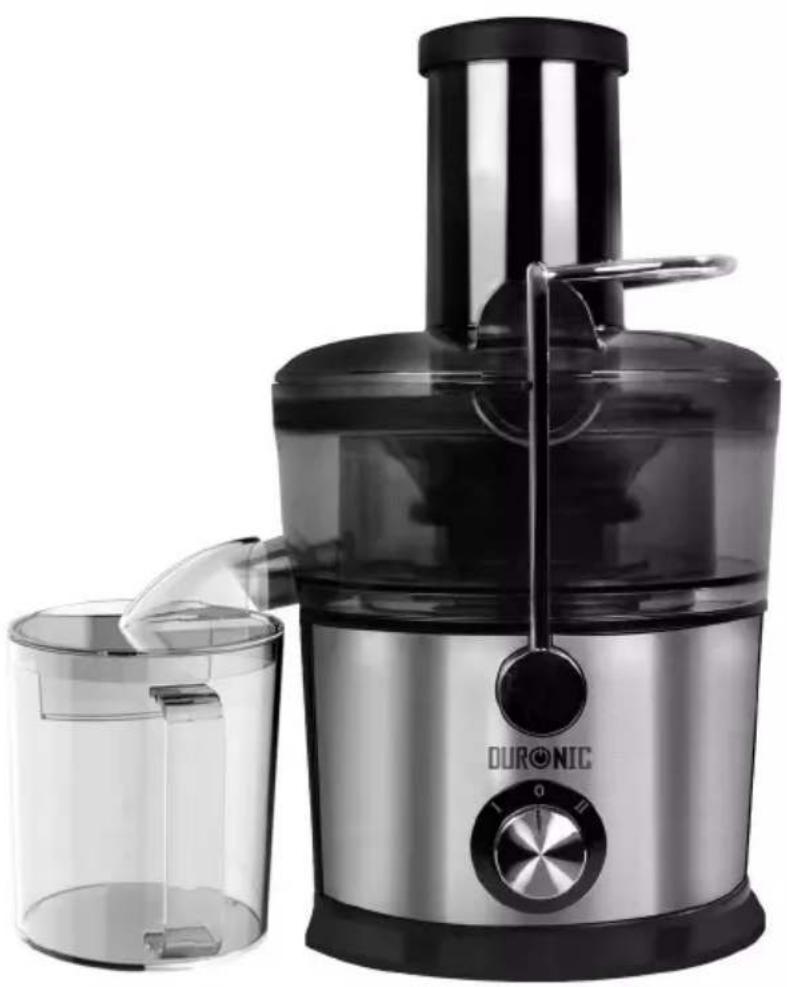

Exterior view of a Duronic brand juice maker with clear glass and black casing (no text or symbols on the device itself)

1. Pushing Bar
2. Transparent Cover
3. Juicing Net

4. Middle Ring

5. Handle

6. Main Machine
7. Juicer Jug

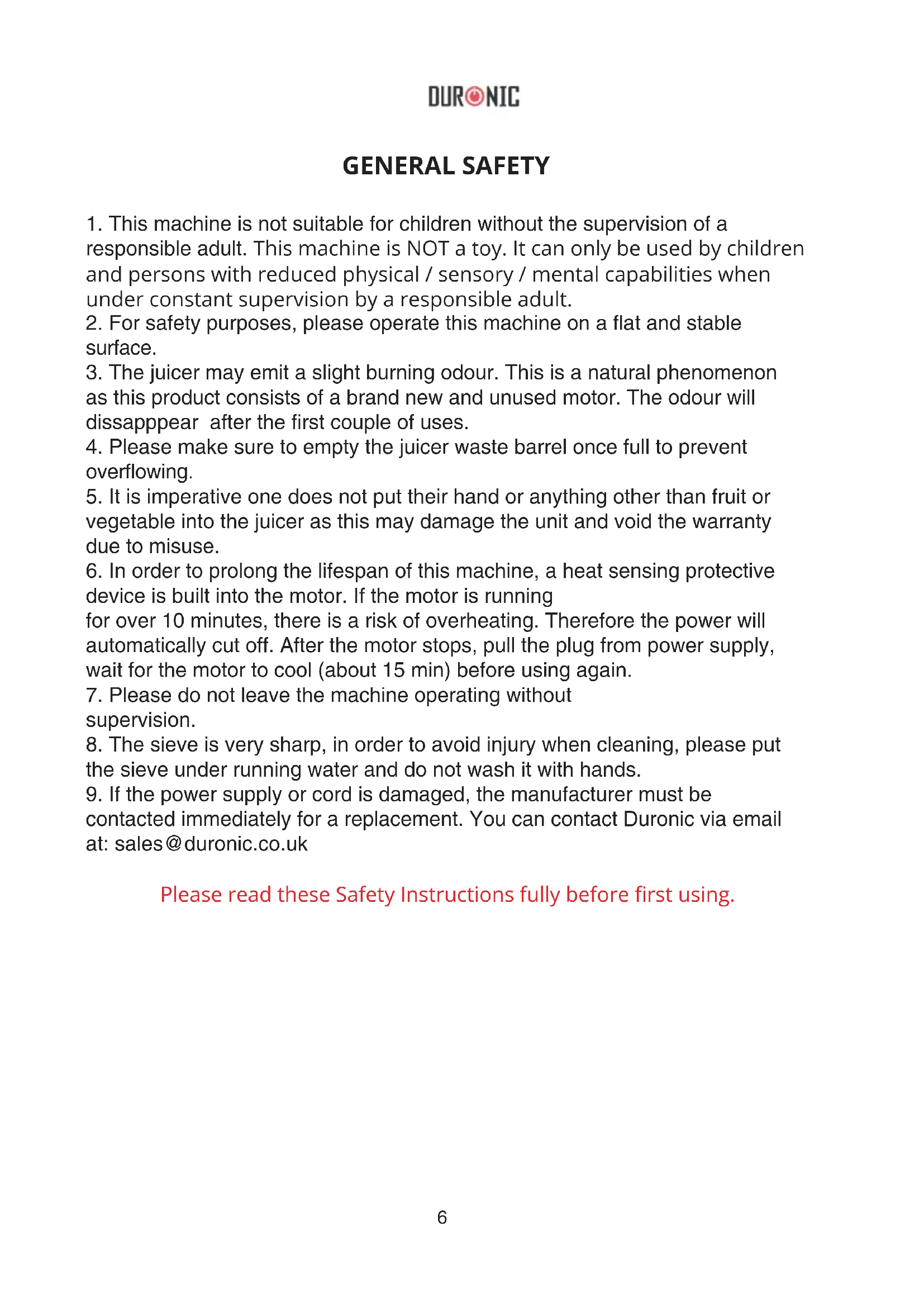

GENERAL SAFETY

1. This machine is not suitable for children without the supervision of a responsible adult. This machine is NOT a toy. It can only be used by children and persons with reduced physical / sensory / mental capabilities when under constant supervision by a responsible adult.

2. For safety purposes, please operate this machine on a flat and stable surface.

3. The juicer may emit a slight burning odour. This is a natural phenomenon as this product consists of a brand new and unused motor. The odour will dissappear after the first couple of uses.

4. Please make sure to empty the juicer waste barrel once full to prevent overflowing.

5. It is imperative one does not put their hand or anything other than fruit or vegetable into the juicer as this may damage the unit and void the warranty due to misuse.

6. In order to prolong the lifespan of this machine, a heat sensing protective device is built into the motor. If the motor is running

for over 10 minutes, there is a risk of overheating. Therefore the power will automatically cut off. After the motor stops, pull the plug from power supply, wait for the motor to cool (about 15 min) before using again.

1. Please do not leave the machine operating without supervision.

2. The sieve is very sharp, in order to avoid injury when cleaning, please put the sieve under running water and do not wash it with hands.

3. If the power supply or cord is damaged, the manufacturer must be contacted immediately for a replacement. You can contact Duronic via email at: [e-mail]

Please read these Safety Instructions fully before first using.

BEFORE JUICING

- Ensure power supply is suitable for the rated voltage of the machine.

- Ensure that all parts are clean and dry before assembling together.

• Always ensure the juicer is stood on an even, stable, clean and dry surface.

- Before using fruit, run the motor for 5 seconds to test it all works fine. On first use, because the motor is new, there may be a slight peculiar smell and/or spark. Please know that this is normal and after the motor works for a short period of time the above phenomenon will disappear.

DURING JUICING

- During juicing, make sure that the middle ring does not get too full with juice and pulp. If it is too full turn off the power supply, empty and clean the middle ring. Then reassemble to continue using.

- During use, do not open the handle or transparent cover.

- For your own safety, ff the power supply is on do not put your hand or anything other than food into the feed port. If you try to put anything other than fruit/vegetables into the juicer injury may occur or the machine could be damaged. Always use the pushing bar.

- When using the pushing bar ensure you push the fruit/vegetables in using a consistent force and steady speed.

- In order to prolong the life of this machine an over-heating protective element has included in the motor. If the motor works for a long time or goes over the 'warning temperature', the power supply will automatically cut off. If this happens, after the motor stops pull out plug of power supply and wait for the motor to cool (about for 30 min) before using again.

- Do not overload the juicer.

During operation do not leave children unattended with the machine. Supervision is required at all times.

AFTER JUICING

• After use, do not empty the machine until the power has been disconnected.
- CAUTION: the cutters are very sharp. To wash them hold the cutter under running water - do not wash it with your hands.
• This machine must not be used for anything other than making juice.
- You must not put anything in this juicer except fruit and vegetables.
- If you notice the wire or plug is damaged in any way, stop using the juicer immediately and contact the manufacturer to seek advice on repairing or replacing the machine.

MAINTENANCE & CLEANING

• If this machine is going to be used often, it is important to keep it clean and dry when not in use.
• If you plan on not using the machine for a long time, please store it in a dry and well-ventilated place to prevent the motor going mouldy.
• All parts of the machine such as pushing bar, cover, middle ring, residue cup and juice nozzle cover are all washable. To clean the main body of the machine wipe with a damp cloth and dry afterwards.

HOW TO USE YOUR JUICER

Before using the machine check the power switch on the machine is off [O]. It is dangerous to switch the machine on without it being fully assembled. Please see the diagram for a visual guide on how to assemble your juicer.

ASSEMBLY

1. Check the machine is switched off [O]
2. Place the middle ring (4) onto the main machine (6) and click into place, ensuring that the rotor lines up to the underside of the middle ring.
3. Put the juicing net (3) inside the middle ring (4) ensuring it slides into the space completely.
4. Place the transparent cover (2) on top and click into place.
5. Move the handle (5) upwards over the transparent cover and click into place.

DURONIC

1. With the machine empty, run the motor for 5 seconds before every use to ensure everything is connected properly.
2. Place the juicer jug (7) under the pouring spout ready to catch the juice.
3. Now you can start to add your fruit, using the pushing bar (1) to guide it through steadily while the machine grinds it into juice.

To prolong the life of your juicer we advise you follow this pattern when juicing:

1 minute juicing - stop for 1 minute - then use for 1 minute again. After you have used this method 3 times, stop for 15 minutes to allow the motor to cool.

Power Settings: [O] OFF [I] SLOW [II] FAST

DISASSEMBLY

1. Turn off the main machine(6) at the switch [O].
2. Switch off the machine at the power source.
3. Take out the pushing bar (1) and set aside to wash.
4. Lift and pull down the handle (5) towards the side of the machine.
5. Lift off the transparent cover (2), carefully take out the juicing net (3) and set both aside to wash.
6. Next unclick the middle ring (4) and discard the contents. Set the ring aside for cleaning also.
7. The feeding bar, transparent cover, juicing net and middle ring can all be washed by hand with warm soapy water. TAKE CARE: to prevent injury, wash the juicing net by running it under hot water. Do not wash it with your hands.
8. When dry, reassemble and store in a dry well-ventilated area.

JE7C FEATURES

- The design of the JE7C juicer is simple, elegant and a great addition to any kitchen. At the same time, it's been built to be robust and easy to use and clean.

- This juicer has a wide feed port/opening. This means you can put whole pieces of fruit, for example an apple or pear, for juicing. This means less cutting and less mess. Making juice is simple and quick!

- It has a high-speed electric motor with an over-heating protective element to prevent the machine overheating and burning out with prolonged use. It has been built to be energy saving, have high efficiency, be time saving and to ensure it has a long service life.

- There are two safety locks on the juicer. The first is on the main machine near the rotor and the second is the handle which locks the transparent cover/lid in place. Both of these need to be engaged in order for the juicer to work. If the handle is not fastened above the cover, or the middle ring is not attached properly to the main machine, the motor will not turn.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products.

NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
