BS301 - Scale Duronic - Free user manual and instructions

Product type	Impedance scale (body composition scale)
Maximum capacity	183.0 kg
Display	LCD
Power supply	2 AAA batteries (estimated)
Units of measurement	kg, lb, st (selectable by UNIT button)
Automatic recognition	Yes, from 2.0 kg
User memory	10 profiles (P0 to P9)
Age range	10 - 80 years
User height	100 - 240 cm
Body fat measurement	5 % - 50 %
Body water measurement	10 % - 80 %
Muscle mass measurement	10 % - 80 %
Bone mass measurement	0.0 kg - 8.0 kg
BMI calculation	Yes
Calorie analysis	Yes
Overload indicator	Displays "Err"
Low battery indicator	Displays "Lo"
Cleaning	Dry, soft cloth, without detergent
Warranty	1 year (Shine-Mart Ltd)
Standards	CE, WEEE

Frequently Asked Questions - BS301 Duronic

How to set up a user profile?

Press the SET button. Use the UP/DOWN buttons to select the user number, then confirm with SET. Then select gender, lifestyle (normal or sporty), height and age. Each confirmation is done by SET.

What does error Err2 mean?

The error Err2 indicates an impedance problem. It occurs if the feet are cold, if blood circulation is poor, or if you remove your feet too soon. To correct it, step on barefoot with warm feet well aligned on the electrodes, and remain still until the measurement is complete.

How to change the measurement unit (kg/lb/st)?

Press the UNIT button to switch between available units: kg, lb and st. The default unit is kilogram.

Why does the screen display 'Lo'?

The display Lo means the batteries are low. Replace the batteries with new ones. Use AAA batteries (estimated).

How to clean the scale?

Clean the scale with a dry, soft cloth. Do not use detergents or abrasive products. Avoid moisture as the scale is not waterproof.

Can the scale be used on a carpet or rug?

No, the scale must be placed on a flat, hard surface. Soft floors or carpets can distort measurements.

How many users can the scale memorize?

The scale can memorize up to 10 users, numbered from P0 to P9. Each profile stores personal data for analyses.

How does automatic recognition work?

If a user has already been registered, the scale automatically recognizes their weight. Simply step barefoot, wait for stabilization, and the measurements are displayed. If two users have a similar weight, press UP/DOWN to select the correct profile.

What to do if the scale does not turn on or does not measure?

Check that the batteries are installed and sufficiently charged. If the scale has been moved, perform two consecutive weighings to recalibrate it. Ensure the surface is hard and flat.

What is the warranty of the Duronic BS301 scale?

The scale is guaranteed 1 year by Shine-Mart Ltd (owner of the Duronic brand), from the date of purchase. The warranty covers electrical or manufacturing defects, subject to use in accordance with the instructions.

USER MANUAL BS301 Duronic

Creative Consumer Electronics

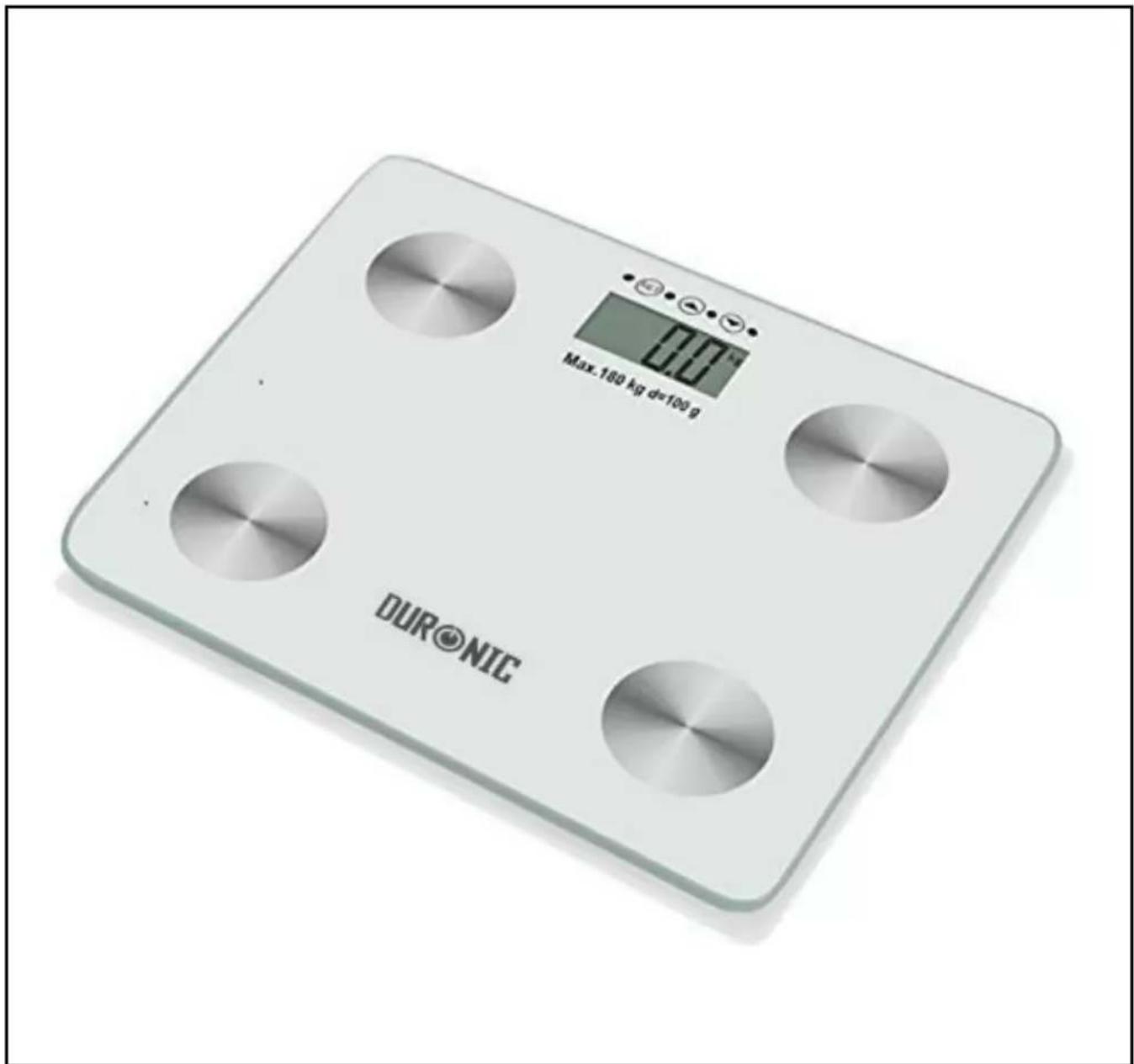

Digital DURONIC digital balance scale with four circular cutouts and a digital display showing maximum weight (100 kg, d=100 g)

Bathroom Scales - BS301

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 5

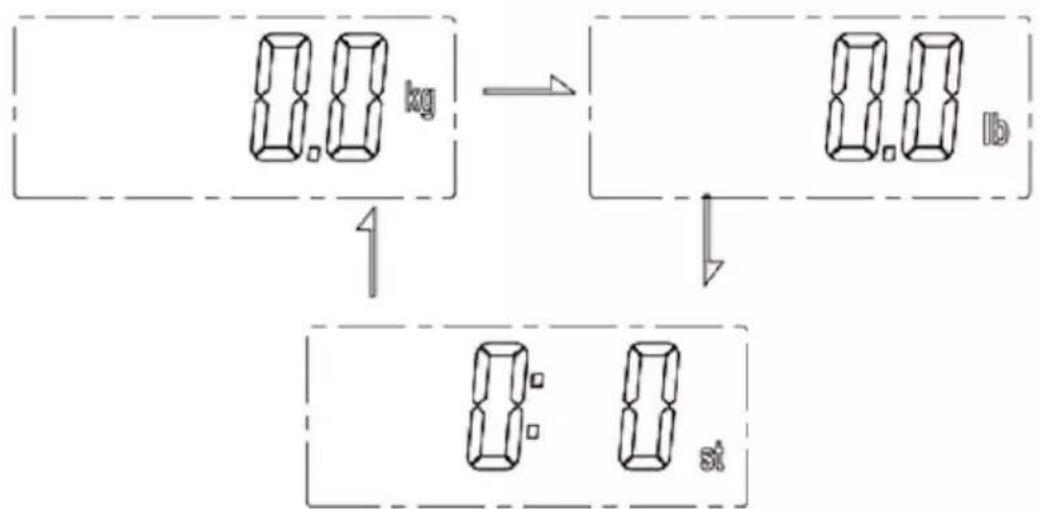

1. Default unit is kg.
2. Press UNIT button located on the back of the scale to convert units.

User Information

1. Press SET to enter setting mode.
2. Press or to change the user No. Press SET for confirmation.

1. Press or to choose male or female, then choose normal mode or sport mode (for users who regularly exercise). Press SET to confirm.

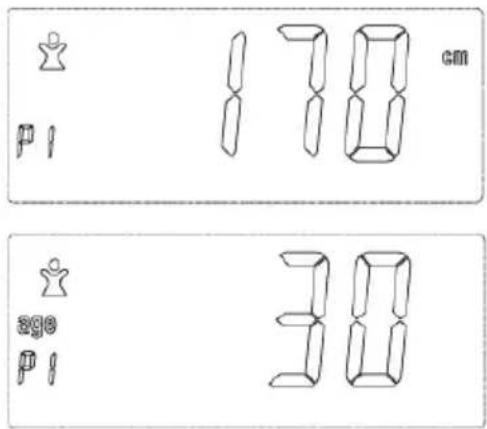

1. Press or to change the height. Press SET to confirm.

1. Press or to change the age. Press SET to confirm.

Weighing and Measuring Fat

1. After completing the settings, the scale will indicate "0.0"

1. Stand with bare feet on the scale and wait for a stable weight to display.

1. Four "O" will appear and disappear one by one from left to right.

Four identical 3D geometric shapes arranged horizontally within a rectangular frame (no text or symbols)

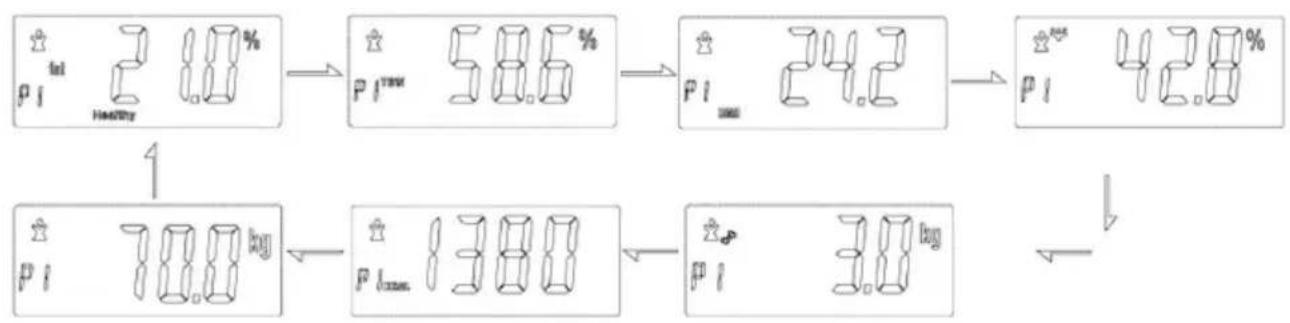

1. The measurements will be on display one by one. Body fat, water, BMI, muscle mass, bone mass, calorie and weight.

1. The scale will display the user information which will let the user confirm the information again. After the display, the scale will turn off automatically.

Important (Err2):

To analyse body mass, stand on the scale barefoot. If your feet are cold, if you have poor blood pressure, or if you step onto the scale too quickly, the measurement may be inaccurate. The Err2 message will display to indicate that there has been a problem. Make sure your feet are warm and aligned to the electrodes. Stand still with weight evenly balanced on each foot, and measure again.

Automatic Identification Range

1. If the user has correctly measured the fat weight, the scale will automatically memorize the user's weight and the user can directly stand on the scale to measure the fat weight next time without entering any information again.

2. Stand on the scale and wait for a stable weight to display.

1. Four "O" will appear and disappear from left to right when measuring.

Four identical 3D geometric shapes arranged horizontally (no text or symbols)

1. The LCD display will indicate the body fat, water, muscle, bone, calorie and weight in a sequence.

1. If the scale identifies the weight is similar to 2 other users, the user should use UP or DOWN to choose the specific user.

Grade Standards

Body fat analysis (Unit %)
Age	Female				Male
	Underweight		Overweight		Underweight	Healthy	Overweight	Obese Obese
10-39	<21	21-33	33-39	>39	<8	8-20	20-25	>25
40-59	<23	23-34	34-40	>40	<11	11-22	22-28	>28
60-80	<24	24-36	36-42	>42	<13	13-25	25-30	>30

Body water analysis (Unit %)
Age	Female Male
	Underweight	Healthy	Overweight	Underweight	Healthy	Overweight
10-15	<57 <67	57-67		<58 <72	58-72
16-30	<47 <57	47-57		<53 <67	53-67
31-60	<42 <52	42-52		<47 <61	47-61
60-80	<37 <42	37-47		<47 <56	42-56

BMI parameter (WHO)
		Normal Overweight		ObeseUnderweight
BMI <18.5		18.5-25	25-30	<30

Body muscle analysis (UNIT: %)
Gender	Female	Male
Normal	>34% >40%

1. Ensure the scale is on a flat, even surface. Avoid carpet or soft surfaces.
2. The surface of the scale will be slippery when wet. Please make sure both the glass and your feet are dry before use.
3. This scale is not waterproof. Do not expose to moisture.
4. Clean the scale with a slightly damp cloth. Do not use any chemical cleaning agents to clean the scale.
5. Please remove the batteries, if the scale is not being used for a long period.
6. When using the scales for the first time, or when changing their position or location, they should be restarted twice and should be free of interferences to ensure accurate measurements. This is for calibrating your scale. If you do not perform these measures, the measurements may be incorrect.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
