Brand Fuxtec
Model FX-E1LG1A
Product type Battery charger
Compatible battery type Li-Ion FUXTEC 20V series
Input voltage 230 V~, 50 Hz
Rated power 25 W
Charging voltage 20.9 V=
Charging current 1 A
Protection class II
Dimensions (approx.) 12 x 8 x 6 cm
Weight (approx.) 300 g
Main functions Charging Li-Ion 20V batteries, charging light indicator, battery charge level check
Maintenance and cleaning Disconnect before cleaning, do not immerse, clean with a dry cloth
Safety Do not charge incompatible batteries, do not expose to fire or temperatures >130°C, avoid short circuits
Spare parts and repairability Accessories available at www.fuxtec.fr (batteries, chargers, etc.)
General information Domestic use, recyclable according to regulations (Triman logo)

Frequently Asked Questions - FX-E1LG1A Fuxtec

What type of battery can I charge with this Fuxtec FX-E1LG1A charger?
This charger is designed exclusively for Li-Ion batteries from the FUXTEC 20V series. Do not use other types of batteries.
How do I charge the battery correctly?

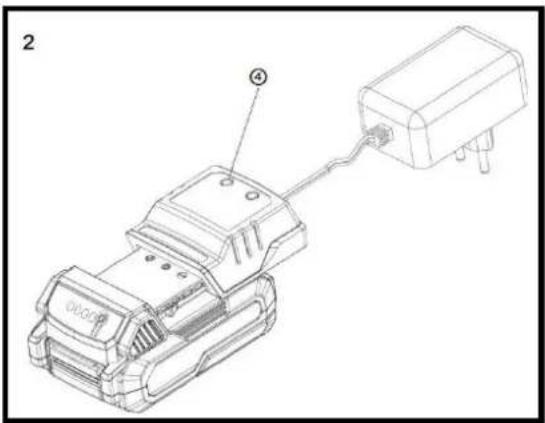

Press the locking button to remove the battery from the device, insert it into the charger, then plug the charger into a power outlet. The indicator lights show the charging status.
What should I do if I come into contact with liquid leaking from the battery?
Avoid any contact. In case of accidental contact, rinse thoroughly with water. If liquid gets into the eyes, consult a doctor immediately.
Can I use this charger with batteries from other brands?
No, use only batteries recommended by Fuxtec. Using other batteries may cause a risk of fire or injury.
How do I check the remaining charge level of the battery?

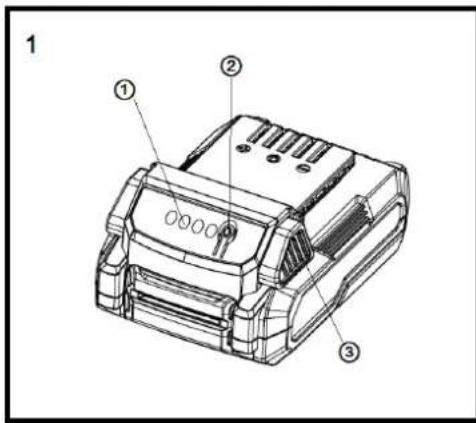

Press the indicator button on the battery. The indicator lights display the remaining capacity.
Does the charger heat up during use?
A slight temperature rise is normal. If the charger becomes very hot, stop using it and check compatibility. Do not cover the charger during charging.
Where can I dispose of the charger at the end of its life?
The charger, its accessories and cords are recyclable. Dispose of them at a store or recycling center in accordance with regulations (Triman logo).
What is the rated power of the charger?
The rated power is 25 W.
What accessories are available for this charger?
You can purchase additional batteries (2Ah, 4Ah) and fast or dual chargers at www.fuxtec.fr.
What should I do if the battery does not charge?
Check that the battery is properly inserted, that the charger is plugged in, and that the socket works. If the problem persists, contact Fuxtec customer service.
