Product type	Battery charger
Brand	Fuxtec
Model	FX-E1LG3A
Input voltage	230 V~, 50 Hz
Rated power	70 W
Charging voltage	20,9 V=
Charging current	2,4 A
Compatible battery type	Lithium-Ion (Li-Ion) FUXTEC 20 V series
Protection class	II
Indicators	Charging and battery level LED
Main functions	Fast charging, remaining capacity check
Maintenance and cleaning	Clean with a dry cloth; do not immerse in water
Safety	Use only with recommended batteries; avoid short circuits; do not expose to water or heat
Available accessories	Batteries 2 Ah and 4 Ah, charger 1 A, dual charger 2 × 2,4 A
Recycling	Compliant with WEEE directive; do not dispose of with household waste; drop off at a recycling center or store

Frequently Asked Questions - FX-E1LG3A Fuxtec

How to charge the battery with this charger?

Remove the battery from the tool using the lock button, insert it into the charger, then plug the charger into the mains. The LEDs indicate the charging status. Once charged, insert it into the tool until it clicks.

What types of batteries can I use with the FX-E1LG3A?

This charger is exclusively intended for Lithium-Ion batteries from the FUXTEC 20 Volt series. Using other batteries presents a fire risk.

What to do if the battery does not charge?

Check the connections, ensure the battery is properly inserted and the charger is plugged in. If the LEDs do not light up, the charger or battery may be defective. Consult a professional.

Can I use this charger for other brands of batteries?

No, this charger is designed only for FUXTEC 20 V batteries. Using other batteries may cause injury or fire.

How to check the remaining charge level on the battery?

Press the button on the battery. The LEDs indicate the remaining capacity. This function is available even without the charger.

What to do in case of battery fluid leakage?

Avoid any contact. In case of accidental contact, rinse thoroughly with water. If the fluid gets into the eyes, consult a doctor immediately.

How to maintain the charger?

Clean it with a dry cloth. Do not immerse it in water or expose it to moisture. Keep the contacts clean.

Is this charger compatible with 4 Ah batteries?

Yes, it charges all batteries from the FUXTEC 20 V series, including the 2 Ah and 4 Ah models.

How to dispose of the charger at the end of its life?

Do not throw it in household waste. Drop it off at a recycling center or store. According to the WEEE directive, it must be recycled.

What accessories are available for this charger?

You can purchase additional batteries (2 Ah, 4 Ah), a 1 A charger, and a dual charger 2 × 2.4 A on the FUXTEC website.

USER MANUAL FX-E1LG3A Fuxtec

Yellow electric vehicle charging station with two 20V socket and red cord, no visible text or symbols on body

Orange icon of a person reading a book (no text or symbols)

Manual\_FX-E1LG3A\_Int24\_rev3

DEUTSCH VERSION....1

ENGLISH VERSION 8

VERSION FRANCAISE 11

POLSKA WERSJA JEZYKOWA 29

DEUTSCH VERSION....1

1. Intended Use 8
2. Use and handling of the battery tool 8
3. Charging the battery....9
4. DISPOSAL....9
5. Technical data....10
6. Accessories....10

VERSION FRANCAISE 11

POLSKA WERSJA JEZYKOWA....29

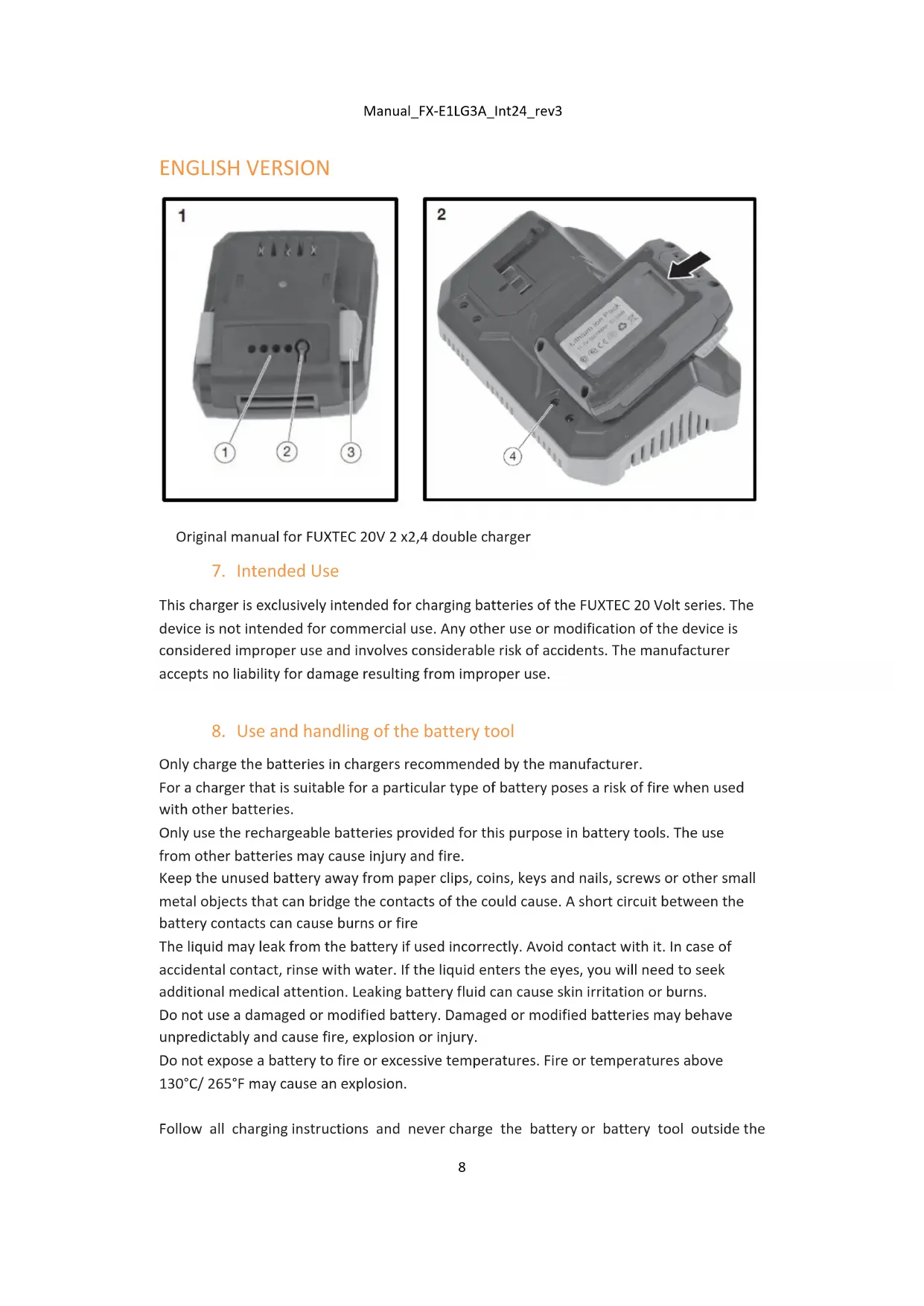

This charger is exclusively intended for charging batteries of the FUXTEC 20 Volt series. The device is not intended for commercial use. Any other use or modification of the device is considered improper use and involves considerable risk of accidents. The manufacturer accepts no liability for damage resulting from improper use.

8. Use and handling of the battery tool

Only charge the batteries in chargers recommended by the manufacturer.

For a charger that is suitable for a particular type of battery poses a risk of fire when used with other batteries.

Only use the rechargeable batteries provided for this purpose in battery tools. The use from other batteries may cause injury and fire.

Keep the unused battery away from paper clips, coins, keys and nails, screws or other small metal objects that can bridge the contacts of the could cause. A short circuit between the battery contacts can cause burns or fire

The liquid may leak from the battery if used incorrectly. Avoid contact with it. In case of accidental contact, rinse with water. If the liquid enters the eyes, you will need to seek additional medical attention. Leaking battery fluid can cause skin irritation or burns.

Do not use a damaged or modified battery. Damaged or modified batteries may behave unpredictably and cause fire, explosion or injury.

Do not expose a battery to fire or excessive temperatures. Fire or temperatures above 130^ C/265°F may cause an explosion.

Follow all charging instructions and never charge the battery or battery tool outside the

temperature range specified in the operating instructions.

Incorrect charging or charging outside the approved temperature range can destroy the battery and increase the risk of fire.

9. Charging the battery

• The battery must be charged before first use.
• Press the locking key (3) and remove the battery from the machine.

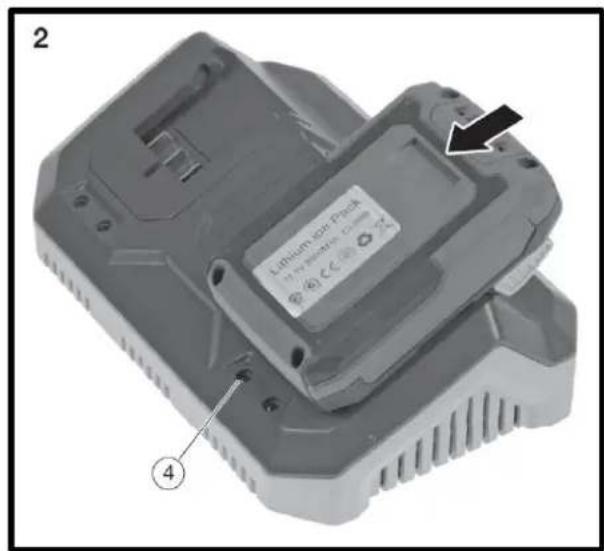

• Insert the battery pack in the charger.
• Connect the battery charger to the power supply. The charging status is indicated by the control lamps (4).
• Insert the battery pack into the device and ensure that it clicks into place correctly.

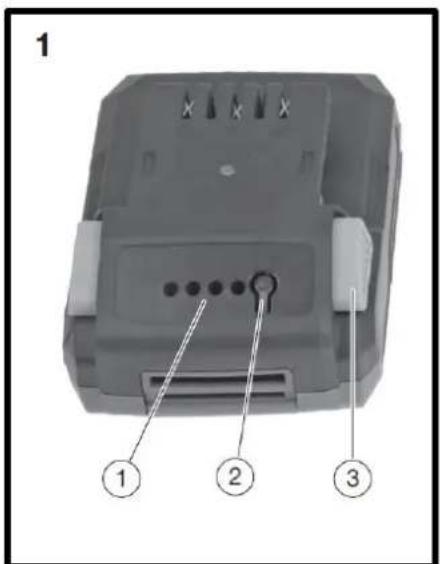

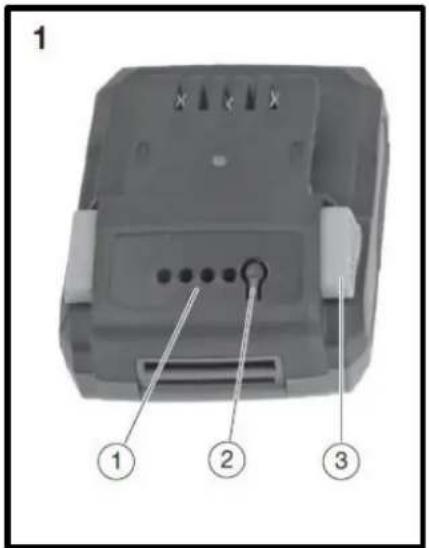

  Check the remaining capacity of the battery pack.
• Press the key (2). The remaining capacity of the battery is indicated by the control lamps(1).

10. DISPOSAL

WARNING!

Make used power tools unusable before disposal:

• mains-operated power tools by removing the connecting plug,
• battery operated power tools by removing the battery.

For EU countries only

Do not throw power tools in household waste! According to the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, used electrical equipment must be collected separately and sent for environmentally sound recycling. Raw material recovery instead of waste disposal. Appliance, accessories and packaging should be

recycled in an environmentally friendly way. Plastic parts are marked for recycling according to type.

WARNING!

Do not throw batteries in the household waste, fire or water. Do not open spent batteries. Batteries should be collected, recycled or disposed of in an environmentally friendly way.

For EU countries only: According to Directive 2006/66/EC, defective or used batteries must be recycled.

i NOTE

Please contact your local authority/city for information on disposal options

11. Technical data

Part Number
Battery Type	Li-Ion
Rated Voltage	230V~, 50Hz
Rated Power	140W
Charging voltage	20.9V=
Charge current	2.4A
Protection class	II

12. Accessories

You can purchase the following accessories at www.fuxtec.com

	Accessories
	Battery Pack 4Ah
	Battery Pack 2Ah
	2.4A fast charger
	1A charger
