USER MANUAL QuietClean HFD230 HONEYWELL

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS AIR PURIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before operating the air purifier.
2. Place air purifier where it is not easily knocked over by persons in the household.
3. Always turn the air purifier controls to the OFF position and unplug from the wall outlet when not in use.
4. To disconnect the air purifier, press the Power button to turn the unit off, grip the plug and pull it from the wall outlet. Never pull by the cord.
5. Do not use any product with a damaged cord or plug or if product malfunctions, is dropped or damaged in any manner. Keep the cord away from heated surfaces.
6. Do not use air purifier outdoors.
7. Never use air purifier unless it is fully assembled.

8. Do not run power cord under carpets, and do not cover with throw rugs. Arrange cord such that it will not be tripped over.

9. Do not use air cleaner where combustible gases or vapors are present.

10. Do not expose the air purifier to rain, or use near water, in a bathroom, laundry area or other damp location.
11. The air purifier must be used in its upright position.
12. Do not allow foreign objects to enter ventilation or exhaust opening as this may cause electric shock or damage to the air purifier. Do not block air outlets or intakes.
13. Locate air purifier near the outlet and avoid using an extension cord.
14. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

DO NOT attempt to defeat this safety feature.

1. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
2. Do not sit, stand or place heavy objects on the air purifier.
3. Disconnect power supply before servicing.

Note: For FCC compliance information, please see last page of this manual.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Air Purifier With Any Solid-State Speed Control Device.

Honeywell is a trademark of Honeywell International Inc., used under license by Helen of Troy Limited.

Honeywell International Inc. makes no representation or warranties with respect to this product.

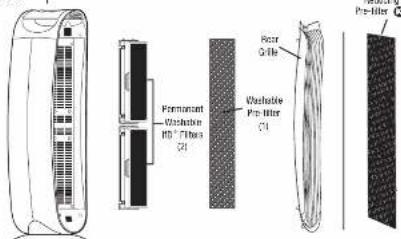

YOUR AIR PURIFIER

Control Panel with imports Carry Handle

The waitable pre-filter came method: In your air purifier and remove larger particles from the air that passes through the filter. You can use this waitable pre-filter, or you have the choice to use the Optional Odar & WIDE Retraction, or the prefilter that is mounted in a ring that carries still the air purifier. In addition to exploring larger particles, the Pre-Filter also offers a way to use the Air Purifier. Use this Pre-Filter, note that it cannot be cleaned and should be replaced every 3 months for optimum performance.

HOW YOUR AIR PURIFIER WORKS

This model air purifier incorporates a 3-stage cleaning system to help clean the air that passes through the filter in the unit (Fig. 1).

Stage 1: Writable or Door-canceling Pre-Fisher and the pre-fisher should be replaced with a

Stage 2: Permanent Washable iD² Filter
Stage 3: Electronic limeter

SET-UP

• Select a firm, level and flat location. For best airflow, locate the unit 8 inches from any wall or furniture.
• When operating, large volumes of air are drawn toward the air purifier. Surrounding areas should be cleaned under vacuumed frequently to prevent buildup of dust and other contaminants. This may also help prolong the life of the filter. If the unit is placed on a light-colored carpet, a small mat or rug should be used underneath to prevent permanent staining. This is especially important in homes with contamination from smoking or fireplace.

2

HFO35B0019-2001301270011123

ENERGY STAR

This product earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.

The energy efficiency of this EMBRY STAT® qualified model is measured based on a ratio between the model's CAGR for Dust and the electrical energy it consumes, or CAGR/Waste.

OPERATION

• Ensure the air purifier is plugged into a working electrical outlet.

Press the power below: (Gone). The unit will start at medium speed for a few accords and then automatically change to low speed (Fig. 2).

Press the power button again to select a different cleaning level. Portable air purifiers are more effective in rooms where all doors and windows are closed. In general, it is recommended that you run your air purifier while you are at home to clean the air.

DIMMER OPTION

The Dimmer Option -galves you to adjust the brightness of the LED.
show on the control panel. You may wil to adjust the brightness depending depending on the room where the unit is placed.

The unit always turns on with brightness on HIGH
Press the button once and LED display will dim (Fig. 3).
The LED lights cannot be turned completely off
- Pressing the button a 2nd time will turn the LED light brightness back to HIGH.

OSCILLATION OPTION

To help circulate freshwater, cleaner air through the room, this unit has an oscillation feature.
To turn Oscillation on, simply press the Oscillation button (_i = 1^n_j = 1^n) (Fig.4). To turn Oscillation off, press the button again.

2

10771 6:0PM

ELECTRONIC FILTER CLEAN REMINDER

This model air purifier has an electronic filter check to remind you when to check and clean the washable filter and washable pre-filter based on the air purifier's hours of use.

When the filters need to be cleaned, the CHECK FILTERS light will remain an until it is RESET. You may enjoy the air cleaner without interrupting the filter check. A cool LED light will illuminate when it is fine to clear the filters.

You should periodically check the filters. Depending on operating conditions, the filters should be cleaned at least every 3 months.

To RESET the Electronic Filter Check:

After the IDP filters and pre filter have been cleaned and returned to the unit, with the unit still in POWER OFF mode, press and hold the CHECK FILTERs button (see Fig. 5i for 3 seconds. The CHECK FILTERs rod LED or flash force indicating the filter check has been reset. The red LED will no longer be illuminated. These cleaning intentions are intended as guidelines any. Performance of any filter media is dependent upon the concentration of contaminants going through the system. High concentrations of contaminates such as dust, pet dancer and smoking will reduce the useful performance of the filter.

REMOVING THE FILTERS

The iDf filters are supplied within the air purifier.

Turn-off and unplug the air purifier. While pressing on the release tab at the top of the rear grille, pull the grille towards you, and remove it (See Fig. 8). Gently push along the edge of the filter frame and pull forward. Repeat for the second filter.
After cleaning, space filters back into the air purifier housing and snap filter grills back into pace.

CLEANING THE IFD* FILTERS

To clean the iDx filters:

• After removing the ID^空 fillers from the air purifier, follow the steps below to wash the ID^空 filters.

Turn the power off and unplug the air purifier.
- Rinse the filter with clean tap water (Fig. 7).
- If the filter still appears dirty, proceed to "washing," otherwise proceed to "Drying."

Washing:

• Remove the ifD* filters from the unit.
• Fill a sink with lukewarm water and add a few drops of mild dish soap.
  Ganty swash the hilter in the soap solution to clean.
• Star the times for 2-3 minutes, as not leave for an extended period of time.
• Hrabe the fere with clean (2p Auer | Fig. 7).

HF03EOM 1989013012700V111cd45510745-5P

CLEANING THE IFD FILTERS (Cont)

Drying:

• Shake the filters to remove any excess water.
• Place the filters with the honeycomb side down on a plush towel.
  Note that the filters may still be discolored even after washing.
• Alone the IDs filters to dry for a few hours or overnight
• When the IDF filters are completely dry, place back into the air purifier.

CAUTION:

• Never place wet IPD filters in your air purifier.
  The IDP filters is NOT dishwasher safe. Do not place the IDP filters in a dishwasher or subject them In other categories hot water conditions.
  Do not use any solvents, strong cleaning agents or flammable liquids to clean the lift filters.

MAINTAININGOURWASHABLEPRE-FILTER

The pre-filter helps pick up large aggregate particles that order the rarer grails. This pre-filter can be periodically removed and thrown to clean it. Alternatively, it can be rinsed by hand under warm water (Fig. 8). Let the pre-filter air dry completely before inserting back into the grails (Fig. 9). If you need to replace this item, please call 1-800-477-0457 or visit www.laws.com.

OPTIONAL: Changing the Odor Absorbing Pre-Filter

If you have chosen to use the oder absorbing 3 pre-filler it will lose its
eouoeess eonsspsponover nne and onnene to be repae
To insert it into the unit, simply place secure into the rear grille in lieu.

it using the color scloring pre-hiter. it is recommended that you store the
1
NOTE The door absorbing pre - filter is not washed.

CLEANING AND STORAGE

We recommend that you clean the air purifier at least every 3 months and before extended storage. Use only a dry cloth to wipe the external surfaces of the air purifier. DO NOT USE WATER, WAX POLISH, OR ANY CHEMICAL SOLUTION.

FREQUENTLY ASKED QUESTIONS

How often is cleaning required?

About every 3 months depending on the air quality in the main. We recommend visiting the ifft - filters when needed but not more than once a month.

In general, it is recommended that you run your air purifier when you are at home to clean the air. The unit may be run 24/7 if preferred. This unit will be more effective when doors and windows are closed

ACCESSIONS AND REPLACEMENT FILTERS

There is an optional Pre-filter that can be purchased and used with this air purifier that will help reduce common household odors and VOCs. This Pre-filter (HRF-K2) can be used in lieu of the permanent washable Pre-filter that is supplied with the air purifier. The optional Pre-filter should be replaced every 3 months for optimum odor and VDC reduction performance.

You may purchase Honeywell replacement Door & VDC Reducing Pre-Titer at the state where you purchased your air purifier or order directly directly from www.replacementcorrection.com.

If you have any questions about your iHD filters or the Washable Pro-filter (T3024), visit our website at www.kaz.com or call Consumer Relations at 1-800-477-0457.

CONSUMER RELATIONS

Mail questions or comments to: jg@USAInc.

Gazprom Relations Dept.

250 Tumpike Road

Southborough, MA 0172

Call us toll-free at 1-800-477-0457

E-mail: [e-mail]

Cr viiour website at: www.kaz.com

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DO SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE AIR PURifier OR PERSONAL INJURY.

5 YEAR LIMITED WARRANTY

You should first read all Instructions before attempting to use this product.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and loa will not be considered a factor for this limitation. AUS USA &IC is NOT LIABOR FOR INCIDENTAL OR CONSEJCTUAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an involved warranty lasts, so the above limiting warranties do not apply to any products you own. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B. At its option, Kaz USA, Inc. will repair or
replacethisproductifitiscountto be
C. This warranty does not cover damage resulting from the use and attempts to repair, or from any use not in accordance with the instruction manual.

D. This warranty does not cover the ID ^II filter or pre-filter except for material or workmanship.
E. Return defective product to Kaz USA, Inc. with a brief description of the problem, include proof of purchase and a S10 US$15.50 GNA check or money order for handling, return packing and shipping, etc. Please include your name, address and a faxing phone number. You must prepay shipping charges. We suggest having tracking or delivery confirmation. Send to:

In U.S.A.

Nir
1. Heen of Toc Plaza
ElPiso,TX79912
USA

In Canada:

Kaz Canada, Inc.
Aim: Returns Department
510Bme St 8et Soutn Mil-ONL7523
mnnn nn nnnn

Please go to www.kaz.com and register your product under the Customer Care Center and receive product information updates and new promotional offers.

Guide d'utilisation

Honeywell

IMPORTANTSESTRUCTIONSDE SECURITE

LIRE ET CONSERVERCS INSTRUCTIONS DE SECURITE AVANT D'UTILISER LE PURIFIATEUR D'AIR

ACCESSIONS ET FILTRES DE REMPLACEMENT

Effectiveness of the proposed method are presented in Table 1. The results show that it is superior to placebo for ease of use and better than placebo (Fig. 1).

Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 10 of the RSC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment, generally, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, the use of this equipment may not be safe or effective. The application of this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or misplace the retearing antenna.
• Increase the aspansion between the equipment and receiver.
  Connect the eqioment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced male TV technician for help.

Warning: Charges or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

230 Tampike Road
Bathborough, MA 01772

The ifD trademark is used by Helen of Troy Limited

under license from Darwin Technology International Limited.

Imported and Distributed by: Kaz Canada, Milton ON, L9T 2X6

Contact us at 1-800-477-0457 or www.kaz.com
