E522D - Hedge trimmers Fuxtec - Free user manual and instructions
Find the device manual for free E522D Fuxtec in PDF.
| Product Type | Cordless Hedge Trimmer |
| Brand | Fuxtec |
| Model | E522D |
| Rated Voltage | 40 V DC |
| Compatible Battery Type | EP20 (2.0 Ah), EP40 (4.0 Ah), EP60 (6.0 Ah) |
| No-load Speed | 1300 rpm |
| Cutting Length | 560 mm |
| Maximum Branch Diameter | 22 mm |
| Weight (without battery) | 3.2 kg |
| Weight of EP20 battery | 0.9 kg |
| Weight of EP40 battery | 1.3 kg |
| Weight of EP60 battery | 1.7 kg |
| Sound Pressure Level | 88.4 dB(A) |
| Guaranteed Sound Power Level | 92 dB(A) |
| Vibration Emission Value | 2.5 m/s² (K=1.5 m/s²) |
| Double-sided Cutting | Yes |
| Rotatable Rear Handle | Yes, 90° left/right |
| Safety Circuit | Two-hand switch (safety + power) |
| Battery Charge Indicator | LED |
| Blade Protection Cover | Protective sheath included |
| Maintenance | Dry cleaning, regular oiling of the blade |
| Recommended Storage Temperature | 10 °C to 25 °C |
| Warranty | 24 months |
| Usage | Private, garden |
| Compliance Standards | CE, EN 60745, EN 55014 |
| Manufacturer | FUXTEC GmbH, Kappstrasse 69, 71083 Herrenberg, Germany |
Frequently Asked Questions - E522D Fuxtec
User questions about E522D Fuxtec
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge trimmers in PDF format for free! Find your manual E522D - Fuxtec and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. E522D by Fuxtec.
USER MANUAL E522D Fuxtec
de Originalbetriebsanleitung 2
en Original operating instructions 15
fr Notice d'instructions d'origine 27
it Manuale originale di istruzioni....40
Inhalt
Safety warning symbols and a 92 dB LWA sign, indicating hazard and anti-impacted behaviors.text_image
Exploded view diagram of a chain-linking tool with numbered parts for identificationEP20 (2,0 Ah), EP40 (4,0 Ah),
EP60 (6,0 Ah)
E522D
de
Illustration of a hand using a tool to install a mechanical component, with an inset showing the same assembly (no text or symbols present)natural_image
Illustration of a person using a hatched tool to cut a grassy hillside, with an inset showing the same tool (no text or symbols present)Symbols used in this manual ..... 15

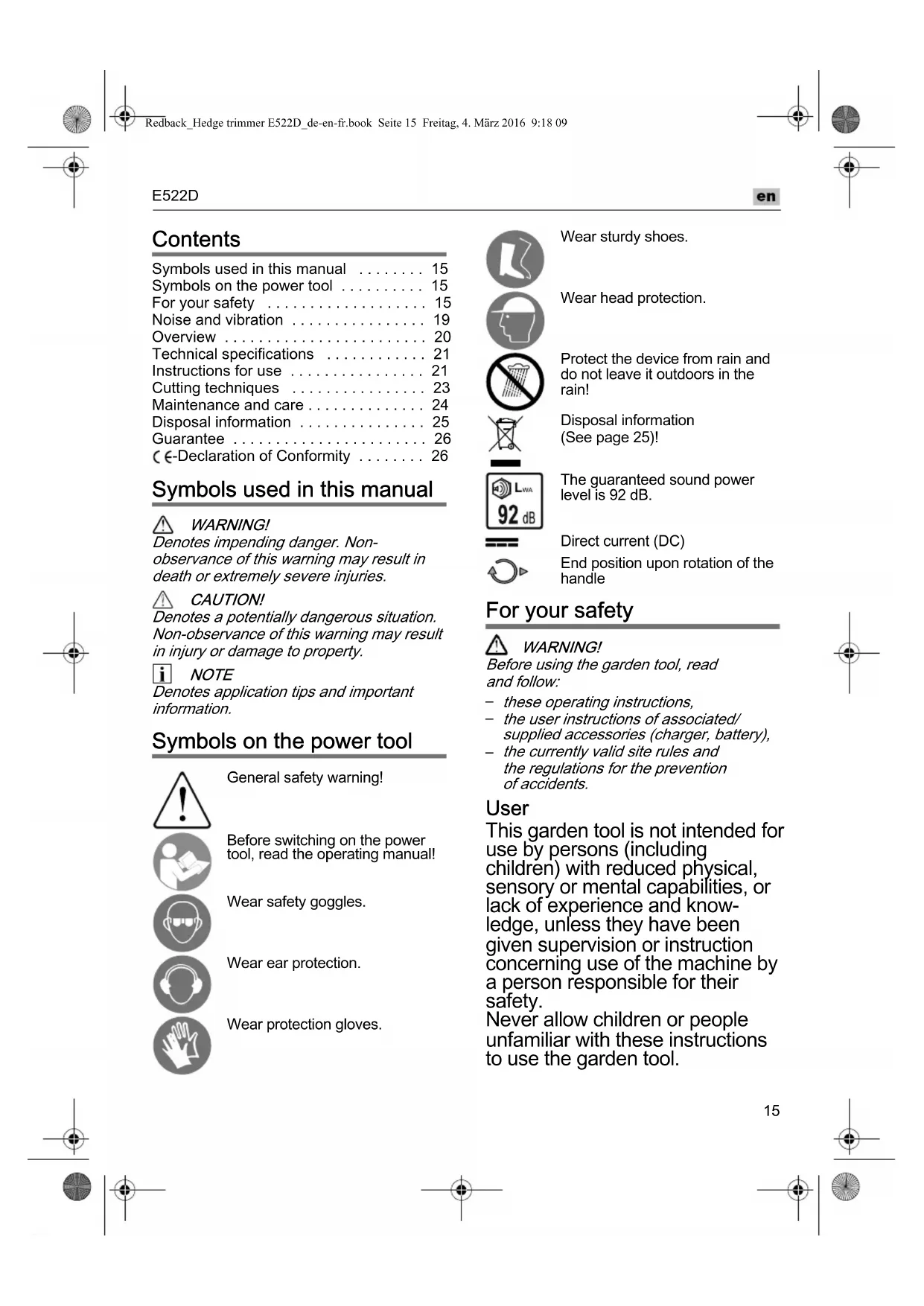

Symbols on the power tool 15
For your safety 15
Noise and vibration 19
Overview 20
Technical specifications 21
Instructions for use 21

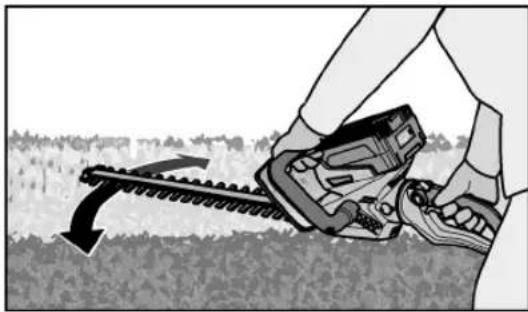

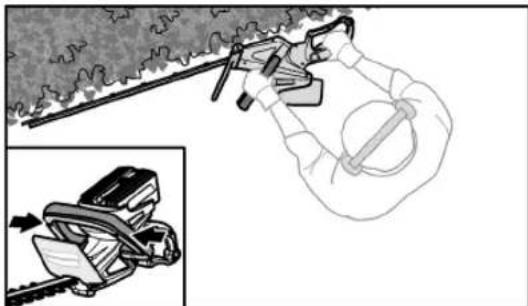

Cutting techniques 23
Maintenance and care 24
Disposal information 25
Guarantee 26
(€-Declaration of Conformity ..... 26
Symbols used in this manual
WARNING!
Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.
CAUTION!
Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.
NOTE
Denotes application tips and important information.
Symbols on the power tool
General safety warning!
Before switching on the power tool, read the operating manual!
Wear safety goggles.
Wear ear protection.
Wear protection gloves.
Wear sturdy shoes.
Wear head protection.
Protect the device from rain and do not leave it outdoors in the rain!
Disposal information (See page 25)!
The guaranteed sound power level is 92 dB.
Direct current (DC)
End position upon rotation of the handle
For your safety
WARNING!
Before using the garden tool, read and follow:
- these operating instructions,
- the user instructions of associated/supplied accessories (charger, battery),
- the currently valid site rules and the regulations for the prevention of accidents.
User
This garden tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
Never allow children or people unfamiliar with these instructions to use the garden tool.
en
E522D
Supervise children. This will ensure that children do not play with the unit.
Intended use
This garden tool is
- intended for cutting and trimming hedges and bushes which have a maximum branch thickness of 22 mm;
– designed for maintaining hedges and bushes in the private sector, - not suitable ifor work above shoulder height,
– to use according to the descriptions and safety instructions indicated in this operating manual.
Any other use is not as intended. Improper use is not covered by the warranty and the manufacturer will reject any liability. The user is liable for all injuries to third parties and damage to their property.
Operate the unit only in the technical condition as stipulated and delivered by the manufacturer.
Arbitrary changes to the unit will exclude the manufacturer from any liability for resulting injury and/or damage.
General Power Tool Safety Warnings
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
The term "power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
- Keep work area clean and well lit. Cluttered and dark areas invite accidents.
■ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
■ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
■ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
■ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
■ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
E522D
en
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
■ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Power tool use and care
■ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
■ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
■ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
Battery tool use and care
■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
■ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Service
■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
en
E522D
Safety instructions for hedge trimmers
- Keep all body parts away from the cutter. Never attempt to remove the clippings while the blade is running or hold material which is to be cut. Before removing any jammed clippings, switch off the unit. A moment of inattention when using the hedge trimmer may result in serious injuries.
- Carry the hedge trimmer by the handle when the blade has stopped. When transporting or storing the hedge trimmer, always remove the battery and pull on the guard. Handle the unit carefully to reduce the risk of injury from the blade.
■ Hold the electric power tool by the insulated handle surfaces only, as the cutter may touch concealed power lines. If the cutter comes into contact with a live line, metallic parts of the unit may become energised and cause an electric shock.
Additional safety instructions
This unit is not designed to be used by persons (including children) who have limited physical, sensory or mental abilities or who have inadequate experience and/or knowledge of the unit, unless they are supervised by a person responsible for their safety or they have been instructed by the person how to use the unit. Children should be supervised to ensure that they do not play with the unit.
- Switch the unit off and remove the battery under the following conditions: - if the unit is left unattended; - before checking, cleaning or performing other work on the unit; - if the unit starts vibrating excessively.
■ While cutting, ensure that there are no persons (particularly children) or animals in the working area. Ensure that children do not play with the unit.
■ Before switching on the hedge trimmer, ensure that the working area is free of stones and pieces of wire. Look out for them while cutting and search the hedge for concealed objects, such as wire fences.
■ Use the unit only in daylight or in good artificial lighting.
■ Use the unit in dry conditions only. Protect it from rain and moisture.
■ Ensure that the cutter does not touch the ground or other objects.
■ Wait until the electric power tool has come to a standstill before putting it down.
■ When interrupting work, never leave the unit unattended and keep it in a safe place.
■ Always switch the hedge trimmer off before transporting it to other workplaces.
■ Never grasp the blade of the hedge trimmer.
■ Ensure that all guards and handles are fitted before using the unit. Never attempt to switch on an incompletely assembled unit or a unit which has unauthorised modifications.
■ Operate the unit only in the technical condition stipulated and delivered by the manufacturer. Unauthorised changes to the unit exclude liability of the manufacturer for any resulting damage and/or injury.
■ Spare parts must conform with the requirements specified by the manufacturer. Therefore use original spare parts only or spare parts authorised by the manufacturer. When replacing parts, please follow the supplied installation instructions and remove the battery beforehand.
■ Have repairs carried out exclusively by a qualified technician or a service centre.
Safety instructions for the battery charger
- Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.
- Keep the battery charger clean.
Contamination can lead to danger of an electric shock.
■ Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
E522D
en
■ Do not place any objects on the battery charger and do not place the battery charger on soft surfaces.
There is a risk of fire.
■ Always check that the mains voltage matches the voltage indicated on the rating plate of the battery charger.
■ Never use the charger if cable, plug or the unit itself has been damaged by external influences. Take the charger to the nearest service centre.
■ Never open the battery charger. If the battery charger is defective, take it to a service centre.
Safety instructions for Li-ion batteries
■ Do not open the battery.
There is a risk of a short-circuit.
■ Protect the battery from heat, e.g. from continuous exposure to sunlight, fire, water and humidity.
There is a risk of explosion.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
■ Use only original batteries with the voltage indicated on the rating plate of your electric power tool. If other batteries are used, e.g. imitations, reconditioned batteries or third-party products, there is a risk of injuries as well as damage caused by exploding batteries.
■ The battery voltage must match the battery charging voltage of the battery charger. Otherwise there is a risk of fire and explosion.
■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Pointed objects, such as nails or screw-drivers, or external forces may damage the battery. This may cause an internal short-circuit and the battery to burn, smoke, explode or overheat.
Noise and vibration
i
NOTE
Values for the A-weighted sound pressure level and for the total vibration values can be found in the "Technical specifications" table.
!
CAUTION!
The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.
i
NOTE
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
!
CAUTION!
Wear ear protection at a sound pressure above 85 dB(A).
en
E522D

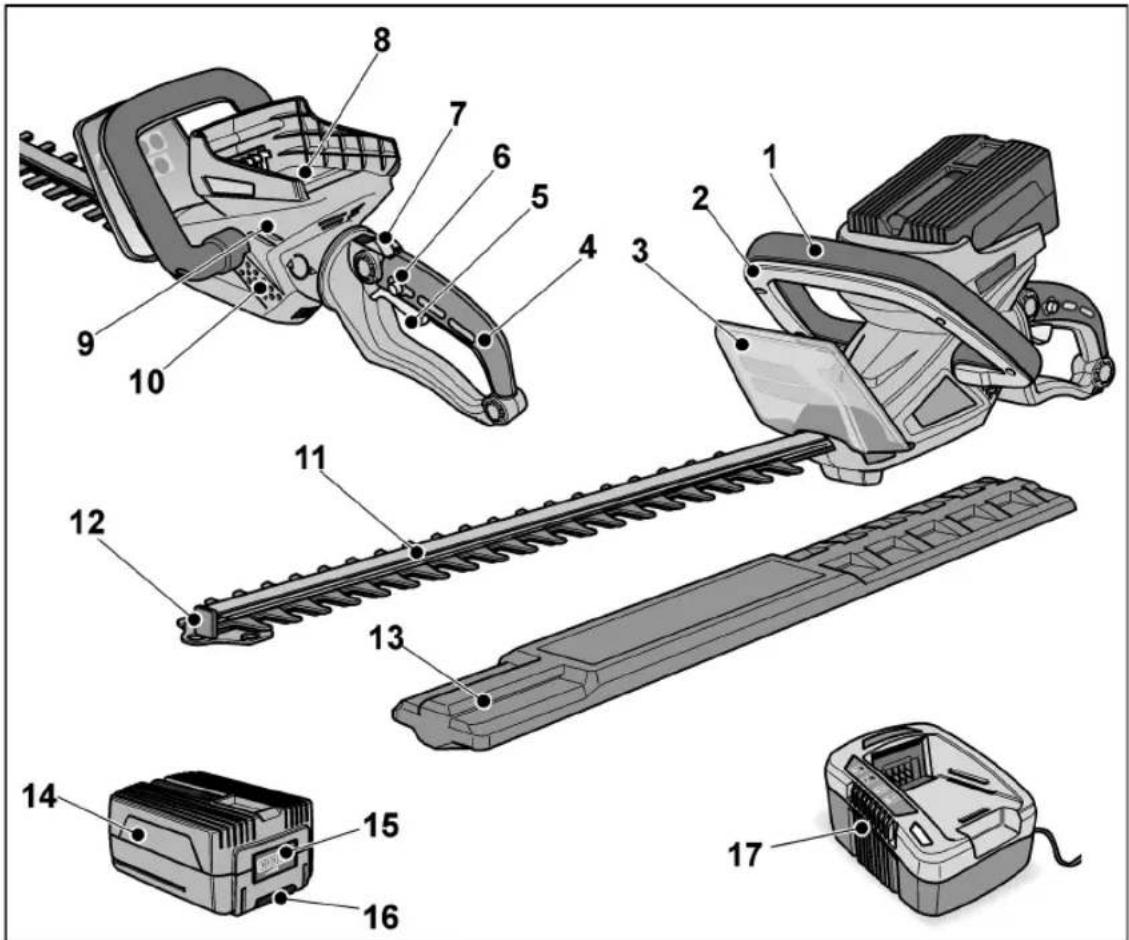

Overview
2 Safety switch
3 Protection shield
4 Rear handle, swiveling
5 Switch
6 Switch interlock
7 Release button for rotating the rear handle
8 Insertion slot for battery
9 H o u s i n g
10 Ventilation openings
11 Cutting bar
12 Impact guard
13 Protection hood
14 Battery *
EP20 (2,0 Ah), EP40 (4,0 Ah),
EP60 (6,0 Ah)
15 Release button for battery

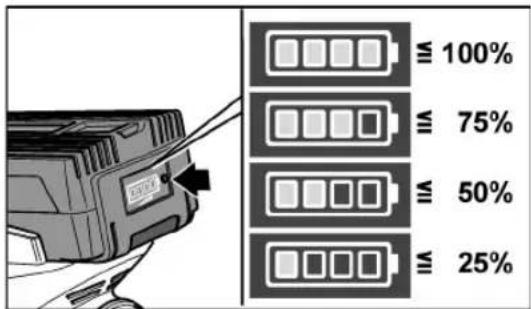

16 LED state of charge indicator
17 Battery charger *

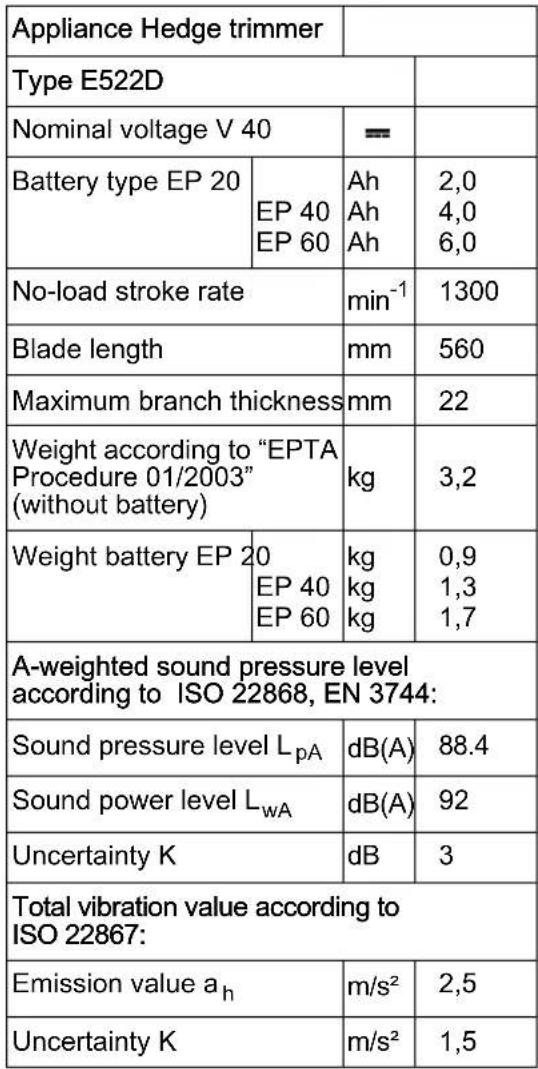

Technical specifications Instructions for use
 |
WARNING!
Switch the unit off and remove the battery under the following conditions:
- if the unit is left unattended;
- before checking, cleaning or performing other work on the unit;
- if the unit starts vibrating excessively.
Before initial operation
Unpack the garden tool and accessories and check that no parts are missing or damaged.
NOTE
The batteries (optional; depending on delivery scope) are not fully charged on delivery. Prior to initial operation, charge the batteries fully. See user manual of the battery charger.

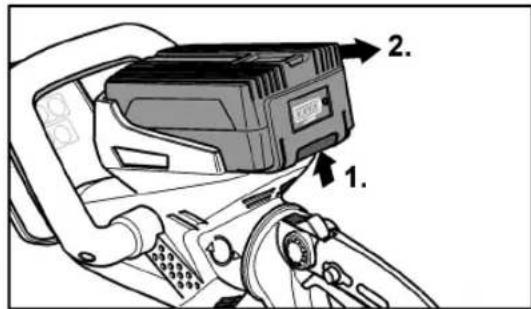

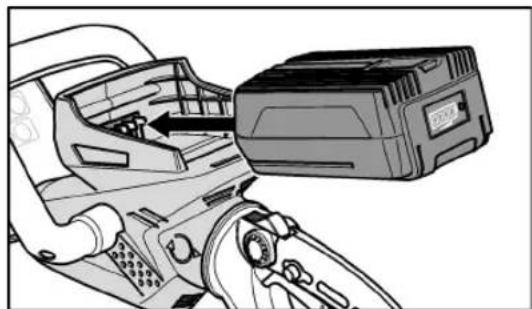

Inserting/replacing the battery
■ Charging the battery as described in the user manual of the charger.
■ Press the charged battery into the power tool until it clicks into place.
E522D
CAUTION!
Protect the battery contacts when the battery is not being used. Loose metal parts may short-circuit the contacts – Explosion and fire hazard!

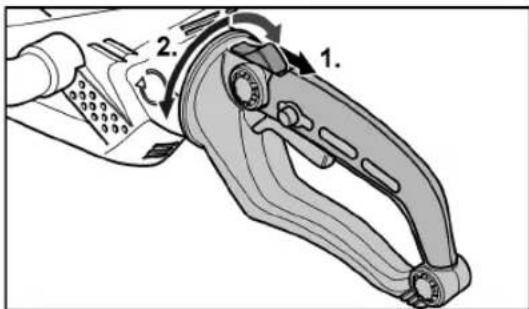

Adjusting the rear handle
Depending on the planned use the rear handle can be rotated from the middle position by 90^ in either direction.
■ Press the release button downwards (1.) and simultaneously rotate the rear handle to the left or right (2.), until it clicks.
NOTE
The hedge trimmer will not turn on when the rear handle is not securely engaged in the respective end position.
Switching on/off the power tool
NOTE
Two-hand safety circuit The hedge trimmer is switched on and operated with both hands. One hand operates the switch on the rear handle, the second hand the safety switch on the handlebar. If you release one of the two switches, the cutter bar automatically stops.

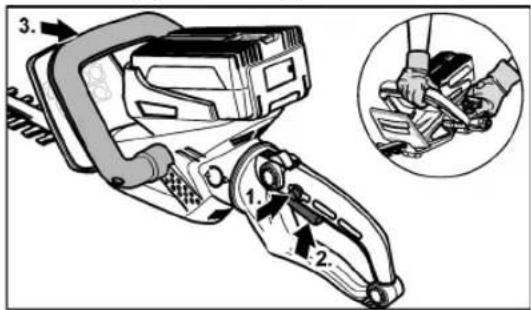

Switching on
■ Hold the hedge trimmer firmly with both hands and ensure that there are no persons (particularly children) or animals in the immediate vicinity.
■ Press and hold down the switch interlock (1.).
■ Press the switch (2.) and the safety switch (3.). The hedge trimmer runs.


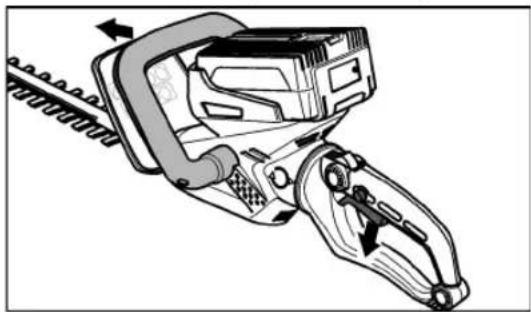

Technical diagram of a mechanical device with numbered parts and an inset showing hand positioning for assembly or repair.Switching off
■ Release one of the two switches. The cutter bar stops immediately.
■ Press the button on the battery to check the state of charge at the state of charge indicator LEDs.
E522D
en
Cleaning the cutter bar (after each use)
■ Remove the battery.
■ Clean the cutter bar after each use. Remove contamination, remains of blades etc.
■ Spray the cutter bar with maintenance oil to ensure that the hedge trimmer has a long service life. Preferably use environmentally friendly lubricants, e.g. service sprays.
CAUTION!
Do not oil the hedge trimmer while it is running.
Work instructions
■ Check that all parts are firmly attached and obviously undamaged.
■ Look over the working area and remove any obstructions.
■ Remove all foreign objects from the hedge, such as wire or other parts, as these may block or damage the cutting mechanism.
■ Cut out thick branches beforehand using pruning shears.
- Pick up the power tool in both hands as specified.
■ Always cut at full engine speed.
■ Start cutting only with the cutting mechanism running.
■ The impact guard protects you against unpleasant impacts, e.g. recoil torque of the cutter, when striking a solid object (wall, ground, etc.).
■ Never touch wire fences or the ground with the running cutting mechanism.
■ If cutting hedges over a prolonged period, interrupt your work more frequently and oil the cutter bar.
■ Switch the engine off and remove the battery:
– to remove blockages (jammed clippings) from the cutting bar;
- if the unit behaviour changes or it vibrates unusually;
- if you have come into contact with foreign objects or the ground;
- when taking breaks and leaving the unit unattended.
NOTE
If the power tool is damaged or vibrates unusually, it must be repaired by a service centre before it is used again.
■ After use, stop the motor and wait until all rotating parts have come to a standstill.
■ Place the protection hood on the cutter bar.

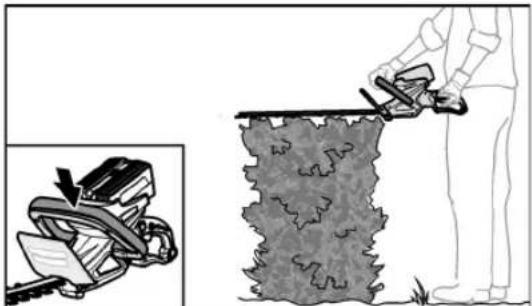

Cutting techniques
■ The hedge trimmer can be guided with its double-sided cutters forwards and backwards or in an oscillating movement from one side to the other.
■ When cutting sideways, hold the handlebar sideways.
en
E522D
■ When cutting low down, hold the handlebar above.
■ Hold the hedge trimmer at an angle of 5–10° to the hedge to ensure a straight cut.

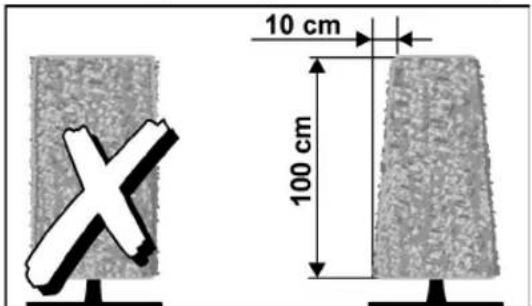

■ Cut the hedge in a trapezoidal shape. This prevents the lower part of the hedge from losing its foliage due to lack of light.
■ Cut in several stages if heavy trimming is required.
■ Peg out a string line if you want to cut the hedge evenly.
■ Trim the young hedge plants to the required shape. The main shoot should not be damaged until the hedge has reached the required height. All other shoots can be cut back to half their height.
■ Dispose of the clippings properly and in an environmentally friendly manner.
■ Cutting times:
– Deciduous hedges – June and October
– Evergreen hedges – April and August
- Fast growing hedges (e.g. conifers) - from May approx. every 6 weeks
i NOTE
Beware of nesting birds in the hedge. Do not cut the hedge until birds have fledged or do not cut this part of the hedge.
Maintenance and care
WARNING!
Before performing any work on the garden tool, remove the battery. Sharp cutting tools! Wear protective gloves.
In the interest of your own safety! Perform only the maintenance work described here yourself. All other work, in particular motor maintenance and repairs, must be performed by a trained specialist. Improper work may damage the power tool and also result in injuries. Have power tool inspected once a year at a service centre.
Cleaning
WARNING!
Do not use water or liquid detergents.
CAUTION!
Clean the unit after every use. Failure to clean the unit can damage the materials and cause malfunctions.
■ After each use, clean the hedge trimmer using a dry cloth or a brush if the unit is very dirty.
■ Never spray the hedge trimmer with water.
- Keep the ventilation slits clean and dust-free.
■ Clean the cutter bar after each use. Remove contamination, remains of blades etc.
E522D
en
■ Spray the cutter bar with maintenance oil to ensure that the hedge trimmer has a long service life. Preferably use environmentally friendly lubricants, e.g. service sprays.
■ Place the hedge trimmer on its side and apply a thin film of oil to the cutter bar.
Storage
■ Store the unit in a dry and frost-free place (10-25 °C).
■ Store the battery and the unit separately.
■ Charge the battery before storing the unit in winter.
■ Place the protection hood on the cutter bar.
- Keep the unit, in particular its plastic components, away from brake fluids, petrol, petroleum products, penetrating oil, etc. They contain chemical substances which may damage, attack or destroy the plastic components of the unit.
■ Fertilisers and other garden chemicals contain substances which may have a highly corrosive effect on the metal parts of the unit. Therefore do not store your unit near these substances.
Repairs
Check the unit for damage. Repairs may be carried out by an authorised customer service centre only.
Disposal information
WARNING!
Render redundant garden tools unusable:
- mains operated tool by removing the power cord,
- battery operated tool by removing the battery.
EU countries only:
Do not throw electric power tools into the household waste! In accordance with the European Directive 2012/19/EC on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.
Recycling raw materials instead of waste disposal.
Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.
WARNING!
Do not throw accumulators/batteries into the household waste, fire or water. Do not open disused batteries.
Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner.
EU countries only:
In accordance with Directive 2006/66/EC defective or used batteries must be recycled.
NOTE
Please ask your dealer about disposal options!
Guarantee
This product has been manufactured to the highest quality standards. When a new product is purchased, it is guaranteed a 24-month manufacturer's warranty which comes into force on the date the product was purchased. The guarantee covers only defects which can be attributed to a material and/or production fault as well as non-performance of warranted characteristics. When making a claim under the guarantee, enclose the original sales receipt with purchase date. Repairs under the guarantee may be carried out only by workshops or service centres authorised by the manufacturer. A claim may be made under the guarantee only if the power tool has been used as intended. This warranty is invalid where defects are caused by or result from:
- misuse, abuse or neglect;
– commercial use (industry, craft, rental)
– repairs attempted by unauthorized repair centers
– damage caused by external effects, foreign objects, substances or accidents.
Declaration of Conformity
CE We declare, that the product described in Technical Data:
E522D
Producer:
FUXTEC GmbH
Kappstrasse 69
71083 Herrenberg / Germany
is in conformity with the following directives:
Machinery Directive 2006/42/EC Outdoor Directive 2000/14/EC EMC Directive 2014/30/EU
and in accordance to the following applicable harmonized standards:
EN 60745-1:2010
EN 60745-2-15:2010
EN 55014-1:2011
EN 55014-2:2008
The conformity with the Noise Emission of Outdoor Equipment Directive is verified by the conformity assessment procedure according to annex V, and the Directive 2000/14/EC.
Measured sound power level:
109.7 dB(A)
Guaranteed sound power level:
112 dB(A)
Tim Gumprecht
6 Cran anti-enclenchement
12 Protection anti-impact
13 Capot de protectio
14 Accumulateur *
EP20 (2,0 Ah), EP40 (4,0 Ah), EP60 (6,0 Ah)
E522D
fr
E522D
Person using a manual hedge shaver to cut grass, with a black arrow indicating the blade direction (no text or symbols present)natural_image
Illustration of a hand holding a tool with a magnified inset showing the same tool (no text or symbols present)natural_image
Illustration of a person using a hatched tool to cut a grassy slope, with an inset showing the same tool (no text or symbols present)text_image
Exploded view diagram of a power chain mill with numbered parts for identificationEP20 (2,0 Ah), EP40 (4,0 Ah), EP60 (6,0 Ah)
E522D
ATTENZIONE!
E522D
Illustration of hands using a manual power shaver to cut a slope, with a black arrow indicating the direction (no text or symbols present)natural_image
Illustration of a hand gripping a cable with a magnified inset showing the cable being inserted (no text or symbols present)natural_image
Illustration of a person using a power shovels to cut a hedgehog, with an inset showing the same scene (no text or symbols)2021-01 /No liability for printing errors. Subject to technical modifications.
FUXTEC GmbH - Kappstrasse 69 - 71083 Herrenberg - Germany
