USER MANUAL Tanda VisoRelax B.KETTNER

Close-up of a woman applying makeup with a brush to her cheek (no visible text or symbols)

TANDA
B.KETTNER

TANDA

VisoRelax

BEXTNER Super Controls BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTNER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINER BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINIR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR BEXTINR

USER MANUAL BENUTZERHANDBUCH MANUEL D'UTILISATION MANUALE D'USO MANUAL DEL USUARIO

PROPERTIES:

■ Biological compatible titanium coated surface
- Ionic Treatment boosting penetration
Warm Treatment promoting blood circulation
Overheat protection
Fast warming
■ Auto power off function after 3 minutes operation
Usage (Fully Charged): Approx. 60 times
Light Handheld Style : 90g

EIGENSCHAFTEN:

> More informations concerning products, ordering, news and other Tanda I B.Kettner technologies: www.bkettner.com

VisoRelax™

Thank you for choosing Tanda | B.Kettner VisoRelax™.

Tanda I B. Kettner brings the professional expertise of modern beauty salons to your home. Technologies that have been developed in the medical and cosmetological context have been recreated for home use, and enhanced with professional cosmetics formulations.

Designed and developed in Munich, Germany, the devices have been tested by professional beauticians. They satisfy rigorous quality and performance standards, and are easy to use.

These skin care products have been developed and manufactured in Germany. The basis is a professional skin care brand that has been successful worldwide for 30 years. The formulations do not contain parabens or mineral oil derivatives.

Please carefully read the following safety precautions and keep them for future reference.

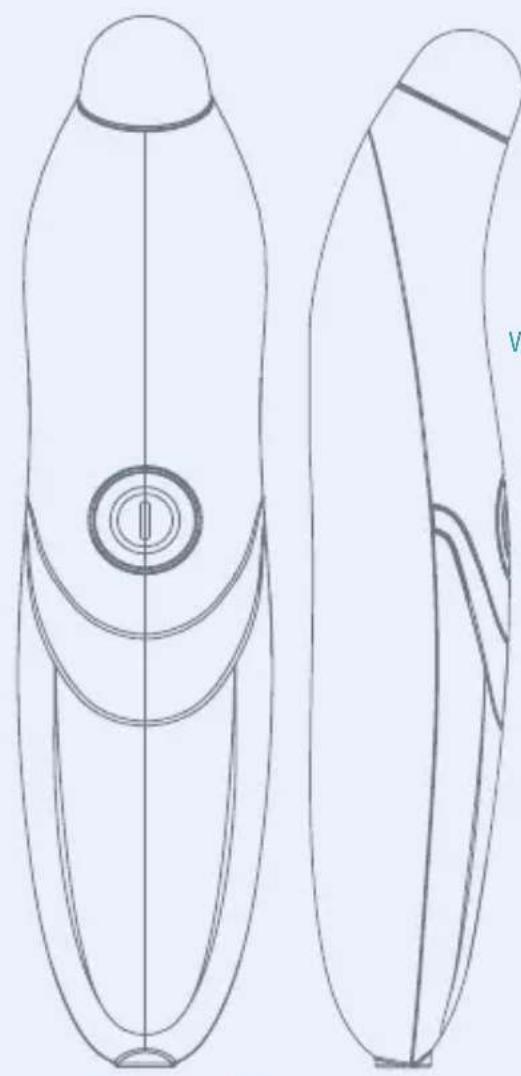

Technical line drawing of a symmetrical mechanical component with central bore and side profile (no text or symbols)

front view side view

Contents

VisoRelax – Eye Skin Care device
Charging cable
User manual
B.Kettner eye contour serum (15ml dispenser)

Charging cable B.Kettner eye contour serum B.KETTNER

Top-down schematic of a bottle-like object with internal concentric circles and directional arrows indicating flow or movement (no text or symbols)

Model No.: VisoRelax

1. Head (Titanium material)

2. ON/OFF Press for 0.5s to start / stop

3. LED Indicator

Mode	Preparation	Ready
Care-Mode	Blue flashes	Blue light
Charging	Red flashes Red light

1. 2./3. 4.

4. Contact plate

Touch this (silver glossy) part and apply the head to your skin

1. Body Socket

Close-up of a person applying a cosmetic product to their face, with a numbered callout (no visible text or symbols)

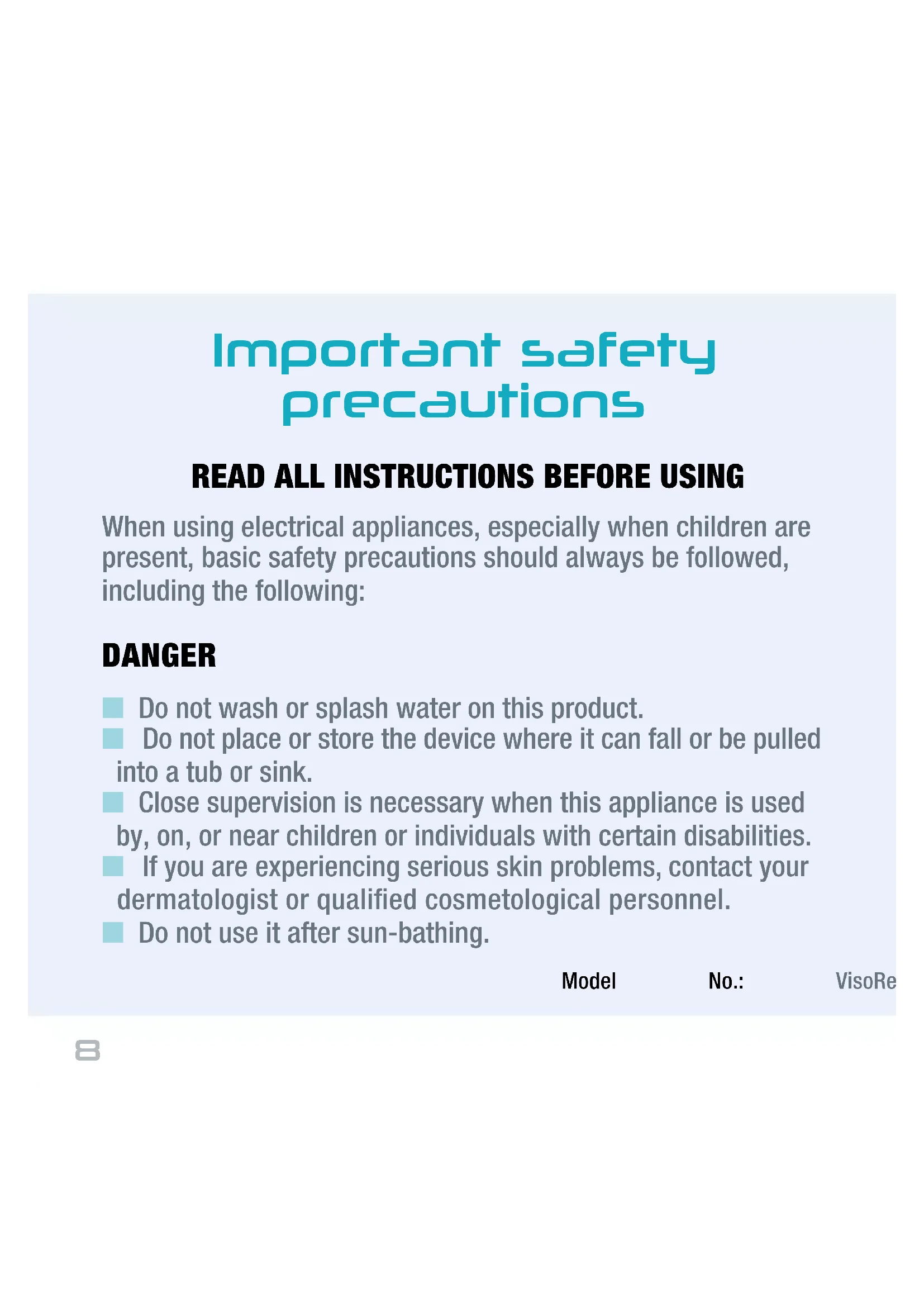

Important safety precautions

READ ALL INSTRUCTIONS BEFORE USING

When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:

DANGER

Do not wash or splash water on this product.
Do not place or store the device where it can fall or be pulled into a tub or sink.
- Close supervision is necessary when this appliance is used by, on, or near children or individuals with certain disabilities.
If you are experiencing serious skin problems, contact your dermatologist or qualified cosmetological personnel.
Do not use it after sun-bathing.

Model

No.:

VisoRe

WARNING

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

WARNING

Use this appliance only for its intended use as described in this manual.
■ Never use while sleeping.
■ Remove contact lens before using.
- Never operate this device if it has a damaged cord or plug.
- Keep the cord away from heated surfaces.
Do not wrap the cord around the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance, Cleaning and user maintenance shall not be made by children without supervision.

PAY ATTENTION WHILE USING

Skin moisturizing function

The device is applied to skin in contact with the contact plate and the head of the device.
Make sure to hold the contact plate with your hand for effective functioning.

Charging

Insert the AC adaptor into the charging socket.
Insert the mains plug into a wall socket.
The red light will flash repeatedly to indicate the battery is charging.
When it is fully charged (after approximately 4-5 hour), the red light will stay ON.
When the battery is running low, the red light will flash repeatedly.

WARNING For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

This marking indicates that this product should not be disposed of with other household wastes throughout the EU. Recycle it responsibly to prevent possible harm to the environment or human health from uncontrolled waste disposal, and to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems, or contact the retailer where the product was purchased. They can receive this product for environmentally safe recycling.

Rating info.:

Input for product: 5 V D/C with rated current 300mA

Adapter Input: 100-240V, A/C, 50/60 Hz

This marking indicate that this product should be used with dedicated supply unit.

DISPOSAL OF PRODUCT

Instructions to remove the battery:

Open the front housing to remove the inner box from the unit. Unclip the two wires connected to the positive and negative terminal of the battery. Then the battery can be removed from the unit.

The battery must be removed from the appliance before it is scrapped.
The battery is to be disposed of safely.

PLEASE SAVE THESE INSTRUCTIONS

User maintenance instructions

Any other servicing should be performed by an authorized service representative.

STORAGE FOR PRODUCT

• Clean the product with soft towel after each use for optimal performance.
  Do not keep the charging cable connected to a power supply.
• Preferably store the product at room temperature.
  Avoid over exposure under the sun.

Model No.: VisoRelax

eye contour serum

With jojoba oil, vitamin A, calcium PCA and a special complex that works against dark circles, made from plant-derived active ingredients.

BKETTNER Eye Contour Serum 华巍-40乳酸

VISORELAX AND EYE CONTOUR SERUM

Soothe eye fatigue
Promote blood circulation in the eye area
■ Reduce puffiness + pigmentation problems in eye areas
Help smooth fine lines and wrinkles

B.Kettner cosmetic formulations have been specifically designed to interact with VisoRelax.

How to use

Contact plate (5)

Touch this (silver glossy) part and apply the head to your skin

1. Cleanse face and remove all eye makeup to clean the skin.
2. Turn on the device by pressing the ON/OFF buttons for 0.5 second.
3. Apply activation serum onto the target area.

(We recommend B.Kettner eye formulation products.)

Take a pearl-sized amount of eye cream and apply it around the eye area:

eyelid - corner of the eye - under the eye

Gently dab the skin evenly with your finger, as lightly as possible.

1. Once the BLUE indicator stops flashing, check the temperature with your fingertip.
2. Grasp the body so that your hand touches the contact plate.
3. Glide the device slowly and gently massage

from the outer corner to inner corner of your eye.

1. Stay on a highlighted acupoint for 3 – 5 times to achieve relaxation and to soothe a fatigued eye.
2. When you hear a "Beep" sound, switch to another eye.
3. The device will switch off automatically.
4. Keep the skin clean and free from makeup for optimal results.

Close-up portrait of a smiling woman with hand near face, no visible text or symbols

Close-up of a hand holding a smartphone (no visible text or symbols)

Close-up of a person's lower face with a magnified circular detail highlighting the finger area (no text or symbols visible)

Close-up of a person applying makeup to the eyelid with a brush (no visible text or symbols)

Use 1-2 times a day

It is optional to re-apply the serum to the target area.

Commercial Warranty (This warranty is only for the French market)

The warranty and after sales service are valid only in the country of purchase.

If the device fails during the first year after purchase, please contact the store where you bought the device: once you have used and employed the device according to the instructions, and if the problem is not due to mishandling or improper maintenance. The warranty does not cover wear and tear of parts under normal use. The warranty does not cover damage during delivery, if the device has been dropped or through improper use.

If the device does not work, read the instructions to make sure you have followed them. If this does not resolve the problem, contact the store where you bought the device. Only an authorized customer service agent is authorized to repair the device.

Alternatively you can email us at: [e-mail]

Legal guarantee

Regardless of this warranty, the seller shall remain liable for lack of conformity with the contract and latent defects in accordance with the Consumer Code and Articles 1641 to 1649 of the Civil Code.

- Article L 211-4 of the Consumer Code: „The seller must deliver goods in conformity with the contract and is liable for defects of conformity existing at the time of delivery. They shall also be liable for lack of conformity resulting from the packaging, installation or assembly instructions when this is its responsibility according to the contract or is carried out under its responsibility. „

- Article L211-5 of the Consumer Code: „To comply with the contract, the goods must:

1 Be suitable for the normal purpose of a similar good and, if applicable: match the description given by the trader and possess the qualities that they have presented to the buyer as a sample or model; have the features that a buyer might reasonably expect according to the public statements made by the seller, the producer or their representative, particularly in advertising or labelling; 2 Or possess the characteristics defined by mutual agreement by the parties or be suitable for any particular purpose for which the buyer has made known to the seller and the latter accepted.

- Article L211-12 of the Consumer Code: „Action resulting from lack of conformity lapses two years after delivery of the goods.“

- Article 1641 of the Civil Code: „The seller is liable under the warranty in respect of hidden defects of the item sold which render it unfit for the use for which it was intended, or that decrease its ability to be used, when the buyer would not have acquired it, or would have paid a lower price if they had known.”

- Article 1648 paragraph 1 of the civil code: “action resulting from unacceptable defects must be filed by the buyer within two years following the defect”.

EAST TING Mugel Coatings Nutrition THE MUSCHI

BENUTZERHANDBUCH

Technical line drawing of a symmetrical mechanical component with top and side views (no text or symbols)

Top-down schematic of a bottle-like object with internal concentric circles and directional arrows indicating flow or movement (no text or symbols)

Close-up of a person applying makeup to the eye area with a tool, no visible text or symbols

Prohibition sign showing a showerhead spraying water, with no text present

WARNUNG

Close-up portrait of a smiling woman with hand near face, no visible text or symbols

Close-up of a hand holding a smartphone, no visible text or symbols on the device itself

Close-up of a person's lower face with a blue circle highlighting the area of being held by a finger (no text or symbols visible)

Close-up of a person applying makeup to the eyelid with a pen (no visible text or symbols)

Close-up of a woman applying a cosmetic product to her ear, with no visible text or symbols.

32

VisoRelax™

Technical line drawing of a symmetrical mechanical component with top and side views (no text or symbols)

Top-down schematic of a bottle-like object with internal concentric circles and directional arrows indicating flow or movement (no text or symbols)

Close-up of a person applying a cosmetic product to their face, with a numbered callout (no visible text or symbols)

ELIMINATION DU PRODUIT

Close-up portrait of a smiling woman with hand near face, no visible text or symbols

Close-up of a hand holding a smartphone (no visible text or symbols)

Close-up of a person's lower face with a blue circle highlighting the area of interest (no text or symbols visible)

Close-up of a person applying makeup to the eyelid with a pen (no visible text or symbols)

EAST TING Mugel Coatings Nutrition THE MUSCHI

MANUALE D'USO

Technical line drawing of a symmetrical mechanical component with top and side views (no text or symbols)

Technical diagram of a bottle-like object with labeled parts and directional arrows indicating measurement or orientation.

Modello n.: VisoRelax

Touch this (silver glossy) part and apply the head to your skin

Close-up of a person applying a product to their face, with a magnified inset showing the step number 4 (no text or symbols on the main subject)

Prohibition sign showing showerhead spraying over water, with no text or symbols

AVERTISSEMENT

Close-up portrait of a smiling woman with hand near face, no visible text or symbols

Close-up of a hand holding a small object, no visible text or symbols

Close-up of a person's lips with a magnified circular detail highlighting the area of interest (no text or symbols visible)

Close-up of a person applying makeup to the eyelid with a pen (no visible text or symbols)

EASTING Mugel Coatings Nutrition THE MUSCHI

MANUAL DEL USUARIO

Top-down schematic of a bottle-like object with internal concentric circles and directional arrows indicating flow or movement (no text or symbols)

Close-up of a person applying a cosmetic product to their eye, with a numbered callout (no visible text or symbols)

Prohibition sign showing shower spraying over water with no text or symbols

ADVERTENCIA

Close-up portrait of a smiling woman with hand near face, no visible text or symbols

Close-up of a hand holding a small object, no visible text or symbols

Close-up of a person's lower face with a blue circle highlighting the area of interest (no text or symbols visible)

Close-up of a person applying eye makeup with a pen (no visible text or symbols)
