USER MANUAL Authentics 500 JBL

Illustration of a JBL portable speaker with control panel and power plug (no text or symbols on device)

* Power cord quantity and plug type vary by region.

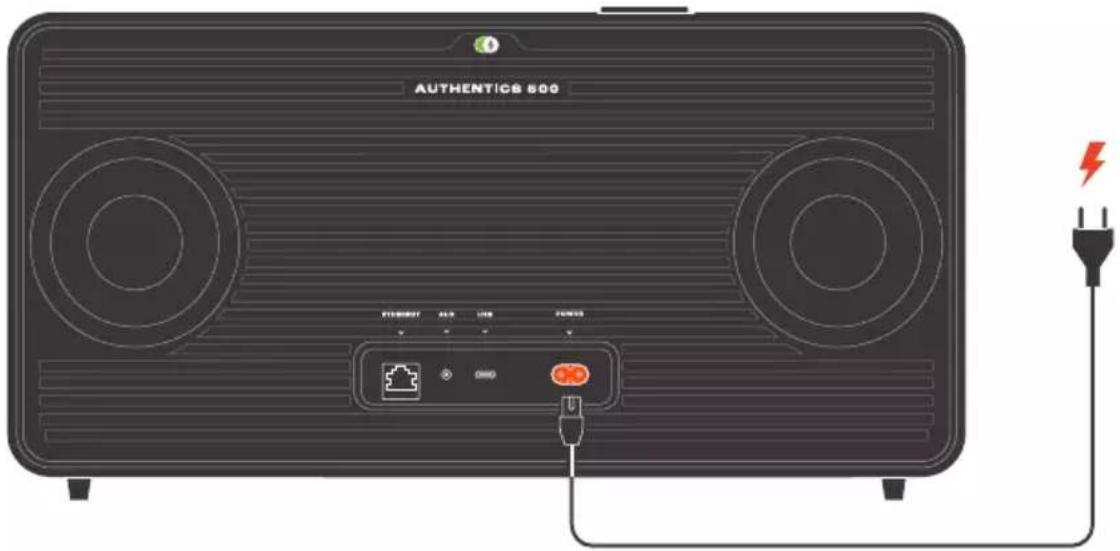

POWER ON/OFF

Connect your Android™ on iOS device to the Wi-Fi network and follow app instructions to complete speaker setup.

JBL ONE

JBL ONE

GET IT ON Google Play

Download on the App Store

*The availability of features will vary between countries and not all features may be available in your country.

MUSIC STREAMING

JBL ONE

Stream music from your favorite supported music services through the JBL One app and set up voice assistants to stream music by using your voice.

Dark gray rectangular device with 'UBL' branding on front, no visible text or symbols on body

VOICE CONTROL

OFF ON VOICE ASSISTANT STATUS LED URL

alexa built-in Hey Google

* Amazon Alexa and Google Assistant may not be available in all countries or languages. Availability, features, and functionality may vary.

Complete the voice setup in the JBL One app. With concurrent voice assistants, you can get help at home using just your voice.

Please check here for your country / language.

BUTTON CONTROL

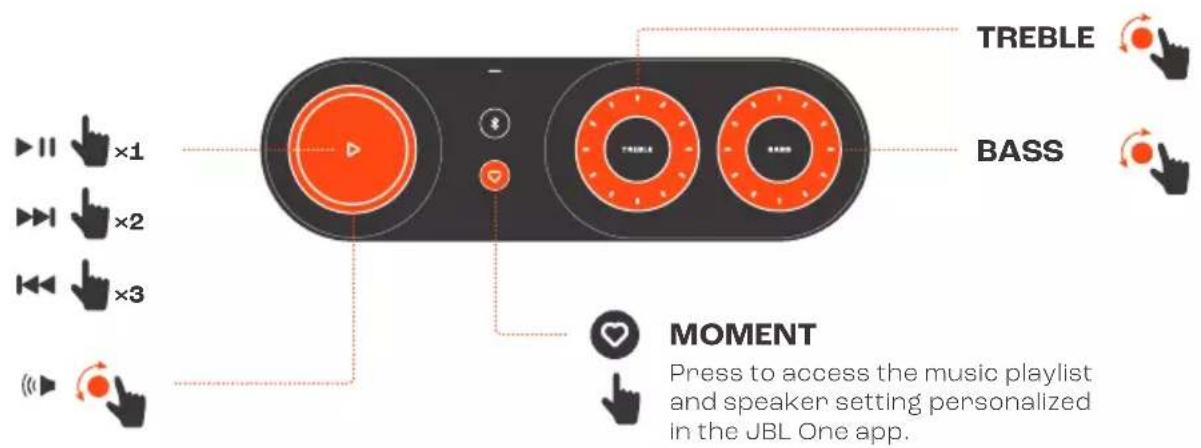

TREBLE BASS ×1 ×2 ×3 MOMENT Press to access the music playlist and speaker setting personalized in the JBL One app.

BLUETOOTH PAIRING

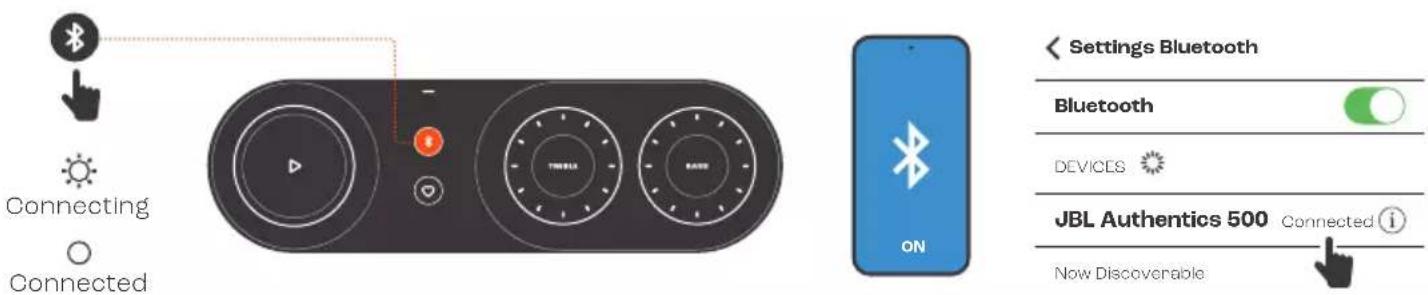

Connecting Connected ON Settings Bluetooth Bluetooth DEVICES JBL Authentics 500 Connected i Now Discoverable

Music streaming through Bluetooth will pause when you start music streaming through Wi-Fi.

AUX

1

2

AUTHENTIS 820

Illustration of a laptop with musical notes, play button, and finger icon (no text or symbols)

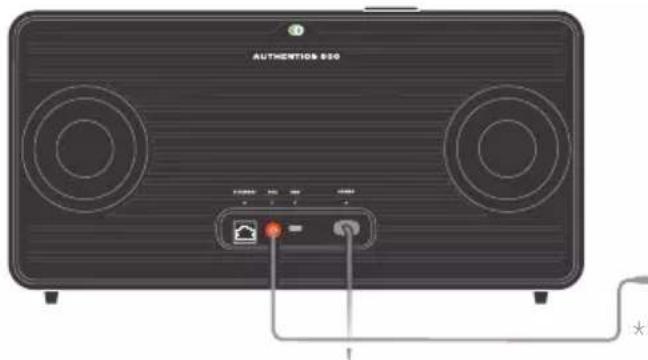

After the audio cable is connected, ensure that no music plays through Wi-Fi or Bluetooth to start music playback through the audio cable.

OWNER'S MANUAL DOWNLOAD

WWW.JBL.COM OWNER'S MANUAL PDF VIDEO TUTORIAL

TECH SPEC

General specification:

• Model: Authentics 500
• Sound system: 3.1 & Dolby Atmos Music
• Power supply: 100 - 240V AC, \~ 50/60Hz
• Total speaker power output (Max @THD 1%): 270W
• Transducer: 3 x 25mm Al dome tweeter + 3 x 2.75" midrange + 6.5" subwoofer
• Networked standby power: < 2.0 W
• Operating temperature: 0 °C - 45 °C

Audio specification

• Frequency response: 40Hz - 20kHz (-6dB)
- Audio inputs: 1 Audio in, Bluetooth/Wi-Fi, Ethernet and USB (USB playback is available in US version. For other versions, USB is for Service only.)

USB specification

• USB port: Type C
  • USB rating: 5V DC, 1A
  • Supporting formats: mp3, WAV
  • MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
  • MP3 sampling rate: 16 - 48 kHz
  • MP3 bitrate: 80 - 320 kpbs

Wireless specification

• Bluetooth version: 5.3
  • Bluetooth profile: A2DP 1.3.2, AVRCP 1.5
• Bluetooth transmitter frequency range: 2400 MHz - 2483.5 MHz
• Bluetooth transmitter power: <17 dBm
  • Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
  • 2.4G Wi-Fi transmitter power: <20 dBm
• 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.46 - 5.72GHz, 5.725 - 5.825GHz
  • 5G Wi-Fi transmitter power: <23dBm

Dimensions

• Dimensions (W x H x D): 447 x 240 x 255.7 mm / 17.60" x 9.45" x 10.07"
  • Weight: 7.8 kg / 17.20 lbs
• Packaging dimensions (W x H x D): 526 x 326 x 325 mm / 20.7" x 12.8" x 12.8"
  • Packaging weight: 11.4 kg / 25.1 lbs

FR

CONTENU DE LA BOÎTE

HVAD ER DER I ÅESKEN

PARRING MED BLUETOOTH

Forbinder | Forbundet

JBL One anked by anked by

Assistant axp: [0] oxgaoqng

©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©©© © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © ①

: Wi-Fi (2.4 GHz/5 GHz) IEEE 802.11 a/b/g/n/ac/ax:Wi-Fi 2.4G 11 dBm> :Wi-Fi 2.4G 5.46-5.72GHz, 5.470-5.725GHz, 5.15-5.35GHz 5.725-5.825GHz 23 dBm> :Wi-Fi 5G 23 dBm>

•Dolby Atmos 3.1 ~ 50/60 Hz , "1" 240 - 100 :Whit is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the sourceof this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is that is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source, and the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of its source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source of this source is the source if it is not available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source isavailable for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is availablefor any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available forany other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any other source of this source is available for any othersunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlunlun1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175,176,177,178,179,180,181,182,183,184,185,186,187,188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,204,205,206,207,208,209,210,211,212,213,214,215,216,217,218,219,220,221,222,223,224,225,226,227,228,229,230,231,232,233,234,235,236,237,238,239,240,241,242,243,244,245,246,247,248,249,250,251,252,253,254,255,256,257,258,259,260,261,262,263,264,265,266,267,268,269,270,271,272,273,274,275,276,277,278,279,280,281,282,283,284,285,286,287,288,289,290,291,292,293,294,295,296,297,298,299,300,301,302,303,304,305,306,307,308,309,310,311,312,313,314,315,316,317,318,319,320,321,322,323,324,325,326,327,328,329,330,331,332,333,334,335,336,337,338,339,340,341,342,343,344,345,346,347,348,349,350,351,352,353,354,355,356,357,358,359,360,361,362,363,364,365,366,367,368,369,370,371,372,373,374,375,376,377,378,379,380,381,382,383,384,385,386,387,388,389,390,391,392,393,394,395,396,397,398,399,400,401,402,403,404,405,406,407,408,409,410,411,412,413,414,415,416,417,418,419,420,421,422,423,424,425,426,427,428,429,430,431,432,433,434,435,436,437,438,439,440,441,442,443,444,445,446,447,448,449,450,451,452,453,454,455,456,457,458,459,460,461,462,463,464,465,466,467,468,469,470,471,472,473,474,475,476,477,478,479,480,481,482,483,484,485,486,487,488,489,490,491,492,493,494,495,496,497,498,499,500,501,502,503,504,505,506,507,508,509,510,511,512,513,514,515,516,517,518,519,520,521,522,523,524,525,526,527,528,529,530,531,532,533,534,535,536,537,538,539,540,541,542,543,544,545,546,547,548,549,550,551,552,553,554,555,556,557,558,559,560,561,562,563,564,565,566,567,568,569,570,571,572,573,574,575,576,577,578,579,580,581,582,583,584,585,586,587,588,589,590,591,592,593,594,595,596,597,598,599,600,601,602,603,604,605,606,607,608,609,610,611,612,613,614,615,616,617,618,619,620,621,622,623,624,625,626,627,628,629,630,631,632,633,634,635,636,637,638,639,640,641,642,643,644,645,646,647,648,649,650,651,652,653,654,655,656,657,658,659,660,661,662,663,664,665,666,667,668,669,670,671,672,673,674,675,676,677,678,679,680,681,682,683,684,685,686,687,688,689,690,691,692,693,694,695,696,697,698,699,700,701,702,703,704,705,706,707,708,709,710,711,712,713,714,715,716,717,718,719,720,721,722,723,724,725,726,727,728,729,730,731,732,733,734,735,736,737,738,739,740,741,742,743,744,745,746,747,748,749,750,751,752,753,754,755,756,757,758,759,760,761,762,763,764,765,766,767,768,769,770,771,772,773,774,775,776,777,778,779,780,781,782,783,784,785,786,787,788,789,790,791,792,793,794,795,796,797,798,799,800,801,802,803,804,805,806,807,808,809,810,811,812,813,814,815,816,817,818,819,820,821,822,823,824,825,826,827,828,829,830,831,832,833,834,835,836,837,838,839,840,841,842,843,844,845,846,847,848,849,850,851,852,853,854,855,856,857,858,859,860,861,862,863,864,865,866,867,868,869,870,871,872,873,874,875,876,877,878,879,880,881,882,883,884,885,886,887,888,889,890,891,892,893,894,895,896,897,898,899,900,901,902,903,904,905,906,907,908,909,910,911,912,913,914,915,916,917,918,919,920,921,922,923,924,925,926,927,928,929,930,931,932,933,934,935,936,937,938,939,940,941,942,943,944,945,946,947,948,949,950,951,952,953,954,955,956,957,958,959,960,961,962,963,964,965,966,967,968,969,970,971,972,973,974,975,976,977,978,979,980,981,982,983,984,985,986,987,988,989,990,991,992,993,994,995,996,997,998,999

•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen•Authen

HE

תְקָרִי בְּרִי

הכלהה

.תָּרַעְבָה אַרִיֹם

תְבָר/הַלְבָר

תָּלְבָרִי

iOS- Android™-

1. Information on power consumption

This equipment complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013.

• Off: N/A

• Standby (when all wireless connections are deactivated): < 0.5 W
  • Networked standby for the speaker: < 2.0 W

• The period of time after which the power management function switches the equipment automatically into:

Off N/A
Standby	When all wireless network connections are deactivated	Switched to standby mode immediately
Networked standby	When any wireless network connection is activated	Switched to networked standby mode after 10 minutes of inactivity in operational mode

1. If this equipment has the wireless network connections:

How to activate wireless network connections:

• Activate after every power cycle;
• Switch into wireless mode (Bluetooth, Chromecast built-in™, AirPlay 2 casting audio, Alexa Multi-Room Music & etc).

How to deactivate wireless network connections:

- Hold for more than 10 seconds, and then press.

FR

,AirPlay 2 casting audio, Chromecast built-in™, Bluetooth)

.(הַרְׁרָה Alexa Multi-Room Music

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-003 (B) / NMB-003 (B)

User should also be advised that:

(i) the device for operation in the band 5150 - 5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

(ii) the maximum antenna gain permitted for devices in the bands 5250 - 5350 MHz and 5470 - 5725 MHz shall comply with the e.i.r.p. limit: and

(iii) the maximum antenna gain permitted for devices in the band 5725 - 5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate.

(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250 - 5350 MHz and 5650 - 5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. No configuration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCC grant of authorization for US operation according to Part 15.407 of the FCC rules.

Use Restriction: This device is restricted to indoor use when operating in the 5150 to 5350 MHz frequency range in following countries:

	BE EL LT PT
	BG ES	LU RC
	CZ FR HU SI UK
	DK HR MT SK
	DE IT NL FI
	EE CY AT SE
	IE LV		PL UR (NI)

Belgium (BE), Greece (EL), Lithuania (LT), Portugal (PT), Bulgaria (BG), Spain (ES), Luxembourg (LU), Romania (RO), Czech Republic (CZ), France (FR), Hungary (HU), Slovenia (SI), Denmark (DK), Croatia (HR), Malta (MT), Slovakia (SK), Germany (DE), Italy (IT), Netherlands (NL), Finland (FI), Estonia (EE), Cyprus (CY), Austria (AT), Sweden (SE), Ireland (IE), Latvia (LV), Poland (PL), United Kingdom (UK) and Northern Ireland (UK (NI)).

This product contains open source software licensed under GPL.

For your convenience, the source code and relevant build instruction are also available at https://harman-webpages.s3.amazonaws.com/Harman_One_OS_A_package_license_list.htm Please feel free to contact us at:

[e-mail]_if you have additional question regarding the open source software in the product.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Wi-Fi CERTIFIED 6 ^™ and the Wi-Fi CERTIFIED 6 ^™ Logo are trademarks of Wi-Fi Alliance ^® .

Hey Google

Chromecast built-in

Google, Android, Google Play, and Chromecast built-in are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Availability and performance of certain features, services, and applications are device and network dependent and may not be available in all areas.

built-in

Amazon, Alexa and all related marks are trademarks of Amazon.com, Inc. or its affiliates. Alexa is not available in all languages and countries.

Works with

Apple AirPlay

Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.

Apple, and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries.

To control this AirPlay 2-enabled speaker, iOS 13.4 or later is required.

Spotify®

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

The Spotify Software is subject to third party licenses found here:

https://www.spotify.com/connect/third-party-licenses.

Dolby Atmos

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012–2021 Dolby Laboratories. All rights reserved.

HARMAN

HA_JBL_Authentics 500_QSG_Global_CR_V14
