USER MANUAL CK 2302 ADE

CK 2302 DCF radio-controlled clock Dear Customer! You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. With this radio-controlled clock, you always have the exact time in view. The wealth of experience of the ADE brand ensures a high technical standard and proven quality. We wish you easy timing at any time! Your ADE Team General information About this operating manual This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well. Failure to observe this operating manual may result in injuries or damage to your product. Explanation of symbols This symbol combined with the word DANGER warns of serious injuries. This symbol combined with the word WARNING warns of moderate and mild injuries. This symbol combined with the word NOTE warns of material damage. This symbol indicates additional information and general notes.Table of Contents

CK 2302 DCF radio-controlled clock Safety This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise. Children must not play with the product. Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised. Batteries, when swallowed, can be life-threatening. Therefore, keep the clock and battery out of the reach of small children. If a battery has been swallowed, medical assistance must be sought immediately. DANGER for children Keep packaging material away from children. There is a risk of choking if swallowed. Also pay attention that children do not pull the packaging material over their heads. RISK of fire/burning and/or explosion There is a risk of explosion if the batteries are replaced improperly. Replace the batteries only with the same or equivalent battery type. Pay attention to the "Technical data". Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape! Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor. BEWARE of material damage Protect the clock from strong shocks and vibrations. Remove the batteries from the clock, if these are used up or you are not going to use the clock for a long period. You will thus avoid damage that may result from leakage of battery acid. When inserting and changing batteries, pay attention to the correct polarity (+/-). Do not subject the batteries to any extreme conditions, by – for example – storing them on radiators or under direct sunlight. Increased risk of leakage!Intended use

CK 2302 DCF radio-controlled clock English Clean the battery and device contacts, as needed, before inserting the battery. Do not make any modifications to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user. Intended use This DCF radio-controlled clock is intended to display the time. It also displays other data (e.g. the room temperature) and has an alarm function. The item is designed for private use and for use in dry areas. Scope of delivery Radio-controlled clock 4x 1.5 V LR06 (AA) batteries Operating ManualOverview

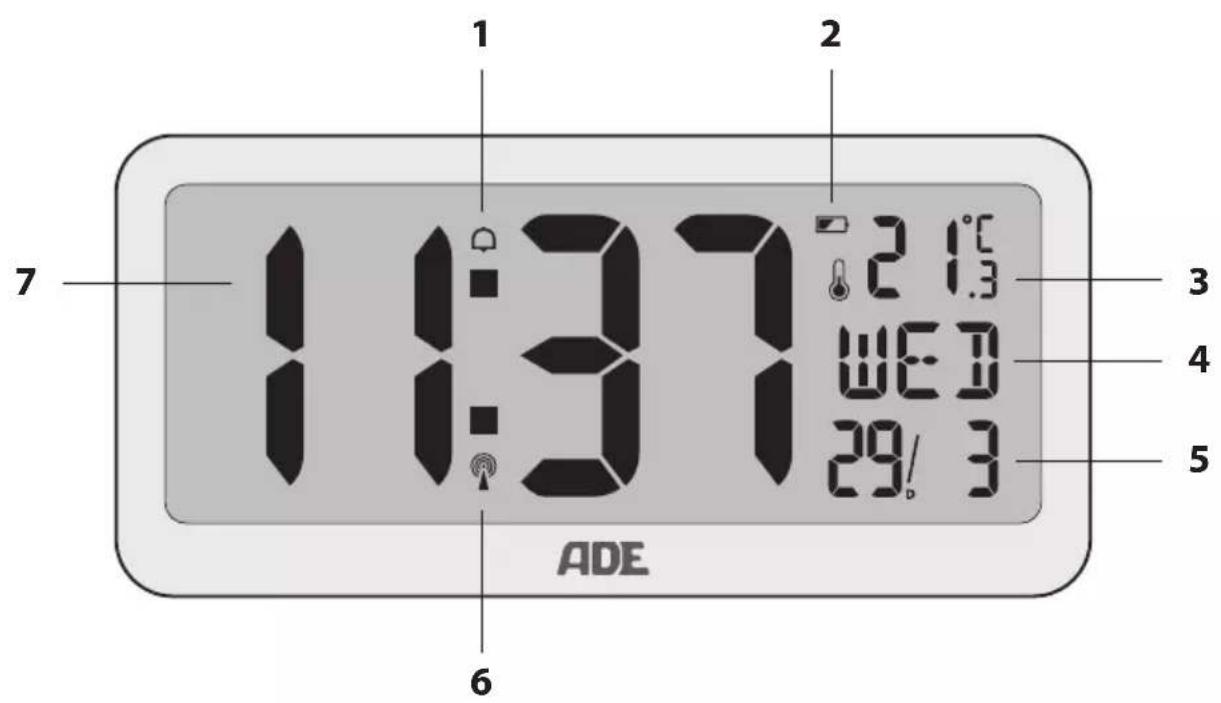

CK 2302 DCF radio-controlled clock Overview

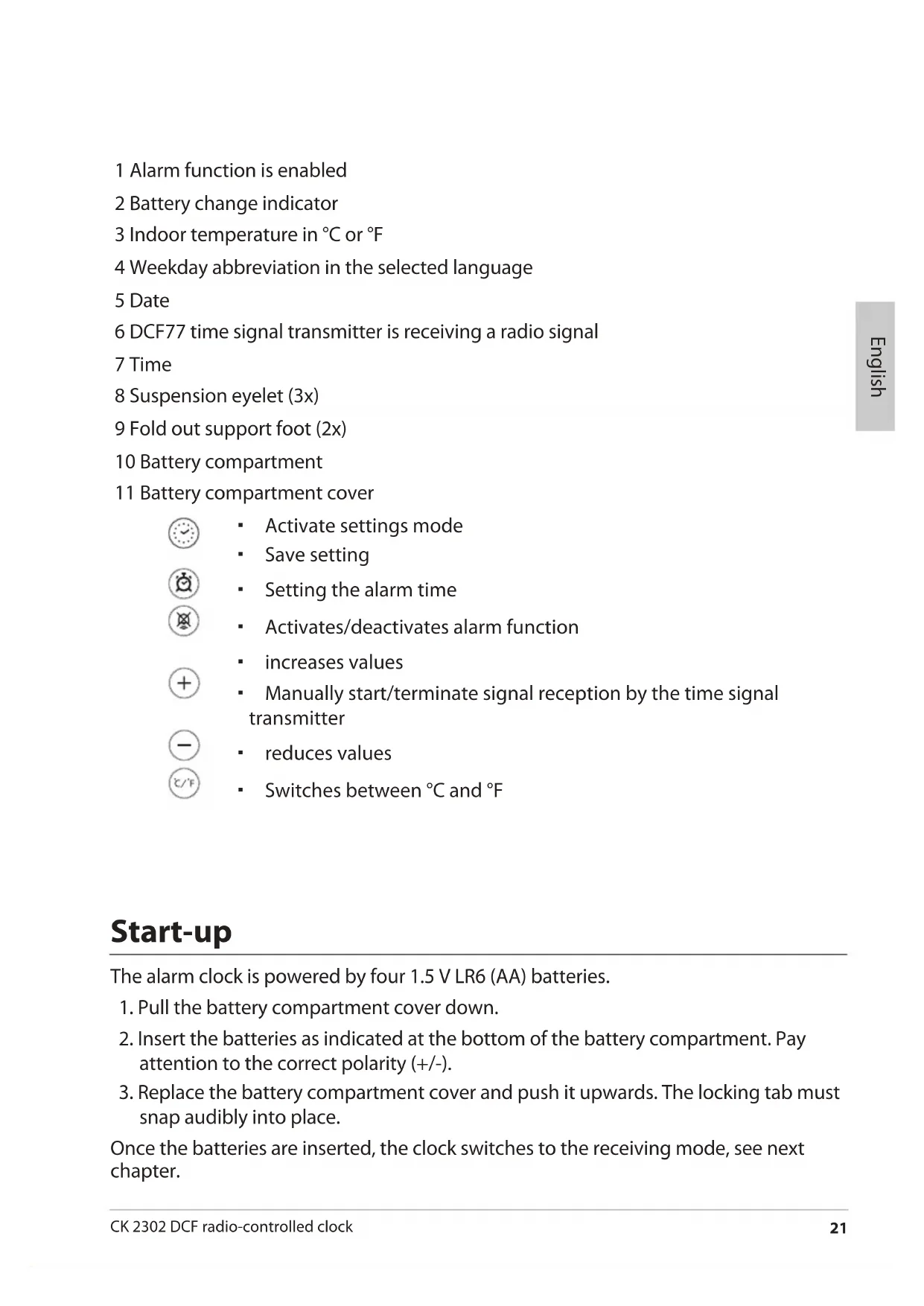

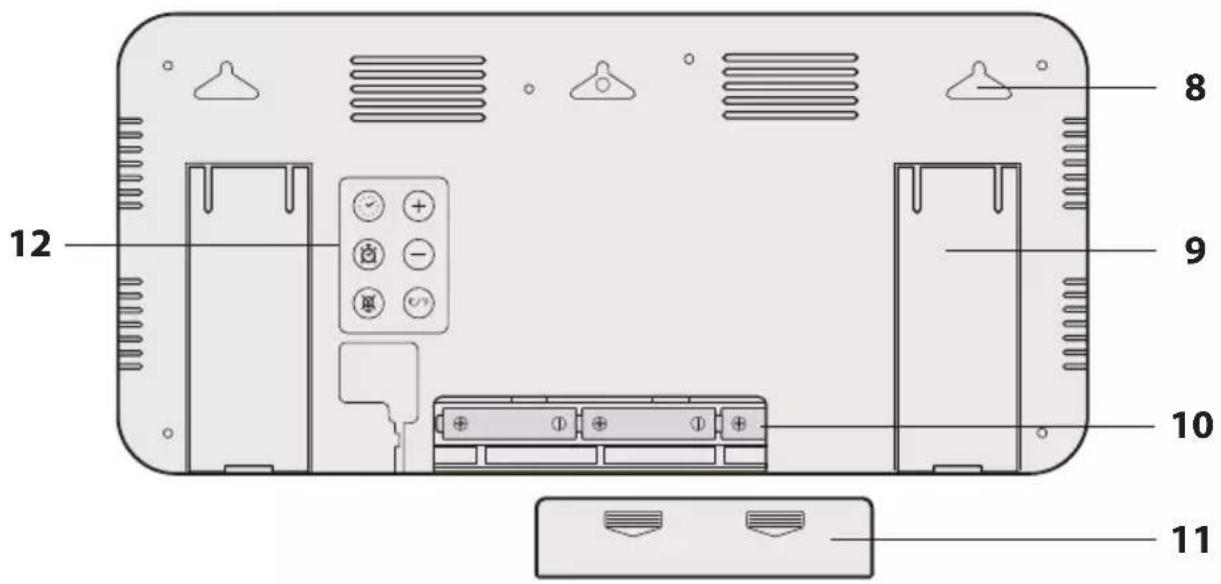

CK 2302 DCF radio-controlled clock English 1 Alarm function is enabled 2 Battery change indicator 3 Indoor temperature in °C or °F 4 Weekday abbreviation in the selected language 5 Date 6 DCF77 time signal transmitter is receiving a radio signal 7 Time 8 Suspension eyelet (3x) 9 Fold out support foot (2x) 10 Battery compartment 11 Battery compartment cover Activate settings mode Save setting Setting the alarm time Activates/deactivates alarm function increases values Manually start/terminate signal reception by the time signal transmitter reduces values Switches between °C and °F Start-up The alarm clock is powered by four 1.5 V LR6 (AA) batteries.

1. Pull the battery compartment cover down.

2. Insert the batteries as indicated at the bottom of the battery compartment. Pay

attention to the correct polarity (+/-).

3. Replace the battery compartment cover and push it upwards. The locking tab must

snap audibly into place. Once the batteries are inserted, the clock switches to the receiving mode, see next chapter.Receiving the time signal

CK 2302 DCF radio-controlled clock Notes on changing the battery: Only use the battery type specified in "Technical data". Always change all batteries at the same time. Dispose of old batteries in an environmentally appropriate way (see "Disposal"). Receiving the time signal When you insert the batteries into the radio-controlled clock, all the indicators are displayed for a moment followed by several beeps. The measured room temperature is displayed shortly afterwards. − Press and hold the button for approx. 2 seconds to start radio reception (press to interrupt radio reception again). The device then switches to receiving-mode, during which the number of radio waves indicates the quality of the reception: The more radio waves shown on the display, the better is the reception. As soon as the signal has been received in sufficient strength, the display also shows the time, the date and the weekday. The radio-controlled clock automatically switches to receiving mode several times every night. During this process, the displayed time is compared with that received from the time signal transmitter and, if necessary, corrected. If a sufficiently strong signal has not been received, the radio-controlled clock will cancel the receiving process after a few minutes and the radio tower symbol goes out. The receiving process is started again at a later point in time. In this case, the time proceeds as usual (beginning with the start time of "00:00"). Checklist when data is missing on the display No data display from the time signal transmitter

1. Check whether the location of the radio-controlled clock is suitable, see

"Choosing a location".

2. Restart reception manually, see "Starting signal reception manually".

3. Wait until the radio-controlled clock automatically switches to receiving mode at

a later point in time. The reception is usually better at night.

4. Manually perform the settings if reception is not possible at your location, see

"Setting the time and date manually".Receiving the time signal

CK 2302 DCF radio-controlled clock English Setting the time and date manually If there is more than approx. 20 seconds between two pushes of a button, the setting process automatically ends and you will have to repeat it.

1. Press and hold the

button until the indicator for the 12- and 24-hour time format blinks on the display.

or to set the desired time format: "12 H" or "24 H". If you choose "12 H", morning hours will be marked with "AM" and afternoon hours with "PM" on the display.

to save the setting. "00" flashes in the display for the time zone you are in ("00" is the default setting for the European mainland).

4. Proceed as previously described:

− Press the button or to set the desired value. − Press to save a setting.

5. You should set the following:

to conclude the procedure. Starting signal reception of the time signal manually If the radio signal symbol to the left is no longer displayed, the radio signals from the time signal transmitter are no longer being received. The time indicator nevertheless continues precisely. − Press and hold the button for a few seconds. This is how you manually start (and end, if necessary) the signal reception. Pay attention to the following: If the reception was not successful, the reception symbol fades out after a few minutes and the time on the display continues normally. Upon successful signal reception, the radio-controlled clock adjusts itself to the time of the time signal transmitter. If you have already made manual time and date settings, they will be adjusted automatically.About the time signal transmitter DCF77

CK 2302 DCF radio-controlled clock Choosing a location NOTE on material damage Protect the radio-controlled clock from dust, shocks, extreme temperatures, direct sunlight and moisture. Only place the radio-controlled clock in a dry, closed room. Maintain distance from TV sets, computers, and monitors. Base stations of cordless telephones should also not be in the immediate vicinity of the radio-controlled clock. Depending on your location, it may occur in rare individual cases that the radio-controlled clock receives signals from another time signal transmitter or even alternately from two time signal transmitters. This is not a fault in the device. In this case, change the location for the radio-controlled clock. The weather, e.g. a heavy storm, can cause interference with the reception. Temporary shutoffs of the transmitter can sometimes happen, e.g. because of maintenance work. Setting up/hanging the radio-controlled clock The radio-controlled clock has three suspension eyelets on the back and two fold out support feet. − Hang or place the radio-controlled clock as near as possible to a window. The device usually receives the strongest signal there. About the time signal transmitter DCF77 This radio-controlled clock receives its radio signals from the time signal transmitter DCF77. This broadcasts the precise and official time of the Federal Republic of Germany on the long-wave frequency of 77.5 kHz. The transmitter is located in Mainflingen near Frankfurt am Main and, with its range of up to 2000 km, supplies the majority of radio-controlled clocks in western Europe with the necessary radio signals. As soon as the radio-controlled clock is supplied with power, it switches to receiving mode and searches for the signal from the transmitter DCF77. If the time signal is received in sufficient strength, the display shows the date, time and day of the week. The radio-controlled clock switches on several times a day and synchronises the time with the radio signal from the transmitter DCF77. In the event the signal is not received, e.g. during a strong storm, the device continues to run precisely and then switches to receiving mode again at the next scheduled time.Alarm

CK 2302 DCF radio-controlled clock English Alarm Setting the alarm time

1. Press and hold the button until the hour digit flashes on the display and the

alarm symbol is displayed.

or to set the desired alarm hour. The indication of the displayed values changes faster by holding or .

The minute indicator for the alarm time blinks on the display.

or to set the desired alarm minute.

to complete the setup process. You can check the set alarm time by briefly pressing the button once. Waking up At the set time, you will be woken by an alarm signal, which will become more intense as the waking time increases. The alarm symbol also flashes on the display. Interrupting the alarm for 24 hours − Press any button (except , as it disables the alarm function) to stop the alarm. After 24 hours, the alarm will be triggered again. Auto-stop function If you do not press a button, the alarm switches off automatically after 2 minutes. After 24 hours, the alarm will be triggered again. Switching the alarm function off and on Starting from normal time display: − Press the button once. Once the alarm symbol goes out, the alarm function is disabled and you will not be alarmed any more. Pressing again activates the alarm function.Other functions

CK 2302 DCF radio-controlled clock Other functions Change temperature unit − Press the button to toggle between the degrees Celsius (°C) and degrees Fahrenheit (°F). Switching between summer and winter time Switching between summer and winter time, or vice versa, takes place automatically with good time signal reception. You must otherwise set the time manually. Resetting the radio-controlled clock to factory setting Reset the radio-controlled clock to its factory setting if the display shows unusual or obviously incorrect values.

1. Remove the batteries from the battery compartment and wait a moment.

2. Reinsert the batteries.

Pay attention to the correct polarity of the batteries (+/-).

3. Proceed as described in the chapter "Receiving the time signal".

Changing the battery When the unit reads the battery voltage below 2.5 V (display shows ), you should change the batteries. You should then proceed as described in the "Start-up" section. Cleaning NOTE on material damage − Do not immerse the clock in water or other liquids. − Never use harsh, scouring or abrasive cleaning agents or the like to clean the clock. Otherwise, the surface could be scratched. − Remove dust from the radio-controlled clock by a soft, dry cloth as needed. The glass can also be cleaned with commercially available glass cleaners.Fault/Remedy

CK 2302 DCF radio-controlled clock English Fault/Remedy Fault Possible cause The DCF77 signal for the time cannot be received. Check the chosen location. Start the signal reception manually, if necessary. Adjust the time manually. Temperature indication appears too high. Check whether the radio-controlled alarm clock is exposed to direct sunlight. The indicator is illegible, the function is unclear, or the values are obviously false. Reset the radio-controlled clock to the state at the time of delivery. The time differs by exactly one, two, three, etc. hours. You have probably set an incorrect time zone. Technical data Model: CK 2302 DCF radio-controlled clock Battery: 4x LR06 (AA), 1.5 V Rated current: 38 mA Temperature measuring range: approx. -10 °C – 50 °C (-14 °F – 122 °F) Distributor (no service address): GRENDS GmbH Stahltwiete 23 22761 Hamburg, Germany Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time. Warranty GRENDS GmbH warrants for 2 years from the date of purchase that it will remedy any defects due to faulty material or workmanship free of charge by repair or replacement. In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.Declaration of conformity

CK 2302 DCF radio-controlled clock Declaration of conformity GRENDS GmbH hereby declares that the CK 2302 digital radio-controlled clock complies with Directives 2014/30/EU and 2011/65/EU. This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance. Hamburg, April 2023 GRENDS GmbH Disposal Disposing of the packaging Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials. Disposing of the product Dispose of the product in accordance with the regulations that apply in your country. Devices must not be disposed of in normal household waste. At the end of their life, the products must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot. For more information, contact your local waste disposal firm or your local administrative body. Recyclable and disposable batteries do not belong in household waste. All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.Información general
