Product type	Car wireless charger
Model	CCHAQ15W110BK
Brand	Nedis
Intended use	Phone holder with integrated wireless charger, for iPhone 12/13/14 or magnetic cases, indoor use only
Power supply	USB-C (5 V/2 A recommended)
Maximum charging power	15 W (estimate)
Compatible with	iPhone 12/13/14, cases with magnetic insert, devices compatible with wireless charging (Qi)
LED indicator	Fixed green (ready), fixed blue (charging), flashing green and blue (incompatible)
Dimensions (approx.)	10 x 5 x 5 cm
Weight (approx.)	150 g
Material	Plastic
Mounting	Ventilation clip or suction cup (depending on model)
Cable length	1 m (estimate)
Spare parts	No user-repairable parts
Maintenance and cleaning	Disconnect before cleaning, do not use aggressive chemical cleaners
Safety	Do not open, do not expose to water, use only the specified voltage, replace immediately if damaged
Warranty	Manufacturer's warranty (refer to manual)
General information	Suitable for children aged 8 and over under supervision, for domestic use only

Frequently Asked Questions - CCHAQ15W110BK NEDIS

Which phones are compatible with this charger?

This charger is compatible with iPhone 12/13/14 and phone cases with magnetic insert. It also works with any device compatible with wireless charging (Qi).

How to install the charger on an air vent?

Open the ventilation clip by turning the clip adjustment ring counterclockwise, place the clip on the vent, then close the ring by turning it clockwise.

How to install the charger on the windshield?

Slightly moisten the suction cup, pull the locking tab, place the suction cup on the windshield, then push the tab to secure it.

How to charge my phone with this charger?

For model CCHAQ15W110BK, press the clamp release button, place your phone on the charging pad, then release the clamp. Charging starts automatically. The LED indicator turns fixed blue.

What does the fixed green LED indicator mean?

The fixed green indicator means the charger is ready for use.

What does the fixed blue LED indicator mean?

The fixed blue indicator means your device is charging.

What to do if the LED indicator flashes green and blue?

This flashing indicates that the device placed on the charger is not compatible. Check that your phone or its case supports wireless charging.

What is the maximum charging power?

The maximum charging power is 15 W (estimate based on model). Make sure to use a suitable power adapter or car USB port.

Can I use this charger with a non-magnetic case?

Yes, if your phone supports wireless charging, you can use model CCHAQ15W110BK with a non-magnetic case. Model CCHAQM15W110BK requires a magnetic case.

How to clean the charger?

Disconnect the charger before cleaning. Use a soft, dry cloth. Do not use aggressive chemical cleaners such as ammonia, acid, or acetone.

USER MANUAL CCHAQ15W110BK NEDIS

Automatic Wireless Car

Charger

Including dual mount

CCHAQM15W110BK | CCHAQ15W110BK

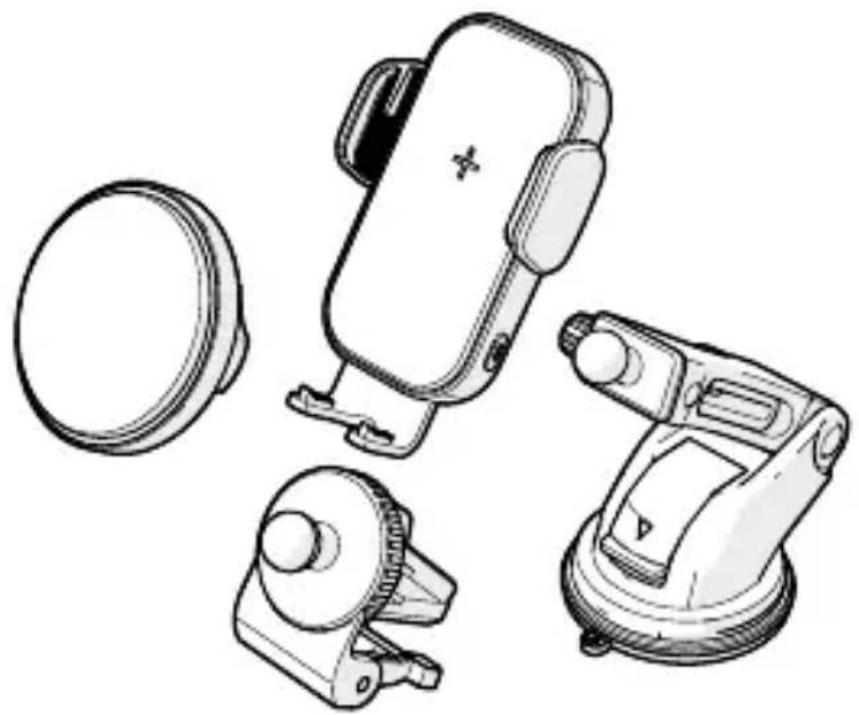

Line drawings of four different electronic devices or accessories, including a cylindrical case, a handheld device, and a mechanical device (no text or symbols present)

ned.is/cchaqm15w110bk

ned.is/cchaq15w110bk

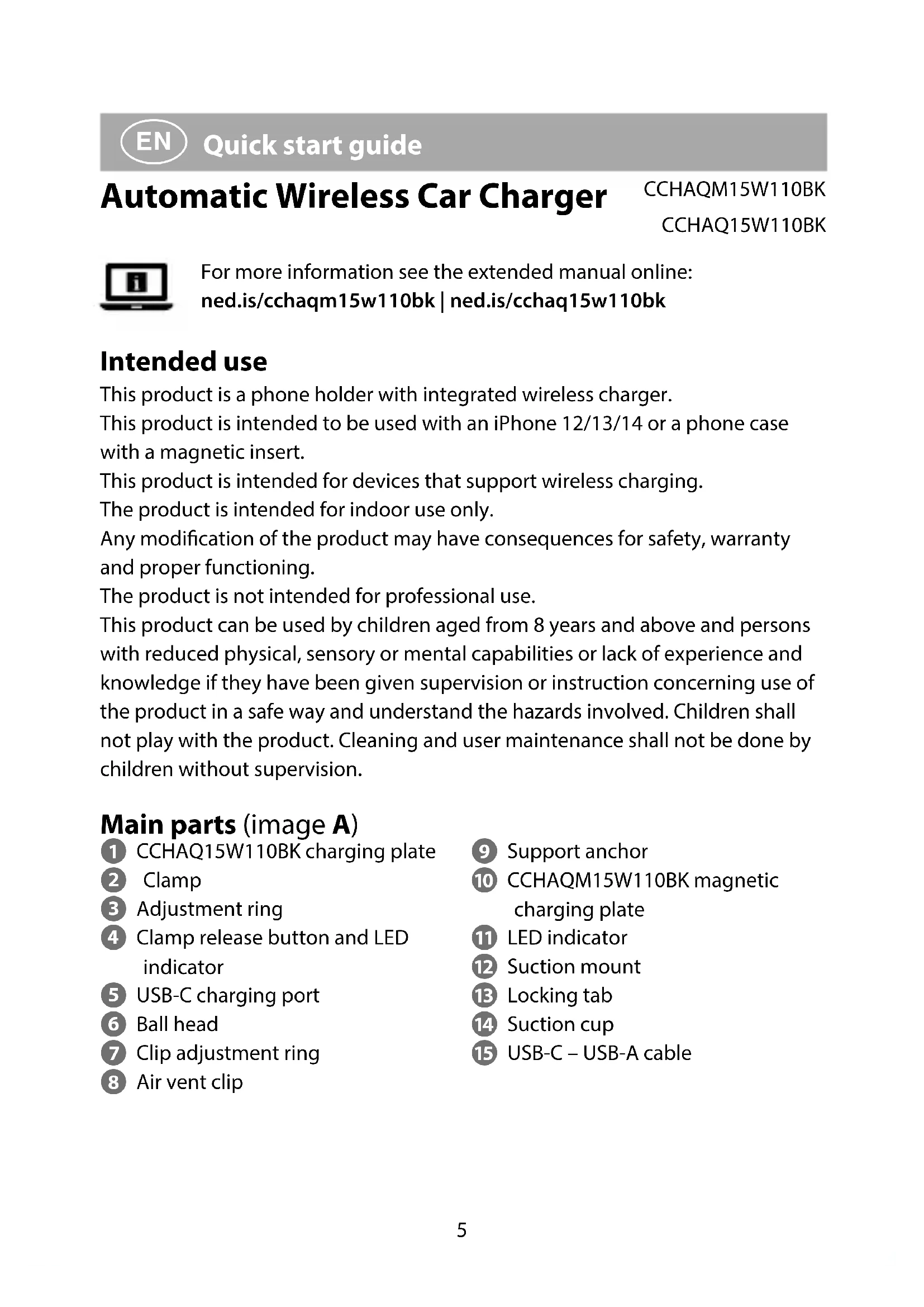

Quick start guide 5

Kurzanleitung 8

Automatic Wireless Car Charger

CCHAQM15W110BK

CCHAQ15W110BK

For more information see the extended manual online:

ned.is/cchaqm15w110bk | ned.is/cchaq15w110bk

Intended use

This product is a phone holder with integrated wireless charger.

This product is intended to be used with an iPhone 12/13/14 or a phone case with a magnetic insert.

This product is intended for devices that support wireless charging.

The product is intended for indoor use only.

Any modification of the product may have consequences for safety, warranty and proper functioning.

The product is not intended for professional use.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.

Main parts (image A)

1 CCHAQ15W110BK charging plate
2 Clamp
3 Adjustment ring
4 Clamp release button and LED indicator
5 USB-C charging port
6 Ball head
7 Clip adjustment ring
8 Air vent clip

9 Support anchor
10 CCHAQM15W110BK magnetic charging plate
11 LED indicator
12 Suction mount
13 Locking tab
14 Suction cup
15 USB-C – USB-A cable

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not open the product, there are no user serviceable parts inside.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• Do not expose the product to water or moisture.
• Only power the product with the voltage corresponding to the markings on the product.
• Only use the provided USB-C charging cable.
• Disconnect the product before cleaning.
• Do not use aggressive chemical cleaning agents such as ammonia, acid or acetone when cleaning the product.

Mounting the product (image B, C & D)

1. Turn the adjustment ring A 3 counterclockwise.
2. Click the ball head A 6 into the opening of the adjustment ring A 3.
3. Turn the adjustment ring A ③ clockwise to fasten the ball head A ⑥.

Air vent clip (image C):

1. Open the support anchor A 9.
2. Open the clip adjustment ring A 7 by turning it counterclockwise. The air vent clip A 8 opens.
3. Place the air vent clip A 8 on the desired air vent.
4. Close the clip adjustment ring A ⑦ by turning it clockwise.

Suction mount (image D):

1. Pull up the locking tab A 13.
2. Slightly moisten the suction cup A 14.
3. Place the suction mount A 12 on a desired place on the windshield.
4. Push the locking tab A 13 to secure it to the windshield.

Connecting the product to a power source

1. Plug the USB-C connector of the USB-C cable A 15 into the USB-C charging port A 5 of the product.

2. Plug the other end of the USB-C cable A 15 into a USB charging port of your car.

The LED indicator A11 lights up.

Adjusting the product

1. Turn the adjustment ring A 3 counterclockwise to loosen the charging plate A 1 10.
2. Adjust the charging plate A 1 10 to your desired position.
3. Turn the adjustment ring A ③ clockwise to fasten the charging plate A ① ⑩ in position.

Charging your device

The product can only be used with devices that support wireless charging. Only use the product with an iPhone 12/13/14 or a phone case with a magnetic insert.

For product CCHAQM15W110BK:

1. Place your device on the magnetic charging plate A 10. The product automatically starts charging your device.

The LED indicator A11 starts pulsing.

1. Remove your device when fully charged.

The LED indicator A11 lights up.

For product CCHAQ15W110BK

1. Press the clamp release button A 4.
2. Place your device on the charging plate A 1.
3. Press the clamp release button A 4 when your device is fully charged.
4. Remove your device.

LED indicator status\*

*Only applicable to CCHAQ15W110BK.

LED indicator Description
Solid green Indicates the product is ready for use.
Solid blue Indicates the placed device is charging.

Blinking green and blue Indicates the placed device is not compatible with the product.

Disposal

The product is designated for separate collection at an appropriate collection point. Do not dispose of the product with household waste.

For more information, contact the retailer or the local authority responsible for the waste management.
