DO9258M - Food Processor DOMO - Free user manual and instructions

Product type	Hand mixer (beater mixer)
Brand	Domo
Model	DO9258M
Power	Approximately 300-500 W (not specified)
Speeds	Variable speed control + Turbo button (instant max speed)
Main functions	Beating, mixing, kneading
Accessory material	Stainless steel (whisks and dough hooks)
Maximum flour capacity	350 g (for kneading)
Maximum continuous use time	5 minutes
Rest time between cycles	20 minutes minimum
Power supply	220-240 V ~ 50-60 Hz (estimate)
Power cord length	Approximately 1 meter (estimate)
Weight	Approximately 1.5 kg (estimate)
Dimensions (L x W x H)	Approximately 20 x 15 x 25 cm (estimate)
Warranty	2 years (parts and labor), 6 months for accessories and wear parts
Maintenance and cleaning	Motor unit: damp cloth; accessories: dishwasher or soapy water
Safety	Do not immerse motor unit, do not run empty, eject accessories only when stopped
Included accessories	2 whisks, 2 dough hooks
Usage type	Household only
Repairability	Repairs by manufacturer or authorized service; no self-repair

Frequently Asked Questions - DO9258M DOMO

How to install the whisks or dough hooks?

Insert the accessories into the openings under the motor unit until you hear a click. For the hooks, insert the one with the collar into the large opening.

Which speed to use for whipping egg whites?

Start at low speed, then gradually increase. Use the Turbo button for instant maximum speed.

Can I use the appliance for more than 5 minutes?

No, the appliance must be used for a maximum of 5 minutes continuously, then let it rest for at least 20 minutes before a new cycle.

How to clean the motor unit?

Never immerse the motor unit in water. Clean it with a damp cloth.

Are the accessories dishwasher safe?

Yes, the stainless steel whisks and dough hooks are dishwasher safe.

What to do if the appliance does not start?

Check that the cord is plugged in, the accessories are fully inserted (click), and the speed selector is not set to « o ».

Can I knead dough with more than 350 g of flour?

No, do not exceed 350 g of flour to avoid overloading the motor.

How to remove the whisks or dough hooks?

Press the eject button located on the motor unit. Make sure the appliance is off and unplugged.

What is the warranty period?

The appliance is warranted for 2 years from the date of purchase. Accessories and wear parts have a warranty of 6 months.

Where to find spare parts?

Contact DOMO customer service at [phone] or by email [e-mail]. Authentic accessories can be ordered online.

USER MANUAL DO9258M DOMO

Modern electric mixer with handels and a black handle, no visible text or symbols

DO9258M

Handleiding HANDMIXER

Mode d'emploi BATTEUR ÉLECTRIQUE

Gebrauchsanleitung HANDMIXER

Instruction booklet HAND MIXER

Manual de instrucciones BATIDORA DE MANO

Istruzioni per l'uso FRULLATORE MANUALE

Návod k použití RUČNÍ ŠLEHAČ

Návod na použitie RUČNÝ ŠL'AHAČ

Two black-and-white icons: a triangular warning symbol with an exclamation mark and a stack of open books (no text or symbols present)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Illustration of various food items including a blender, egg, bowl, spoon, bread, microwave, and cake (no text or symbols)

PROBLEEM EN OPLOSSING

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Technical diagram of a hand mixer with labeled parts including a motor, spring, and stand

AVANT LA PREMIÈRE UTILISATION

Illustration showing food items including kitchen utensils, eggs, bowls, skewers, bread, pizza, and a slice of cake with chopsticks.

Prohibition sign depicting a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a hand mixer with labeled parts including handle, spring, and stand

Simple line drawings of food items including milk carton, egg, bowl, spoon, bread, slice, and cake (no text or symbols)

	[Swind]	[Swissl]	[Swissl]
	[Swind]	[Swissl]	[Swissl]
[Y5B3]	[Swind]	[Swissl]	[Swind]

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

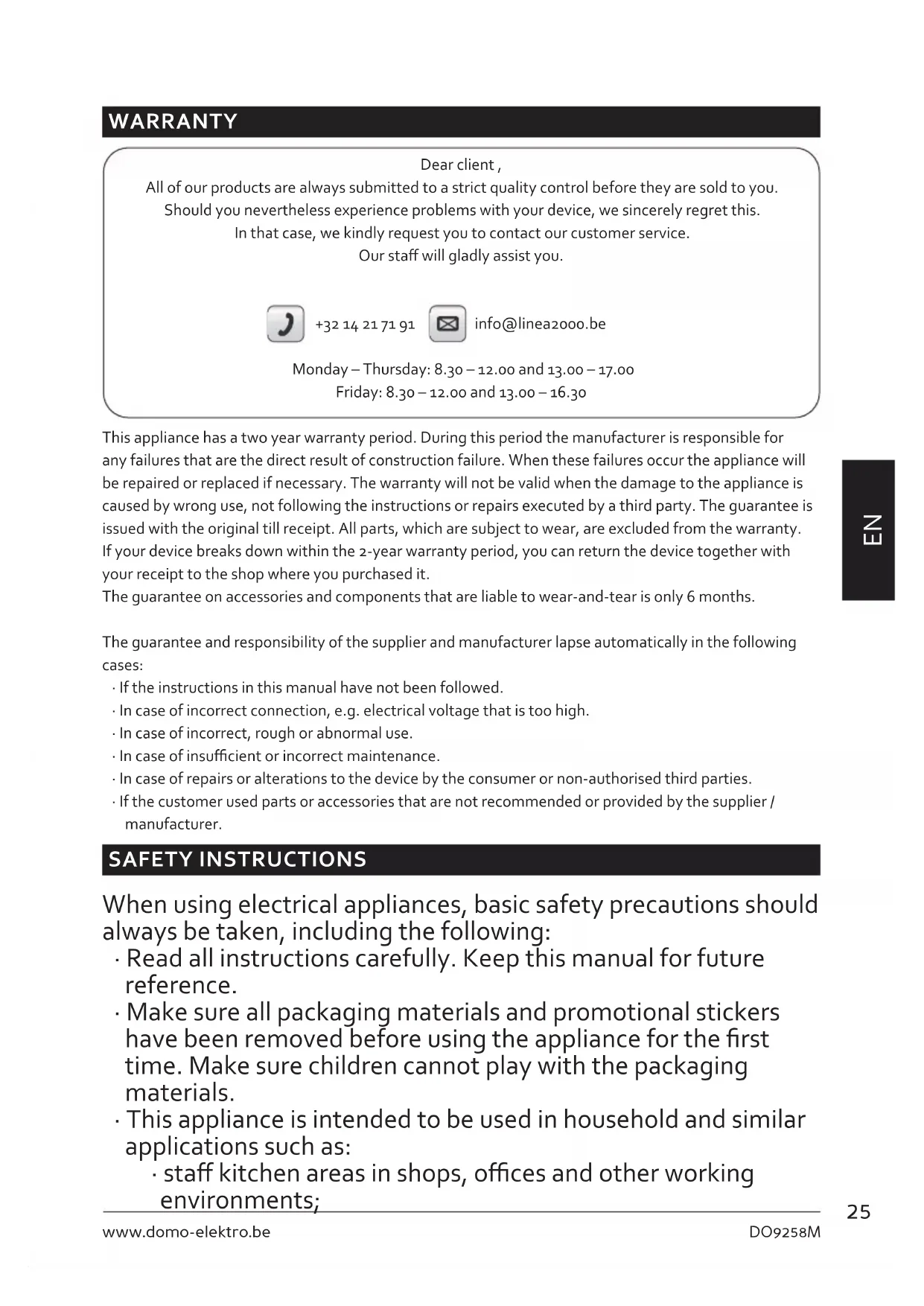

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “o” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
  · Do not use or store this appliance outdoors.
  · Always use the appliance on a steady, dry and level surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠️ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

· Do not use the appliance without ingredients.
- Only touch the accessories when they stopped moving inside the appliance.
· Avoid touching the moving parts.
- Keep your hands, clothes, spatulas and other kitchen utensils away from the beaters and dough hooks to prevent accidents from happening.
- Never eject the beaters or dough hooks from the device with the eject button while the device is still plugged in.
- Remove the beaters or dough hooks before cleaning.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

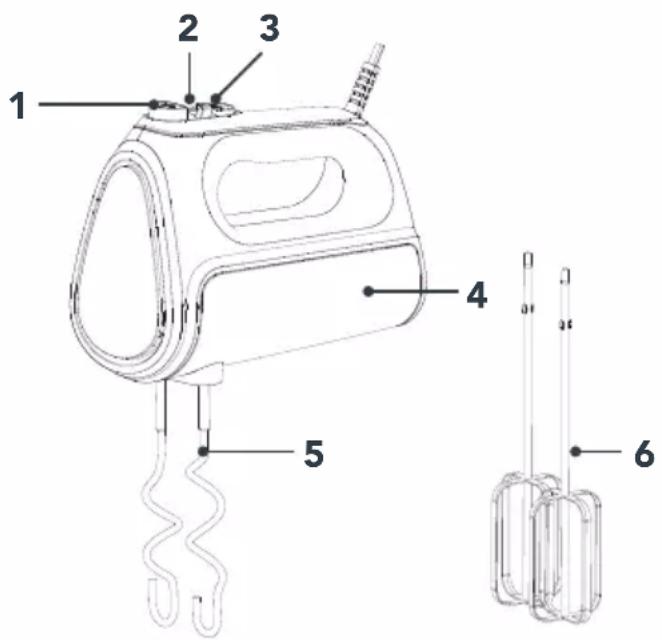

PARTS

1. Eject button
2. Speed regulator
3. Turbo button
4. Motor unit
5. Dough hooks
6. Beaters

1 2 3 4 5 6

BEFORE THE FIRST USE

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
• Clean your beaters and dough hooks. When you plug in the accessories into the device, be sure the speed is set at "o" and the power supply cord is not plugged in.

USE

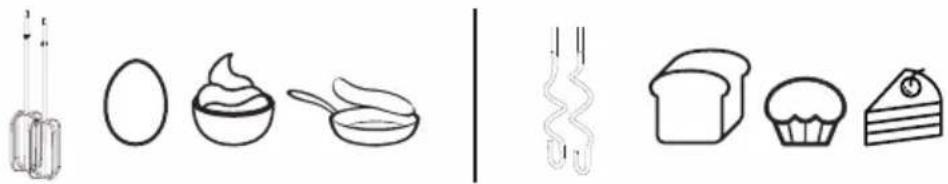

1. Insert the beaters or dough hooks in the right slots on the motor unit on the bottom of the appliance. Gently press on them until you hear a click.

- The beaters can be used to beat egg whites, cream, mayonnaise, sauces, Airy batter... - The dough hooks are used for more dense and consistent preparations E.g. Dough.

Simple line drawings of food items including milk carton, egg, bowl, spoon, bread, slice, and cake (no text or labels)

Caution: The dough hooks are designed in such a way that you can place them in the motor unit only one way. One of the two dough hooks has a 'crown' at the end of its rod which makes it only fit into the large opening at the bottom of the device.

1. Make sure the appliance is set to the 'o' position and put the plug in the socket.

2. Place the beaters or dough hooks directly in the bowl with ingredients. To avoid spattering, do not hold it slanted.

3. Use the speed regulator to select the speed. You can also use the speed regulator to adjust the speed when beating or kneading. Or push the turbo button to beat or knead at full speed immediately.

Caution: do not insert knives, metal spoons, forks, etc. into the bowl while the mixer is running. Use the device for max 5 minutes continuously. There should be at least 20 minutes of rest time between two continuous cycles.

1. When the mix has achieved the required consistency, set the speed regulator back to o and unplug the appliance.

2. If necessary, remove excess food residue from the whisks or dough hooks using a rubber or wooden spatula

3. Remove the beaters or dough hooks by pressing the eject button.

TIPS

- Ingredients that are stored away in the refrigerator, such as butter or eggs, are best mixed at room temperature. Therefore we advise you to remove them from your refrigerator in due time when you plan on mixing them later.

- When kneading yeast dough, it is recommended to select a lower speed first and then a higher speed for best results.

- To be sure you do not have any little pieces of egg shell in your batter or whisked eggs, break the eggs away from the bowl you will use later. Remove the egg shells there and only then mix the egg whites or yolks.

· Always start mixing at the lower speeds to gradually increase the advised speed setting mentioned in the recipe.

· Do not knead a dough containing more than 350 g of flour. More flour can overload the mixer

CLEANING AND MAINTENANCE

Pull the power supply cable from the plug before cleaning.
Never immerse the motor unit in water. Wipe the motor unit clean with a damp cloth.
The beaters and dough hooks are made from stainless steel, and so are dishwasher-safe. You can also rinse in warm water and soap. Donot use abrasive agents or detergent.

Dry everything thoroughly.

	√	×	×
[206A]	√	√	√
[805D]	√	√	√

PROBLEM AND SOLUTION

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed out by a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Technical diagram of a hand mixer with labeled parts including handle, spring, and stand

Illustration of various food items including milk carton, egg, bowl, spoon, bread, slice, and cake (no text or labels)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a hand mixer with numbered parts and exploded view

PRIMA DELL'USO

Illustration of various food items including milk carton, egg, bowl, spoon, bread, slice, and cake (no text or labels)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a hand mixer with labeled parts including handle, spring, and stand

PŘED PRVNÍM POUŽITÍM

Illustration of various food items including milk carton, egg, bowl, spoon, bread, slice, and cake (no text or labels)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawings of various food items including milk carton, egg, bowl, spoon, bread, slice, and cake (no text or labels)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with small protrusions, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square covers, a clear glass coffee maker, and a rectangular container with dark liquid (no text or symbols visible)
