Product Type	Electric Hair Clipper
Brand	DOMO
Model	B2BF23
Power Supply	Rechargeable Lithium-Ion Battery
Runtime	60 minutes
Charging Time	About 1 hour
Adapter Input Voltage	100-240 V, 50/60 Hz
Display	LED with remaining battery indicator (in 5 minute increments)
Cutting Height Adjustment	Slider 5 positions (0.5 - 2.5 mm) + 6 cutting combs (4-6, 7-9, 10-12, 16-18, 22-24, 28-30 mm)
Included Combs	6 cutting combs + 1 thinning comb
Cutting Head	Removable, stainless steel blades
Included Accessories	Charging station, adapter, cleaning brush, oil
Usage	Clean, dry and combed hair
Lubrication	Before each use with the provided oil
Cleaning	Cleaning brush for the cutting head; soft, dry cloth for the housing
Safety	Unplug before cleaning; do not immerse; use on dry hair only
Warranty	2 years (accessories and wear parts: 6 months)
Customer Service	[phone], [e-mail] (Mon-Thu 8:30-17:00, Fri 8:30-16:30)
Recycling	Do not dispose of in household waste; return battery to a collection point
Country of Origin	Not specified but CE certified

Frequently Asked Questions - B2BF23 DOMO

What is the battery runtime?

The runtime is 60 minutes after a full charge. The LED display shows the remaining time in 5-minute increments.

How long does it take to fully charge the battery?

Full charge takes about 1 hour. The screen bars flash during charging and become solid when the battery is full.

Can I use the clipper while it is plugged in?

Yes, you can use the device directly plugged into the adapter. However, avoid prolonged use in this manner to prevent damage to the adapter or fire.

How to adjust the cutting height?

Use the slider on the device for heights from 0.5 to 2.5 mm. For longer cuts, attach one of the 6 combs (from 4-6 mm to 28-30 mm) and adjust the slider within that range.

How to clean the cutting head?

Turn off and unplug the device. Remove the cutting head by pressing on the blade tips. Clean it with the provided brush. Do not wash with water; you can use disinfectant alcohol. Then apply a few drops of oil on the blades.

Should I lubricate the blades before each use?

Yes, it is recommended to lubricate the blades with the provided oil before each use to ensure optimal cutting and extend blade life.

What to do if the clipper stops working?

First check that the battery is charged. If the problem persists, contact DOMO customer service at [phone] or by email at [e-mail]. Do not attempt to repair the device yourself.

Does the warranty cover wear parts?

The 2-year warranty covers material and manufacturing defects. Accessories and wear parts (such as combs and blades) are covered by a 6-month warranty.

Can I use the clipper on wet hair?

No, the clipper must only be used on clean, dry and combed hair. Moisture can damage the device and present an electrical risk.

How to change the cutting comb?

Turn off the device. Place the desired comb on the cutting head, teeth facing upward. Insert the blades onto the teeth first, then secure by clicking the bottom of the comb. To remove, slightly open the locked sides and pull.

USER MANUAL B2BF23 DOMO

Product photo of a DomO hair styling tool with various comb and clip sets (no visible text or symbols)

DO1091TD

Handleiding Tondeuse digital PRO

Mode d'emploi Tondeuse digital PRO

Gebrauchsanleitung Digitaler Haarschneider PRO

Instruction booklet Trimmer digital PRO

Manual de instrucciones Cortadora digital PRO

Istruzioni per l'uso Tagliacapelli digital PRO

Návod k použití Zastřihovač vlasů a vousů – PRO

Návod na použitie Strihač vlasov a fúzov - PRO

Two symbolic icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or labels)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Close-up of a pen writing on paper with a green checkmark (no text or symbols visible)

Close-up of a black and beige brush tip with a red X mark symbol in the corner (no text or symbols on the brush itself)

OPZETKAMMEN

Close-up of a hand holding a black handheld device with labeled parts (1 and 2), no visible text or symbols beyond labels.

OPLADEN

Close-up of a hand holding a black, faceted object with a golden tip (no text or symbols visible)

Close-up of a black plastic object with a small protrusion on the right side (no text or symbols visible)

MILIEURICHTLIJNEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

AVANT LA PREMIÈRE UTILISATION

Close-up of a black pen tip with a green checkmark icon (no text or symbols on the object)

Close-up of a black and beige hairbrush with a red X mark symbol in the corner (no text or symbols on the brush itself)

PEIGNES

Close-up of a hand holding a black handheld device with labeled parts (1 and 2), no visible text or symbols beyond labels.

RECHARGE

Close-up of a hand holding a black object with a golden tip, no visible text or symbols

Close-up of a black plastic object with a small protrusion on the right side (no text or symbols visible)

MISE AU REBUT

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or numbers present)

BATTERIE NON AMOVIBLE

Close-up of a black pen tip with a green checkmark icon (no text or symbols on the pen itself)

Close-up of a black pen tip with a white eraser, marked with a red 'X' symbol (no text or symbols on the pen itself)

KAMMAUFSÄTZE

Close-up of a hand holding a black mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels.

AUFLADEN

Close-up of a hand holding a black object with a golden tip, against a white background (no text or symbols visible)

Close-up of a black plastic object with a small protrusion on the right side (no text or symbols visible)

ENTSORGEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or numbers present)

NICHT HERAUSNEHMBARE BATTERIE

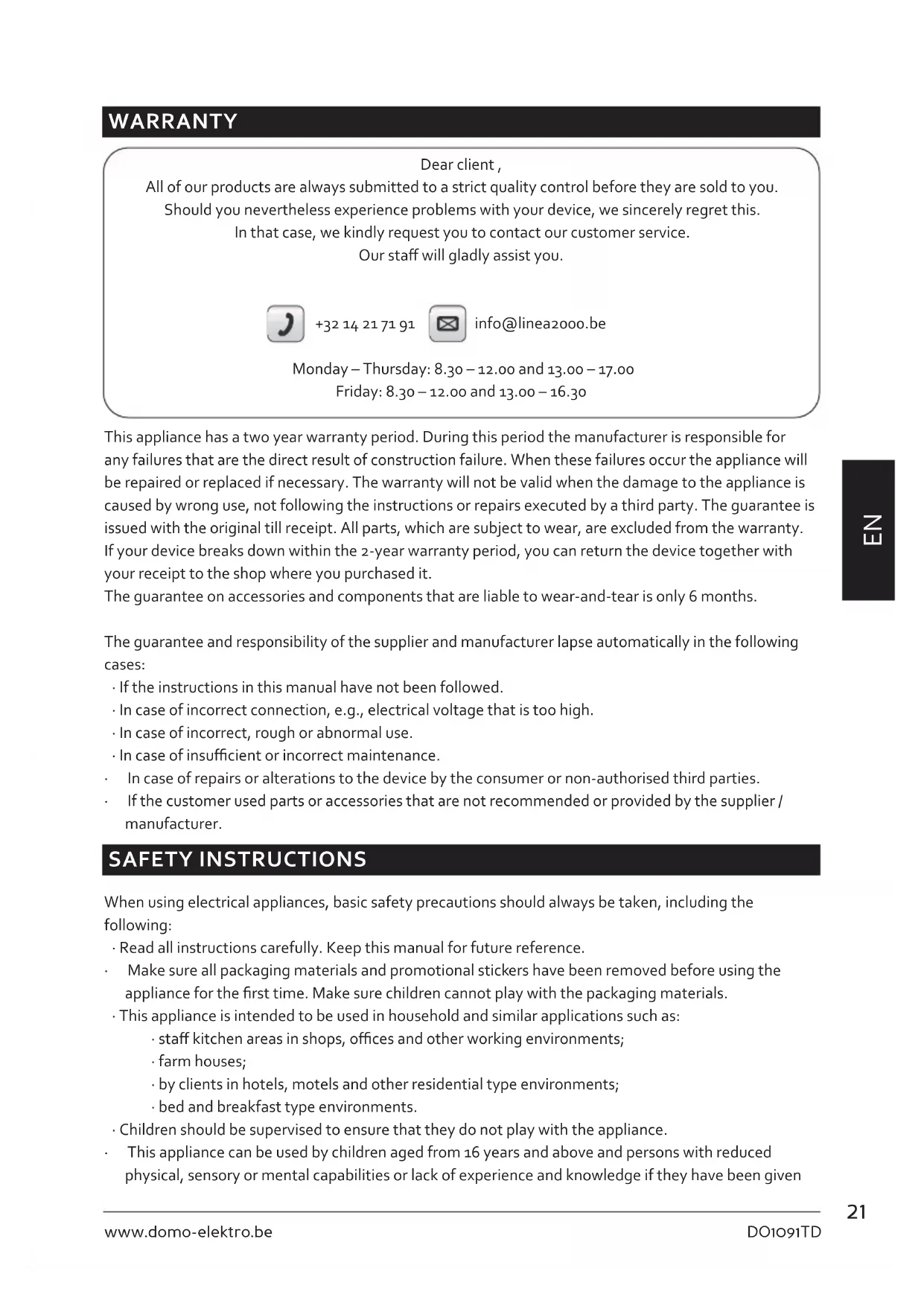

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.

In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
  · by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

· All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- The appliance may not be used with an extension lead or a multiple socket.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

· Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

• Check that the trimmer is working properly before use.
• Never use the trimmer with a damaged or broken comb attachment. If a tooth is missing from the comb attachment, this may lead to injuries.
  · Turn off the trimmer before putting it down.
• Do not use the trimmer near water, such as in a bath, shower, or washbasin filled with water. Moisture can be a hazard even when the trimmer is switched off.

· Never use the trimmer in the bath.
· Only use the trimmer in dry rooms.
· Do not use the trimmer when your hair is still wet.

- Nevertheless, if the trimmer should fall into the water, unplug it from the mains supply first before removing it from the water.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

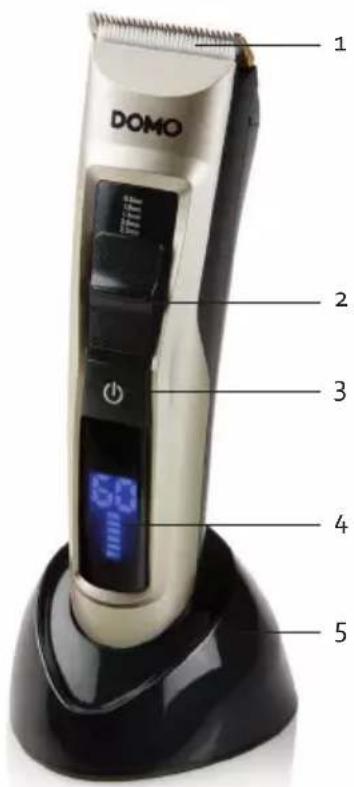

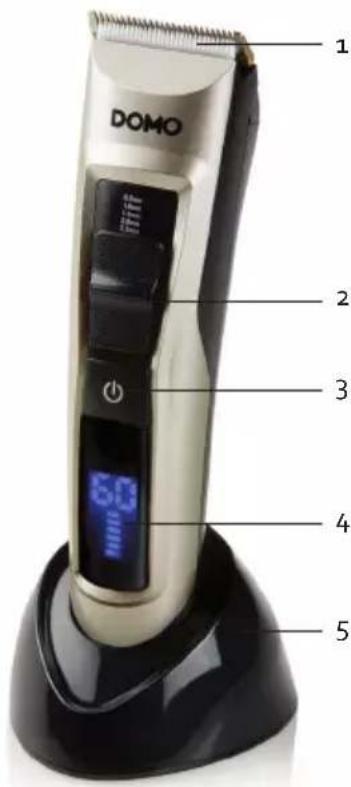

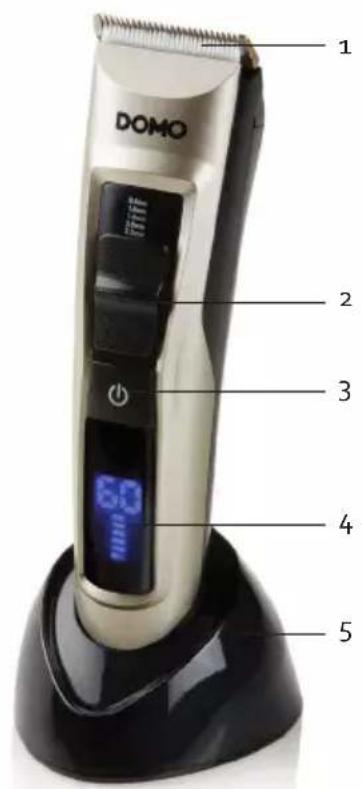

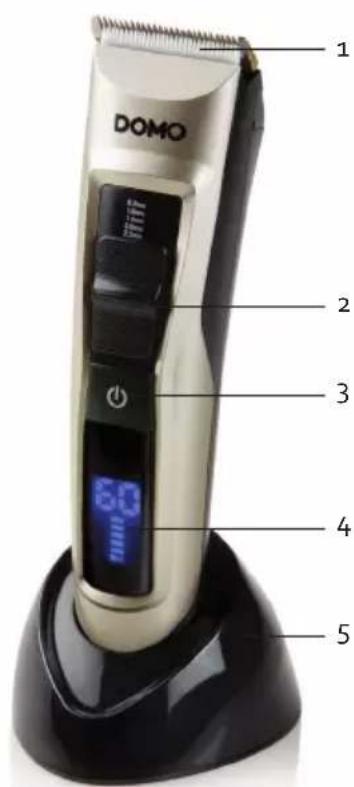

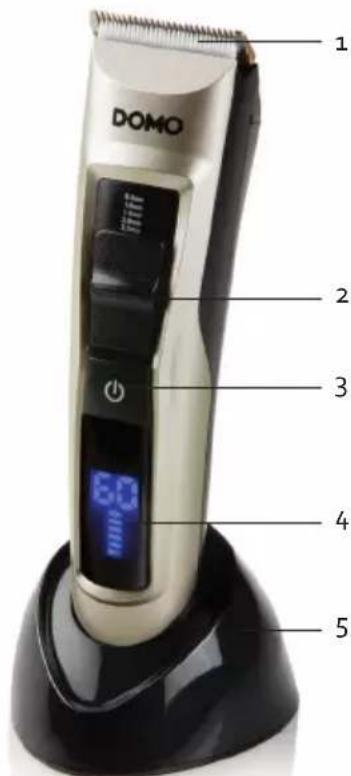

PARTS

1. Removeable trimming head

2. Slider for setting the blades (5 positions)

3. On/off button

4. LED display

5. Charging station

6. Adapter

7. Comb attachments (6)

8. Cleaning brush

9. Thinning comb attachment

10. Oil

BEFORE THE FIRST USE

• Check that the trimmer is working properly before use.
• Check that the blades are clean before use.
• You must oil the blades before each use.

USE

1. Only use the trimmer on clean, dry, and untangled hair.
2. Set the desired trim height. Use the slider on the trimmer for a shorter length (0.5-2.5 mm). For a longer length, use one of the 6 comb attachments; see 'comb attachments' section.
3. Press the on/off button.
4. Place the trimmer flat against the head with the blades pointing in the direction of hair growth. Move the trimmer up and out through the hair. Never force the trimmer through the hair. Never switch off the trimmer while it is in the hair.
5. When you have finished trimming your hair, press the on/off button again to turn the trimmer off.

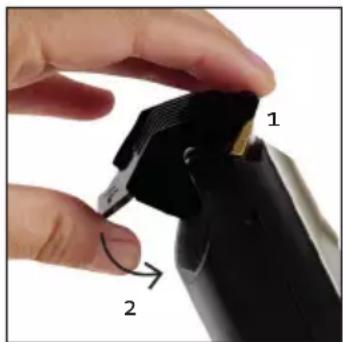

COMB ATTACHMENTS

- The trimmer comes with 6 combs for trimming and 1 comb for thinning. You can read the trim height on the comb: 4-6 mm, 7-9 mm, 10-12 mm, 16-18 mm, 22-24 mm, and 28-30 mm. Use the slider to set the trimming height within these dimensions, e.g. if you want to trim to a length of 10 mm, insert the 10-12 mm comb attachment and set the slider to 0.5 mm.

- If the hair has to be shortened a lot, do it gradually. Start with a longer length and select a comb

attachment with a shorter trim height each time. Turn off the trimmer before changing the comb attachment.

• Place the desired comb attachment on the trimming head before turning the trimmer on. Make sure that the teeth of the comb attachment are pointing upwards. First, place the blades on the teeth of the comb attachment and then click the bottom of the comb attachment onto the clipper (see illustration).
• Remove the comb attachment by pulling the sides that lock onto the trimmer open slightly, and then remove the comb attachment from the trimmer.

Close-up of a pen writing on paper with a green checkmark (no text or symbols visible)

Close-up of a black pen tip with a white tip, marked with a red X symbol (no text or symbols on the object itself)

Close-up of a hand holding a black handheld device with labeled parts (1 and 2), no visible text or symbols beyond labels.

CHARGING

• You can read the remaining battery life on the display. This indication goes from oo to 60 minutes in 5-minute intervals. When the battery level reaches 05 min, the LED will turn red instead of blue. Allow the trimmer to charge.
• Plug the power cord into a socket. Connect the trimmer directly to the adapter or connect the charging station to the adapter and place the trimmer on the charging station.
• If you connect the trimmer directly to the adapter, you can continue to use the trimmer. Do not use the trimmer for a long time in this way, as this could damage the adapter and even cause a fire.

• When the trimmer is charging, you can see the bars on the display flashing. It takes an average of one hour to fully charge the battery.

• When the battery is fully charged, all bars are visible and the display shows 60 min. You can use the trimmer for 60 minutes with a fully charged battery.

• To extend the battery's service life, we recommend that you regularly charge the trimmer until it is full and then let it discharge completely before charging it again.

CLEANING AND MAINTENANCE

• Never immerse the trimmer, power cord, or plug in water or any other liquid. This is to prevent electric shock or fire.

• Clean the trimmer after each use. If the trimmer is not properly maintained, it can drastically reduce the service life of the trimmer and cause a dangerous situation.

• Turn off and unplug the trimmer before cleaning it.

• Remove the comb attachment if it is on the trimmer.
• Remove the trimming head by pressing against the tips of the blades (see illustration).
• Clean the trimming head with the enclosed cleaning brush.

⚠️ Note: do not clean the trimming head with water or other liquids. You can use disinfecting alcohol.

1. Drizzle a little oil on the blades. Use only the oil provided, which is specially designed for hair clippers. If there is too much oil, you can wipe it off with a dry cloth.
2. Wipe the clipper housing with a soft, dry, lint-free cloth.
3. Store the trimmer in a dry, dust-free place.

Close-up of a hand holding a black object with a golden tip, against a white background (no text or symbols visible)

Close-up of a black plastic object with a small protrusion on the right side (no text or symbols visible)

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

NON-REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

GARANTIA

Close-up of a pen tip with a green checkmark icon (no text or symbols on the object)

Close-up of a black and white pen tip with a red X mark symbol in the corner (no text or symbols on the pen itself)

PEINES GUÍA

Close-up of a hand holding a black handheld device with labeled parts (1 and 2), no visible text or symbols beyond labels.

CARGAR EL APARATO

Close-up of a hand holding a black object with a golden tip, against a white background (no text or symbols visible)

Close-up of a black and white object with a protruding metallic bracket (no text or symbols visible)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

BATERÍA NO EXTRAÍBLE

PRIMA DELL'USO

Close-up of a black pen tip with a green checkmark icon (no text or symbols on the object)

Close-up of a black and white brush tip with a red X mark symbol in the corner (no text or symbols on the tool itself)

PETTINI

Close-up of a hand holding a black handheld device with a gold clip, labeled with parts 1 and 2 (no text or symbols on the device itself)

RICARICA

Close-up of a hand holding a black object with a metallic clip, against a white background (no text or symbols visible)

Close-up of a black mechanical component with a small protruding part, against a white background (no text or symbols visible)

MISURE AMBIENTALI

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

BATTERIA NON RIMOVIBILE

PŘED PRVNÍM POUŽITÍM

Close-up of a pen writing on paper with a green checkmark icon (no text or symbols)

Close-up of a black and white brush tip with a red X symbol in the corner (no text or symbols on the tool itself)

HŘEBENOVÉ NÁSTAVCE

Close-up of a hand holding a black handheld device with a golden clip, showing a curved arrow indicating rotation (no text or symbols present)

NABÍJENÍ

Close-up of a hand holding a black object with a golden tip, against a white background (no text or symbols visible)

Close-up of a black and white object with a protruding black arrowhead (no text or symbols visible)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

PEVNĚ ZABUDOVANÉ BATERIE

PRED PRVÝM POUŽITÍM

Close-up of a black pen tip with a green checkmark icon (no text or symbols on the pen itself)

Close-up of a black pen tip with a red X symbol in the corner (no text or symbols on the pen itself)

HREBEŇOVÉ NÁSTAVCE

Close-up of a hand holding a black handheld device with labeled parts (1 and 2), no visible text or symbols beyond labels.

NABÍJANIE

Close-up of a hand holding a black object with a metallic clip, against a white background (no text or symbols visible)

Close-up of a black and white object with a protruding black bracket, against a white background (no text or symbols visible)

OHŁAD NA ŽIVOTNÉ PROSTREDIE

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

PEVNE ZABUDOVANÉ BATÉRIE

Two cylindrical white objects with small protrusions, possibly milk or tea, on a plain white background (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container with dark liquid (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:
