Brand	EAS Electric
Model	ENV50T
Product Type	Electric Oven
Power Supply	220-240 V~ 50/60 Hz
Power	1500 W
Cooking Functions	Bottom Heat, Top Heat, Conventional (fan heat), Grill (dual top element), Convection
Temperature Setting	Up to 250°C, rotary thermostat
Recommended Preheating	5 to 10 minutes
Included Accessories	Baking Tray (pan), Oven Rack
Color	Not specified (silver or black depending on model)
Material	Steel, glass
Safety	Hot surfaces, automatic shut-off (not specified), unplug before cleaning
Cleaning and Maintenance	Unplug and let cool before cleaning; exterior: damp cloth; accessories: warm soapy water; avoid abrasive products
Warranty	3 years (Spain and Portugal)
Intended Use	Household only
Country of Manufacture	Not specified

Frequently Asked Questions - ENV50T EAS Electric

How to preheat the ENV50T oven?

Turn the thermostat to the desired temperature and let the oven preheat for 5 to 10 minutes before placing food inside.

What cooking modes are available?

The oven offers several modes: bottom heat, top heat, conventional (both heating elements), grill (dual top element), and convection (if rotisserie, works like grill).

How to clean the oven?

Unplug the appliance and let it cool. Wipe the exterior with a damp cloth. Wash the rack and tray with warm soapy water. Do not use abrasive or chemical products.

Can I use metal utensils in the oven?

No, avoid metal utensils as they pose a risk of fire or electric shock. Use dishes suitable for oven cooking.

Can the oven be used by children?

Yes, from 8 years old under supervision. Children should not play with the appliance or perform cleaning unless they are over 8 and supervised.

What to do if the power cord is damaged?

It must be replaced by the manufacturer, its service agent, or a qualified person to avoid any hazard.

Can I leave objects on top of the oven while it is running?

No, do not place any objects on top of the oven as there is a risk of fire.

How to set the temperature?

Turn the thermostat clockwise to set the desired temperature up to 250°C.

Is the oven suitable for commercial use?

No, it is designed for household use only. Do not use it for industrial or commercial purposes.

How to dispose of the oven at end of life?

Do not throw it away with household waste. Follow local regulations for waste electrical and electronic equipment (WEEE) to recycle components.

USER MANUAL ENV50T EAS Electric

Line drawing of a simple kitchen oven with top and front panels (no text or symbols)

ENV28

ENV38

ENV50T

QR code with embedded logo and text 'EAST ELECTRIC' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

ADVERTENCIAS

≥10 cm ≥10 cm ≥10 cm

ACCESORIOS DEL HORNO

Two 3D-rendered objects: a black rectangular tray and a white grid-patterned tray (no text or symbols)

Function Select 0 Tino

Luz interior.

Three identical line-drawn diagrams of containers with lids, each with a crosshair overlay (no text or symbols)

CORRECT......WRONG......WRONG

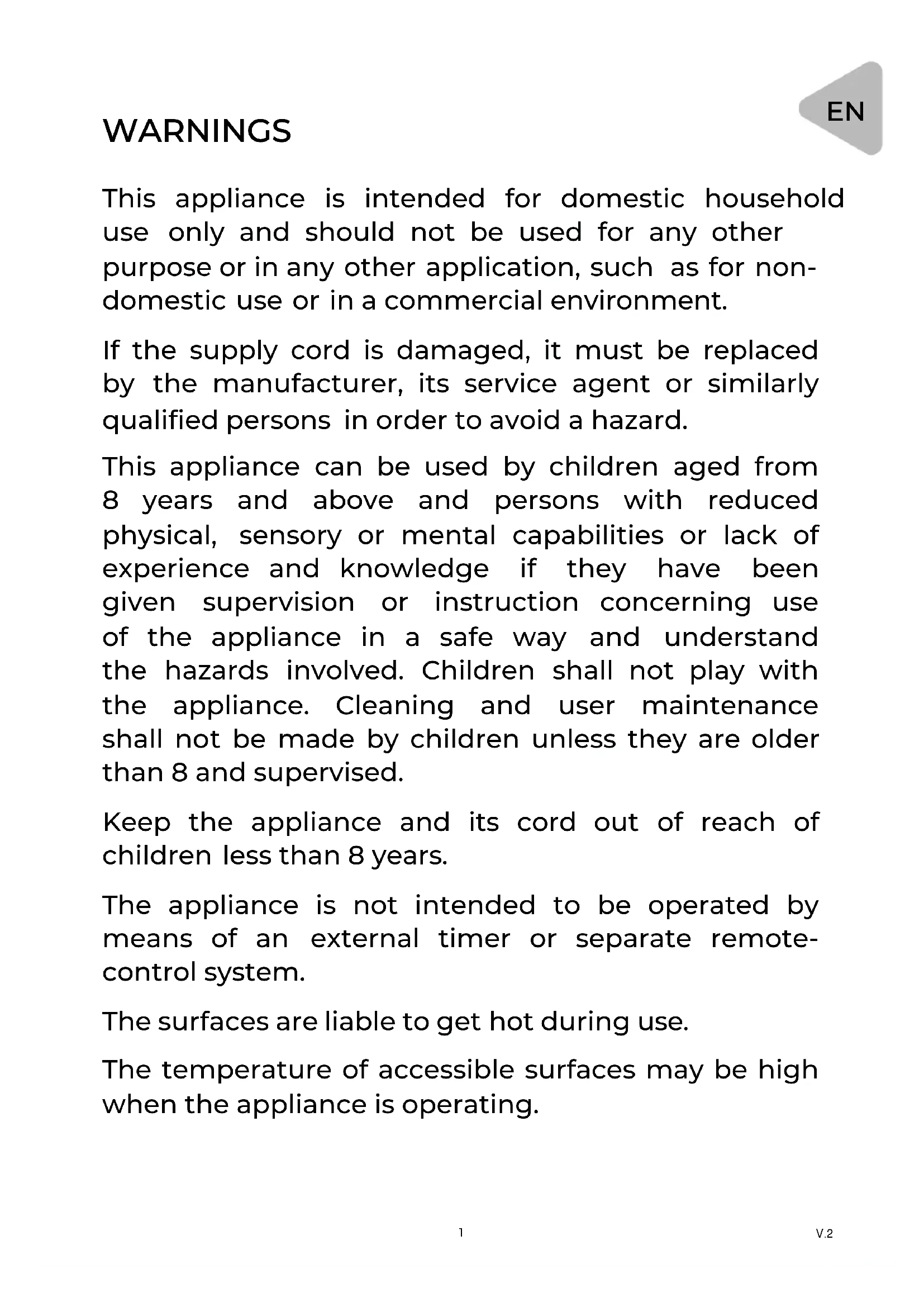

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

The surfaces are liable to get hot during use.

The temperature of accessible surfaces may be high when the appliance is operating.

For the details on how to clean surfaces in contact with food, please see section "Cleaning and maintenance" on page 12.

Do not touch hot surface. Use the handle while moving the product.

IMPORTANT SAFETY INSTRUCTIONS

1. Unplug oven from the mains socket when not in use and before cleaning. Allow to cool before cleaning or handling.
2. To avoid burns, use extreme caution when removing tray/rack or disposing of hot grease.
3. Do not place paper, cardboard, plastic in the oven.
4. Oversize foods and metal utensils must not be inserted in the oven as they may cause a risk of fire or electric shock.
5. A fire may occur if the oven is covered or touching flammable materials such as curtains, drapes or wooden panels when in operation.
6. Do not store any items on top of the oven when in operation.
7. The appliance must be used in a well-ventilated room.
8. The rear surface of appliance shall be placed against a wall.

≥10 cm ≥10 cm ≥10 cm

OVEN ACCESSORIES

Please check that your oven is supplied with one square baking tray (left), one baking rack (right).

Two 3D-rendered objects: a black rectangular tray and a white grid-patterned sheet (no text or symbols)

BEFORE FIRST USE

Remove all packaging materials and wipe the outside of the appliance with a damp cloth. Wash the baking rack and tray in warm soapy water. Dry thoroughly before using.

Place the oven on a stable flat surface. Be sure that no other appliances are plugged into the same circuit with the oven.

CONTROL SETTINGS

TEMPERATURE SETTING

250 200 150 100 50 °C

Turn the thermostat knob clockwise to the desired temperature up to 250^ C.

Allow 5-10 minutes for the oven to preheat before cooking.

FUNCTION SETTING

Function Select 0 TWO

Inner light.

Lower heating: Only the bottom heating element will heat up.

Upper heating: Only the top heating element will heat up.

Conventional: The top and bottom heating elements will heat up.

GRILL

Upper double heating element will heat up (external heating element to cook and heat and internal heating element to grill.

Convection

If your oven has a rotisserie function. It will operate simultaneously with the grill position.

After cooking

When cooking is complete turn the function knob to the "O" position. When removing food from the oven, use an oven glove.

CLEANING AND MAINTENANCE

Unplug the appliance from the mains socket and allow it to cool completely before cleaning. Clean the outside of the appliance with a damp cloth. Do not immerse in water.

Wash the baking trays, skewer set and rack in warm soapy water. Rinse and dry them thoroughly before use.

Never use abrasive or chemical cleaning agents.

Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of hot clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food.

Correct food hygiene practices should always be followed at all times to avoid possibility of food poisoning /cross contamination.

For models with hot plate:

Do not touch any part of the hot plates with bare hands or with any other tool when they are in operation.

To clean the hot plates disconnect the oven from the power and wait for the oven to cool. Do not scratch the surface of the hot plates to clean it.

The correct placement of cooking accessories like pot, saucepan, etc. on the hot plates are shown below.

Three simple line drawings of containers with lids and crosshairs, no text or symbols present

CORRECT......WRONG......WRONG

Do not place any food directly on the hot plates.

SPECIFICATIONS

Ratings: 220-240 V\~ 50/60Hz

Electric Oven ENV28: 1300W

Electric Oven ENV38: 1300W

Electric Oven ENV50T: 1500W

INFORMATION

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

We apologize for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. You can access the latest manual updates by scanning the QR on the front cover or by searching for your model in the Technical Documentation section of our website.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC SMART TECHNOLOGY

www.easelectric.es

AVERTISSEMENTS

≥10 cm ≥10 cm ≥10 cm

ACCESSOIRES DE FOUR

Two 3D-rendered objects: a black rectangular tray and a white grid-patterned sheet (no text or symbols)

AVANT LA PREMIÈRE UTILISATION

Function Select 0 Tino

Lumière intérieure.

Three simple line drawings of domed and spherical objects with diagonal lines, no text or symbols present.

CORRECT......WRONG......WRONG

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

≥10 cm ≥10 cm ≥10 cm

ACESSÓRIOS PARA FORNOS

Two plastic tray designs: a black rectangular tray and a white sheet with horizontal lines (no text or symbols)

Function Select 0 Tino

Luz interior.

Three simple line drawings of containers with lids and crosshairs, no text or symbols present

CORRECT......WRONG......WRONG

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Scan for manual in other languages and further updates:
