Product Type	Refrigerator-freezer
Brand	EAS Electric
Model	EMSS178EX
Climate class	SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C)
Refrigerator temperature range	2°C to 8°C (recommended setting 4°C)
Freezer temperature range	-24°C to -16°C (recommended setting -18°C)
Special modes	SuperCool (rapid cooling), SuperFreeze (rapid freezing), Vacation
Display	Touch screen with lock/unlock
Lighting	LED (energy efficiency class G)
Defrost	Automatic (manual defrost possible if needed)
Open door alarm	Yes, after 120 seconds
Fault memory	Yes, the operating status is recorded
Fault indicators	Error codes for sensors (refrigerator, freezer, defrost, communication, ambient)
Leveling feet	Yes, height adjustable
Door leveler	Yes, adjustable with adjustment nut
Shelf material	Glass (with safety stop)
Compartment types	Refrigerator (with adjustable shelves, fruit/vegetable drawer, door bins), Freezer (drawers)
Maintenance and cleaning	Clean the interior regularly with baking soda, avoid abrasive products
Available spare parts	Thermostats, sensors, boards, lights (7 years); handles, hinges, shelves, baskets (7 years); door gaskets (10 years)
Warranty	3 years (Spain and Portugal), against manufacturing defects

Frequently Asked Questions - EMSS178EX EAS Electric

How to set the temperature of the refrigerator and freezer?

Use the touch control panel. Press the SELECT TEMP key to choose the compartment (refrigerator or freezer), then use the ∧ or ∨ keys to increase or decrease the temperature in 1°C steps. The refrigerator range is 2°C to 8°C (recommended 4°C), the freezer range is -24°C to -16°C (recommended -18°C). The new temperature becomes effective after locking.

What to do in case of a power failure?

In case of a power failure, food remains preserved for several hours without opening the door. Avoid adding new food. When power returns, the refrigerator automatically resumes the previous mode (fault memory).

How to activate vacation mode?

Press the MODE key several times until the Vacation icon is displayed. This mode automatically sets the freezer to -18°C and keeps the refrigerator at a stable temperature to save energy during your absence.

How to clean the interior of the refrigerator?

Unplug the appliance and remove all food and accessories. Use a soft cloth soaked in a mixture of two tablespoons of baking soda in one liter of warm water. Rinse with clean water and dry. Do not use harsh detergents or abrasive products.

What does error code E1 on the display mean?

Code E1 indicates a refrigerator temperature sensor fault. Although the appliance may continue to operate, contact a qualified technical service to repair the sensor.

Why does the compressor run continuously?

This may be normal in summer when the ambient temperature is high. Check that the refrigerator is not too full and that hot foods have cooled before being placed. Avoid opening the door too often.

How to manually defrost the refrigerator?

The refrigerator is automatic defrost. If necessary, unplug the appliance and leave the door open to let the ice melt. Wipe up the water with a towel. Never use mechanical tools to speed up defrosting.

How to replace the LED bulb?

Replacement of the LED bulb must be carried out by the manufacturer, its service agent, or a qualified professional. Do not attempt to do it yourself to avoid any risk.

What foods can be stored in the freezer?

The freezer is designed for storing frozen foods, meat, fish, and making ice cubes. It is not suitable for freezing large amounts of fresh food at once except in SuperFreeze mode.

How to save energy with this refrigerator?

Place the appliance in a cool place, away from sunlight and heat sources. Allow food to cool before storing. Do not overload the refrigerator and close the door quickly. Use Vacation or SuperFreeze modes only when needed.

USER MANUAL EMSS178EX EAS Electric

Abstract arrangement of gray and white triangular shapes arranged in a row (no text or symbols)

EAS ELECTRIC

SMART TECHNOLOGY

Pure electrical circuit lines without any symbols

EMSS178EW

QR code with embedded logo and text 'TEAS' and 'TOMATO TECHNOLOGY'

Solid black right-pointing triangle shape on white background (no text or symbols)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

Warning sign with three symbols: no stop, warning symbol, and alert symbol, all blank for text entry.

Simple horizontal line with rounded ends, no text or symbols present

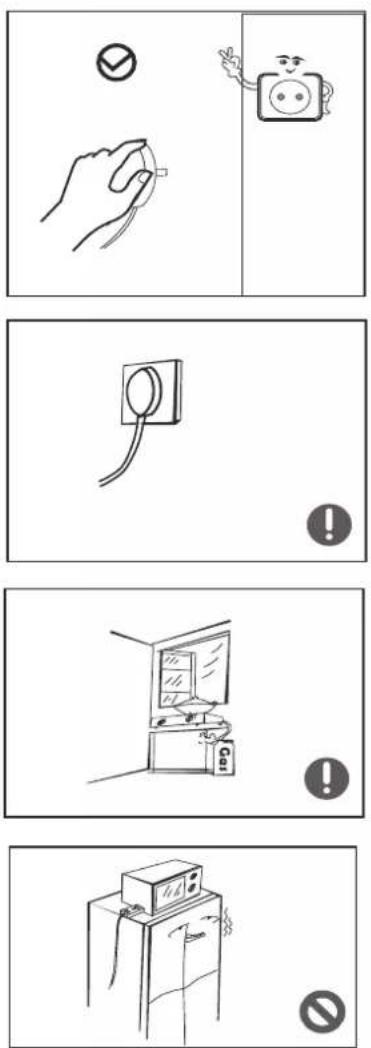

Four-panel comic strip showing a hand holding a plug, a wall-mounted socket, a computer monitor with warning symbols, and a refrigerator with a 'No' sign.

Simple line drawing of a refrigerator with tools and a crossed-out bulb (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

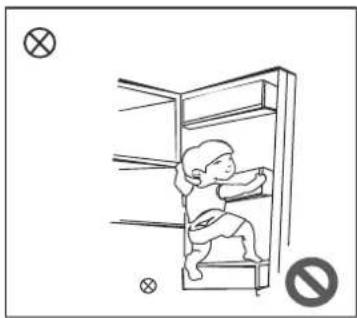

Simple line drawing of a child climbing a ladder inside a storage cabinet, with no text or symbols present.

Simple line drawing of a distressed, anthropomorphic object with a cross and warning symbol (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a box, and a cross symbol, alongside a warning icon.

Blood Drugs Natural products

Beer !

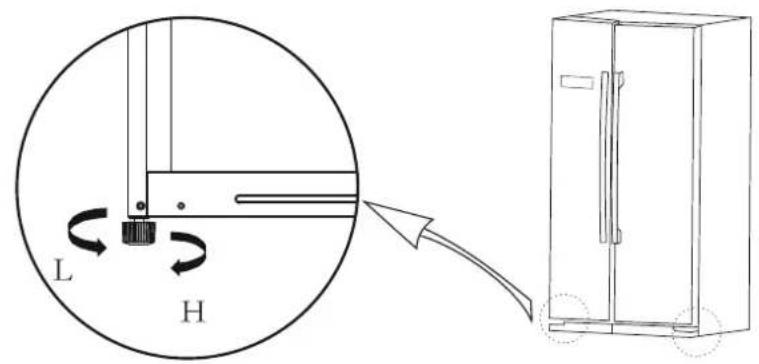

L H

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

3

Simple line drawing of a cabinet with eyes closed, connected to a power outlet (no text or symbols)

890mm 740mm 125° 1045mm 1440mm

Technical diagram of a refrigerator internal structure with labeled compartments and doorways

REF. FRZ. -88°C SUPER SUPER COOL FRZ. VACATION TEMP. SELECT MODE Hold 3sec. Unlock InstantCool InstantFreeze → → →

Simple horizontal line with a triangular warning symbol at the top-left corner (no text or labels)

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator with an arrow indicating a component or connection (no text or symbols present)

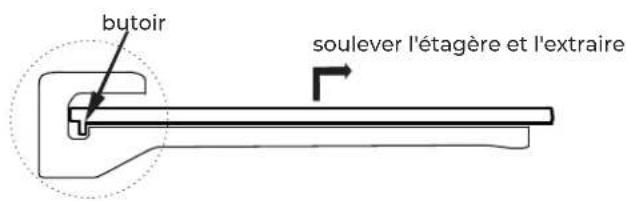

Technical line drawing of a mechanical tool or bracket with an arrow indicating direction (no text or symbols present)

Solid black right-pointing triangle shape on white background (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on a white background

Warning sign with three symbols: no stop, warning symbol, and alert symbol, all blank for text entry.

Simple curved line drawing with no text, numbers, or symbols

Four-panel comic strip showing hand holding a plug, a wall-mounted socket, a computer monitor with warning symbols, and a refrigerator with a 'No' sign.

Simple line drawing of a refrigerator with tools and a crossed-out bulb (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a storage cabinet, with no text or symbols present.

Simple line drawing of a cabinet with boxes and a face, accompanied by an 'X' symbol and a warning sign (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a box, and a cross symbol, alongside a warning icon.

Blood Drugs Natural products

Beer !

Illustration showing four different room layouts with labeled dimensions: a person lifting a box, a refrigerator with sun and potted plant, a cabinet with closed eyes, and a cabinet with 30cm width and 10cm height.

L H

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Simple line drawing of a cabinet with eyes closed, connected to an electrical outlet (no text or symbols)

890mm 740mm 125° 1045mm 1440mm

1. STRUCTURE AND FUNCTIONS

3.1 Key components

LED lighting Door tray Glass shelf Drawer LED lighting Glass shelf Fruits and vegetables box Door tray

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Refrigerating chamber

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.
• The temperature should be set to "Quick Freeze" (InstantFreeze) if you want to refrigerate food quickly.

Drawers, food boxes, etc. placed according to the position in the picture above are the most energy efficient.

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

3.2 FUNCTIONS

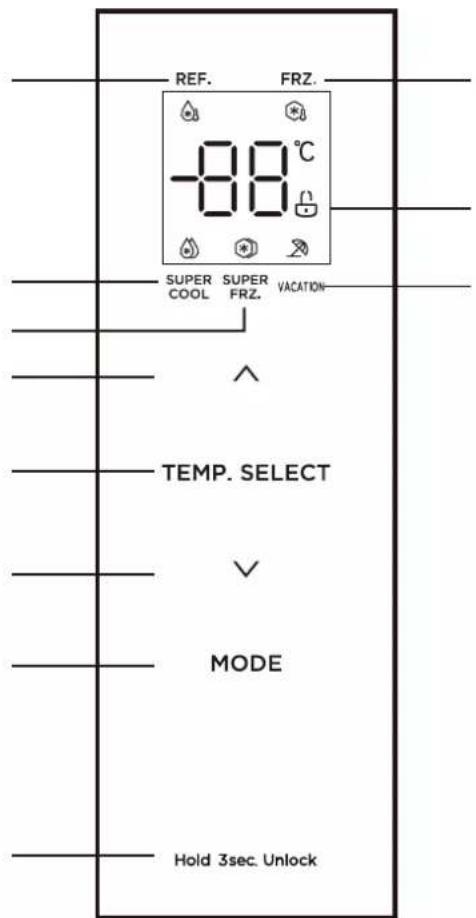

REF. FRZ. -88°C SUPER SUPER VACATION COOL FRZ. TEMP. SELECT MODE Hold 3sec. Unlock

Lock/Unlock

At non-lock state, press key E for 3 seconds. The refrigerator will go into the Locked state and icon 4 📋 will show. To release the locked state, press key E for 3 seconds while in locked state until icon 4 displays 🔒, then the unit will be unlocked.

Note: power on after power failure, and operate the freezer at -18^ C and the refrigerator at 5^ C after quick cooling and quick freezing exit.

Note: The quick-freezing function is designed to maintain the nutritional value of the food in the freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one time, it is recommended that the user turn on the quick-freezing function and put the food in. At this time, the freezing speed of the freezer compartment is increased, which can quickly freeze the food, effectively lock the nutrition of the food, and facilitate storage.

Illustration of various household items including a gas container, alcohol spray bottle, and a kettle with a flame (no text or symbols)

Simple horizontal line with a triangular warning symbol at the top-left corner (no text or labels)

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator with an arrow indicating a component or assembly (no text or symbols present)

Special for new European standard:

Contenu

AVERTISSEMENTS DE SÉCURITÉ

Avertissement

STRUCTURE ET FONCTIONS

Composants

Fonctions

Nettoyage général

Dégivrage

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Diagram showing hand holding a pen and checkmark next to a cartoon character waving, with a checkmark symbol above the left.

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a computer monitor mounted on a wall, with an exclamation mark in the corner (no text or symbols on the device itself)

Simple line drawing of a refrigerator with a mounted appliance and a 'no' symbol (no text or labels)

Simple line drawing of a refrigerator with tools and a crossed-out bulb (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child inside a refrigerator with no text or symbols

Simple line drawing of a distressed, anthropomorphic object with a cross and warning symbol (no text or labels)

Zyzygma Light's candy Bench

Blood Drugs Natural product

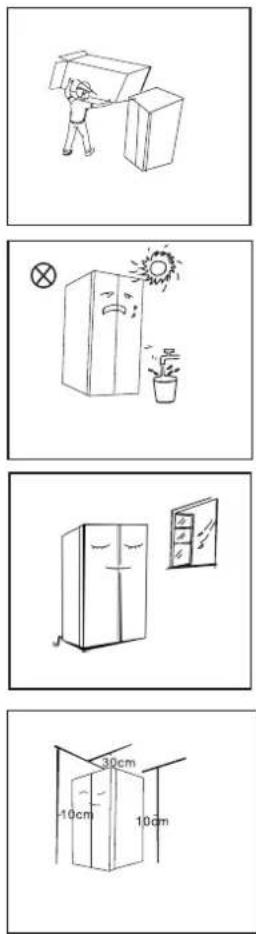

Simple line drawing of a person pushing a large box (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

30cm -10cm 10cm

Simple line drawing of a cabinet with eyes closed, connected to a power outlet (no text or symbols)

890mm 740mm 125° 1045mm 1440mm

Illustration of various household items including a gas container, alcohol spray bottle, and cooking pot (no text or symbols)

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator with no visible text or symbols

CONDITIONS DE LA GARANTIE

Warning sign depicting a flame symbol in a yellow triangle with black border

Diagram showing hand holding a checkmark next to a hand holding a pencil, and a cartoon character waving from the side.

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a room with a monitor and wall-mounted device, no text or symbols present

Simple line drawing of a refrigerator with a mounted appliance and a prohibition symbol (no text or labels)

Simple line drawing of a refrigerator with tools and a switch, no text or symbols present

Simple line drawing of a hand holding a book with a starburst effect, no text or symbols present

Simple line drawing of a child sitting inside a bookshelf, with no text or symbols present.

Simple line drawing of a tower with boxes and a bird, no text or symbols present

Teflonate Lucky substance Milk

Blood Drugs Natural product

Beer !

Simple line drawing of a person pushing a large box (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

30cm -10cm 10cm

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

890mm 740mm 1045mm 125° 1440mm

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator with no visible text or symbols

Scan for manual in other languages and further updates:
