Brand	EAS Electric
Model	EMC1775I1
Product Type	Refrigerator with freezer compartment
Dimensions (H x W x D)	1784 x 560 x 565 mm
Total Net Volume	Approximately 250 L (estimate)

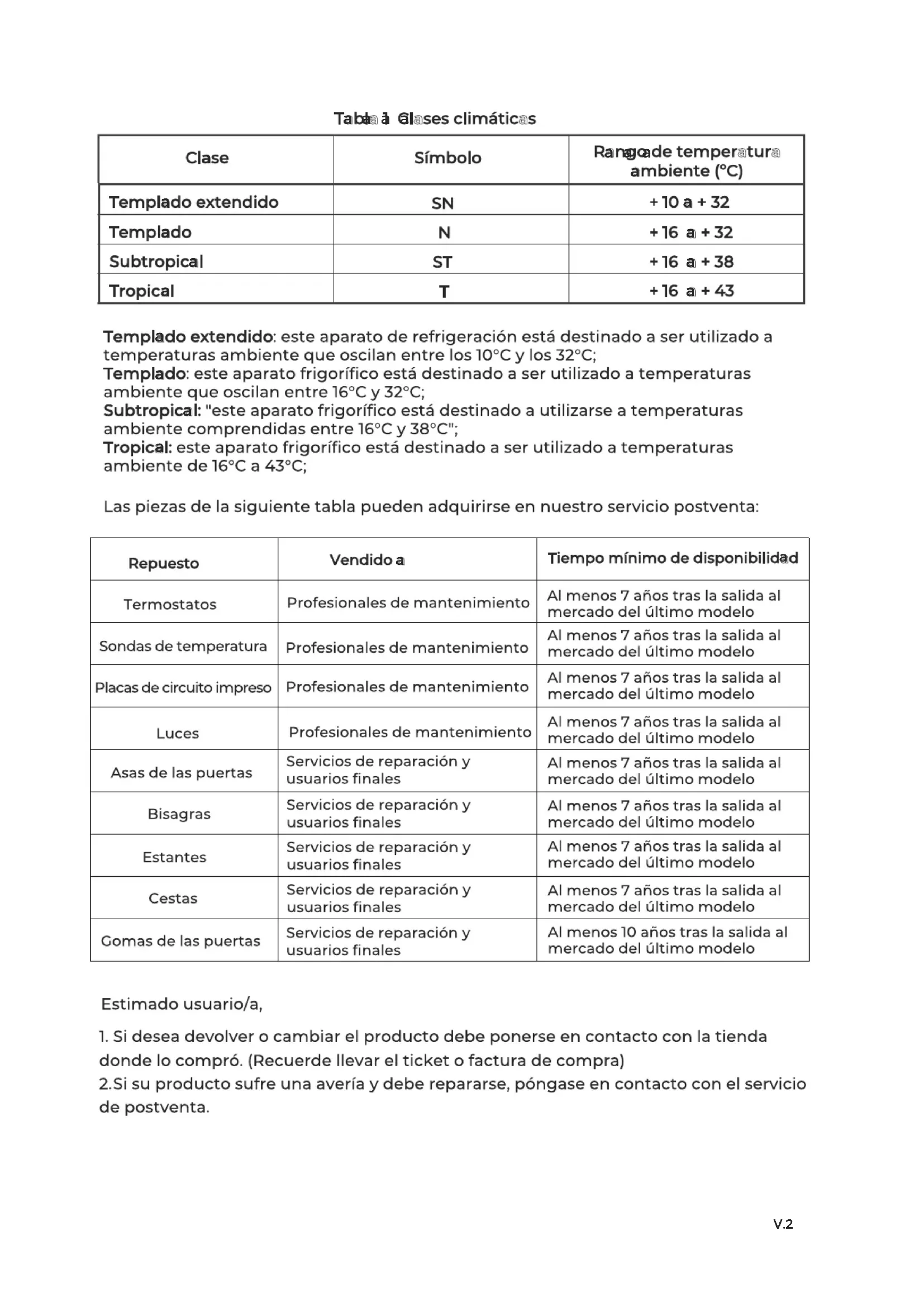

Climate Class	SN, N, ST, T (10°C to 43°C)
Power Supply	220-240 V, 50 Hz
Refrigerant	Flammable (type not specified)
Defrost	Automatic (refrigerator compartment)
Interior Lighting	LED
Door Reversibility	Yes (possible to change opening direction)
Temperature Adjustment	Manual (Winter/Normal/Summer/Off)
Cleaning	Baking soda and warm water
Spare Parts Available	Thermostats, sensors, boards, lights, handles, hinges, shelves, baskets, door gaskets (7 to 10 years)
Warranty	3 years (Spain and Portugal)
Energy Consumption	Not specified (estimated class A+ to A++ according to standard)
Noise	Normal humming and cracking of compressor and refrigerant

Frequently Asked Questions - EMC1775I1 EAS Electric

How to change the door opening direction?

Unplug the appliance, remove food and shelves. Follow the steps in the manual: unscrew the top and bottom hinges, remove the door, then reposition the hinges on the other side. Use the provided tools (screwdriver, ratchet wrench).

What to do in case of a power outage?

Food stays cold for several hours. Avoid opening the door and do not add new food. If the outage is prolonged, check the temperature of food before consumption.

How to clean the interior of the refrigerator?

Unplug the appliance, remove food and accessories. Use a soft cloth soaked in warm water with two tablespoons of baking soda per liter. Rinse and dry. Do not use soap or harsh detergents.

How to adjust the temperature?

Use the temperature regulator (rotary knob). Positions: Winter (colder), Normal, Summer (less cold), and Off (stop). Adjust according to season or load.

Why does the compressor run continuously?

This is normal in summer if the ambient temperature is high. Avoid overloading the refrigerator, let food cool before placing it, and reduce door openings.

How to defrost the refrigerator?

The refrigerator defrosts automatically. If frost persists, unplug the appliance and wipe with a dry cloth. Do not use mechanical tools.

What to do if the light does not turn on?

Check that the appliance is plugged in and that the LED bulb is not defective. If it is burnt out, only a qualified professional should replace it.

What noises are normal?

A humming from the compressor (especially at start-up) and cracking sounds from refrigerant circulation are normal. If a loud unusual noise appears, check the appliance's stability and fixings.

How to save energy?

Place the appliance in a cool spot, away from sunlight and heat sources. Let hot food cool down before storing. Wrap food and dry containers. Organize items to open the door less often.

Doors do not close properly, what to do?

Check that no food blocks the closure. Ensure the refrigerator is level (adjust feet). If the gasket is dirty or deformed, clean it or use a hairdryer to soften it.

USER MANUAL EMC1775I1 EAS Electric

Front view of a server rack with multiple ports and indicator lights (no text or symbols visible)

EMC1775I1

QR code with embedded logo and text 'EAS ELECTRIC' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Contenido

3 Advertencias

3

6

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Simple line drawing of a hand holding a pen and a checkmark, next to a smiley face icon (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and cabinet, no text or symbols present

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Simple line drawing of a refrigerator with an open lid and accessories, no text or symbols present

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a refrigerator with an open door and a baby hanging from the window (no text or symbols)

Simple line drawing of a trash bin with a sad face and warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, boxes, and an icon (no text or symbols)

Freezing chamber !

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Simple line drawing of a person lifting a cardboard box next to an refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sad face, a potted plant, and sun symbols (no text or labels)

Simple line drawing of a refrigerator and a refrigerator with a door (no text or symbols)

Technical line drawing of an open refrigerator with a close-up inset showing internal components labeled 'Bloque' (no text or symbols on the diagram itself)

Line drawing of a refrigerator with door, legs, and front panel (no text or symbols)

Bisagra superior

Line drawing of a vertical rectangular frame with four corner supports (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small plug inserted (no text or symbols)

Temp. Control Winter Normal Summer OFF

Illustration of various alcohol and beverage items including a gas canister, alcohol lamp, and a kettle (no text or symbols)

3 Warning
3 Meanings of safety warning symbols
6 Electricity related warnings
7 Warnings for using
7 Warnings for placement
8 Warnings for energy
8 Warnings for disposal

9 PROPER USE OF THE REFRIGERATOR
9 Placement
10 Installation in cabinet
12 Door right-left change
15 Changing the light
15 Starting to use
15 Energy saving tips

16 STRUCTURE AND FUNCTIONS

16 Key components

17 Functions

17 MAINTENANCE AND CARE

17 Overall cleaning

18 Defrosting

18 Out of operation

19 TROUBLE SHOOTING

20 COMMERCIAL GUARANTEE

1 SAFETY WARNING

1.1 Warning

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it uses flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a signifi- the appliance.

food and accessible drainage systems.

water has not been drawn for 5 days. (note 1)

other food.

- Two-star frozen-food compartments are suitable for stomaking ice cubes. (note 2)

suitable for the freezing of fresh food. (note 3)

suitable for freezing foodstuffs (note 4).

open to prevent mould developing within the appliance.

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Simple line drawing of a hand holding a checkmark and a smiley face icon, separated by a vertical line (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a box, no text or symbols present

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.

To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4 Warnings for using

Simple line drawing of a refrigerator, battery, and hand tool (no text or symbols)

Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.

Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when closing the refrigerator door to avoid falling articles.

Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a trash can with a frowning face and warning symbol (no text or labels)

Do not place heavy objects on the top of the refrigerator considering that objectives may fall when you close or open the door, and accidental injuries might be caused.

Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Illustration of hands holding a tray with a bottle, a container, and an icon (no text or symbols)

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

Blood Pneum Insulin/Indirect

The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber 2-year

Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

1. Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2. The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3. The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4. The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5. The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scraped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Symbol of a trash bin crossed with diagonal lines, no text or labels present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

2. Proper use of refrigerators

2.1 Placement

Simple line drawing of a person handling a cardboard box next to an refrigerator (no text or symbols)

Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face, a potted plant, and sun symbols (no text or labels)

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat and sturdy.

Precautions before installation:

Information in the Instruction Manual is only for reference. The physical product may differ. Before installation and adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

2.2 Installation in cabinet

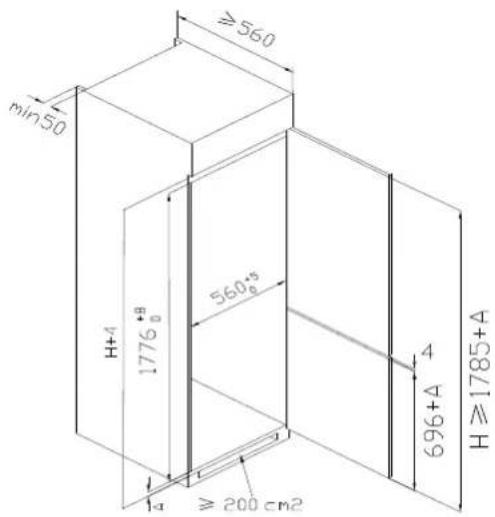

≥560 min50 H+4 1776+B 0 560+5 0 4 ≥200 cm2 696+A 4 H≥1785+A

The image shows the dimensions of the recess for the correct installation and ventilation of the appliance.

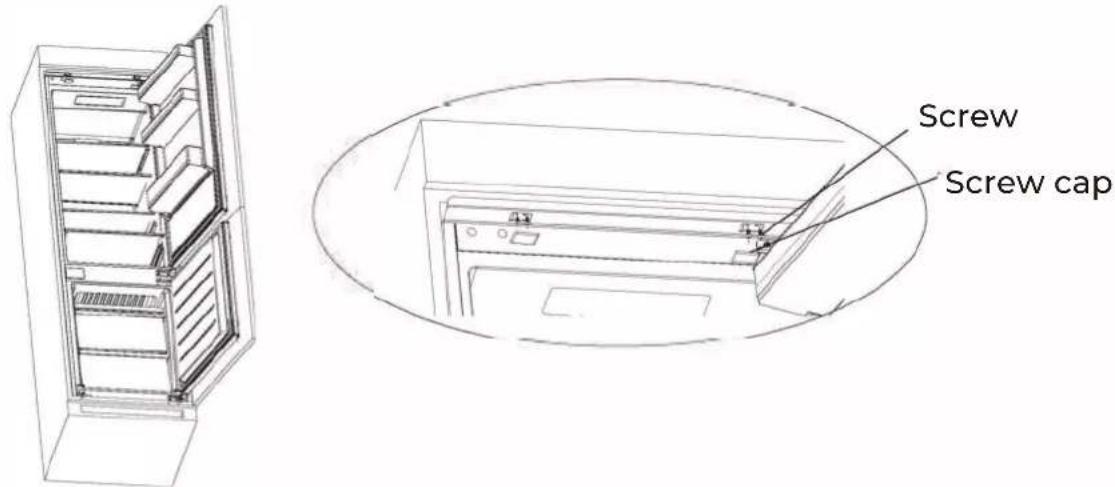

top baffle completely touch the top edge of the cabinet, and the limit hook of supporting leg completely touch the bottom edge of the cabinet.

screw caps.

Screw Screw cap

the refrigerator to the corresponding position. Sliding the block to make sure inner edge align with the lower door edge of refrigerator, then fix the block to the door of cabinet with screw and install screw caps. Fix the upper refrigerator door to the cabinet door in the same way.

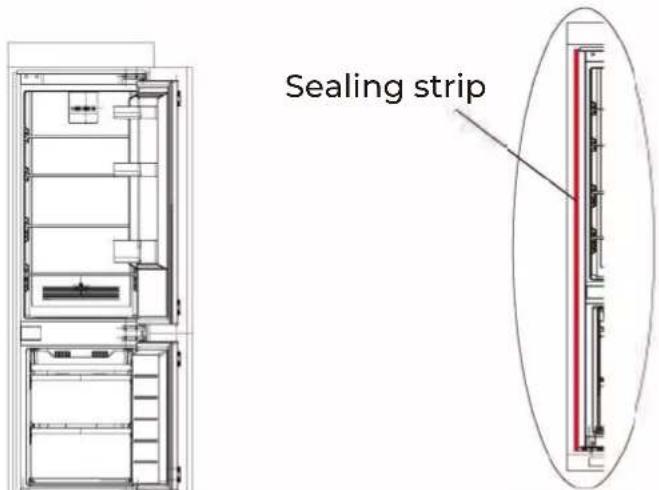

Technical line drawing of an open refrigerator with a close-up view of the internal structure labeled 'Block' (no text or symbols beyond label)

the cabinet and the refrigerator. Installation is completed.

Sealing strip

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

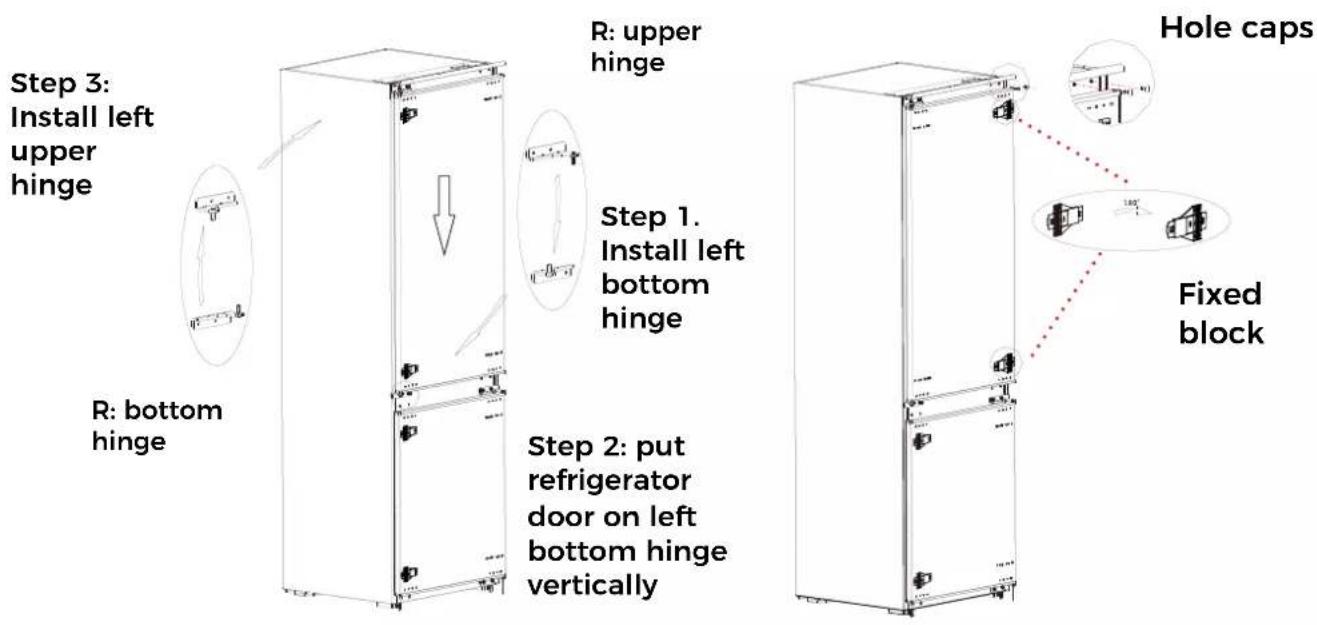

2.3 Door Right-Left Change

List of tools to be provided by the user
	Cross screwdriver		Putty knife and thin blade screwdriver
	5/16"Socket and ratchet		Masking tape

1) Power off the refrigerator, and remove all objects from the door trays.
2) Remove the upper hinge and hole caps of refrigerator door.

Hole caps

Line drawing of a refrigerator with doors and front panel, no text or symbols present

Upper hinge

3) Remove the refrigerator door, the bottom hinge and the hole cover.

hole cover R: bottom hinge

1. Exchange the R: bottom hinge and R: upper hinge, then install them according to below steps, and install the top hole caps.
2. Remove the two fixed blocks of refrigerator door and rotate them for 180^ , and install them on other side of refrigerator door.

Step 3: Install left upper hinge R: bottom hinge R: upper hinge Step 1. Install left bottom hinge Step 2: put refrigerator door on left bottom hinge vertically Hole caps Fixed block

1. Remove the upper hinge of freezer door and plug pin.

F:upper hinge

7) Remove the freezer door, the bottom hinge and the hole caps.

F: Bottom hinge Hole caps

1. Exchange the F:bottom hinge and F:upper hinge, then install them according to below steps, and install the top hole cover and lower hole caps.

2. Remove the two fixed blocks of freezer door and rotate them for 180^ and install them on other side of freezer door.

F: bottom hinge Step 3: Install left upper hinge Step 2: put freezer door on left bottom hinge vertically F: upper hinge Step 1: Install left bottom hinge hole cover fixed block hole caps

1. The picture after completion is shown as below:

Pure technical line drawing of a rectangular cabinet or enclosure with mounting feet (no text or symbols)

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

2.4 Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. Light source in this product is replaceable only by qualified engineers.

1		1. Please take out the plug before removal.	2		2. Remove the lampshade with a screwdriver.
3		3. Take down the lamp panel.	4		4. Remove the connection terminal.

2.5 Starting

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet connected to its side (no text or symbols)

Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.

Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

480mm 5 4 0 m m 90° 1060mm

Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.6 Energy saving tips

- The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

- Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

- Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

- Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

- Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

1. STRUCTURE AND FUNCTIONS
   3.1 Key components

Technical line drawing of a double door with internal compartments and mounting feet (no text or symbols)

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

3.2 FUNCTIONS

Temp. Control Winter Normal Summer OFF

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Turn the controls to adjust the refrigerating chamber temperature.

-when it is set at Winter position, the temperature of refrigerator chamber will be colder, -when it is set at Summer position, the temperature of refrigerator chamber will be higher; -when it is set at OFF position, the refrigerator will be stop running.

4. Maintenance and care of the appliance

4.1 Overall cleaning

Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

The interior of the refrigerator should be cleaned regularly to avoid odor.

Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.

Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Illustration of various household items including a bottle, alcohol lamp, and kettle (no text or symbols)

Please unplug the refrigerator for defrost and cleaning.)

4.2 Defrosting

The refrigerator is designed on an air-cooling principle and therefore has an automatic defrosting function. If some frost forms due to seasonal or temperature changes, it can be removed manually by disconnecting the appliance from the power supply or with a dry cloth.

4.3 Out of operation

Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted, otherwise the service life may be impaired.

5. Trouble shooting

You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Smell	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packagesThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stably. Check whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature and storage of too much food, it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of ground-ing in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Table 1 Climate classes

Class	Symbol	Ambient temperature range (°C)
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from our after sales service:

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy. (Remember to bring the purchase invoice)
2. If your product breaks down which needs to repair, please contact after-sales service provider.

Contenu

16 STRUCTURE ET FONCTIONS

Warning sign depicting a flame symbol in a yellow triangle with black border

Simple line drawing of a hand holding a checkmark and a smiley face icon, separated by a vertical line (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and desk, no text or symbols present

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Simple line drawing of a refrigerator, battery, and hand tool (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Simple line drawing of a trash can with a frowning face and warning symbol (no text or labels)

Illustration of a hand holding a tray with a bottle, boxes, and an exclamation mark (no text or symbols on the main subject)

Milk Palm Palm/No.1

Freezing chamber

Simple line drawing of a person lifting a cardboard box next to an refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sad face, a potted plant, and sun symbols (no text or labels)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Technical line drawing of an open refrigerator with internal compartments and a side-view detail labeled 'Bloc' (no text or symbols on the diagram itself)

Pure technical line drawing of a rectangular cabinet or enclosure with mounting feet (no text or symbols)

Simple line drawing of a refrigerator with a smiling face and a small electrical outlet (no text or symbols)

480mm 5 4 0 m 1 90° 1260mm

Illustration of various household items including a gas can, alcohol lamp, and kettle (no text or symbols)

CONDITIONS DE LA GARANTIE

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

Diagram showing hand gesture with checkmark and finger, alongside a smiley face icon on the right side.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a window and a desk, no text or symbols present

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Simple line drawing of a refrigerator, battery, and hand tool (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Simple line drawing of a trash can with a sad face and warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, a container, and an icon (no text or symbols)

Billed Power Electricity Induct

Freezing chamber

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Simple line drawing of a person lifting a cardboard box next to a refrigerator (no text or symbols)

Antes de usar, remova todas as embalagens, incluindo rolhas e fitas adesivas, de dentro do frigorífico e remova a película protetora das portas e paredes.

Simple line drawing of a refrigerator with a sad face, a potted plant, and sun symbols (no text or labels)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

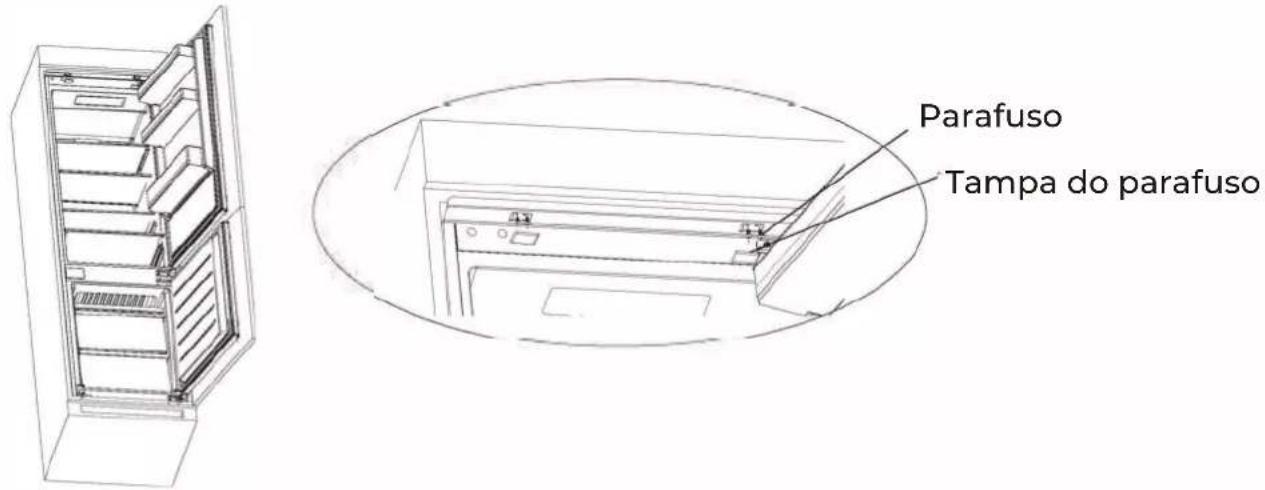

Tampa Parafuso

com parafusos, e fixar as tampas do frigorífico.

Parafuso Tampa do parafuso

Technical diagram of an open refrigerator with labeled components and a magnified detail showing the interior structure.

Line drawing of a double refrigerator with doors and a circular inset detail (no text or symbols)

Dobradiça superior

Pure technical line drawing of a rectangular enclosure or cabinet frame with mounting holes (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

Temp. Control Winter Normal Summer OFF

Illustration of various alcohol and beverage items including bottles, containers, and a kettle (no text or symbols)

Scan for manual in other languages and further updates:
