Product Type	Condenser Dryer (Heat Pump)
Brand / Model	EAS Electric / EMTD81B
Dimensions (H x W x D)	845 x 595 x 615 mm
Net weight	41 kg
Rated drying capacity	8.0 kg
Energy efficiency class	B
Weighted annual energy consumption	560.2 kWh/year
Energy consumption of standard cotton program (full load)	4.73 kWh
Duration of standard cotton program (full load)	140 min
Electrical supply	220-240 V ~ 50 Hz
Rated power	2700 W
Noise level (standard cotton program)	69 dB(A)
Ambient operating temperature	+5 °C to +35 °C
Drum material	Stainless steel
Number of programs	13 (including cotton, synthetics, delicates, wool, etc.)
Special functions	Delayed start (up to 24h), anti-crease, drying intensity, custom cycle, child lock
Cleaning and maintenance	Lint filter to be cleaned after each use; air condenser to be cleaned every 3 months; water tank drainage after each cycle
Included accessories	External drain hose (optional)
Warranty	3 years (parts and labor)
Repairability	Spare parts available: filter, condenser, water tank, belt, etc.; repair by authorized technician

Frequently Asked Questions - EMTD81B EAS Electric

What to do if the screen does not turn on?

Check that the appliance is plugged in and powered on. Make sure a program is selected and press Start/Pause.

The water tank indicator is on, what should I do?

Empty the condensed water tank. If the indicator stays on, restart the dryer. If the problem persists, contact customer service.

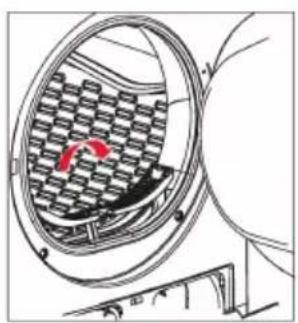

How to clean the lint filter?

Open the door, remove the filter, remove lint by hand or with water, dry it thoroughly and put it back. Clean it after every use.

What types of clothes should not be put in the dryer?

Do not dry items containing rubber, latex foam, flammable substances (oil, alcohol), or that have been dry cleaned. Follow care labels.

The drying is too long or insufficient, why?

Check that the filter and condenser are clean, the water tank is empty, and air circulates freely around the appliance. Choose a suitable program or use the Drying intensity function.

How to use delayed start?

Select the program, press the Delayed start button to set the delay (up to 24h), then press Start/Pause. The cycle will start automatically after the delay.

What to do in case of error code 'E32', 'E33' or 'E30'?

These codes indicate a humidity sensor, temperature sensor or heating error. Unplug the appliance and contact customer service.

How to lock the keys to prevent children from touching?

While the machine is running, press the Anti-crease button for 3 seconds. The lock icon will appear. To deactivate, repeat the same operation.

Can I install the dryer on top of a washing machine?

Yes, but only with the appropriate stacking kit (sold separately). Installation must be carried out by a qualified professional.

How to maintain the air condenser?

Let the appliance cool down, open the maintenance cover, unlock the levers, remove the condenser, clean it with clear water, dry it and reinstall it. Perform this operation every 3 months.

USER MANUAL EMTD81B EAS Electric

Abstract arrangement of gray and white triangular shapes (no text or symbols)

SECADORA

TUMBLE DRYER

SÉCHE-LINGE

MÁQUINA DE SECAR

Simple line drawing of a container with a circle containing two curved lines, no text or symbols present.

EMTD81B

QR code with embedded logo and text 'EAST ELECTRICAL'

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Line drawing of a U-shaped mechanical component with no text or symbols

soporte tubería

Technical diagram showing a mechanical assembly with labeled components and an inset image of a test tube being inserted.

Diagram of a hand using a U-shaped tool to interact with a test tube inside a device (no text or symbols present)

Line drawing of a stainless steel sink with faucet and handle (no text or symbols)

Three diagrams showing a container with liquid and a cross mark, placed on a surface with no text or symbols.

Diagram of a washing machine with a red button indicating a component, no text or symbols present

Hand holding a wall-mounted electrical socket with a hand pointing to the socket (no text or symbols visible)

Enchufe

Diagram of a mechanical or biological assembly with a central component and surrounding ring (no text or symbols)

Cargue

Hand holding a coiled rope with a curved arrow indicating rotation (no text or symbols)

Cierre la puerta

Secado

Encienda

Elija un programa

Hand holding a ring with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram showing pipe connection and directional arrow (no text or symbols)

saque el depósito

Technical line drawing of a mechanical device with a handle and base plate (no text or symbols)

Diagram of curved road networks with an upward arrow indicating direction (no text or symbols)

limpie el filtro

Simple line drawing of a wall socket with a cable and arrow indicating direction (no text or symbols)

apague

Nota

Line drawing of hands installing or adjusting a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with a water tank and a handle (no text or symbols)

Aviso

Technical diagram of a mechanical component with internal grid structure and mounting bracket (no text or symbols)

Illustration of a hand interacting with a curved panel or screen (no text or symbols visible)

Technical line drawing of a mechanical assembly or assembly (no visible text or symbols)

Note

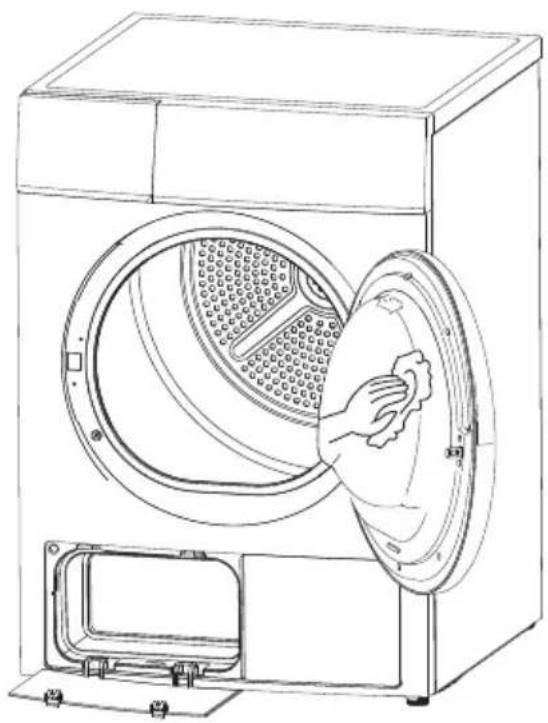

Line drawing of a washing machine with a hand cleaning the interior (no text or symbols)

3 SAFETY INSTRUCTIONS
3 Important safety instructions

10 INSTALLATION

10 Product description

10 Installation

13 OPERATION

13 Quick start

14 Before each drying

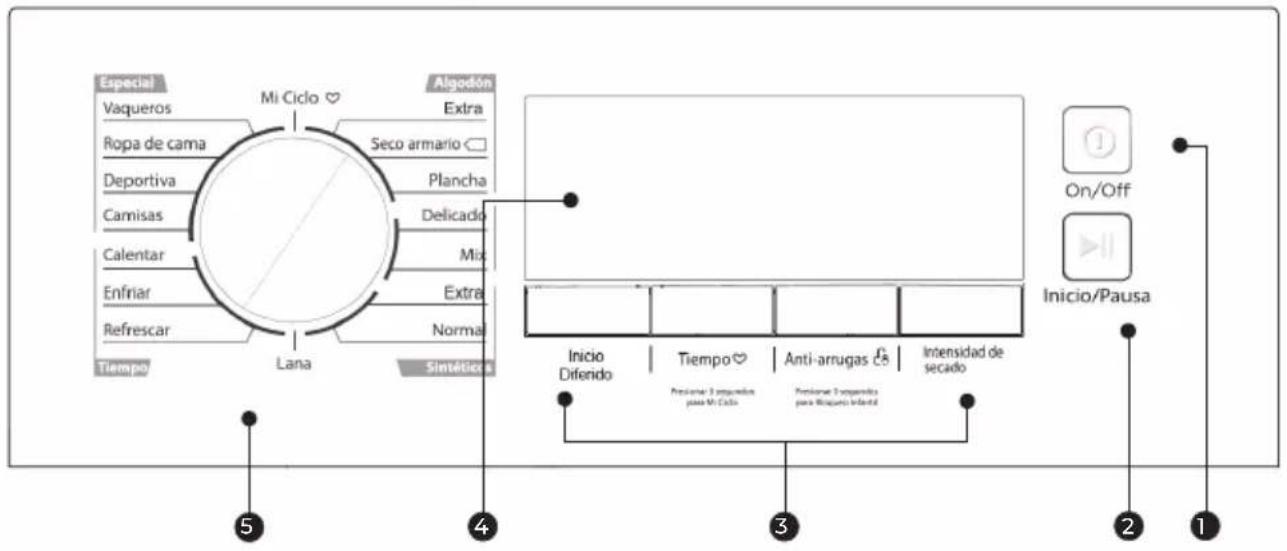

15 Control panel

17 Other functions

20 Drying programmes table

22 MAINTENANCE

22 Cleaning and care

25 Troubleshooting

27 Technical specifications

28 Product fiches

29 WARRANTY

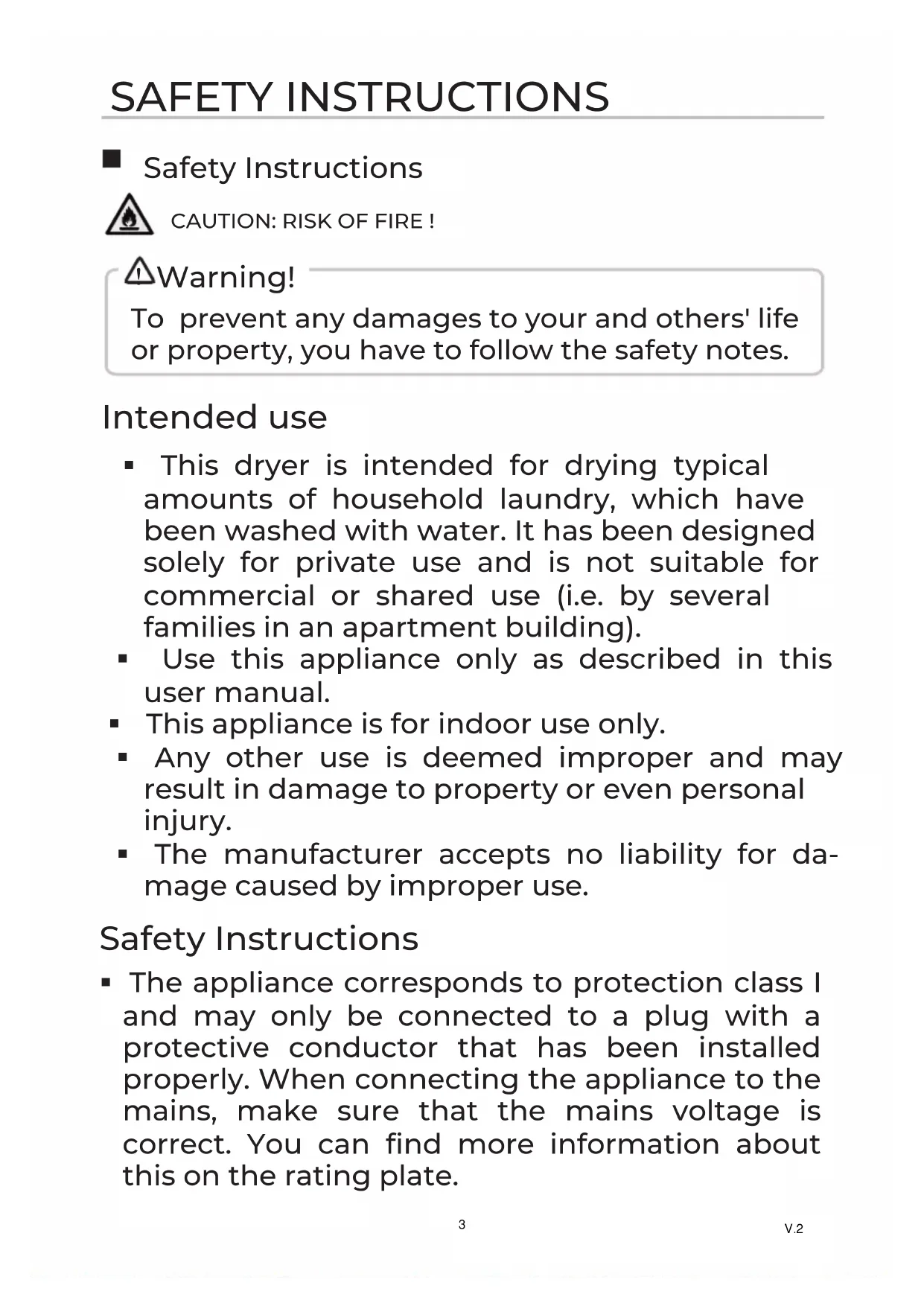

■ Safety Instructions

CAUTION: RISK OF FIRE!

⚠ Warning!

To prevent any damages to your and others' life or property, you have to follow the safety notes.

Intended use

• This dryer is intended for drying typical amounts of household laundry, which have been washed with water. It has been designed solely for private use and is not suitable for commercial or shared use (i.e. by several families in an apartment building).
• Use this appliance only as described in this user manual.
  ■ This appliance is for indoor use only.
• Any other use is deemed improper and may result in damage to property or even personal injury.
• The manufacturer accepts no liability for damage caused by improper use.

Safety Instructions

- The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. When connecting the appliance to the mains, make sure that the mains voltage is correct. You can find more information about this on the rating plate.

- The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

⚠ Warning!

Electric shock hazard

■ Before connecting the tumble dryer, ensure that the connection parameter on the rating plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician.
- The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
- Do not pull the power cord forcefully. Please grasp the mains plug instead
- Do not plug/draw the mains plug with wet hands.
- Do not bend, clamp or damage the power cord and the power plug.
- If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Warning: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• Do not connect the appliance to the mains electricity supply by an extension lead, multi-socket adapter or similar.
  ■ The accessibility of the plug must always be ensured, in order to disconnect the tumble dryer from the mains.
• If the appliance reaches an abnormally high temperature, immediately draw the main plug.

Injury danger

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
• Do not disassemble or install the dryer without any instruction or supervision.
• Do not stack this dryer on washing machine without stacking kits. (If you want to stack this dryer on a washing machine, please purchase the independent parts. Installation shall be done by the manufacturer, its service agent or similarly qualified persons to avoid any hazards.)
• Do not lean on the opened door of the dryer.
• Condensed water is not drinking water. It can cause health problems in both people and animals if consumed.

Damage danger

- Do not put more load than rated in this user manual. See the related chapter in the manual.

• Do not operate the dryer without the door filter.
• Do not dry the clothes before being spun.
• Do not expose the dryer directly under the sun.
• Do not install the dryer in humid and drenching environment.
  ■ While cleaning and maintenance, please do remember to pull out the power plug and do not directly spray the dryer with water.
  ■ The appliance should not be overturned during normal use or maintenance.

CAUTION: RISK OF FIRE!

Explosion & Fire danger

• Please do not dry the clothes with any flammable substances such as kerosene or alcohol. Otherwise, there may be explosion.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
• Remove all objects from pockets such as lighters and matches.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
  ■ WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Openings must not be obstructed.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble dryer.

Safety with children

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
  ■ Children of less than 3 years should be kept away unless continuously supervised.
  ■ Always close the door after use. In this way you will avoid the danger of:

- Children climbing onto or into the dryer or hiding things in it.

- Pets or other small animals climbing into it.

Correct Disposal of this product:

Symbol of a trash bin crossed with no visible text or labels

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Disposal of packaging material

The packaging is designed to protect the appliance from damage during transportation. The packaging materials are environmentally friendly and should be recycled. Recycling the packaging can reduce the use of raw materials in the manufacturing process and the amount of waste in landfill sites.

Model	Rated capacity
EMTD81B	8.0kg

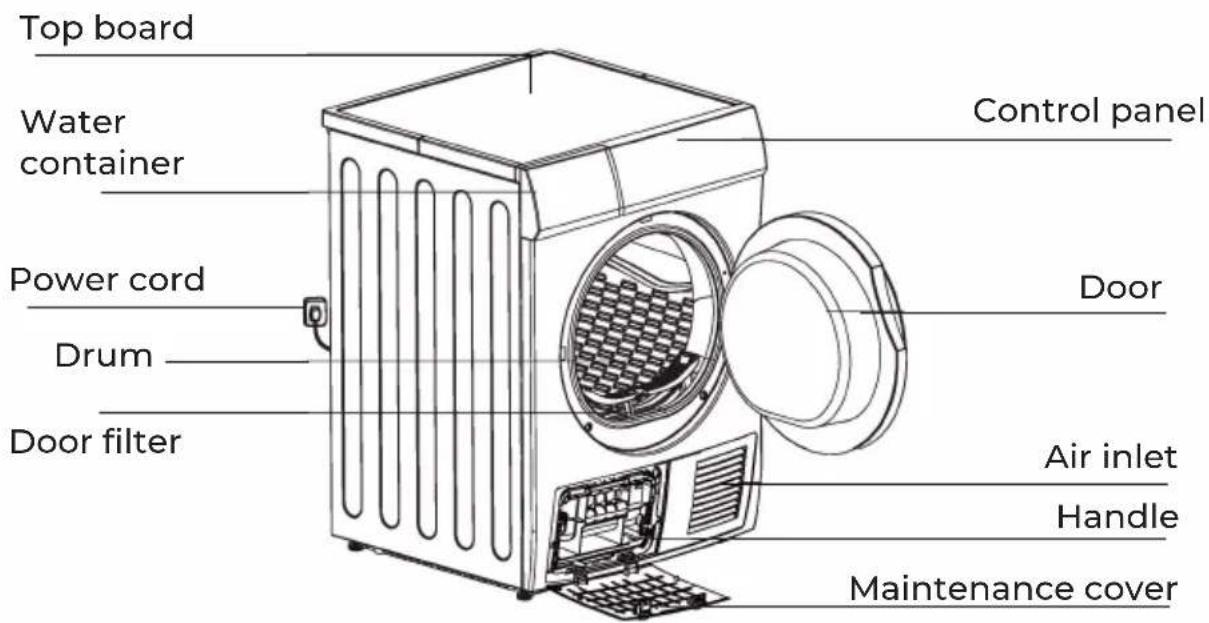

■ Product Description

Top board Water container Power cord Drum Door filter Control panel Door Air inlet Handle Maintenance cover

Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.

Accessories

The following parts are optional for specific models. If your dryer has following parts, please wear gloves to install them as per the instruction below.

Line drawing of a U-shaped mechanical component with no text or symbols

hose holder

condensing drain hose connector

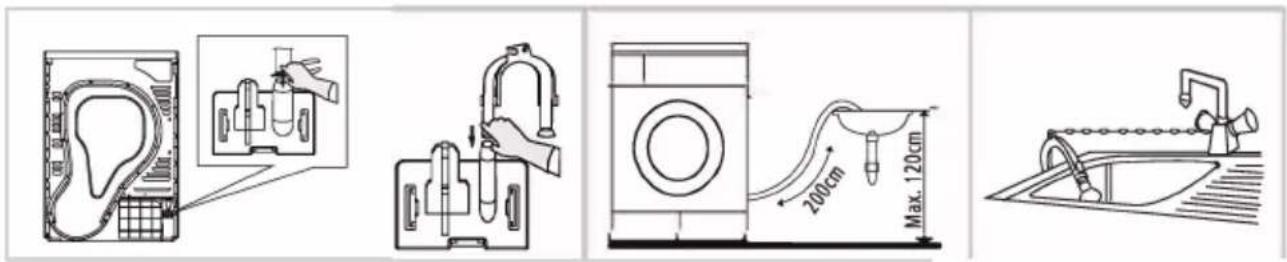

Installation

Technical diagram showing a device with internal components and a magnified view of a test tube assembly.

Diagram of a hand holding a U-shaped tube with a handle, inside a mechanical device (no text or symbols)

200cm Max. 120cm

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

Use pliers to remove the drain hose from the hose connector.
Insert the external drainage hose.
Put the hose holder on the washing basin or any other sink.

Transport

Move cautiously. Do not grasp any salient parts of machine. The machine door cannot be used as the handle for transport. If the dryer can't be transported erectly, the dryer can be tilted to right less than 30^ .

Risk of injury and damage!

Improper handling of the appliance may result in injury.

• The appliance is very heavy. Never transport or carry the appliance alone; always with the assistance of another person.
• Remove all obstacles on the transport route and from the installation location, e.g. open doors and clear away objects lying on the floor.
• Do not use the open door as a handhold.
• Remove all package material before using the appliance.
  ■ Before setting up the tumble dryer, check it for any externally visible damage. Do not install or use a damaged tumble dryer.
• Do not install the tumble dryer in a room where there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses.

Installation Position

⚠ Warning!

• Children can become entangled in the packaging film or swallow small parts and suffocate. Do not allow children to play with the packaging.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

• Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

• It is recommended that, for your convenience, the machine is positioned close to your washing machine.

• Do not stack this dryer on washing machine without stacking kits. (If you want to stack this dryer on a washing machine, please purchase the independent parts. Installation shall be done by the manufacturer, its service agent or similarly qualified persons to avoid any hazards.)

• The tumble dryer must be installed in a clean place, where dirt does not accumulate. Air must be able to circulate freely around the appliance. Do not obstruct the front air inlet or the air intake grilles at the back of the machine.

• To keep vibration and noise within minimum level when the dryer is in use, it must be placed on a firm and level surface.

• The feet must never be removed, and the appliance should not be placed on a long-pile carpet, wooden slats or similar that may cause heat build-up which could interfere with the operation of the appliance.

Three identical line drawings of a tank with a cross mark, shown in different positions (no text or symbols)

Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet by hand or using a tool.

Diagram of a washing machine with a circular component and two buttons, no text or symbols present

Power Supply Connection

1. Make sure that the voltage of the power supply is the same as the electric specification.
2. Do not connect the dryer with the power connection board, a universal plug or socket, do not use multi-plug adapters and extension cables.

Quick Start

Note!

Before using, make sure the tumble dryer is installed correctly.

Before Drying

Hand holding a wall-mounted electrical socket with a hand pointing to the socket (no text or symbols visible)

plug in

Diagram of a mechanical component with a curved arrow indicating rotation or force direction (no text or symbols)

load

Hand holding a coiled ring with an arrow indicating rotation (no text or symbols)

close the door

Drying

on

select program

select function or default

start

After Drying

Buzzer beep and "0:00" on display.

Hand holding a circular mechanical component with an arrow indicating rotation (no text or symbols)

open the door and take out laundry

Pure mechanical assembly diagram showing pipe connection and directional arrow (no text or symbols)

pull out the container

Technical line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram of curved road networks with an upward arrow indicating direction (no text or labels)

clean the filter power off

Simple line drawing of a wall socket with a cable and arrow indicating direction (no text or symbols)

Note!

- If the socket with a switch is used, please press the switch to turn off the power directly.

■ Before Each Drying

Note!

Leave it to stand for 2 hours after transporting. Before first use, please follow these steps to clean the inside drum.

1. Put some clean rags into the drum.
2. Plug the power, press On/Off.
3. Select a quick programme (like Refresh), press Start/Pause button.

4. After finishing this programme, please follow the "Cleaning and care" to clean the filter door.

5. Before drying, thoroughly spin the laundry in washing machine. High spin speed shortens the drying time and saves energy.

6. For uniform drying result, sort the laundry according to fabric type and select the appropriate drying programme.
7. Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc.
8. Remove all objects from pockets such as lighters and matches.
9. Leave jackets open and undo any long zips so that textiles dry evenly.
10. Do not over dry the clothes, because over dried clothes can easily get creases.
11. Do not dry the articles containing rubber or similar elastic materials.
12. Keep the area around the tumble dryer clean. Coal dust or flour may cause an explosion.
13. The door shall be opened only after the programme of the tumble dryer is finished to avoid being scalded by hot steam or over heated drying machine.
14. Clean the lint filter and empty water container after each use to avoid extension of drying time and increase of energy consumption.
15. Do not dry clothes after dry-clean process.

The reference weight of dry clothes (weight per item)

	Sweater(mixed 800g)		acket(cotton 800g)		Jeans(800g)		Bath Towel(cotton 900g)
	Singlebedsheet(cotton 600g )		Work clothes(1120g)		Pyjamas(200g)		Shirt(cotton 300g )
	T-Shirt(cotton 180g)	[c76c]	Underwear(cotton 70g )	[gxk3]	Socks(mixed-weave50g )

Note!

Do not put more load than rated.

Do not dry dripping wet laundry. The dryer might get damaged.

Only dry laundry suitable for tumble drying. Regard the laundry care labels:

Suitable for tumble drying

Normal drying process: Drying in the tumbler is possible under normal load and temperature 80^ .

Mild drying process: Caution is appropriate when tumble drying. Select mild process with reduced thermal action.

Do not tumble dry: Articles unsuitable for drying in the tumbler.

Control Panel

Product is switched on or off.

2 Start/Pause

Press the button to start or pause the drying cycle.

3 Option

These buttons are used for setting additional functions.

4 Display

The display shows the setting, estimated program time remaining and status messages of your dryer.

5 Programmes

Different drying cycles can be selected according to the users need and the type of laundry to be dried.

Option

Inicio Diferido

Inicio diferido

This function is used for delaying the start of the drying programme up to 24 hours. When the delayed programme starts, the time starts to countdown on the display and the delay icon blinks.

1. Load your laundry and make sure the machine door is closed.
2. Press the On/Off button, then use the programme selector knob to select the desired programme.
3. You can additionally select the Antiarrugas or Signal functions according to your need.
4. Press the Inicio Diferido button.
5. Repeatedly to press the Inicio Diferido button to select the desired delay time.
6. After the Start/Pause button is pressed, the dryer is at the running condition. The drying procedure will be automatically performed when the delay time is over.
7. If you press the Start/Pause button again, the delay function will be paused.
8. If you want to cancel the "Inicio Diferido" function, please press the On/Off button.

Tiempo

Tiempo

When the Tiempo programme is selected, the Tiempo button can be used to adjust the drying time in 10 min. steps.

You can adjust the dryness level of the laundry by pressing the Intensidad de secado button. There are four grades.

1. The intensity function can be activated only before the programme starts.
2. Press the Intensidad button repeatedly to increase the drying grade.
3. Except the Plancha, Delicado, Lana and Tiempo programmes, all the other programmes can be adjusted with the Intensity function.

Anti arrugas

Antiarrugas

At the end of the drying cycle, the anti-crease time is 30 minutes (default) or 120 minutes (selected). This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except Enfriar, Lana and Refrescar all the other programmes have this function.

Mi Ciclo

Mi Ciclo (My Cycle)

Used to define and save your favourite programme, which is used frequently.

1. Select the desired programme and other drying functions.
2. Press and hold Intensidad de Secado for 3 seconds until the beep sounds and the desired programme has been saved.
3. Turn the programme selector to the My Cycle position, then you can start your favourite programme. If you want to change the My Cycle settings, repeat the steps (1) and (2).

Child Lock

Child Lock

1. This machine incorporates a special child safety lock, which can prevent children from carelessly pressing buttons or making the faulty operation.
2. When the drying cycle is running, press the Antiarrugas button at the same time for 3 seconds to start child lock function.
3. When child lock function is set, the display will show Child lock icon and all button are deactivated, except On/Off button.
4. To deactivate the child lock function, the Antiarrugas button shall be pressed at the same time for 3 seconds.

■ Display

Antiarrugas (Anti-crease)

1. When the LED display screen brightens up, rotate the programme knob to select the desired programme.
2. Select the Inicio Diferido (Delay), Tiempo (Time), Intensidad de secado (Intensity), Antiarrugas (Anti-Crease) functions for additional options.
3. Press the Start/Pause button.
4. Press the On/Off button after the programme has completed.

Programme start

The drum will rotate after the programme starts. The cycle phase LED in the display will light up and the remaining programme time will be displayed.

Programme end

1. The drum will stop rotating after the programme ends. The display will show "0:00", also the cycle phase LED showing "End" and related LED will illuminate. The dryer will start Anti-Crease function if user doesn't remove the load. Please press On/Off button after unloading the tumble dryer to cut off power and pull out the plug.
2. Deal with the problems according to “Trouble Shooting” section, if there is an unexpected stop during the drying procedure or the dryer shows an Error Code.

■ Drying Programmes Table

Programme		Max Load	Application/Properties	Delay	Time
Algodón	Extra	8.0kg	For single or multi-layer cotton laundry to be dried completely for direct storage.	Y	N
	Seco armario
	Plancha		For single layer cotton laundry to remain damp for ironing.
Delicado		1.0kg	For delicate laundry that is suitable for drying or laundry advised to be hand washed at low temperature.	Y	N
Mix		3.5kg	For mixed fabrics from cotton and synthetics.	Y	N
Sintéticos	Extra	3.5kg	For thick or multi-layer synthetic fabrics to be dried completely.	Y	N
	Normal		To dry thin synthetic textiles, which are not ironed, such as easy care shirts, baby cloths or socks.
Lana		1.0kg	To refresh you wool items and make them more fresh and fluffy.	Y	N
Especial	Vaqueros	4.0kg	To dry jeans or leisure clothes that are spun at high speed in the washing machine.	Y	N
	Ropa de cama	4.0kg	To dry bed linen, bed sheets or other large items.
	Deportiva	3.0kg	To dry sportswear and thin fabrics from polyester, which are not ironed.
	Camisas	1.0kg	For easy care laundry, such as shirts and blouses equipped with anti-crease functionality to minimize the ironing effort Place clothes loosely in the dryer. Once dried, remove quickly and hang it on a clothes hanger.
Mi Ciclo		—	Define and save your favourite programme.	Y	—
Tiempo	Calentar	—	To dry individual items or complete the drying process of multi-layer fabrics with different drying behavior, such as jackets, pillows or voluminous items. Min 10 min. to max. 120 min. (in 10 min. steps)	Y	Y
	Enfriar	—	To air items without heating. Min. 10 min to max. 30 min.(in 10 min. steps)
	Refrescar	1.0kg	To refresh clothes kept at closed environment for a long time or to remove odors. Min. 20 min to max. 150 min.(in 10 min. steps)

Note for Test Institutes:

☐ Test programme in accordance with Regulation 392/2012/EU for energy labelling, measured in accordance with EN 61121 and suitable for drying normal cotton load at rated load capacity.

Note!

• Thick or multi-layered fabrics, e.g. jackets etc., are not easy to dry. You had better choose Algodón Extra programme or use the "Intensidad de secado" function.
• As uneven material, thick and multi-layered clothes are not easy to dry, it is better to choose the appropriate time drying programme to completely dry them if some parts of the clothes are still damp after programme finishes.

■ Cleaning and Care

Empty the water container

1. Pull out and hold the water container with two hands.

2. Tilt the water container, pour out the condensate water into the basin.

3. Install the water container.

Line drawing of hands operating a mechanical bracket or frame (no text or symbols)

Diagram of a kitchen sink with a water drop being inserted into a container (no text or symbols)

⚠ Warning!

Empty the water container after each use. Once the water container is filled completely, the programme will be paused and the "☐" icon will light. After the container is emptied, the dryer can be restarted by pressing Start/Pause button.

• Do not drink the condensate water.
• Do not use the dryer without the water container.

Clean the filters

Leave the dryer to cool down.

1. Open the door.
2. Take out the door filter.
3. Open the filter and remove the fluff on the filter, You can clean it in running water.
4. Dry the door filter thoroughly before installing it back.

Take notice of the correct orientation before inserting the door filter.

Technical line drawing of a mechanical component with internal grid structure and mounting bracket (no text or symbols)

Illustration of a hand touching a curved panel with four compartments (no text or symbols)

Diagram of a hand operating a tool on a mechanical device (no text or symbols visible)

Note!

The lint filter accumulated on the filter will block the air circulation, which will cause the extension of drying time and energy use; therefore, the scrap thread filter shall be cleaned after each use.

Do disconnect the power cord before cleaning!

Do not operate the dryer without the lint filter!

Clean the lint filter after each use to prevent lint accumulation inside the dryer.

Wash air condenser

Leave the dryer to cool down.

Residual water may escape, place an absorbent cloth under the maintenance cover.

1. Unlock the maintenance cover and open it completely.

2. Screw both locking levers towards each other.

3. Pull out the air condenser.

4. Clean the air condenser completely, drain thoroughly.

5. Clean the seals.

6. Re-insert the air condenser, handle at the bottom!

7. Unscrew both locking levers.

8. Close the maintenance cover until it locks into position. Please clean the air condenser approx, once every 3 months if frequently used.

Do not damage the air condenser!

Line drawing of a computer monitor with ventilation slots and a scroll wheel (no text or symbols)

Diagram of a computer monitor with ventilation slots and airflow arrows (no text or symbols)

Diagram of a device with a fan and cable, showing airflow direction (no text or symbols)

Line drawing of a computer monitor with ventilation slots and a scroll wheel (no text or symbols)

⚠ Warning

Clean with water only; do not use hard/sharpedged objects!

Do not operate the dryer without the air condenser!

During drying, water may collect between the window and the seal, but this does not affect the function of your dryer!

Clean Tumble dryer

⚠ Warning!

• Disconnect the power cord before cleaning!
• Clean the dryer with a wet cloth which is only damped by clean water.
• Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic surfaces and other parts.
• Please wear gloves when cleaning.

Line drawing of a washing machine with a hand opening the lid (no text or symbols)

• Prepare a wet cloth damped by clean water.
- Clean the door, especially the inside window.
- Clean the sealing around the door opening.
- Clean the humidity sensor inside the drum.
• Take out all the filters, clean the sealing and air flow openings.
- Before starting the dryer, dry all parts with a soft cloth.

■Trouble Shooting

Many malfunctions and faults that might occur in daily operation can be easily remedied. Time and money will be saved because a service call won't be needed. The following guide may help you to find the reason for a malfunction and correct it.

Display	Reason	Solutions
“E32”	Humidity sensor error	Please contact your local service center if the problem occurs.
“E33”	Temperature sensor error
“E30”	Heating problem

⚠ Warning!

• Only authorised technicians can carry out repairs.
• If the LED displays other prompt and the dryer does not work, please call the service.

Note!

Before you call the service, please check if you have dealt with the problems yourself consulting the user instructions.

Problem	Solution
Display is not on	Check if the power supply works.Check if the mains plug is inserted.Check the selected programme.Press the On/Off button.
“ ☐” icon is on.	Check the water container. If it's full, please pour out the condensate water and restart the dryer. If the container is not full, please restart the dryer directly.If the icon is still lighting after you have finished the first two steps, please call the service.
“ ☐”is lighting	Clean the lint filter.
Dryer does not start	Connect the tumble dryer to the mains.Turn on the tumble dryer.Check that the door is closed.Check the programme is set.Press the Inicio/Pausa button.
Degree of dryness was not reached or drying time too long	Clean lint filter and heat exchanger.Empty the water container.Check the drain hose.Check installation place is appropriate.Keep the air inlet clean.Use higher drying intensity level programme or time programme.

Warning!

If you cannot deal with the problems by yourself and need help:

• Press the On/Off button.
• Pull out the mains plug and call the service.

Technical Specifications

ModelParameter	EMTD81B
Dimension(L*W*H)	615*595*845(mm)
Ambient temperature	+5°C ~ +35°C
Rated input power	2700W
Rated voltage	220-240V~
Rated frequency	50Hz
Weight of product	41kg
Rated capacity	8.0kg

Note!

• The rated capacity is the maximum capacity to be dried at one time. Make sure that the dry clothes which are loaded into the appliance do not exceed the rated capacity.
• Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly.
• There is a risk of damage if the condensate water is allowed to freeze in the pump, hoses and / or condensate water container.

Product Fiches

Model	EMTD81B
Rated Capacity	8.0kg
Dryer Type	Condenser
Energy efficiency class	B
Weighted annual energy consumption (AEc) 1	560.2kWh/year
Automatic or non-automatic	Automatic
EU Ecolabel	N/A
Energy consumption of the standard cotton programme
Weighted energy consumption of the standard cotton programme at full and partial load3.48kWh
Energy consumption of the standard cotton programme at full load	4.73kWh
Energy consumption of the standard cotton programme at partial load	2.55kWh
Power consumption of the off-mode (Po)	0.4W
Power consumption of the left-on mode (PI)	0.6 W
Duration of the left-on mode	10 min
Programme time of the 'standard cotton programme'
Weighted programme time of the standard cotton programme at full and partial load	111min
Programme time of the standard cotton programme at full load	140min
Programme time of the standard cotton programme at partial load	90min
Condensation efficiency class A (most efficient) to G (least efficient)	B
Average condensation efficiency of the standard cotton programme at full load	81%
Average condensation efficiency of the standard cotton programme at partial load	81%
Weighted condensation efficiency for the standard cotton programme at full and partial load	81%
Sound power level for the standard cotton programme at full load	69dB

Remarks:

1 Energy consumption per year, based on 160 drying cycles of the standard cotton (Algodón Seco armario) programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used The programme 'Cotton Standard' used at full and partial load is the standard drying programme to which the information in the label and the fiche relates. This programme is suitable for drying normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for cotton.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.
6. Civil liabilities of any nature.
7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.
8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.
9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.
10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.
11. Appliances used in industrial applications or for commercial purposes.
12. Appliances with illegible or altered serial number.
13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.
14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.
15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.
16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

Contenu

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Line drawing of a U-shaped mechanical component with no text or symbols

support de tuyau

tuyau d'évacuation de la condensation raccord de tuyau

Instalación

Technical diagram showing four different household cleaning and plumbing system configurations with labeled dimensions

Simple line drawing of a container with a cross mark, partially submerged in granular material (no text or symbols)

Simple line drawing of a container with a circular element and cross symbol, placed on a base (no text or labels)

Simple line drawing of a container with a circular top and cross mark, placed on a textured base (no text or symbols)

Line drawing of a washing machine with a red button indicating a switch (no text or symbols present)

Hand holding a wall-mounted electrical socket with a screwdriver inserted (no text or symbols visible)

Branchez

Diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Chargez

Hand holding a coiled rope with a curved arrow indicating rotation (no text or symbols)

Fermez la porte

Séchage

Allumez

Diagram illustrating cable installation steps with labeled components and directional arrows

Antiarrugas (Anti-rides)

Line drawing of hands operating a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with a sink and handle (no text or symbols)

Attention

Technical line drawing of a mechanical component with internal grid structure and red annotation (no text or symbols)

Illustration of a hand touching a panel with a curved panel above (no text or symbols)

Illustration of a hand operating a mechanical device with no visible text or symbols

Remarque

Line drawing of a washing machine with a hand opening the lid (no text or symbols)

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Simple line drawing of a U-shaped mechanical component (no text or symbols)

suporte de tubos

Technical diagram showing four different kitchen appliance installation methods with labeled dimensions: top view, side view, washing machine, and sink.

Three identical diagrams showing a container with a cross mark, placed on a surface with rocks (no text or symbols)

Nivelamento da máquina de secar roupa

Diagram of a washing machine with a circular component and a red button indicating a rotation (no text or symbols)

Hand holding a wall-mounted electrical socket with a hand pointing to the socket (no text or symbols visible)

Ligar

Diagram of a mechanical or biological assembly with two circular components and an arrow indicating rotation (no text or symbols)

Carregar

Hand holding a coiled rope with a curved arrow indicating rotation (no text or symbols)

Fechar a porta

Secagem

Ligar

Escolha um programa

Hand holding a circular object with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram showing a hand pressing a component with an arrow indicating direction (no text or symbols)

remover o depósito

Technical line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram of curved road networks with an upward arrow indicating direction (no text or labels)

limpar o filtro

Simple line drawing of a wall socket with a cable, no text or symbols present

desligar

Nota

Line drawing of hands operating a mechanical bracket or frame (no text or symbols)

Line drawing of a kitchen sink with a water dispenser, no text or symbols present

Aviso

Technical line drawing of a mechanical component with internal grid structure and mounting bracket (no text or symbols)

Illustration of a hand touching a curved panel or frame (no text or symbols visible)

Illustration of a hand holding a tool over a mechanical device (no text or symbols visible)

I Nota

Line drawing of a washing machine with a hand cleaning the interior (no text or symbols)
