PIC 2000 - Cooker Orbegozo - Free user manual and instructions

Product type	Induction hob
Brand	Orbegozo
Model	PIC 2000
Maximum power	2000 W
Supply voltage	230 V ~ 50 Hz
Dimensions (approx.)	59 x 52 cm (estimated)
Weight (approx.)	5 kg (estimated)
Number of cooking zones	1 zone
Power levels	10 levels (1-10)
Temperature setting	60 °C to 240 °C
Booster function	Yes, activation at full power
Timer	Up to 180 minutes
Surface type	Ceramic glass
Suitable pan diameter	9 to 22 cm
Overheat protection	Yes (temperature sensor)
Maintenance	Damp cloth or induction cleaner
Repairability	Orbegozo authorized after-sales service
Warranty	Legal warranty according to current legislation

Frequently Asked Questions - PIC 2000 Orbegozo

What types of cookware should I use on the induction hob?

Use cookware with a magnetic base (iron, compatible stainless steel). Test with a magnet: if it sticks, the cookware is suitable. Avoid stoneware, glass, and aluminum.

How do I set the timer on the PIC 2000?

Press the TIMER button, then use the +/- buttons to set the time up to 180 minutes. The + button increases in steps of 5 minutes, the - button decreases in steps of 1 minute.

What do error codes E01, E02, etc. mean?

E01: low voltage (<145V). E02: excessive voltage (>275V). E03: IGBT open or short circuit. E06: open temperature sensor. E07: overheat protection. E08: temperature sensor fault. Unplug and contact after-sales service.

Can I use the Booster function?

Yes, press the Booster button at any time to switch to maximum power. Ideal for quickly boiling water.

How do I clean the ceramic glass surface?

Unplug and let cool. Clean with a damp cloth or special induction cleaner. Do not use abrasives or steel wool.

What is the maximum power of the appliance?

The total power is 2000 W. Plug into a suitable outlet with a recommended 16 A circuit breaker.

How long can I use the hob continuously?

Do not exceed 4 hours of continuous use. After this time, turn off the appliance for at least 30 minutes to avoid overload.

Can I use the hob with a power strip?

No, always plug the hob directly into a wall outlet. Avoid adapters and power strips to prevent overheating risks.

What to do if the hob does not heat up?

Check that the cookware is suitable (magnetic base). Ensure the appliance is turned on (press ON/OFF) and the power is not set to 0. If code 'E0' appears, consult the manual.

Where to find Orbegozo after-sales service?

Visit the website orbegozo.com/asistencia-tecnica to find the nearest authorized center. Keep your purchase receipt for warranty.

USER MANUAL PIC 2000 Orbegozo

INDUCTION COOKER- INSTRUCTION MANUAL

PLAQUE CHAUFFANTE À INDUCTION - MANUEL D'INSTRUCTIONS

CHAPA DE COZIMIENTO POR INDUÇÃO- MANUAL DE INSTRUÇÕES

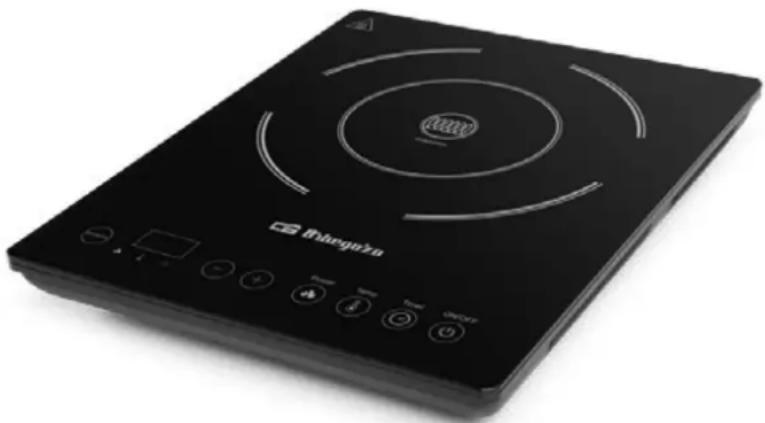

Black electrical induction cooktop with circular heating element and control buttons (no visible text or symbols)

PIC 2000

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Following the recommendations written in this manual the appliance will provide you a high performance and it will work properly for many years.

GENERAL

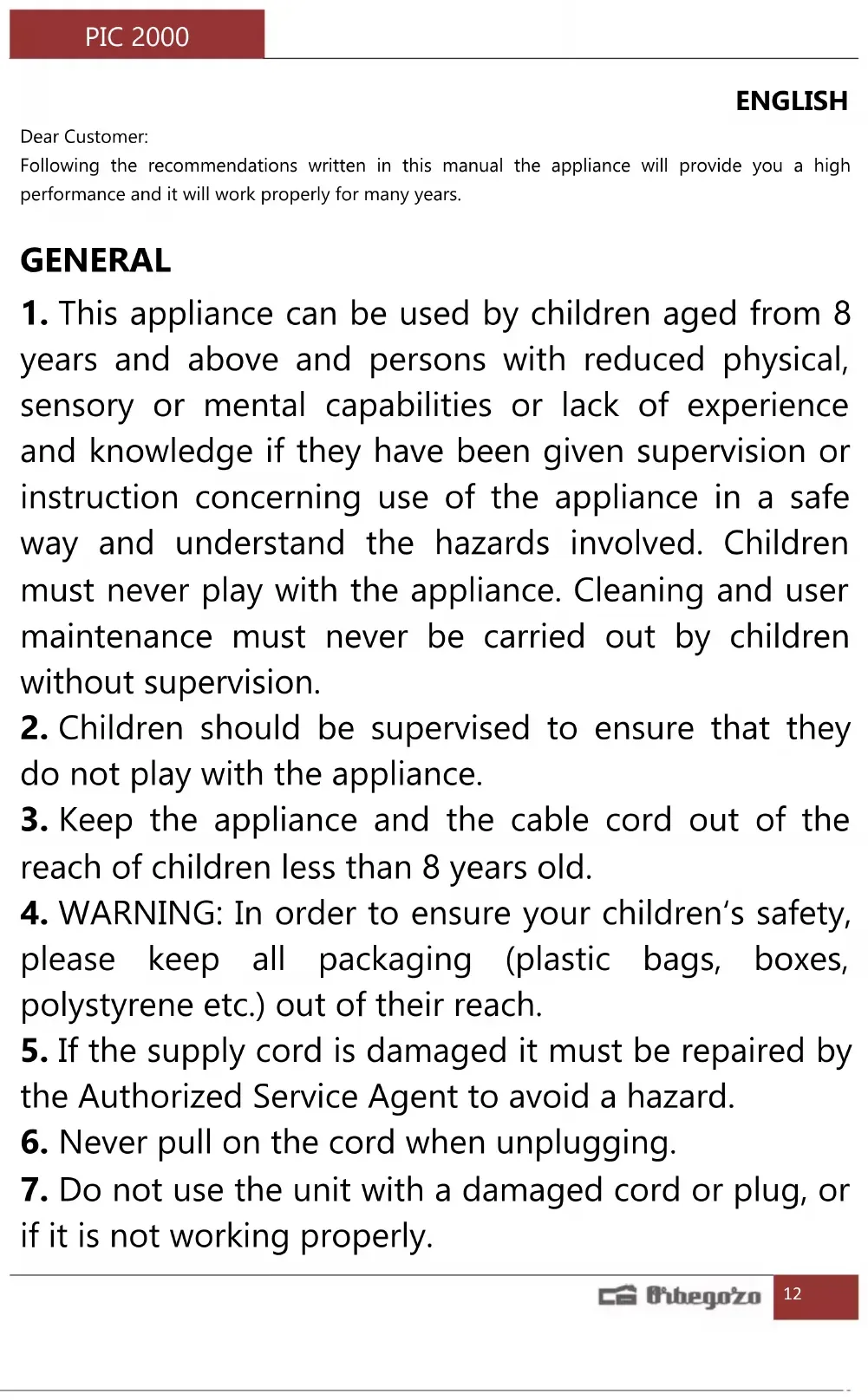

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid a hazard.
6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
14. WARNING: In case of misuse, there is a risk of possible injury.

IMPORTANT

- This appliance is not intended for professional use. Only use the appliance for private use and for its intended purpose and the like such as:

• Kitchens for employees in stores, offices and other work environments.
• Farms
• Clients in hotels, motels and other similar residential environments.
• Bed and Breakfast.

- Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any

liquid) and sharp edges. Do not wash it in a dishwasher.

• Do not use on flammable surfaces.
• Do not use it near appliances or objects that sensitively react to magnetic fields.
• Do not place it near fires, heaters, and other heat sources.
• Make sure that the connecting cable does not come into contact with sharp edges and hot surfaces.
• The surface of the plate is made of high-temperature resistant ceramic. In the event of damage, even just a scratch, unplug the appliance and immediately contact customer service.
• Do not put any magnetic objects such as credit cards, etc., on the surface of the plate when it is in operation.
• To avoid overheating, do not put any aluminum foil on the plate.
• Do not insert objects such as cables and tools into the ventilation slots. ATTENTION: this can cause electrical charges.
• Do not heat unopened cans on the plate. A hot can can explode; therefore remove the cap first.

• Make sure the connecting cable is not broken and crushed under the plate.

• Do not operate the machine without supervision. If you leave the room you should always turn the device STANDBY. Remove the plug from the socket.

• Use only original spare parts.
• On the products you will find symbols that indicate warnings or provide information. WARNING: Danger of burns.
• During operation the temperature of the exposed surface may be very hot.
• The cooker gives STANDBY heat. You should therefore not place it close to combustible materials such as curtains or wood. The clearance above the cooker should be at least 50 cm and at least 20 cm at the sides.
• Put the unit down onto a heat-resistant mat. Use a heateresistant plate when placing on sensitive surfaces.
• Ensure that the timer is in the "STANDBY" position when you are not using the unit.
• Please do not operate the device with an external timer or a separate remote control system.
• Please ensure that the mains lead does not come into contact with the hot sections of the device.

• Do not touch the hot parts of the device. Use a cloth if necessary.

• ATTENTION: do not cover the appliance when it is operating to avoid the risk of fires.

• Do not plug the hob into the same socket as other appliances. Plug it into an appropriate outlet.
• Never unplug the hob by pulling the cord.
• Do not use the hob on top of other electronic accessories such as ceramic hobs, electric ovens, etc.
• Suitable pot diameter: 9-22 cm.
• Do not use the plate on metal surfaces that are too thin and easy to deform.
• Do not use the hob if it is not working properly, shows damage, or has been dropped.
• Only a qualified person can repair the plate and take care of its maintenance using original spare parts and accessories. Never try to repair the board yourself.
• Check the main cable from time to time. If I show damage have a qualified electrician replace it.
• ATTENTION: This symbol show: Hot surface. CAUTION: The surface can remain hot during or after use.
• Do not move the device when it is in operation.
• Only touch the machine by using the handles and buttons provided.

• Cooking canned food, open and empty its content.

• Due to the rising heat and vapours the device should not be operated under wall cupboards.

• Please do not use induction cooker on any metal table.
• Do not heat empty pots on the cooking zone as this may lead to dangerous overheating.
• Ventilation: Always keep the ventilation slots free from any obstructions and dirt.
• Ceramic surface! If the surface is damaged or has cracks the device must be switched STANDBY to avoid the hazard of electrical shocks.
• Induction heat! Metal objects as, e.g., knives, forks, spoons and pot lids should not be placed on the cooking zone as they may get hot.
• Hot surface! The induction cooker initially heats only the base of the cooking utensils used, not the cooking zone itself. However, because of the heat radiated during cooking, dangerously high temperatures may also occur at the cooking zone after the cooking cycle. Hazard of burns!
• Warning: potential damage to your health! People wearing pacemakers must not use this cooker.

GENERAL INFORMATION

Cooking with induction technology

When cooking with induction technology, heat is only generated by means of magnetic power, if a pot or pan with a magnetisable base is placed on a switched-on cooking zone.

The induction cooker heats only the base of the cooking utensils used, not the cooking zone itself. Under the glass-ceramics surface, the induction coil is located. If the coil is supplied with electrical power a magnetic field develops generating whirls in the pot's base.

This results in the heating of the base material. The induction process saves energy as heat is solely produced where it is needed.

What cooking utensils may I use?

Induction cookers require pots, i.e., pot bases made of magnetisable material. Today, cooking utensils appropriate for induction cooking usually bear a note saying 'Suitable for induction hob' or similar.

But principally you may use any iron-based cooking utensils; to find out whether a pot or pan is suitable, i.e., magnetisable just try the following:

Place the corresponding casserole on the hob. If after connection “____” appears on the display and an acoustic signal is heard repeatedly, the cooker is not suitable.

Cooking utensils made of the following materials are not suitable for induction hobs:

Clay, glass or aluminium.

Do not use the following types of pots:

Pots with bended

Pots with a base diameter of less than 6 cm. on feet

Pots standing bases.

OPERATING TIME

Do operate the device only for a maximum of 4 hours continuously. Then interrupt the operation for at least 30 minutes, otherwise you risk some damages by overload.

MAINS SUPPLY

Connected load/wattage

The hob can take up an overall load of 2.000 W. Because of this high connected load it is recommended to use a separate connection protected over a 16A safety switch.

Conexion

• Before inserting the plug into the socket, check that the mains voltage to be used matches the device. Information on this can be found on the rating plate.
• Only connect the appliance to a socket with protective contact, 230 V \~ 50 Hz, installed according to regulations

OPERATING INSTRUCTIONS

• Place the vessel at the centre of the panel with the item to be cooked
• Ensure the electric supply to the equipment from the plug of minimum 15 amps by putting on the switch. The digital light on the screen illuminates
• Press ON/OFF to turn the device on.
• You can select the power (power button) on the scale from 1 to 10 or the temperature (temperature button) from 60 to 240 degrees.
• With the BOOSTER option you can increase to full power from any setting.

TIMER ENTER DISCONNECTING TIME

• The cooking functions can be limited in time.
- Press the button PRESET/TIEMPO and select the setting with the button +/- up to 180 min. With the + button the time is increased from 5 to 5 minutes and with the - button the time is reduced from 1 to 1 minute.

DESCONEXION

• Press ON/OFF button.
  • The fan will stay running for about 30 seconds
• Remove the plug from the mains
  • Before storing the equipment let it cool down

CONTROL PANEL

CASTELLANO	ENGLISH	FRANÇAIS	PORTUGUESE

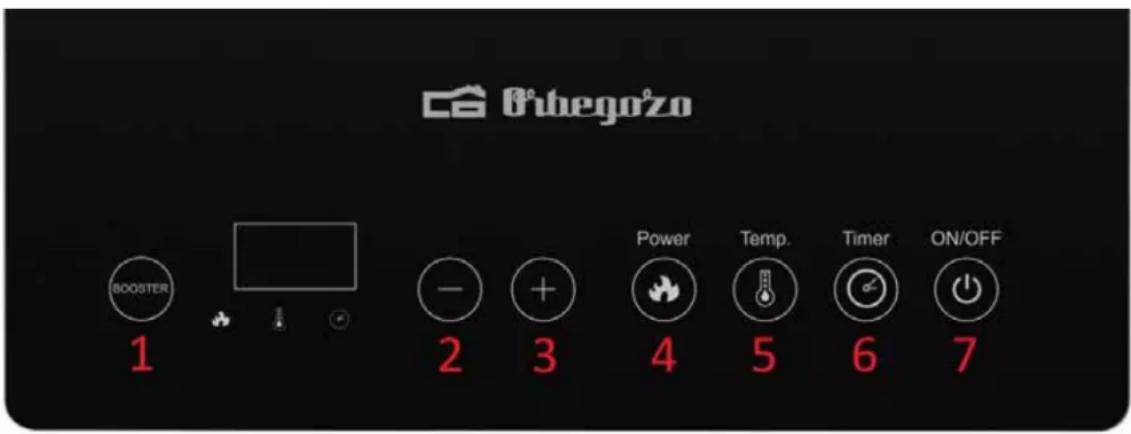

1. Modo Booster	1.Booster Mode	1. Mode Booster	1. Modo Booster
2. Pulsador menos potencia/tiempo	2. Button lower power/time	2. Interrupteur puissance moins/temps	2. Botão com menos potência/tempo
3. Pulsador más potencia/tiempo	3 Button higher power/time	3. Interrupteur puissance plus/temps	3. Botão com mais potência/tempo
4. Selector de potencia	4. Power selector	4. Selection de puissance	4. Seleção de potência
5.Selector de temperatura	5. Temperature selector	5. Selection de temperature	5. Seleção de temperatura
6.Temporizado de apagado	6.Timer off	6. Temporisateur mise hors tension	6. Temporizador off
7.Apagado/encendi do	7. On/Off	7. Bouton ON/OFF	7. On/Off

CLEANING AND MAINTENANCE

Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.

Do not use any wire brush or other abrasive objects.

Do not use any acidic or abrasive detergents.

Under no circumstances should the device be immersed in water for cleaning.

Clean the surface from food remains when it's still warm using a moist cloth or tissue.

Wash the hob using a soft sponge and some water, then wipe dry with a soft cloth.

- Cleaning agent for glass-ceramics surfaces: In case of stubborn, baked-in remains, use suitable cleaning products available at special departments of department stores.

TROUBLESHOOTING

E01: Electronic control of low voltage (<145V)

E02: Electronic control excess voltage (>275V)

E03: IGBT open or short circuit

E06: Temperature sensor open circuit

E07: Overheating protection

E08: Temperature sensor malfunction

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
