HW-Q710C - Soundbar SAMSUNG - Free user manual and instructions

Product Type	Soundbar with wireless subwoofer
Brand	Samsung
Model	HW-Q710C
Dimensions (soundbar)	Approx. 1110 x 59 x 104 mm (W x H x D)
Dimensions (subwoofer)	Approx. 200 x 390 x 290 mm (W x H x D)
Weight (soundbar)	Approx. 5.5 kg
Weight (subwoofer)	Approx. 7.0 kg
Power Supply	100-240 V AC, 50-60 Hz
Power Consumption	See label on back of product
Connectivity	HDMI eARC, Bluetooth, Wi-Fi, Apple AirPlay 2, optical input, USB (service)
Supported Audio Formats	Dolby Atmos, DTS:X, PCM etc.

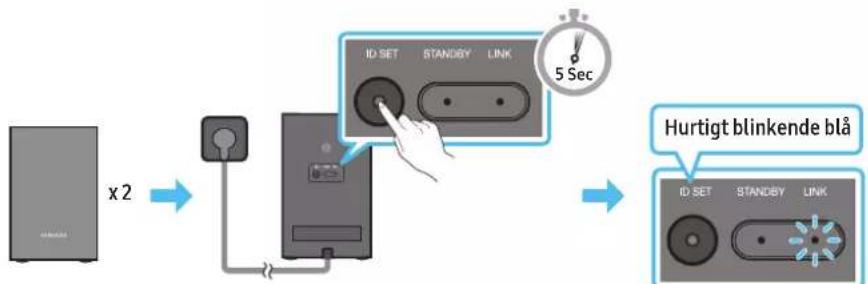

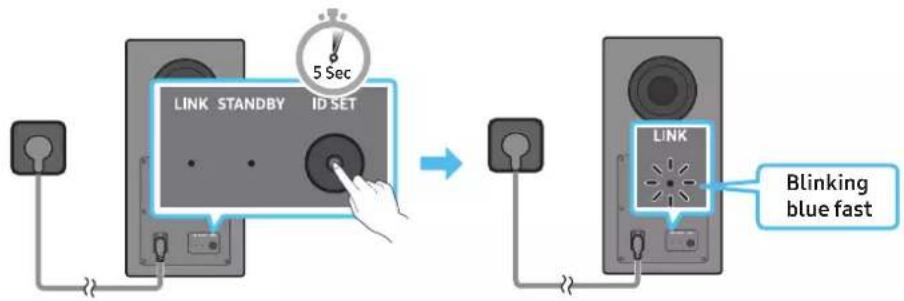

Sound Modes	Standard, Surround, Game Pro, Adaptive Sound
Special Features	Q-Symphony, SpaceFit Sound, Active Voice Amplifier (AVA), Tap Sound
Number of Channels	5.1 channels (basic configuration) with expandability up to 7.1.4
Surround Speakers	Optional (not included)
Remote Control	Included, AAA batteries (2)
Care and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to rain or humidity. Do not open the casing. Unplug before any intervention.
Spare Parts and Repairability	Software update via USB or automatic. Reset possible. Contact Samsung service for parts.
Warranty	Legal warranty 2 years

Frequently Asked Questions - HW-Q710C SAMSUNG

How do I connect the Samsung HW-Q710C soundbar to my TV?

Use an HDMI cable to connect the HDMI TO TV (eARC/ARC) port on the soundbar to the HDMI IN (ARC/eARC) port on your TV. Make sure the HDMI cable supports ARC and that eARC is enabled in the TV settings. Then select the D.IN or TV ARC source on the soundbar.

What should I do if the subwoofer does not connect to the soundbar?

Check that the LINK indicator on the back of the subwoofer is blinking blue. If not, perform a manual connection: turn off the soundbar, press the ID SET button on the back of the subwoofer for 5 seconds (the indicator blinks rapidly blue), then press the Up button on the soundbar remote control for 5 seconds. The indicator turns solid blue when the connection is successful.

How do I use the Q-Symphony function?

The Q-Symphony function allows sound to be output simultaneously through the soundbar and the speakers of a compatible Samsung TV. Connect the soundbar via HDMI, optical, or Wi-Fi. On the TV, go to Settings → Sound → Sound Output and select TV+Soundbar. Surround sound will be enhanced.

How do I update the soundbar software?

Two methods:
1. Automatic update: if the soundbar is connected to the Internet, it updates automatically even when turned off.
2. USB update: download the update file from the Samsung website, unzip it onto a USB drive, insert the drive into the SERVICE port on the back of the soundbar, then turn it on. The display shows UPDATE during the update.

Why does the soundbar sound cut out occasionally?

This may be due to radio interference (microwaves, routers) or the Bluetooth device being too far away. Move the devices closer and away from interference sources. Also check that the HDMI cable is properly connected. If the problem persists, reset the soundbar (press and hold the - and + volume buttons simultaneously for 5 seconds).

How do I adjust the subwoofer level?

Use the WOOFER button on the remote control. Press the Up/Down buttons to increase or decrease the bass level. You can also access audio settings via the Audio Settings button and select WOOFER LEVEL.

How do I reset the Samsung HW-Q710C soundbar?

Turn on the soundbar, then press and hold the - and + volume buttons on the top panel simultaneously for at least 5 seconds. The display shows INIT and the soundbar resets. Note: all settings will be lost.

The remote control does not work, what should I do?

Make sure the remote is pointed at the soundbar and there are no obstructions. Replace the batteries with new AAA batteries. If the problem persists, the remote may be defective; contact Samsung after-sales service.

How do I connect my smartphone via Bluetooth?

Press the PAIR button on the remote control to enter BT PAIRING mode. On your smartphone, enable Bluetooth and select Soundbar Q***C from the list. If connection fails, delete the device from the list and try again. The soundbar should be within one meter.

How do I mount the soundbar on the wall?

Use the wall mounting guide and supplied screws. Mark the positions on the wall, drill holes, insert appropriate wall plugs, then screw in the wall brackets. Attach the wall mount hooks to the back of the soundbar with M4 x L10 screws, then hang the soundbar on the wall brackets. Ensure the wall can support the weight.

USER MANUAL HW-Q710C SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

Figures and illustrations in this User Manual are provided for

reference only and may differ from actual product appearance.

CONTENTS

01 Checking the Components 3

02 Product Overview 4

Top Panel of the Soundbar....4

Bottom Panel of the Soundbar....5

03 Using the Soundbar Remote Control 6

Inserting Batteries before using the Remote Control (AAA batteries X 2) 6

How to Use the Remote Control....6

Active Voice Amplifier (AVA) 8

Using the Hidden Buttons (Buttons with more than one function)....8

Output specifications for the different sound effect modes....8

Adjusting the Soundbar volume with a TV remote control ....10

04 Connecting the Soundbar 11

Connecting the power and units 11

- Recommended Speaker Layout.... 12

- Surround speaker mode (HW-Q9**C, HW-Q9**GC only) .. 12

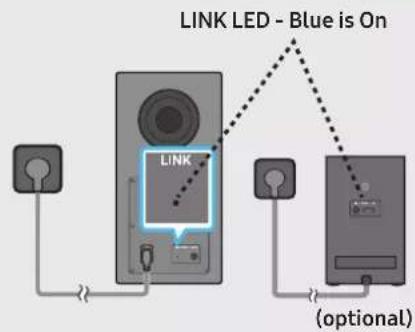

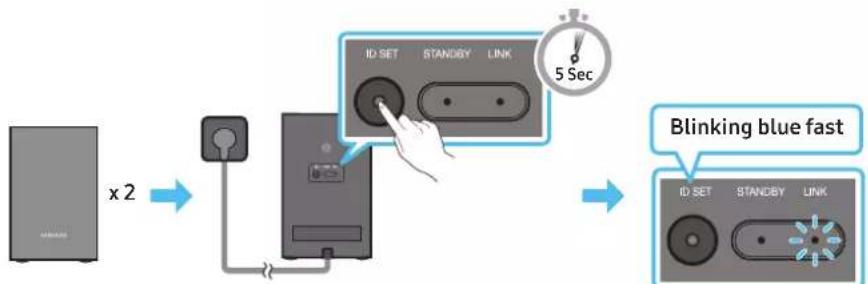

- Manually connecting the Subwoofer or Surround Speakers.... 13

- LED Indicator Lights on the Rear of Subwoofer and Surround Speakers 14

05 Connecting to a TV 15

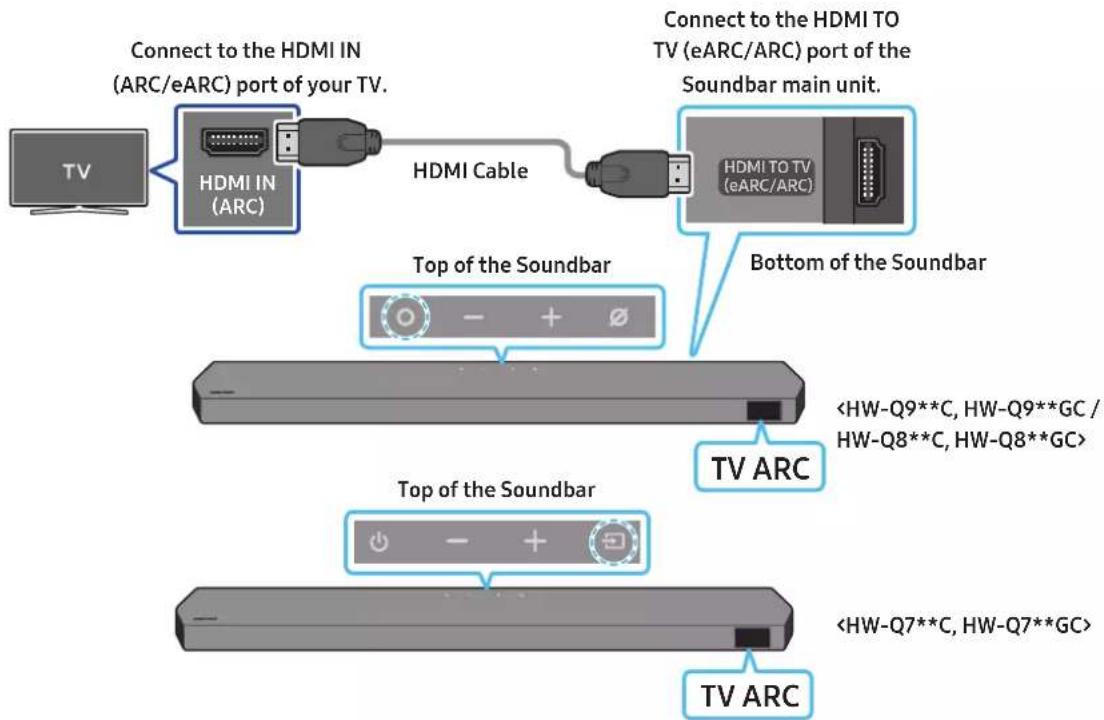

Connecting the TV that supports HDMI ARC (Audio Return Channel) 15

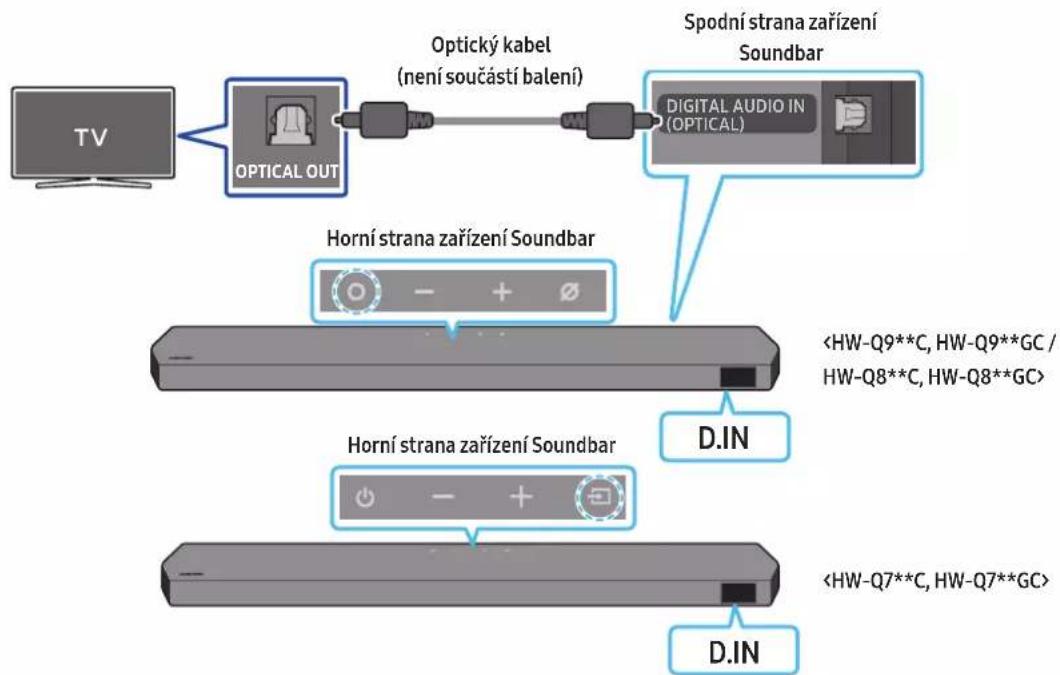

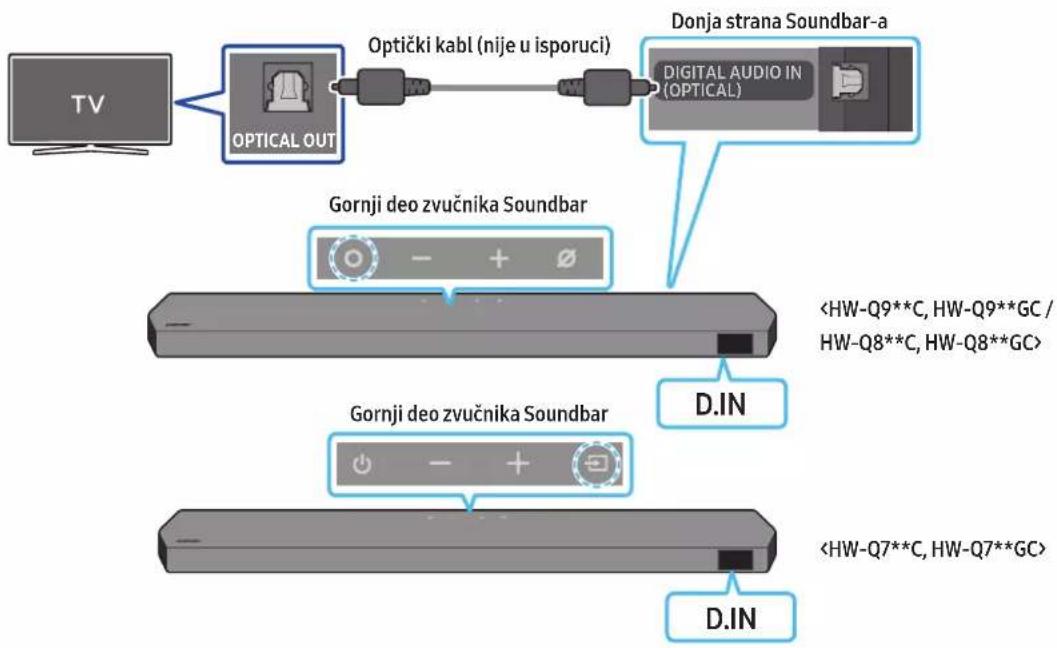

Connecting using an Optical Cable 16

Connecting via Bluetooth 17

Connecting via Wi-Fi 19

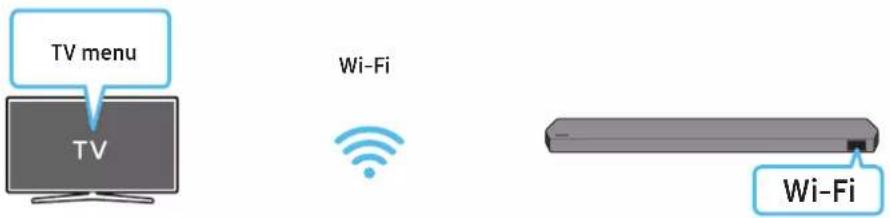

Using the Q-Symphony Function....20

Using the SpaceFit Sound ....21

06 Connecting an External Device 22

Method 1. Connecting using an HDMI Cable (Capable of Dolby Atmos / DTS:X decoding and playback)....22

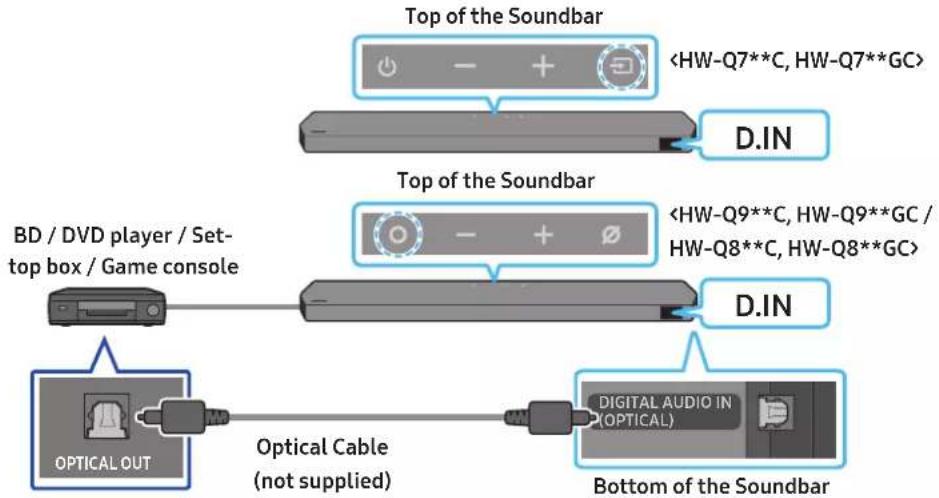

Method 2. Connecting using an Optical Cable ..... 23

07 Connecting a Mobile Device 24

Method 1. Connecting via Bluetooth .....24

Method 2. Connecting via Wi-Fi (Wireless Network)....26

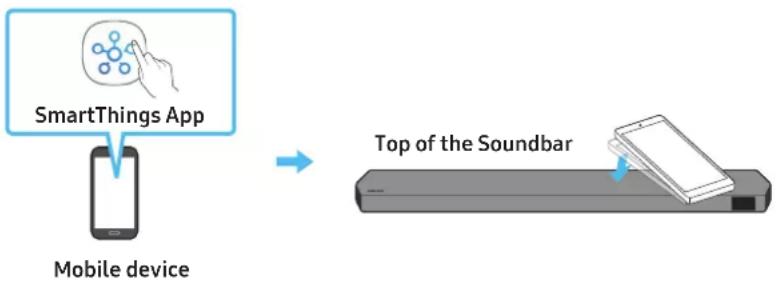

Using the Tap Sound 27

08 Connecting via Apple Airplay 2 28

09 Installing the Wall Mount 29

Installation Precautions....29

Wallmount Components .....29

Installing the Surround Speakers on a Wall (applicable models only)....30

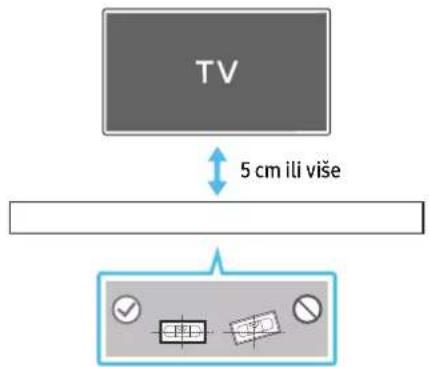

10 Installing the Soundbar in front of TV 30

Component 30

11 Software Update 31

Auto Update 31

USB Update....31

Initialisation 32

12 Troubleshooting 32

01 CHECKING THE COMPONENTS

Soundbar Main Unit Soundbar Remote Control / Batteries Subwoofer

Surround Speaker (optional) (Left / Right)

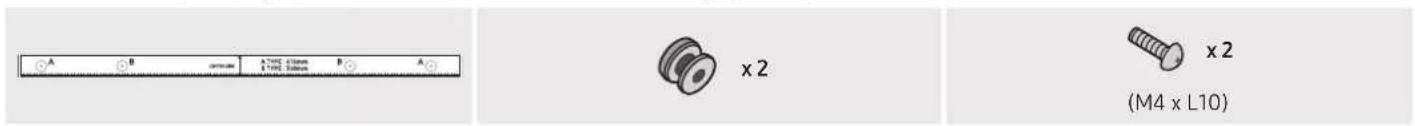

Wall Mount Guide Holder-Screw Screw

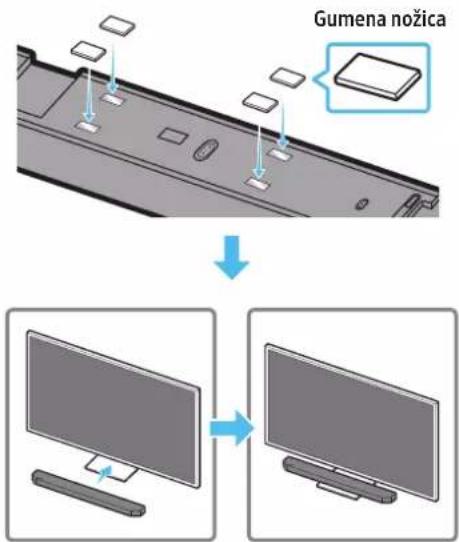

Bracket-Wall Mount Rubber-Foot

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Rear of the Soundbar Main Unit) • To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.

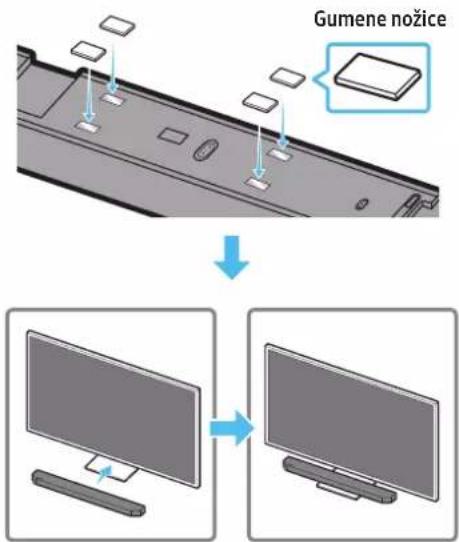

• For more information about the wallmount or rubber-foot, see pages 29\~31.
• Design, specifications, and App screen are subject to change without prior notice.
• The appearance of the accessories may differ slightly from the illustrations above. • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate.

02 PRODUCT OVERVIEW

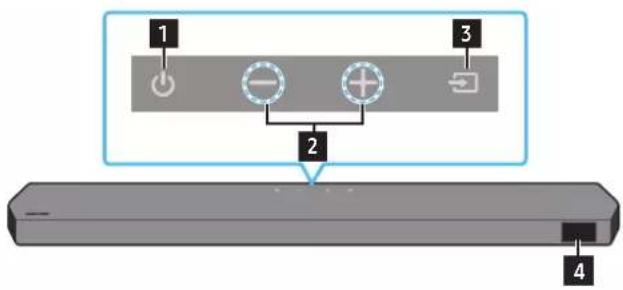

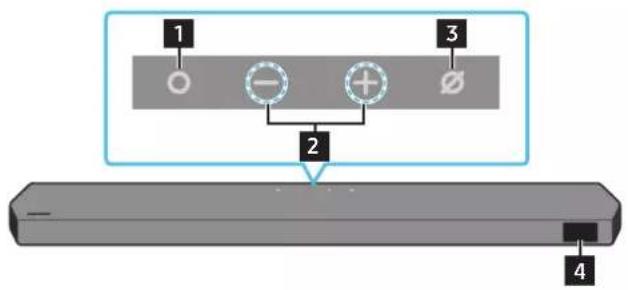

Top Panel of the Soundbar

HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC HW-Q7**C, HW-Q7**GC

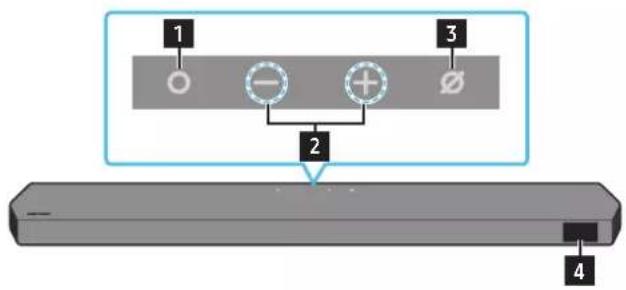

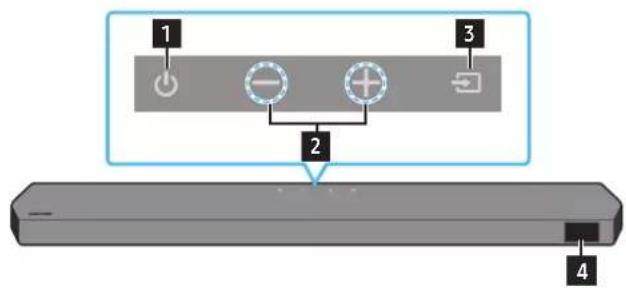

1	○ (Multi Function) Button (HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC models)In standby mode, press the Ⓜ Multi Function) button to turn on the Soundbar.Press the Ⓜ Multi Function) button to change the input source.

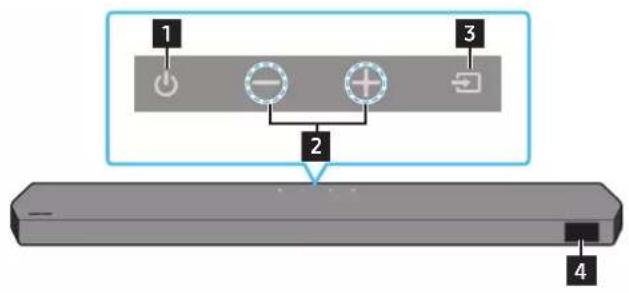

1	↓ (Power) Button (HW-Q7**C, HW-Q7**GC model)Turns the power on and off.
2	- + (Volume) ButtonAdjusts the volume.

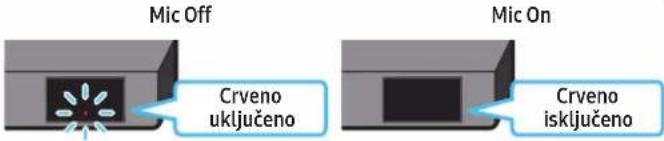

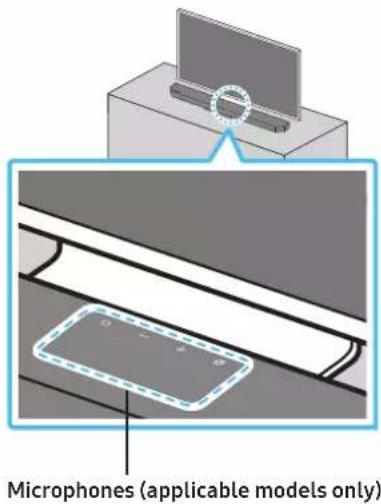

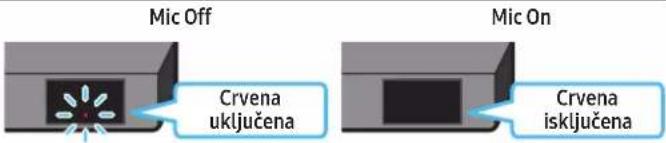

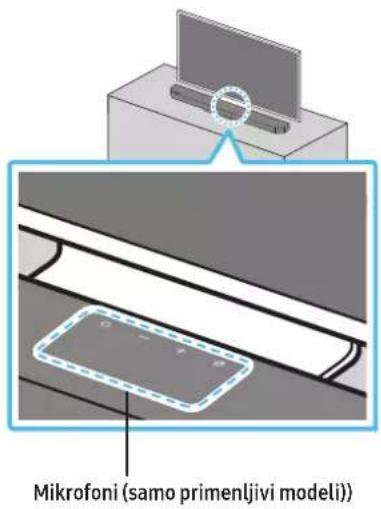

3	∅ (Mic On/Off) Button(HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC models)Press the button to turn the microphone on or off.When the microphone is off, the LED indicator will glow red.
3	→ (Source) Button (HW-Q7**C, HW-Q7**GC model)Press the → (Source) button to change the input source.
4	DisplayDisplays the product's status and current mode.D.IN → HDMI → Wi-Fi → BT

- When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

- When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

• If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and change the TV speaker to External Speaker.

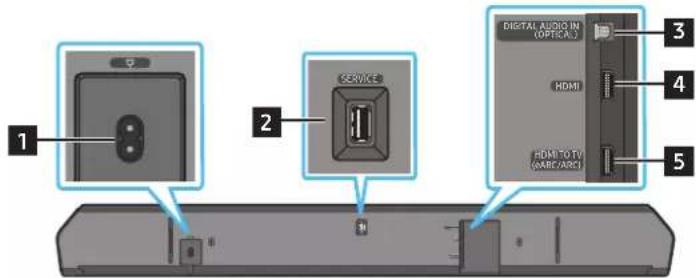

Bottom Panel of the Soundbar

1 POWER

Connect the Soundbar's AC power cable. (See page 11)

2 SERVICE

Connect a USB storage device to upgrade the product's software.

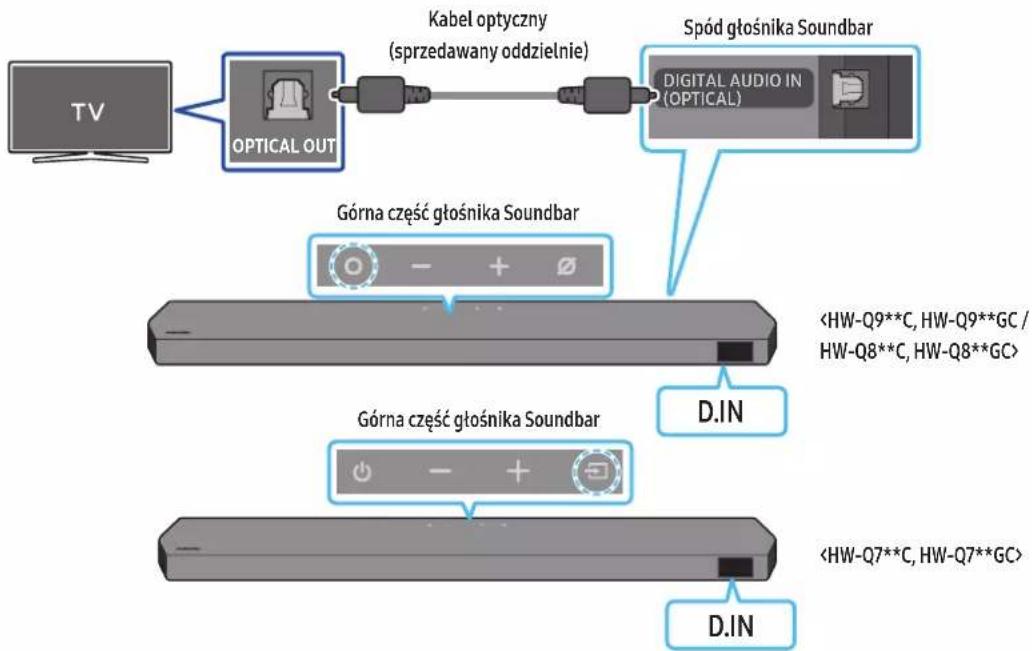

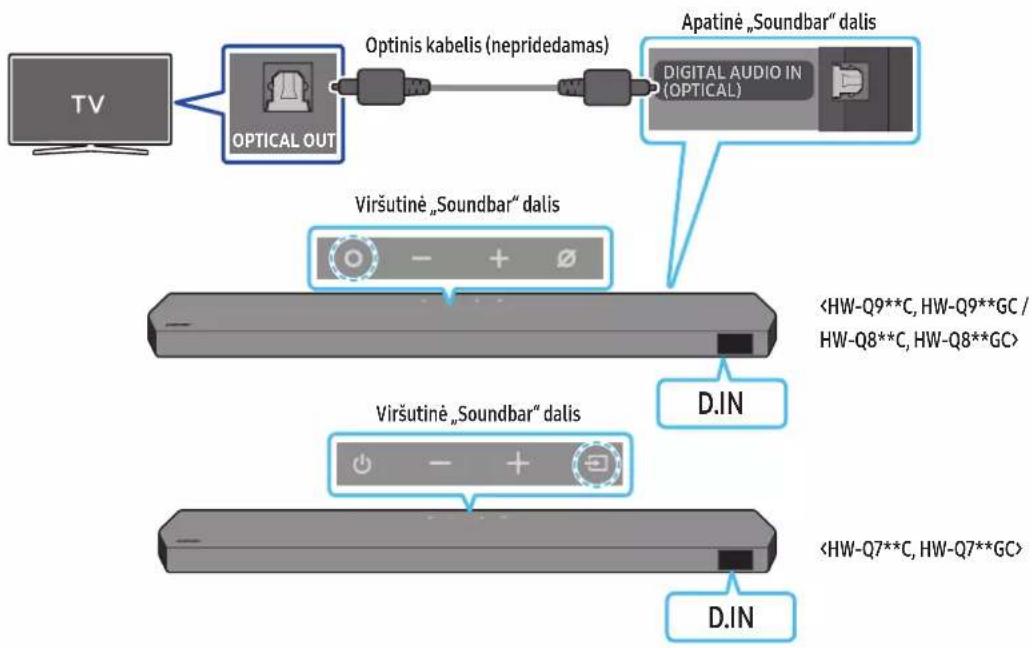

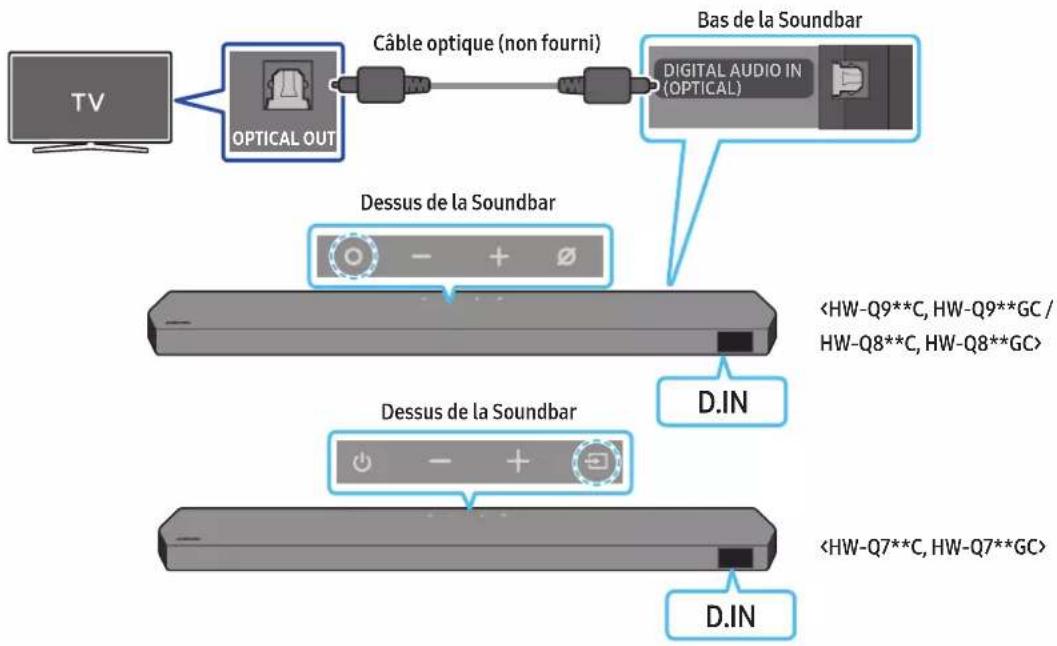

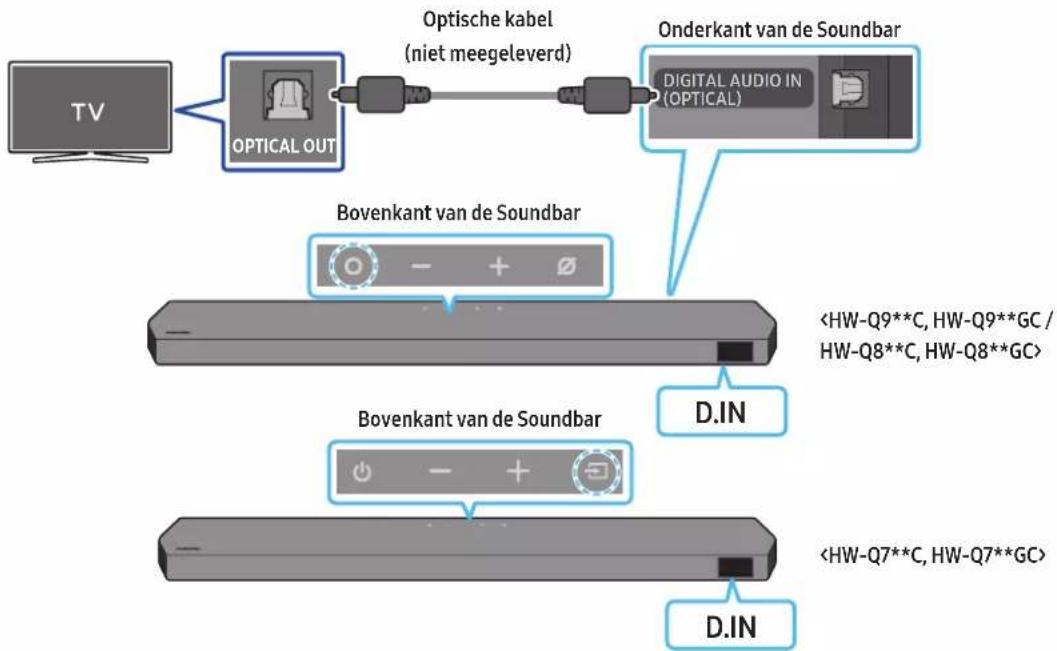

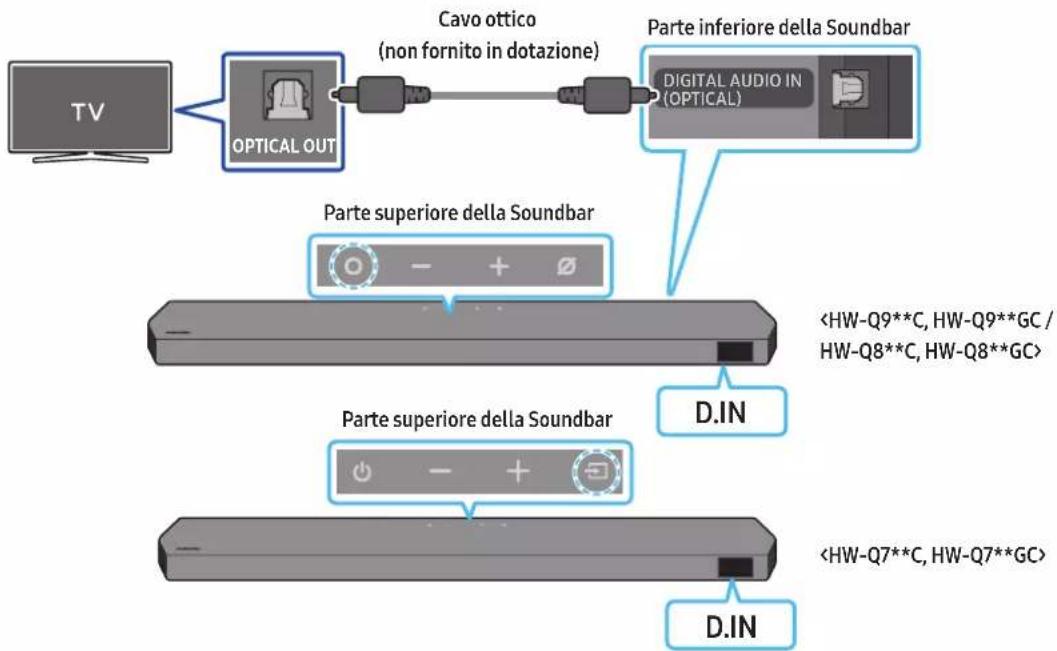

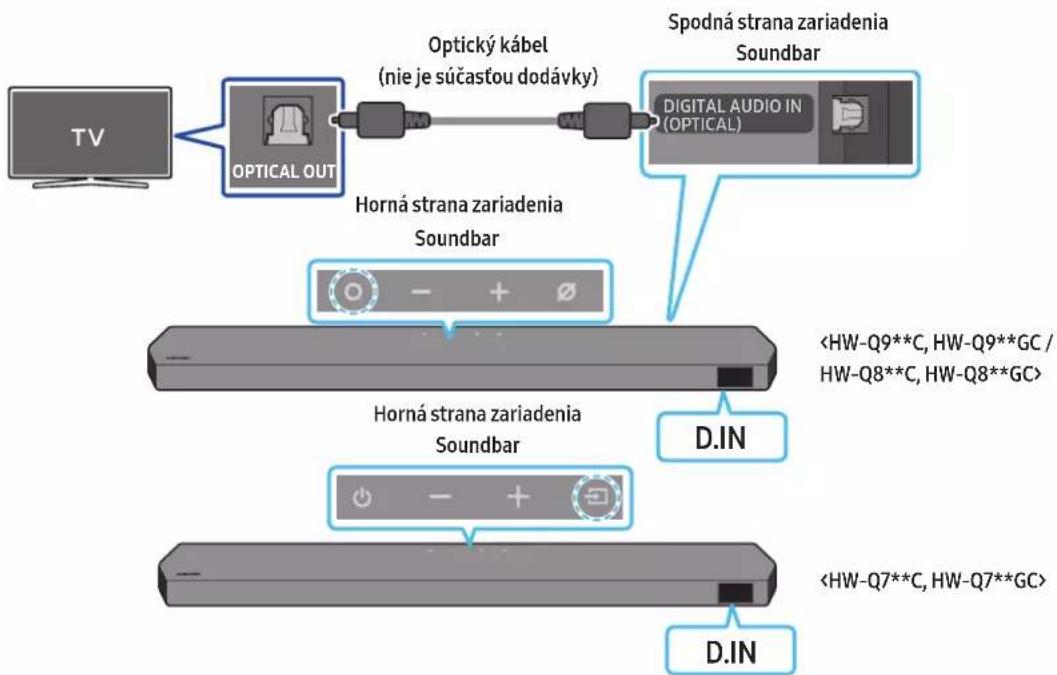

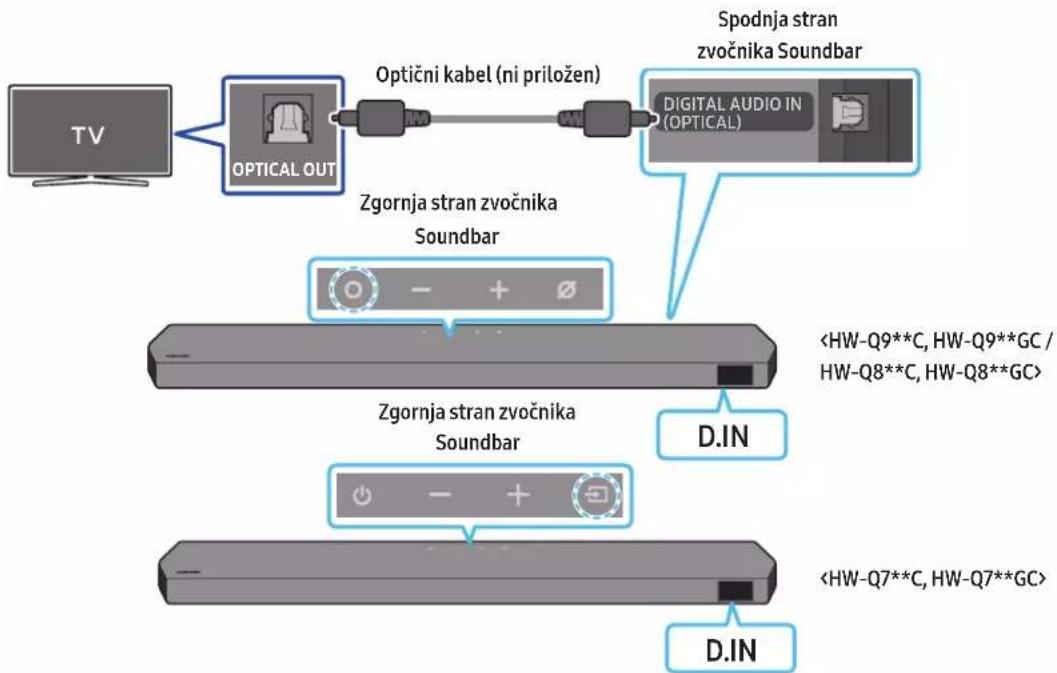

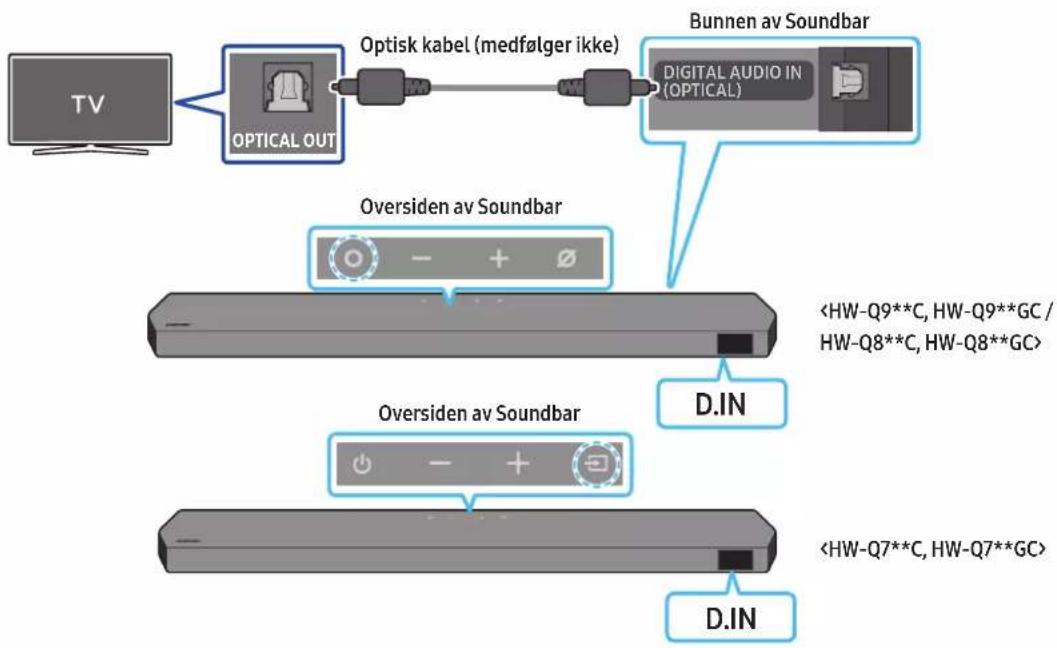

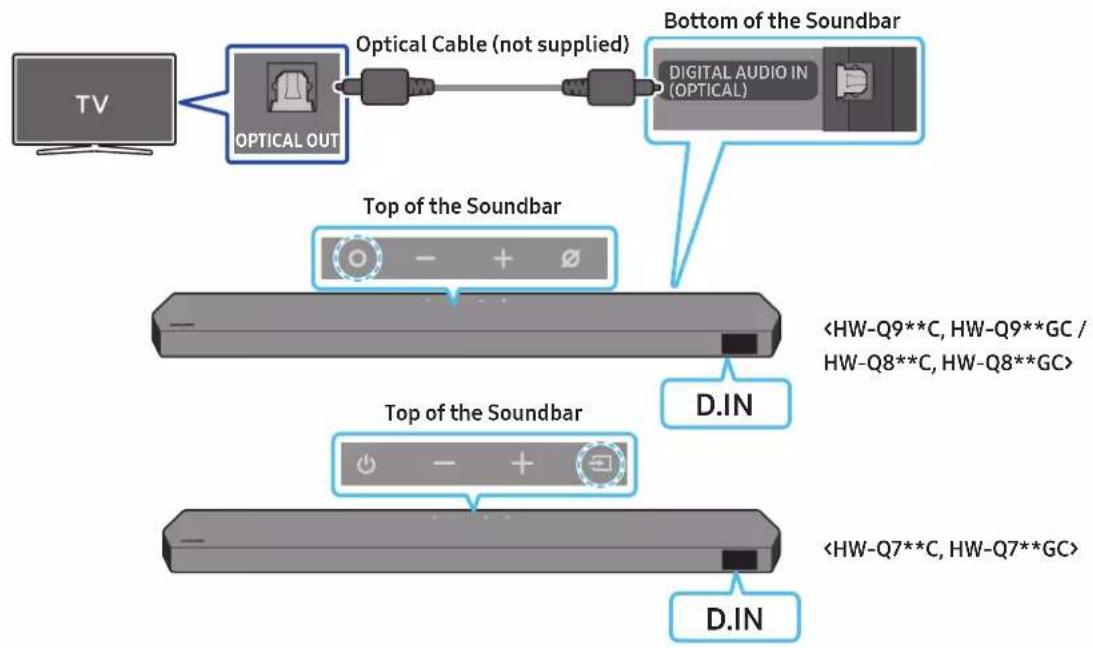

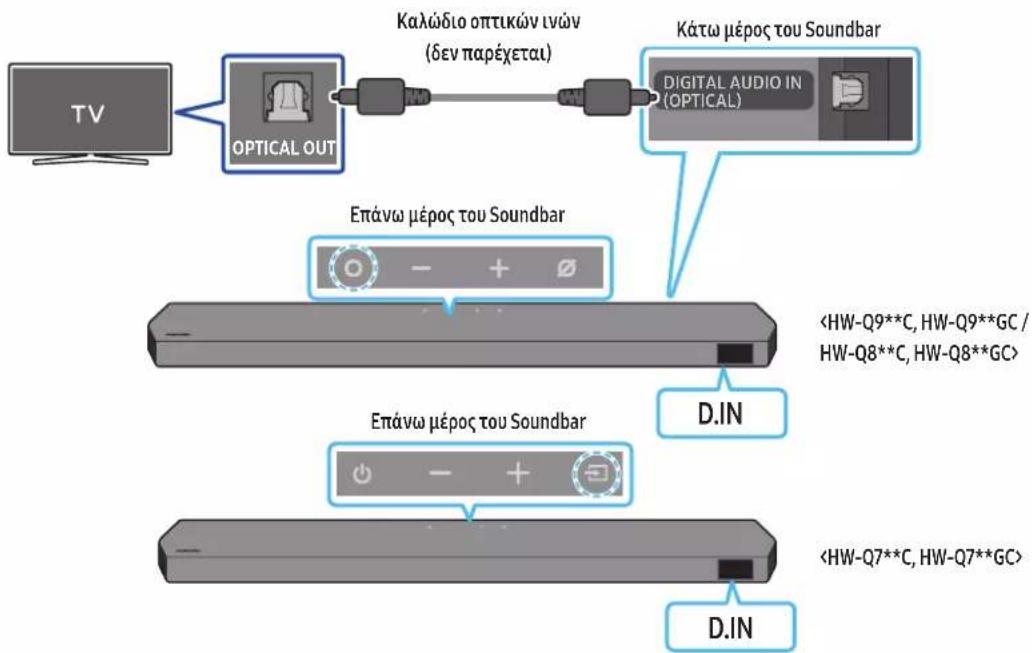

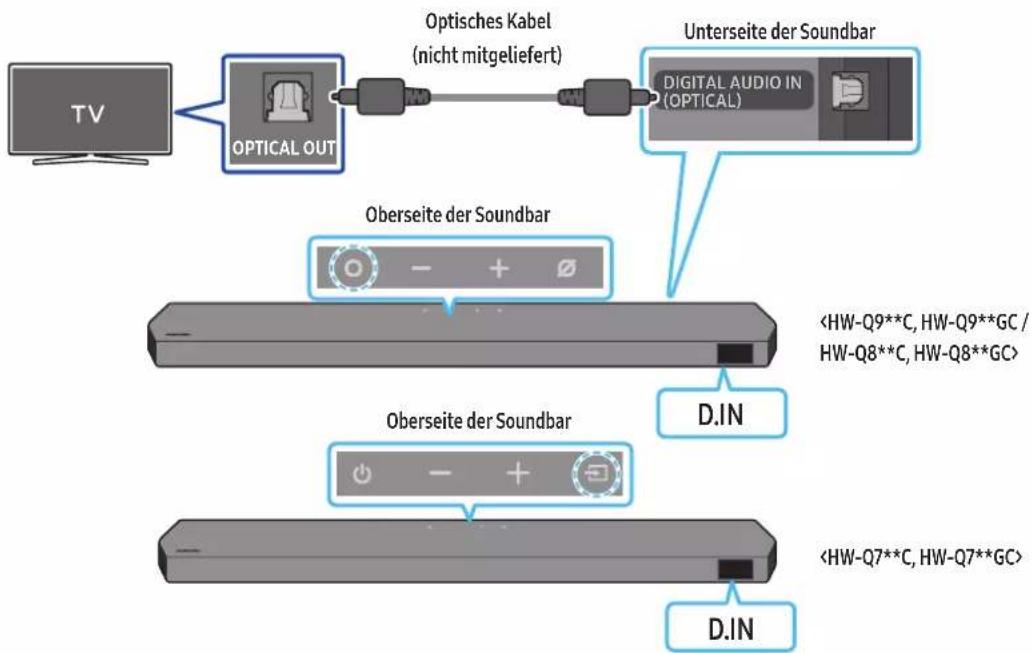

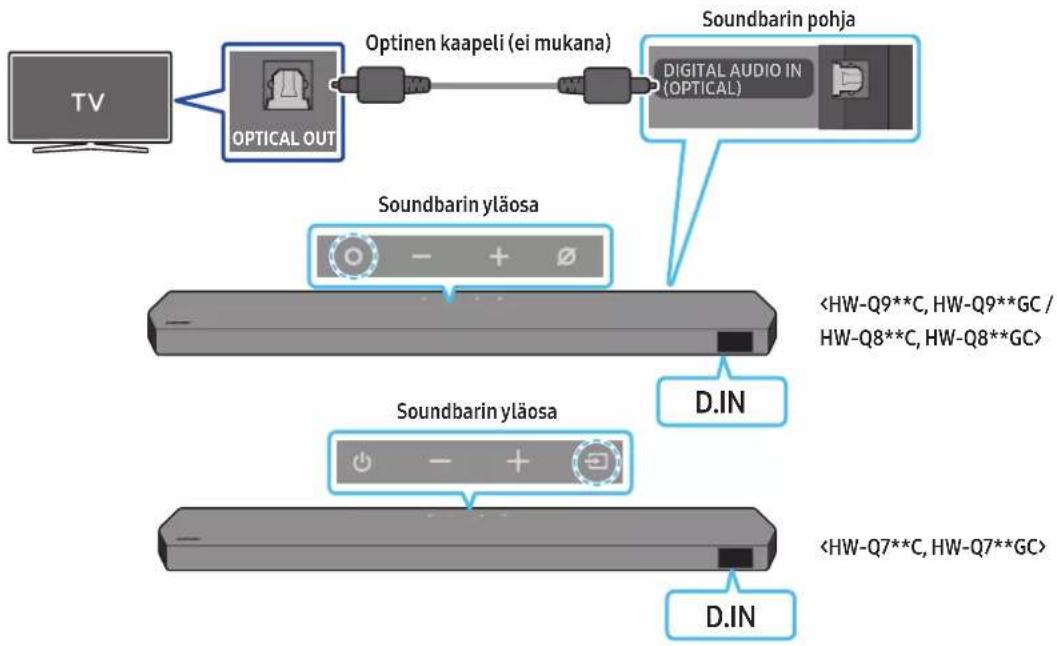

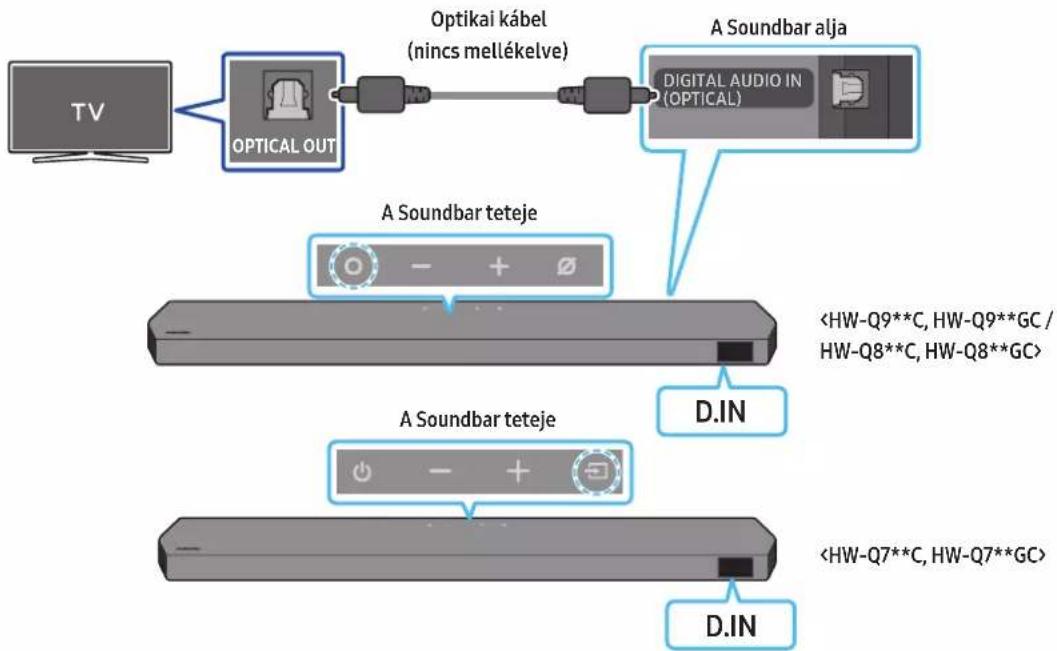

3 DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 23)

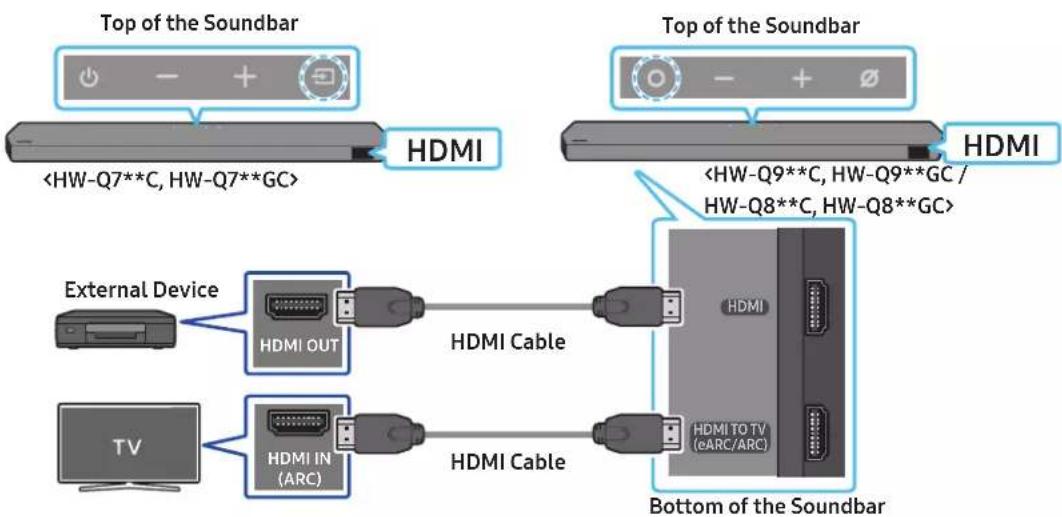

4 HDMI

Inputs digital video and audio signals simultaneously using an HDMI cable. Connect to the HDMI output of an external device. (See page 22)

5 HDMI TO TV (eARC/ARC)

Connect to the HDMI jack on a TV. (See page 15)

• When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 USING THE SOUNDBAR REMOTE CONTROL

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

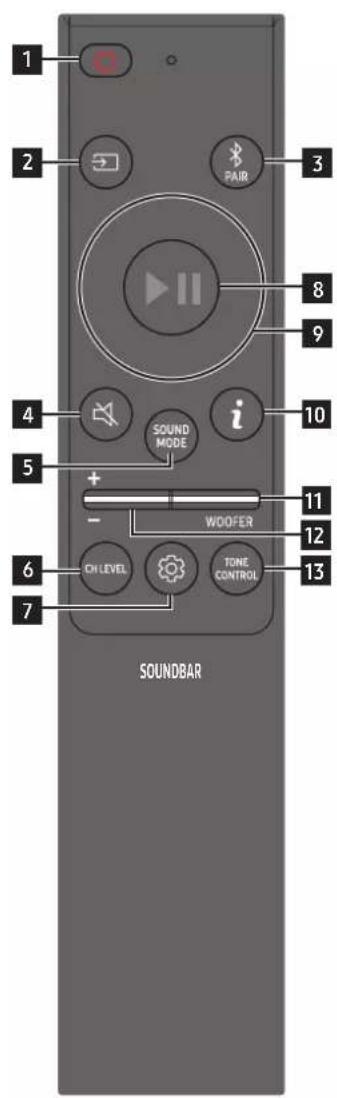

How to Use the Remote Control

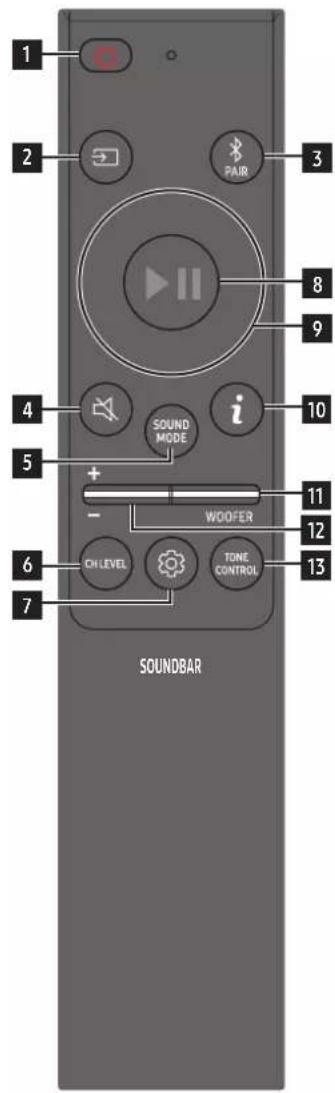

1	Power	Turns the Soundbar on and off.• Auto Power Down FunctionThe unit turns off automatically in the following situations:• In D.IN / HDMI / Wi-Fi / BT mode if there is no audio signal for 18 minutes.
2	Source	Press to select a source connected to the Soundbar.• Voice Feedback On/OffYou can turn on or off the Voice Feedback.Press and hold the → (Source) button on the remote control for 5 seconds while the Soundbar is off (Standby mode).Each time you change the Voice Feedback setting, the OLED Display will show “AUI OFF” (Default) or “AUI ON”.

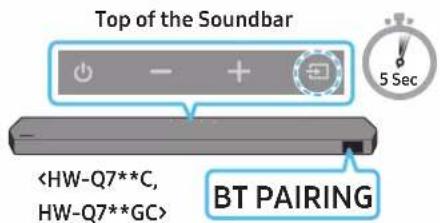

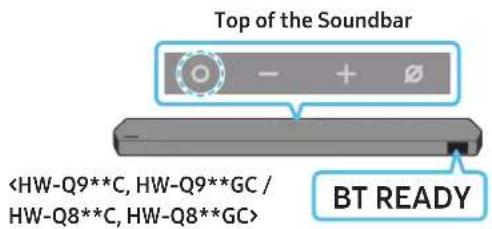

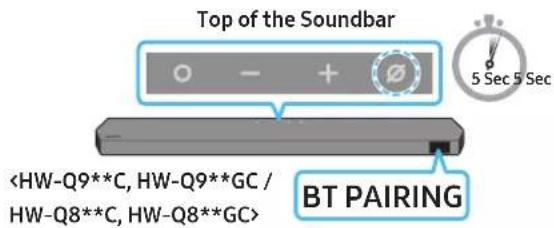

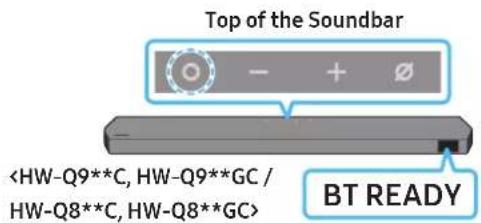

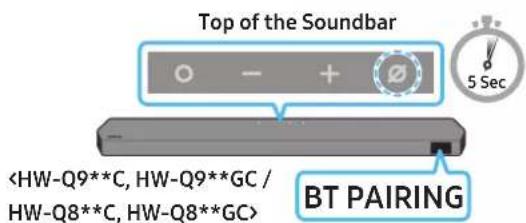

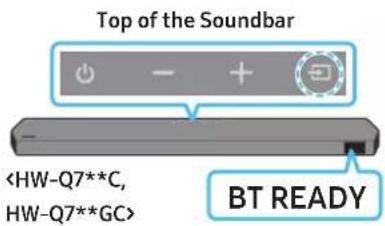

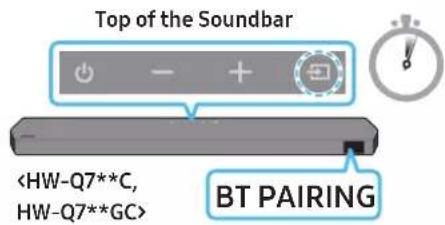

3	Bluetooth PAIR	Switch the Soundbar to Bluetooth pairing mode. Press the button and wait for the “BTPAIRING” screen to connect to a new Bluetooth device.
4	Mute	Press the ⚪ (Mute) button to mute the sound.Press it again to unmute the sound.
5	SOUND MODE	By pressing the button, you can select the desired audio mode such as Surround, Game Pro, Standard, Adaptive Sound.• StandardOutputs the original sound.• SurroundProvides a wider sound field than standard.• Game ProProvides stereoscopic sound to immerse you in the action while gaming.• Adaptive SoundAnalyzes the content in real time and automatically provides the optimal sound field based on the characteristics of the content.
6	CH LEVEL	By pressing the button, you can adjust the volume of the each speaker such as Centre level, Side level, Wide level, Front Top level, Rear level, and Rear top level.• To control the volume of the each speaker select Centre level, Side level, Wide level, or Front Top level in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons.• If Surround Speakers are connected, select Rear level or Rear top level and then use the Up/Down buttons to adjust the volume within a -6 to +6 range.• CH LEVEL specifications may differ with the respective model.

7	[8BHD]Sound Control	By pressing the button, you can set the audio function such as SpaceFit Sound, AVA, Voice enhance mode, Night mode, Sync, Surround speaker mode, Virtual. The desired item can be adjusted using the Up/Down buttons.The SpaceFit Sound and AVA functions are not supported by HW-Q7**C, HW-Q7**GC model.Voice enhance mode enhances spoken dialog in movies and TV to make it easier to hear.Night mode is optimized for night time viewing with the settings adjusted to bring the volume down but keep the dialog clear.Press and hold the (Sound Control) button for about 5 seconds to adjust the sound for each frequency band.150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using the Left/Right buttons and each can be adjusted to a setting between -6 to +6 using the Up/Down buttons.(Make sure the Sound mode is set to "Standard".If the video on the TV and audio from the Soundbar are not synchronized, select Sync in Sound Control, and then set the audio delay between 0~300 milliseconds by using the Up/Down buttons.Sync is only supported for some functions.Available Surround speaker mode settings are supported only by HW-Q9**C, HW-Q9**GC model.The Virtual Speaker function can be turned ON/OFF by using the Up/Down buttons.
8	Play / Pause	You can also play or pause music by pressing the button.
9	Up/Down/Left/Right	Press the indicated areas to select Up/Down/Left/Right.Press Up/Down/Left/Right on the button to select or set functions.Music SkipPress the Right button to select the next music file. Press the Left button to select the previous music file.ID SETUse this option when the Subwoofer or Surround Speakers are not connected or need reconnection.While powered off, press and hold the Up button for 5 seconds to perform ID SET. (See page 13.)
10	Info	Press to display information about the active function or the codec available.In BT mode, it displays the connected device (when pairing is complete) or "BT ready" (when pairing is required).
11	WOOFER LEVEL		Push the button up or down to adjust the level of the woofer (bass).
12	VOLUME		Push the button up or down to adjust the volume.MutePress the VOL button to mute the sound. Press it again to unmute the sound.
13	TONE CONTROL	By pressing the button, you can adjust the volume of the treble or bass sound. The defired item can be adjusted using the Up/Down buttons. This function is enabled in Sound mode excluding in Standard mode.To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons.Once the bass level is changed, the woofer level will be also adjusted accordingly.

Active Voice Amplifier (AVA)

• Analyzes external noise in real time while soundbar is playing, so that voice audio can always be heard clearly.
• No data is saved during the analysis.
• This function is not supported by HW-Q7**C, HW-Q7**GC model.

Using the Hidden Buttons (Buttons with more than one function)

Hidden Button		Reference page
Remote Control Button Function
WOOFER (Up) TV remote control	On/Off (Standby) page 10
Up ID SET page 13
(Sound Control)	7 Band EQ page 7
→(Source)	Voice Feedback On/Off (Standby) page 6

Output specifications for the different sound effect modes

Effect Input		Output
		With Subwoofer & Surround Speaker
Standard	2.0 ch 2.1 ch
	5.1 ch 5.1 ch / 7.1 ch (DTS)
	7.1 ch 7.1 ch
	Dolby Atmos®, DTS:X 7.1.4 ch
Surround	2.0 ch	9.1.4 ch
	5.1 ch	9.1.4 ch
	7.1 ch	9.1.4 ch
	Dolby Atmos®, DTS:X	9.1.4 ch
Game Pro	2.0 ch	9.1.4 ch
	5.1 ch	9.1.4 ch
	7.1 ch	9.1.4 ch
	Dolby Atmos®, DTS:X	9.1.4 ch
Adaptive Sound	2.0 ch	9.1.4 ch
	5.1 ch	9.1.4 ch
	7.1 ch	9.1.4 ch
	Dolby Atmos®, DTS:X	9.1.4 ch

Effect Input		Output
		With Subwoofer Only	With Subwoofer & Surround Speaker
Standard	2.0 ch 2.1 ch 2.1 ch
	5.1 ch 5.1 ch 5.1 ch / 7.1 ch (DTS)
	7.1 ch 5.1 ch 7.1 ch
	Dolby Atmos®, DTS:X 5.1.2 ch 7.1.4 ch
Surround	2.0 ch 5.1.2 ch 7.1.4 ch
	5.1 ch 5.1.2 ch 7.1.4 ch
	7.1 ch 5.1.2 ch 7.1.4 ch
	Dolby Atmos®, DTS:X 5.1.2 ch 7.1.4 ch
Game Pro	2.0 ch 5.1.2 ch 7.1.4 ch
	5.1 ch 5.1.2 ch 7.1.4 ch
	7.1 ch 5.1.2 ch 7.1.4 ch
	Dolby Atmos®, DTS:X 5.1.2 ch 7.1.4 ch
	2.0 ch 5.1.2 ch 7.1.4 ch
Adaptive Sound	5.1 ch 5.1.2 ch 7.1.4 ch
	7.1 ch 5.1.2 ch 7.1.4 ch
	Dolby Atmos®, DTS:X 5.1.2 ch 7.1.4 ch

Effect Input		Output
		With Subwoofer Only	With Subwoofer & Surround Speaker
Standard	2.0 ch 2.1 ch 2.1 ch
	5.1 ch 3.1 ch 5.1 ch
	Dolby Atmos®, DTS:X 3.1.2	ch 5.1.4 ch
Surround	2.0 ch 3.1.2 ch 5.1.4	ch
	5.1 ch 3.1.2 ch 5.1.4	ch
	Dolby Atmos®, DTS:X 3.1.2	ch 5.1.4 ch
Game Pro	2.0 ch 3.1.2 ch 5.1.4	ch
	5.1 ch 3.1.2 ch 5.1.4	ch
	Dolby Atmos®, DTS:X 3.1.2	ch 5.1.4 ch
Adaptive Sound	2.0 ch 3.1.2 ch 5.1.4	ch
	5.1 ch 3.1.2 ch 5.1.4	ch
	Dolby Atmos®, DTS:X 3.1.2	ch 5.1.4 ch

The Surround Speakers will not produce sounds for 2 channel output while Standard mode is in use. To enable sound for the Surround Speakers, change the effect mode to Surround.

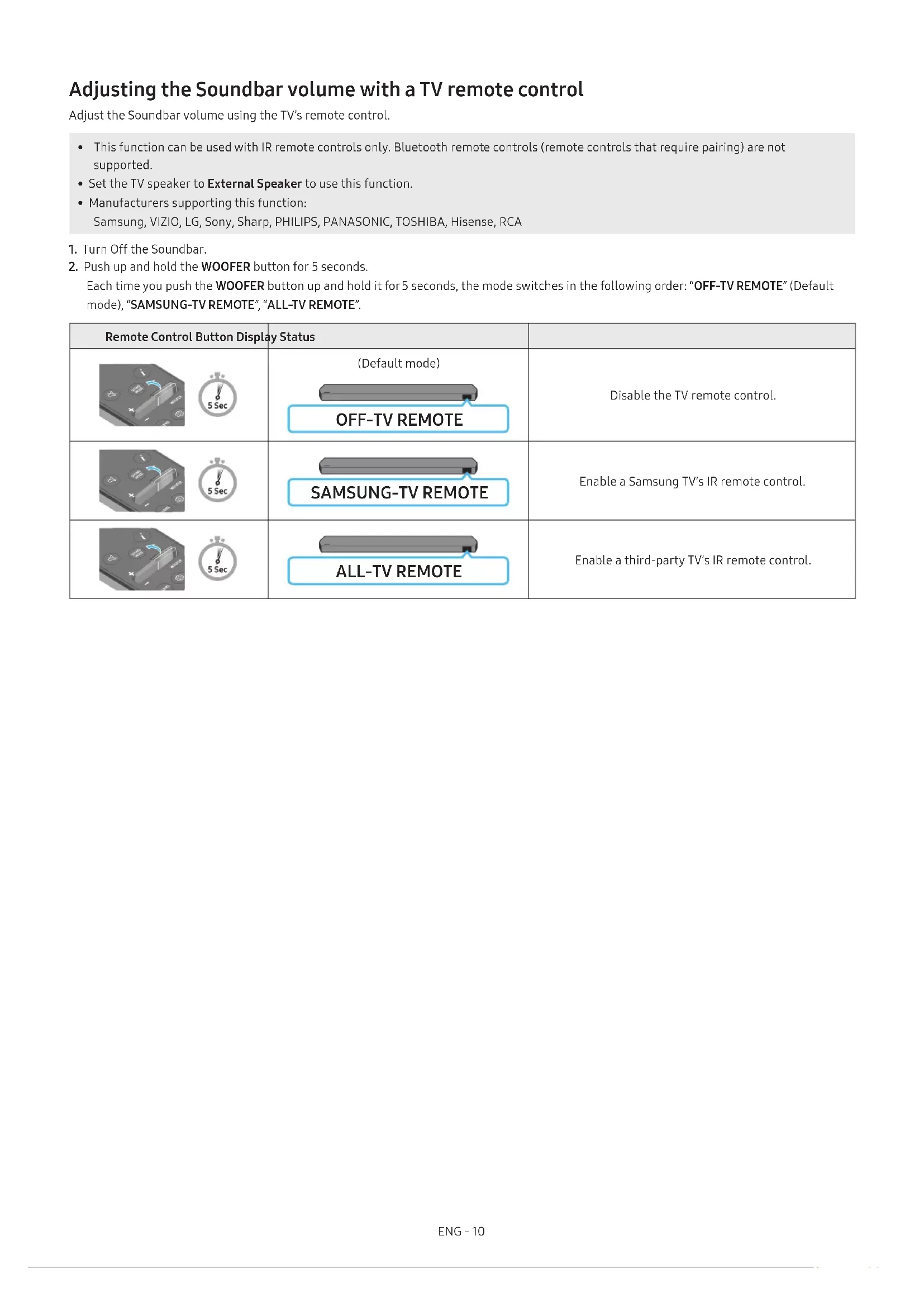

Adjusting the Soundbar volume with a TV remote control

Adjust the Soundbar volume using the TV's remote control.

• This function can be used with IR remote controls only. Bluetooth remote controls (remote controls that require pairing) are not supported.
• Set the TV speaker to External Speaker to use this function. • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA
• Turn Off the Soundbar.
• Push up and hold the WOOFER button for 5 seconds.

Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: "OFF-TV REMOTE" (Default mode), "SAMSUNG-TV REMOTE", "ALL-TV REMOTE".

Remote Control Button Display Status
	5 Sec	(Default mode)	Disable the TV remote control.
	5 Sec		Enable a Samsung TV's IR remote control.
	5 Sec		Enable a third-party TV's IR remote control.

04 CONNECTING THE SOUNDBAR

Connecting the power and units

Use the Power cord to connect the Subwoofer, Surround Speakers, and Soundbar to an electrical outlet in the following order:

• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Rear of the Soundbar Main Unit)

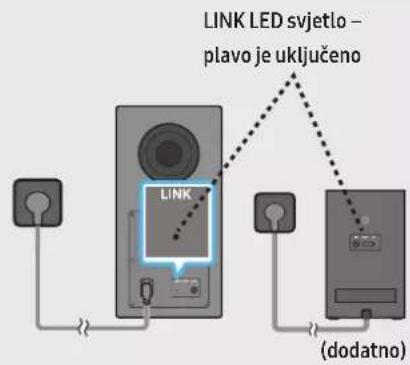

• Connect the Power cord to the Subwoofer.

Rear of Subwoofer

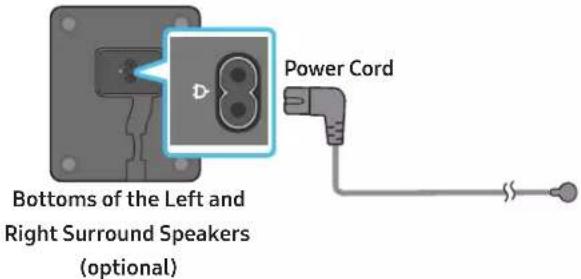

1. Connect the power cord to the Left and Right Surround Speakers. (optional)

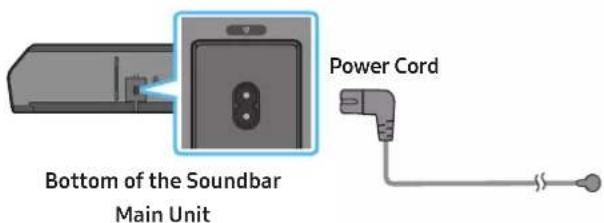

1. Connect the Power cord to the Soundbar.

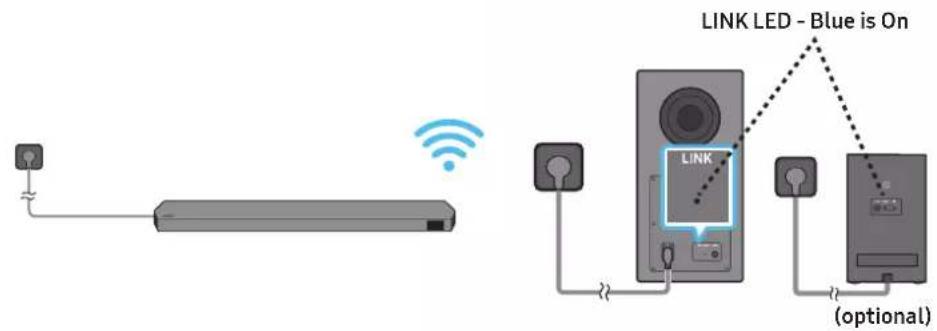

1. Connect power to the Soundbar, Subwoofer and Surround Speakers. The Subwoofer and Surround Speakers are automatically connected when the Soundbar is turned on.

NOTE

• Connect the Subwoofer and Surround Speakers power before connecting to the Soundbar. The Subwoofer and Surround Speakers will be automatically connected when turning on the Soundbar.
• If you unplug and reconnect the power cord when the product is turned on, the Soundbar turns on automatically.
• The surround speaker system is supported by applicable models only.

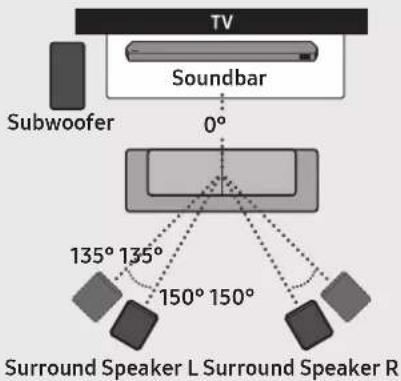

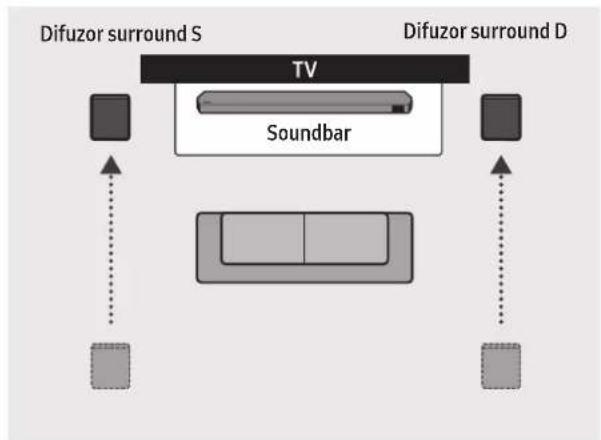

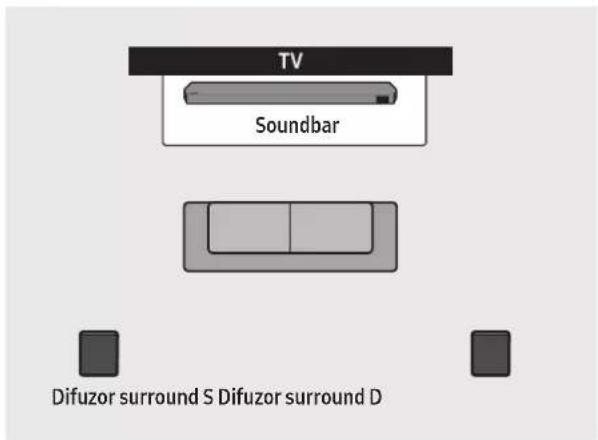

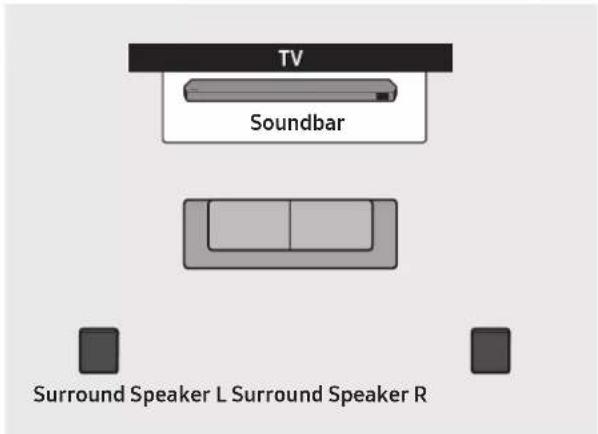

Recommended Speaker Layout

CAUTION

• Wireless receiving antennas are built into the subwoofer and surround speakers. Keep the units away from water and moisture.
• For optimal listening performance, make sure that the areas around the subwoofer and surround speakers locations are clear of any obstructions.

Surround speaker mode (HW-Q9**C, HW-Q9**GC only)

An optimal surround sound may be delivered depending on the position of the surround speaker. See the illustration below for speaker positioning.

To activate this mode, select the Surround Speaker mode using the remote control of the Soundbar.

(Sound Control) → Surround speaker → ▲(Up) / ▼(Down) → Front / Rear

Rear positioning Front positioning

NOTE

• This mode is available only with Soundbar models including a specific surround speaker. • In Front speaker mode, position the front speakers toward you.
• The surround speaker mode is enabled by default.

Before performing the manual connection procedure below:

• Check whether the power cables for the Soundbar and subwoofer or Surround Speakers are connected properly. • Make sure that the Soundbar is turned off.
• Turn off the Soundbar main.
• Press and hold ID SET on the rear of the subwoofer and surround speakers for at least 5 seconds.

- The red indicator at the rear of each speaker turns off and the blue indicator blinks.

Rear of Subwoofer Rear of Subwoofer

Rear of the Left and Right Surround Speakers (optional)

1. Press the Up button on the remote control for 5 seconds.
2. The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.
3. The Soundbar will automatically power on when ID SET is complete.

1. Check if the LINK LED is solid blue (connection complete).

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Subwoofer, surround speakers.

LED Indicator Lights on the Rear of Subwoofer and Surround Speakers

LED Status Description Resolution
SubwooferSurround Speakers(applicable models only)	On	Successfully connected(normal operation)	-
	Blinking Recovering the connection		Check if the power cable attached to the main Soundbar unit is connected properly or wait about 5 minutes.If blinking persists, try manually connecting the subwoofer and Surround Speakers. See page 13.
SubwooferSurround Speakers(applicable models only)	On	Standby (with theSoundbar main unit turned off)	Check if the power cable attached to the main Soundbar unit is connected properly.
		Connection failed	Connect again. See the instructions for manual connection on page 13.
SubwooferSurround Speakers(applicable models only)	Blinking Malfunction		See the contact information for the Samsung Service Centre in this manual.

NOTE

• If the main unit is powered off, the subwoofer will go into stand-by mode and the STANDBY LED on the rear of the sub-woofer will turn red after blinking in blue several times.
• If you use a device that uses the same frequency as the Soundbar near the Soundbar, interference may cause some sound interruption.
• The maximum transmission distance of the main unit's wireless signal is about 10 m, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the subwoofer, the system may not operate at all because the wireless signal cannot penetrate metal.
• The surround speaker system is supported by applicable models only.

CAUTION

• Wireless receiving antennas are built into the subwoofer and Surround Speakers. Keep the unit away from water and moisture.
• For optimal listening performance, make sure that the area around the subwoofer and the Surround Speakers are clear of any obstructions.

05 CONNECTING TO A TV

Connecting the TV that supports HDMI ARC (Audio Return Channel)

CAUTION

• When both the HDMI cable and optical cable are connected, the HDMI signal is received first.
• To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals marked ARC. Otherwise, the TV sound may not be output.
• The recommended cable is a Premium High Speed HDMI Cable with Ethernet certified by HDMI.org.

1. With the Soundbar and TV turned off, connect the HDMI cable as shown in the figure.
2. Turn on the Soundbar and TV.
3. "TV ARC" appears in the display window of the Soundbar main unit and the Soundbar plays TV sound.
4. When the TV sound is not output, press the ○ (Multi Function) / → (Source) button at the top of the Soundbar or the → (Source) button on the remote control to select the "D.IN" mode. The screen displays "D.IN" and "TV ARC" in sequence, and TV sound is played.
5. When connecting a TV that supports the eARC function, "eARC" appears on the display and the sound is heard.
6. To connect with eARC, the eARC function in the TV menu should be set to On. Refer to the TV user manual for details on setting. (e.g. Samsung TV: Home ( home ) → Menu → Settings ( ➕ → All Settings ( ➕ → Sound → Expert Settings → HDMI-eARC Mode (Auto))
7. If "TV ARC" does not appear in the display window of the Soundbar main unit, confirm that the HDMI cable is connected to the correct port.
8. Use the volume buttons on the TV's remote control to change the volume on the Soundbar.

NOTE

• When you connect the TV that supports the HDMI ARC (Audio Return Channel) to the Soundbar with an HDMI cable, you can transmit the digital video and audio data without connecting a separate optical cable. • We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm.
• This function is not available if the HDMI cable does not support ARC.
• When the audio in a broadcast is encoded in Dolby Digital and the "Digital Output Audio Format" on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.) • The ARC/eARC protocols support Dolby Atmos.
• Make sure that the content supports Dolby Atmos®.

Connecting using an Optical Cable

Pre-connection Checklist

• When both the HDMI cable and optical cable are connected, the HDMI signal is received first.
• When you use an optical cable and the terminals have covers, be sure to remove the covers.

1. With the TV and Soundbar turned off, connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar and the OPTICAL output port on the TV with the optical cable (not supplied), as shown in the figure.
2. Turn on the Soundbar and TV.
3. Press the ⬆ (Multi Function) / → (Source) button at the top of the Soundbar or the → (Source) button on the remote control to select the "D.IN" mode.
4. The TV sound is output from the Soundbar.

Connecting via Bluetooth

When a Samsung TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• Only one Samsung TV can be connected at a time.
• Samsung TV that supports Bluetooth can be connected. Check the specifications of your TV.

The initial connection

1. Press the ✧PAIR button on the Soundbar remote control to enter the "BT PAIRING" mode.

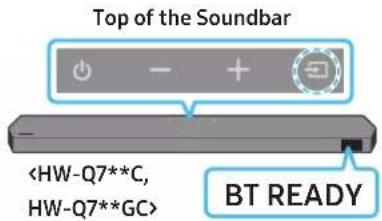

(OR) a. Press the ⬤ (Multi Function) / → (Source) button on the top panel and then select "BT". "BT" changes to "BT PAIRING" in a few seconds automatically or changes to "BT READY" if there is a connect record.

b. When "BT READY" appears, press and hold the ☑ (Mic On/Off) / ➞ (Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. Select Bluetooth mode on the Samsung TV. (e.g. Home → Menu → Settings → All Settings → Sound → Sound Output → Bluetooth Speaker List → Soundbar Q***C (Bluetooth))
2. Select "Soundbar Q***C" from the list on TV's screen. An available Soundbar is indicated with "Need Pairing" or "Paired" on the TV's Bluetooth device list. To connect the Samsung TV to the Soundbar, select the message, and then establish a connection.
3. When the Samsung TV is connected, [TV Name] → "BT" appears on the Soundbar's front display.
4. You can now hear Samsung TV sound from the Soundbar.
5. After you have connected the Soundbar to your Samsung TV the first time, use the "BT READY" mode to reconnect.

If the device fails to connect

• If you have an existing Soundbar (e.g., Soundbar Q***C) on the list of speakers on the Samsung TV, delete it.
• Then repeat steps 1 through 3.

Disconnecting the Soundbar from the Samsung TV

Press the ⬆ (Multi Function) / → (Source) button at the top of the Soundbar or the → (Source) button on the remote control to select the mode other than "BT".

- Disconnecting takes time because the Samsung TV must receive a response from the Soundbar.

(The time required may differ, depending on the Samsung TV model.)

• BT READY: In this mode, you can reconnect any Samsung TV or mobile device that was connected before.
• BT PAIRING: In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the Soundbar remote control or press and hold the (Mic On/Off) / (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

Notes on Bluetooth connection

• Locate a new device within 1 m to connect via Bluetooth communication.
• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• The Soundbar automatically turns off after 18 minutes in the Ready state.
• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:
• If there is a strong electrical field around the Soundbar.
• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.
• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

Connecting via Wi-Fi

Pre-connection Checklist

• Wi-Fi connection is available only on Samsung TV. - Check whether the wireless router (Wi-Fi) is turned on and the TV is connected to the router. - The TV and Soundbar must be connected to the same wireless network (Wi-Fi). - If your wireless router (Wi-Fi) uses a DFS channel, you will not be able to establish a Wi-Fi connection between the TV and Soundbar. Contact your Internet service provider for details. - Because the menus may differ depending on the year of manufacture, refer to your TV manual. - To connect the TV to the Soundbar via Wi-Fi, connect the Soundbar to the wireless router first. See page 26, for details on how to establish a Wi-Fi connection.

1. For more information about Wi-Fi connection to the Soundbar, see page 26, "Method 2. Connecting via Wi-Fi (Wireless Network)".
2. Change the input source of the TV by using the Audio menu to Soundbar.

• Samsung TVs released in 2017 or later

Home (☐) → Menu → Settings (☐) → All Settings (☐) → Sound → Sound Output → Soundbar Q***C (Wi-Fi)

NOTE

The Wi-Fi Dolby Atmos connection is available in some Samsung TVs and some Soundbar models.

Precaution: The Soundbar will restart automatically if you turn on/turn off Wi-Fi.

Wi-FiPort deactivation method	Press the CH LEVEL button on the remote control of the Soundbar for 30 seconds to turn Wi-Fi On / Off.
BluetoothPort deactivation method	Press the TONE CONTROL button on the remote control of the Soundbar for 30 seconds to turn Bluetooth On / Off.

Using the Q-Symphony Function

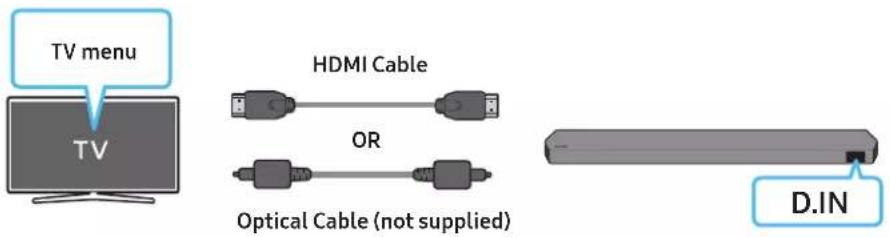

• When the Soundbar connects to a Samsung TV that supports the Q-Symphony function, you can play the sound simultaneously through the Soundbar and the TV. If you use the Q-Symphony function, the surround sound played on the TV allows you to enjoy a richer, more three-dimensional surround sound effect.
• When the Soundbar is connected, the "TV+Soundbar" menu appears on the TV.

Settings (💡) → All Settings (💡) → Sound → Sound Output

• TV menu example: TV + [AV] Soundbar series name (HDMI) / TV + [AV] Soundbar series name (Optical)

• TV menu example: TV + [AV] Soundbar series name (Wi-Fi)

NOTE

• It can operate according to the Codec supported by TV.
• This function is supported only when the HDMI Cable or Optical Cable (not supplied) or Wi-Fi is connected.
• The message displayed may differ with the TV model.
• Ensure that your TV and Soundbar are connected to the same wireless router/frequency.
• This function is available in some Samsung TVs and some Soundbar models.

Using the SpaceFit Sound

This function analyzes the user's listening space with the Soundbar's microphone and provides optimal sound for the space. Sound optimization proceeds automatically.

Method 1. Connecting via Soundbar

To enable this function, turn on the SpaceFit Sound mode with the remote control of the Soundbar.

1. Press the ⚙ (Sound Control) button to turn on the SpaceFit Sound mode.

"SPACEFIT SOUND OFF" appears on the display.

1. Press the Up button on the remote control to turn on the SpaceFit Sound.

"ON" appears on the display.

1. Press the Down button on the remote control to turn off the SpaceFit Sound.

"OFF" appears on the display.

• This is available in all Sound modes.

Method 2. Connecting via TV

To enable this function, turn on the Adaptive Sound+ mode on your Samsung TV menu.

(Home (n) → Menu → Settings (☀) → All Settings (☀) → General → Intelligent Mode Settings → Adaptive Sound+)

- The sound mode on your Soundbar will automatically change to Adaptive Sound+ if you enable the Adaptive Sound+ mode on your TV.

NOTE

- This function works when the Soundbar connects to some of the Samsung TVs.

- HW-Q7**C, HW-Q7**GC models support only the method of "Connecting via TV".

06 CONNECTING AN EXTERNAL DEVICE

Method 1. Connecting using an HDMI Cable (Capable of Dolby Atmos / DTS:X decoding and playback)

Pre-connection Checklist

• If the Audio Output options include Secondary Audio, make sure Secondary Audio is set to Off.
• Make sure that the content supports Dolby Atmos® / DTS:X.

1. Use an HDMI cable to connect the HDMI OUT port on the external device and the HDMI port on the bottom of the Soundbar.
2. Use an HDMI cable to connect the HDMI IN port of the TV and the HDMI TO TV (eARC/ARC) port on the bottom of the Soundbar.
3. Turn on the Soundbar, TV, and the external device.
4. Press the O (Multi Function) / → (Source) button on the top of the Soundbar or the → (Source) button on the remote control to select "HDMI" mode.
5. The Soundbar display indicates that "HDMI" mode is currently selected and the Soundbar will start playing sounds.

NOTE

• When you use Dolby Atmos® / DTS:X: If the input source is Dolby Atmos® / DTS:X, refer to "Output specifications for the different sound effect modes" on page 8.
• When Dolby Atmos® is activated, "DOLBY ATMOS" appears in the front display.
• When DTS:X is activated, "DTS:X" appears in the front display.
• Configuring Dolby Atmos® / DTS:X on your BD player or other device: Open the audio output options on the settings menu of your BD player or other device and make sure that "No Encoding" is selected for Bitstream. For example, on a Samsung BD Player, go to Home Menu → Sound → Digital Output and then select Bitstream (unprocessed).

Supported UHD Signals Specification (3840 x 2160p)

Frame rate (fps) Colour depth RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
< 60	8 bit O O O O
	10 bit	-	-	O O
	12 bit	-	-	O O
120	8 bit	-	-	-	-
	10 bit	-	-	-	-

• Supported specification may vary depending on the connected external device or usage conditions.

Method 2. Connecting using an Optical Cable

1. Use an optical cable (not supplied) to connect the DIGITAL AUDIO IN (OPTICAL) on the Soundbar main and the OPTICAL OUT port on the external device.
2. Turn on the Soundbar and external device.
3. To select "D.IN" mode, press the Ⓐ (Multi Function) / → (Source) button on the top of the Soundbar or the → (Source) button on the remote control.
4. Your Soundbar will play sounds from the external device.

07 CONNECTING A MOBILE DEVICE

Method 1. Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- When you connect a paired Bluetooth device with the Soundbar off, the Soundbar automatically turns on.

The initial connection

- When connecting to a new Bluetooth device, make sure the device is within 1 m distance.

1. Press the ✝PAIR button on the Soundbar remote control to enter the "BT PAIRING" mode.

(OR) a. Press the ⬤ (Multi Function) / → (Source) button on the top panel and then select "BT".

"BT" changes to "BT PAIRING" in a few seconds automatically or changes to "BT READY" if there is a connect record.

b. When "BT READY" appears, press and hold the ☑ (Mic On/Off) / ➞ (Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. On your device, select "Soundbar Q***C" from the list that appears.

- When the Soundbar is connected to the Mobile device, [Mobile Device Name] → "BT" appears in the front display.

1. Play music files from the device connected via Bluetooth through the Soundbar.

• After you have connected the Soundbar to your mobile device the first time, use the "BT READY" mode to reconnect.

If the device fails to connect

• If you have an existing Soundbar (e.g., "Soundbar Q***C") in the list of speakers on the Mobile device, delete it.
• Repeat steps 1 and 2.

What is the difference between BT READY and BT PAIRING?

• BT READY: In this mode, you can reconnect any Samsung TV or mobile device that was connected before.
• BT PAIRING: In this mode, you can connect a new device to the Soundbar.

(Press the ✝PAIR button on the Soundbar remote control or press and hold the ⏻(Mic On/Off) / →(Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

Notes on Bluetooth connection

• Locate a new device within 1 m to connect via Bluetooth communication.
• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• The Soundbar automatically turns off after 18 minutes in the Ready state.
• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:
• If there is a strong electrical field around the Soundbar.
• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

• The Soundbar supports SBC data (44.1kHz, 48kHz).

- Connect only to a Bluetooth device that supports the A2DP (AV) function.

- You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.

- When connecting the Soundbar to a Bluetooth device, place them as close to each other as possible.

- The farther the Soundbar and Bluetooth device are from each other, the lower the sound quality will become.

The Bluetooth connection may break when the devices are out of the effective range.

- The Bluetooth connection may not function as intended in areas with poor reception.

- A Bluetooth device may experience noise or malfunction under the following conditions:

• When the body is in contact with the signal transceiver on the Bluetooth device or Soundbar
• In corners or when there is an obstacle in proximity, such as a wall or partition, where electrical changes may occur.
• When exposed to radio interferences by other products operating on the same frequency ranges, such as medical equipment, microwave ovens, and wireless LAN devices.
• Obstacles such as doors and walls may still impact the sound quality even when the devices are within the effective range.

- Note that your Soundbar cannot be paired with other Bluetooth devices while using the Bluetooth option.

- This wireless device may cause electrical interference during operation.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.

- When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the ⬆ (Multi Function) / ➞ (Source) button on the top of the Soundbar or the ➞ (Source) button on the remote control to switch the mode from "BT".

- Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)

- When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Method 2. Connecting via Wi-Fi (Wireless Network)

To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the SmartThings app is required.

The initial connection

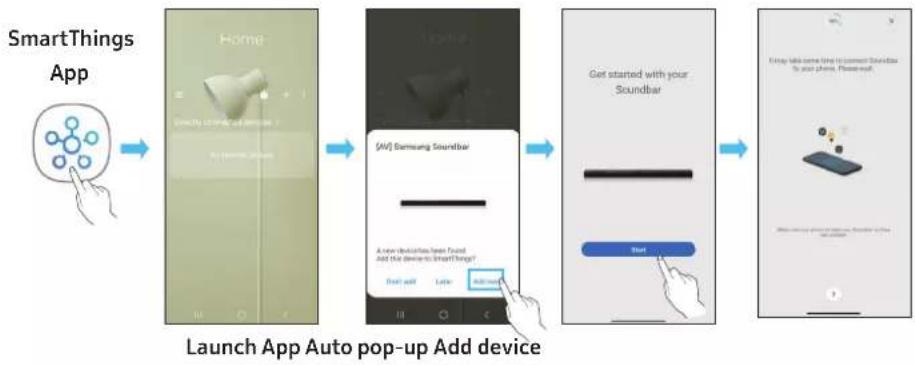

1. Install and launch the SmartThings app from your mobile device (smartphone or tablet).
2. On the app, follow the screen instructions to add the Soundbar.

- The automatic pop-up (the second screenshot below) may not show on some devices.

If the pop-up window does not appear, press “+” on the Home screen. The Soundbar is added to the app.

- The illustration below may differ according to the app version.

Using the Tap Sound

Tap the Soundbar with your mobile device to play the sound of content on the mobile device through the Soundbar.

• This function may not be supported, depending on the mobile device.
• This function is only compatible with Samsung mobile devices with Android 8.1 or later.

1. Turn on the Tap Sound function on your mobile device.
2. For details on how to turn on the function, refer to "Setting the Tap Sound function" below.
3. Tap the Soundbar with the mobile device. Select "Start now" in the displayed message window. A connection is established between the mobile device and Soundbar via Bluetooth.
4. Play the sound of content on the mobile device through the Soundbar.
5. This function connects a mobile device to the Soundbar via Bluetooth by detecting vibration that occurs when the device touches the Soundbar.
6. Make sure the mobile device does not tap a sharp corner of the Soundbar. The Soundbar or mobile device may become scratched or damaged.
7. It is recommended that the mobile device be covered with a case. Lightly tap the wide area in the upper portion of the Soundbar, without using excessive force.
8. To use this function, update the SmartThings app to the latest version. The function may not be supported, depending on the app version.

Setting the Tap Sound function

Use the SmartThings app to turn on the Tap View, Tap Sound function.

1. On the mobile device, run the SmartThings app.
2. Select (≡→_) in the SmartThings app screen displayed on the mobile device.
3. Set "Tap View, Tap Sound" to On to allow the function to work when a mobile device moves close to the Soundbar. The function is turned on.

NOTE

• When the mobile device is in power-saving mode, the Tap Sound function does not work.
• The Tap Sound function may not work if there are devices near the Soundbar that cause radio interference such as electric devices. Make sure devices that may cause radio interference are placed at a sufficient distance away from the Soundbar.

08 CONNECTING VIA APPLE AIRPLAY 2

• This feature may not be available in some countries. - This Samsung Soundbar supports AirPlay 2 and requires iOS 13.4 or later.

With AirPlay 2, you can stream music, podcasts, and other audio from your Apple devices to the Samsung Soundbar.

• To enable AirPlay2 in your Soundbar, you must first register the device with the Samsung Smart Things app by agreeing with the app's terms and conditions.
• Make sure the Soundbar is powered on and connected to the same Wi-Fi network as your Apple device.
• Select from an AirPlay-supported app or Control Centre on your iPhone, iPad, or Mac.
• Select the Soundbar from the list of available devices to play the current audio to.

09 INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only. - Do not install in a place with high temperature or humidity. - Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point. - Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs. • Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on. - Diameter: M5 – Length: 35 mm or longer recommended. - Connect cables from the unit to external devices before you install the Soundbar on the wall. - Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Wall Mount Guide

x2

x2

(M4 × L10)

Holder-Screw Screw

x2

Bracket-Wall Mount

1. Place the Wall Mount Guide against the wall surface.

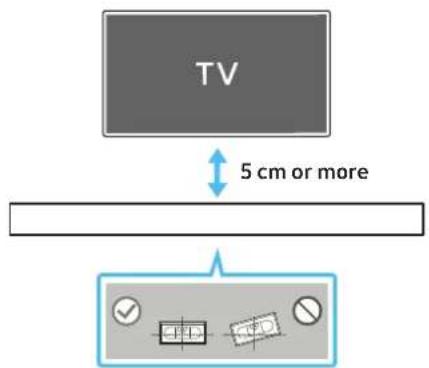

• The Wall Mount Guide must be level. - If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

1. Align the Wall Mount Guide's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

1. Push a pen tip or sharpened pencil tip through the centre of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws.

- When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

Right end of Soundbar

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

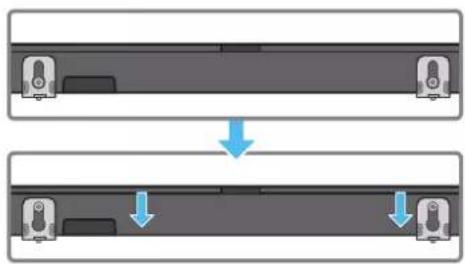

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

- Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

Installing the Surround Speakers on a Wall (applicable models only)

You can purchase wall mounts separately to install the surround speakers on a wall.

Wall mounts aren't sold by Samsung Electronics.

Notes for Wall Mounting the Surround Speakers

• Surround Speaker wall mounts must be able to support more than 8.0 kg. • Hole size: 1/4 - 20 UNC threaded insert

- Standard Screw: 6.35 mm ø,

1.27mm Pitch

• Length: 18 mm long
• Quantity: Left 1 EA / Right 1 EA

L

R

• Check the strength of the wall before you install the Wall Mount Brackets. If the strength is insufficient, make sure to reinforce the wall before installing the Wall Mount Brackets and the speakers on the wall.
• Samsung Electronics is not liable for any damage to the product due to the product being installed inappropriately. • Take care not to install the speakers sideways or upside down.

10 INSTALLING THE SOUNDBAR IN FRONT OF TV

Component

Rubber-Foot

To install, attach the Rubber-Feet to the bottom of the Soundbar before placing it in position above the TV stand. Make sure you attach the Rubber-Feet so they do not lie outside the edges of the TV stand. Refer to the figure below.

Place the Soundbar on a TV stand.

As illustrated in the image, align the center of the Soundbar with the center of the TV, then carefully place the Soundbar onto the TV stand. At this time, position the microphones (applicable models only) at the front of the stand to avoid interfering with voice recognition.

Right end of Soundbar

NOTE

• Make sure the Soundbar is placed on a flat and solid surface. - Insufficient gap from the TV may cause voice recognition and acoustic problems. - The illustration above differs with the respective model. - This function is not supported by HW-Q7**C, HW-Q7**GC models. - For the best performance of the microphones, keep the Soundbar at least 2 cm away from the TV's panel.

11 SOFTWARE UPDATE

Auto Update

When the Soundbar is connected to the Internet, software updates occur automatically even when the Soundbar is turned off.

- To use the Auto Update function, the Soundbar must be connected to the Internet.

The Wi-Fi connection to the Soundbar will be terminated if the Soundbar's power cord is disconnected or the power is cut off. If the power is cut off, when the power comes back on or you reconnect the power cord, turn on the Soundbar, and then reconnect it to the Internet.

USB Update

Samsung may offer updates for the Soundbar's system firmware in the future.

When an update is available, you can update the Soundbar by connecting the USB drive that contains the update firmware to the SERVICE port of the Soundbar.

1. Go to the Samsung website (www.samsung.com) → search for the model name from the customer support menu option.
2. For more information about updates, refer to the Upgrade Guide.
3. Download the upgrade file (USB type).
4. Unzip the file to create a folder with the file name.
5. Store the created folder in a USB and then connect it to the Soundbar.
6. Turn on the Soundbar. Then the product is updated within 3 minutes with displaying the message, "UPDATE".
7. During update, do not turn it off or remove the USB.
8. If "UPDATE" does not appear on the display window, remove the power cord from the Soundbar and then reconnect it.
9. When the latest version is installed, no update is performed.
10. Depending on the USB type, update may not be supported.

Initialisation

Top of the Soundbar

With the Soundbar on, press the (Volume) buttons on the body at the same time for at least 5 seconds. "INIT" appears on the display and then the Soundbar is initialised.

CAUTION

- All the settings of the Soundbar are initialised. Be sure to perform this only when initialisation is required.

12 TROUBLESHOOTING

Before seeking assistance, check the following.

Soundbar does not turn on.

- Check whether the power cord of the Soundbar is correctly inserted into the outlet.

Soundbar works erratically.

• After removing the power cord, insert it again. • Power cycle the external device and try again. - If there is no signal, the Soundbar automatically turns off after a certain period of time. Turn on the power. (See page 6.)

Remote control does not work

• Point the remote directly at the soundbar.
• Replace the batteries with new ones.

The Soundbar indicator turns solid red.

- The microphone is turned off. Turn on the microphone. (See page 4.)

Sound is not output from the soundbar.

• The volume of the Soundbar is too low or muted. Adjust the volume.
• When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device.
• For sound output of the TV, select Soundbar. (Samsung TV: Home ( home ) → Menu → Settings ( 📋 → All Settings ( 🌐 → Sound → Sound Output → Select Soundbar)
• The cable connection to the Soundbar may not be loose. Remove the cable and connect again.
• Remove the power cord completely, reconnect, and turn the power on.
• Initialise the product and try again. (See page 32.)

Sound is not output from the subwoofer or the rear speakers.

• Check whether the LED indicator on the rear of the Subwoofer and Surround Speakers are on in blue. Reconnect the Soundbar and Subwoofer and Surround Speakers if the indicator is blinking in blue or turned red. (See page 13.)
• You may experience an issue if there is an obstacle between the Soundbar and Subwoofer. Move devices to an area away from obstacles.
• Other devices sending radio frequency signals in proximity may interrupt the connection. Keep your speaker away from such devices.
• Remove and reconnect the power plug.

In case there is sound jitter, delays, or noise from the Subwoofer and Surround Speaker

• If there are any objects between the Soundbar and Subwoofer speaker, this could cause a problem. Please reposition these to a place without such an object.
• There may be sound jitter or delays when the Subwoofer and Surround Speaker are far from the Soundbar. Please place them near the Soundbar.
• There may be sound jitter or delays when the Soundbar is near an instrument or electrical device that can cause radio interference. Place the Soundbar far from such devices that can cause radio interference. (E.g., wireless router)
• Change the TV network connection status from wireless to wired.

The Subwoofer volume is too low

• The original volume of the content you are playing may be low. Try adjusting the Subwoofer level. (See page 7.)
• Bring the Subwoofer speaker closer to you.

If the TV is not connected via HDMI TO TV (eARC/ARC)

• Check whether the HDMI cable is correctly connected to the ARC terminal. (See page 15.)
• Connection may not be possible due to the connected external device (set-top box, game machine, etc.). Directly connect the Soundbar.
• HDMI-CEC may not be activated on the TV. Turn on the CEC on the TV menu. (Samsung TV: Home ( home ) → Menu → Settings ( 📋 → All Settings ( 🎨 → Connection → External Device Manager → Anynet+ (HDMI-CEC) ON)
• To connect with eARC, the eARC function in the TV menu should be set to On. (Samsung TV: Home (n) → Menu → Settings (→ All Settings (→ Sound → Expert Settings → HDMI-eARC Mode (Auto))

There is no sound in when connecting to the TV in HDMI TO TV (eARC/ARC) mode

• Your device is unable to play the input signal. Change the TV's audio output to PCM or Dolby Digital. (For a Samsung TV: Home ( home ) → Menu → Settings ( ➕ → All Settings ( ➕ → Sound → Expert Settings → Digital Output Audio Format)

Soundbar will not connect via Bluetooth.

• When connecting a new device, switch to "BT PAIRING" for connection. (Press the ✝ PAIR button on the remote control or press the ⏻ (Mic On/Off) / → (Source) button on the body for at least 5 seconds.)
• If the Soundbar is connected to another device, disconnect that device first to switch the device.
• Reconnect it after removing the Bluetooth speaker list on the device to connect. (Samsung TV: Home (→Menu → Settings (→All Settings (→Sound → Sound Output → Bluetooth Speaker List)
• The automatic TV connection may be disabled. While the Soundbar is in "BT READY", press and hold the Left button on the Soundbar remote control for 5 seconds to select ON-TV CONNECT. If you see OFF-TV CONNECT, press and hold Left button again for 5 seconds to switch the selection.

- Remove and reconnect the power plug, then try again.

- Initialise the product and try again. (See page 32.)

Sound drops out when connected via Bluetooth.

• Some devices can cause radio interference if they are located too close to the Soundbar, e.g., microwaves, wireless routers, etc.
• If your device that is connected via Bluetooth moves too far away from the soundbar, it may cause the sound to drop out. Move the device closer to the soundbar.
• If a part of your body is in contact with the Bluetooth transceiver or the product is installed on metal furniture, the sound may drop out. Check the installation environment and conditions for use.

Soundbar will not connect to Wi-Fi.

• Check whether your wireless router is on.
• Turn off the router, turn it back on, and then try again.
• The soundbar will not connect if the wireless signal is too weak. Try moving the router closer to the soundbar, or eliminating any obstacles that are between the soundbar and the router, if possible.
• If your wireless router is new, you will need to reconfigure the speaker's network settings.

The soundbar does not turn on automatically with the TV.

- When you turn off the Soundbar while watching TV, power synchronization with the TV is disabled. First turn off the TV.

The AVA function (applicable models only) is not available in the following cases.

- The AVA function (applicable models only) will not be available when the microphone is turned off.

After connecting the TV to the Soundbar, I switched the Soundbar mode. Then no sound is output from the TV.

• If you connect your Soundbar to a mobile device while the Soundbar is connected to the TV, the Soundbar outputs sound from the mobile device while keeping the TV connection. So the TV sound will not be delivered anywhere.
• Disconnect the mobile device, and the TV sound will be output from the Soundbar again.

The Soundbar does not appear in AirPlay2

• To enable AirPlay2 in your Soundbar, you must first register the device with the Samsung Smart Things app by agreeing with the app's terms and conditions. (See page 28.)
• AirPlay2 does not operate if you delete the Soundbar from the Samsung Smart Things app.
• Make sure that the Soundbar and the Apple device are connected to the same Wi-Fi network.
• The Soundbar is compatible with AirPlay2 installed on iOS 13.4 or later.

CONTENTS

01 Checking the components 3

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

(OR)

Soundbar main unit Remote control / batteries Soundbar subwoofer

Surround speaker (optional) (left/right)

Wall mount guide Holder screw Screw

Wall mount Rubber feet

• For more information about power supply and power consumption, refer to the label on the product. (Label: Back of the Soundbar main unit)
• To purchase additional components or optional cables, contact the Samsung Service Center or Samsung Customer Support.
• For more information about the wall mount or rubber feet, refer to pages 29~31.
• The design, specifications, and app screen are subject to change without prior notice.
• The appearance of accessories may differ slightly from the illustrations above. • Samsung Electronics Co., Ltd reserves the right to change specifications without prior notice.
• Weight and dimensions are approximate.

02 PRODUCT OVERVIEW

Soundbar Top Panel

HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC HW-Q7**C, HW-Q7**GC

1	Gumb (Više funkcija) (modeli HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC)U načinu rada na čekanju pritisnite gumb (Više funkcija) kako biste uključili Soundbar.Pritisnite gumb (Više funkcija) kako biste promijenili izvor ulaza.
1	Gumb (Uključivanje/isključivanje ) (model HW-Q7**C, HW-Q7**GC)Uključuje i isključuje napajanje.
2	Gumb—+ (Glasnoća)Podešava glasnoću.
3	Gumb (Uključivanje/isključivanje mikrofona)(modeli HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC)Pritisnite gumb za uključivanje ili isključivanje mikrofona.Kada je mikrofon isključen, LED indikator svijetlit će u crvenoj boji.
3	Gumb → (Izvor) (model HW-Q7**C, HW-Q7**GC)Pritisnite gumb -Izvor) kako biste promijenili izvor ulaza.
4	ZaslonPrikazuje status i trenutni način rada proizvoda.D.IN → HDMI → Wi-Fi → BT

1 POWER

Connect the Soundbar power cable to an AC power source. (See page 11)

2 SERVICE

Connect to a USB storage device to upgrade the product's software.

3 DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 23)

4 HDMI

1. Check that the LINK LED is solid blue (connection is complete).

1. When the TV and Soundbar are turned off, connect the DIGITAL AUDIO IN (OPTICAL) input on the Soundbar to the OPTICAL output on the TV using an optical cable (not included), as shown in the figure.
2. Turn on the Soundbar and the TV.
3. Press the ○ (Multi-function) /→ (Source) button on the top of the Soundbar or the → (Source) button on the remote control to select the "D.IN" mode.
4. The TV sound is heard from the Soundbar system.

Connecting via Bluetooth

When a Samsung TV is connected via Bluetooth, you can hear stereo sound without the hassle of cables.

• Only one Samsung TV can be connected at a time.
• A Samsung TV that supports Bluetooth can be connected. Check your TV's specifications.

Initial connection

Launching the app

Automatic pop-up

Adding devices

Using the Tap Sound feature

Wall Mount Guide

1. Place the wall mount guide on the wall surface.

• The wall mount guide must be level. - If the TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

1. Align the center line of the wall mount guide with the center of the TV (if placing the Soundbar below the TV), then attach the wall mount guide to the wall using adhesive tape.
2. If not placing it below the TV, position the center line in the middle of the installation area.

1. Push the tip of a pencil through the center of the A-TYPE images on each side of the guide to mark the holes for the mounting screws, then remove the wall mount guide.

1. Using a drill bit of appropriate size, drill a hole in the wall at each mark.

- If the marks do not align with the positions of the anchor screws, be sure to insert appropriate anchors or wall plugs into the holes before inserting the mounting screws. If using wall plugs, ensure that the holes you drilled are large enough for those wall plugs.

1. Insert a screw (not supplied) through each bracket screw, then firmly tighten each screw into the mounting screw hole.

1. Mount the 2 wall brackets in the correct position on the bottom of the Soundbar using the 2 screws.

LD

• Check the strength of the wall before installing the wall brackets. If the wall is not strong enough, be sure to reinforce it before installing the wall brackets and the speaker on that wall.
• Samsung is not responsible for product damage due to improper installation.
• Be careful not to install the speakers sideways or upside down.

10 INSTALLING THE SOUNDBAR IN FRONT OF THE TV

Component

Rubber feet

When installing, attach the rubber feet to the bottom of the Soundbar system before placing it in position above the TV stand. Make sure to attach the rubber feet so that they do not extend beyond the edges of the TV stand. See the figure below.

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

08 CONNECTING VIA APPLE AIRPLAY 2

LP

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Back of the subwoofer Back of the subwoofer

Wall mounting bracket

10 INSTALLING THE SOUNDBAR IN FRONT OF THE TV

Component

x4

Rubber foot

Surround speaker (optional) (left/right) Power cable (subwoofer, surround speaker, Soundbar) (optional)

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

'SAMSUNG-TV REMOTE', 'ALL-TV REMOTE'.

12 TROUBLESHOOTING

Wall mounting bracket Rubber foot

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Wall mounting bracket

- When assembling, make sure the hanging parts of the wall mounting brackets remain behind the Soundbar.

Right end of the Soundbar

Installing the surround speakers on the wall (only for applicable models)

To install the surround speakers on the wall, you can purchase separate wall mounts. Samsung Electronics does not sell wall mounts.

Active Voice Amplifier (AVA)....8

HDMI cable

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Active Voice Amplifier (AVA)

02 PRODUCT OVERVIEW

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

08 CONNECTION VIA APPLE AIRPLAY 2

Wall mount bracket

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

04 CONNECTING THE SOUNDBAR

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Wall mount bracket

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

08 CONNECTION VIA APPLE AIRPLAY 2

SD

02 PRODUCT OVERVIEW

1 POWER

Connect the Soundbar power cord. (See page 11.)

2 SERVICE

3 DIGITAL AUDIO IN (OPTICAL)

(OR)

Left Right

12 TROUBLESHOOTING

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Wall mount

Soundbar main unit Soundbar remote control/batteries Bass speaker

1 POWER

Connect the power cord to the Soundbar. (See page 11)

2 SERVICE

3 DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 23)

4 HDMI

08 CONNECTING VIA APPLE AIRPLAY 2

Active Voice Amplifier (AVA)....8

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Remote control handling

Active Voice Amplifier (AVA)

Left Right

Active Voice Amplifier (AVA)....8

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Active Voice Amplifier (AVA)

Active Voice Amplifier (AVA)....8

Using the Hidden Buttons (Multi-function Buttons) .....8

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Active Voice Amplifier (AVA)

(Sound Control) → Surround Speaker → (Up)/ (Down) → Front / Rear)

08 CONNECTING VIA APPLE AIRPLAY 2

SD

Soundbar main unit Soundbar remote control/batteries Subwoofer

Surround speaker (optional) (left/right)

Wall-mount bracket Rubber feet

• For more information about power supply and power consumption, refer to the label on the product. (Label: Back of the Soundbar main unit)
• For purchasing additional components or optional cables, contact the Samsung service center or Samsung customer support.
• For more information on wall mounting or rubber foot mounting, see pages 29 to 31.
• Design, specifications, and app screen are subject to change without prior notice.
• The appearance of the additional equipment may differ to some extent from the illustrations shown above.
• Samsung Electronics Co., Ltd reserves the right to change specifications without prior warning.
• Weight and dimensions are approximate.

02 PRODUCT OVERVIEW

Top panel of the Soundbar device

HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC

HW-Q7**C, HW-Q7**GC

1	Dugme (Više funkcija) (modeli HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC)U režimu pripravnosti pritisnite dugme (Više funkcija) da biste uključili zvučnik Soundbar.Pritisnite dugme (Više funkcija) da biste promenili ulazni kanal.
1	Dugme (Uključivanje/Isključivanje) (model HW-Q7**C, HW-Q7**GC)Uključuje i isključuje napajanje.
2	Dugme — + (Jačina zvuka)Podešava jačinu zvuka.
3	Dugme (Mikrofon uključen/isključen)(modeli HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC)Pritisnite dugme da uključite ili isključite mikrofon.Kad se mikrofon isključi, LED indikator svetleće u crvenoj boji.
3	Dugme → (Izvor) (model HW-Q7**C, HW-Q7**GC)Pritisnite dugme → (Hzvor) da biste promenili ulazni izvor.
4 EkranPrikazuje status i trenutni režim proizvoda.D.IN → HDMI → Wi-Fi → BT

1 POWER

Connect the AC power cable to the Soundbar speaker. (See page 11)

2 SERVICE

Connect to a USB storage device to upgrade the product's software.

3 DIGITAL AUDIO IN (OPTICAL)

How to use the remote control

1	Napajanje	Uključuje i isključuje Soundbar.Funkcija automatskog smanjenja napajanjaJedinica se automatski isključuje u sledećim situacijama:U režimu D.IN / HDMI / Wi-Fi / BT ako 18 minuta nema signala zvuka.
2	–Izvor	Pritisnite za izbor izvora signala koji je povezan sa Soundbar-om.Uključi/isključi glasovne povratne informacijeGlasovnu povratnu informaciju možete da uključite ili isključite.Pritisnite i zadržite dugme → (Izvor) na daljinskom upravljaču 5 sekundi dok je Soundbar isključen (Režim pripravnosti).Svaki put kada promenite postavku Glasovne povratne informacije, na OLED ekranu prikazaće se „AUI OFF” (Podrazumevano) ili „AUI ON”.
3	–Bluetooth PAIR	Prebacuje Soundbar uređaj u režim za Bluetooth uparivanje. Pritisnite dugme i sačekajte da se prikaže ekran „BTPAIRING” da biste povezali novi Bluetooth uređaj.
4	Utišaj	Pritisnite dugme ≈ (Utišaj) da biste isključili zvuk.Ponovo ga pritisnite da biste uključili zvuk.
5	SOUND MODE	Pritiskom na dugme možete izabrati željeni audio režim kao što su Surround, Game Pro, Standard, Adaptive Sound.StandardNa izlazu se dobija originalni zvuk.SurroundObezbeđuje šire zvučno polje od standardnog.Game ProObezbeđuje stereoskopski zvuk koji vas uranja u akciju tokom igre.Adaptive SoundAnalizira sadržaj u realnom vremenu i automatski obezbeđuje optimalno zvučno polje na osnovu karakteristika sadržaja.
6	CH LEVEL	Pritiskom na dugme možete podesiti jačinu zvuka svakog zvučnika, kao što su Centre level, Side level, Wide level, Front Top level, Rear level, and Rear top level.Za kontrolu jačine zvuka svakog zvučnika izaberite Centre Level, Side level, Wide level ili Front Top Level u opciji Postavke zvuka, a zatim podesite jačinu između -6~+6 pomoću dugmeta Nagore/Nadole.Ako su zvučnici za prostorni zvuk povezani, izaberite Rear level ili Rear top level, a zatim upotrebite dugmad Nagore/Nadole za podešavanje jačine zvuka u rasponu od -6 do +6.Specifikacije režima CH LEVEL mogu se razlikovati u zavisnosti od modela.

7	[wzcv]Kontrola zvuka	Pritiskom na dugme možete postaviti audio funkcije kao što suSpaceFit Sound, AVA, Voice enhance mode, Night mode, Sync,Surround speaker mode, VirtualŽeljena stavka se može prilagoditi pomoću dugmetaNagore/Nadole.FunkcijeSpaceFit Soundi AVApodržavaju modeli HW-Q7**C, HW-Q7**GC.Voice enhancemode olakšava slušanje govornih dijaloga u filmovima i na TV-u da biste lakše slušali.Night modeje optimizovan za gledanje noću jer su postavke prilagođene tako da je jačina zvuka mala, a dijalog jasan.Pritisnite i zadržite dugme(Kontrola zvuka)oko 5 sekundi kako biste podesili zvuk na svakom frekventnom opsegu.Moguće je izabrati150 Hz, 300 Hz, 600 Hz, 1,2 kHz, 2,5 kHz, 5 kHz i10 kHz pomoću dugmetaNalevo/Nadesno, a svaka od tih stavki se može podesiti na postavku od -6 do +6 pomoću dugmetaNagore/Nadole.(Uverite se da je režim zvuka podešen na „Standard“).Ako video na TV-u i zvuk sa zvučnika Soundbar nisu sinhronizovani, izaberiteSyncu opciji Kontrola zvuka, a zatim postavite odlaganje zvuka između 0~300 milisekundi pomoću dugmetaNagore/Nadole.Syncje podržana samo za neke funkcije.Dostupne postavkeSurround speaker modepodržava samo model HW-Q9**C, HW-Q9**GC.Funkciju zvučnikaVirtualje moguće postaviti naON/OFFpomoću dugmeta Nagore/Nadole.
8	Reprodukcija/Pauza	Pritiskom na ovo dugme takođe možete pokrenuti reprodukciju muzike ili je pauzirati.
9	Nagore/nadole/nalevo/nadesno	Pritisnite označena područja za izbor Nagore/nadole/nalevo/nadesno.Pritisnite nagore/nadole/nalevo/nadesno na dugmetu da biste izabrali ili podesili funkcije.Preskakanje muzikePritisnite dugmeNadesnoza izborsledeće muzičke datoteke. Pritisnite dugmeNalevoza izbor prethodne muzičke datoteke.ID SETOvu opciju upotrebite kada sabvufer zvučnik ili zvučnici za prostorni zvuk nisu priključeni ili je potrebno da se ponovo priključe.Dok je napajanje isključeno, pritisnite i zadržite dugmeNagore5 sekundi kako biste izvršili ID SET. (Pogledajte stranicu 13.)
10	Informacije	Pritisnite dugme za prikaz informacija o aktivnoj funkciji na dostupnom kodeku.U režimuBTprikazuje se povezani uređaj (kada se završi uparivanje) ili „BTready“(kada je potrebno uparivanje).
11	WOOFER LEVEL	Pritisnite dugme nagore ili nadole da biste podesili nivo vufera (niski tonovi).
12	JAČINA ZVUKA	Pritisnite dugme nagore ili nadole da biste prilagodili jačinu zvuka.UtišajPritisnite dugmeJAČINAZVUKAda biste isključili zvuk. Ponovo ga pritisnite da biste uključili zvuk.
13	TONE CONTROL	Pritiskom na dugme možete podesiti jačinu zvuka visokih ili niskih tonova. Željena stavka se može prilagoditi pomoću dugmetaNagore/Nadole. Ova funkcija je omogućena u režimu zvuk, osim u režimuStandard.Za kontrolu jačine visokih ili dubokih tonova izaberiteTREBLEiliBASSu opciji Postavke zvuka, a zatim podesite jačinu između -6~+6 pomoću dugmetaNagore/Nadole.Kada se promeni nivo niskih tonova, nivo vufera će se takođe prilagoditi u skladu sa tim.

Active Voice Amplifier (AVA)

1. When the TV and Soundbar are turned off, connect the Soundbar's DIGITAL AUDIO IN (OPTICAL) port and the TV's OPTICAL output port using an optical cable (not included), as shown in the figure.
2. Turn on the Soundbar and TV.
3. Press the 🟢 (Multi Function) / ➞ (Source) button on the top of the Soundbar speaker or the ➞ (Source) button on the remote control to select the "D.IN" mode.
4. The Soundbar device emits sound from the TV.

Connecting via Bluetooth

When a Samsung TV is connected via Bluetooth, you can get stereo sound without dealing with cables.

• Only one Samsung TV can be connected at a time.
• A Samsung TV that supports Bluetooth connectivity can be connected. Check your TV's specifications.

Initial connection

1. Press the ✝PAIR button on the Soundbar speaker's remote control to enter "BTPAIRING" mode.

1. Press the Up button on the remote control to turn on SpaceFit Sound. "ON" is displayed on the screen.

1. Press the Down button on the remote control to turn on SpaceFit Sound. "OFF" is displayed on the screen.

- This function is available in all sound modes.

Launch the app

Automatically popping up window

Add device

1. Mount the 2 wall brackets in the exact position on the bottom of the Soundbar speaker using 2 screws.

- When assembling, make sure that the hanging parts on the wall brackets are on the rear of the Soundbar speaker.

Right end of the Soundbar speaker

Mounting the surround speakers on the wall (applicable models only)

To mount the surround speakers on the wall, you can purchase wall mounts separately.

Samsung Electronics does not sell wall mounts.

Notes on mounting the surround speakers on the wall

Left Right

• Check the durability of the wall before installing the wall brackets. If its strength is not adequate, reinforce the wall before mounting the wall bracket console and the speaker on the wall.
• Samsung is not responsible for any product damage due to improper installation.
• Be careful not to place the speakers lying down or with the bottom side facing up.

10 MOUNTING THE SOUNDBAR SPEAKER IN FRONT OF THE TV

Component

x4

Rubber foot

For installation, attach the rubber feet to the bottom of the Soundbar before placing it on top of the TV stand. Make sure to attach the rubber feet so that they do not extend beyond the outer edges of the TV stand. See the image below.

Place the Soundbar on the TV stand.

As shown in the image, align the center of the Soundbar with the center of the TV and carefully place the Soundbar on the TV stand.

Now place the microphones (applicable models only) in front of the stand to avoid interference with voice recognition.

Right end of the Soundbar speaker

NOTE

• Make sure to place the Soundbar on a solid and flat surface.
• Insufficient distance from the TV may cause issues with voice recognition and acoustics.
• The illustration above may differ depending on the model.
• This function is not supported by models HW-Q7**C and HW-Q7**GC.
• For best microphone performance, keep the Soundbar at least 2 cm away from the TV panel.

11 SOFTWARE UPDATE

Automatic Update

When the Soundbar is connected to the Internet, the software updates automatically, even when the Soundbar is turned off.

• To use the automatic update function, the Soundbar must be connected to the Internet. The Wi-Fi connection with the Soundbar will be disconnected if the power cable is unplugged or the power supply is interrupted. If the power supply is interrupted, when power is restored or the power cable is reconnected, turn on the Soundbar and then reconnect it to the Internet.

Update via USB

Samsung may offer updated versions of the Soundbar system firmware in the future.

When an updated version is available, the Soundbar can be updated by connecting a USB drive containing the updated firmware to the Soundbar port labeled SERVICE.

1. Go to the Samsung website (www.samsung.com) → search for the model name in the customer support menu options.
2. For more information about updating, refer to the Upgrade Guide.
3. Download the update file (USB type).
4. Unzip the zip file to obtain a folder with the file.
5. Copy the created folder to a USB drive, then connect it to the Soundbar.
6. Turn on the Soundbar. The product will then update within 3 minutes, displaying the message "UPDATE".
7. During the update, do not turn it off or remove the USB.
8. If the "UPDATE" message does not appear on the display window, unplug the power cord from the Soundbar and then reconnect it.
9. If the latest version is already installed, the update will not be performed.
10. Depending on the type of USB, the update may not be supported.

Initialization

Top of the Soundbar

When the Soundbar is turned on, simultaneously press and hold the + (Volume) buttons on the main unit for at least 5 seconds. The message "INIT" appears on the screen, and then the Soundbar resets.

CAUTION

- All Soundbar settings will be reset. Make sure to do this only when initialization is necessary.

12 TROUBLESHOOTING

1 POWER

Connect the power cable of the Soundbar device. (See page 11)

2 SERVICE

3 DIGITAL AUDIO IN (OPTICAL)

Right end of the Soundbar device

L' P

1 POWER

Connect the AC power cable for the Soundbar. (See page 11)

2 SERVICE

Connect a USB storage device to upgrade the product's software.

3 DIGITAL AUDIO IN (OPTICAL)

1. Orient the 2 wall brackets correctly and attach them to the bottom of the Soundbar speaker with 2 screws.

1. Push the Soundbar down as shown below to securely mount the wall brackets onto the bracket screws.

- Insert the bracket screws into the wide (bottom) part of the wall brackets and then push the wall brackets down to securely mount them onto the bracket screws.

Microphones (only for relevant models)

(AAA batteries x 2)....6

Wall bracket Rubber foot

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

08 CONNECT VIA APPLE AIRPLAY 2

Wall mount

VÄHÖ

Microphones (applicable models only)
