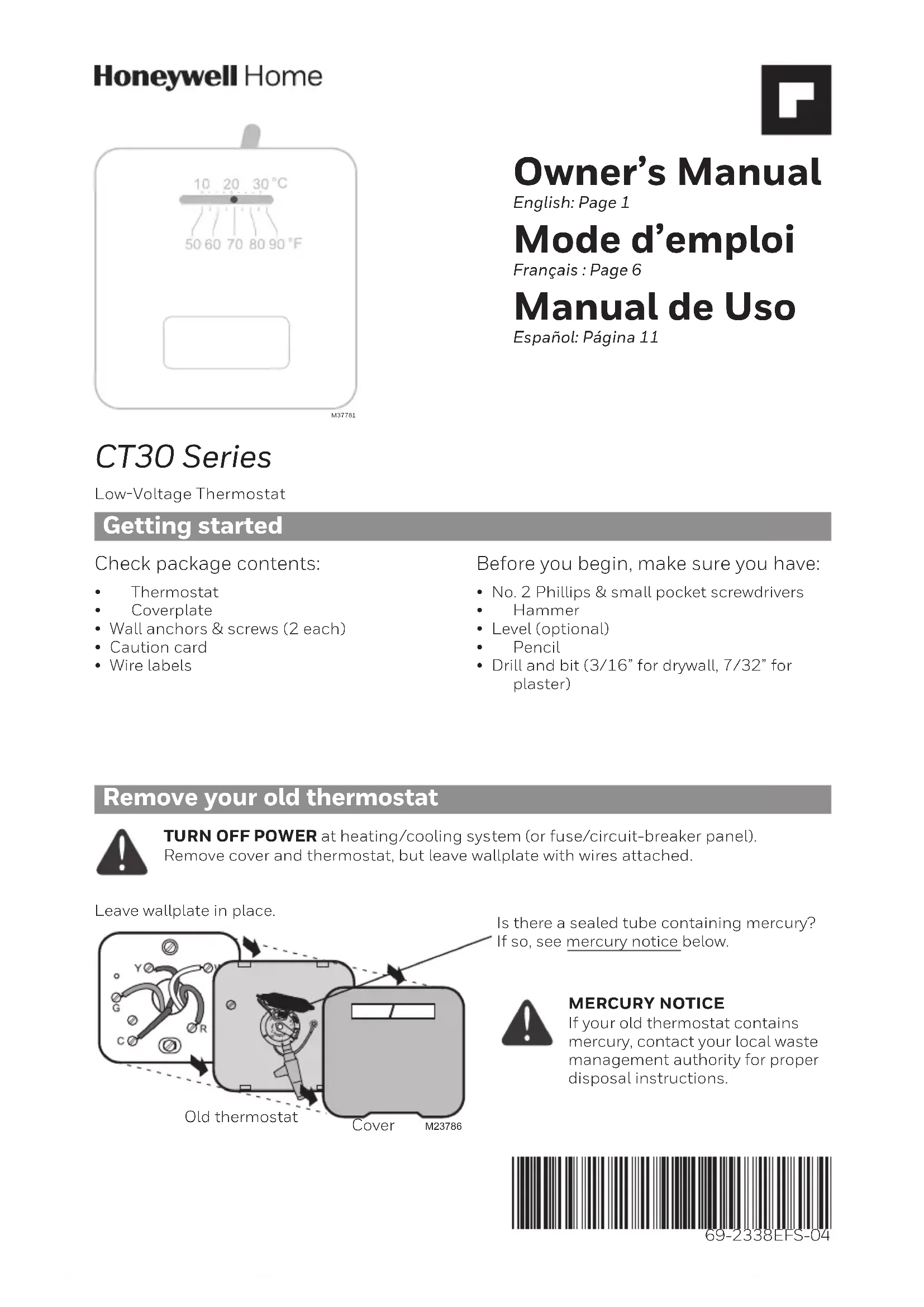

Owner’s Manual English: Page 1 Mode d’emploi Français : Page 6 Manual de Uso Español: Página 11 CT30 Series Low-Voltage Thermostat M37781 69-2338EFS-04 M23786 MERCURY NOTICEIf your old thermostat contains mercury, contact your local waste management authority for proper disposal instructions. TURN OFF POWER at heating/cooling system (or fuse/circuit-breaker panel). Remove cover and thermostat, but leave wallplate with wires attached.Is there a sealed tube containing mercury? If so, see mercury notice below.Leave wallplate in place.Old thermostatCover Getting started Remove your old thermostat Check package contents:• Thermostat• Coverplate• Wall anchors & screws (2 each)• Caution card• Wire labelsBefore you begin, make sure you have:• No. 2 Phillips & small pocket screwdrivers• Hammer• Level (optional)• Pencil• Drill and bit (3/16” for drywall, 7/32” for plaster)CT30 Series • Owner's Manual 69-2338EFS—04 2

M23787 Wrap supplied labels securely around each wire. Do not let wires fall into wall opening! IGNORE WIRE COLORS: Use only letter designations to identify wire types. For CT31: If your old thermostat has 5 or more wires (not counting terminals C or C1), you may have purchased the wrong replacement thermostat. Stop now and call 1-800-468-1502 for advice.

through base (CT31 only).

of both screw holes. For CT30/CT33: If your old thermostat has 3 or more wires (not counting terminals C or C1), you may have purchased the wrong replacement thermostat. Stop now and call 1-800-468-1502 for advice. Use a screwdriver to disconnect wires one by one. As you disconnect each wire, wrap it with the label matching the letter on your old thermostat. (Adhesive labels are supplied in your thermostat package.) Remove the old wallplate only after all wires are labeled. Be careful not to let loose wires fall into the wall opening. Label wires and remove old wallplate Mark mounting position CT30/CT33 CT31English: Page 1 • Français : Page 6 • Español: Página 11 3 69-2338EFS—04 M29583 M29582

1. Drill holes at pencil-marked

locations (3/16” holes for drywall, 7/32” holes for plaster).

2. Use hammer to tap anchors

into holes until flush with wall.

3. Optional: Pull wires through

cover plate (if needed to cover marks left by your old thermo- stat).

4. Connect wires first (see page

4), then insert screws. Check level if desired, then tighten screws.

1. Drill holes at pencil-marked

locations (3/16” holes for drywall, 7/32” holes for plaster).

2. Use hammer to tap anchors

into holes until flush with wall.

3. Optional: Pull wires through

cover plate (if needed to cover marks left by your old thermo- stat).

4. Pull wires through thermostat

base and insert screws. Check level if desired, then tighten screws. Mount thermostat base - CT30/CT33 Mount thermostat base - CT31 Optional cover plate Optional cover plate Thermostat base Thermostat baseCT30 Series • Owner's Manual 69-2338EFS—04 4 M29587A M29586

1. Mount thermostat on base and tighten

three mounting screws (CT31 only).

2. Align the 3 tabs on the cover with slots on

the thermostat, then push gently until the cover snaps into place.

3. Restore power at the heating/cooling

system, or at the fuse/circuit-breaker panel. Set adjustment lever (CT30/CT31 only) Finish installation

1. Separate cover from thermostat, and remove the insert.

2. Use a pencil to move the adjustment lever to the proper setting

for your system (see table below).

1. Match each labeled wire with same letter on terminal.

2. Use a screwdriver to loosen screw terminals, insert

bare wires beneath screws, then tighten screws.

3. Push any excess wire back into the wall opening.

CT31 CT30/CT33 Connect wires Labels don't match? If labels do not match letters on thermostat, see table below. Connect to Existing wires CT30/CT33 CT31 R • RH • 5 • V Terminal “R” Terminal “R” W • W1 • H Terminal “W” Terminal “W” Y • Y1 • M [1] Terminal “Y" G • F [1] Terminal “G” Rc [1] [1] Your system Setting Gas or oil furnace (less than 90% efficiency) 0.4 Electric furnace (any type) 0.3 High efficiency furnace (more than 90% efficiency) 0.8 Hot water system 0.8 Gas/oil steam or gravity system 1.2 [1] If this wire is present, you may have purchased the wrong thermostat. Call 18004681502 for help. M29584

CT33 model is for 750 MV heat onlyEnglish: Page 1 • Français : Page 6 • Español: Página 11 5 69-2338EFS—04 M29588A Operation Resideo warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and service, for a period of one (1) year from the date of first purchase by the original purchaser. If at any time during the warranty period the product is determined to be defective due to workmanship or materials, Resideo shall repair or replace it (at Resideo’s option). If the product is defective, (i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or (ii) call Resideo Customer Care at 18004681502. Cus- tomer Care will make the determination whether the product should be returned to the following address: Resideo Return Goods, 1985 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you. This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Resideo that the defect was caused by damage which occurred while the product was in the possession of a consumer. Resideo’s sole responsibility shall be to repair or replace the product within the terms stated above. RESIDEO SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, IN

CLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you. THIS WARRANTY IS THE ONLY EXPRESS WARRANTY RESIDEO MAKES ON THIS PRODUCT. THE DURATION OF

ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE YEAR DURA TION OF THIS WARRANTY. Some states do not allow limita- tions on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Resideo Customer Care, 1985 Douglas Dr, Golden Valley, MN 55422 or call 18004681502. 1-year limited warranty Fan switch (CT31)

• Auto: Fan runs only when heating or cooling system is on.

• On: Fan runs continuously. System switch (CT31)

• Cool: Controls the cooling system.

• Heat: Controls the heating system.
