• Operating Manual RTH3100C Heat Pump Non-Programmable Digital Thermostat 69-2339EFS-01Read and save these instructions. ® U.S. Registered Trademark. Patents pending. Copyright © 2009 Honeywell International Inc. All rights reserved. Need Help? For assistance with this product please visit http://DIYthermostats.honeywell.com or call Honeywell Customer Care toll-free at 1-800-468-1502RTH3100C 1 69-2339EFS—01 About your new thermostat Thermostat features p. 2
• Quick reference to controls p. 3
• Quick reference to display p. 4
• Thermostat Operation System switch (Heat/Cool) p. 5
• Fan switch (Auto/On) p. 6
• Temperature controls p. 7
• Compressor protection p. 8
• Appendices Battery replacement p. 9
• In case of difficulty p. 10
• Customer assistance p. 12
• Accessories p. 12

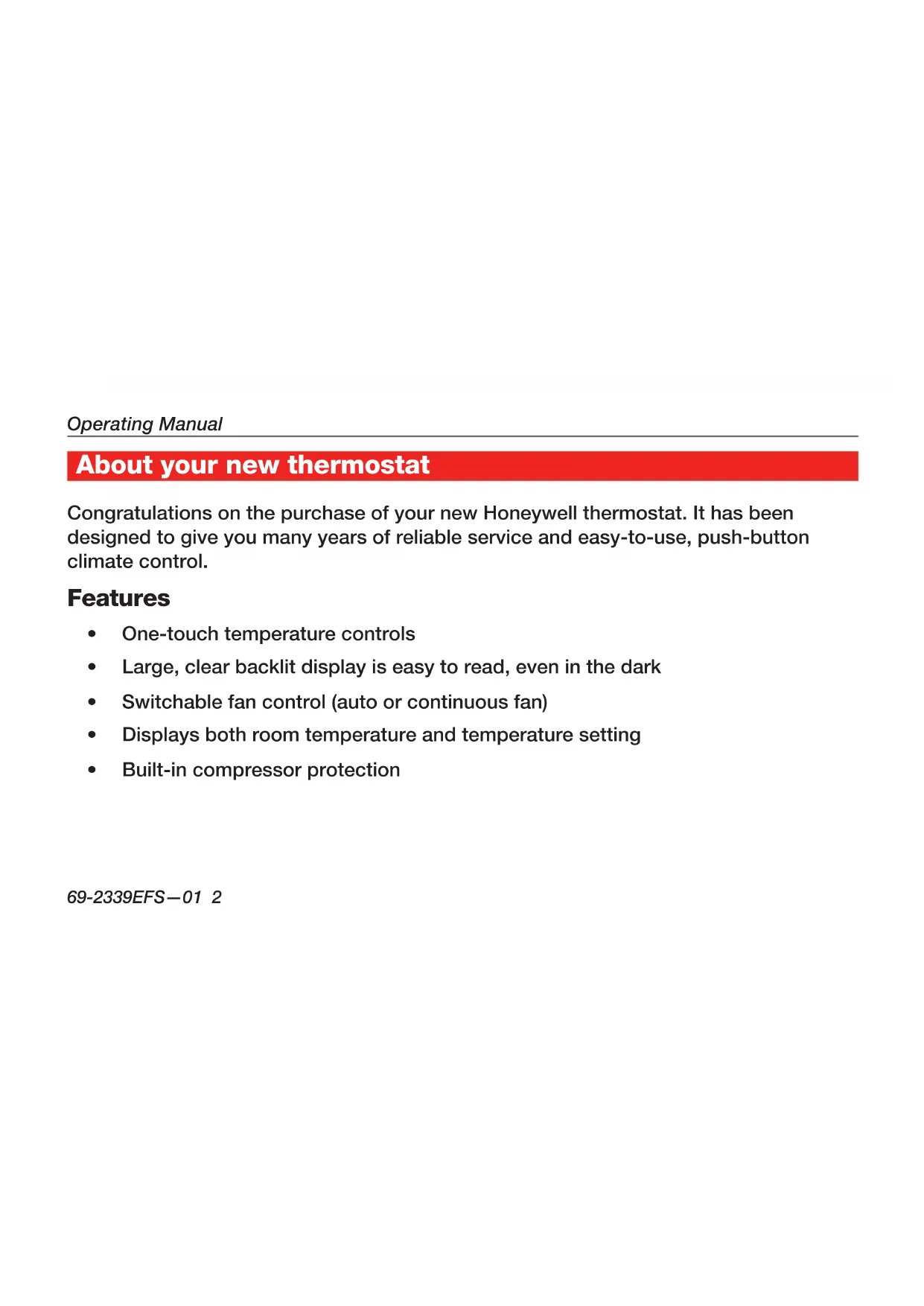

• 1-year limited warranty Table of contentsOperating Manual 69-2339EFS—01 2 Congratulations on the purchase of your new Honeywell thermostat. It has been designed to give you many years of reliable service and easy-to-use, push-button climate control. Features p. 13

• Built-incompressorprotection About your new thermostatRTH3100C 3 69-2339EFS—01 About your new thermostat M29558 Temperature adjustment Press to adjust temperature settings. Fan Switch (see page 6) On: Fan runs continuously. Auto: Fan runs only when heating or cooling system is on. Quick reference to controls System switch (see page 5)

• Cool: Cooling system control.

• Off: All systems off.

• Heat: Heating system control.

• Em Heat: Emergency & Auxiliary Heat control. Compressor is locked out. Digital display screenOperating Manual 69-2339EFS—01 4 Heat OnSet ToInside

• Cool On: Cooling system is on.

• Heat On: Heating system is on.

• Em: Emergency heat is on.

• Aux: Auxiliary heat is on. Quick reference to display screen Current inside temperature Temperature setting If flashing, compressor protection is engaged (see page 8). Low battery warningRTH3100C 5 69-2339EFS—01 M29558 The SYSTEM switch can be set to control your heating or cooling system, depending on the season.

• Cool: Cooling system control.

• Off: All systems are off.

• Heat: Heating system control.

• Em Heat: Emergency & Auxiliary Heat control. Compressor is locked out. System switch Set SYSTEM switch to control the heating or cooling system.

CAUTION: EQUIPMENT DAMAGE

HAZARD. Do not operate cooling system when outdoor temperature is below 50°F (10°C).Operating Manual 69-2339EFS—01 6 M29558 Fan switch Set the FAN switch to Auto or On. In “Auto” mode (the most commonly used setting), the fan runs only when the heat- ing or cooling system is on. If set to “On,” the fan runs continuously. Set FAN switch to choose whether the fan runs continuously or only as needed.RTH3100C 7 69-2339EFS—01 About your new thermostat M29560Cool OnSet To Inside

Temperature controls Press the temperature adjustment buttons until the temperature you want is displayed in the upper right portion of the screen. Note: Make sure the SYSTEM switch is set to the system you want to control (Heat or Cool). Desired temperatureTemperature adjustment buttonsOperating Manual 69-2339EFS—01 8 Cool OnSet ToInside

M29561 This feature helps prevent damage to the compressor in your air conditioning or heat pump system. Damage can occur if the compressor is restarted too soon after shutdown. This fea- ture forces the compressor to wait for a few minutes before restarting. During the wait time, the display will flash the message Cool On or Heat On. When the safe wait time has elapsed, the message stops flashing and the compressor turns on. Message flashes until safe restart time has elapsed. Built-in compressor protectionRTH3100C 9 69-2339EFS—01 M29563 M29562 Batteries are optional if your ther- mostat was wired for AC power when installed. Install fresh batteries immediately when the REPLACE BATT warning begins flashing. Even if the warning does not appear, you should replace batteries once a year, or before leaving home for more than a month. Batteries provide backup power to the display during power inter- ruptions. All settings are perma- nently stored in memory, and do not require battery power. Pull at bottom to remove thermostat from wallplate. Turn thermostat over, insert fresh AA alkaline batteries, then reinstall thermostat. Battery replacementOperating Manual 69-2339EFS—01 10 If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily. Display is blank • Checkcircuitbreakerandresetifnecessary.

• Makesurepowerswitchatheating&coolingsystemison.

• Makesurefurnacedoorisclosedsecurely.

• MakesurefreshAAalkalinebatteriesarecorrectlyinstalled(seepage9). Heating or cooling system does not respond

• SetsystemswitchtoHeat (see page 5). Make sure the temperature is set higher than the Inside temperature.

• SetsystemswitchtoCool (see page 5). Make sure the temperature is set lower than the Inside temperature.

• Makesurefurnacedoorisclosedsecurely.

• Wait5minutesforthesystemtorespond. In case of difficultyRTH3100C 11 69-2339EFS—01 Temperature settings do not change Make sure heating and cooling temperatures are set to acceptable ranges:

• Compressor protection feature is engaged. Wait 5 minutes for the system to restart safely, without damage to the compressor (see page 8). “Heat On” is not displayed

• Set the System switch to Heat, and set the temperature level above the current room temperature (see page 7). “Cool On” is not displayed

• Set the System switch to Cool, and set the temperature level below the current room temperature (see page 7). In case of difficultyOperating Manual 69-2339EFS—01 12 M29564 M29562 For assistance with this product, please visit http://DIYthermostats.honeywell.com. Or call Honeywell Customer Care toll-free at 1-800-468-1502. To save time, please note your model number and date code before calling. Accessories/replacement parts To order, please call Honeywell Customer Care toll-free at 1-800-468-1502. Cover plate* ...................Part No. 50002883-001 *Use to cover marks left by old thermostats. Customer assistance Turn thermostat over to find model number and date code.Pull at bottom to remove thermostat from wallplate.RTH3100C 13 69-2339EFS—01 Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option). If the product is defective, (i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or (ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you. This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or malfunction was caused by damage which occurred while the product was in the possession of a consumer. Honeywell’ssoleresponsibilityshallbetorepairorreplacetheproductwithinthetermsstatedabove.HONEYWELLSHALL NOTBELIABLEFORANYLOSSORDAMAGEOFANYKIND,INCLUDINGANYINCIDENTALORCONSEQUENTIALDAMAGES
