WM-115404 - Waffle Maker Emerio - Free user manual and instructions

Brand	Emerio
Model	WM-115404
Product type	Waffle maker
Operating voltage	220-240 V ~ 50-60 Hz
Power	750 W
Approximate dimensions (L x W x H)	25 x 20 x 10 cm
Approximate weight	1.5 kg
Plate material	Non-stick
Indicator lights	Red power indicator, green control indicator
Capacity	1 waffle at a time
Recommended cooking time	5 to 8 minutes
Usage	Domestic
Warranty	2 years
Maintenance and cleaning	Clean the plates with a soft, damp cloth after cooling. Do not immerse.
Safety	Hot surface, do not touch during use. Automatic shut-off not mentioned.
Spare parts and repairability	Contact Emerio after-sales service for any repairs or parts.

Frequently Asked Questions - WM-115404 Emerio

What to do if the appliance emits smoke and odor during first use?

This is normal: most heating appliances emit a slight smoke and odor during the first heating. It disappears after a few uses. Make sure to ventilate the room well.

How to clean the cooking plates?

Wait for the appliance to cool completely, then clean the plates with a soft brush or damp cloth. Never use abrasive products or metal objects to avoid scratching the non-stick coating.

Why does the green light turn off during use?

The green light turns off when the cooking temperature is reached. It turns back on when the appliance needs to heat again to maintain the temperature.

How long does it take to cook a waffle?

Generally, allow 5 to 8 minutes depending on the batter consistency and desired browning. Monitor the cooking and open the waffle maker to check.

Can I use cooking spray on the plates?

Yes, you can butter or spray a little oil on the plates before each use to prevent the batter from sticking. Avoid excess.

Is the appliance suitable for people with reduced mobility?

Yes, but the handle must be handled with care. Hot surfaces present a burn risk. Supervision is recommended.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person. Do not use the appliance with a damaged cord.

Can I store the waffle maker upright?

It is better to store it flat on a stable surface. Avoid placing heavy objects on it to prevent damage to the plates.

Does the appliance have automatic shut-off?

No, the Emerio WM-115404 waffle maker does not have automatic shut-off. Never leave it unattended during operation.

Where can I find spare parts?

Contact Emerio customer service via their website (www.emerio.eu/service) or by phone. Spare parts are not sold separately in stores.

USER MANUAL WM-115404 Emerio

Black and white photo of a modern electric food microwave oven (no visible text or symbols)

Belgian Waffle maker (EN)

Instruction manual – English ...... - 2 -

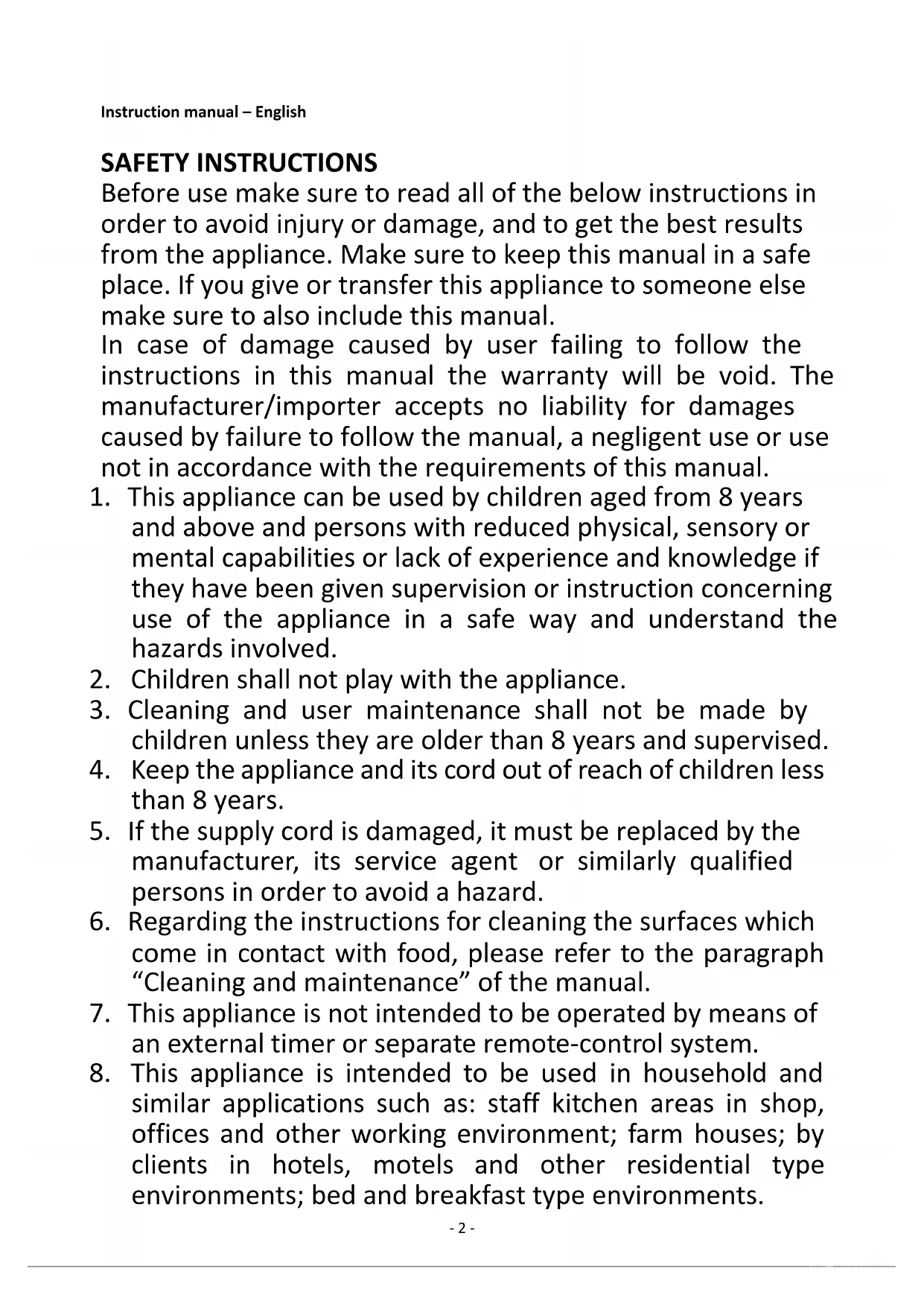

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "Cleaning and maintenance" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shop, offices and other working environment; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations. It is recommended that the extension cord should not exceed 2m.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Always plug the appliance into an earthed plug socket.
13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
16. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
19. Never leave the appliance unattended during use.
20. This appliance is not designed for commercial use.
21. Do not use the appliance for other than intended use.
22. Place the appliance on a stable, level surface from which it cannot fall off.
23. In order to prevent the heat from building up, do not put the appliance directly underneath a cupboard. Ensure that there is enough space all around.

24. Be careful of the steam coming out when you open the appliance.

25. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

PARTS DESCRIPTION

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle
5. Locking clip

BEFORE INITIAL USE

1. Remove all packaging.
2. Clean the heating surfaces with a soft damp cloth and then dry them.
3. Unwind the mains cable completely.

NOTE: When your appliance is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety or your appliance.

OPERATING INSTRUCTIONS

1. Connect the device to an appropriate socket. Both of the indicator lights illuminate and the appliance begins to heat.
2. As soon as the required temperature is reached, the green light goes off and then you can begin waffle making.
3. Open the appliance at the handle by lifting the locking clip.
4. Add some butter onto the waffle plates before each use.
5. Pour the prepared batter onto the lower heating surface and distribute it evenly. Please ensure that the batter does not flow over the edge of the heating surface.
6. Hold the upper heating surface at the handle and close the waffle machine.
7. Bake the waffle for approx. 5-8 minutes depending upon the degree of browning required.
8. Open the waffle machine as described above and remove the waffle with a plastic spatula. Do not use any metal objects (e.g., knife, fork etc.) as they will scratch the coating of the heating surface.
9. If you wish to bake more waffles, pour in more batter immediately.
10. When you have finished baking, remove the mains plug.

CLEANING AND MAINTENANCE

1. First of all, remove the mains plug!
2. Do not commence cleaning until the device has cooled down completely.
3. Clean the outside surface and the heating surfaces with a brush or with a soft, damp cloth.
4. Never use abrasive cleaning agents or sharp objects (e.g., scrubbing brush, knife) for cleaning.
5. Caution: Do not immerse the device in water or other liquids. There is a danger to life from electric shock!

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 750W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service

Looking for spare parts? Have a look at https://spareparts.emerio.eu
