Edge 40 Neo - Smartphone MOTOROLA - Free user manual and instructions

Product Type	Smartphone
Brand	Motorola
Model	Edge 40 Neo (XT2307-1)
Dimensions	159.6 x 72.9 x 7.6 mm (estimated)
Weight	173 g (estimated)
Display	6.55-inch pOLED
Battery	5000 mAh (estimated)
Fast charging	68W TurboPower (estimated)
Water and dust resistance	IP68 (up to 1.5 m of fresh water for 30 min)
Connectivity	5G, Wi-Fi, Bluetooth, NFC, GNSS
SIM	Nano SIM + eSIM
Charging port	USB-C
Screen protector recommendation	Max thickness 0.5 mm to not reduce touch sensitivity
Headphone	USB-C connector (3.5 mm adapter sold separately)
Operating temperature	-20 °C to 45 °C
Storage temperature	-20 °C to 60 °C
Recycling	www.motorola.com/recycling
Legal and SAR information	Settings > Legal information or dial *#07#

Frequently Asked Questions - Edge 40 Neo MOTOROLA

How to insert the SIM card into the Motorola Edge 40 Neo?

Use the provided tool to eject the SIM tray. Insert the SIM card with gold contacts facing up, then gently push the tray back into the slot. To turn on, press and hold the Power button.

Can I use an eSIM card?

Yes, the Motorola Edge 40 Neo supports eSIM in addition to the physical SIM card. Contact your carrier for activation.

Is the Motorola Edge 40 Neo water-resistant?

Yes, it is IP68 certified. It resists immersion up to 1.5 meters of fresh water for 30 minutes. Do not expose to pressurized water or other liquids.

How to turn off the phone if it becomes unresponsive?

Press and hold the Power button until the screen turns off and the phone restarts. For a normal shutdown, press and hold the Power and Volume Up buttons simultaneously.

What type of charger should I use?

Use a compatible Motorola charger (sold separately). Other chargers may impair performance and be dangerous.

Can I use a headset with a 3.5 mm jack?

Yes, but you will need a USB-C to 3.5 mm adapter (sold separately). The headset must be connected via USB-C.

Why does an audio warning appear when I increase the volume?

To prevent hearing damage, a warning appears when the volume reaches the maximum level. Tap OK or wait 5 seconds, then press the volume up button to override and continue adjusting.

Where can I find legal and SAR information?

Swipe up on the home screen, go to Settings > Legal information. You can also dial *#07# on the keypad.

What to do if the touch screen becomes less responsive?

Do not use a screen protector thicker than 0.5 mm, as it reduces touch sensitivity.

How to recycle my Motorola Edge 40 Neo?

Visit www.motorola.com/recycling to learn how to recycle the product and its packaging responsibly.

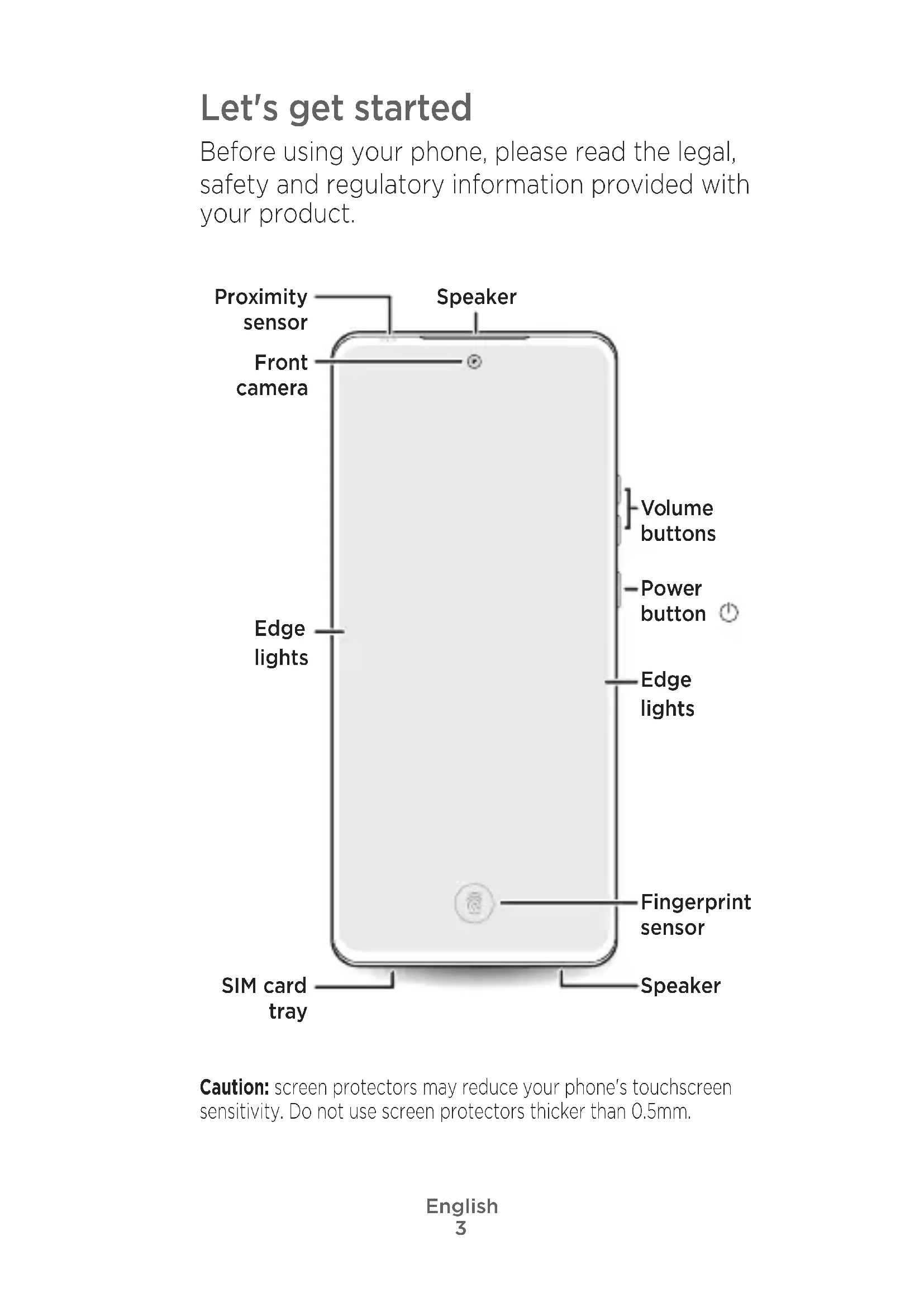

USER MANUAL Edge 40 Neo MOTOROLA

Before using your phone, please read the legal, safety and regulatory information provided with your product.

Caution: screen protectors may reduce your phone's touchscreen sensitivity. Do not use screen protectors thicker than 0.5mm.

Connect with 5G: 5G service plan and 5G network coverage required; available only in selected areas; device not compatible with all 5G networks. Contact your service provider for details.

Use a headset: to use a headset, you'll need one with a USB-C connector. If you're using a 3.5mm headset, you'll need an adapter to connect a 3.5mm connector to USB-C. Headset and adapter may be sold separately.

Put in the card and power on

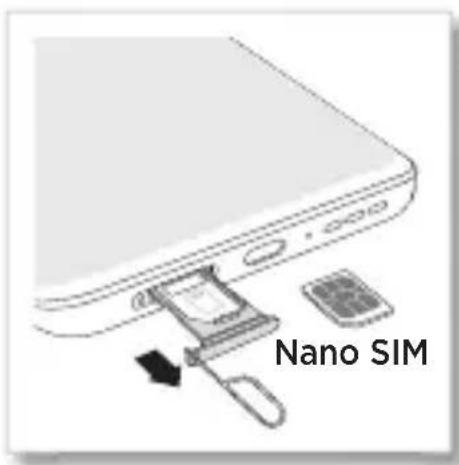

1 Insert the SIM tool into the tray hole to pop out the tray. Make sure you use the correct size SIM card and don't cut the SIM card.

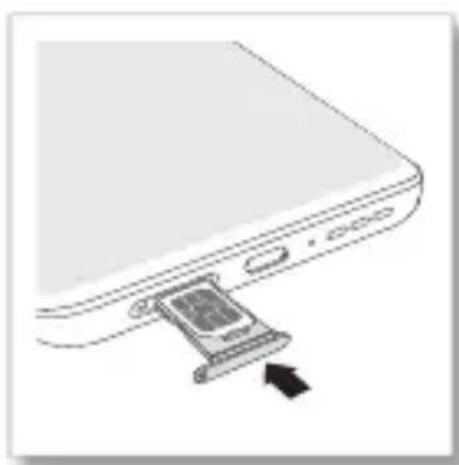

2 Insert the SIM card with the gold contacts up, then gently push the tray into the slot.

3 Press and hold the power button to turn on your phone, then follow the prompts to get started.

Note: to turn off your phone, press the power and Volume up buttons at the same time.

eSIM option: your phone may have an eSIM (embedded SIM card) in addition to the physical SIM card. Contact your service provider for details if you want to activate and use it.

Help and more

Get answers, updates and info:

• Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
• Get more: get software, user guides and more at www.motorola.com/mymotoedge.
• Get apps: tap Play Store to browse and download apps.

Legal information. This guide provides important legal, safety and regulatory information that you should read before using your product. For the complete legal information, from the Home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal.

Water, splash and dust resistance. Water, splash and dust resistance were tested to IP68 standards under controlled laboratory conditions. Withstands immersion in up to 1.5 metres of fresh water for up to 30 minutes. Resistance will decrease as a result of normal wear. Not designed to work while submerged underwater. Do not expose to pressurised water, or liquids other than fresh water. Do not attempt to charge a wet phone. Not waterproof. For more about your phone's water-repellent design and care, swipe up and tap Settings > Help.

Charging and battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service centre or similar skilled personnel.

If your phone becomes unresponsive, press and hold the power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger (may be sold separately). Use of other chargers is not recommended and may impair the charging performance. Don't charge your phone in temperatures below -20^ or above 45^ . Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging or product damage. To view applicable standards and to learn more, see the "Legal information" section of this guide or visit www.motorola.com/device-legal.

Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or wait one to five seconds, then press the Volume up button to dismiss the alert and enable the volume to continue to be adjusted.

Disposal and recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling.

Extreme heat or cold. Don't use your phone in temperatures below -20^ or above 45^ . Don't store/transport your phone in temperatures below -20^ or above 60^ .

Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/

charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any information without notice.

Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt out, see the legal guide that came with your phone.

SAR information (on e-label). To view specific absorption rate (SAR) values for this phone, from the Home screen swipe up and tap Settings > , then type Regulatory labels, from your phone's dial pad type *#07#, or visit www.motorola.com/sar.

Supported frequencies and power (Model XT2307-1). This phone is capable of operation on the following frequencies, subject to location and network availability.

Operating mode	Frequency range MHz/band	Maximum nominal transmit power dBm
Bluetooth 2	400 - 2483.5 20 dBm EIRP
Wi-Fi 2400	- 2483.5/5250 - 5350/5470 - 5725	20 dBm EIRP
Wi-Fi 5150	- 5250/5945 - 6425 23 dBm EIRP
Wi-Fi 5725	- 5850 14 dBm EIRP
Wi-Fi 6425	- 7125 23 dBm EIRP	(Not in EU)
GNSS 1559	- 1610 N/A
NFC 13.56	-14.92 dBuA/m @ 10m
GSM 2/3/5/8	33/30
UMTS	1/2/4/5/8	24
LTE	B1/2/3/4/5/7/8/12/13/17/18/19/20/26/28/32/38/39/40/41/42/43/66	23
5G	n1/2/3/4/5/7/8/20/26/28/38/40/41/66/77*/78*	23(26*)

Copyright and trademarks. MOTOROLA, the stylised M logo, MOTO and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners.

© 2023 Motorola Mobility LLC. All rights reserved.
Product ID: motorola edge 40 neo (Model XT2307-1)
Manual Number: SSC8D98156-A
