AKBU 35 PMQW AS - Drill Fein - Free user manual and instructions

Product Type	Cordless Drill Driver
Brand	Fein
Model	AKBU 35 PMQW AS
Battery System	18V Lithium-ion, AMPShare compatible
Battery Capacity (typical)	5.0 Ah
Charging Temperature	0 °C to +35 °C
Storage Temperature	-20 °C to +50 °C
Protection	Against overload, short circuit, deep discharge
Status Indicator	LED on battery (charging, fault)
Battery Maintenance	Clean contacts with a dry cloth; do not use chemicals
Recommended Charger Type	FEIN or AMPShare compatible 18V charger
Charging Time (typical)	60 min with fast charger
Weight (with battery)	Approx. 2.5 kg
Dimensions (L x W x H)	Approx. 250 x 80 x 200 mm
No-load Speed (variable)	0-2000 rpm
Max Torque	35 Nm
Chuck	Self-tightening 13 mm
Main Functions	Drilling, screwdriving, hammering (depending on version)
Safety Instructions	Read the entire manual before use; do not expose battery to water or fire; use only with recommended charger
Spare Parts and Repairability	Batteries, chargers, chucks available; repair by FEIN authorized service center
Warranty	2 years (standard), extension possible

Frequently Asked Questions - AKBU 35 PMQW AS Fein

Which battery to use with the Fein AKBU 35 PMQW AS drill?

Only use 18V Lithium-ion batteries from the FEIN-AMPShare range or AMPShare partners. Batteries from other brands or counterfeit batteries pose a risk of fire or explosion.

Can I charge the battery with any charger?

No, only use a charger recommended by FEIN or an AMPShare partner. An unsuitable charger can damage the battery and cause a fire.

How to clean the battery and the drill?

Clean the contacts and ventilation slots with a soft, clean, dry brush. Never use chemicals. Remove the battery before any cleaning.

What to do if the battery is damaged or leaks?

Stop using the battery immediately. Avoid any contact with the liquid: rinse skin with water, for eyes consult a doctor. Contact a FEIN authorized service center for replacement.

How to safely transport a Lithium-ion battery?

For transport by yourself (car), no special measures are required. For shipping, call a hazardous materials expert, protect the contacts, and pack the battery securely.

What are the recommended operating temperatures?

Use and storage: -20 °C to +50 °C. Charging: 0 °C to +35 °C. Too low temperature reduces performance.

How to dispose of a used battery?

Do not dispose of the battery with household waste. Discharge it completely, insulate the contacts with adhesive tape, and take it to a recycling collection point (in accordance with Directive 2006/66/EC).

Does the drill have a hammer function?

The AKBU 35 PMQW AS model is generally a cordless drill driver without hammer function. Check the exact specifications on the packaging or in the complete manual.

What to do if the drill does not start with a charged battery?

Check that the battery is properly engaged and the contacts are clean. If the problem persists, consult an authorized service center. Do not attempt to repair it yourself.

Can I leave the battery charging overnight?

No, it is recommended to never charge the battery unattended, especially overnight. This increases the risk of fire in case of malfunction.

USER MANUAL AKBU 35 PMQW AS Fein

AMP Share I

Powered by

BOSCH

Simple line drawing of an open book with no text or symbols visible

Icon of a person reading a document inside a black circle (no text or symbols)

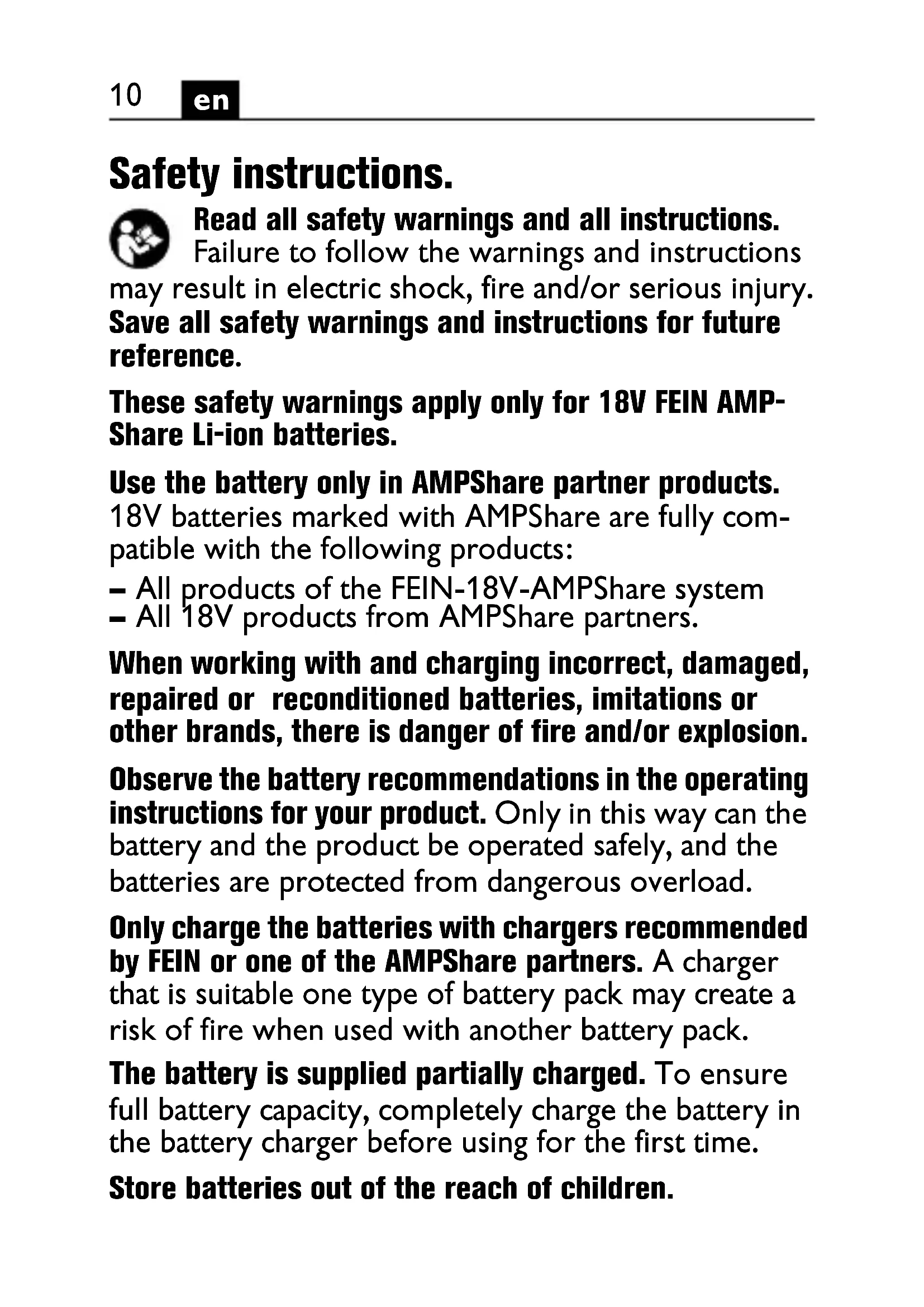

Safety instructions.

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all safety warnings and instructions for future reference.

These safety warnings apply only for 18V FEIN AMP-Share Li-ion batteries.

Use the battery only in AMPShare partner products.

18V batteries marked with AMPShare are fully compatible with the following products:

- All products of the FEIN-18V-AMPShare system

- All 18V products from AMPShare partners.

When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.

Observe the battery recommendations in the operating instructions for your product. Only in this way can the battery and the product be operated safely, and the batteries are protected from dangerous overload.

Only charge the batteries with chargers recommended by FEIN or one of the AMPShare partners. A charger that is suitable one type of battery pack may create a risk of fire when used with another battery pack.

The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.

Store batteries out of the reach of children.

Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

In case of skin contact with battery fluid, rinse immediately with plenty of water. In case of eye contact with battery fluid, wash out the eye with clean water and immediately seek a doctor for treatment!

When the battery fluid has come into contact with objects close by, check the respective components. Avoid skin contact by wearing protective gloves. Clean the parts with dry household paper or replace the parts if necessary. Escaping vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

Do not short-circuit the battery. Keep the battery not being used away from paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

The battery can be damaged by sharp objects such as nails or screwdrivers or by external force. An internal short-circuit may occur and the battery can burn, smoke, explode or overheat.

Never maintain damaged batteries. Any maintenance of batteries should be performed only by the manufacturer or by authorised after-sales service centers.

Protect the battery against heat, e.g., against continuous intense sunlight, fire, debris, water, and moisture. Danger of explosion and short-circuiting.

Operate and store the battery only at ambient temperatures between -20 °C and +50 °C. As an example, do not leave the battery in a vehicle in summer. At temperatures < 0 °C, machine-specific performance restrictions are possible.

Charge the battery only at ambient temperatures between 0 °C and +35 °C. Charge the battery via USB connection only at ambient temperatures between +10 °C and +35 °C. Charging the battery outside the temperature range may damage the battery or increase the risk of fire.

Handle discharged batteries with care. Batteries are a source of danger, as they can cause a very high short-circuit current. Even when Li-ion batteries appear to be in a discharged state, they never fully discharge.

Do not immerse the battery in liquids, such as (salt) water or beverages. Contact with liquids can damage the battery. This may result in heat build-up, smoke generation, ignition or explosion of the battery. Do not continue to use the battery and contact an after-sales service authorized by FEIN.

Do not use a damaged battery. The use of a battery must be stopped immediately as soon as abnormal properties, such as odour development, heat, discolouration or deformation occur. Continued operation can cause the battery to generate heat and smoke, ignite or explode.

Do not open, crush, overheat or set fire to the battery. Non-observance of this warning may result in burns and fire. Follow the manufacturer's instructions.

Extinguish burning Li-ion batteries with water, sand or a fire blanket.

Avoid physical blows/impact. Impact and penetration of objects can damage batteries. This may result in leakage, heat build-up, smoke generation, ignition or explosion of the battery.

Never charge the battery unattended overnight. Fire and explosion hazards can result in case of non-observance.

Do not remove the battery from its original packaging until it is going to be used.

Remove the battery only when the power tool is switched off.

Before any work on the machine itself, remove the battery from the power tool. If the power tool accidentally starts, there is danger of injury.

Protect the battery against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth.

Remove the battery when transporting and storing the power tool.

Observe the safety instructions in the manuals of the chargers from FEIN or the AMPShare partners.

Observe the safety and operating instructions for the battery in the operating manual of the respective power tool.

Maintenance and Service.

Maintenance and cleaning.

Occasionally clean the ventilation slots and the battery terminals with a soft, clean and dry brush.

- Do not use chemical substances for cleaning the battery.

Transport.

The contained Li-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the battery packs by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

The recommended Li-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Disposal.

Do not dispose of the batteries into household waste!

Packaging should be sorted for environment-friendly recycling.

Properly dispose of batteries only when discharged. For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.

Only for EC countries:

According to the European Guideline 2002/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
