USER MANUAL ART82 Glem Gas

The operating instructions apply to several models. Differences may therefore occur.EN

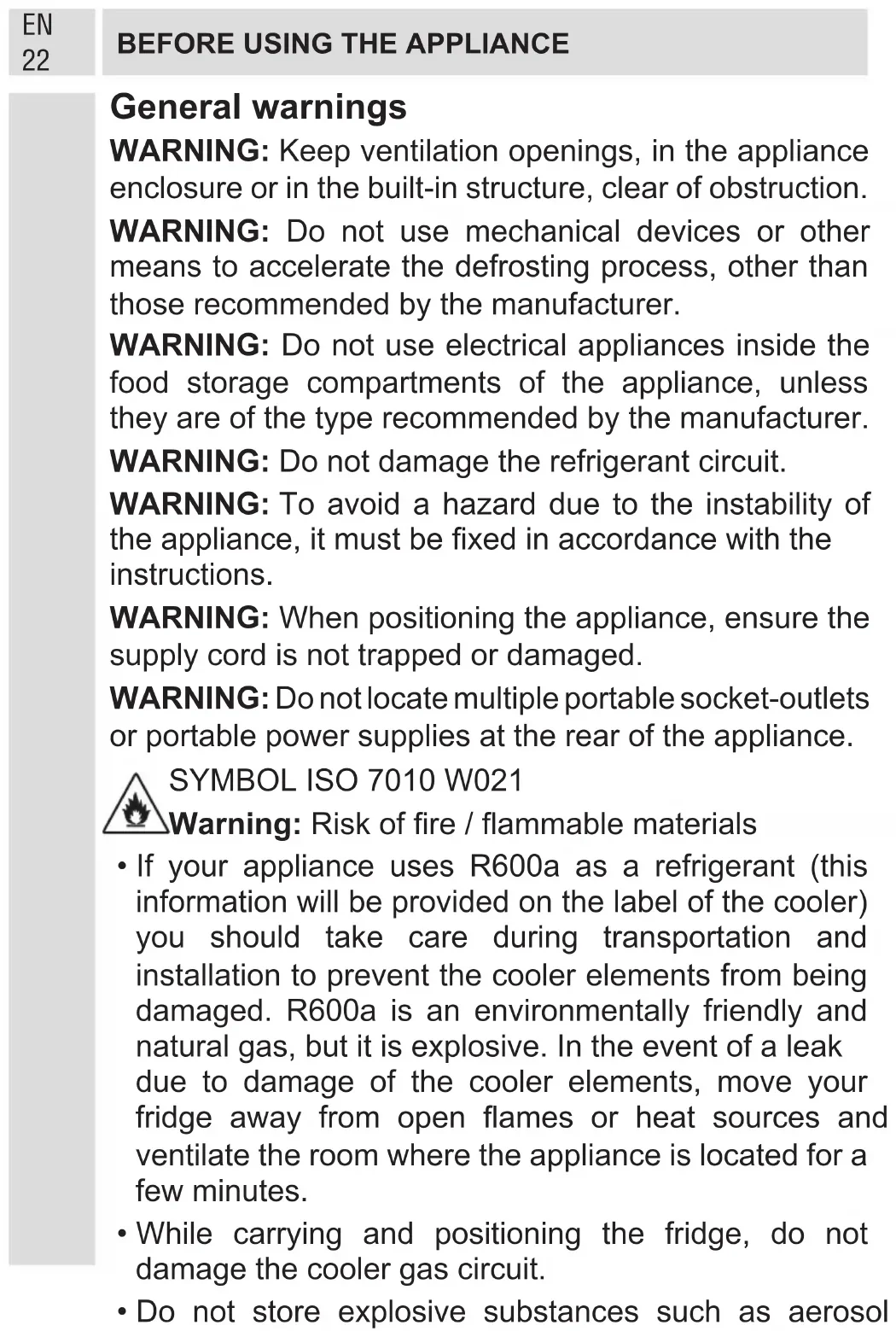

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the

food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of

the appliance, it must be xed in accordance with the instructions.

WARNING: When positioning the appliance, ensure the

supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets

or portable power supplies at the rear of the appliance.

SYMBOL ISO 7010 W021

Warning: Risk of re / ammable materials

• If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open ames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosolEN

cans with a ammable propellant in this appliance.

• This appliance is intended to be used in household and domestic applications such as: - staff kitchen areas in shops, ofces and other working environments. - farm houses and by clients in hotels, motels and other residential type environments. - bed and breakfast type environments; - catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualied persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m.EN

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• •Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

• Please ask your municipal authority about the disposa l of the WEEE reuse, recycle and recovery purposes. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.EN

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.

• Do not plug in damaged, torn or old plugs.

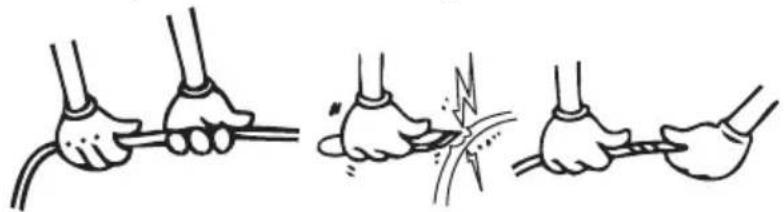

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

• Do not place glass bottles or beverage cans in the ice- making compartment as they can burst as the contents freeze.

• Do not place explosive or ammable material in your fridge freezer. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands. Do not eat ice- cream or ice cubes immediately after you have taken them out of the ice-making compartment.

• Do not cover the body or top of fridge with lace. This affects the performance of your fridge freezer.

• Secure any accessories in the fridge freezer during transportation to prevent damage to the accessories.

Installing and operating your fridge freezer Before starting to use your fridge freezer, you should pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.

• The plug must be accessible after installation.

• Your fridge freezer may have a smell when it is operated for the rst time. This is normal and the smell will fade away when your fridge starts to cool.

• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualied electrician.

• Insert the plug into a socket with an efcient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualied electrician for assistance.

• The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge freezer where it will not be exposed to direct sunlight.

• Your fridge freezer should never be used outdoors or exposed to rain.

• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

• When your fridge freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not place heavy items on the appliance.

• Clean the appliance thoroughly, especially the interior, before use (see Cleaning and Maintenance).

• The installation procedure into the kitchen unit is given inEN

the installation manual. This product is intended to be used in proper kitchen units only.

• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge freezer after cleaning. Before Using your fridge freezer

• When using your fridge freezer for the rst time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efcient operation and prevents damage to the compressor.

• Your fridge freezer may have a smell when it is operated for the rst time. This is normal and the smell will fade away when your fridge freezer starts to cool.EN

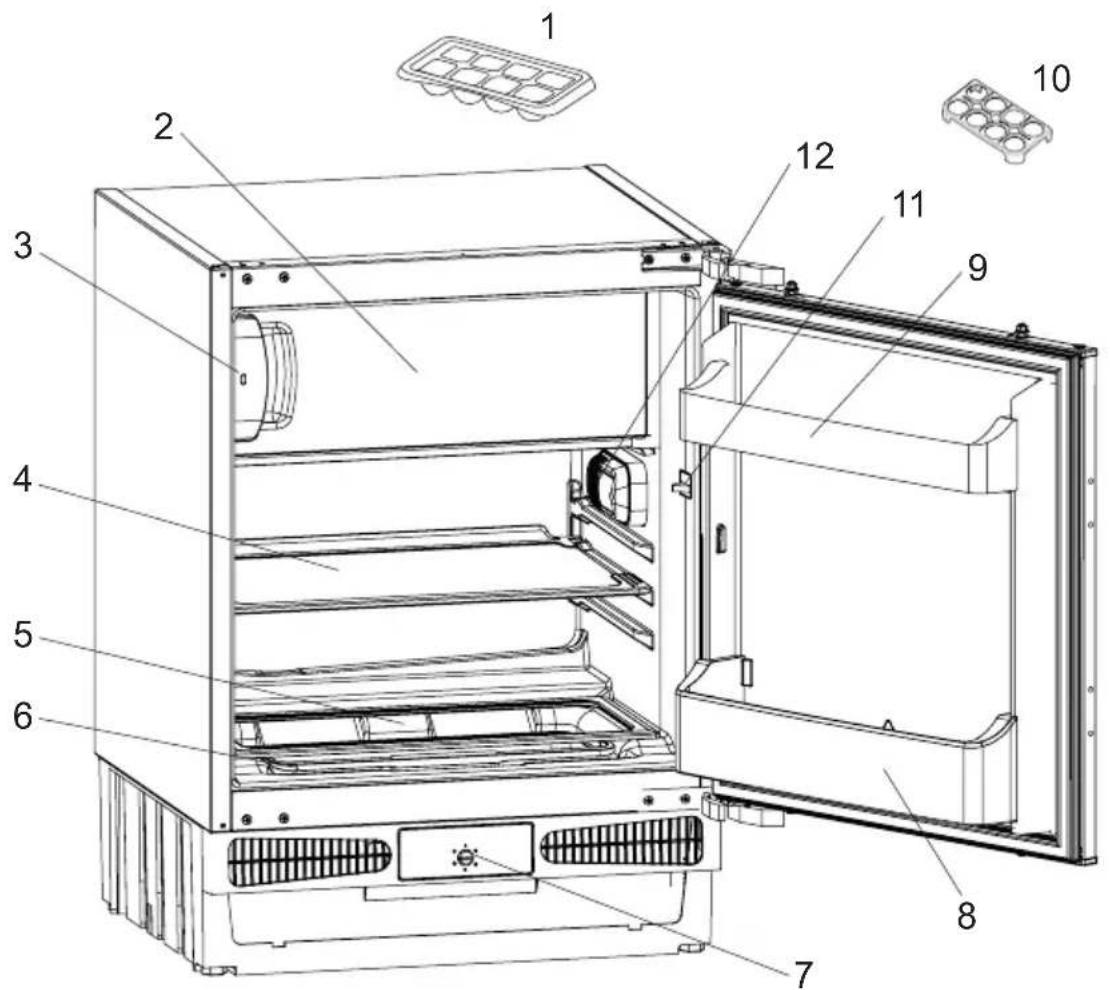

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS This manual for information about the parts of the appliance. Parts may vary according to the appliance model.

9. Butter cheese shelf

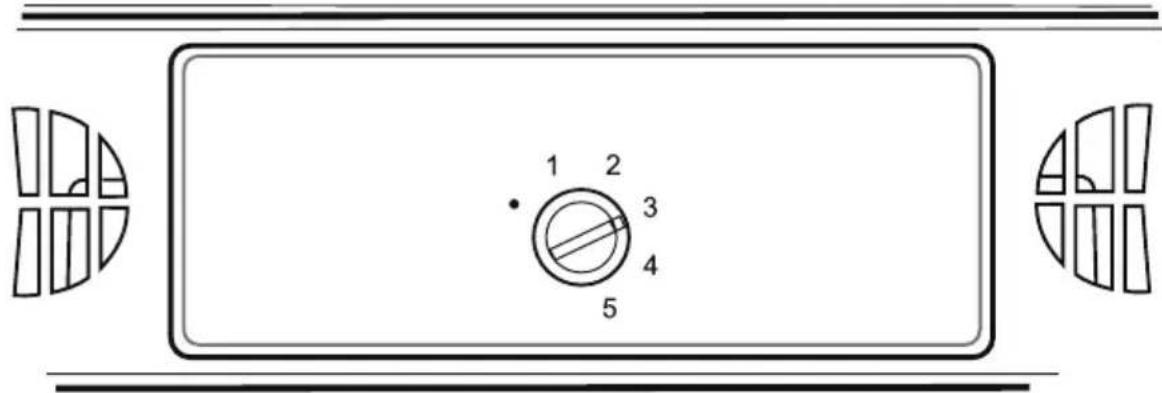

Thermostat setting Important note: Do not try to rotate knob beyond position 1, it will stop your appliance from working.

• The thermostat automatically regulates the inside temperature of the fridge and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

• For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium positions (1-3).

• For long-term storage of food in the freezer compartment, you can set knob to the medium position (3-4).

• Note that: the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the fridge and freezer compartments. If required, change the temperature setting.

• When you rst switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put a large quantity of food inside.

• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting in order not to damage the compressor.

• REFRIGERATORS (with 4 star rating): The freezer of the refrigerator cools down to -18

C and lower. Warnings about temperature adjustments

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge freezer.

• When you rst switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put a large quantity of food inside.

• A 5 minute delay function is included to prevent damage to theEN

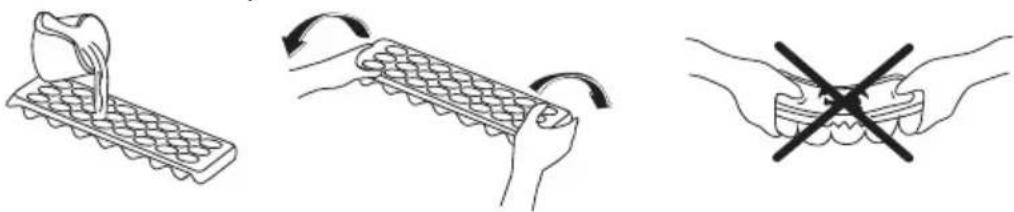

• Fill the ice tray with water and place in the freezer compartment.

• After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes. Accessoires “Door Open” Indicator;

• The « Door Open » indicator on the handle shows whether the door has closed properly or whether it is still open.

• If the indicator is red, the door is still open.

• If the indicator is white, the door is properly closed.

• Observe that the freezer’s door should always be kept closed. This will prevent food products from defrosting; it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption. compressor of your fridge freezer, when you unplug it and then plug it in again to operate it, or when an energy breakdown occurs. Your fridge freezer will start to operate normally after 5 minutes.

• Your fridge freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge freezer is operated in the environments which are out of the stated temperature intervals. This will reduce the cooling efciency of the fridge freezer.EN

CLEANING AND MAINTENANCE

• Disconnect the unit from the power supply before cleaning.

• Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

• The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately with soap and water Do not clean them in the dishwasher.

• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plugto the mains supply with dry hands. THE POWER SUPPLY MUST BE DISCONNECTED.EN

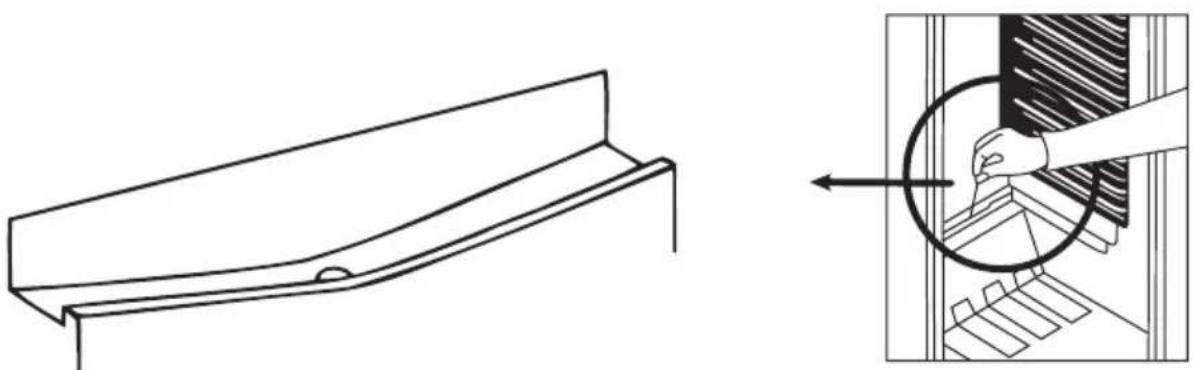

Defrosting the fridge compartment

• Defrosting occurs automatically in the fridge compartment during operation; the water is collected by the evaporation tray and evaporates automatically.

• The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the fridge instead of owing out.

• You can also clean the drain hole by pouring ½ glass of water down it. Freezer compartment; The frost, accumulated in the freezer compartment, should be removed periodically (Use the plastic scraper provided). The freezer compartment should be cleaned in the same way as the refrigerator compartment, with the defrost function of the compartment at least twice a year. For this:

• The day before you defrost, set the thermostat dial to “5” position to freeze the food completely.

• During defrosting, frozen food should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten its storage life. Remember to use this food within a relatively short period of time.

• Set the thermostat knob to position “•” or unplug the unit. Leave the door open until the unit is completely defrosted.

• To accelerate the defrosting process, one or more bowls of warm water can be placed in the freezer compartment.

• Dry the inside of the unit carefully and set the thermostat knob to the MAX position.

Replacing the light bulb When replacing the bulb of the fridge compartment;

1. Unplug the unit from the power supply.

2. Press the hook in front of the light cover such as Figure 1

and remove the light cover.

3. Change the present light bulb with a new one of not more

4. Replace the light cover and after waiting 5 minutes plug

the unit. Figure 1 Figure 2

CLEANING AND MAINTENANCE

Replacing LED lighting If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.EN

FOOD STORAGE IN THE APPLIANCE

Fridge compartment The fridge compartment is used for storing fresh food for few days.

• Do not place food in direct contact with the rear wall of the fridge compartment. Leave some space around food to allow circulation of air.

• Do not place hot food or evaporating liquid in the fridge compartment.

• Always make sure food is wrapped or stored in closed containers.

• To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the fridge compartment.

• We recommend that you loosely wrap meat and store it on the glass shelf just above the vegetable bin, where the air is fridge compartment.

• Store fruit and vegetable items loose in the crisper containers.

• To prevent the cold air escaping, try not to open the door too often, and not leave the door open for a long time. Freezer compartment

• The freezer is used for freezing fresh food and for storing frozen food for the period of time indicated on packaging, and for making ice cubes.

• For freezing fresh food; wrap and seal the food properly; the packaging should be air tight and shouldn’t leak. Special freezer bags, aluminum foil (heavy grade, if in doubt double wrap), polythene bags and plastic containers are ideal.

• When freezing food, the maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

• For optimum appliance performance and to reach maximum freezing capacity, set the thermostat knob to position '4' when placing fresh food in the freezer.

• When using the fast freeze function to freeze fresh food, 24 hours will usually be sufcient. Deactivate the fast freeze function after 24 hours.

• Attention: In order to save energy, When freezing small amounts of food, use the fast freeze function.

• Do not allow the fresh food to be frozen to come into contact with the already frozen food.

• Always mark the date and the content on the pack and do not exceed the stated storage time.

• In case of a power failure or malfunction, the freezer compartment will maintain a sufciently low temperature for food storage. However,EN

ARRANGING FOOD IN THE APPLIANCE

avoid opening the freezer door to slow down the temperature rise within the freezer compartment.

• The maximum amount of fresh food that can be stored in the freezer within 24 hours is indicated on the name plate (see Freezing Capacity).

• Never place warm food in the freezer compartment.

• When purchasing and storing frozen food products, ensure that the packaging is not damaged.

• The storage time and the recommended temperature for storing frozen food is indicated on the packaging. For storing and using, follow the manufacturer’s instructions. If no information is provided, food should not be stored for more than 3 months.

• Place frozen food in the freezer compartment as soon as possible after buying it.

• Once the food has thawed, it must not be refrozen; you must cook it as quickly as possible in order to consume or to freeze once again.

• When making ice cubes, ll the ice tray with water and place in freezer compartment. After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes.EN

SHIPMENT AND REPOSITIONING

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be retained if required.

• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

• Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper…) should be taken out or xed with bands in order to prevent them from getting damaged.

• Carry your freezer in the upright position.EN

If your refrigerator is not working properly, it may be a minor problem, therefore check the following. The appliance does not operate, Check if;

• There is a power failure,

• The mains plug is not plugged in properly, or is loose

• The thermostat setting is on position “ ”,

• The socket is defective. To check this, plug in another appliance that you know is working into the same socket. The appliance performs poorly, Check if:

• You have overloaded the appliance,

• The doors are not closed properly,

• There are not enough ventilation ducts on the kitchen unit as mentioned in the installation manual. If there is noise: The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. Ifyou hear any other sounds, check if:

• The appliance is installed rmly as described in the Installation Manual.

• The objects on the appliance are vibrating. If there is water in the lower part of the refrigerator, Check if: The drain hole for the water is not clogged (use the defrost drain plug to clean the drain hole). If the door is not being properly opened and closed:

• Are the food packages preventing the door from being closed?

• Have the door compartments, shelves and drawers been located properly?

• Are the door seals defective or torn?

• Is your refrigerator standing on even ground? If your fridge is not cooling enough;

• Your fridge freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge freezer out of stated temperatures value limits in terms of coolingEN

effectiveness.This will reduce the cooling efciency of the fridge freezer.

• This appliance is designed for use at an ambient temperature within the 10°C - 32°C range. Recommendations

• In order to increase space and improve the appearance, the “cooling section” of refrigerators is positioned inside the rear of the refrigerator compartment. When the compressor is working, this wall is covered with frost or water drops. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick ice layer forms on the back wall.

• If the appliance will not be used for a long time (for example during the summer holidays), set the thermostat knob to position “ ”. Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smells.

BEFORE CALLING YOUR AFTER SALES SERVICE

Climate Class Ambient Temperature

1. Install the appliance in a cool, well ventilated room , but not in direct

sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.

2. Allow warm food and drinks to cool down outside the appliance.

3. When thawing frozen food, place it in the refrigerator compartment.

The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.

4. Cover drinks or other liquids when placing them in the appliance

Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.

5. Try to avoid keeping the doors open for long periods or opening the

doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

6. Keep the covers of the different temperature compartments (crisper,

chiller ...etc ) closed
