USER MANUAL CM 9020 Orbegozo

Black portable electric stove with red ambient lighting and visible flames (no text or symbols)

CM 9020

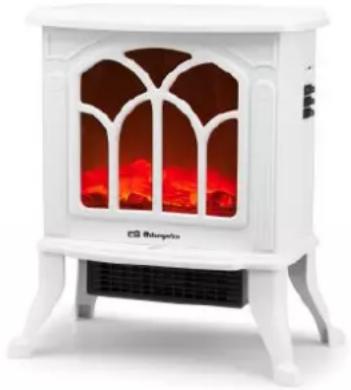

White portable electric stove with arched glass doors and red flames, no visible text or symbols on the appliance body.

CM 9021

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid a hazard.

5. Never pull on the cord when unplugging.

6. Do not use the unit with a damaged cord or plug, or if it is not working properly.

7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can find it in our website: www.orbegozo.com
13. WARNING: In case of misuse, there is a risk of possible injury.

Special Safety Instructions

WARNING: In order to avoid overheating, do not cover the heater.

- Children of less than 3 years should be kept away unless continuously supervised. - Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal

operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The device should not be placed immediately below a socket base.

- Do not place a heater in use near curtains, furniture, wood paneling or combustible material which can deteriorate with heat.

- Do not use this heater in the immediate vicinity of a bath, shower or pool.

- Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.

- The appliance must be connected to an earthed mains outlet. If you wish to use an extension cord, a 3-wire type is suitable.

- Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!

- Important! Do not insert any object into the appliance openings! Risk of injury (electric shock) and damage to the appliance!

- Attention! The front grille becomes very hot when the appliance is in use. Place the appliance so that is cannot be touched by accident! Risk of burns! The appliance will cool down gradually after being switched off.

- Keep the mains cord at a safe distance from the air inlet and outlet grills. Do not wind the cord around the appliance and do not bend it.

- Always unplug the fireplace after use.

- The plug must be accessible at all times in order to disconnect the plug from the mains as quickly as possible.

- Do not try to move the fireplace while it is in use.

- Do not use the fireplace on carpets that are too thick!

- Do not use the fireplace if it is not in a vertical position. There is tip over switch on the base. When the heater tips over, the electricity will be turned off automatically.

- Do not use this heater if it has been dropped.

- Do not use if there are visible signs of damage to the heater.

- Use this heating appliance on a horizontal and stable surface, or if possible fix it to a wall.

- WARNING: Do not use this heater in rooms that are occupied by persons who cannot leave the room by themselves, unless permanent surveillance is provided.

- WARNING: To reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1m away from the air outlet.

LIGHTING THE FIREPLACE:

For flame effect only: Slide the main on/off switch to the on position to have the flame effect without any heater function.

For low heat: slide the main on/off switch to the ON position and the "I" slide switch to the ON position.

For High Heat: Slide the main On/Off switch to the On position and slide the "I" switch and "II" switch to the On position.

NOTE: The thermostat must be on in order to use the heat function.

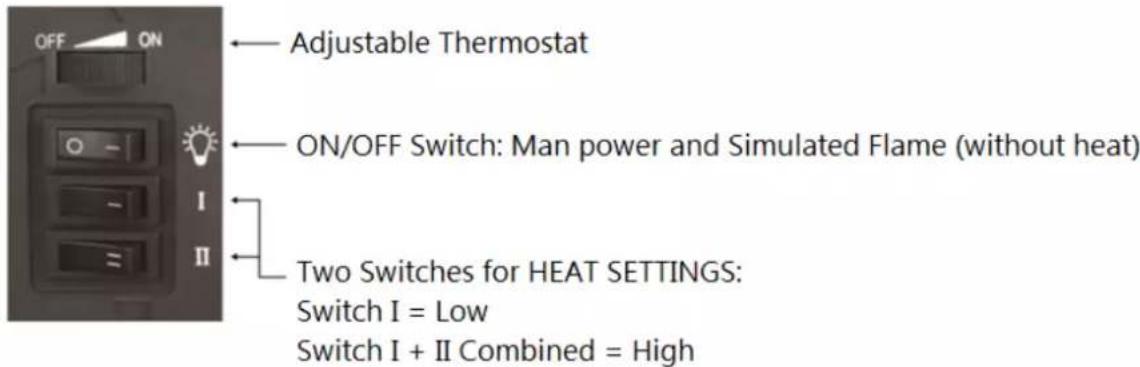

OFF ON Adjustable Thermostat ON/OFF Switch: Man power and Simulated Flame (without heat) Two Switches for HEAT SETTINGS: Switch I = Low Switch I + II Combined = High

THERMOSTAT SETTING:

After the fireplace has lit and the room has reached the desired temperature, slowly turn the thermostat knob counter-clockwise until the heat turns off (you should hear a slight "click"). It will automatically maintain this temperature. To lower the temperature, turn the knob furthest to the left toward the LOW (-) position. To increase the temperature, turn the thermostat knob clockwise to the HIGH (+) position.

OFF:

Turn off the main on/off switch to discontinue use. The low heat switch and high heat switch can remain in either position and will have no power. They will continue to have the same set functions when the fireplace is relit. The fireplace must be unplugged when not in use.

IMPORTANT SAFETY FEATURES

The fireplace is equipped with an automatic overheat protection device inside the body of the appliance. If the grill is clogged or the heater gets too hot for any reason, the automatic overheat protection device will shut the heater off. To reset the fireplace, simply turn off and unplug for 10 minutes until it cools down and you can turn it back on. Make sure the fireplace is on a smooth, level surface with no obstructions.

CARE AND MAINTENANCE

CLEANING: CAUTION! Before cleaning the fireplace, be sure to unplug the power cord and allow it to cool completely. Wipe the outer surface with a clean, damp cloth. Do not use abrasive cleaners or harsh chemicals. DO NOT IMMERSE THE HEATER IN WATER. Let the heater dry completely before using it. Use a vacuum cleaner or duster to keep the heating and venting area clean and free of dust and dirt.

LEG ASSEMBLY:

Simple assembly is required if your heater legs arrive unassembled. Using a screwdriver, drive three screws through the holes in each leg and tighten clockwise into the bottom of the heater.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation,

that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,5	kW		manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	0,8	kW		manual heat charge control with room and/or outdoor temperature feedback。	[no]
Maximum continuous heat output	P_maxc	1,5	kW		electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption					fan assisted heat output	[no]
At nominal heat output	el_max	0,000	kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0,000	kW		single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0,000	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[yes]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details info				SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.
