USER MANUAL BR 90 Orbegozo

Red portable electric heater with perforated grille and black base (no text or symbols visible)

BR 90

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

We congratulate you for having chosen our product.

Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use.

Read the Safety information's and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives.

SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
13. WARNING: In case of misuse, there is a risk of possible injury.

IMPORTANT SAFETY INSTRUCTIONS:

The meaning of figure in marking is "DO NOT COVER". WARNING: In order to avoid overheating, do not cover the heater.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

☐ CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

☐ The device should not be placed immediately below a socket base.

☐ Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.

☐ Do not use this heater in the immediate vicinity of a bath, shower or pool.

• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!
• Do not use the heater in rooms with explosive gas (e.g. petrol) or while using inflammable glue or solvent (e.g. when gluing or varnishing parquet floors, PVC etc.) Do not allow aerosols, inflammable substances or materials sensitive to heat to be in the flow of hot air.
• Do not use the heater in areas or rooms which are a risk of fire, such as garages, stables, wooden shed etc.
• The unit must be mounted such that the control elements cannot be touched by persons who are in bath, shower, or any other water-filled receptacle.
  • Always unplugged the heater after use.
• Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!
• Keep the mains cord at a safe distance from the air inlet and outlet grilles.
• Do not use this heater if it has been dropped.

• Do not use if there are visible signs of damage to the heater.

• The protective screen on this heating appliance is intended to prevent direct access to the heating elements and must be in place when the heating appliance is in use.

• The protective screen does not provide full protection for small children and disabled persons.
• WARNING: After installation of the appliance, the plug or socket must be easily accessible for disconnection of the appliance, if it is not easily accessible, a switch must be incorporated in the electrical installation in accordance with national installation regulations.
• WARNING: Do not use this heater in rooms that are occupied by persons who cannot leave the room by themselves, unless permanent surveillance is provided.
• WARNING: To reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1m away from the air outlet.
• WARNING: The heater is for exclusive use for a round occasional table, the product includes accessories to fix it to the table and prevent it from moving.

These instructions for use belong to the appliance and must be kept in a safe place. When changing owners, these instructions must be surrendered to the new owner!

TECHNICAL FEATURES

Power: 900 W

Voltage: 220-240 V \~ 50 Hz

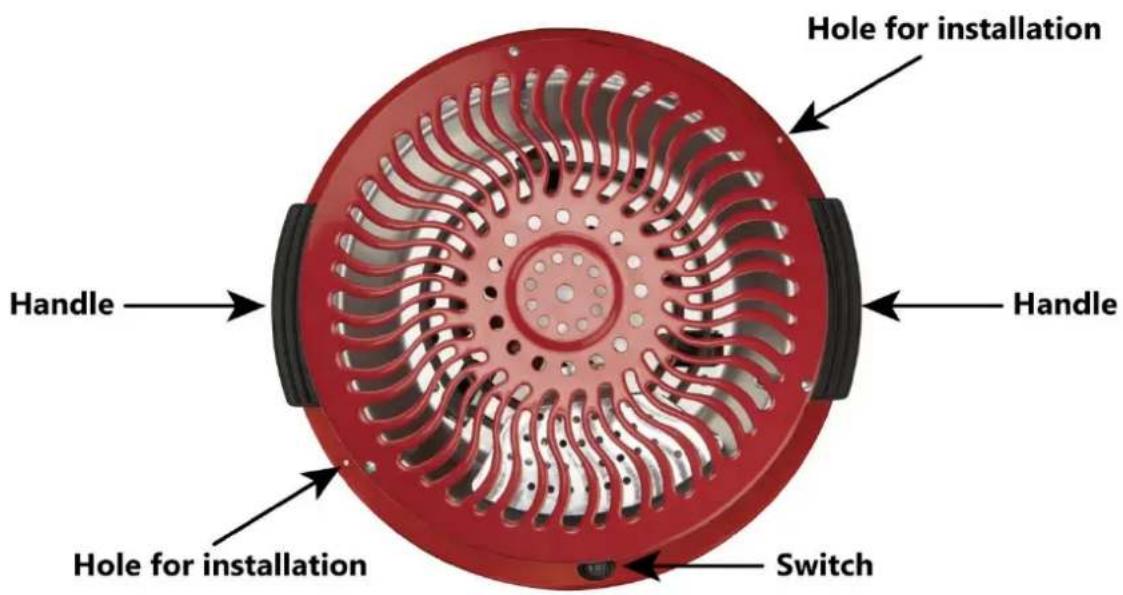

DESCRIPTION OF THE PARTS

Handle Hole for installation Handle Hole for installation Switch

INSTALLATION OF THE ELECTRIC BRAZIER

- Place the heater on a round occasional table and secure it to it using the screws that come with it through the holes indicated above. (*)

IMPORTANT: THE HEATER IS FOR EXCLUSIVE USE FOR A STRETCHER TABLE, THE PRODUCT INCLUDES ACCESSORIES TO FIX IT TO THE TABLE AND PREVENT IT FROM MOVING

Simple wooden side table with circular base and vertical legs (no text or symbols)

*(round occasional table)

The diameter of the hole in the table should be of 35 cm.

When handling the heater, make sure to hold it by the handles.

• Press switch to "I" position.

• Plug the appliance to the electricity supply, then the heater will work in low heat setting (400W)

• If press switch to "II" position, the heater will work on High heat setting (900W)

• Plug out to switch off the heater.

We suggest you to clean the electric heater at least twice a year in order to eliminate the accumulated dust and dirt.

• Plug out the appliance from the power supply.
• Clean the heater outlook with a wet cloth. Do not use water and not let water goes into the appliance.
• Do not use any sharp or abrasive detergents. Do not touch the electric heater while you are in contact to the water

Keep the original gift box in order to keep the electric heater during the hot months when it's not used. Clean the electric heater following the instructions from Cleaning point. Keep it in a dry and fresh place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

This product is only suitable for well insulated spaces or occasional use

Item BR 90	Symbol		Value	Unit		Item BR 90	Unit
Heat output						Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom		0.9	KW		manual heat charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	P_min		0.3	KW		manual heat charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	P_max,c		0.9	KW		electronic heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption						fan assisted heat output	N/A
At nominal heat output	el_max		0.0	KW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min		0.0	KW		single stage heat output and no room temperature control	NO
In standby mode	el_SB		0	W		Two or more manual stages, no room temperature control	YES
						with mechanic thermostat room temperature control	NO
						with electronic room temperature control	NO
						electronic room temperature control plus day timer	NO
						electronic room temperature control plus week timer	NO
						Other control options (multiple selections possible)
						room temperature control, with presence detection	NO
						room temperature control, with open window detection	NO
						with distance control option	NO
						with adaptive start control	NO
						with working time limitation	NO
						with black bulb sensor	NO
Contact details info		SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.
