USER MANUAL DH 650 Orbegozo

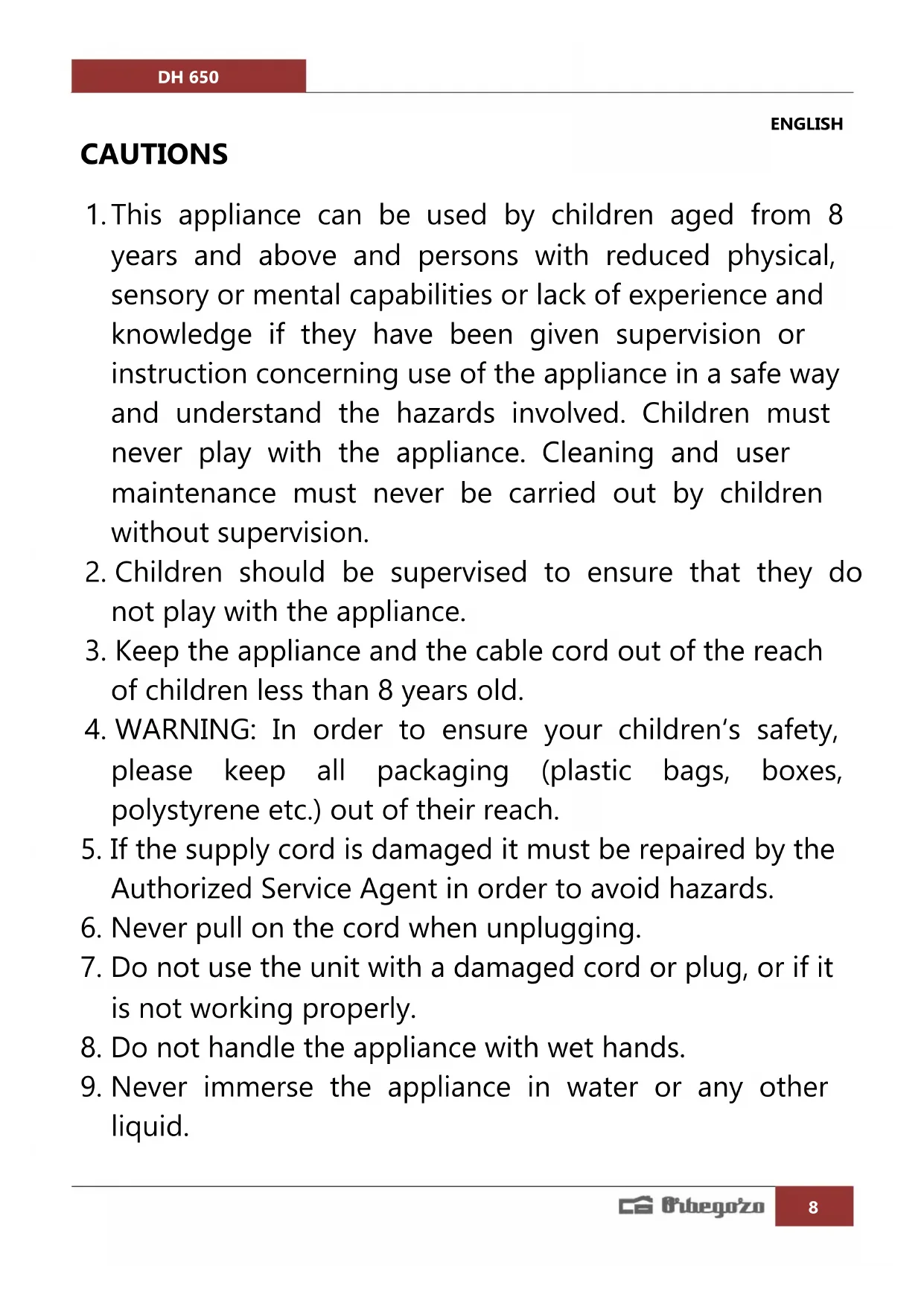

1. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do

not play with the appliance.

3. Keep the appliance and the cable cord out of the reach

of children less than 8 years old.

4. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the

Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it

is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other

10. Make sure the appliance has been unplugged before

11. This appliance must be installed following the national

regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual,

you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible

injury. Make sure the plug and the connected power socket are in good contact, otherwise the plug may become very hot. Do not place anything on the product. Place and use this product on a stable, flat and level surface. A space of at least 30 cm should be left behind and on both sides of the product, and a space of at least 50 cm should be left above the product. Do not place the product directly under the air conditioner to prevent condensed water from dripping on the product. Do not hit the product with hard objects (especially the air outlet and air inlet). Do not insert fingers or objects into the air inlet or outlet to avoid physical damage or product malfunction.DH 650

Do not use this product in areas where indoor aerosol repellent has been used or where it is filled with oil, flammable gas or chemical fumes. Be sure to unplug the plug after use or before cleaning or other maintenance. If you need to move the product, disconnect the power supply of the product first. Do not move the product by pulling on the power cord. Do not allow water or other flammable liquid or detergent to enter the product to avoid electric shock and fire. Do not spray any flammable material, such as alcohol, insecticide, or perfume, around the product. When you finish using the Dehumidifier, you should turn it off by pressing the off button. Keep the grilles (top and rear) free of materials that could clog them such as fabrics, plastic bags. Always keep the appliance in an upright position to avoid possible leaks. The appliance must be installed in accordance with the national regulations for electrical installations.DH 650

FEATURES The DH 650 Dehumidifier has been manufactured using technology without a compressor, which makes it light and quiet. It is ideal for use in small closed places such as cloakrooms, cupboards, pantries, rooms, etc., in which a musty smell is produced when ventilation is insufficient. The DH 650 Dehumidifier eliminates this problem by keeping the place where it is installed free of humidity. PARTS DESCRIPTION

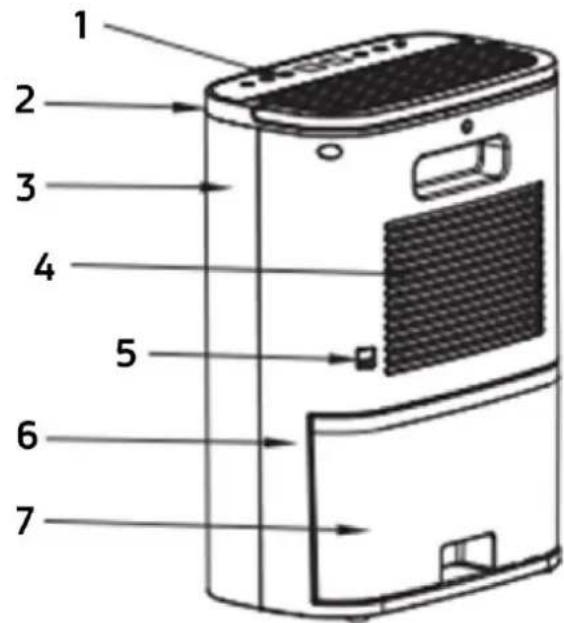

(1) Control panel (2) Top cover (3) Front cover (4) Air inlet (5) AC power input (6) Rear cover (7) Water tank TECHNICAL CHARACTERISTICS Dehumidification capacity: about 500-1000ml per day at 30ºC, 80%RH Cooling: thermoelectric module Fan: High speed, long life brushless motor (90mm X 90mm) with turbo blades Consumption: 70W Removable water tank: 2.5 liters Water level detector: when the tank is full, the appliance turns off automatically and the "Water" indicator lights up white. Appliance dimensions: 250 (Width) X 350mm (Height) X 150mm (Depth) Operating environment: Ambient temperature above 15ºC, above 40%RH.DH 650

1. Plug the dehumidifier into the power outlet, press the "ON/OFF" button, then choose the desired

2. Press the "Dehumidification" button and the appliance will start to dehumidify. When the water tank

is full, the “Water” indicator lights up white and the alarm will sound 15 times. Press the "Dehumidification" button again during operation to stop that mode.

3. Use the "Timer" function to set a shutdown time: press the "Timer" button to set the time, each

press will increase by 1 hour to a maximum of 24 hours. If the machine stops working due to a full tank, the timer will not be cancelled.

4. Press "Purify" button, the machine starts to work in purify mode, press "Purify" button again to stop

When the room temperature is less than or equal to 20℃, after working in dehumidification mode for 1 hour the appliance will enter defrost state, the defrost indicator light will turn on. After defrosting for 5 minutes, the appliance will automatically return to the dehumidification function and repeat the cycle again. When the room temperature is less than or equal to 15℃, the dehumidifier will enter the defrost state after running dehumidify function for 2 hours, the defrost indicator light will turn on. After defrosting for 5 minutes, the machine will automatically return to the dehumidifying function and repeat the cycle again. When the room temperature is less than or equal to 8℃, after working in dehumidification mode for 2 hours the machine will enter the defrost state, the defrost indicator light will turn on. After defrosting for 15 minutes, the machine will automatically return to the dehumidifying function and repeat the cycle again. NOTE: When the dehumidifier is on, please do not pull out the plug directly. The appliance must be turned off before unplugging the plug to prevent electrical components from being damaged, which will reduce the life of the product. When you do not use this product for a long time, please empty the water in the water tank, wind up the power cord, and then store the product in a clean and dry environment..DH 650

EMPTY METHOD The dehumidification capacity of this product is 500-1000ml per day and the maximum capacity of the water tank is 2500ml. When the water tank is full, the “Water” indicator lights up and the machine stops working..

1. 1. Turn off the appliance, pull out the handle of the water tank, remove the tank and pour the water

into an appropriate place.

2. Every time you empty the tank, rinse with clean water to avoid scale.

3. Put the tank back in place to restart operation.

NOTE: Do not move or damage the floating buoy of the water tank, otherwise the machine will not work properly or cause other unnecessary faults. CLEANING Before cleaning the Dehumidifier, turn it off and unplug it from the power outlet. Use a soft cloth to clean the surface and a brush to remove any dust left in the air inlet and outlet slots.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU. GUARANTEE This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/ For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our websiteDH 650
