USER MANUAL 603INT BELLING

Your new appliance comes with our 24-month guarantee, protecting you against electrical and mechanical breakdown. Register online or by phone. For full terms & conditions of the manufacturer's guarantee, please refer to the website above. Our policy is one of the constant development and improvement, therefore we cannot guarantee the strict accuracy of all our illustrations and specifications. Changes may have been made after publishing.

(DE) Warranty

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance

The wire connection has to be done by specialised technician.

• The manufacturer shall not be held liable for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains voltage corresponds to the one indicated on the rating label affixed inside the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the exhaust flue using a pipe with a minimum diameter of 120 mm. The route of the flue must be as short as possible.

• All the air venting regulations must be complied with.
• Do not connect the hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the hood is used in conjunction with non electric appliances (e.g. gas), a sufficient degree of aeration must be guaranteed in the room to prevent any exhaust backflow. The negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.
• As regards the technical and safety measures to be taken for fume discharging, it is important that the regulations set by local authorities must be complied with.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...)

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves.

- Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of

cooking appliances.

- Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol on the product or on its packaging indicates that the product must not be treated as household waste. Disposed of at a specialist recycling centre for electrical and electronic components. By making sure that this product is correctly disposed, you will help prevent potential negative consequences for the environment and human health that might result from its improper disposal. For more detailed information on how to recycle this product, please contact your local council offices, local waste disposal service or the shop in which the product was purchased.

CONTROLS

BEL CHIM 603PYR

BEL CHIM 603T

BEL CHIM 803T

BUTTON	LED	FUNCTIONS
	On	Starts the motor at speed one
	-	Stops the motor
2	On	Starts the motor at speed two
3	On	Starts the motor at speed three
	-	Turns the lighting system on and off

Warning: Button T1 will switch the motor to speed 1 before stopping it.

BEL CHIM 603ANG

1 2 3i
Icon	FUNCTIONS
	Touch to turn the lighting system on and off.
	Delay: Suitable to complete elimination of residual odours. Long touch to activate automatic switch off with a 5 minutes delay. It can be activated any any time. When active the icon of the speed is blinking. Touch the blinking speed to disable.
1	Touch to start or stop the motor at speed one
2	Touch to start or stop the motor at speed two
3i	Touch to start the motor at speed three. Touch a second time to activate boost which will run for 6 minutes, after which the hood will turn off automatically. This function is suitable to dealing with maximum levels of cooking fumes. To disable, touch icon again.

BEL CANOPY 603INT

BUTTON	FUNCTIONS
L	Turns the lighting system on and off
V	Slide to set the speed:0: Motor off1: Low, used for continuous and silent air change in the presence of light cooking vapour2: Medium, suitable for most operating conditions3. Maximum: used for removing highest cooking vapour emission, including long periods

USE

• The extractor hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave naked flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not engulf the sides.
• Deep-fryers must be kept under constant supervision when in use: overheated oil may catch fire.

CLEANING AND MAINTENANCE

The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or less in the case of intensive use. See below diagrams on how to install the charcoal filters.

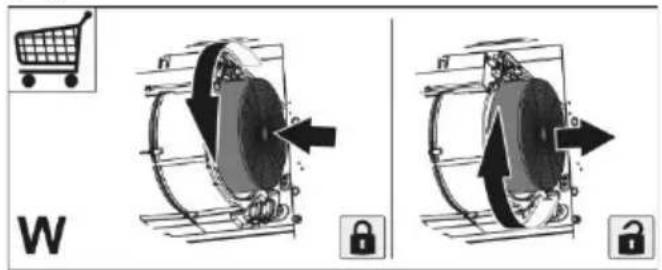

(W): BEL CHIM 603PYR / 603ANG

W Lock

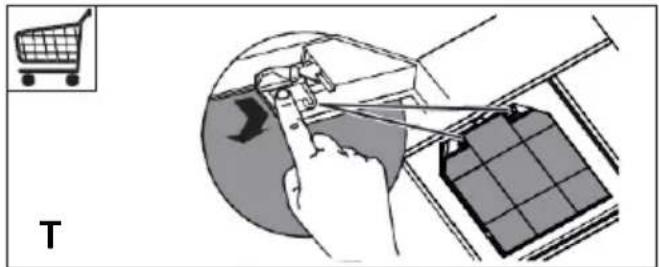

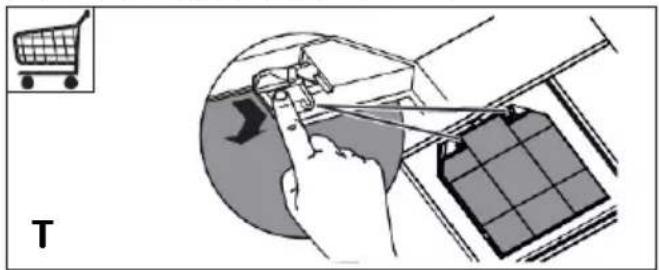

(T): BEL CHIM 603T / 803T

Illustration of a hand using a tool to install a solar panel, with an inset showing a shopping cart (no text or symbols)

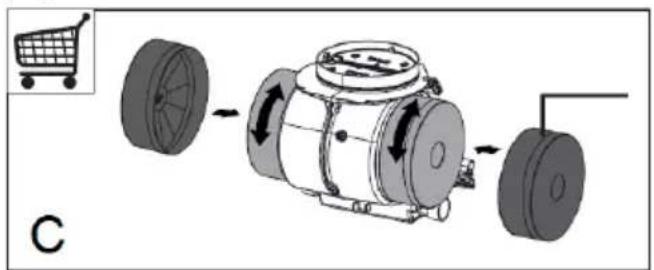

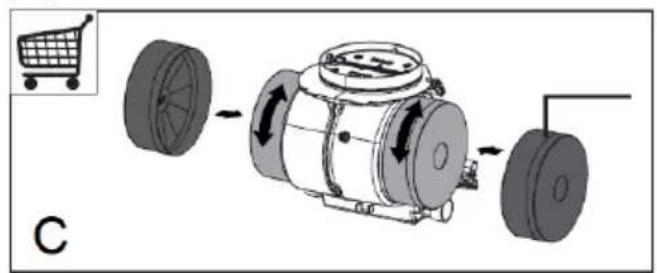

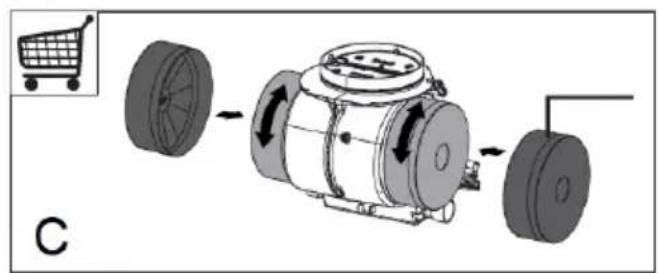

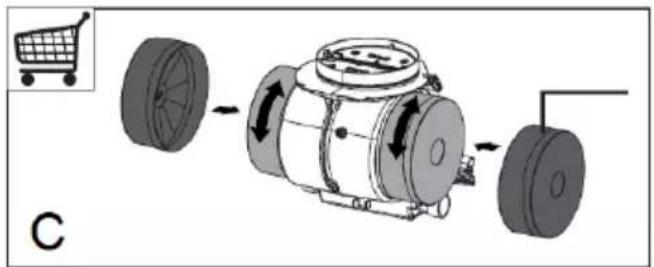

(C): BEL CANOPY 603INT

Diagram of a mechanical device with wheels and a shopping cart inset (no text or symbols)

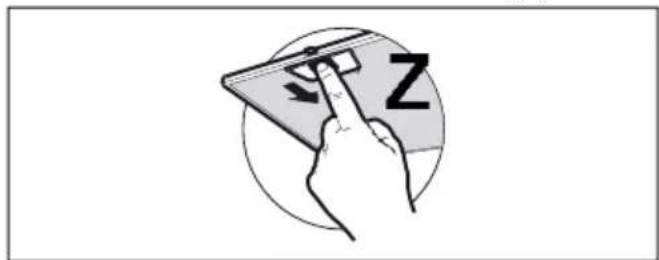

- The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

Illustration of a hand interacting with a smartphone displaying a 'Z' symbol (no text or symbols on the device itself)

- Clean the hood using a damp cloth and neutral liquid detergent

LIGHTING

• Replacement parts can be obtained from our Customer Care (details at the beginning of the handbook)
• Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and in exempt from risk group under IEC/EN62471 at a distance of 30cm.

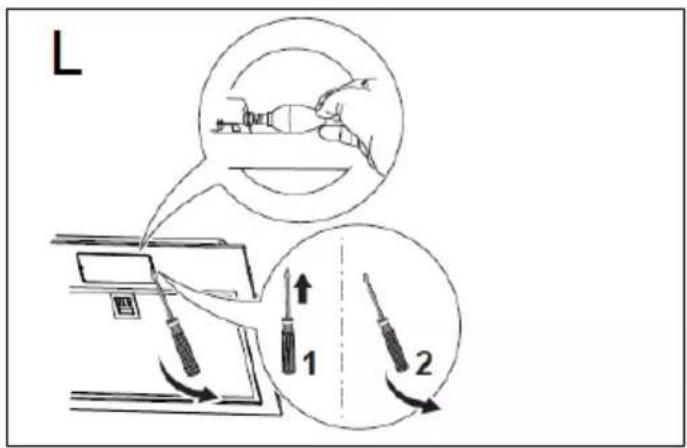

• BEL CHIM 603PYR: refer to (L) to remove cover that protects the

lamp.

- Be careful of sharp edges when changing the light bulb.

L 1 2

TECHNICAL DATA

		BEL CHIM 603PYR	BEL CHIM 603T BEL CHIM 803T
Electricity Supply		230 – 240V ~ 50/60Hz
Classification		Class I
Noise Level (External Venting)
Boost	(dBA)	N/A	N/A
Position 3	(dBA)	63	65
Position 1	(dBA)	45	46
Motor Rating (W)		160	160
Grease Filters		2	2
Carbon Filters		1*	1*
Extraction rate (External Venting)
Boost	(m3/h)	N/A	N/A
Position 3	(m3/h)	600	580
Position 1	(m3/h)	260	250

		BEL CHIM 603ANG	BEL CANOPY 603INT
Electricity Supply		230 – 240V ~ 50/60Hz
Classification		Class I
Noise Level (External Venting)
Boost	(dBA)	67	N/A
Position 3	(dBA)	64	70
Position 1	(dBA)	51	54
Motor Rating (W)		160	110
Grease Filters		2 of aluminium	1 of aluminium
Carbon Filters		1*	2*
Extraction rate (External Venting)
Boost	(m3/h)	710	N/A
Position 3	(m3/h)	640	390
Position 1	(m3/h)	67	180

*The carbon filters are available as spare parts. Please contact our after sales team for more details.

Illustration of a hand using a tool to adjust or install a solar panel, with a shopping cart icon in the corner (no text or symbols)

(C): BEL CANOPY 603INT

Diagram illustrating a mechanical assembly with labeled components and directional arrows, including a shopping cart icon.

Illustration of a hand holding a smartphone with a finger, enclosed in a circular frame (no text or symbols)

Diagram illustrating a tool application process with labeled steps 1 and 2, showing tool movement and assembly.

TECHNISCHE DATEN

		BEL CHIM 603PYR	BEL CHIM 603T BEL CHIM 803T
Stromversorgung		230 – 240V ~ 50/60Hz
Schutzklasse		Klasse I
Lärmpegel (externer Abzug)
Boost	(dBA)	N/A	N/A
Position 3	(dBA)	63	65
Position 1	(dBA)	45	46
Nennleistung Motor (W)		160	160
Fettfilter		2	2
Kohlefilter		1*	1*
Abzugsrate (extern)
Boost	(m3/h)	N/A	N/A
Position 3	(m3/h)	600	580
Position 1	(m3/h)	260	250

		BEL CHIM 603ANG	BEL CANOPY 603INT
Stromversorgung		230 – 240V ~ 50/60Hz
Schutzklasse		Class I
Lärmpegel (externer Abzug)
Boost	(dBA)	67	N/A
Position 3	(dBA)	64	70
Position 1	(dBA)	51	54
Nennleistung Motor (W)		160	110
Fettfilter		2 of aluminium	1 of aluminium
Kohlefilter		1*	2*
Abzugsrate (extern)
Boost	(m3/h)	710	N/A
Position 3	(m3/h)	640	390
Position 1	(m3/h)	67	180
