Cookcentre 110T - Basket BELLING - Free user manual and instructions

Product type	Decorative extractor hood
Brand	Belling
Model	Cookcentre 110T
Power supply	230 - 240 V ~ 50/60 Hz
Electrical class	Class II
Motor power	160 W
Noise level (position 1)	46 dBA
Noise level (position 3)	65 dBA
Extraction rate (position 1)	250 m³/h
Extraction rate (position 3)	580 m³/h
Number of speeds	3 speeds + stop
Controls	Push buttons with LED
Lighting	LED, risk group 1 at 20 cm
Grease filters	4 aluminium panels, dishwasher safe
Charcoal filters	2 pieces, replaceable (approx. every 4 months)
Minimum safety distance (cooking hob)	650 mm
Minimum diameter of exhaust duct	120 mm
Use	Domestic use only
Maintenance	Clean with damp cloth and neutral detergent
Warranty	24 months
Weight	Not provided

Frequently Asked Questions - Cookcentre 110T BELLING

What is the minimum distance between the hob and the hood?

The minimum safety distance is 650 mm. If the gas hob manual specifies a greater distance, that takes precedence.

How to clean the grease filters?

The aluminium grease filters should be cleaned every 2 months of operation (or more often if used intensively). They can be washed in the dishwasher.

When should the charcoal filter be replaced?

The activated charcoal filter cannot be washed and should be replaced approximately every 4 months or more frequently with heavy use.

What speeds are available and how to use them?

The hood has 3 speeds (buttons 1, 2, 3) and a stop. Button T1 always goes to first speed before stopping the motor. The light turns on/off with a separate button.

Can I use the hood with a gas cooker?

Yes, but ensure adequate ventilation of the room to prevent backflow of combustion gases. The negative pressure must not exceed 0.04 mbar.

What if the power cord is damaged?

The cord must be replaced by the manufacturer or an authorized technician to avoid any danger.

Is the hood suitable for external extraction?

Yes, the extraction rate is given for external extraction. The duct must have a minimum diameter of 120 mm and be as short as possible.

Can I install the hood myself?

The electrical installation must be carried out by a qualified technician. Strictly follow local regulations and the safety distance.

How to maintain the LED lighting?

Replacement LED lamps are available from customer service. They belong to risk group 1 according to IEC/EN62471.

What to do in case of malfunction?

First consult the full manual. If the problem persists, contact after-sales service. Do not attempt to repair it yourself.

USER MANUAL Cookcentre 110T BELLING

Isometric line drawing of a vertical cylindrical device mounted on a base platform (no text or symbols)

EN USER MANUAL

Your new appliance comes with our 24-month guarantee, protecting you against electrical and mechanical breakdown. Register online or by phone. For full terms & conditions of the manufacturer's guarantee, please refer to the website above. Our policy is one of the constant development and improvement, therefore we cannot guarantee the strict accuracy of all our illustrations and specifications. Changes may have been made after publishing.

(DE) Warranty

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance

The wire connection has to be done by specialised technician.

• The manufacturer shall not be held liable for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains voltage corresponds to the one indicated on the rating label affixed inside the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the exhaust flue using a pipe with a minimum diameter of 120 mm. The route of the flue must be as short as possible.

• All the air venting regulations must be complied with.
• Do not connect the hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the hood is used in conjunction with non electric appliances (e.g. gas), a sufficient degree of aeration must be guaranteed in the room to prevent any exhaust backflow. The negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.
• As regards the technical and safety measures to be taken for fume discharging, it is important that the regulations set by local authorities must be complied with.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...)

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves.

- Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and

instructed.

⚠️ Accessible parts may become extremely hot during the use of cooking appliances.

- Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol on the product or on its packaging indicates that the product must not be treated as household waste. Disposed of at a specialist recycling centre for electrical and electronic components. By making sure that this product is correctly disposed, you will help prevent potential negative consequences for the environment and human health that might result from its improper disposal. For more detailed information on how to recycle this product, please contact your local council offices, local waste disposal service or the shop in which the product was purchased.

CONTROLS

BUTTON	LED	FUNCTIONS
	On	Starts the motor at speed one
	-	Stops the motor
2	On	Starts the motor at speed two
3	On	Starts the motor at speed three
	-	Turns the lighting system on and off

Warning: Button T1 will switch the motor to speed 1 before stopping it.

USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave naked flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not engulf the sides.
• Deep-fryers must be kept under constant supervision when in use: overheated oil may catch fire.

CLEANING AND MAINTENANCE

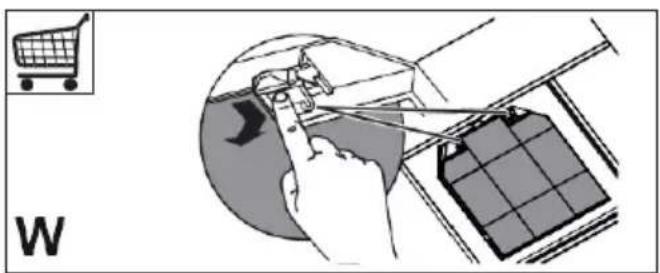

- The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or less in the case of intensive use (W).

W

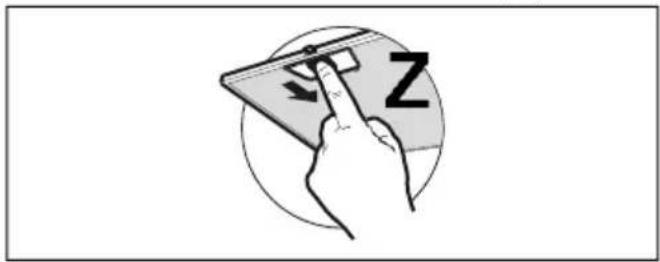

- The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

Illustration of a hand interacting with a smartphone displaying a 'Z' symbol (no text or symbols on the device itself)

- Clean the hood using a damp cloth and neutral liquid detergent

LIGHTING

• Replacement parts can be obtained from our Customer Care (details at the end of the handbook)
• Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and in exempt from risk group under IEC/EN62471 at a distance of 30cm.

TECHNICAL DATA

Electricity Supply

230 - 240V \~50/60Hz

Classification Class I

Noise Level (External Venting)

Position 3: 65 dB

Position 1: 46 dB

Motor Rating 160 W

Grease Filters

90cm & 100cm: 3 of aluminium panels

110cm: 4 aluminium panels

Carbon Filters 2 pcs (Available as Spares)

Extraction Rate

Position 3: 580 m ^3 /h

Position 1: 250 m ^3 /h
