USER MANUAL VA8215LR Atag

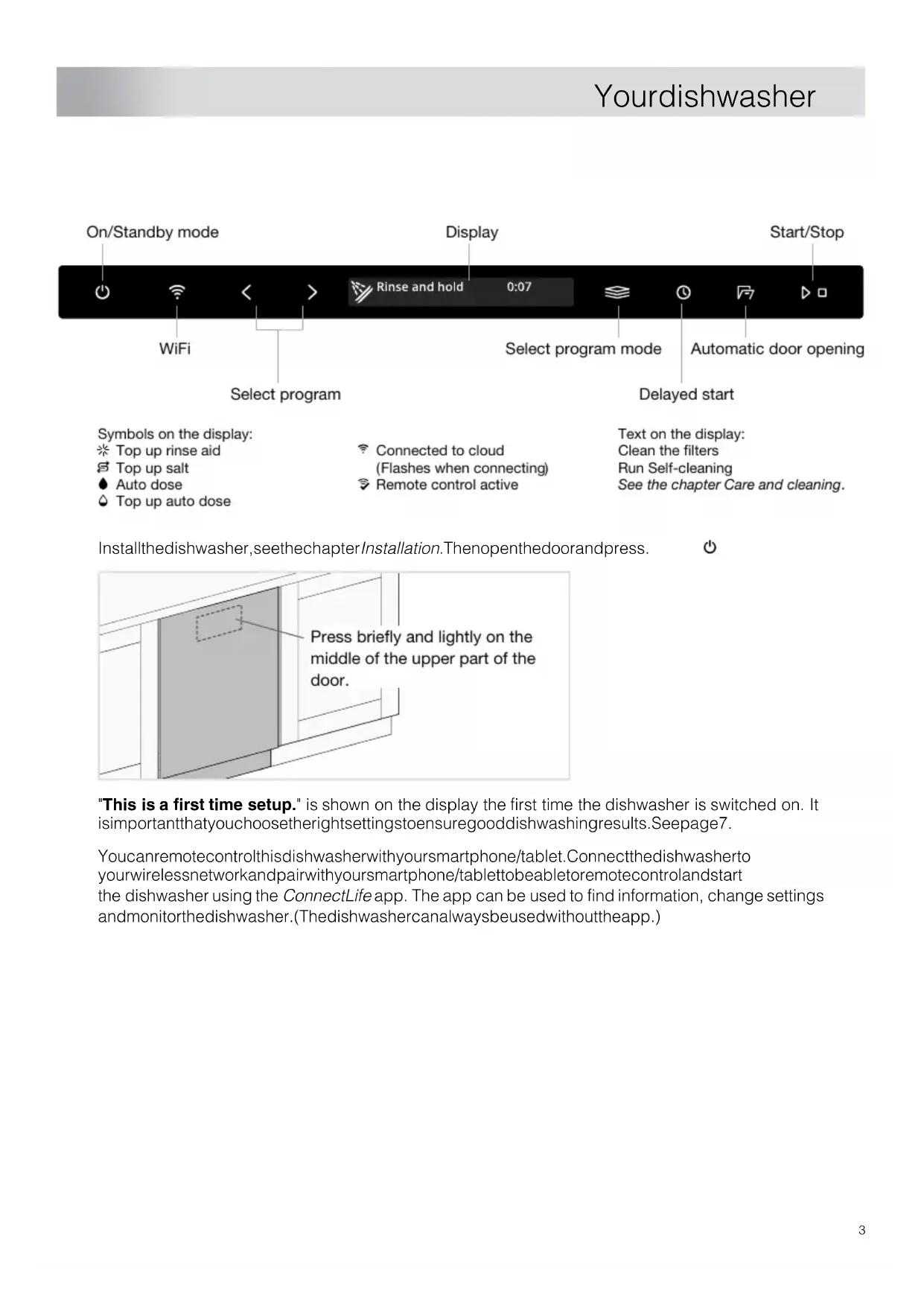

Your dishwasher• Read the user manual and keep it in a safe place!

• Number of standard place settings: 15

• Never use the dishwasher for any purpose other than that specified in these operating instructions.

• Do not load the dishwasher door or dishwasher baskets with anything other than dishes.

• Never leave the dishwasher door open as someone may trip on it. Push the baskets in to avoid risking the dishwasher tipping over.

• Use only dishwasher detergent!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Damaged supply cord must only be replaced by the manufacturer's service centre or someone similarly professionally qualified.

• Only use the dishwasher in household-type environments for dishwashing household dishes. All other use is prohibited.

• Never place dishes with solvent residues in the dishwasher due to the risk of explosion. Nor may dishes that contain ash, wax or lubricants be washed in the dishwasher.

• Children must be watched. Do not allow children to use or play with the dishwasher. Be especially vigilant when the door is open. Some detergent may remain inside! After adding detergent, always start the dishwasher immediately. WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.

Safety instructionsWARNING! Children must be supervised – dishwasher detergent is corrosive! Child lock You can activate the Automatic child lock setting to prevent children from starting the dishwasher. See the chapter Settings. You can also temporarily activate and deactivate the Child lock function. Press and hold and for three seconds. Installation See the chapter Installation. Overflow guard The overflow guard starts pumping out the water and turns off the water supply if the water level in the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling water) appears on the display. Turn off the water tap and contact your nearest service centre. (To avoid water leakage outside the dishwasher, do not remove the plug from the wall socket until the water tap on the supply line has been turned off!) Packaging The outer packaging protects the product during transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is comprised of:

• Corrugated cardboard made from up to 100% recycled material.

• Expanded polystyrene (EPS) with no added chlorine or fluorine.

• Supports made from untreated wood.

• Protective plastic made from polyethylene (PE). Disposal The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible. Remove the light source/light sources. Contact your local authority for information about where and how your dishwasher should be correctly recycled. Symbols on the appliance Read the user manual. Recycle as electrical waste. Approved in accordance with the relevant EU directives. Approved in accordance with the relevant UK legal requirements.

Safety instructionsNOTE! Follow the instructions carefully to avoid injury to persons and damage to property, and to maintain the warranty.

Safety instructionsWater hardness In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher. Checking water hardness Water hardness is specified using German degrees of water hardness (°dH), French degrees of water hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l). A water supply with a water hardness in excess of 5°dH (9°fH / 6°eH / 0.9 mmol/l) must be softened. This is done automatically with the aid of the built-in water softener. In order for the water softener to function properly, its settings must be adjusted to the hardness of the water supply. Once you have adjusted the water softener settings, add detergent and rinse aid in doses suitable for soft water. Contact the local waterworks to check the water hardness in your area. Make a note of the water hardness:____________ Recommended settingmmol/l°eH°fH°dH 00.0-0.90-60-90-5 11.0-1.47-1010-146-8 21.5-2.011-1415-209-11 32.1-2.515-1821-2512-14 42.6-3.419-2426-3415-19 53.5-4.325-3035-4320-24 64.4-5.231-3644-5225-29 75.3-7.037-4953-7030-39 87.1-8.850-6171-8840-49

If the water hardness exceeds 50°dH (89°fH / 62°eH / 8.9 mmol/l), we recommend connecting an external water softener. Increased consumption during regeneration The dishwasher's built-in water softener is regularly regenerated to maintain its function. Regeneration extends the dishwashing program and increases energy and water consumption. Just how often the dishwasher's water softener is regenerated depends on the selected setting. Example: If the Eco program is run with a water hardness of 14°dH (25°fH / 18°eH / 2.5 mmol/l), the water softener is regenerated at regular intervals (after 7 dishwashing cycles), energy consumption increases by 0.015 kWh, and water consumption increases by 2.3 litres, while the program time is extended by 3 minutes. Regeneration takes place during the program’s main wash.

Before washing for the first timeWARNING! Hard water leaves a white coating on dishes and inside the dishwasher. It is therefore important that you select the right setting for the water softener! See Water hardness. Never run the dishwasher with an empty salt compartment if the water supply has a water hardness in excess of 5°dH (9°fH / 6°eH / 0.9 mmol/l). Basic settings Open the door. Press . "This is a first time setup." is shown on the display. It is important that you choose the right settings to ensure good dishwashing results. Select setting with or . Confirm selected setting with . Settings Select the language to be shown on the display.Language1. Drying is faster and a better result is achieved if you use rinse aid. You will also achieve a better dishwashing result with clear and spotless dishes. Rinse aid 0/1/2/3/4/5 Pre-selected at factory: 4

The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage). Adjusting the water softener. Select a setting depending on the hardness of the water supply. It is important that this setting is correct! Water hardness 0/1/2/3/4/5/6/7/8/9 Pre-selected at factory: 4

For a water supply with a hardness above 5 °dH (9 °fH / 6 °eH / 0.9 mmol/l), fill with salt. For a water supply with a hardness below 6°dH (10°fH / 7°eH / 1.0 mmol/l), select 0. The water softener is deactivated and no salt needs to be added. Activate the setting when using all-in-one detergent containing rinse aid. (Also applies to dishwasher detergent gel for automatic dosing that contains rinse aid.) TAB On/Off (All-in-one detergent) Pre-selected at factory: Off

This setting reduces the rinse aid dosage and affects how often the dishwasher's built-in softener is regenerated. Activate this setting if you want to use automatic dosing of detergent. Auto dose Off, 15-40 ml Pre-selected at factory: Off

The exact dosage depends on which program is running. For the Auto program, the dosage also depends on how dirty the dishes are. To change the selected setting, see the chapter Settings.
