Product Type	Solar panel for security cameras
Brand	eufy
Model	T8700 (Solar Panel Charger)
Compatibility	eufyCam 1, 2, 2 Pro, 2C, 2C Pro, eufyCam E, eufyCam Solo
Power Supply	Solar energy (direct sunlight)
Output Voltage	Standard USB (5V)
Cable Length	Approximately 4 meters
Recommended Tilt Angle	30°
Recommended Orientation	South (Northern Hemisphere) / North (Southern Hemisphere)
Mounting	360° mounting bracket included, screws to wall or roof
Included Accessories	1 solar panel, 1 mounting bracket, 1 bag of screws, 4 camera adapters, 1 quick start guide
Sealing Gasket	Yes, for moisture protection
Setup App	eufy Security (iOS/Android)
Firmware Update	Via the eufy Security app
Maintenance	Regular cleaning to remove dust and debris
Usage Conditions	Designed for outdoor use
Certification	Complies with Industry Canada CNR, Class B, NMB-003
RF Safety	Maintain a distance of 20 cm from the body
Repairability	Not user-serviceable (no spare parts available)
Warranty	Not specified (check with retailer)

Frequently Asked Questions - Solar Panel Charger for eufyCams eufy

How to install the solar panel?

First, attach the mounting bracket to a wall or roof using the provided screws. Then screw the solar panel onto the bracket. Make sure it is securely fastened and orient it towards the south (Northern Hemisphere) with a tilt angle of 30° for maximum sun exposure.

How to connect the solar panel to my eufyCam camera?

Choose the appropriate adapter for your camera model. Slide the sealing gasket over the USB connector, plug it into the camera's USB port, then secure the gasket to protect from moisture. For eufyCam 1/2/2 Pro models, screw the threaded bolt into the mounting bracket.

What is the maximum distance between the solar panel and the camera?

The solar panel and camera must be within a maximum distance of 4 meters from each other. Route the cable along the center of the panel to avoid tangles.

How to orient the panel for maximum efficiency?

For optimal efficiency, orient the panel towards the south if you are in the Northern Hemisphere, or towards the north if you are in the Southern Hemisphere. Tilt it at a 30° angle and choose a location that receives the best possible sunlight throughout the year.

What to do if the solar panel is not charging my camera?

First, check that the panel is correctly oriented and exposed to direct sunlight. Make sure the USB cable is properly connected and the sealing gasket is in place. In the eufy Security app, go to Camera Settings > Power Manager > Power Source and select "Solar Panel". Also check that the firmware is up to date.

How to set up the app for the solar panel?

Open the eufy Security app, go to Camera Settings > Device Info > Check Camera Firmware to update the firmware. Then go to Camera Settings > Power Manager > Power Source and select "Solar Panel". The setup is complete.

Is the solar panel waterproof?

Yes, the solar panel is designed for outdoor use and comes with a sealing gasket to protect the USB connection from moisture. However, for maximum durability, avoid submerging it in water.

Can I use the solar panel with cameras other than eufyCam?

The solar panel is specifically designed for eufyCam series cameras (1, 2, 2 Pro, 2C, 2C Pro, eufyCam E, eufyCam Solo). Use with other brands is not guaranteed.

How to clean the solar panel?

Regularly wipe the panel surface with a soft, damp cloth to remove dust and debris that could reduce solar capture efficiency. Do not use abrasive products.

Does the panel work in cloudy weather?

The solar panel produces less energy in cloudy weather or low sunlight. It is designed to work primarily in direct sunlight. In cloudy weather, the camera will use its internal battery, but the panel will continue to provide a trickle charge if brightness is sufficient.

USER MANUAL Solar Panel Charger for eufyCams eufy

Solar Panel Charger for eufyCams

Line drawing of a simple rectangular object mounted on a cylindrical base (no text or symbols)

Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

51005002461 V01

English 01

Deutsch 12

Español 20

Français 28

Italiano 36

Nederlands 44

Português 52

لعرّبية 60

TABLE OF CONTENTS

01 What's in the Box

01 How the Solar Panel Works

02 Positioning the Solar Panel

03 Installing the Solar Panel

04 Connecting the Solar Panel to eufyCam

07 Setting Up the System

08 Notice

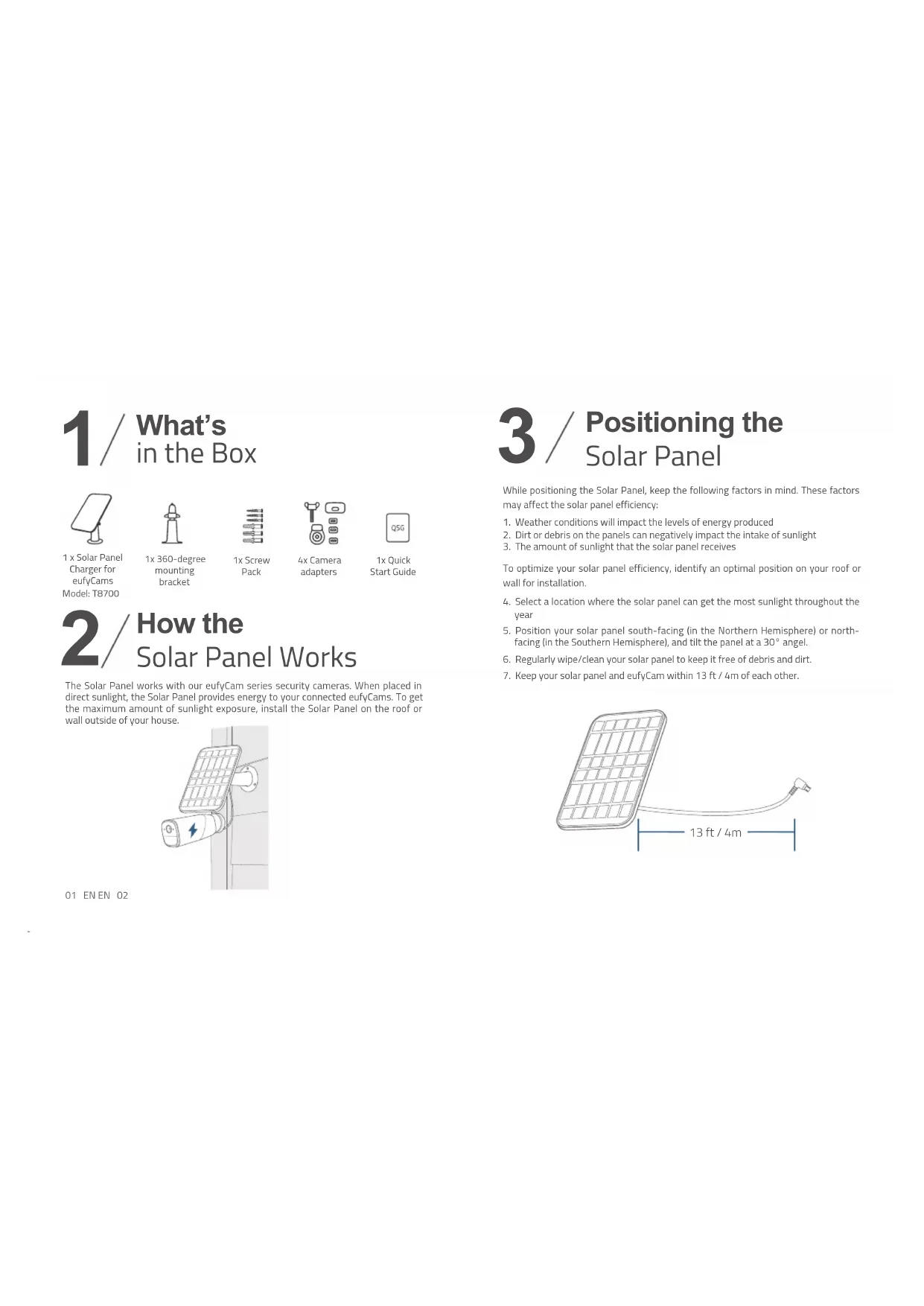

1 / What's in the Box

1 x Solar Panel Charger for eufyCams Model: T8700

1x 360-degree mounting bracket

1x Screw Pack

4x Camera adapters

1x Quick Start Guide

2/ How the Solar Panel Works

The Solar Panel works with our eufyCam series security cameras. When placed in direct sunlight, the Solar Panel provides energy to your connected eufyCams. To get the maximum amount of sunlight exposure, install the Solar Panel on the roof or wall outside of your house.

Diagram of a smart lock with a power plug and battery symbol (no text or labels)

01 EN EN 02

3 / Positioning the Solar Panel

While positioning the Solar Panel, keep the following factors in mind. These factors may affect the solar panel efficiency:

1. Weather conditions will impact the levels of energy produced
2. Dirt or debris on the panels can negatively impact the intake of sunlight
3. The amount of sunlight that the solar panel receives

To optimize your solar panel efficiency, identify an optimal position on your roof or wall for installation.

1. Select a location where the solar panel can get the most sunlight throughout the year
2. Position your solar panel south-facing (in the Northern Hemisphere) or north-facing (in the Southern Hemisphere), and tilt the panel at a 30° angel.
3. Regularly wipe/clean your solar panel to keep it free of debris and dirt.
4. Keep your solar panel and eufyCam within 13 ft / 4m of each other.

Line drawing of a solar panel with a cable and connector, dimension标注 13 ft/4m (no text or symbols on the diagram itself)

4/ Installing the Solar Panel

Before installing the Solar Panel, take down your eufyCam from the wall.

1. Place the mounting bracket against a wall or roof and secure it with the included screws.
2. For walls or roofs that are made out of hard materials such as concrete, brick, or stucco, insert anchors first.
3. Anchors are not needed for wooden walls or roofs.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

1. Screw the Solar Panel to the mounting bracket and make sure it is well secured.
2. Angle the Solar Panel on the mounting bracket to receive the largest amount of sunlight. A 30° tilt is recommended.

Diagram showing three types of household appliances: a fan, a mirror, and a sun, with no visible text or symbols.

03 EN EN 04

5 / Connecting the Solar Panel to eufyCam

Select the appropriate installation package for your eufyCam.

1. If you own a eufyCam 1 / 2 / 2 Pro, ensure it is using the screw mounting bracket rather than a magnetic one.
2. Use the waterproof gasket as support when connecting the solar panel to your camera. The gasket protects your camera from exposed moisture and other elements that may damage the camera.
3. For eufyCam 1 / 2 / 2 Pro:

① Slide the waterproof gasket onto the USB connector of the Solar Panel cable.
② Plug the USB connector into the USB port of eufyCam 1 / 2 / 2 Pro.
③ Cover the waterproof bracket and then screw the thread bolt into the mounting screw slot.

1. For eufyCam 2C / 2C Pro / eufyCam E:

① Slide the respective waterproof gasket onto the USB connector of the Solar Panel cable.
② Plug the USB connector into the USB port of eufyCam 2C / 2C Pro / eufyCam E.

1

2

Line drawing of a device with an open socket connected to a plug, showing internal components (no text or symbols)

1. For eufyCam Solo:

① Open eufyCam Solo's back panel and follow the direction the arrow key indicates. Align the waterproof gasket for eufyCam Solo with the USB port and press it in to attach.
② Plug the USB connector into the USB port of eufyCam Solo.

1

2

Line drawing of a device with an inset showing a close-up of a small object (no text or symbols)

1. Screw the mounting bracket for eufyCam into the mounting slot of your camera, and angle the mount to get the desired field of view.
2. Route the extension cable along the solar panel hub to avoid tangling cables.

Simple line drawing of a vertical cylindrical object with a connector attached, no text or symbols present.

Note:

1. Make sure the USB connector is fully plugged into the camera.
2. Make sure you follow the user manual to install the Solar Panel correctly.
3. Make sure the waterproof gasket and other accessories can protect the connectors on your camera.

6/ Setting Up the System

1. Update your eufy Security app from the App Store (iOS devices running version 10.2 and later versions) or Google Play (Android devices running version 5.0 and later versions). Make sure it has been updated to the latest version.

1. Open the eufy Security app, go to Camera Settings > Device Info > Check for camera firmware to update your eufyCam firmware.
2. Go to Camera Settings > Power Manager > Power Source. Tap Power Source and select Solar Panel.

You're done! Your Solar Panel is set up.

7/ Notice

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/ TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

The following importer is the responsible party

Company Name: POWER MOBILE LIFE, LLC

Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-5541

Telephone:[phone]

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site: https://www.eufylife.com/.

This product can be used across EU member states.

Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for T8700 and accessories is -20^ - 45^ .

When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5^ C\~ 25^ C.

Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the device and the guarantee article.

This charger is for indoor use only.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintains a 20cm distance between the device and human body.

Anker Technology (UK) Ltd, Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom

This product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

IC Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device."

This Class B digital apparatus complies with Canadian ICES-003.

When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.

Diagram of a surveillance camera mounted on a wall-mounted device (no text or symbols visible)

Diagram of a solar panel connected to a cable with a 13 ft/4m length label (no text or symbols on the diagram itself)

13 DEDE 14

Pure mechanical diagram of a pulley system without any text, numbers, or symbols

Diagram showing solar heating system with fan, sun, and cooling tower (no text or labels)

Technical line drawings of mechanical components, including a drill bit and motor assembly (no text or labels)

1. eufyCam 2C / 2C Pro / eufyCam E:

Line drawing of a device with an attached plug and a close-up inset showing a small object (no text or symbols)

1. eufyCam Solo:

Line drawing of a plug inserted into a socket with an inset showing a connector detail (no text or symbols)

Simple line drawing of a vertical tube with a connector attached, no text or symbols present

Hinweis:

Diagram of a battery mounted on a wall, showing internal grid structure and a lightning bolt symbol (no text or labels)

Line drawing of a solar panel connected to a cable with a 13 ft/4m scale (no text or symbols on the diagram itself)

21 ES ES 22

Pure mechanical diagram of a pulley system without any text, numbers, or symbols

Line drawing of a device with an attached plug and a close-up inset showing internal components (no text or symbols)

Line drawing of a door handle with a magnified inset showing a device (no text or symbols)

Simple line drawing of a vertical cylindrical object with a small protrusion attached to the left side (no text or symbols)

Nota:

Diagram of a smart security camera mounted on a wall, showing sensor array and battery (no text or symbols)

Diagram of a solar panel connected to a cable with a 13 ft/4m length label (no text or symbols on the diagram itself)

29 FR FR 30

Pure diagram of a light bulb with internal components and directional arrows, no text or symbols present

Line drawing of a device with an open socket connected to a plug, showing a close-up inset (no text or symbols)

Line drawing of a door handle with a magnified inset showing a small object inside (no text or symbols)

Simple line drawing of a vertical tube with a connector attached, no text or symbols present

Remarque :

Diagram of a smart security camera mounted on a wall, showing no text or symbols

Diagram of a solar panel connected to a cable with a 13 ft/4m scale indicator (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with labeled parts (no text or symbols)

Diagram showing solar panels, wind direction indicators, and a mechanical component (no text or labels)

Technical line drawings of mechanical components, including a tool, valve, and plug assembly (no text or labels)

1. Per le telecamere eufyCam 2C / 2C Pro / eufyCam E:

Line drawing of a device with an inset showing a close-up of a small component (no text or symbols)

Line drawing of a door with an arrow pointing to a small object inside, no text or symbols present

Simple line drawing of a vertical tube with a connector attached, no text or symbols present

Nota:

Diagram of a smart security camera mounted on a wall-mounted device (no text or symbols visible)

Line drawing of a solar panel connected to a cable with a 13 ft/4m length label (no text or symbols on the diagram itself)

45 NE NE 46

Pure mechanical diagram of a pulley or belt drive system without any text, labels, or symbols

Diagram showing solar panels and a sun, illustrating the installation of a solar panel (no text or symbols present)

Line drawing of a device with an attached plug and a close-up view of its internal components (no text or symbols)

1. Voor eufyCam Solo:

Line drawing of a car door with a magnified inset showing the seat detail (no text or symbols)

Simple line drawing of a vertical tube with a plug attached to the left side (no text or symbols)

Opmerking:

Diagram of a smart security camera mounted on a wall-mounted device (no text or symbols visible)

Diagram of a solar panel connected to a cable with a 13 ft/4m dimension label (no text or symbols on the diagram itself)

53 PTPT 54

4/ Instalar o Painel solar

Antes de instalar o Painel solar, retire a eufyCam da parede.

Pure mechanical component diagram without any text, numbers, or symbols

Diagram showing solar heating system with sun, sunlight, and mechanical components (no text or labels)

5/

Line drawing of a device with an attached plug and a close-up of its internal components (no text or symbols)

Line drawing of a device with a magnified inset showing a close-up of a device (no text or symbols)

Simple line drawing of a vertical tube with a connector attached, no text or symbols present

Nota:

61Market Outlook Awareness

Diagram of a smart security camera mounted on a wall-mounted device (no text or symbols visible)

AR 60

Diagram of a solar panel connected to a cable with a 13 ft/4m dimension label (no text or symbols on the diagram itself)

Diagram showing solar heating system with cooling tower, fan, and sunlight (no text or labels)

Technical line drawings of three different mechanical components with no visible text or symbols

Technical line drawings of a device with two views: one showing a plug and cable, the other showing a device with a plug inserted into a socket (no text or symbols present)

Simple line drawing of a vertical cylindrical device with a cable and connector (no text or symbols)

ملاحظة:

12-month limited warranty

12 Monate eingeschränkte Garantie | Garantía limitada de 12 meses

Garantie limitée de 12 mois | Garanzia limitata di 12 mesi | 12 maanden

beperkle garantie

[phone](United States) Mon-Fri 9AM-5PM (PT)

[phone](United Kingdom) Mon-Fri 6AM-11AM (GMT)

[phone](Germany) Mon-Fri 6:00-11:00

[phone] (Middle East & Africa) Sun-Thu 9:00 - 17:30 (GMT+4)

[phone] (UAE) Sun-Thu 9:00 - 17:30 (GMT+4)

[phone] (KSA) Sun-Thu 8:00 - 16:30 (GMT+3)

[phone] (Kuwait) Sun-Thu 8:00 - 16:30 (GMT+3)

[phone] (Egypt) Sun-Thu 7:00 - 15:30 (GMT+2)

Customer Support: [e-mail]

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong

Kong

@EufyOfficial @EufyOfficial @EufyOfficial
