Brand	G3 Ferrari
Model	Termo Boost G60028
Product type	Oil radiator with integrated fan heater
Number of heating elements	9
Power supply	220-240 V ~ 50-60 Hz
Maximum power	2250 W (radiator 1850 W + fan 400 W)
Available radiator powers	800 W / 1050 W / 1850 W
Fan heater power	400 W
Adjustable thermostat	Yes, with automatic shut-off when temperature is maintained
24-hour timer	Yes, with red selectors for shut-off periods
Operation lamp	Red, indicates the appliance is on
Overheat protection	Automatic shut-off in case of overheating
Castor wheels	Yes, 4 wheels mounted on 2 bars
Power cord hook	Yes, at the back
Recommended safety distance	0.5 m on each side; 1 m from walls, furniture, curtains
Minimum room area	4 m²
Oil type	Special oil, precise quantity (non-refillable by user)
Maintenance and cleaning	Unplug, wait for complete cooling; clean with damp sponge, dry with soft cloth
Child safety	Use by children >8 years under supervision; keep appliance and cord out of reach of <8 years
Country of origin	Italy (TREVIDEA SRL, Rimini)

Frequently Asked Questions - Termo Boost G60028 G3 Ferrari

How to assemble the wheels of the G3 Ferrari G60028 radiator?

Turn the appliance over, mount the 4 wheels on the 2 bars by inserting the axles into the holes and fixing with the nuts. Place each bar near the last external heating elements, fix with U-bolts and tighten the screws. Turn the appliance back upright.

What are the different operating modes available?

The function button (1) allows you to select: O (off), I (radiator 800 W), II (radiator 1050 W), III (radiator 1850 W), Fan icon (fan only 400 W), I + fan (400+800 W), II + fan (400+1050 W), III + fan (400+1850 W).

How to set the desired temperature?

Turn the thermostat knob (2) clockwise to increase the temperature. Once the room temperature is reached, slowly turn the knob counterclockwise until the appliance turns off; it will turn back on periodically to maintain that temperature.

How to use the 24-hour timer?

Align the timer pointer (7) with the current time. For hours when you want the appliance to be off, move the red selectors of the corresponding time segments towards the center. Each time you unplug the appliance, reset the pointer to the current time.

What to do if the appliance stops suddenly during use?

The appliance is equipped with overheat protection. Unplug it, remove any objects obstructing the ventilation slots, and let it cool completely (about 15 minutes). Then, plug it back in; it should work normally.

How to clean the G60028 radiator?

Unplug the appliance and wait for it to be completely cold. Do not immerse it in water. Clean the body with a slightly damp sponge, then dry with a soft dry cloth. Regularly clean the ventilation slots and heating elements to prevent dirt buildup.

What are the important safety instructions?

Never cover the appliance while operating (fire risk). Place it at least 0.5 m from surrounding objects and 1 m from walls, curtains, furniture. Do not use in a room smaller than 4 m². Always unplug after use and do not leave unattended. Do not use outdoors or in a humid environment.

Can I use an extension cord or adapter?

Yes, but only if they comply with current safety standards and do not exceed the maximum indicated power (2250 W). Do not use a damaged extension cord and do not let the cord hang within reach of children.

The appliance emits a burnt smell during first use, is this normal?

Yes, it is normal for a slight odor to occur during the first uses due to the heating of the oil and new components. Ensure good ventilation of the room. If the odor persists or becomes strong, unplug the appliance and contact after-sales service.

How to dispose of the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to an appropriate collection center (recycling center) for recycling. The oil inside must be disposed of in accordance with local regulations. Consult your local municipality for collection points.

USER MANUAL Termo Boost G60028 G3 Ferrari

Exterior view of a silver GPEYAN air conditioner tower with control knobs and ventilation slots (no visible text or symbols)

RADIATORE AD OLIO CON TERMOVENTILATORE OIL FILLED RADIATOR WITH FAN HEATER

TERMO BOOST

ITA: INDICE

Simbologia.... p. 2

Safety instructions p. 9

General information p. 12

G60028....p. 13

Assembly....p. 13

Control knobs p. 13

Operating.... p. 14

Timer.... p. 14

Cleaning.... p. 14

Technical features.... p. 14

Waste of electric and electronic equipment (WEEE

Directive).... p. 35

PORTUGUESE...... p. 15

DEUTSCH....p. 21

FRANCAIS p. 28

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

Caution: this symbol reminds the user that the part on which it is placed must not be covered in any way.

AVVERTENZE DI SICUREZZA

Diagram showing a curved arrow pointing from a row of vertical bars, with no text or symbols present.

Line drawing of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Diagram of a mechanical assembly with a hook and force arrows, no text or symbols present

MANOPOLE

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in

doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful

weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- Children must not play with the appliance.

- Children less than 3 years should be kept away from unit if not continuously supervised.

- Children between 3 and 8 years can only switch on and off appliance, only if it is placed or installed in its normal functioning position and if they receive supervision and instructions about safe use of the appliance, and understand relative dangers. Children between 3 and 8 years must not insert the plug, set or clean or make the maintenance of the appliance.

- CAUTION: some parts of this appliance can become very hot and cause skin burning. Pay big attention in presence of children or vulnerable persons.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Do not cover. Keep space on sides when using. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

- Do not subject the product to strong impacts, serious damages may result.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops,

offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

• Never leave the appliance unattended while it is running. Unplug it after each use.
• To unplug the unit, do not pull the power cord.
• The appliance must be connected to electrical ground by an earth conductor. Installation must be carried out properly before operating the equipment.
• Do not immerse the product in water or other liquids and avoid any splashing of liquids reaching the unit.
• Store the product only when it is completely cold.
• Before carrying out any cleaning operation, disconnect the plug from the electrical outlet and wait for the complete cooling of each part of the unit.
• Before each use, unroll the power cord completely.
• Place the unit on solid and stable surfaces. During use, place leave at least half a meter on each side of the unit.
  -Do not insert anything in the air holes. Not to obstruct them and place the unit half a meter from the surrounding objects. Pay attention: housing becomes hot during use.
• Do not use the unit near steam or water (sink, shower, toilet ...). Do not use as a shelf support for objects.
• Do not cover for any reason, subject to overheating.
• Do not use in rooms smaller than 4 square meters.
  The product is equipped with an automatic switch-off that comes into play in case of overheating. If the product fails

during use, check that the ventilation openings are not blocked, unplug the unit and allow to cool down for 15 minutes before operating.

WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

The appliance must not be placed immediately below a power outlet.

This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer of his service agent who should be contacted if there is an oil leakage. Regulations concerning the disposal of the oil when scrapping the appliance have to be followed.

Dispose of the oil in the radiator according to the specific national guidelines and EU regulations.

DESCRIPTION G60028

1 Function knob

5 Steering wheels

9 Integrated fan heater

2 Thermostat control knob

6 Cable reel

3 Handle

7 Timer

4 oil fins (9 elements)

8 Working light

ASSEMBLY

The oil radiator is supplied assembled except for the wheels, which should be installed by the user. Follow the directions below in order to complete installation. Remove radiator and all accessories from color-box. Remove all packaging materials (plastic bags, stickers, tags) from unit.

Diagram showing a hand pressing down on a curved object with arrows indicating motion (no text or symbols)

Line drawing of a battery with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a suspended component and force arrows, no text or symbols present

• Turn the product upside down as shown in Figure 1.
• Mount the 4 wheels to the 2 bars included, inserting the shafts of the wheels in the holes of the bars, and fixing with the nuts. Place the 2 bars near the last external heating elements (see Fig. 2 for reference).
• Fasten the bars to the unit using the two U bolts and tighten the unit carefully by using the provided screws (Fig. 3). Rotate the appliance again.

CONTROL KNOBS

Turn the temperature control knob (2) clockwise to increase the temperature to be reached before shutting off the heater. The function selection control knob (1) has the following modes:

O: means the unit is off

II: only oil heater medium power 1050W

I: only oil heater low power 800W

III: only oil heater high power 1850W

I: fan heater 400W + oil heater 800W

III: fan heater 400W + oil heater 1850W

OPERATION

CAUTION: This equipment is not protected from water. Do not use it outdoor, prevent leakage, humidity, splashes of water from reaching the unit. Place the unit at 1 meter (at least) from the walls, furniture, curtains, electrical appliances, plants and home accessories. Check that the power controls (1) and the thermostat control knob (2) are in "0" position before connecting the appliance to the electrical outlet.

Unwind the power cord and connect the plug to a compatible power outlet. To switch on:

○ Select the function mode with the knob (1).
- Set the timer (7) as described in next paragraph.
○ Rotate the thermostat knob (2) clockwise to the maximum level.

WARNING: Do not cover the appliance during use. Risk of fire!

Once you have finished using the unit, turn off the appliance with the knob (1). Then unplug the power cord from the wall outlet and roll it around the hook (7).

CAUTION: Wait until the product is completely cool before storing the unit.

TEMPERATURE SETTING

Operate the unit by switching the temperature control knob (2) to the highest position until the desired temperature in the room is reached. Turn the temperature control knob (2) counterclockwise until you turn off the product, then it will turn on periodically to maintain the temperature.

WORKING LIGHT

The unit is equipped with a red working lamp (8) which lights on when the appliance is running.

OVERHEATING PROTECTION DEVICE

If you cover the device or there is a malfunction, the product may overheat. A safety device will shut down the unit to prevent overheating. Remove anything blocking the ventilation slots and wait for the complete cooling of the unit, then the appliance works normally.

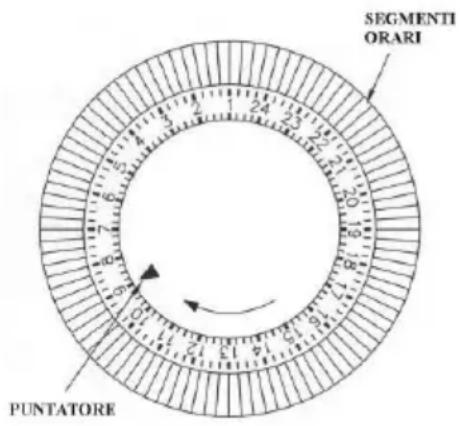

TIMER

The timer is always active, and controls the switch on and off of the appliance based on its setting

Once you set the desired temperature by adjusting the thermostat (refer to the "SETTING TEMPERATURE" paragraph), use the lever (10) to determine the hours of the day when you want to turn on the heater.

SEGMENTI ORARI PUNTATORE

1) Align the pointer drawn on the timer dial with the current time.
2) Set the hours of the day when you want the unit remains off, leading towards the center of the dial the red seats corresponding to the hours.
3) Every time you disconnect the unit, the pointer must be placed back on the current time.

CLEANING

Unplug the power cord from the electrical outlet and allow the unit to cool down before cleaning.

- Do not immerse the unit in water. In any case, avoid splashing of water or other liquids reaching the appliance. Do not clean with a sponge or abrasive cleaners as they may damage the unit body.

- Clean the main body with a slightly damp sponge and dry thoroughly all over with a soft dry cloth. Frequently clean the 2 ventilation slits at the sides of the product and the 9 heating elements (4) to prevent dirt from clogging the airflow.

TECHNICAL FEATURES

• Power supply: AC 220-240V \~ 50-60Hz. Power: 2250W
- Oil radiator with 9 heating elements and 3 power levels: 800/1050/1850W
- Integrated ceramic fan heater 400W
• Thermostat - Working lights – Timer 24 hours
• Steering wheels - Power cord hook

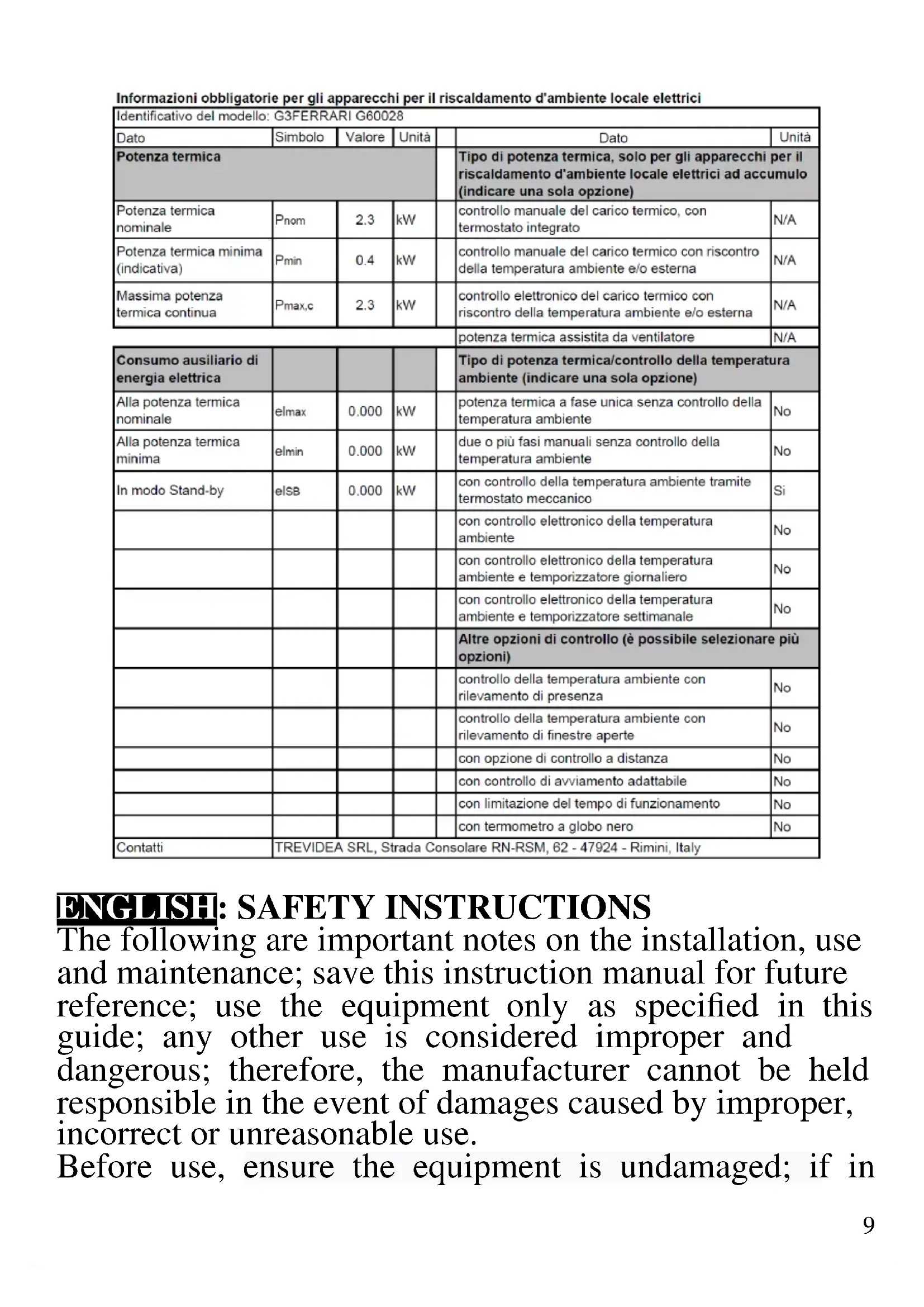

Information requirement for the electric local space heaters

Model identifier(s):G3FERRARI G60028
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2.3	kW		manual heat charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	Pmin	0.4	kW		manual heat charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	Pmax,c	2.3	kW		electronic heat charge control with room and/or outdoor temperature feedback	N/A
					fan assisted heat output	N/A
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	elmax	0.000	kW		single stage heat output and no room temperature control	No
At minimum heat output	elmin	0.000	kW		Two or more manual stages, no room temperature control	No
In standby mode	elsb	0.000	kW		with mechanic thermostat room temperature control	Yes
					with electronic room temperature control	No
					electronic room temperature control plus day timer	No
					electronic room temperature control plus week timer	No
					Other control options (multiple selections possible)
					room temperature control, with presence detection	No
					room temperature control, with open window detection	No
					with distance control option	No
					with adaptive start control	No
					with working time limitation	No
					with black bulb sensor	No
Contact details	TREVIDEA SRL, Strada Consolare RN-RSM, 62 - 47924 - Rimini, Italy

PORTUGUES: ADVERTÊNCIAS

Diagram showing a hand pressing down a curved arrow on a vertical structure (no text or symbols)

Simple line drawing of a battery with an open lid and internal circuit lines (no text or symbols)

Diagram of a mechanical device with a hanging component and internal components (no text or symbols)

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation

and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.
