201978 - Juicer NOVA - Free user manual and instructions

Product type	Electric citrus juicer (juice extractor for citrus fruits)
Power supply	220-240 V ~ 50 Hz
Power	Not specified (reasonable estimate: approximately 100 W)
Material of food contact parts	Food-safe plastic (BPA-free)
Pulp container capacity	Integrated, approximately 500 ml
Drip-stop function	Yes, swivel spout
Overheat protection	Yes, automatic shut-off with reset after cooling
Maximum continuous operating time	15 seconds, then pause of 10 minutes after 10 oranges
Cleaning	Dishwasher-safe removable parts; wipe body with a damp cloth
Safety	Do not immerse; use on a stable surface; supervision required
Minimum age of use	8 years (with supervision); cleaning by children aged 8 and older under supervision
Intended use	Household use only, for squeezing citrus fruits
Included accessories	Fruit dome, press cone, pulp strainer, container, press handle
After-sales service and spare parts	Available at http://service.nova-int.com
Recycling	Do not dispose of with household waste; deposit at WEEE collection point

Frequently Asked Questions - 201978 NOVA

How to use the Nova 201978 juice extractor?

Place a glass under the spout. Cut the citrus in half, place the half on the press cone and lower the handle. The motor starts automatically. Do not exceed 15 seconds of continuous operation.

Can I juice other fruits besides citrus?

No, this appliance is specifically designed for citrus fruits (oranges, lemons, grapefruits, etc.) only. Do not use it for other fruits.

How to clean the appliance?

Unplug the appliance before cleaning. The removable parts (dome, cone, strainer, container, handle) are dishwasher safe. Wipe the body with a damp cloth. Never immerse the motor unit.

What to do if the appliance stops suddenly?

The appliance is equipped with overheat protection. If the temperature is excessive, it shuts off automatically. Let it cool down for a few minutes; it will reset itself.

What is the required electrical voltage?

The appliance operates on a voltage of 220-240 V ~ 50 Hz. Check your outlet compatibility before use.

How long can I use the appliance continuously?

Do not operate the appliance for more than 15 seconds without interruption. After juicing about 10 oranges, allow a 10-minute break.

Are the parts dishwasher safe?

Yes, all removable parts (except the motor unit) are dishwasher safe. Use a gentle cycle.

How to get spare parts?

You can order spare parts on the official website: http://service.nova-int.com.

Is the appliance safe for children?

This appliance can be used by children aged 8 and older under supervision. Do not entrust cleaning to children under 8. Keep the appliance out of reach of younger children.

How to recycle the appliance at end of life?

Do not throw the appliance away with household waste. Deposit it at a WEEE collection point (Waste Electrical and Electronic Equipment).

USER MANUAL 201978 NOVA

Black and white photo of an orange juice organizer with a glass of orange juice beside it (no text or symbols visible)

BLACK STEEL JUICER

02.201978.01.001

PRINCESS

ONDERDELENBESCHRIJVING / PARTS DESCRIPTION / DESCRIPTION DES PIÈCES / TEILEBESCHREIBUNG / DESCRIPCIÓN DE LAS PIEZAS / DESCRIZIONE DELLE PARTI / DESCRICÃO DOS COMPONENTES / BESKRIVNING AV DELAR / OPIS CZĘŚCI / POPIS SOUČÁSTÍ / POPIS SÚČASTÍ

SAFETY

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
• The appliance must be placed on a stable, level surface.
• The user must not leave the appliance unattended while it is connected to the supply.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.
- To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Do not allow children to use the device without supervision.
- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Always disconnect the device from the supply if it is left unattended and before assembling, disassembling or cleaning.
- It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.
- This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments.
- By clients in hotels, motels and other residential type environments.
- Bed and breakfast type environments.

PRINCESS

Instruction manual

- Farm houses.

This product complies with conformity requirements of the applicable European regulations or directives.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local Authority or local store for recycling advice.

The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.

This symbol is used for marking materials intended to come into contact with food in the European Union as defined in regulation (EC) No 1935/2004.

The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste

management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.

The product and packaging materials are recyclable, subject to manufacturer responsibility. Dispose it separately, following the packaging symbols, for better waste treatment. The Triman logo France only.

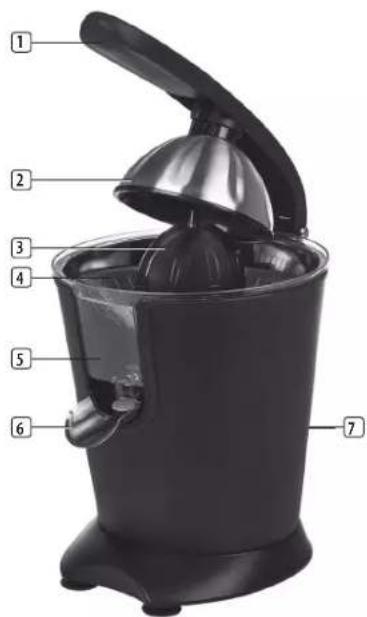

PARTS DESCRIPTION

1. Press handle
2. Fruit dome
3. Press cone
4. Pulp sieve
5. Reservoir
6. Juice spout
7. Motor Axis

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
- Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50/60Hz).
- Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.

USE

• As soon as the half citrus fruit is pressed onto the juice cone, the motor will be activated.
• Place a suitable glass under the spout of the reservoir. The spout can be pushed down to the juice to anticipate, and be folded up for the anti-drip feature. Do not exert too much pressure on the juice cone. If the sound of the motor increases significantly or the motor itself slows down dramatically, this means too much pressure has been exerted.
• Please do not run the juicer for longer than 15 seconds without interruption, please take a break for 10 minutes after pressing 10 pieces of oranges.
• Note that this appliance is equipped with an overheat protection which will turn of the device when the temperature gets too high. Once the appliance is cooled down, the thermostat will automatically be reset

CLEANING AND MAINTENANCE

• Unplug the appliance. Use a soft, slightly damp cloth to wipe appliance surfaces. Do not allow water or any other liquid to get into the unit.
• Components that have come into contact with food can be cleaned in soapy water.
• Do not use any abrasive detergent or steel wool to clean the appliance, as it may scratch the surfaces.
• The components are suitable for cleaning in a dishwasher.
• The pressure section of the handle can be easily assembled for cleaning.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at http://service.nova-int.com!
