Bidone Aspira Solidi e Liquidi Wet & Dry Vacuum cleaner

FUSTO 30L

ITA: INDICE

Simbologia....p. 2

Maintenance and cleaning.... p. 13

Storing....p. 13

Technical features....p. 14

Waste of electric and electronic equipment (WEEE

Directive) p. 26

PORTUGUES:....p. 14

FRANCAIS p. 19

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Three black-and-white illustrations showing different types of smoking methods: a device, a smokestack, and a knife (no text or symbols present)

Technical diagram of a vacuum cleaner with numbered parts for identification

Technical diagram showing exploded view of mechanical components with numbered parts labeled 11 to 16.

MONTAGGIO

Optional accessories

Funzione soffio

Technical line drawings of a mechanical component with two views (1 and 2), no text or symbols present.

SISTEMA DI PROTEZIONE DEL MOTORE

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.
• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
  If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.

- Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result.

Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

Do not vacuum sharp objects, liquids, flammable, explosive or hazardous to health materials, acids, bustible objects such as cigarettes or firebrands.

Three black-and-white illustrations depicting different smoking behaviors: a bandaged device, a cigarette with smoke, and a cigarette with a syringe (no text or symbols)

If you need to remove or change a filter, ensure to assemble it properly and that the filter is not wet or damp. In this case, wait for it to dry completely.

Do not expose the appliance to high temperatures and do not bring it closer to heat sources.

CAUTION: while the unit is running, do not approach the air inlet to ears, eyes, or to fragile items such as vases, tools or electronic equipment.

This vacuum cleaner is designed to clean floors or wet objects, do not use it to pump water or any liquid as it may be damaged.

Never leave the appliance unattended while it is running. Always use the power button to turn it on or off.

To avoid damages to the power cord, do not step on it.

In case of overheating, or if the unit produces smoke, smell or unusual noises, turn it off immediately and check that the pipe is free from obstacles. If the tube is free contact the service center to fix it.

Disconnect the plug from the electrical outlet immediately after each use. It is recommended to wind the power cord in order to ensure a better cleaning of it and to avoid any risk of damage.

Do not immerse the motor unit in water or other liquids; clean it with a damp cloth.

Do not turn it upside down especially when there are some liquids inside the container.

Do not use the unit without filters: this can seriously damage the motor avoiding the warranty.

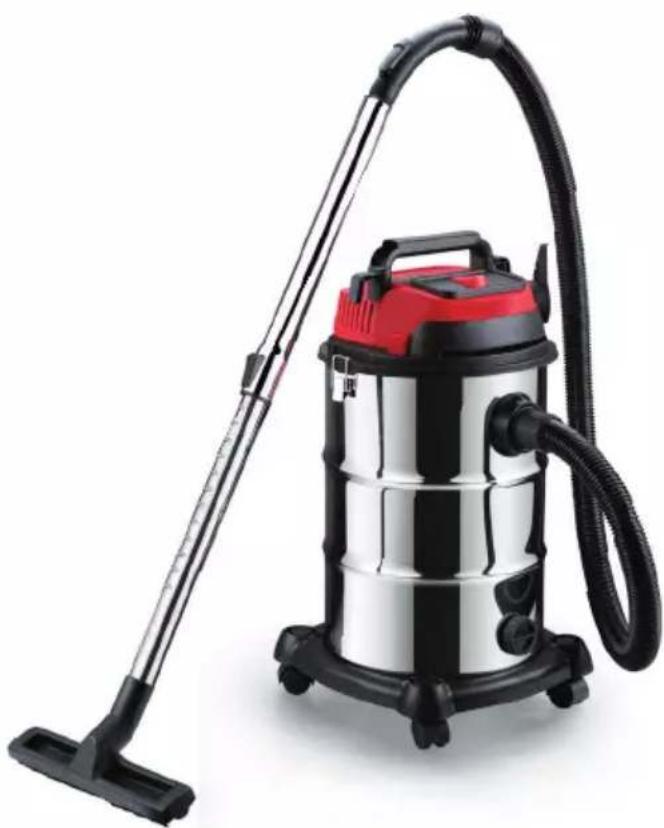

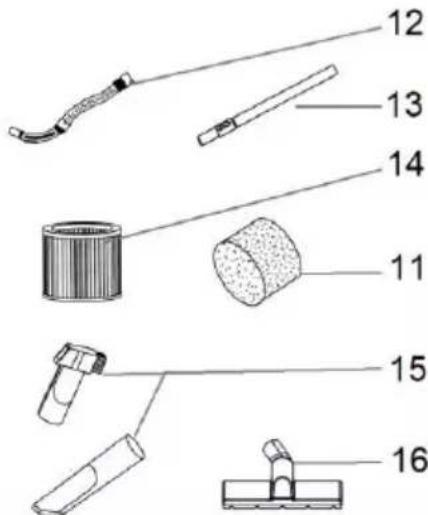

DESCRIPTION G90034

1 – Handle	2 – Motor unit/Cover	3 – Power button
4 – Air blowing	5 – Suction hole	6 – Stainless-steel tank
7 – Accessories housing	8 – Wheels	9 – Locking tabs
10 – Water drainage hole	11 – Sponge filter	12 – Flexible hose
13 – Telescopic tube	14 – HEPA filter	15 – Nozzles

16 - Floor brush

The spare part kit corresponding to model G90035 includes: 1 HEPA filter (14) and 1 sponge filter (11).

ASSEMBLING

Start assembling the unit only when the appliance is disconnected to the electrical outlet.

• Before use, it is necessary to assemble the appliance, do not connect it to the power outlet.
• Remove the motor unit (2) lowering the locking hinges (9) of the cover.
• Take out all the components and accessories which are stored inside the tank.
• Turn it upside down and mount the wheels supplied by entering their pins in the holes as shown on Figure 1.
• Mount one of the 2 filters, based on the operation you have to do:

○ In case of wet vacuuming, mount the sponge filter (11) to the cone at the bottom of the cover (2) of the unit.
○ In case of dry vacuuming, mount the HEPA filter (14). To do this, unscrew the fixing cap present in the lower part of filter-holding cone, then mount the filter pushing it to the end, and fix screwing the cap (Fig. 2).

- Place the cover (2) on the container (6) of the vacuum cleaner, aligning the hinges (9) with the notches on the lid and fasten the cover by closing hinges.

Assembling the accessories by following the steps below:

• Fit the flexible hose (12) into the suction hole (5) by pushing the end of the tube into the fill pipe and then turn it clockwise.
• Insert the telescopic tube (13) into the free end of the flexible hose (12).
• Insert the chosen tool, brush (16) or nozzle (15), at the end of the rigid tube.

OPERATING

Power on the unit Push the ON/OFF button (3) to switch on or off the unit.

Vacuum cleaner

Warning: This product is not suitable for suction of sharp or pointed objects, flammable, explosive or hazardous to health, acids, combustible objects such as cigarettes, burning embers, matches or ashes.

This vacuum cleaner includes two filters, which must be mounted properly.

• Sponge filter (11): it must be mounted on the cone at the bottom of cover / motor unit (2). For each use, make sure that the filter is mounted correctly, and that covers the entire surface of the cone.
• HEPA filter (14): it must be mounted on the cone at the bottom of cover / motor unit (2). For each use, make sure that the filter is mounted correctly.

For vacuuming on dry surfaces, mount ONLY the Hepa filter.

Technical line drawing of a mechanical component with multiple cylindrical parts and mounting holes (no text or symbols)

Technical illustration of a mechanical component with a cylindrical shaft and flanged housing (no text or symbols)

Optional accessories

For vacuuming on wet surfaces, mount ONLY the sponge filter.

Air blowing mode On the lid there is the air outlet (4). Simply get stuck on the hose to use the product as a blower, to move dirt from corners otherwise not accessible.

Setting the airflow

There is an opening on the handle of the flexible hose (12) which controls the airflow volume (see figure). Open or close the opening to set the desired suction power.

Water drainage

On the lower part of container there is an hole closed by a cap (10). It allows to empty the container when is full of water. Before opening it, go near a manhole for water drainage.

ACCESSORIES

Wet&Dry brush: use for vacuum cleaning on wet and dry floors and carpets as well

Nozzle: for corners, baseboards, small spaces, etc. ...

Mini-brush: for cleaning libraries, windows and vacuum crumbs.

MOTOR PROTECTION DEVICE

The motor is protected by a device, which comes into action when the water level inside the tank (6) is too high; or if the motor is overloaded due to a filling of the air flow (dirty filter, accessories blocked by an object, overflow). The activation of protection device causes a very loud noise. In this case, IMMEDIATELY turn off the power, unplug the unit and check the reason why the protective device has started:

• If the container is full, empty the container.
• If the filter is very dirty, clean it.
• If something blocks the attachment, remove the obstacle

MAINTENANCE AND CLEANING

MAINTENANCE

The filters should be cleaned periodically. In addition, the filtering efficiency can run out over time. It is advisable to replace the filter after 50 hours of use approx. Do not operate without filter. When one of the filters runs out or breaks, it must be replaced.

Always ask for original spare parts; the filters kit is model "G3Ferrari G90035".

HEPA FILTER (14) CLEANING

When the Hepa filter is dirty it should be washed to ensure good performances.

For a brief cleaning lightly beat it on a trash can. For a more thorough cleaning use compressed air or rinse with warm water. Caution: Do not use detergent to clean the filters, DRY THEM THOROUGHLY.

SPONGE FILTER (11) CLEANING

The sponge filter should be cleaned periodically. Remove it from the lid and rinse it in warm water for removing the dirt. At least partially dry it before assembling.

INNER TANK (6) CLEANING

It is recommended to empty the trash container before reaching the maximum capacity, as to prevent the engine from overheating. In any case, empty the tank when you hear a change in the sound emitted by the device. After having drained, directly rinse it with water to complete cleaning.

GENERAL CLEANING

Before carrying out any cleaning operation, make sure that the plug is disconnected from the electrical outlet.

Clean the body of the product with a damp non-abrasive cloth, avoiding the use of aggressive detergents or abrasive cleaners, which could ruin the aesthetic parts of the device. The cloth should not be too wet, because if the water penetrates into the motor unit can seriously damage it.

STORING THE UNIT

Wait until the complete cooling of each part. Disconnect the power plug, rewind the cable and hang it on the hook on the head of the product. Remove all accessories and stick them in the 4 slots on the base (7). In this way it is possible to store the product in a small space.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50-60Hz - Power: 1200W
- Tank capacity: 30 litres
• Accessories: flexible hose, telescopic tube, floor brush, 2 nozzles, 4 wheels, 2 filters.
• Motor protection device

PORTUGUES: ADVERTÊNCIAS

Three black-and-white line drawings depicting different workplace safety behaviors: a device with crossed arms, smoke, and a broken tool, and a broken tool with a cross (no text or symbols)

Optional accessories

Line drawing of a hand holding a pen or stylus, with arrows indicating movement direction (no text or symbols)

Illustration showing three scenes: a bed on a shelf, a cleaning cabinet with a tool, and a chair with a hand holding a tool (no text or symbols present)

Technical diagram of a mechanical component with two views: top shows a circular housing with multiple small components, bottom shows a cylindrical housing with mesh texture (no text or symbols)

Three black-and-white illustrations depicting smoking behaviors: a device with a cross, smoke, and a hand holding a cigarette (no text or symbols)

Technical line drawing of a mechanical component with multiple bolt holes and a central circular housing (no text or symbols)

Technical illustration of a mechanical component with no visible text or symbols

Optional transducer

Simple line drawing of a hand holding a pen or stylus, with no text or symbols present.

Three-panel line drawing showing a kitchen, a refrigerator with a spoon, and a person cleaning their arm (no text or symbols)

ENTRETIEN ET NETTOYAGE

ENTRETIEN

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
