Product Type	Electric Salt/Pepper Mill
Brand	Westfalia
Model	961188
Power Supply	6 LR03 (AAA) 1.5 V batteries
Rated Voltage	9 V
Protection Class	III
Dimensions	∅ 6.2 x 23.5 cm
Weight	347 g
Reservoir Capacity	Approximately 80% of container
Grinding Mechanism	Adjustable ceramic grinder
Grind Adjustment	Bottom knob: clockwise for finer, counterclockwise for coarser
Features	On/Off button, integrated light
Usage	For dry salt and pepper
Care and Cleaning	Clean the reservoir dry with a brush; exterior with a damp cloth; do not immerse
Safety	Do not immerse in water, do not recharge batteries, do not expose to heat or humidity
Spare Parts and Repairability	Drive unit not user-serviceable; contact customer service
Package Contents	Mill, instruction manual

Frequently Asked Questions - 961188 Westfalia

How to open the mill to insert batteries?

Hold the bottom part with one hand and turn the battery compartment cover counterclockwise to open the bayonet lock. Then pull the cover upwards.

How many batteries are needed and what type?

6 LR03 (AAA) 1.5 V batteries are required. Use only alkaline batteries.

How to adjust the grind of the mill?

Use the knurled screw at the bottom of the device: turn clockwise for a finer grind, counterclockwise for a coarser grind.

Why isn't my mill turning anymore?

This may be due to too fine a setting, a blockage, or dead batteries. First try a coarser setting and shake the mill. If that doesn't work, replace the batteries.

Can I put wet salt in the mill?

No, use only dry salt or pepper to avoid damaging the mechanism.

How to clean the mill?

Clean the reservoir dry with a small food brush. Exterior parts can be wiped with a slightly damp cloth. Never immerse the mill in water.

What to do if the mill is clogged?

Select the coarsest setting and shake the mill back and forth until the mechanism unclogs. If the problem persists, contact customer service.

Can I use rechargeable batteries?

It is recommended to use new alkaline batteries. Do not mix rechargeable and standard batteries, nor used with new ones.

Does the integrated light stay on all the time?

The light only turns on when you hold the ON/OFF button to operate the mill.

Is the mill under warranty?

Refer to the instruction manual for warranty terms. In case of problems, contact Westfalia customer service.

USER MANUAL 961188 Westfalia

Electric Salt and Pepper Mill Set

Art. 96 11 88

D Originalanleitung

GB Original Instructions

Two stainless steel metal plassifiers with visible ingredients, one filled with peaches and the other with white rice grains (no text or symbols)

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

If you pass the device on to third parties, enclose these instructions.

Chers clients,

Yellow triangular warning sign with black exclamation mark symbol

Close-up of a mechanical component with transparent glass and black top (no visible text or symbols)

Yellow triangular warning sign with black exclamation mark symbol

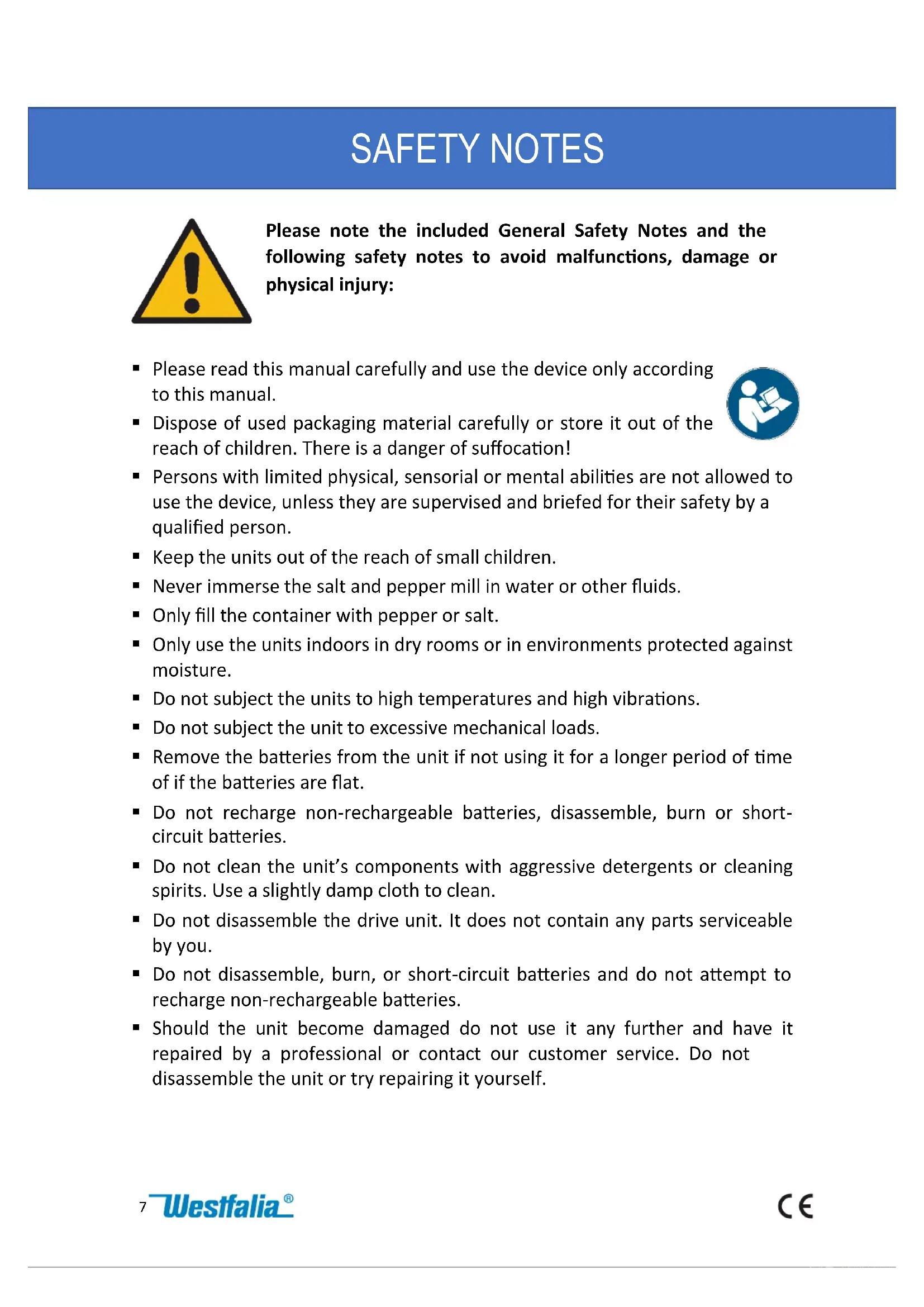

Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury:

- Please read this manual carefully and use the device only according to this manual.

- Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!

- Persons with limited physical, sensorial or mental abilities are not allowed to use the device, unless they are supervised and briefed for their safety by a qualified person.

- Keep the units out of the reach of small children.

■ Never immerse the salt and pepper mill in water or other fluids.

- Only fill the container with pepper or salt.

- Only use the units indoors in dry rooms or in environments protected against moisture.

- Do not subject the units to high temperatures and high vibrations.

- Do not subject the unit to excessive mechanical loads.

- Remove the batteries from the unit if not using it for a longer period of time of if the batteries are flat.

- Do not recharge non-rechargeable batteries, disassemble, burn or short-circuit batteries.

- Do not clean the unit's components with aggressive detergents or cleaning spirits. Use a slightly damp cloth to clean.

- Do not disassemble the drive unit. It does not contain any parts serviceable by you.

- Do not disassemble, burn, or short-circuit batteries and do not attempt to recharge non-rechargeable batteries.

- Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.

Batteries do not belong in the household garbage.For battery disposal please check with your local council.

Operation

Before first use

• Make yourself familiar with the device before using it for the first time. Observe the safety instructions and only use the device in accordance with these instructions.
• Remove all packaging components from the device parts.
• Clean the container as described in the “Cleaning” chapter.

Inserting the Batteries

1. Hold the lower part with one hand and turn the housing cover counterclockwise with the other hand to open the bayonet lock. Then pull the cover up and away from the container.
2. Pull the drive unit up and off the lower part.

3. Insert 6 type LR03 (AAA) batteries into the battery compartments on the drive unit. Pay attention to the correct polarity. For help, you will find the corresponding battery symbols in the battery compartments. Use only alkaline batteries.

4. Fill the container up to approx. 80% with pepper or salt.

5. Place the drive unit back on the container. Make sure that the arrow on the drive unit aligns with the closed padlock symbol on the container and that the contact pins point to both screws on the container. Press the drive unit firmly onto the container.

Close-up of a mechanical component with transparent glass casing and black top (no visible text or symbols)

1. Put the housing cover back over the drive unit. The arrow on the housing cover must match the open padlock symbol on the container. Turn this clockwise tightly back onto the container.

Operation

■ Remove the cover on the underside of the device.
- Press and hold the ON / OFF button on top of the device to operate the grinder and switch on the built-in light.
- You can set the desired grinding degree using the knurled screw at the bottom of the device:

Clockwise = finer,

Counter clockwise = coarser.

If the grinder no longer rotates with a very fine setting, select a coarser setting. If the grinder still does not turn, it may be clogged. Then select the

coarsest setting and shake the pepper mill back and forth until the grinder can be operated again.

- If the grinder no longer rotates or only rotates very slowly, the batteries are flat. In this case, replace the 6 batteries with a completely new set. Do not mix rechargeable batteries with batteries or used batteries with fresh ones.

Cleaning

• Clean the container immediately before you intend to add new pepper or salt. Shake the container empty first and remove any remaining grains with a small food-safe brush. Never wash the container with water or any other liquid.
• Only clean the outer housing parts with a slightly dampened cloth.
• Do not immerse the grinders in water or other liquids.
• Do not use any aggressive cleaning substances or similar for cleaning.
• Avoid using metallic or sharp objects to protect the surfaces.

Technical Data

Nominal voltage: 9 V

Protection class: III

Dimensions: ∅ 6,2 x 23,5 cm

Weight: 347 g

Battery: 6x 1.5 V LR03 (AAA)

CONSIGNES DE SÉCURITÉ

Close-up of a transparent plastic container with a black top and internal structure (no visible text or symbols)

Close-up of a mechanical component with transparent glass casing and black top (no visible text or symbols)

Gebruik

Electric Salt and Pepper Mill Set

Article No. 96 11 88

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

Symbol of a trash bin with no text or numbers, enclosed in a rounded square frame (no readable text or labels)

Werter Kunde,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
