USER MANUAL Ultrasteam DR6050 ROWENTA

Fig.9 Fig.10a "Clic" Fig.10b Fig.11b "Clic" Fig.11a 50s 1800129617 DR6000 U1_110 x 154 30/10/13 10:45 Page51

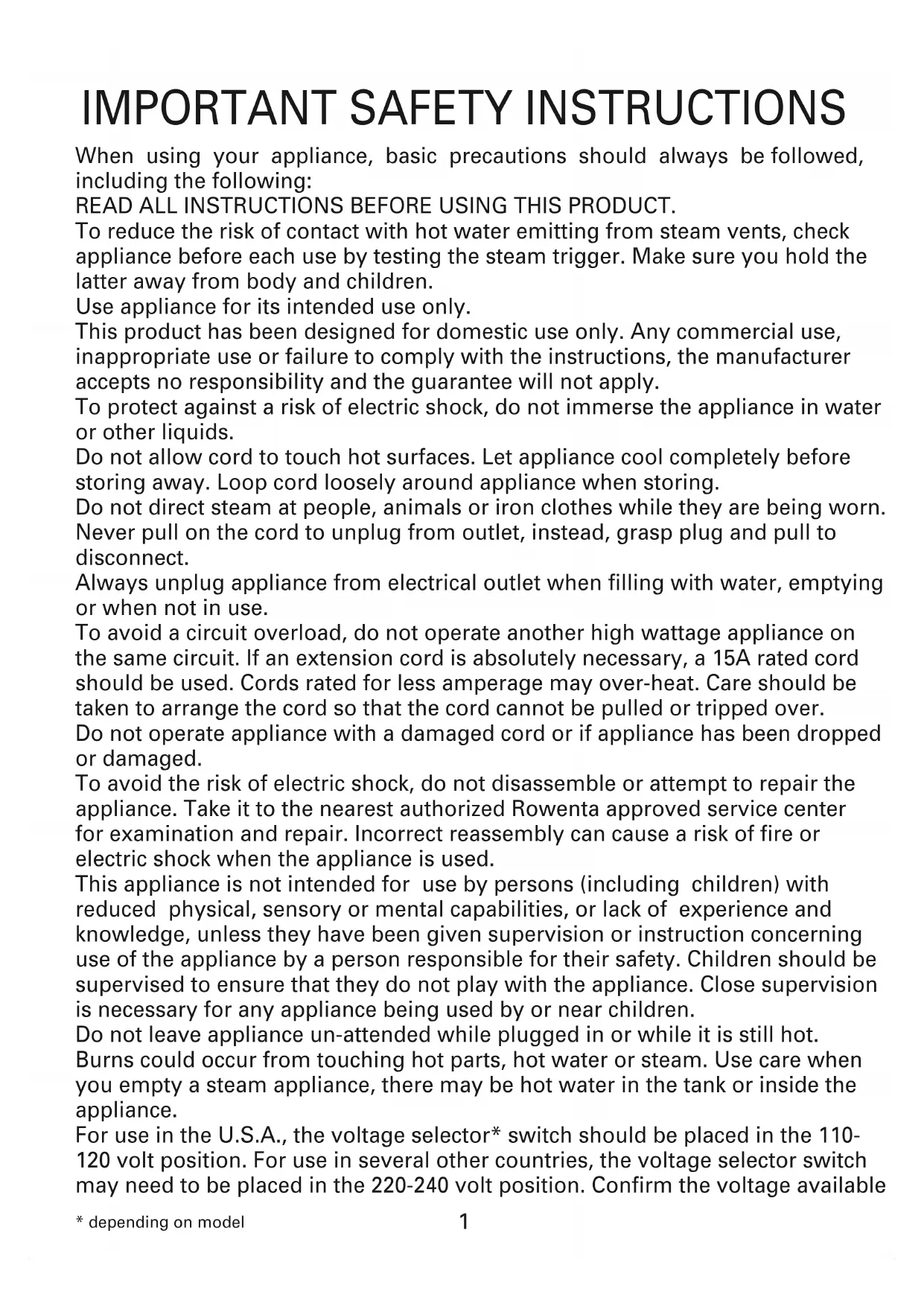

IMPORTANT SAFETY INSTRUCTIONS

When using your appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by testing the steam trigger. Make sure you hold the latter away from body and children. Use appliance for its intended use only. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. To protect against a risk of electric shock, do not immerse the appliance in water or other liquids. Do not allow cord to touch hot surfaces. Let appliance cool completely before storing away. Loop cord loosely around appliance when storing. Do not direct steam at people, animals or iron clothes while they are being worn. Never pull on the cord to unplug from outlet, instead, grasp plug and pull to disconnect. Always unplug appliance from electrical outlet when filling with water, emptying or when not in use. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit. If an extension cord is absolutely necessary, a 15A rated cord should be used. Cords rated for less amperage may over-heat. Care should be taken to arrange the cord so that the cord cannot be pulled or tripped over. Do not operate appliance with a damaged cord or if appliance has been dropped or damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the appliance. Take it to the nearest authorized Rowenta approved service center for examination and repair. Incorrect reassembly can cause a risk of fire or electric shock when the appliance is used. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Close supervision is necessary for any appliance being used by or near children. Do not leave appliance un-attended while plugged in or while it is still hot. Burns could occur from touching hot parts, hot water or steam. Use care when you empty a steam appliance, there may be hot water in the tank or inside the appliance. For use in the U.S.A., the voltage selector* switch should be placed in the 110- 120 volt position. For use in several other countries, the voltage selector switch may need to be placed in the 220-240 volt position. Confirm the voltage available

• depending on model 1800129617 DR6000 U1_110 x 154 30/10/13 10:45 Page12 at each location before using the appliance. For connection to a 220-240 volt supply, use a suitable attachment plug adapter of the proper configuration for the power supply receptacle. The use of other accessory attachments than those provided by Rowenta is not recommended and may result in fire, electric shock or personal injury. For dual voltage* appliance: a. Be sure dual voltage selector is in correct voltage position before operating. b. Before plugging in, read the information about dual voltage operation contained in the instruction section of this manual. c. This appliance was set at the factory to operate at 110-120 Volts. Refer to operating instructions section of this manual for conversion to 220-240 Volt operation. d. Incorrect setting of voltage can result in damage to the appliance.

SAVE THESE INSTRUCTIONS

1. Removable fabric brush

2. Removable lint pad

4. Removable water tank

110-120V or 220-240V (depending on model) DESCRIPTION Before use Please read the instructions for use and Important Safeguards carefully.

• Remove any packaging from the ap- pliance.

• Do not plug in or turn on until assembly is complete. Dual voltage (depending on model)

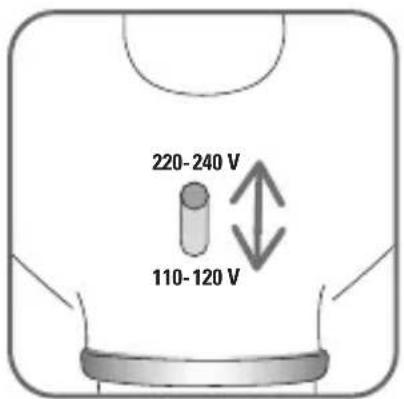

• The appliance can work on both, 110-120V or 220-240V, AC systems. Be sure the dual voltage selector is in the correct voltage position before plugging in. To do this, switch the selector which is above the handle to the right position - fig.6 bis.

• This is a 110-120V dual voltage appliance and may be used in the United States and abroad without an electrical converter. An adapter plug may be necessary when using appliance in foreign countries.

• If needed, plug the steambrush into the correct adapter plug for the specific coun- try and plug assembly into electrical out- let. It is normal for a small amount of smoke to be produced the first time the appliance is used. This will quickly disappear. Warning! Never switch selector while unit is plugged in. Dual voltage selector in wrong voltage position: If the voltage selector is set to 220- 240V in a 110-120V supply, the performance of the steambrush will be reduced. Never set the voltage selector to 110- 120V in a 220-240V supply as this can damage the product. 1800129617 DR6000 U1_110 x 154 30/10/13 10:45 Page2ES

• Your steam brush has been designed to operate using untreated tap water. If your water is very hard (check with your local water authority) it is possible to mix tap water with store-bought distilled or demineralised water in the following proportions: -50% untreated tap water, -50% distilled or demineralised water.

• Remove the water tank by pulling it back- wards - fig.3.

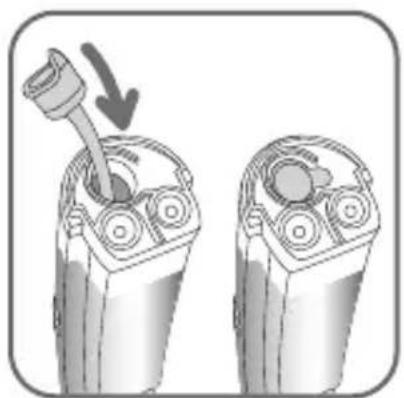

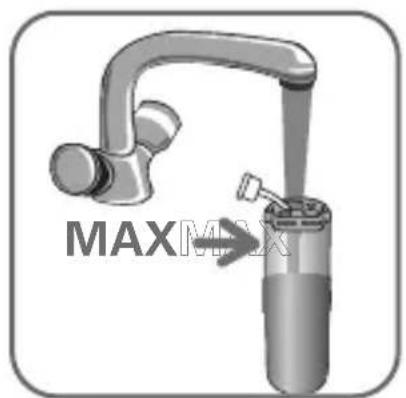

ill the watertank to the MAX level with water - fig.4 and close it securly. Make sure that the stopper is properly pushed in place - fig.5

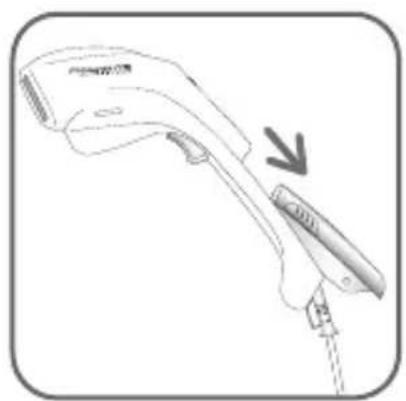

• Put the tank into the handle until it snaps in - fig.6

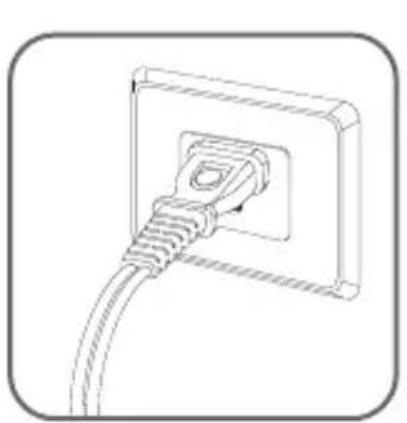

• Completely unwind the power cord. Plug in your steam brush - fig.7

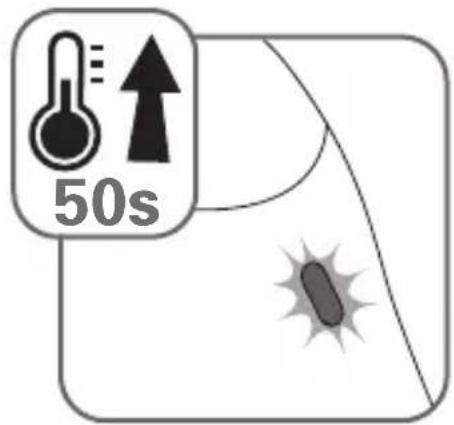

• Once the appliance is plugged in, the light is on - fig.8

• After approximately 50 seconds, and when the light is off, it has reached working tem- perature.

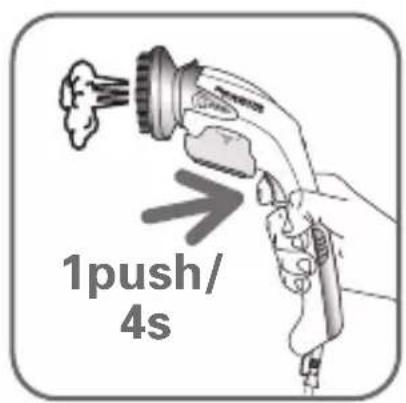

• To begin steaming, press by successive pressures the steam trigger with the steam brush facing away from you, holding it in vertical position - fig.9

Steaming clothes The Ultra Steam is equipped with a fabric brush.

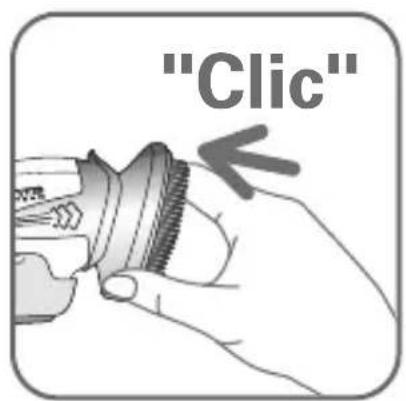

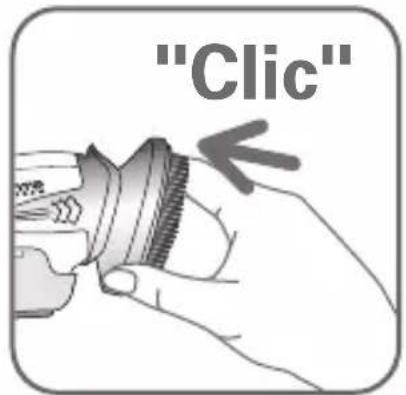

• To attach the accessory, line it up with the steam head. It locks into position with an audible click - fig.2/fig.11a

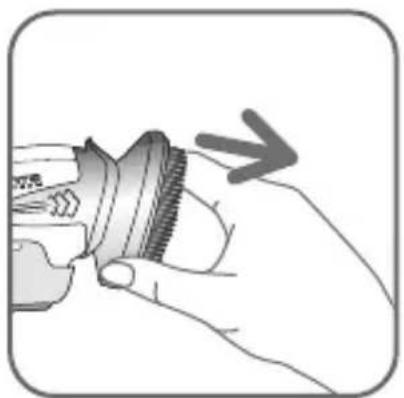

• Simply pull on the top of the fabric brush to remove it - fig.11b . You can operate the unit with or without the accessory.

• Hang the creased article of clothing on a clothes hanger

• Pull the clothing tight with one hand. Your hand must be far enough from the steam brush to avoid burning it with the steam output. Place the appliance over the crea- sed area, beginning at the top of the gar- ment.

• Gently press the fabric brush against the clothing and move the steam brush down the fabric. Press by successive pressures, every 4 seconds, the steam trigger - fig.9

• The combination of steam and brush will gently remove the creases.

• After treatment, let the garment cool down on the hanger before wearing.

• Remove the fabric brush once unit is un- plugged and completely cool. Remove it by pressing on the release tab on top of brush while pulling it forward. Lint pad Threads, lint and hair can easily be removed with the lint pad by brushing the During use or while unit is heating or cooling, do not rest appliance on its head. Place product on its side on a stable, heat resistant, flat surface, as the head will be hot. As the appliance heats, the housing becomes warm. This is normal. Before removing or attaching the fabric brush, unplug your appliance and let it cool down. Important: Heat concentrates the elements contained in water during evaporation. Warning ! Never use 100%, distilled or demineralised water as this can cause the appliance to spit. As steam is very hot: never attempt to remove creases from a garment while it is being worn, always hang garments on a clothes hanger. Always keep your hand far from the steam output. The lint pad can not be used when attached to appliance. 1800129617 DR6000 U1_110 x 154 30/10/13 10:45 Page34 clothes slowly from left to right. The pad can be cleaned by brushing in the opposite direction right to left on a piece of old cloth.

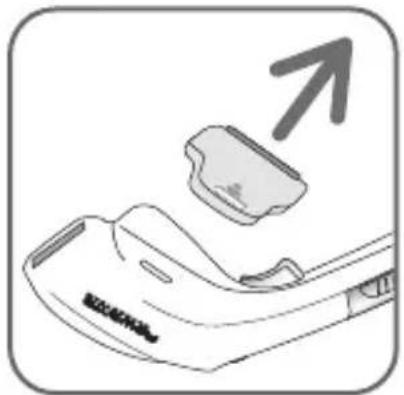

• Remove the lint pad from the steam brush by pulling it to the bottom - fig.10a

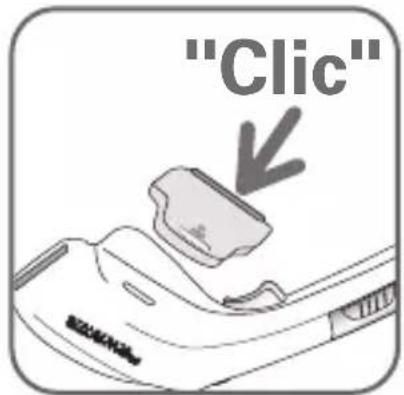

• For storage, attach the lint pad to the steam brush. Gently push the top of the lint pad into place until it snaps in - fig.10b

• Unplug the appliance. Empty the water re- maining in the tank and leave unit on its side to cool. After the appliance has coo- led down, it may be stored thanks to the hanger hook. Cleaning/Descaling

• Clean the main unit with a damp cloth.

• Your steam brush must be descaled oc- casionally if you notice the steam power is weak. The time between descaling operations depends on the quality of the water and the frequency with which you use the appliance.

• To carry out an effective descaling opera- tion, we advise you to :

1. Fill the water tank with white vinegar.

2. Plug the appliance and wait until it

reaches the working temperature.

3. Above a sink, press the steam trigger.

Wait for a few seconds. Press again the steam trigger.

4. Repeat the previous steps until the

water tank is empty. The scale will be re- moved. Stay away from the steam out- put: there is a risk of particles spitting.

5. Important: It is necessary to clean the

appliance to avoid spattering your clothes with vinegar residue. It is impor- tant to clean the water tank with water, then, to fill it again with fresh water.

6. Repeat steps 3 and 4 until the water tank

is completely empty.

7. Unplug the steam brush. Wait 15 mi-

nutes until it is completely cool. Use a rag to wipe the scale marks that may ap- pear on the steam head during desca- ling operation.

Warning: never forget to unplug the

steam brush and empty the tank after your working session. While not in use, you can hang your steambrush by its hook. CAUTION: Risk of electric shock. Never immerse the steam head in water! The steam brush contains electric components that could be damaged by direct water. Wait for 15 minutes until the steam head is completely cool. Environment protection first ! i Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a civic waste disposal centre. 1800129617 DR6000 U1_110 x 154 30/10/13 10:45 Page4There is not en- ough power or too much The dual voltage* is not set correctly. Be sure the dual voltage selector is in correct vol- tage position before pluging. Unplug the aplliance and switch the selector to the correct voltage.

Problems Possible causes Solutions There is no steam. The steam brush is not plug-

ed in. Check that your appliance is correctly plugged in.

he water tank is empty.

nplug your appliance and refill the water tank. You use the appliance for the first time. When the appliance is new, press the steam trig- ger a few times in vertical position. The steam trigger has not been primed. Press the steam trigger by successive pressures to begin steaming. The water tank is not in place. Ensure that the water tank snaps in when put into place. The appliance does not heat. It is not plugged in. The dual voltage* is not set correctly. Plug in your appliance. Be sure the dual voltage selector is in correct vol- tage position before pluging. Unplug the aplliance and switch the selector to the correct voltage. Water spits. Your appliance is not hot en- ough. Allow your steam brush to heat for approxima- tely 50 seconds before using. You are using demineralised water. Use tap water or : 50 % untreated tap water, 50 % distilled or demineralised water

The dual voltage* is not set cor- rectly. The steam trigger is pressed too frequently Be sure the dual voltage selector is in correct vol- tage position before pluging. Unplug the aplliance and switch the selector to the correct voltage. Press by successive pressures, every 4 seconds, the steam trigger Water leaks. The water tank is not in place. Be sure that the water tank snaps when put into place. The water is leaking from the stopper. Check if the stopper is properly pushed in place and the tong is completely inserted in its cavity. The steam leaves stains on the fa- bric. You are using water with addi- tives. Never add any product in the water tank. The appliance had not been cleaned enough after the des- caling operation. Read carefully the Cleaning/Descaling part. IS THERE A PROBLEM ? For any product problems or queries, please visit our website : www.rowentausa.com or contact our Helpline on 1-800-ROWENTA

• depending on model 1800129617 DR6000 U1_110 x 154 30/10/13 10:45 Page5 ÊUÊ,"7 /Ê /, /" Ê/Ê1, / : www.rowenta.com /ÃÊ«À`ÕVÌÊÃÊÀi«>À>LiÊLÞÊ,"7 /]Ê`ÕÀ}Ê>`Ê>vÌiÀÊÌiÊ}Õ>À>ÌiiÊ«iÀ`° VViÃÃÀiÃ]ÊVÃÕ>LiÃÊ>`Êi`ÕÃiÀÊÀi«>Vi>LiÊ«>ÀÌÃÊV>ÊLiÊ«ÕÀV>Ãi`]ÊvÊV>ÞÊ>Û>>Li]Ê>ÃÊ `iÃVÀLi`ÊÊÌiÊ,"7 /ÊÌiÀiÌÊÃÌiÊÜÜÜ°ÀÜiÌ>°V The Guarantee ROWENTA guarantees this product against any manufacturing defect in materials or workmanship during the guarantee period within those countries*** as stated in the country list on the last page of the user manual, starting from the initial date of purchase. The international manufacturer’s guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any de- fective part and the necessary labor. At ROWENTA’s choice, a replacement product may be provided instead of repairing a defective product. ROWENTA’s sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement. Conditions & Exclusions ROWENTA shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The product can be taken directly in person or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a ROWENTA authorized service centre. Full address details for each country’s authorized service centers are listed on ROWENTA website (www.rowenta.com) or by calling the appropriate consumer Service centre set out in the attached Country List. This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which could occur as a result of misuse, negligence, failure to follow ROWENTA instructions, or a modification or unauthorized repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following: - using the wrong type of water or consumable - damages or bad results specifically due to wrong voltage or frequency as stamped on the product ID or specification - scaling (any de-scaling must be carried out according to the instructions for use) - accidents including fire, flood, thunderbolt etc - mechanical damages, overloading - ingress of water, dust or insects into the product - damage to any glass or porcelain ware in the product - professional or commercial use Consumer Statutory Rights This international ROWENTA guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consu- mer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion. *** Where a product purchased in one listed country and then used in another listed country, the international ROWENTA guarantee duration is the one in the country of usage, even if the product was purchased in a listed country with different guarantee duration. The repair process may require a longer time if the product is not locally sold by ROWENTA. If the product is not repairable in the new country, the international ROWENTA guarantee is limited to a replacement by a similar or alternative product at similar cost, where possible. 1800129617 DR6000 U1_110 x 154 30/10/13 10:45 Page6ES
