USER MANUAL Ultra Steam DR6025 ROWENTA

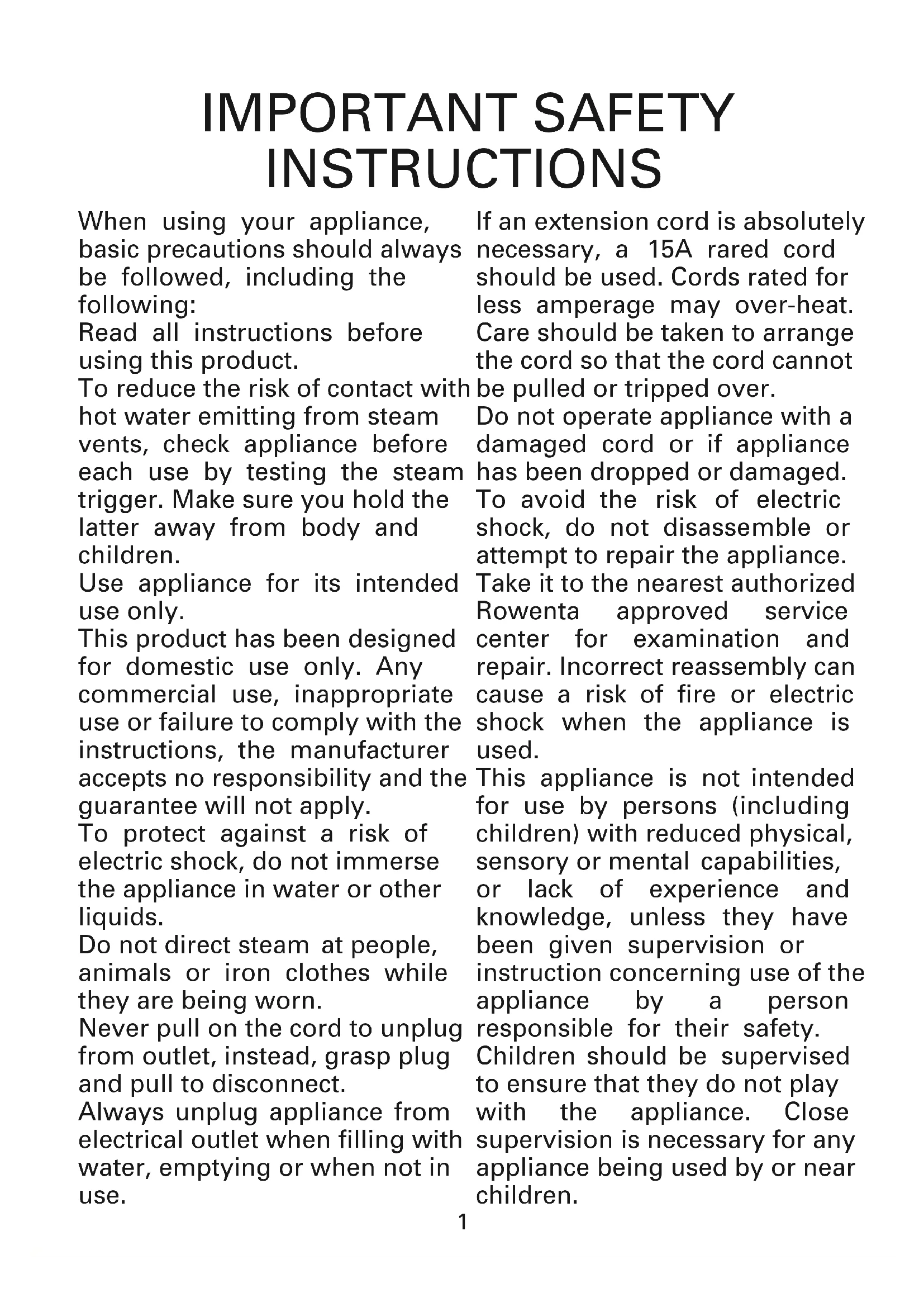

Fig.7 Fig.8 1push/ 4sec. Fig.9 Fig.10a "Clic" Fig.10b Fig.11b "Clic" Fig.11a 1800125732 DR6000 Ultra steam_110 x 154 25/06/12 10:43 Page51 IMPORTANT SAFETY INSTRUCTIONS When using your appliance, basic precautions should always be followed, including the following: Read all instructions before using this product. To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by testing the steam trigger. Make sure you hold the latter away from body and children. Use appliance for its intended use only. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. To protect against a risk of electric shock, do not immerse the appliance in water or other liquids. Do not direct steam at people, animals or iron clothes while they are being worn. Never pull on the cord to unplug from outlet, instead, grasp plug and pull to disconnect. Always unplug appliance from electrical outlet when filling with water, emptying or when not in use. If an extension cord is absolutely necessary, a 15A rared cord should be used. Cords rated for less amperage may over-heat. Care should be taken to arrange the cord so that the cord cannot be pulled or tripped over. Do not operate appliance with a damaged cord or if appliance has been dropped or damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the appliance. Take it to the nearest authorized Rowenta approved service center for examination and repair. Incorrect reassembly can cause a risk of fire or electric shock when the appliance is used. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Close supervision is necessary for any appliance being used by or near children. 1800125732 DR6000 Ultra steam_110 x 154 25/06/12 10:43 Page12 Do not leave appliance un- attended while plugged in or while it is still hot. Burns could occur from touching hot parts, hot water or steam. The use of other accessory attachments than those provided by Rowenta is not recommended and may result in fire, electric shock or personal injury.

SAVE THESE INSTRUCTIONS

1. Removable fabric brush

2. Removable lint pad

4. Removable water tank

DESCRIPTION Before use Please read the instructions for use and Important Safeguards carefully.

• Remove any packaging from the appliance.

• Do not plug in or turn on until assembly is complete. Filling with water

• Your steam brush has been designed to operate using untreated tap water. If your water is very hard (check with your local water authority) it is possible to mix tap water with store-bought distilled or demineralised water in the following proportions: -50% untreated tap water, -50% distilled or demineralised water. It is normal for a small amount of smoke to be produced the first time the appliance is used. This will quickly disappear. Warning ! Never use 100%, distilled or demineralised water as this can cause the appliance to spit. Important: Heat concentrates the elements contained in water during evaporation. The types of water listed below may contain organic waste, mineral or chemical elements that can cause spitting, brown staining, or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries, air conditioners, rain water, boiled, filtered or bottled water. Also use distilled or demineralised water only as advised above. 1800125732 DR6000 Ultra steam_110 x 154 25/06/12 10:43 Page2ES

• Remove the water tank by pulling it backwards - fig.3.

• Fill the watertank to the MAX level with water - fig.4 and close it securly. Make sure that the stopper is properly pushed in place - fig.5.

• Put the tank into the handle until it snaps in - fig.6.

• Completely unwind the power cord. Plug in your steam brush - fig.7. USE

• Once the appliance is plugged in, the light is on - fig.8.

• After approximately 50 seconds, and when the light is off, it has reached working temperature.

• To begin steaming, press by successive pressures the steam trigger with the steam brush facing away from you, holding it in vertical position - fig.9. Steaming clothes The Ultra Steam is equipped with a fabric brush.

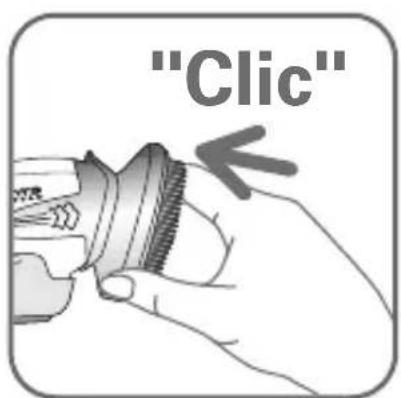

• To attach the accessory, line it up with the steam head. It locks into position with an audible click - fig.2/fig.11a.

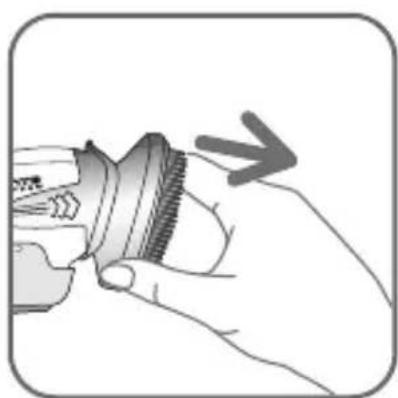

• Simply pull on the top of the fabric brush to remove it - fig.11b. You can operate the unit with or without the accessory.

• Hang the creased article of clothing on a clothes hanger

• Pull the clothing tight with one hand. Your hand must be far enough from the steam brush to avoid burning it with the steam output. Place the appliance over the creased area, beginning at the top of the garment.

• Gently press the fabric brush against the clothing and move the steam brush down the fabric. Press by successive pressures, every 4 seconds, the steam trigger - fig.9.

• The combination of steam and brush will gently remove the creases.

• After treatment, let the garment cool down on the hanger before wearing. During use or while unit is heating or cooling, do not rest appliance on its head. Place product on its side on a stable, heat resistant, flat surface, as the head will be hot. As the appliance heats, the housing becomes warm. This is normal. Before removing or attaching the fabric brush, unplug your appliance and let it cool down. As steam is very hot: never attempt to remove creases from a garment while it is being worn, always hang garments on a clothes hanger. Always keep your hand far from the steam output. 1800125732 DR6000 Ultra steam_110 x 154 25/06/12 10:43 Page34 Lint pad Threads, lint and hair can easily be removed with the lint pad by brushing the clothes slowly from left to right. The pad can be cleaned by brushing in the opposite direction right to left on a piece of old cloth.

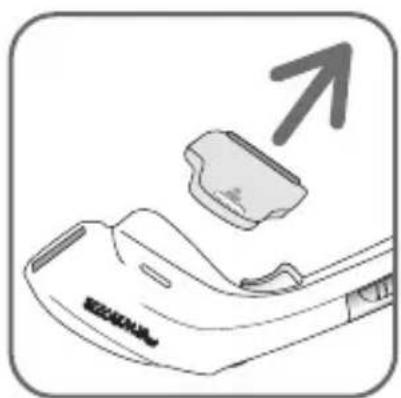

• Remove the lint pad from the steam brush by pulling it to the bottom - fig.10a.

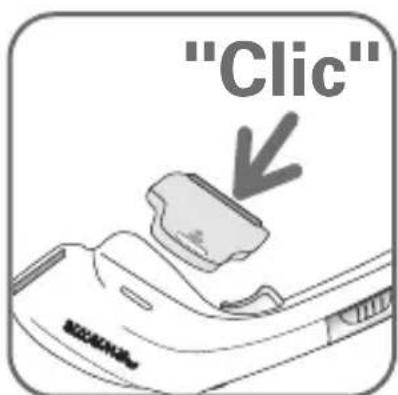

• For storage, attach the lint pad to the steam brush. Gently push the top of the lint pad into place until it snaps in - fig.10b. After use

• Unplug the appliance. Empty the water remaining in the tank and leave unit on its side to cool. After the appliance has cooled down, it may be stored thanks to the hanger hook. Cleaning/Descaling

• Clean the main unit with a damp cloth.

• Your steam brush must be descaled occasionally if you notice the steam power is weak. The time between descaling operations depends on the quality of the water and the frequency with which you use the appliance.

• To carry out an effective descaling operation, we advise you to :

1. Fill the water tank with white

2. Plug the appliance and wait until

it reaches the working temperature.

3. Above a sink, press the steam

trigger. Wait for a few seconds. Press again the steam trigger.

4. Repeat the previous steps until

the water tank is empty. The scale will be removed. Stay away from the steam output: there is a risk of particles spitting.

5. Important: It is necessary to clean

the appliance to avoid spattering your clothes with vinegar residue. It is important to clean the water tank with water, then, to fill it again with fresh water.

6. Repeat steps 3 and 4 until the

water tank is completely empty.

7. Unplug the steam brush. Wait 15

minutes until it is completely cool. Use a rag to wipe the scale marks that may appear on the steam head during descaling operation. The lint pad can not be used when attached to appliance. Wait for 15 minutes until the steam head is completely cool.

Warning: never forget to unplug

the steam brush and empty the tank after your working session. While not in use, you can hang your steambrush by its hook. CAUTION: Risk of electric shock. Never immerse the steam head in water! The steam brush contains electric components that could be damaged by direct water. 1800125732 DR6000 Ultra steam_110 x 154 25/06/12 10:43 Page4ES

Problems Possible causes Solutions There is nosteam.The steam brush isnot plugged in.Check that your appliance is correctlyplugged in.The water tank isempty.Unplug your appliance and refill thewater tank.You use theappliance for thefirst time.When the appliance is new, press thesteam trigger press the steam triggera few times in vertical position.The steam triggerhas not beenprimed.Press the steam trigger bysuccessive pressures to beginsteaming. The water tank isnot in place.Ensure that the water tank snaps inwhen put into place.The appliancedoes not heat.It is not plugged in. Plug in your appliance.Water spits.Your appliance isnot hot enough.Allow your steam brush to heat forapproximately 50 seconds beforeusing.You are usingdemineralisedwater.Use tap water or :50 % untreated tap water,50 % distilled or demineralisedwater.Water leaks.The water tank isnot in place.Be sure that the water tank snapswhen put into place.The water isleaking from thestopper.Check if the stopper is properlypushed in place and the tong iscompletely inserted in its cavity.The steamleaves stainson the fabric.You are usingwater withadditives.Never add any product in the watertank.The appliance hadnot been cleanedenough after thedescalingoperation.Read carefully theCleaning/Descaling part. IS THERE A PROBLEM ? Environment protection first ! i Your appliance contains valuable materials which can be recovered or recycled. ‹ Leave it at a civic waste disposal centre. For any product problems or queries, please visit our website : www.rowenta.co.uk or contact our Helpline on 0845 602 1454 - UK [phone] - Ireland 1800125732 DR6000 Ultra steam_110 x 154 25/06/12 10:43 Page56 1800125732 DR6000 Ultra steam_110 x 154 25/06/12 10:43 Page6ES
