Product type	Steam cleaner
Brand	Rowenta
Model	Ultra Steam DR6020
Main use	Ironing clothes and textiles
Functions	Steam jet, integrated fabric brush, removable lint brush
Heating time	Approximately 50 seconds
Recommended water	Tap water; mix 50% demineralized water if water is hard
Water tank	Removable, with filling cap
Power supply	Mains electric (cord)
Safety	Do not immerse, do not direct steam at people or animals, unplug before refilling
Maintenance	Clean with damp cloth; descaling with white vinegar
Included accessories	Fabric brush, lint brush, storage hook
Warranty	2 years (France)
Repairability	Repairable by Rowenta approved centers
After-sales service	Rowenta approved centers; www.rowenta.com

Frequently Asked Questions - Ultra Steam DR6020 ROWENTA

Why is there no steam?

Check that the device is plugged in, the water tank is full and properly engaged. If it's the first use, press the steam trigger several times in a vertical position to prime.

What if the device spits water?

The device is not hot enough. Let it heat for about 50 seconds before use. Do not use pure demineralized water; mix 50% tap water and 50% demineralized water if necessary.

How to descale my device?

Fill the tank with white vinegar, plug in the device, and press the steam trigger over a sink. Then rinse with clean water by repeating the operation. Wipe the steam head after cooling.

How to use the lint brush?

The lint brush is used detached from the device. Brush the garment slowly from left to right. Clean the brush by brushing it in the opposite direction on an old fabric.

What type of water to use?

Use tap water. If your water is very hard, mix 50% tap water and 50% commercial demineralized water. Never use water with additives (starch, perfume, etc.) nor battery or condensation water.

The device does not heat, what to do?

Check that the device is properly plugged in. Wait about 50 seconds; the indicator light turns off when the operating temperature is reached.

What to do if the tank leaks?

Make sure the tank is properly engaged in the handle and the filling cap is correctly closed, tab properly positioned.

How to clean the device?

Unplug the device and let it cool for 15 minutes. Clean the exterior with a damp cloth. Never immerse the steam head in water.

Can I iron all fabrics?

Yes, but never iron a garment while worn. Hang it on a hanger and use the fabric brush by pressing gently. Avoid directing steam at people or animals.

Where to find spare parts?

Contact a Rowenta Approved Service Center or visit www.rowenta.com. Accessories (brushes, tank) can be purchased depending on availability.

USER MANUAL Ultra Steam DR6020 ROWENTA

Diagram of a cable inserted into an electrical outlet with a diagonal line indicating no text or symbols (no text or symbols present)

Fig.1

"Clic"

Fig.2 Fig.3

Line drawing of a handheld electric shock absorber with a cable inserted (no text or symbols)

MAXMAX

Diagram showing a mechanical component being inserted into two views (no text or symbols present)

Line drawing of a handheld medical device with an arrow pointing to the cable (no text or symbols)

Fig.4 Fig.5 Fig.6

USE / UTILISATION / USO

Line drawing of a wall socket with a cable inserted, no text or symbols present

Fig.7 Fig.8

Diagram showing a thermometer and a virus particle with an upward arrow, no text or symbols present

1push/ 4sec.

Fig.9

ACCESSORY / ACCESSOIRE / ACCESORIO

Illustration of a car seat with an arrow indicating upward motion (no text or symbols)

Fig.10a

"Clic"

Fig.10b

"Clic"

Fig.11a

Illustration of a hand holding a mechanical component with a directional arrow indicating motion (no text or symbols)

Fig.11b

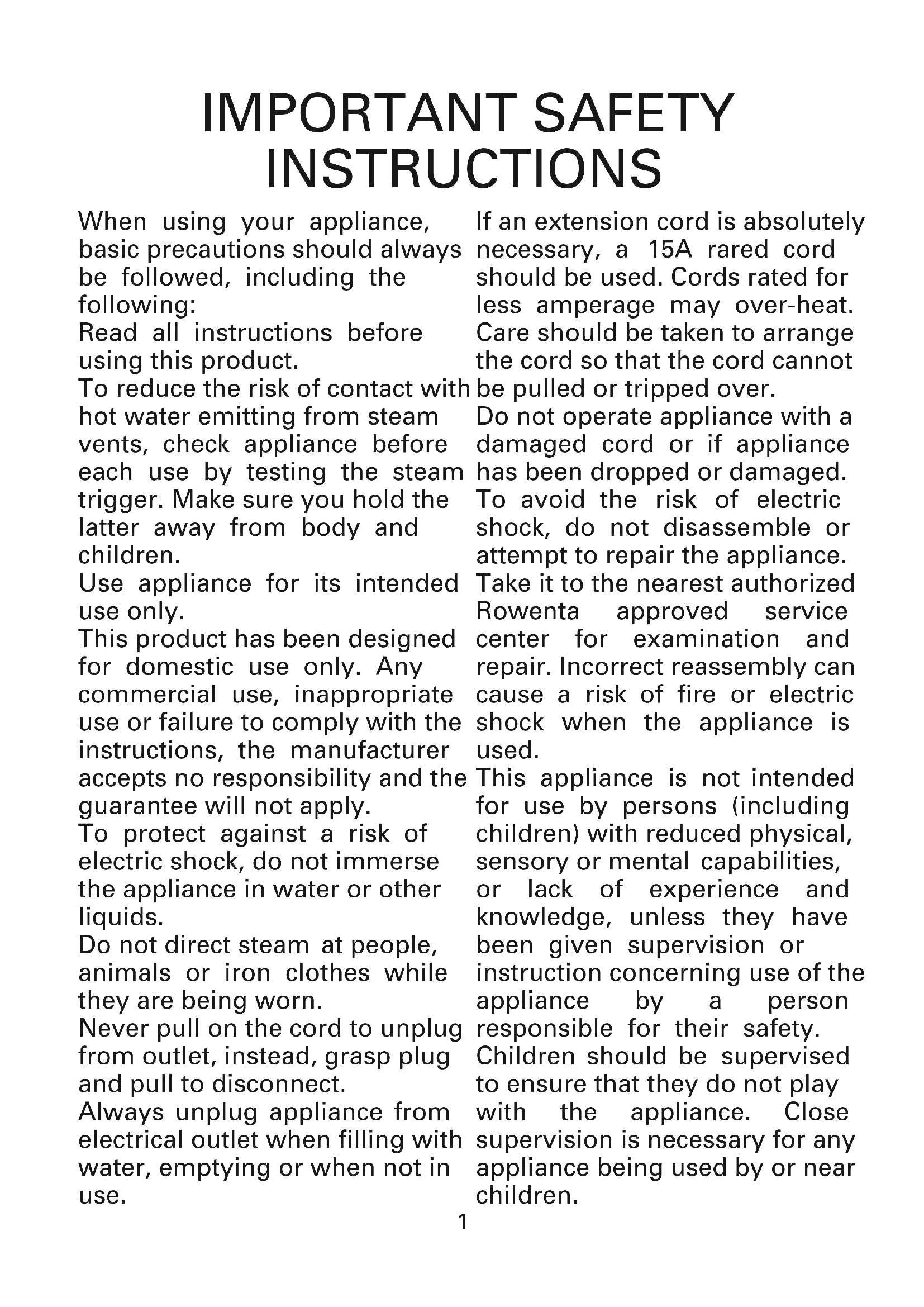

IMPORTANT SAFETY INSTRUCTIONS

When using your appliance, basic precautions should always be followed, including the following:

Read all instructions before using this product.

To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by testing the steam trigger. Make sure you hold the latter away from body and children.

Use appliance for its intended use only.

This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

To protect against a risk of electric shock, do not immerse the appliance in water or other liquids.

Do not direct steam at people, animals or iron clothes while they are being worn.

Never pull on the cord to unplug from outlet, instead, grasp plug and pull to disconnect.

Always unplug appliance from electrical outlet when filling with water, emptying or when not in use.

If an extension cord is absolutely necessary, a 15A rared cord should be used. Cords rated for less amperage may over-heat. Care should be taken to arrange the cord so that the cord cannot be pulled or tripped over.

Do not operate appliance with a damaged cord or if appliance has been dropped or damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the appliance. Take it to the nearest authorized Rowenta approved service center for examination and repair. Incorrect reassembly can cause a risk of fire or electric shock when the appliance is used.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. Close supervision is necessary for any appliance being used by or near children.

Do not leave appliance un-attended while plugged in or while it is still hot.

Burns could occur from touching hot parts, hot water or steam. The use of other accessory attachments than those provided by Rowenta is not recommended and may result in fire, electric shock or personal injury.

SAVE THESE INSTRUCTIONS

DESCRIPTION

1. Removable fabric brush
2. Removable lint pad
3. Steam trigger
4. Removable water tank

Before use

Please read the instructions for use and Important Safeguards carefully.

• Remove any packaging from the appliance.
• Do not plug in or turn on until assembly is complete.

It is normal for a small amount of smoke to be produced the first time the appliance is used. This will quickly disappear.

Filling with water

Warning ! Never use 100%, distilled or demineralised water as this can cause the appliance to spit.

- Your steam brush has been designed to operate using untreated tap water. If your water is very hard (check with your local water authority) it is possible to mix tap

1. Storage hook
2. Electrical cord
3. Thermostat indicator light

water with store-bought distilled or demineralised water in the following proportions:

-50% untreated tap water,
-50% distilled or demineralised water.

Important: Heat concentrates the elements contained in water during evaporation.

The types of water listed below may contain organic waste, mineral or chemical elements that can cause spitting, brown staining, or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries, air conditioners, rain water, boiled, filtered or bottled water. Also use distilled or demineralised water only as advised above.

• Remove the water tank by pulling it backwards - fig.3.
• Remove the stopper.

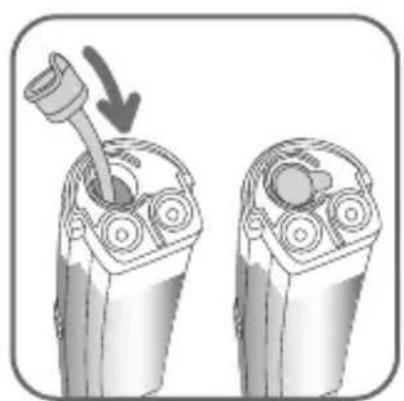

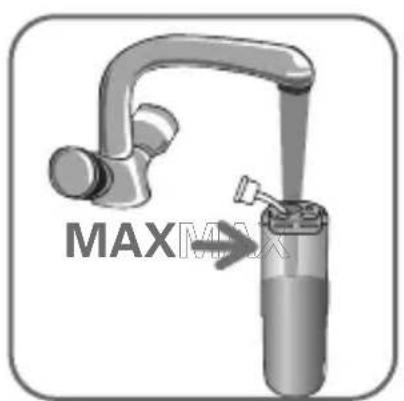

• F ill the watertank to the MAX level with water - fig.4 and close it securely. Make sure that the stopper is properly pushed in place - fig.5.

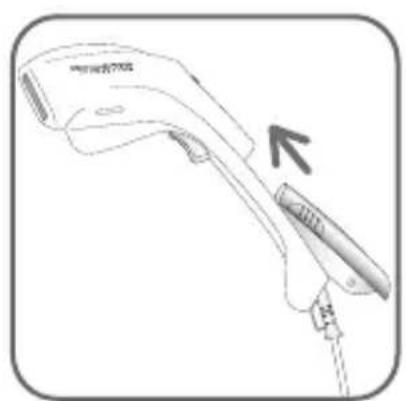

• Put the tank into the handle until it snaps in - fig.6.

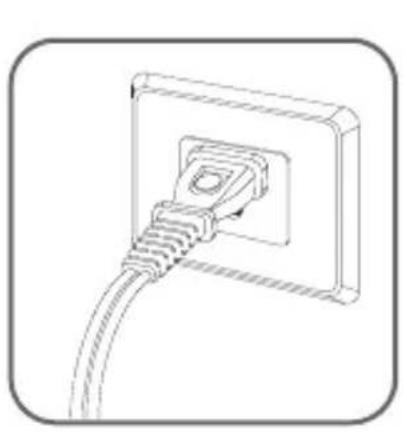

• Completely unwind the power cord. Plug in your steam brush - fig.7.

USE

During use or while unit is heating or cooling, do not rest appliance on its head. Place product on its side on a stable, heat resistant, flat surface, as the head will be hot. As the appliance heats, the housing becomes warm. This is normal.

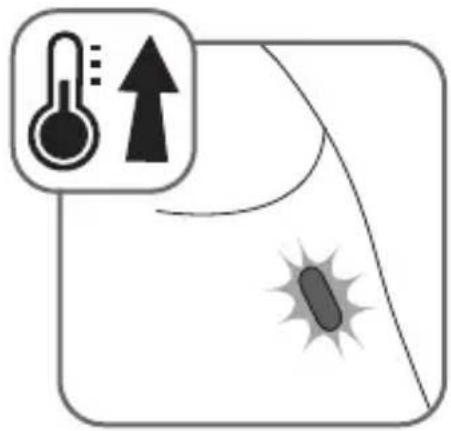

• Once the appliance is plugged in, the light is on - fig.8.
  • After approximately 50 seconds, and when the light is off, it has reached working temperature.

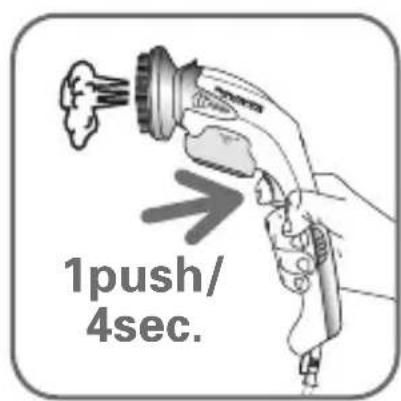

• To begin steaming, press by successive pressures the steam trigger with the steam brush facing away from you, holding it in vertical position - fig.9.

Steaming clothes

Before removing or attaching the fabric brush, unplug your appliance and let it cool down.

The Ultra Steam is equipped with a fabric brush.

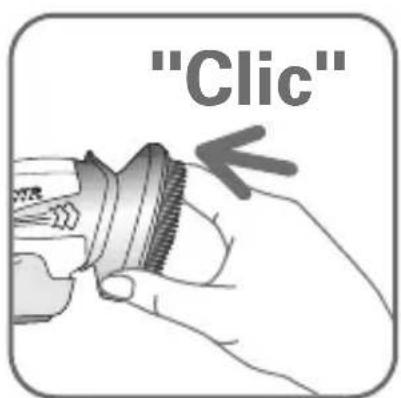

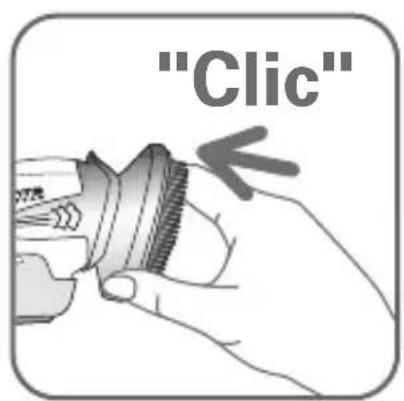

- To attach the accessory, line it up with the steam head. It locks into position with an audible click - fig.2/fig.11a.

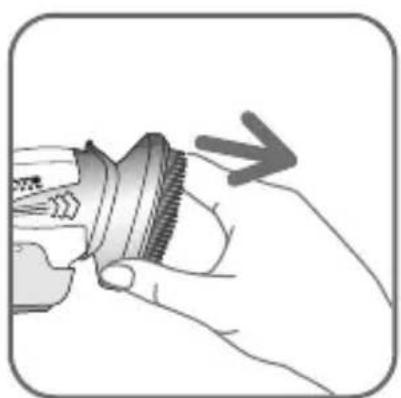

- Simply pull on the top of the fabric brush to remove it - fig.11b. You can operate the unit with or without the accessory.

- Hang the creased article of clothing on a clothes hanger

- Pull the clothing tight with one hand. Your hand must be far enough from the steam brush to avoid burning it with the steam output. Place the appliance over the creased area, beginning at the top of the garment.

As steam is very hot: never attempt to remove creases from a garment while it is being worn, always hang garments on a clothes hanger. Always keep your hand far from the steam output.

• Gently press the fabric brush against the clothing and move the steam brush down the fabric. Press by successive pressures, every 4 seconds, the steam trigger - fig.9.
• The combination of steam and brush will gently remove the creases.
  • After treatment, let the garment cool down on the hanger before wearing.

Lint pad

The lint pad can not be used when attached to appliance.

Threads, lint and hair can easily be removed with the lint pad by brushing the clothes slowly from left to right. The pad can be cleaned by brushing in the opposite direction right to left on a piece of old cloth.

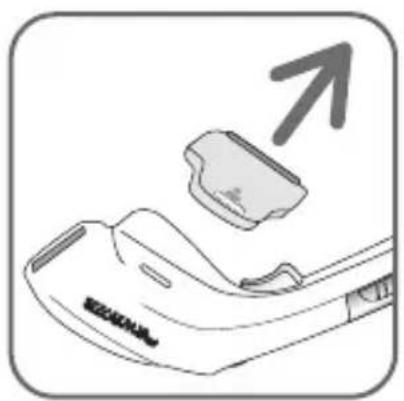

• Remove the lint pad from the steam brush by pulling it to the bottom - fig.10a.

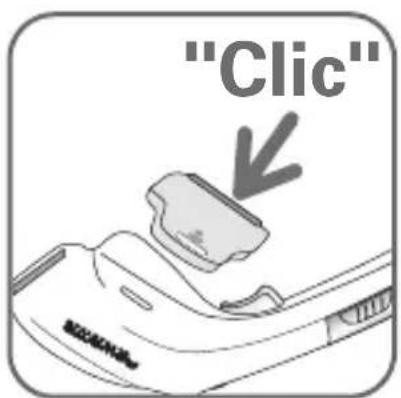

• For storage, attach the lint pad to the steam brush. Gently push the top of the lint pad into place until it snaps in - fig.10b.

After use

Wait for 15 minutes until the steam head is completely cool

- Unplug the appliance. Empty the water remaining in the tank and leave unit on its side to cool. After the appliance has cooled down, it may be stored thanks to the hanger hook.

Warning: never forget to unplug the steam brush and empty the tank after your working session. While not in use, you can hang your steambrush by its hook.

Cleaning/Descaling

• Clean the main unit with a damp cloth.
• Your steam brush must be descaled occasionally if you notice the steam power is weak.

The time between descaling operations depends on the quality of the water and the frequency with which you use the appliance.

• To carry out an effective descaling operation, we advise you to :

1. Fill the water tank with white vinegar.
2. Plug the appliance and wait until it reaches the working temperature.
3. Above a sink, press the steam trigger. Wait for a few seconds. Press again the steam trigger.
4. Repeat the previous steps until the water tank is empty. The scale will be removed. Stay away from the steam output: there is a risk of particles spitting.
5. Important: It is necessary to clean the appliance to avoid spattering your clothes with vinegar residue. It is important to clean the water tank with water, then, to fill it again with fresh water.
6. Repeat steps 3 and 4 until the water tank is completely empty.
7. Unplug the steam brush. Wait 15 minutes until it is completely cool. Use a rag to wipe the scale marks that may appear on the steam head during descaling operation.

CAUTION: Risk of electric shock. Never immerse the steam head in water! The steam brush contains electric components that could be damaged by direct water.

IS THERE A PROBLEM?

Problems Possible causes Solutions
There is no steam.	The steam brush is not plugged in.	Check that your appliance is correctly plugged in.
	The water tank is empty.	Unplug your appliance and refill the water tank.
	You use the appliance for the first time.	When the appliance is new, press the steam trigger press the steam trigger a few times in vertical position.
	The steam trigger has not been primed.	Press the steam trigger by successive pressures to begin steaming.
	The water tank is not in place.	Ensure that the water tank snaps in when put into place.
The appliance does not heat.	It is not plugged in. Plug in your appliance.
Water spits.	Your appliance is not hot enough.	Allow your steam brush to heat for approximately 50 seconds before using.
	You are using demineralised water.	Use tap water or : 50 % untreated tap water, 50 % distilled or demineralised water.
Water leaks.	The water tank is not in place.	Be sure that the water tank snaps when put into place.
	The water is leaking from the stopper.	Check if the stopper is properly pushed in place and the tong is completely inserted in its cavity.
The steam leaves stains on the fabric.	You are using water with additives.	Never add any product in the water tank.
	The appliance had not been cleaned enough after the descaling operation.	Read carefully the Cleaning/Descaling part.

For any product problems or queries, please visit our website : www.rowenta.co.uk or contact our Helpline on 0845 602 1454 - UK [phone] - Ireland

Environment protection first!

①Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a civic waste disposal centre.

ROWENTA INTERNATIONAL LIMITED GUARANTEE

: www.rowenta.com

This product is repairable by ROWENTA, during and after the guarantee period.

The Guarantee

This product is guaranteed by ROWENTA (company address and details included in the country list of the ROWENTA International Guarantee) against any manufacturing defect in materials or workmanship during the guarantee period within those countries as stated in the Country List on the last page of the user manual, starting from the initial date of purchase.

The international manufacturer's guarantee by ROWENTA is an extra benefit which does not affect consumer's Statutory Rights.

The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At ROWENTA's choice, a replacement product may be provided instead of repairing a defective product. ROWENTA's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

The international ROWENTA guarantee only applies within the guarantee period and for those countries listed in the Country List attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a ROWENTA authorised service centre. Full address details for each country's authorised service centres are listed on ROWENTA website (www.rowenta.com) or by calling the appropriate telephone number as set out in the Country List to request the appropriate postal address.

ROWENTA shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

This guarantee will not cover any damage which could occur as a result of misuse, negligence, failure to follow ROWENTA instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable,
- scaling (any descaling must be carried out according to the instructions for use),
- ingress of water, dust or insects into the product,
- mechanical damages, overloading,
- damages or bad results due to wrong voltage or frequency,
- accidents including fire, flood, thunderbolt, etc,
• professional or commercial use,
- damage to any glass or porcelain ware in the product,
- replacement of consumables.

This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

The international ROWENTA guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country:

a) The international ROWENTA guarantee duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different guarantee duration.
b) The international ROWENTA guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications.

c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by ROWENTA.
d) In cases where the product is not repairable in the new country, the international ROWENTA guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights

This international ROWENTA guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

Additional information

Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the ROWENTA internet site.

INTERNATIONAL GUARANTEE : COUNTRY LIST
CANADA	GROUPE SEB CANADA345 Passmore AvenueToronto, ONM1V 3N8	1 an1 year	800-418-3325
U.S.A.	GROUPE SEB USA2121 Eden RoadMillville, NJ 08332	1 year	800-769-3682
MEXICO	Groupe.S.E.B. México, S.A. DE C.V. Goldsmith38 Desp. 401, Col. PolancoDelegación Miguel Hildalgo11 560 México D.F.	1 año1 year	[phone]

: www.rowenta.com
