TYPHON 4X4 V3 - Remote control toy ARRMA - Free user manual and instructions

Product type	Remote control toy, 4WD buggy car
Brand	ARRMA
Model	Typhon 4X4 V3
Range	3S BLX
Dimensions (approximate)	520 mm (L) x 300 mm (W) x 180 mm (H)
Weight (approximate)	2.5 kg (with 3S LiPo battery)
Vehicle power	LiPo 2S-3S (7.4-11.1V) 35C 5000 mAh minimum or NiMH 6-8 cell (7.2-9.6V) battery
Transmitter power	4 AA batteries (not included) or rechargeable batteries
Motor	Spektrum 3660 3200KV brushless
ESC controller	ARRMA BLX100, input 2S-3S LiPo, BEC 6V/6A, waterproof
Radio	Spektrum SLT3 3-channel 2.4GHz with SLR300 receiver
Steering servo	Spektrum 7 kg, metal gears, 23T
Main functions	Forward, brake, reverse (adjustable), dual rate steering
Water resistance	Waterproof for wet conditions (puddles, snow, rain) – do not submerge
Recommended age	14 years and up (not a toy)
Box contents	Car, transmitter, receiver, ESC, motor, servo
Maintenance and cleaning	Rinse with clean water, dry with compressed air, lubricate bearings, do not use pressure washer
Safety precautions	Turn on transmitter before receiver, turn off receiver before transmitter, do not use in thunderstorms, keep distance, watch for hot parts
Spare parts / repairability	Parts available at ARRMA-RC.com, paid repairs at Horizon Hobby (electronics and motor)
Warranty	Legal warranty 6 months, warranty obligation 18 months, non-transferable
General information	Advanced hobby product, requires common sense and basic mechanical skills

Frequently Asked Questions - TYPHON 4X4 V3 ARRMA

Why is my vehicle not moving?

Check transmitter batteries, model battery (charged?), motor/ESC connections. If ESC overheats, let it cool. Consult troubleshooting table in the manual.

Which battery should I use?

Use a LiPo 2S (7.4V) or 3S (11.1V) battery with a discharge current of at least 35C and a capacity of 5000 mAh minimum. NiMH 6-8 cell batteries also work.

How to adjust the ESC?

Press the setup button, turn on the ESC, then release on the number of flashes corresponding to the desired parameter. Consult the adjustment table in the manual for cutoff threshold, punch, braking force, etc.

Can the vehicle be used in the rain?

Yes, it is water resistant but not waterproof. Avoid submersion, do not use in thunderstorms, and perform specific maintenance after each wet use.

How to bind the transmitter and receiver?

Insert the bind plug into the BIND port of the receiver, power on the ESC (red LED flashes), then turn on the transmitter. The receiver LED turns off, remove the plug and turn off both.

My vehicle does not reverse, why?

Check the ESC operating mode: it may be set to Fwd/Brk (forward/brake, no reverse). Set it to Fwd/Brk/Rev if you want reverse.

How to clean my ARRMA Typhon after a wet run?

Remove battery and wheels, rinse with clean water (no pressure washer), dry with compressed air, lubricate bearings and metal parts. Avoid spraying lubricant on the motor.

What is the warranty period?

The warranty is 6 months (warranty obligation 18 months) from purchase at an authorized dealer. It covers manufacturing defects, not damage from misuse.

Steering is not working well, what to do?

Check the steering trim on the transmitter, adjust dual rate. Inspect steering components for damage. Consult troubleshooting table.

Can I use 4S LiPo batteries?

No, the ESC is designed for 2S-3S LiPo (7.4-11.1V). Using a 4S would damage the ESC and void the warranty.

USER MANUAL TYPHON 4X4 V3 ARRMA

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

SAFETY PRECAUTIONS AND WARNINGS

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or property of others.

This model is controlled by a radio signal subject to interference from many sources outside your control. This interference can cause momentary loss of control, so it is advisable to always keep a safe distance in all directions around your model as this margin will help avoid collisions or injury.

- Never operate your model with low transmitter batteries.

• Always operate your model in open spaces away from full-size vehicles, traffic and people.

- Never operate the model in the street or in populated areas for any reason.

- Carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) you use.

- Keep all chemicals, small parts and anything electrical out of

the reach of children.

- Never lick or place any portion of the model in your mouth as it could cause serious injury or even death.

• Exercise caution when using tools and sharp instruments.

• Take care during maintenance as some parts may have sharp edges.

- Immediately after using your model, do NOT touch equipment such as the motor, electronic speed control and battery, because they generate high temperatures. You may burn yourself seriously by touching them.

- Do not put fingers or any objects inside rotating and moving parts, as this may cause damage or serious injury.

- Always turn on your transmitter before you turn on the car. Always turn off the car before turning your transmitter off.

- Keep the wheels of the model off the ground when checking the operation of the radio equipment.

WARNING AGAINST COUNTERFEIT PRODUCTS: Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS

Your new Horizon Hobby vehicle has been designed and built with a combination of

waterproof and water-resistant components to allow you to operate the product in many "wet conditions," including puddles, creeks, wet grass, snow and even rain.

While the entire vehicle is highly water-resistant, it is not completely waterproof and your vehicle should NOT be treated like a submarine. The various electronic components used in the vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, however, most of the mechanical components are water-resistant and should not be submerged.

Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts in the electrical cables, will be susceptible to corrosion if additional maintenance is not performed after running in wet conditions. To maximize the long-term performance of your vehicle and to keep the warranty intact, the procedures described in the "Wet Conditions Maintenance" section below must be performed regularly if you choose to run in wet conditions. If you are not willing to perform the additional care and maintenance required, then you should not operate the vehicle in those conditions.

CAUTION: Failure to exercise caution while using this product and complying with the following precautions could result in product malfunction and/or void the warranty.

General Precautions

• Read through the wet conditions maintenance procedures and make sure that you have all the tools you will need to properly maintain your vehicle.
• Not all batteries can be used in wet conditions. Consult the battery manufacturer before use. Caution should be taken when using Li-Po batteries in wet conditions.
• Most transmitters are not water-resistant. Consult your transmitter's manual or the manufacturer before operation.
• Never operate your transmitter or vehicle where lightning may be present.
• Do not operate your vehicle where it could come in

contact with salt water (ocean water or water on salt-covered roads), contaminated or polluted water. Salt water is very conductive and highly corrosive, so use caution.

• Even minimal water contact can reduce the life of your motor if it has not been certified as water-resistant or waterproof. If the motor becomes excessively wet, apply very light throttle until the water is mostly removed from the motor. Running a wet motor at high speeds may rapidly damage the motor.
• Driving in wet conditions can reduce the life of the motor. The additional resistance of operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or larger spur gear. This will increase torque (and motor life) when running in mud, deeper puddles, or any wet conditions that will increase the load on the motor for an extended period of time.

Wet Conditions Maintenance

• Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can of compressed air, blow out any water that may be inside the recessed connector housing.
• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt off with a garden hose. Avoid rinsing the bearings and transmission.

NOTICE: Never use a pressure washer to clean your vehicle.

• Use an air compressor or a can of compressed air to dry the vehicle and help remove any water that may have gotten into small crevices or corners.
• Spray the bearings, drive train, fasteners and other metal parts with a water-displacing light oil or lubricant. Do not spray the motor.
• Let the vehicle air dry before you store it. Water (and oil) may continue to drip for a few hours.

• Increase the frequency of disassembly, inspection and lubrication of the following:

• Front and rear axle hub assembly bearings.

• All transmission cases, gears and differentials.
• Motor—clean with an aerosol motor cleaner and re-oil the bearings with lightweight motor oil.

- Drain any water that has collected in the tires by spinning them at high speed. With the body removed, place the vehicle upside down and pull full throttle for a few short bursts until the water has been removed.

WARNUNG

HINWEIS

At ARRMA we want you to love running your kit and make owning a high performance RC car as simple as possible. If you have any questions about running, maintaining, tuning or repairing your ARRMA product there are three options for you to use to get help and advice. Visit ARRMA-RC.com for support, parts and upgrades for your kit. If you can't find what you're looking for then you can always email us at support USA@ARRMA-RC (USA) or [e-mail] (ROW) 24hrs a day and we will do our best to help you with your query.

Hilfestellung

Quick Start Guide	10
How to Drive 12
Electronic Speed Controller (ESC) 15
Radio Gear 17
Troubleshooting 20
Warranty Information 46

INHALT

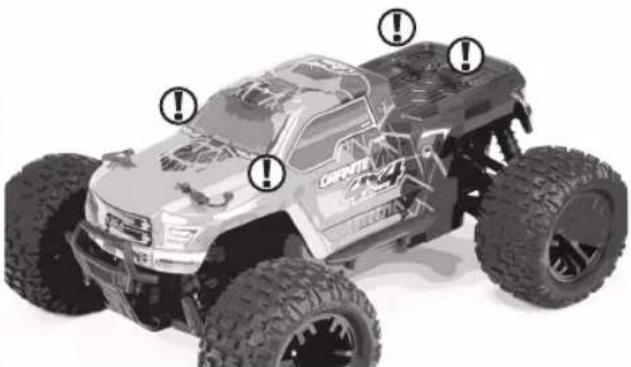

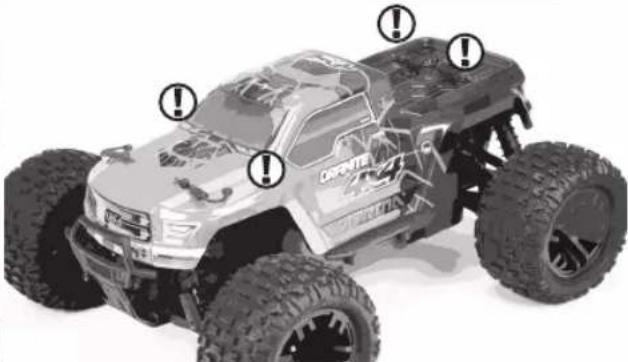

Black-and-white photo of a toy car with large tires and visible warning symbols (no text or labels)

Close-up of a hand adjusting electronic components on a car's roof, with an arrow pointing to the component (no visible text or symbols)

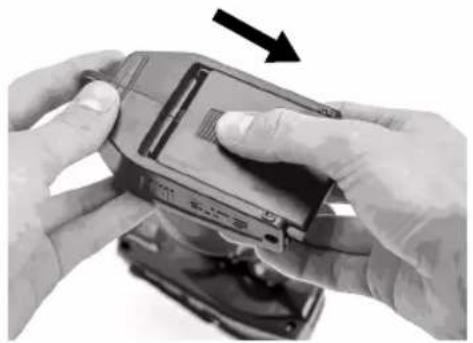

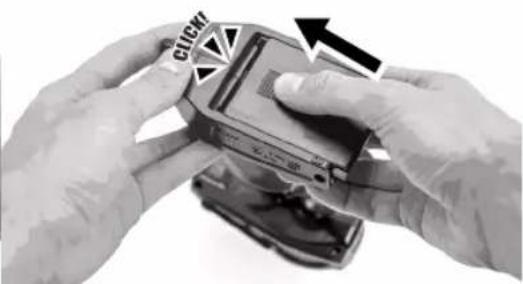

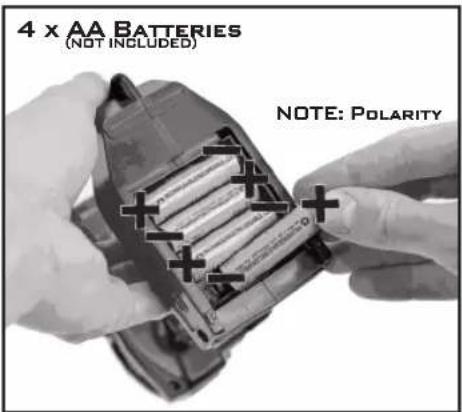

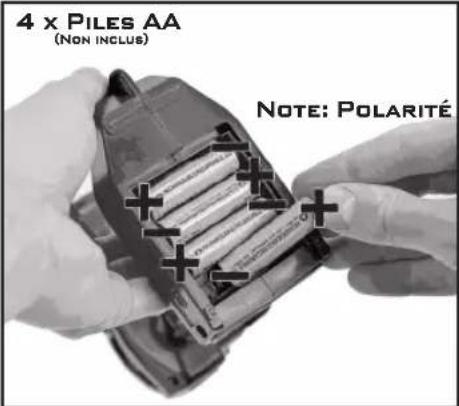

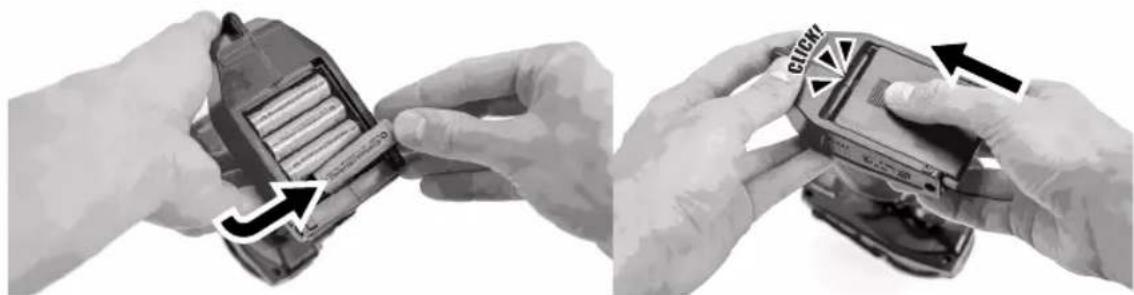

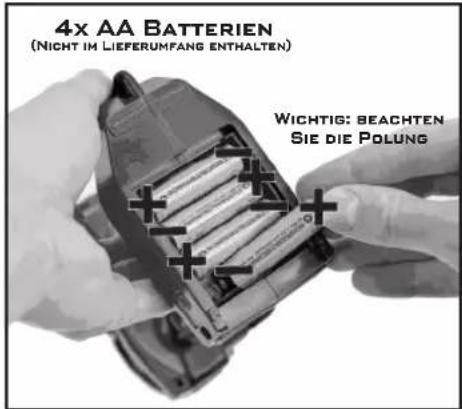

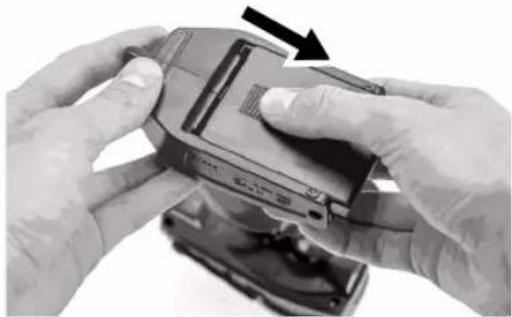

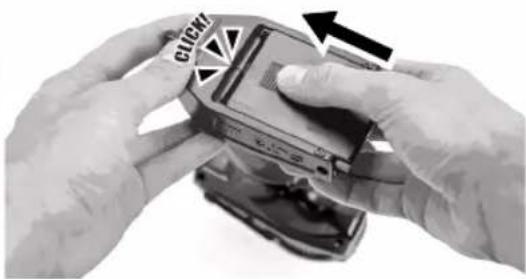

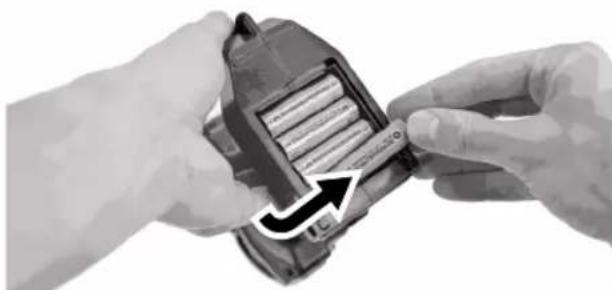

INSTALL AA BATTERIES IN CONTROLLER

Close-up of hands holding a handheld electronic device with a scroll, no visible text or symbols

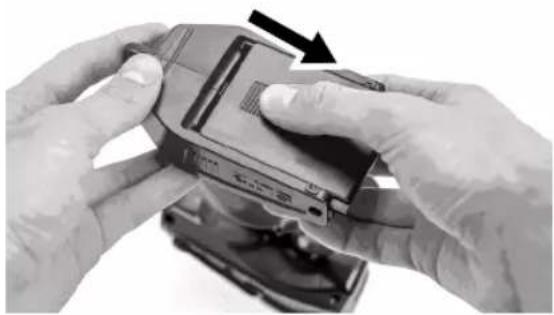

Two-panel black-and-white photo showing hands assembling a battery pack and a handheld device with a labeled arrow (no text or symbols on the devices themselves)

CAUTION: Only charge rechargeable batteries. Charging non-rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to national regulations.

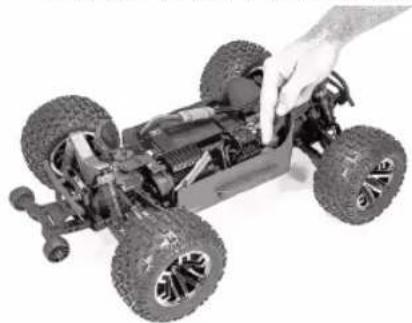

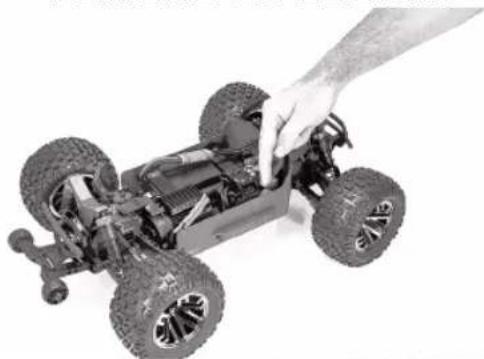

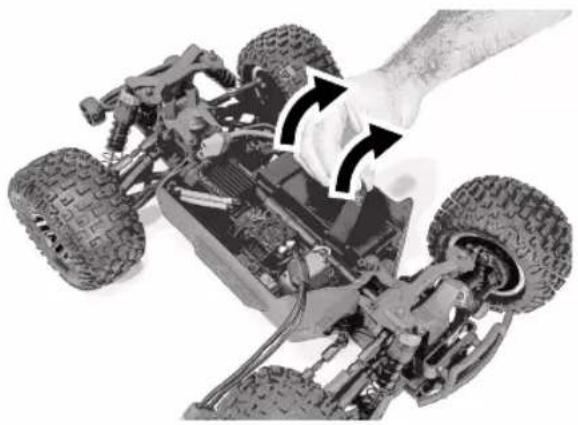

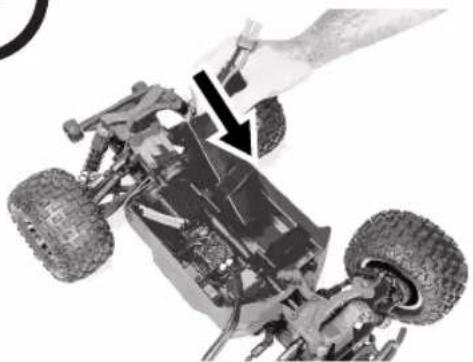

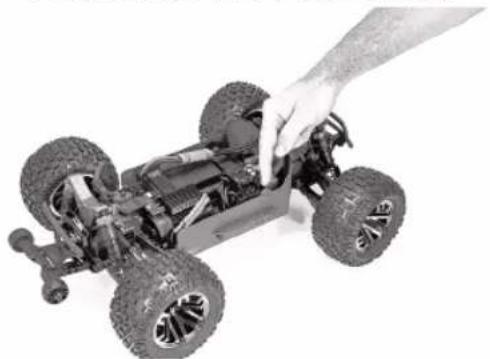

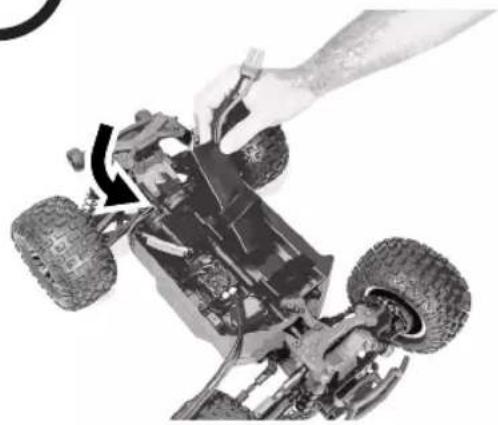

INSTALL CHARGED BATTERIES IN CAR

Close-up of a hand adjusting a small off-road vehicle chassis with visible tire tracks and suspension (no text or symbols)

Close-up of a toy car chassis with visible tires and suspension, being handled by a hand (no text or symbols)

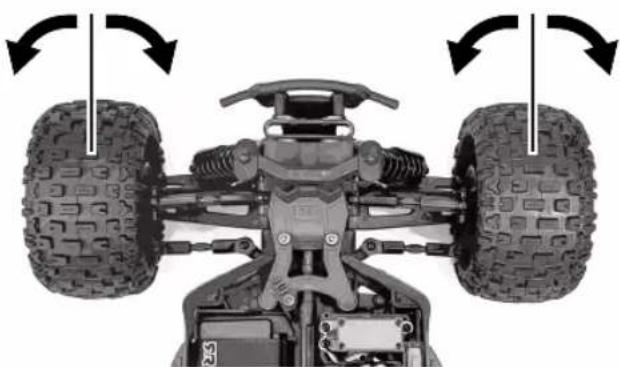

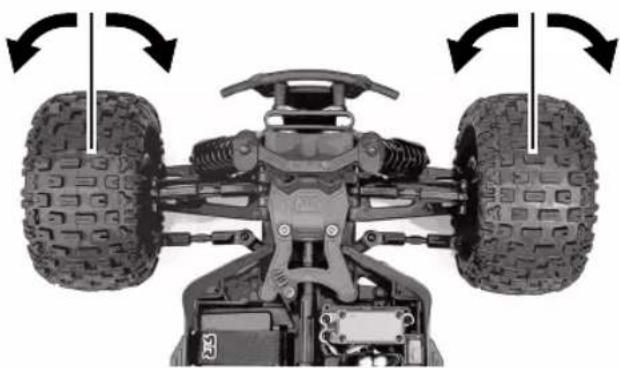

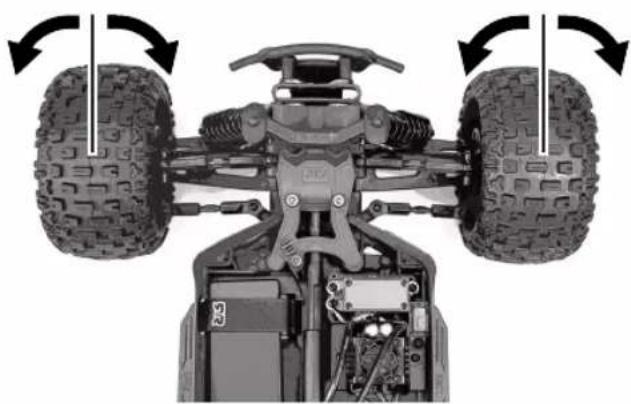

STEERING NEUTRAL

Top-down view of a toy car showing two large tires with side-mounted sensors and a central hub (no text or symbols visible)

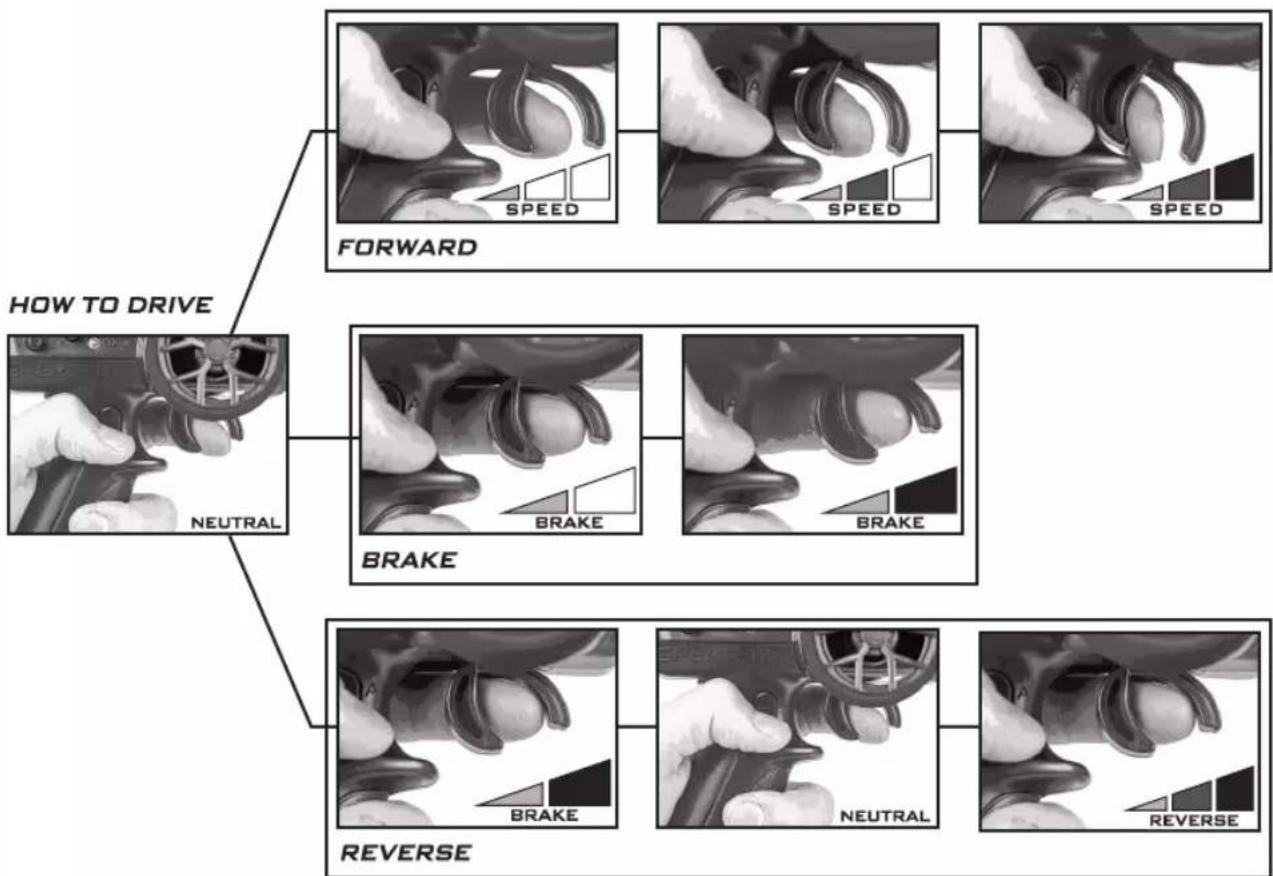

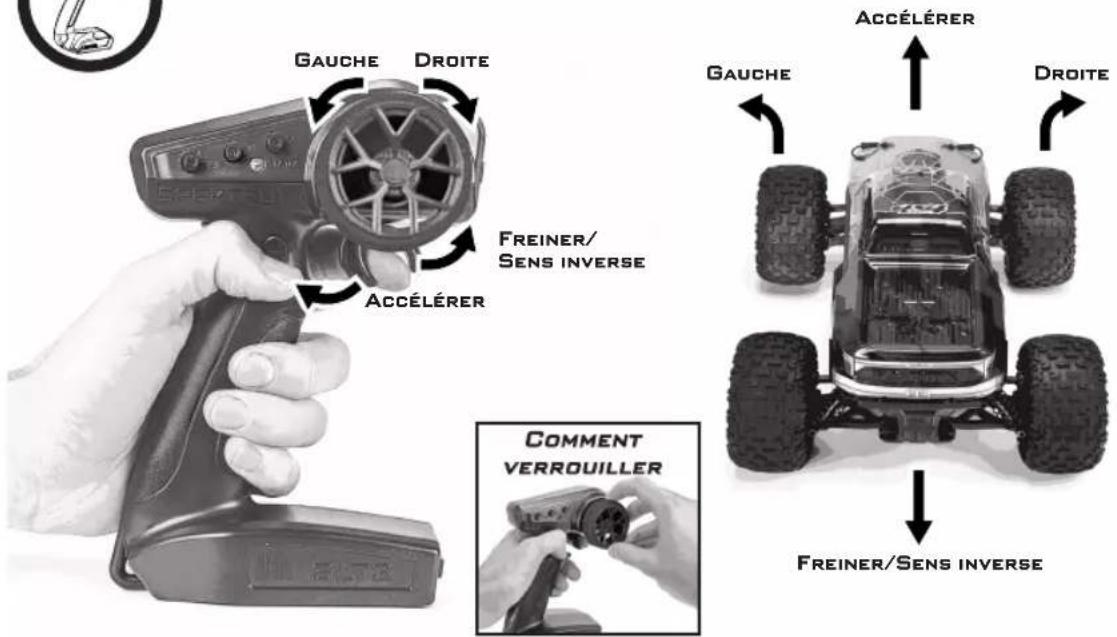

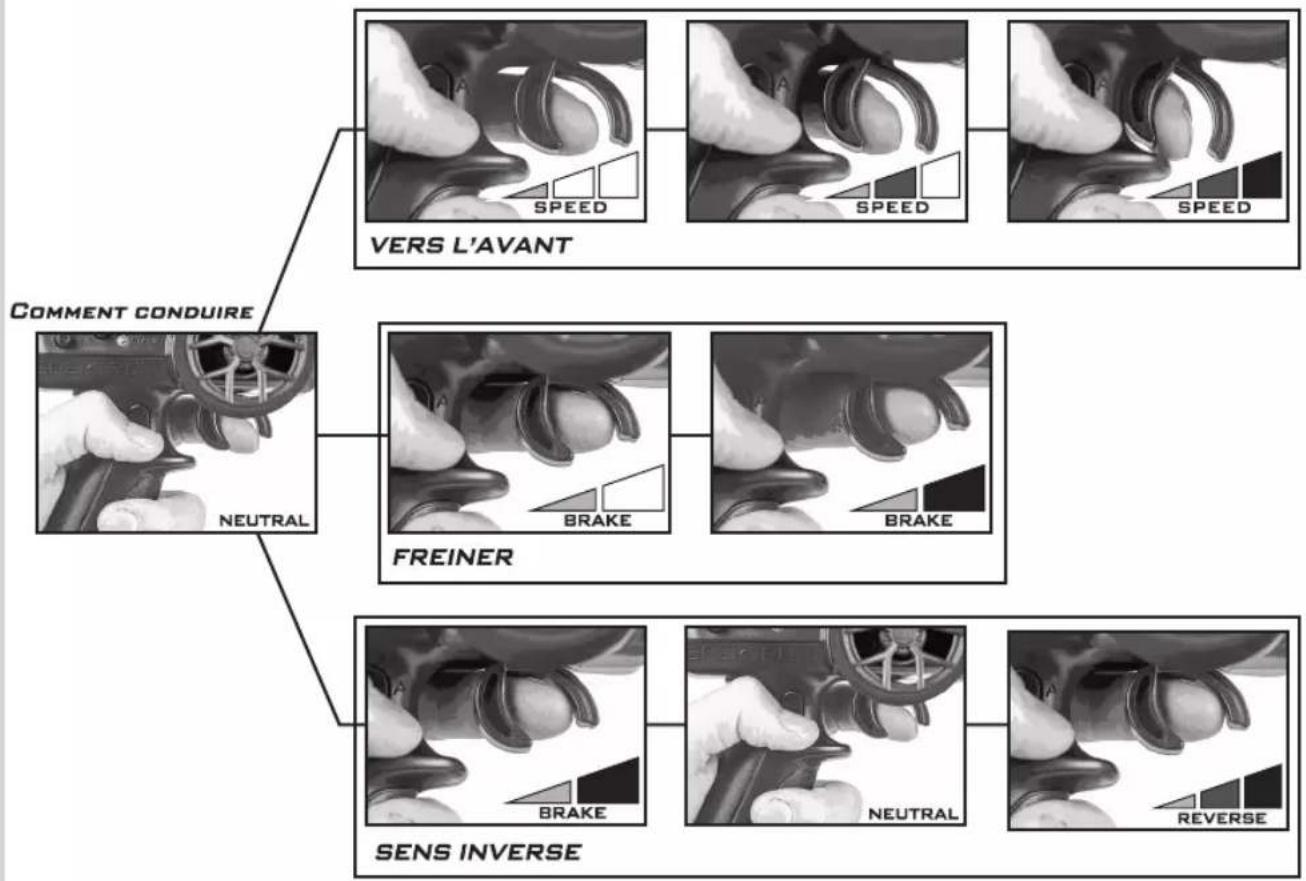

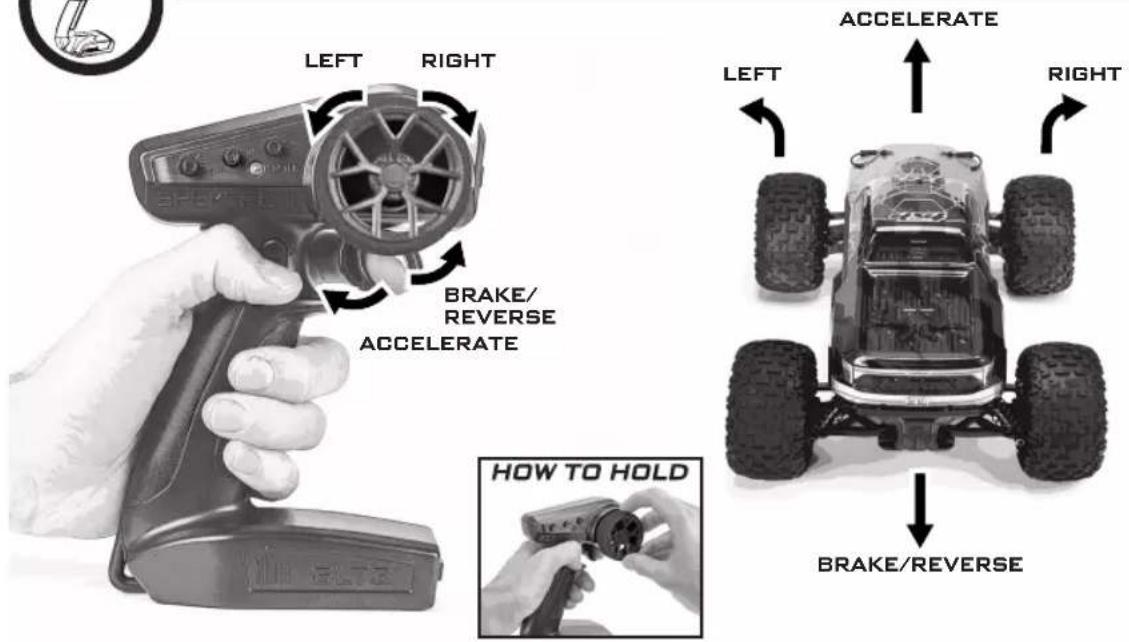

How to Drive


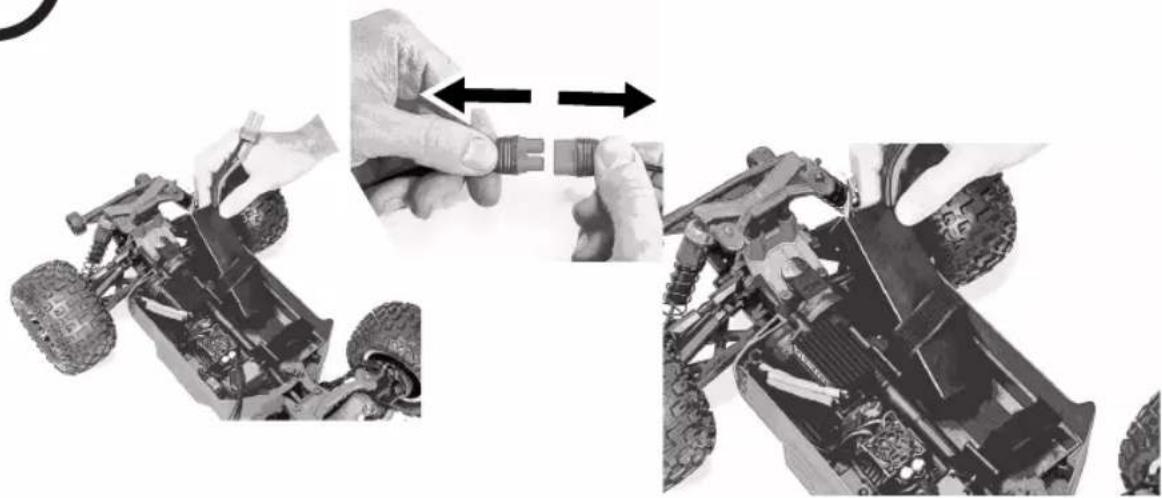

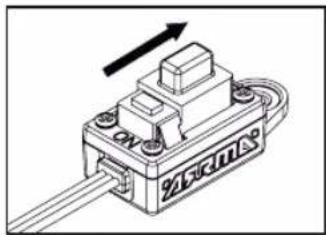

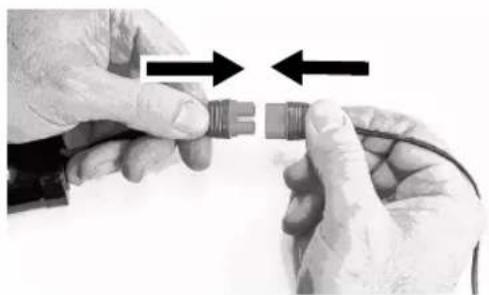

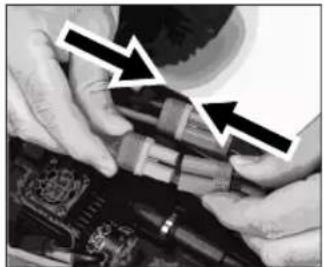

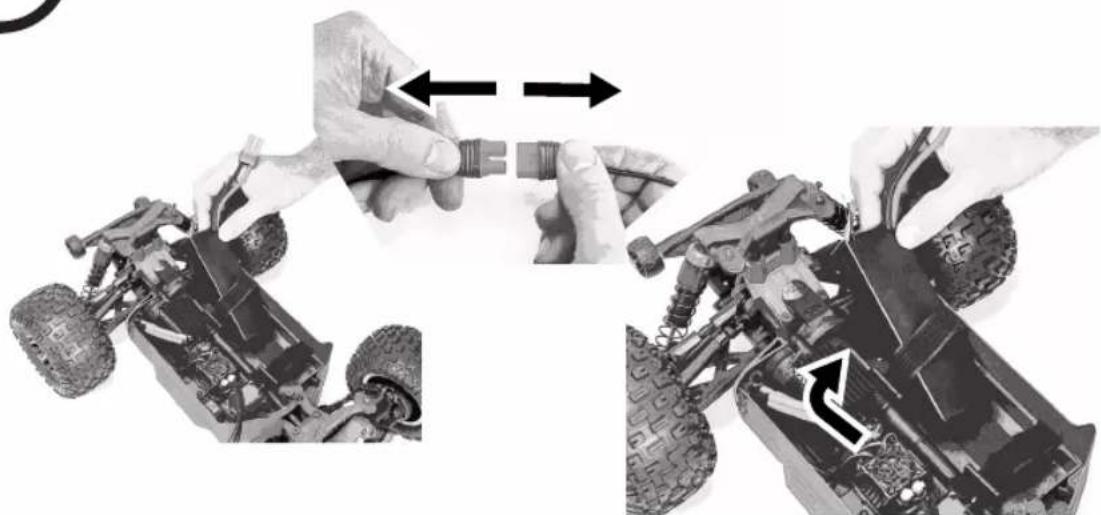

CONNECT ESC AND POWER ON

Close-up of a toy car chassis with visible tire and suspension components, no text or symbols present

Close-up of hands holding two connected USB connectors with bidirectional arrows indicating alignment (no text or symbols)

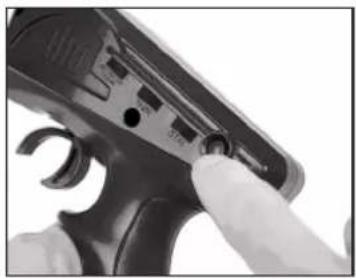

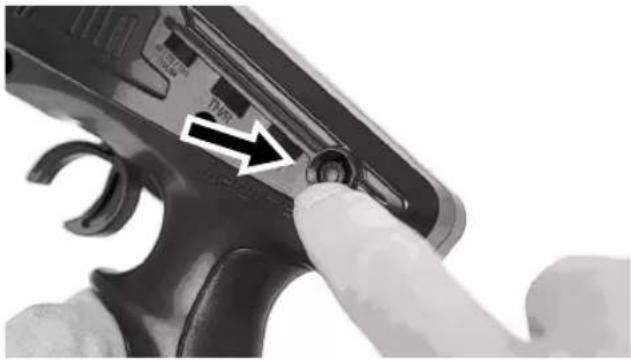

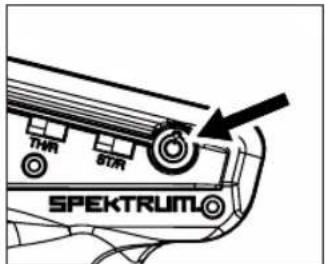

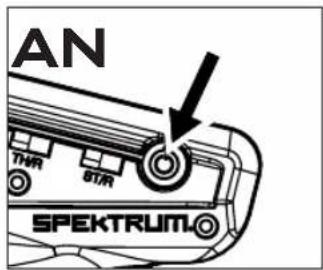

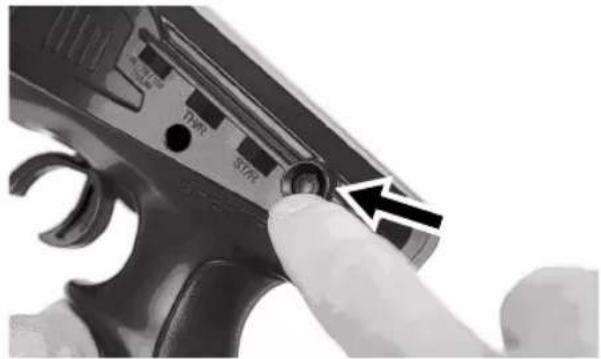

CONTROLLER ON FIRST

Close-up of a black handheld gun with a finger pressing a button, showing a white arrow pointing to the grip (no text or symbols visible)

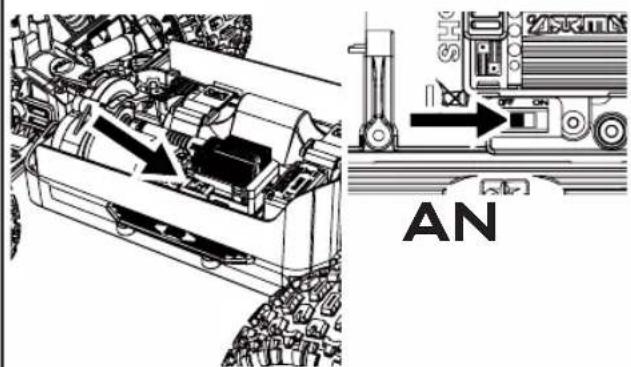

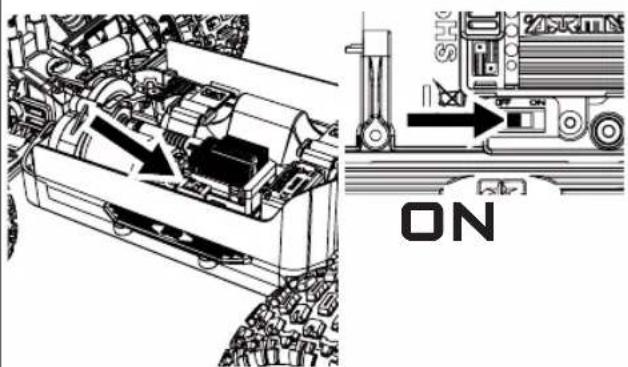

CAR ON SECOND

Close-up of a small electric vehicle chassis with visible tires and suspension components, being handled by a hand (no text or symbols)

Close-up of a handheld electronic device with a finger pointing to its port (no visible text or symbols)

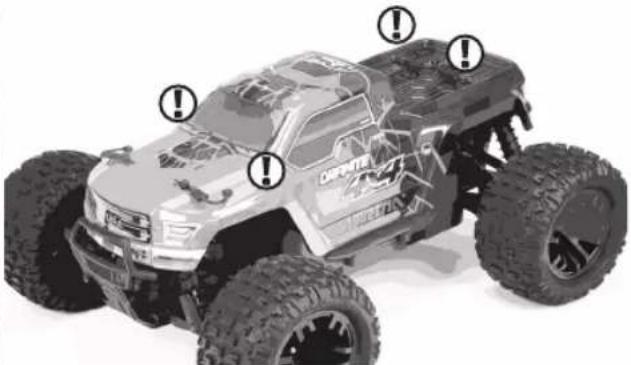

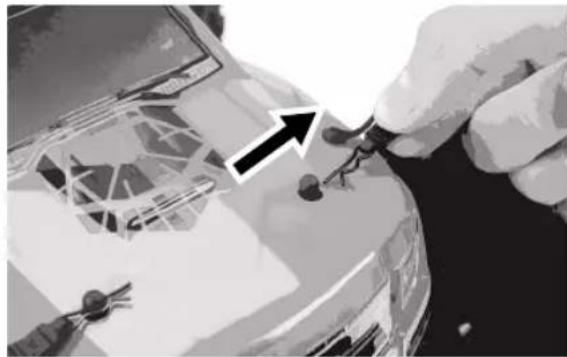

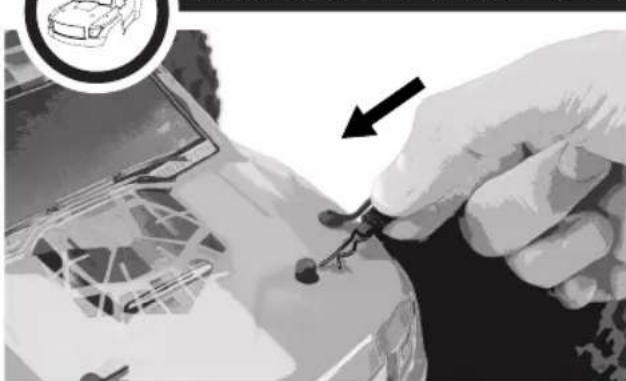

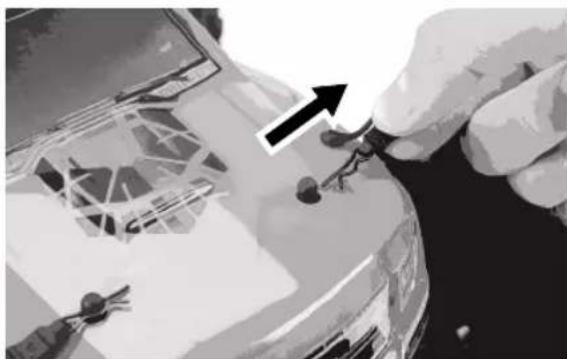

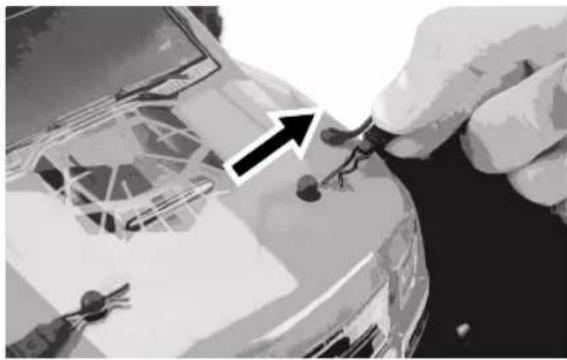

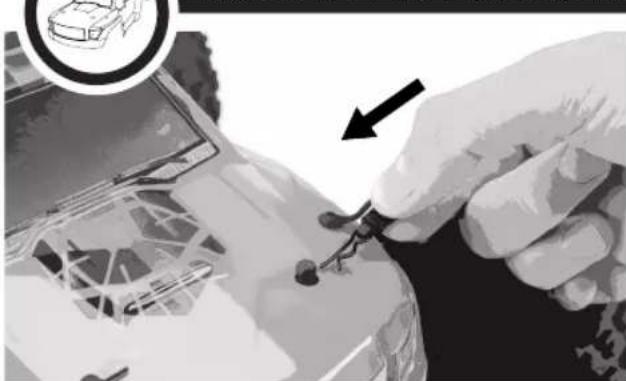

INSTALL CAR BODY

Close-up of a hand inserting a small electronic component into a car body, with an arrow indicating the component (no text or symbols visible)

Top-down view of a Ultra-Tech vehicle with visible tire tracks and front-mounted motors (no text or symbols)

NOW GET SHREDDING!

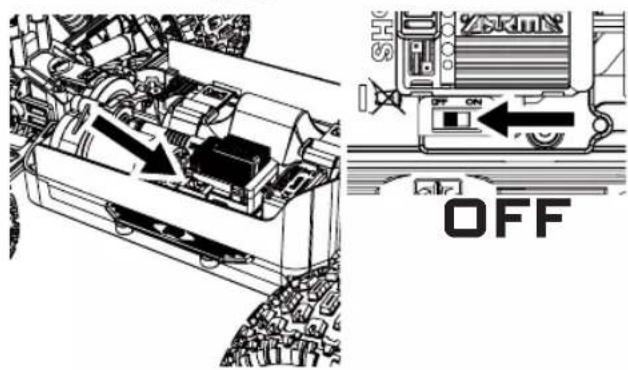

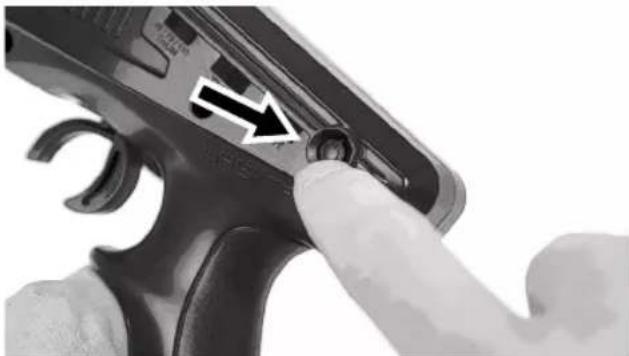

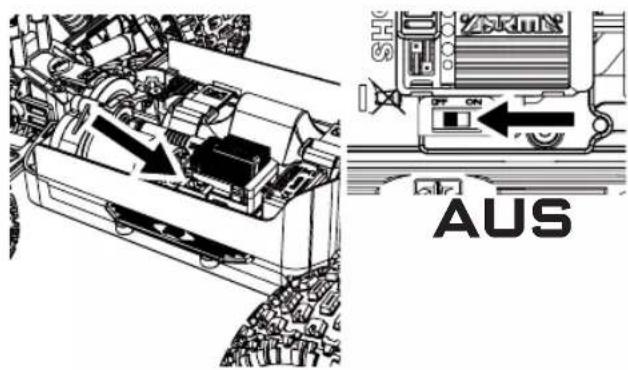

CAR OFF FIRST

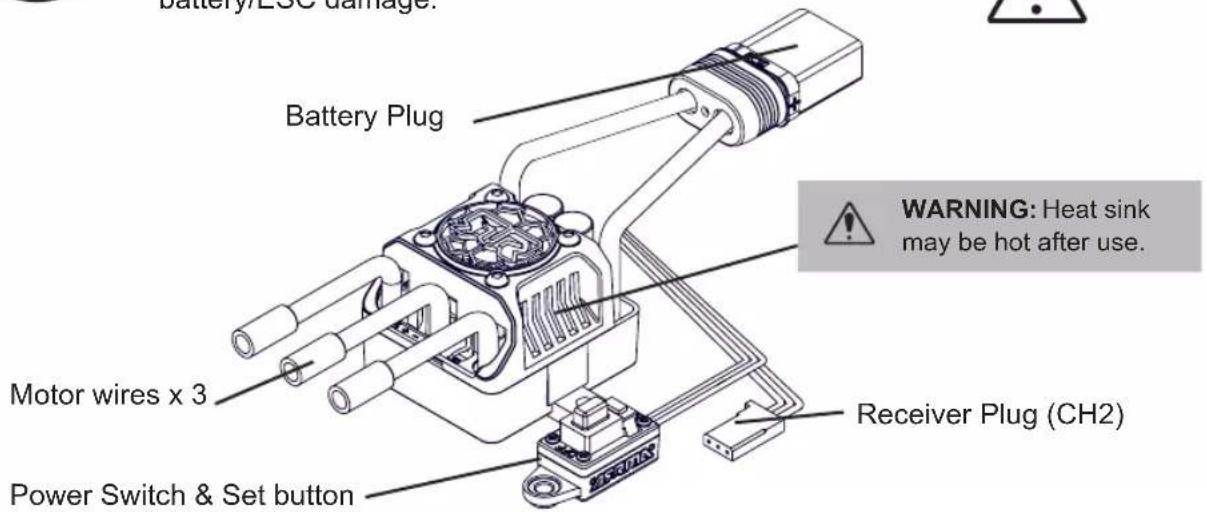

Only use fully charged LiPo batteries (4.2V per cell) to prevent battery/ESC damage.

ESC Specifications

Input Voltage

2S-3S LiPo (7.4-11.1v) 35C 5000mAh Minimum Req. 6-8 Cell NiMh (7.2v-9.6v)

BEC Output

6.0v/6A Max

THROTTLE

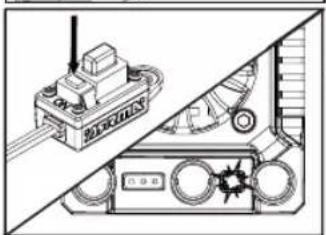

SETUP

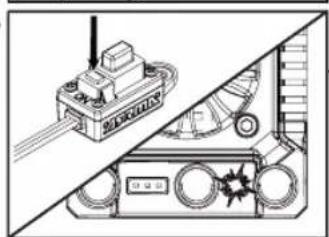

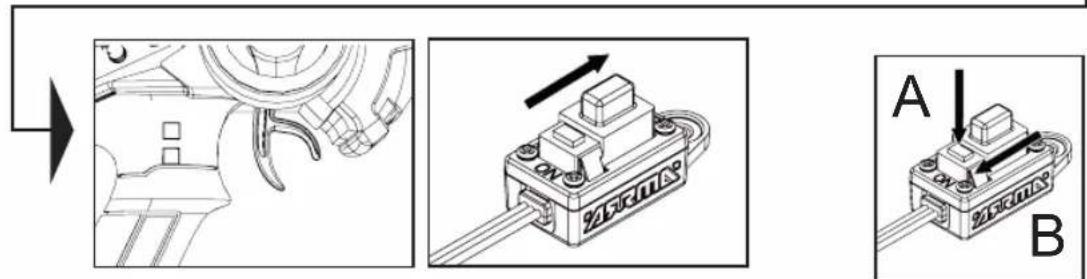

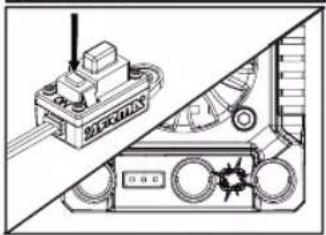

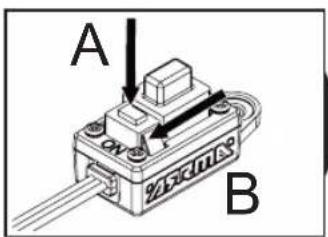

Connect batteries, turn on TX and press/hold the set button 'A'. Turn the switch on 'B' and release the set button when the RED light flashes on the ESC.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

1. TX in neutral - press set button (1 Green flash)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

1. TX full throttle - press set button (2 Green flashes)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

1. TX full brake - press set button (3 Green flashes)

1. Switch off ESC to complete setup

BATTERY MODES

If using LiPo batteries you must set the correct battery mode on the ESC (electronic speed controller) to prevent battery damage.

TEMPERATURE PROTECTION

If the ESC temperature exceeds 105 degrees Celsius/221 degrees Fahrenheit, the ESC will enter temperature protection mode and the green status LED will blink. Once the ESC has cooled down it will resume normal operation after it has been turned off and back on again.

ESC TUNING OPTIONS

The ARRMA BLX brushless ESC is setup for use straight from the factory, if you want to alter the settings for your track or driving style please see the table and steps below:

	Variable Setting > 1 2 3 4 5 6 7
1 Low Voltage Cut-Off Threshold		LIPO NIMH
2 Punch Setting		Level 1 Level 2 Level 3 Level 4 Level 5
3 Brake Strength		25% 37.5% 50% 62.5% 75% 87.5% 100%
4 Running Mode		Fwd/Brk/Rev Fwd/Brk
5 Motor Rotation		Normal (CCW)	Reverse (CW)

TO ALTER ESC SETTINGS

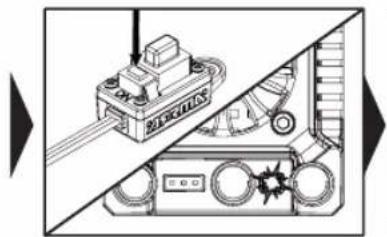

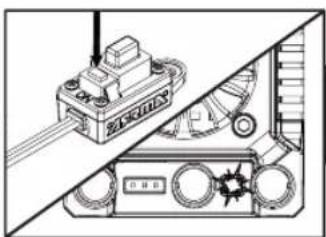

1. Connect a battery. Press and hold the set button and turn on ESC. The RED LED will flash.

Technical line drawing of a mechanical device with no visible text or symbols

1. Keep holding the set button and you will see the GREEN LED flash/beep (the number of green flashes represents the variable number).

Technical line drawing of a mechanical component with an upward arrow and angle label (no readable text or symbols)

1. To enter the selected variable, release the set button on the desired number of flashes/beeps.

Technical illustration of a mechanical assembly with no visible text or symbols

1. Using the tuning chart, press the 'set' button until the number of red LED flashes and short beeps equals the required value.

Technical line drawing of a mechanical component with no visible text or symbols

1. To save the setting, switch the ESC off. Restart the process to make more changes.

FACTORY RESET

To reset the ESC to factory default settings, connect a battery, turn the transmitter on and then turn the car on. Press and hold the set button for 4 seconds and release. The Red and Green lights will flash simultaneously to show you have reset. Switch the ESC off and factory reset is complete.

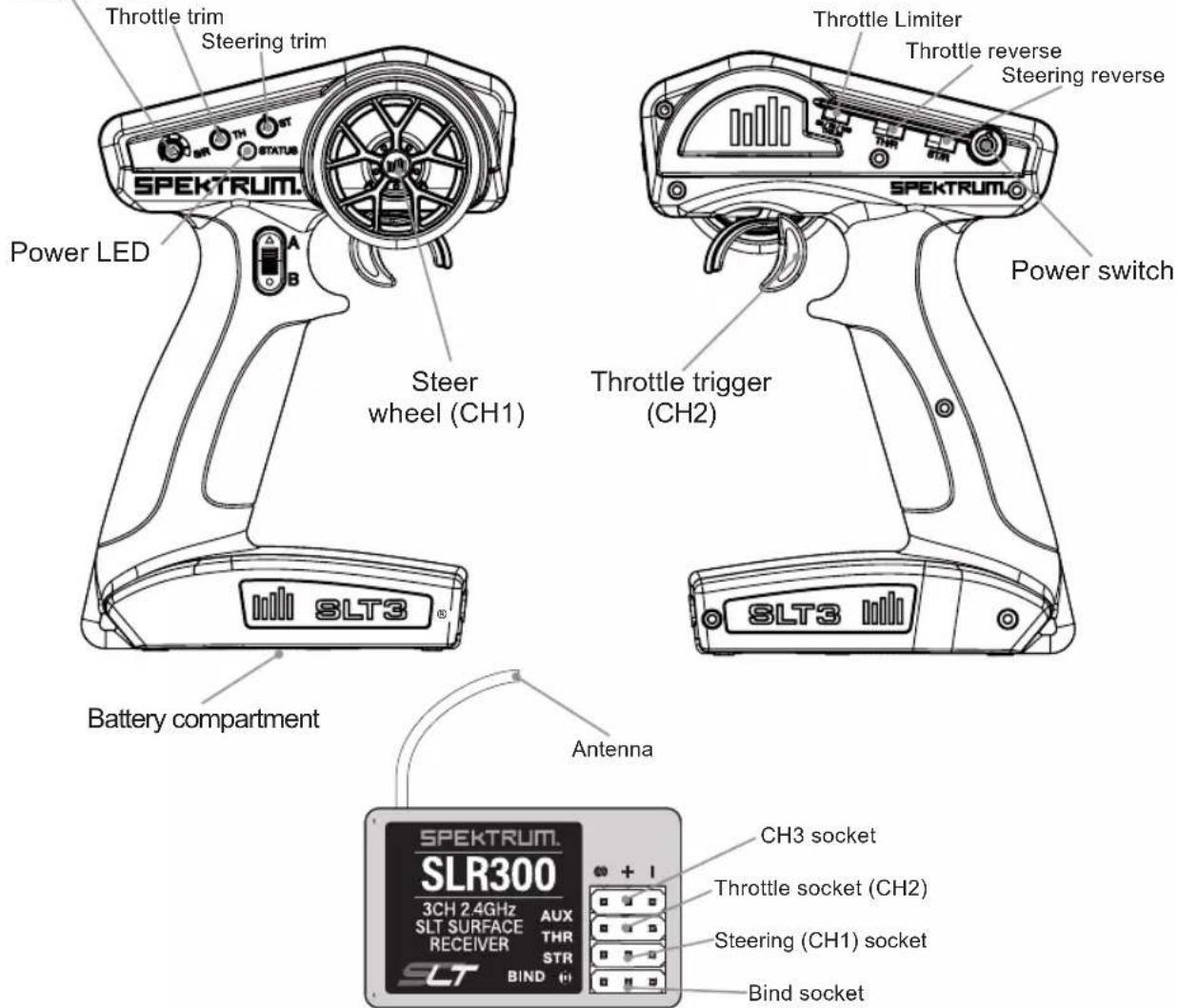

RADIO GEAR

SLT3 3CH

2.4GHZ DIGITAL

RADIO SYSTEM

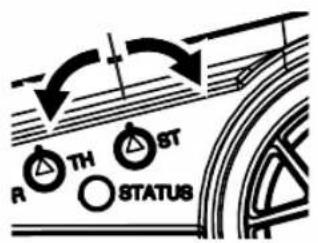

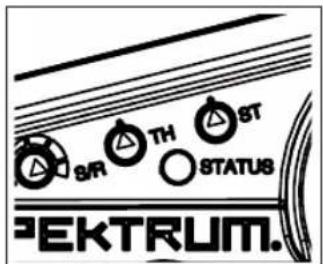

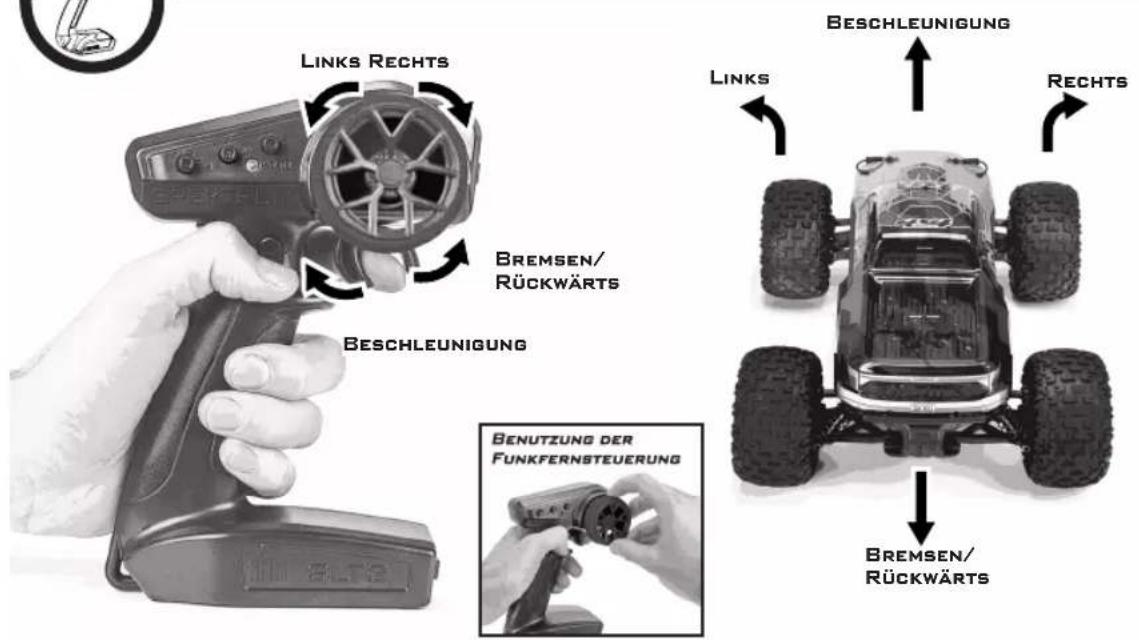

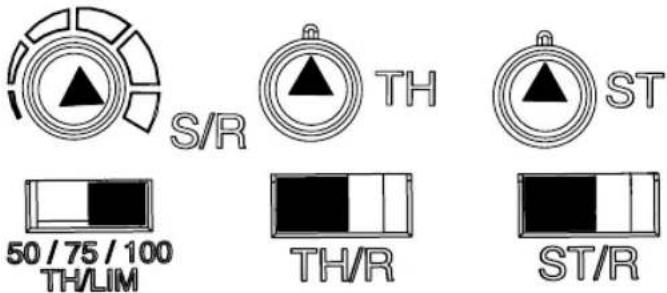

Steering dual rate

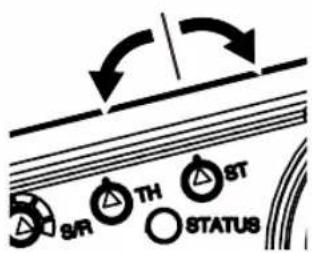

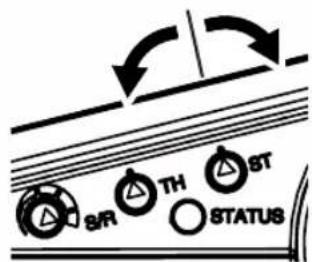

STEERING TRIM ST RATE

Top-down line drawing of a four-tremy vehicle with visible exhaust flow arrows (no text or symbols)

Top-down diagram of a vehicle showing four wheels and a dashed arrow indicating light or motion (no text or symbols)

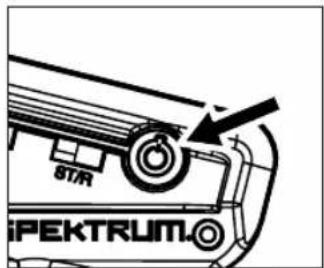

THROTTLE TRIM
Throttle Trim: factory default neutral, adjustment is not necessary.

BATTERY STATUS
If battery status LED is flashing, the batteries need to be replaced.

FACTORY DEFAULTS

BINDING

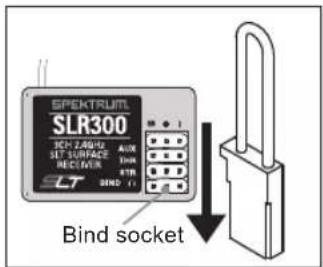

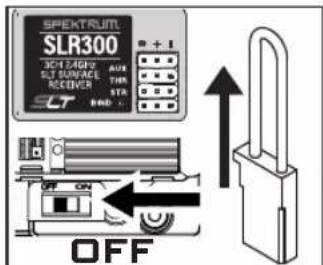

Insert the Bind Plug in the BIND port on the receiver.

Close-up of hands assembling electronic components with arrows indicating assembly or inspection (no visible text or symbols)

Connect a fully charged battery pack to the ESC.

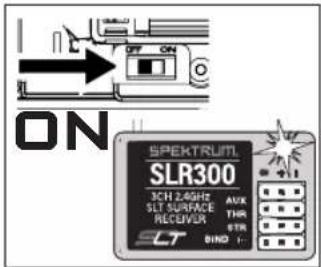

Power on the ESC. The red LED flashes, indicating the receiver is in bind mode.

Center the ST TRIM and TH TRIM dials on the transmitter.

Power the transmitter on. The receiver LED will stop flashing.

Remove the Bind Plug, then power off the ESC to save the settings.

Power off the transmitter.

FCC ID: BRWSPMSLT300; BRWSPMSLR300

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORISED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Approved under the verification provision of FCC Part 15 as a Class B Digital Device.

This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter

Caution: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.

Hereby, Horizon Hobby, LLC declares that the device is in compliance with the following: European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU; European Union Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Directive 1907/2006 European Radio Equipment Directive (RED) 2014/53/EU

A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance.

Frequency Band: 2405-2474 MHz

Max EIRP: 8.30 dBm

Industry Canada Notice: IC: 6157A-SPMSLT300; 6157A-SPMSLR300

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada license-exempt RSS standard(s). 1. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter

INSTRUCTIONS FOR DISPOSAL OF WASTE EQUIPMENT BY PRIVATE USERS IN THE EUROPEAN UNION: This symbol on the product or its packaging indicates this product must not be disposed of with other household waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waster electrical and electronic equipment. The separate collection and recycling of your waste equipment at time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or location where you purchased the product.

Problem Possible Cause Solution
Vehicle does not move	Batteries are incorrectly installed in transmitter	Check transmitter batteries and refit - see model/transmitter manual
	Weak, damaged or no drive battery in model Install fresh, charged batteries
	Frayed or broken motor or ESC wires	Check condition, reconnect and insulate
	ESC has shut down due to overheating	Stop driving and allow ESC or motor to cool down
	Electric motor is damaged	Replace with new unit - visit ARRMA-RC.com for advice and upgrades!
	Waterproof ESC is damaged	Replace with new unit - visit ARRMA-RC.com for advice and upgrades!
	Possible damage to transmission/drive-line	Check components and replace - visit ARRMA-RC.com for advice
	ESC low voltage cutoff has activated to protect batteries	Remove drive battery, leave to cool down if necessary, and re-charge
Vehicle does not reverse	Waterproof ESC is damaged	Replace with new unit - visit ARRMA-RC.com for advice and upgrades
Vehicle drives without input	Transmitter throttle trim incorrectly set	Throttle trim needs to be set to zero/neutral - see model/transmitter manual
	Neutral throttle position of ESC Unit incorrect Re calibrate the ESC
Short runtime	Battery damaged or not fully charged Check condition,	replace or recharge
	Electric motor dirty or damaged	Clean, check condition and/or replace - visit ARRMA-RC.com for more information
	Incorrect ESC battery mode - voltage cutoff too high for the battery you are using	Adjust the battery mode of the unit
Sluggish performance	Battery damaged or not fully charged Check condition,	replace or recharge
	Transmitter throttle trim incorrectly set	Throttle trim needs to be set to zero/neutral - see model/transmitter manual
	Electric motor dirty or damaged	Clean, check condition and/or replace - visit ARRMA-RC.com for more information
	Drivetrain dirty or damaged	Clean, check condition and/or replace - visit ARRMA-RC.com for more information
No control of vehicle or short range	Transmitter batteries are weak or fitted incorrectly	Check transmitter batteries and refit - see model/transmitter manual
	Servo wires to receiver loose or connected incor-rectly	Reinstall signal wires to receiver
	Transmitter and receiver unit are not 'bound' cor-rectly	Transmitter and receiver need to be bound - see model/transmitter manual
Steering/Throttle operation intermittent	ESC has shut down due to overheating	Stop driving and allow ESC or motor to cool down
	Transmitter and receiver unit are not 'bound' cor-rectly	Check for sources of interference and re-bind transmitter/receiver - see transmitter manual
Vehicle wanders left/right without steering input	Steering trim setting out	Adjust steering trim - see model/ transmitter manual
	Damaged steering components	Check components and replace - visit ARRMA-RC.com for advice
	Drivetrain dirty or damaged	Clean, check condition and/or replace - visit ARRMA-RC.com for more information
Steering/Throttle operation Reversed	Relevant channel of transmitter is reversed	Reverse relevant channel on trans-mitter - see model/ transmitter manual
	Check that the wires from the ESC to the motor are connected correctly	Reconnect in the correct orientation (orange to orange, yellow to yellow and blue to blue) ensuring fit is tight; if not pinch female connector with pliers
Limited steering angle	Transmitter steering dual-rate set incorrectly	Adjust transmitter dual-rate - see transmitter manual
	Damaged steering components	Check components and replace - visit ARRMA-RC.com for advice

Top-down view of a toy car with visible tire tracks and warning symbols (no text or labels)

Close-up of hands installing or adjusting a car's engine components with a black arrow pointing to the component (no text or symbols visible)

LEGEN SIE DIE AA BATTERIEN IN DAS STEUERGERÄT EIN

Close-up of hands holding a device with a black arrow pointing to the component (no visible text or symbols)

Close-up of hands assembling a battery pack with an arrow indicating the process (no text or symbols visible)

Close-up of hands holding a smartphone with a partially open screen (no visible text or symbols)

Close-up of a hand operating a small wheeled vehicle chassis with visible tire tracks and wheels (no text or symbols)

Close-up of a toy car chassis with visible tires and suspension, being handled by a hand (no text or symbols)

LENKUNG NEUTRALPOSITION

Top-down view of a toy car showing two large tires with side-mounted sensors and a central hub (no text or symbols visible)

WIE MAN FÄHRT

Close-up of a toy car chassis with visible tire tracks and a hand adjusting the wheel (no text or symbols)

Close-up of hands connecting two USB connectors with arrows indicating direction (no text or symbols)

Close-up of a hand holding a black handheld device with a white arrow pointing to the grip (no visible text or symbols)

Close-up of a hand adjusting a two-wheeled toy car chassis (no visible text or symbols)

Close-up of a hand holding a small tool near a vehicle's head, with an arrow pointing to the component (no visible text or symbols)

Black-and-white photo of a Honda utility vehicle with five large tires and visible warning symbols (no text or labels)

NUN KANN ES LOSGEHEN!

AUSSCHALTEN

Close-up of a hand adjusting a 3D-printed off-road vehicle chassis (no visible text or symbols)

Close-up of a handgun with a finger pointing to the grip, showing no visible text or symbols.

Close-up of a handheld electronic device with a finger pointing to its ports (no visible text or symbols)

LAGERN

Two-step photo showing hands adjusting a small component on a toy car chassis, with no visible text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a ZERMA electrical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with an upward arrow and '250mm' label (no readable text or symbols beyond basic markings)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with directional arrow (no text or symbols)

Top-down diagram of a vehicle showing four wheels and a car, with arrows indicating airflow or motion direction (no text or symbols)

ST RATE

Top-down diagram of a car with four wheels and directional arrows indicating flow or motion (no text or symbols)

Close-up of hands assembling electronic components with arrows indicating direction (no text or symbols visible)

Top-down view of a toy car with visible tire tracks and warning symbols (no text or labels)

Close-up of a hand adjusting a car's front panel with tools, showing a black arrow pointing to the component (no text or symbols visible)

INSTALLER LES PILES AA DANS LA RADIOCOMMANDE

Close-up of hands holding a smartphone with a black arrow pointing to the screen (no visible text or symbols)

Close-up of hands holding a battery pack with an arrow indicating rotation (no text or symbols visible)

Close-up of hands holding a payment terminal device with a compass and a directional arrow (no visible text or symbols)

Close-up of a hand holding a small toy car with visible tires and wheels, showing mechanical components (no text or symbols)

Close-up of a small toy car chassis with visible tires and suspension components, being handled by a hand (no text or symbols)

NEUTRE DE DIRECTION

Top-down view of a toy car showing two large tires and a central hub with directional arrows indicating rotation (no text or symbols)

COMMENT CONDUIRE

    B --> E["SPEED"]
    B --> F["SPEED"]
    B --> G["SPEED"]

    C --> H["BRAKE"]
    C --> I["BRAKE"]

    D --> J["NEUTRAL"]
    D --> K["REVERSE"]

Close-up of a small toy car with visible suspension components and a hand adjusting the part (no text or symbols)

Close-up of hands connecting two USB connectors with arrows indicating direction (no text or symbols)

RADIOCOMMANDE EN PREMIER

Close-up of a black handheld gun with a finger pointing to the grip, showing a white arrow indicating motion (no text or symbols visible)

Close-up of a handgun with a finger pointing to the grip (no visible text or symbols)

VOITURE EN SECOND

Hand adjusting a 3D off-road vehicle chassis (no visible text or symbols)

INSTALLER LA CARROSSERIE DE LA VOITURE

Illustration of a hand holding a small object with an arrow pointing to it, next to a car icon (no text or symbols present)

Top-down view of a Honda utility vehicle with visible tires and front suspension (no text or symbols)

MAINTENANT, COMMENCEZ À VOUS AMUSER !

ÉTEINDRE

VOITURE EN PREMIER

Hand adjusting a small black toy car chassis with visible tires and wheels (no text or symbols)

RADIOCOMMANDE EN SECOND

Close-up of a hand holding a handgun with a finger pointing to the grip (no visible text or symbols)

Close-up of a handheld electronic device with a finger pointing to the button (no visible text or symbols)

STOCKAGE

Two-panel image showing a hand adjusting a small cable connector on a toy car chassis, with no visible text or symbols.

TOUT EN SÉCURITÉ ...

JUSQU'À LA PROCHAINE FOIS

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an upward arrow and 'ON' label (no readable text or symbols beyond basic markings)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a ZARMS sensor module with an arrow indicating direction (no text or symbols on the component itself)

Top-down line drawing of a car with four wheels and exhaust arrows indicating airflow or traffic (no text or symbols)

ST RATE

Top-down diagram of a vehicle showing four wheels and a dashed arrow indicating light or motion (no text or symbols)

Close-up of hands assembling electronic components with arrows indicating direction (no visible text or symbols)

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the "Product") will be free from defects in materials and workmanship for a period of 2 years from the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with applicable technical regulations, or (vii) use that violates any applicable laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER'S INTENDED USE.

Purchaser's Remedy

Horizon's sole obligation and purchaser's sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_service-centerRender-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support office.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notification or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notification. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of 12 hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier's checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon's Terms and Conditions found on our website

http://www.horizonhobby.com/content/_service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender's choice and at the sender's expense. Horizon will hold non-compliant Product for a period of 60 days from notification, after which it will be discarded.

GARANTIEINFORMATIONEN

Warnung

INFORMATIONS DE GARANTIE

Empty gray square frame with corner markers and text 'WWW.ARRMA-RC.COM' at bottom (no other readable symbols or text)

JOIN OUR GLOBAL ARRMA COMMUNITY

Facebook logo icon (no text or symbols present)

Simple icon of a retro television with antenna (no text or symbols)

Silhouette of a bird in flight (no text or symbols)

Gray play button icon with white triangle (no text or symbols)

ARB100026858

ARRMA-RC.COM

65012

©2020 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby, LLC. ARRMA, the ARRMA logo, Granite, Senton, Big Rock and Typhon are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
