B-S12D - Hydraulic jack Pro-Lift - Free user manual and instructions

Brand	Pro-Lift
Model	B-S12D
Product Type	Bottle hydraulic jack
Lifting Capacity	10,886 kg (12 US tons)
Base Dimensions (L x W)	13.97 x 13.33 cm (5-1/2 x 5-1/4 in)
Minimum Height	15.24 cm (6 in)
Maximum Height	26.99 cm (10-5/8 in)
Extension Screw Travel	3.81 cm (1-1/2 in)
Operation	Manual (lever)
Main Functions	Lifting heavy loads (vehicles)
Safety	Use with jack stands of adequate capacity; never use alone to support a load
Maintenance	Check oil level, bleed air, lubricate pivot points, clean pistons
Replacement Parts	Available from manufacturer (SFA Companies)
Warranty	1 year limited

Frequently Asked Questions - B-S12D Pro-Lift

What is the lifting capacity of the B-S12D model?

The B-S12D model has a lifting capacity of 10,886 kg (12 US tons). It is designed to lift one end of a vehicle. Never exceed this capacity.

How to bleed trapped air from the jack?

Ensure the release valve is in the open position and the ram is fully lowered. Remove the oil plug, then pump the handle six to eight times to release the air. Check the oil level and replace the plug.

What type of oil to use for the jack?

Use only premium hydraulic jack oil. Never use brake fluid, motor oil, glycerin, or other inappropriate fluids as they may damage the jack.

How to safely lower the load?

Before lowering, ensure no tools or persons are under the load. Open the release valve slowly by turning the handle counterclockwise. Maintain control of the load at all times.

What are the essential safety instructions?

Never work under a load supported only by a hydraulic jack. Always use a pair of jack stands of adequate rated capacity. Place wheel chocks under the non-lifted wheels. Do not exceed the rated capacity.

How to add hydraulic oil?

With the ram fully retracted and the handle piston depressed, place the jack upright and remove the oil plug. Fill until the oil level reaches the bottom of the fill hole, then replace the plug.

What to do if the jack does not lift the load?

First, check that the release valve is properly closed (turned clockwise until resistance is felt). Also ensure the load does not exceed the rated capacity. If the problem persists, contact technical support.

How to maintain the jack?

Periodically lubricate pivot points, pins, and hinges with light oil. Clean the pistons with an oily cloth (not abrasive paper). Change the oil at least once a year. Regularly check for leaks.

Where to find replacement parts?

Replacement parts are available from SFA Companies Inc. at 1-888-332-6419 or by email to [e-mail]. Provide the model number, part number, and description when ordering.

What is the warranty period?

The jack comes with a one-year limited warranty from the date of purchase, covering defects in materials and workmanship. To make a claim, return the product prepaid to the address specified in the manual.

USER MANUAL B-S12D Pro-Lift

Operating Instructions & Parts Manual

Models: B-002D, B-004D B-006D B-008D, B-012D, B-020D, B-S12D, B-S20D

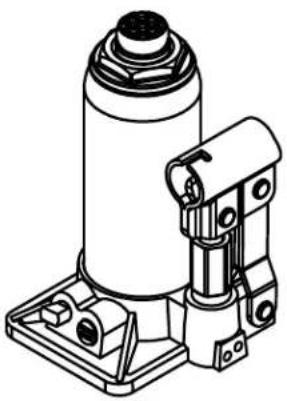

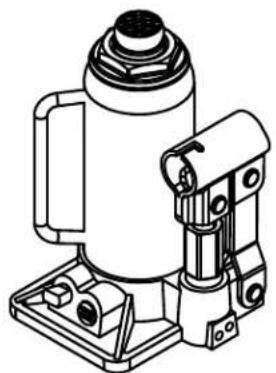

Models B-008D, B-012D, B-020DModels B-002D, B-004

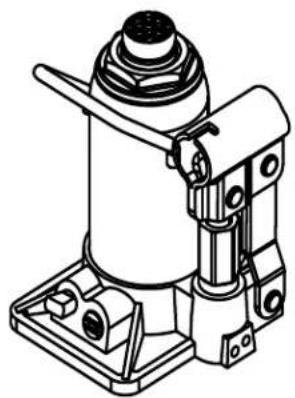

Models B-S12D, B-S20D

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING

To avoid crushing and related injuries: NEVER work on, under or around a load supported only by a hydraulic jack. ALWAYS use a pair of adequately rated jack stands.

Read this manual and follow all the Safety Rules and Operating Instructions before using this product.

SAFETY AND GENERAL INFORMATION

Save these instructions. For your safety, read, understand, and follow the information provided with and on this device before using. The owner and/or operator shall have an understanding of the device, its operating characteristics and safety operating instructions before operating the equipment. The owner and/or operator shall be aware that use and repair of this product may require special skills and knowledge. Instructions and safety information shall be read to and discussed with the operator in the operator's native language, making sure that the operator comprehends their contents, before use of this equipment is authorized. If any doubt exists as to the safe and proper use of this device, remove from service immediately.

Inspect before each use. Do not use if abnormal conditions such as cracked welds, damaged, loose or missing parts are noted. Any equipment that appears damaged in any way, is found to be worn, or operates abnormally shall be removed from service until repaired. If the equipment has been or is suspected to have been subjected to an abnormal load or shock, immediately discontinue use until inspected by a factory authorized repair facility (contact distributor or manufacturer for list of authorized repair facilities). It is recommended that an annual inspection be made by an authorized repair facility. Labels and Operator's Manuals are available from the manufacturer.

PRODUCT DESCRIPTION

Pro-Lift Hydraulic Bottle Jacks are designed to lift, not support, rated capacity loads consisting of one end of a vehicle. Immediately after lifting, the load must be supported by a pair of appropriately rated jack stands.

WARNING: Never use hydraulic jack as a stand alone device. After lifting, immediately support the lifted load with a pair of appropriately rated jack stands.

SPECIFICATIONS

Model Capacity		Base Size (L x W)	Min. Height	Max. Height	Extension Screw
B-002D	2 Ton	3-1/2" x 3-5/8"	7-1/2"	13-5/8"	1-7/8"
B-004D	4 Ton	4-1/4" x 4-1/8"	8"	15-1/2"	2-3/8"
B-006D	6 Ton	4-1/2" x 4-3/8"	8-1/2"	16-5/8"	3"
B-008D	8 Ton	4-5/8" x 4-5/8""	8-7/8"	17-3/8"	2-3/4"
B-012D	12 Ton	5-1/2" x 5-1/4"	9-1/2"	18-3/4"	3-1/8"
B-S12D	12 Ton	5 1/2" x 5 1/4"	6"	10 5/8"	1 1/2"
B-020D	20 Ton	6 1/4" x 6 1/8"	9 1/2"	18 5/8"	3 1/8"
B-S20D	20 Ton	6 1/4" x 6 1/8"	6 1/2"	11 1/8"	1 5/8"

PREPARATION

Before Use

1. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the product, its components and recognize the hazards associated with its use.
2. Verify that the product and application are compatible, if in doubt call Pro-Lift Technical Service [phone].
3. Assemble handle, ensure spring clips align with slots.
4. To familiarize yourself with basic operation, use the notched end of provided Pump Handle to engage and turn the Release Valve:

a. Clockwise until firm resistance is felt to further turning. This is the 'CLOSED' Release Valve position used to raise the ram plunger.
b. Counter-clockwise, but no more than 1/2 turn from the closed position. This is the 'OPEN' Release Valve position used to lower the Ram Plunger.

1. With Ram Plunger fully retracted and release valve closed, pump the operating handle. If Ram Plunger responds immediately, jack is ready for use. If jack does not respond, follow Bleeding/Venting Trapped Air instruction below.
2. Check that the pump operates smoothly and that the Extension Screw will thread up/down easily before putting into service. Replace worn or damaged parts and assemblies with Pro-Lift authorized replacement parts only.

Bleeding/Venting Trapped Air

With the Release Valve in the OPEN position (step 4b above) and with Ram Plunger fully lowered, locate and remove the Oil Filler Plug/Screw. Insert the Pump Handle into the Handle Sleeve; then pump 6 to 8 full strokes. This will help release any pressurized air which may be trapped within the reservoir. Oil level should be even with the bottom of the oil filler hole. Reinstall the Oil Filler Plug/Screw.

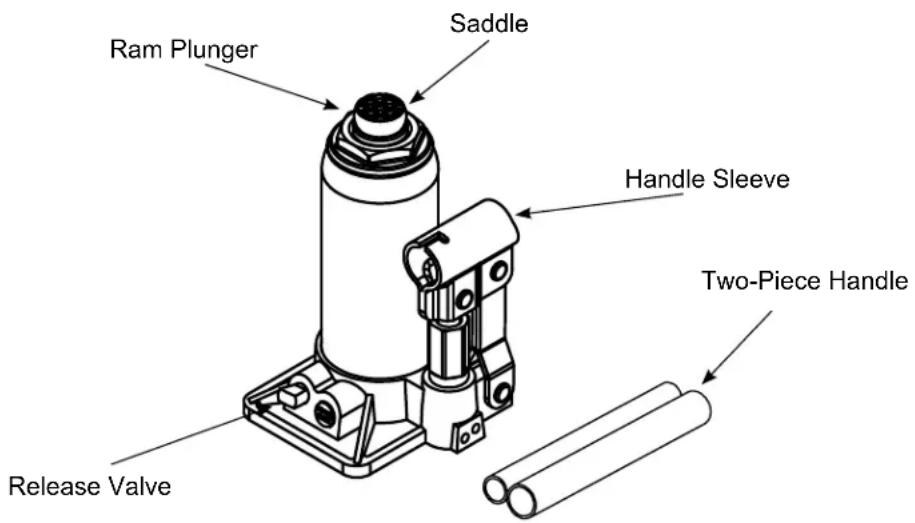

Figure 1 - Typical Bottle Jack Nomenclature (B-002D shown)

WARNING

• Study, understand, and follow all instructions before operating this device.
• Do not exceed rated capacity.
• Use only on hard, level surface.
• This is a lifting device only. Immediately after lifting, support the load with appropriate means.
• Lift only on areas of the vehicle as specified by the vehicle manufacturer.
• No alterations shall be made to this product.
• Only attachments and/or adapters supplied by the manufacturer shall be used.
• Failure to heed these markings may result in personal injury and/or property damage.

WARNING

To avoid crushing and related injuries:

• Never work on, under or around a load supported only by hydraulic jack.
• Always use adequately rated jack stands.
• Chock each unlifted tire in both directions.
• Do not use this device to lift, level, lower, support nor move a house, mobile home, travel trailer, camper or any building structure.
• Be alert and sober when using this product. Do not operate under the influence of drugs or alcohol.

OPERATION

Raising the Ram Plunger

1. Assemble Pump Handle, align spring clips with corresponding slots.
2. Place vehicle in park, with emergency brake on and wheels securely chocked to prevent inadvertent vehicle movement.
3. Locate and close Release Valve by turning Pump Handle clockwise until firm resistance is felt.
4. Verify lift point, center jack Saddle under lift point.
5. Insert Pump Handle into Handle Sleeve and pump to contact lift point. To lift, continue pumping until load reaches desired height.
6. Transfer the lifted load to a pair of appropriately rated jack stands.

NOTICE: Use Pump Handle provided by jack manufacturer. The handle provided with this jack will safely engage the release valve and operate the Handle Sleeve. If handle is worn, operates abnormally, or will not positively engage the release valve, STOP, discontinue use of the jack until a factory replacement handle can be acquired.

Lowering

WARNING: Clear all tools and personnel before lowering load. Open release valve slowly. The further handle is turned counter-clockwise, the faster the load will descend. Maintain control of the load at all times.

1. Raise load high enough to clear the jack stands, then carefully remove jack stands.
2. Slowly turn the Pump Handle counter-clockwise, but no more than 1/2 turn. If the load fails to lower:

a. Use another jack to raise the vehicle high enough to reinstall jack stands.
b. Remove the affected jack and then the stands.
c. Use the functioning jack to lower the vehicle.

1. After removing jack from under the load, push Ram Plunger and Handle Sleeve down to reduce exposure to rust and contamination.

MAINTENANCE

NOTICE: Use only good quality hydraulic jack oil. Avoid mixing different types of fluid and NEVER use brake fluid, turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause premature failure of the jack and the potential for sudden and immediate loss of load. Premium hydraulic jack oil is recommended.

Adding oil

1. With Ram Plunger fully lowered and pump piston fully depressed, set jack in its upright, level position. Remove Oil Filler Plug/Screw.
2. Fill with oil until just below the rim of the oil filler hole. Reinstall the Oil Filler Plug/Screw.

Changing oil

For best performance and longest life, replace the complete fluid supply at least once per year.

1. With Ram Plunger fully lowered and pump piston fully depressed, remove the Oil Filler Plug/Screw.
2. Lay the jack on its side and drain the fluid into a suitable container.

NOTICE: Dispose of hydraulic oil in accordance with local environmental regulations.

1. Fill with oil until just below the rim of oil filler hole.
2. Perform Bleeding/Venting Trapped Air procedure (page 3). Reinstall the Oil Filler Plug/Screw.

Lubrication

A periodic coating of light lubricating oil to pivot points, axles and hinges will help to prevent rust and assure that pump assemblies move freely.

Cleaning

Periodically check the pump piston and Ram Plunger for signs of rust or corrosion. Clean as needed and wipe with an oily cloth.

NOTICE: Do not use sandpaper or abrasive material on ram or pump piston surfaces.

Storage

When not in use, store the jack with pump piston and Ram Plunger fully retracted and air supply disconnected.

TROUBLESHOOTING

Symptom Possible Causes Corrective Action
Jack will not lift load	·Release Valve not tightly closed ·Overload condition	·Ensure Release Valve tightly closed ·Remedy overload condition
Jack will lift, but not maintain pressure	·Release Valve not tightly closed ·Hydraulic unit malfunction	·Ensure Release Valve tightly closed ·Contact Pro-Lift Tech. Service
Jack will not lower after unloading	·Reservoir overfilled · Ensure load is removed, then drain fluid to proper level
Poor lift performance	·Fluid level low ·Air trapped in system	·Ensure proper fluid level ·Follow Bleeding/Venting Trapped Air procedure on page 3
Will not lift to full extension	·Fluid level low	·Ensure proper fluid level

REPLACEMENT PARTS

Not all components of the jack are replacement items. When ordering parts, give Model number, serial number and parts description. Call or write for current pricing: SFA Companies Inc. 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. Tel:[phone] Fax:[phone] e-mail:[e-mail]

Pro-Lift Website: http://www.Pro-Lift.com

Replacement Parts List for Models B-002D, B-004D, B-006D

Part No. for Models:Item B-002D, B-004D & B-006D Description Qty
1 F3610	0-0001 Oil Plug- Not Shown 1
2 B2020	7-0001 Handle Assembly 1

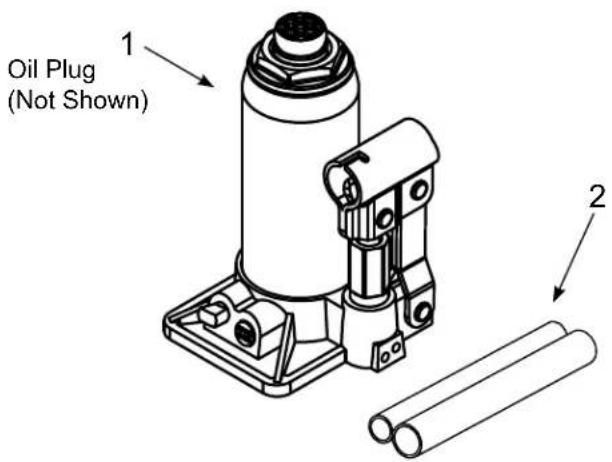

Figure 2 - Illustration for Models B-002D, B-004D & B-006D

ONE YEAR LIMITED WARRANTY

For a period of one (1) year from date of purchase, SFA Companies, Inc. will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy.

Performance of any obligation under this warranty may be obtained by returning the warranted product, freight prepaid, to SFA Companies, Inc. Warranty Service Department, 10939 N. Pomona Ave., Kansas City, MO 64153.

Except where such limitations and exclusions are specifically prohibited by applicable law, (1) THE CONSUMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS AS DESCRIBED ABOVE. (2) SFA Companies, Inc. SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGE OR LOSS WHATSOEVER. (3) ANY IMPLIED WARRANTYES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO ONE YEAR, OTHERWISE THE REPAIR, REPLACEMENT OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTYES, EXPRESS OR IMPLIED. (4) ANY MODIFICATION, ALTERATION, ABUSE, UNAUTHORIZED SERVICE OR ORNAMENTAL DESIGN VOIDS THIS WARRANTY AND IS NOT COVERED BY THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

10939 N. Pomona Ave. Kansas City, MO 64153

888-332-6419

[e-mail]
