USER MANUAL CPH 604 G X Fulgor Milano

-1 -2 L N

Fig. 4

Two 3D mechanical assembly diagrams showing a component being inserted into a housing, with no visible text or symbols.

CARATTERISTICHE UTILIZZATORI
BRUCIATORI GAS
ALIMENTAZIONE TIPO PRESSIONE mbar NORM.	BRUCIATORE	∅ INIETTORE 1/100	PORTATA TERMICA NOMINALE	CONSUMO
Gas naturale G20 20	rapido 129 3000 286semirapido 101 1750 167ausiliario 77 1000 95corona 3 150 4000 381			l/h
Gas liquido G30/G31 28-30/37	rapido 87 3000 218semirapido 66 1750 127ausiliario 50 1000 73corona 3 102 4000 291			g/h
Gas naturale G25 25	rapido 132 3000 332semirapido 102 1750 194ausiliario 80 1000 111corona 3 151 4000 443			l/h
G20 10	rapido 155 3000 286semirapido 117 1750 167ausiliario 92 1000 95corona 3 180 4000 381			l/h

SERVIZIO ASSISTENZA TECNICA: 199.151.195

Dear customer,

We thank you and congratulate you on your choice.

This new carefully designed product, manufactured with the highest quality materials, has been carefully tested to satisfy all your cooking demands.

We would therefore request you to read and follow these easy instructions which will allow you to obtain excellent results right from the start.

May we wish you all the very best with your modern appliance!

THE MANUFACTURER

Index

Instructions for use

Installation

Use

Maintenance

Instructions for the installater

Installation

Gas connection

Electrical connection

User characteristics

THIS APPLIANCE IS CONCEIVED FOR DOMESTIC USE ONLY.

THE MANUFACTURER SHALL NOT IN ANY WAY BE HELD RESPONSIBLE FOR WHATEVER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR BY UNSUITABLE, WRONG OR ABSURD USE. THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF

Italiano

English

Français

Deutsch

Español

Português

EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

Instructions for use

Installation

All the operations concerned with the installation (electrical and gas connections, adaptation to type of gas, necessary adjustments, etc.) must be carried out by qualified technicians, in terms with the standards in force. For specific instructions, kindly read the part reserved for the installation technician.

Use

Gas burners

The ignition of the gas burner is carried out by putting a small flame to the upper part holes of the burner, pressing and rotating the corresponding knob in an anti-clockwise manner, until the maximum position has coincided with the marker. When the gas burner has been turned on, adjust the flame according to need. The minimum position is found at the end of the anticlockwise rotation direction. In models with automatic ignition, operate the knob as described above, pressing simultaneously, the corresponding push-button. For models with automatic/ simultaneous (with one hand) ignition, it is sufficient to proceed as described above using the corresponding knob. The electric spark between the ignition plug and the burner provides the ignition of the burner itself. After ignition, immediately release the push-button and adjust the flame according to need. For models with a thermoelectric safety system, the burner is ignited as in the various cases described above, keeping the knob fully pressed on the maximum position for approximately 3/5 seconds. After releasing the knob, make sure the burner is actually lit.

N.B

• We recommend the use of pots and pans with a diameter matching that of the burner, thus preventing the flame from escaping from the bottom part and surrounding the pot (Fig. 1);
• do not leave any empty pots or pans on the fire; When cooking is finished, it is also a good norm to close the main gas pipe tap and/or cylinder.

GAS

fish 20x32
fast ∅ 20-26
semifast ∅ 14-20
auxiliary ∅ 10-14

Fig. 1

Important

• use of the appliance produces heat and moisture in the room where it is installed. Make sure the kitchen is sufficiently ventilated; keep natural ventilation holes open or install mechanical ventilation devices (such as a hood).
• Prolonged use of the appliance may require additional ventilation, such as opening a window.
• On floors with thermoelectric protection do not keep the ignite button pushed for more than 15 seconds. If the burner has not ignited after 15 seconds, open the door of the room and wait at least one minute before making a further attempt.
• on floors without protection, should the burner flame go out close the corresponding gas cock and wait at least one minute before making any attempt to ignite it.

Maintenance

Prior to any operation, disconnect the appliance from the electrical system. For long-life to the equipment, a general cleaning operation must take place periodically, bearing in mind the following:

• the glass and steel parts must be cleaned with suitable non-abrasive or corrosive products (found on the market). Avoid chlorine-base products (bleach, etc.);
• avoid leaving acid or alkaline substances on the working area (vinegar, salt, lemonjuice, etc.);
• the wall baffle and the small covers (mobile parts of the burner) must be washed frequently with boiling water and detergent, taking care to remove every possible encrustation. Dry carefully and check that none of the burner holes is fully or partially clogged;

Note:

If the taps need to be lubricated, it must be performed by a qualified technician, who should be contacted in the case of any operating problems.

heck periodically the state of conservation of the flexible gas feed pipe. In case of leakage, call immediately the qualified technicians for its replacement.

DO NOT USE STEAM CLEANERS

Instructions for the installer

Installation

This appliance is not provided with a combustion product discharge. It is recommended that it be installed insufficiently aerated places, in terms of the laws in force. The quantity of air which is necessary for combustion must not be below 2.0 m³/h for each kW of installed power. See table of burner power.

Note:

The appliance is in installation class 3.

The appliance's adjustment parameters are shown on the plate attached to its housing.

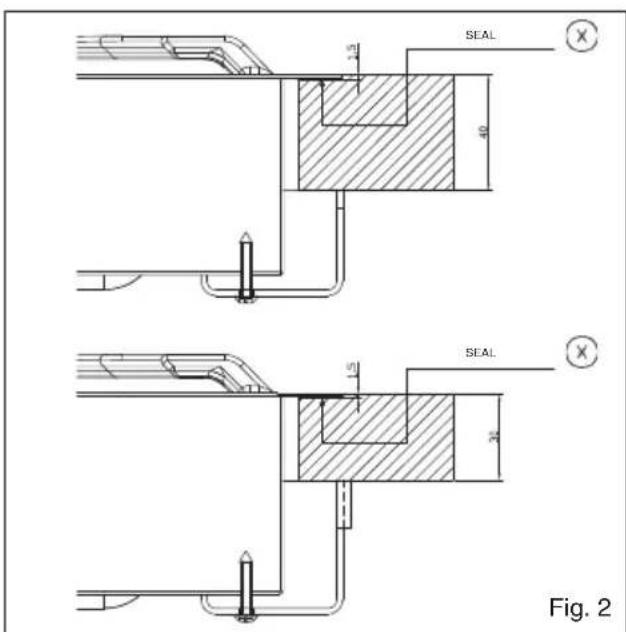

Positioning (Fig. 2)

The cook top is designed to be built in to a work surface as shown in the figure.

Before installing the cook top, install the gasket seal Ⓧ around the entire perimeter of the hole where it will be inserted.

The dimensions of the hole are shown in figures 6-7-8-9. For Filotop models, the perimeter of the hole must be lowered by a depth of 1.5 mm.

The hole does not need to be milled for Semifilotop models.

The cook top can be installed on different materials such as brickwork, steel, marble, conglomerates, synthetics, wood and wood covered with plastic laminates, so long as resistant to a temperature of 90 °C.

SEAL 40 1.5 1.5 30 SEAL X Fig. 2

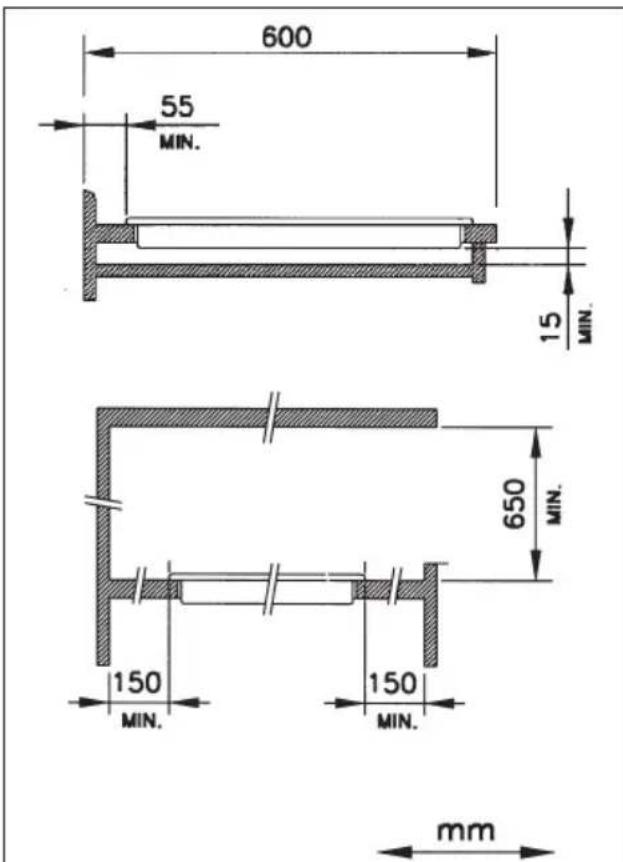

600 55 MIN. 15 MIN. 650 150 MIN. 150 MIN. mm

A panel made of wood or other insulating material must be installed under the cook top at a distance of at least 15 mm from the surface.

Fig. 2

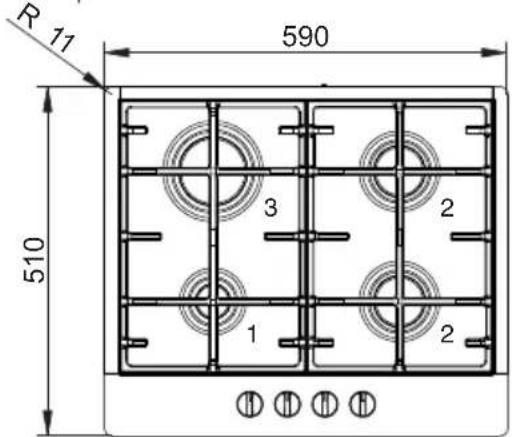

Mod: CPH 604 G

74 1

Note: Semifilotop models do not need to be lowered by 1.5 mm.

R 71 590 510 3 2 1 2

1 - AUXILIARY
2 - SEMI-RAPID
3 - RAPID

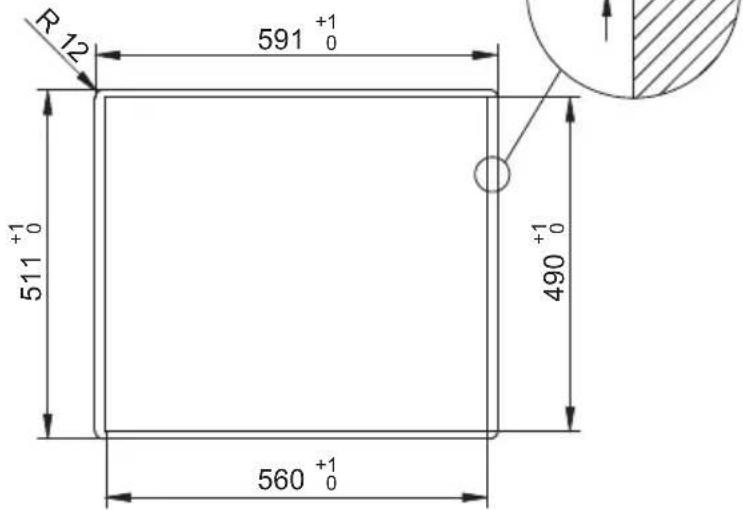

R 12 591 +1 0 511 +1 0 490 +1 0 560 +1 0

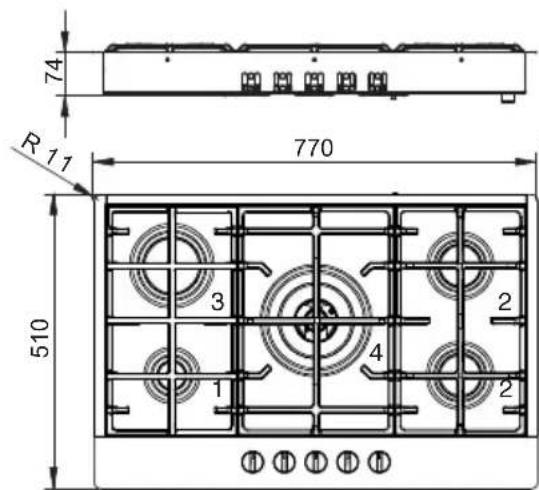

Mod: CPH 765 GWK

74 R 11 770 510 3 2 4 1 2

1 - AUXILIARY
2 - SEMI-RAPID
3 - RAPID
4 - TRIPLE CROWN

Note: Semifilotop models do not need to be lowered by 1.5 mm.

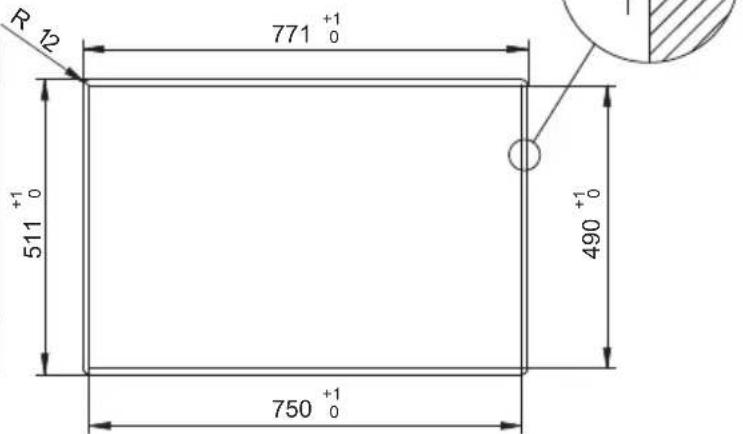

R 2 771 +1 0 511 +1 0 490 +1 0 750 +1 0

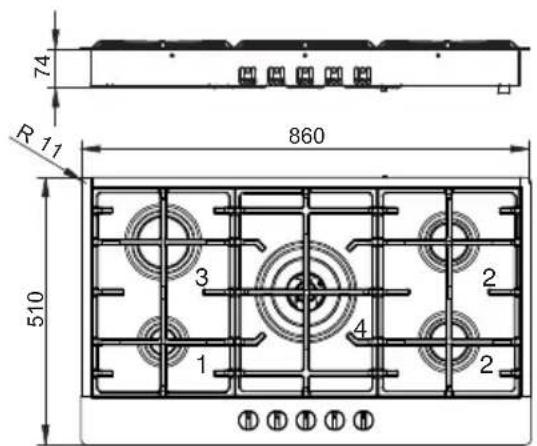

Mod: CPH 905 GWK

74 R 11 860 510 3 2 1 4 2 M M M M

1 - AUXILIARY
2 - SEMI-RAPID
3 - RAPID
4 - TRIPLE CROWN

Note: Semifilotop models do not need to be lowered by 1.5 mm.

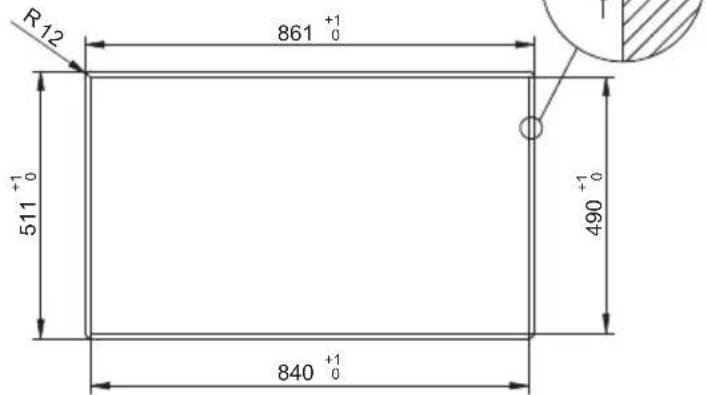

R12 861 +1 0 511 +1 0 490 +1 0 840 +1 0

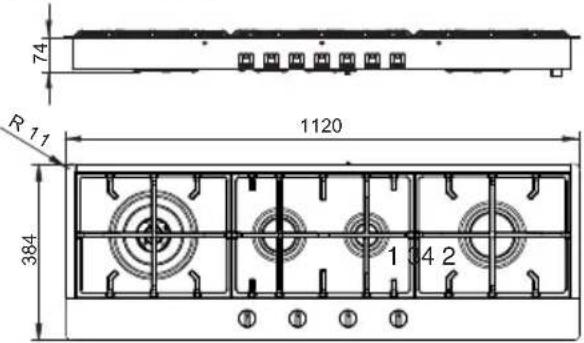

Mod: CPH 1124 GWK

74 R 11 1120 384 1 34 2

1 - AUXILIARY
2 - SEMI-RAPID
3 - RAPID
4 - TRIPLE CROWN

Note: Semifilotop models do not need to be lowered by 1.5 mm.

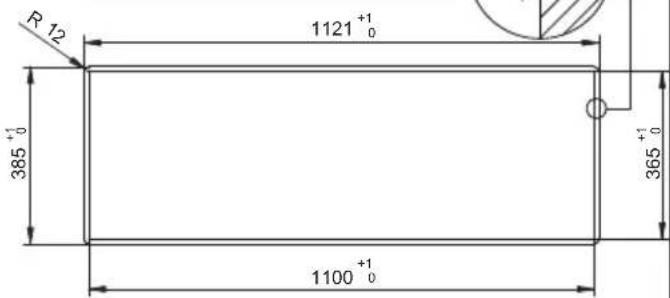

R 12 1121⁺¹₀ 385⁺¹₀ 1100⁺¹₀ 365⁺¹₀

Gas connection (Fig. 3)

The connection to a gas tank or gas line must be made by a qualified person in conformity to current updated UNI-CIG 7129 and 7131 standards after making sure that the cook top is prepared for the type of gas available. If not, see: "Adapting to different types of gas". Also check that the feed pressure falls within the values shown in the table: "User characteristics".

ISO 7/1 ISO 228/1 (FR)

Fig. 3

Metal rigid/semi-rigid hook-ups

Make the hook-up with metal fittings and pipes (even flexible hoses) so as not to stress the components inside the cook top.

Note: - After installation, use soapy water to check the perfect seal of the entire connection system.

Important note: make the connection using only metal fittings and pipes (flexible, continuous-wall steel hoses or rigid copper or steel tubing) and in such a way that its entire length can be inspected.

Electrical connection (Fig. 4)

The installer must be qualified and is responsible for correct electrical connections and following safety standards.

Prior to carrying out the electrical connection, please ensure that:

• the plant characteristics are such as to follow what is indicated on the matrix plate placed at the bottom of the working area;
• that the plant is fitted with an efficient earth connection, following the standards and law provisions in force. The earth connection is compulsory in terms of the law.

Should there be no cable and/or plug on the equipment, use suitable absorption material for the working temperature as well, as indicated on the matrix plate. Under no circumstance must the cable reach a temperature above 50^ C of the ambient temperature.

If connecting directly to the mains power supply, fit a multi-pole switch of a suitable size for the rated capacity

with a clearance distance which completely disconnects the power line under overvoltage category III conditions, consistently with the rules of installation (the yellow/green earth wir must not be interrupted). The plug or omnipolar switch must be easily reached on the installed equipment.

-1 -2 L N

Fig. 4

If the power cord is damaged, it must be replaced by the manufacturer, its service department or a person with similar qualifications, so as to prevent any risk.

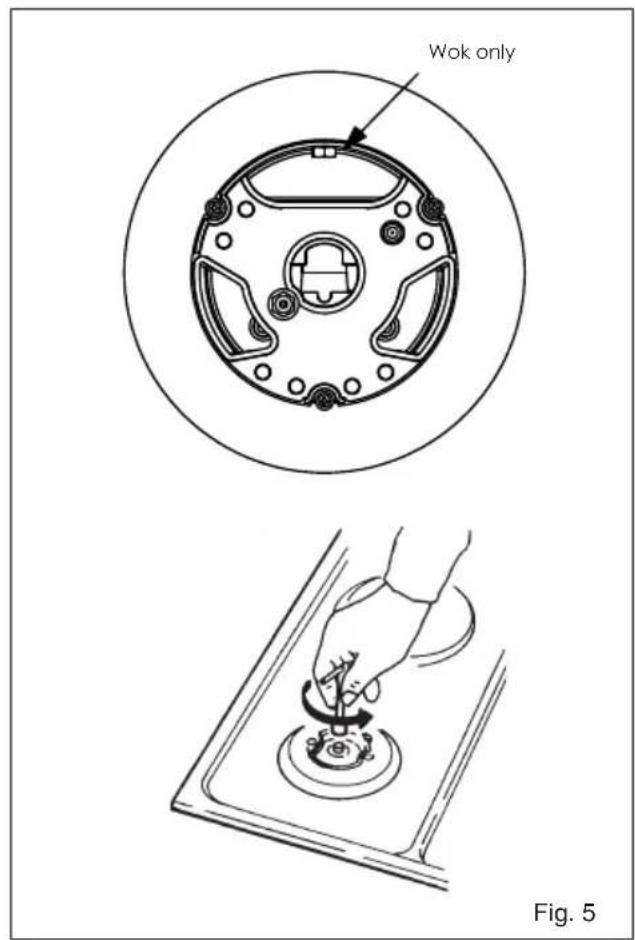

Adaptation to varius types of gas (Fig. 5)

Should the appliance be pre-set for a different type of gas than available, procreed as follows:

• replace the injector (Fig. 5) with the corresponding type of gas to be used (see table "User characteristics");

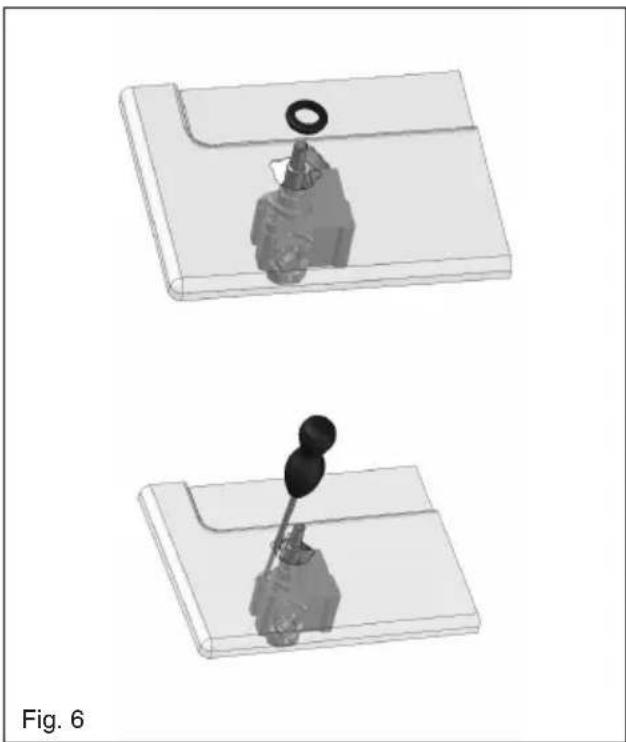

• to adjust to the minimum, use a screwdriver on the screw placed on the tap (Fig. 6) after turning the tap to its minimum position. For LPG (butane/propane) screw tight.

Wok only Fig. 5

Two 3D mechanical assembly diagrams showing a component being inserted into a housing, with no visible text or symbols.

USER CHARACTERISTICS
GAS BURNERS
FEEDTYPE PRESSURE mbarNORM.	BURNER	∅ INJECTORS1/100	THERMALCAPACITY	CONSUMPTION
Natural gas G20 20	fast 129 3000 286semifast 101 1750 167auxiliary 77 1000 95wok 3 150 4000 381			L/h
Liquefied gas G30/G31 28-30/37	fast 87 3000 218semifast 66 1750 127auxiliary 50 1000 73wok 3 102 4000 291			g/h
Natural gas G25 25	fast 132 3000 332semifast 102 1750 194auxiliary 80 1000 111wok 3 151 4000 443			L/h
G20 10	fast 155 3000 286semifast 117 1750 167auxiliary 92 1000 95wok 3 180 4000 381			L/h

Chère cliente,

Pure geometric line drawing of a symmetrical X-shape with intersecting lines (no text or symbols)

poisson 20x32
rapide ∅ 20-26
semirapide ∅ 14-20
auxiliaire* ∅ 10-14

Fig. 1

Important

-1 -2 L N

Fig. 4

Two 3D mechanical assembly diagrams showing a component being inserted into a housing, with no visible text or symbols.

CARACTERISTIQUES UTILISATEURS
BRULEURES A GAZ
ALIMETATIONTYPE GASTOEVER mbarNORM.	BRULEUR	∅ INJECTEURS1/100	DEBIT THERMIQUE NOMINALW	CONSOMMATION
Gaz naturel G20 20	rapide 129 3000 286semirapide 101 1750 167auxiliaires 77 1000 95couronne 3 150 4000 381			1h
Gaz liquéfié G30/G31 28-30/37	rapide 87 3000 218semirapide 66 1750 127auxiliaires 50 1000 73couronne 3 102 4000 291
Gaz naturel G25 25	rapide 132 3000 332semirapid 102 1750 194auxiliaires 80 1000 111couronne 3 151 4000 443			1h
G20 10	rapide 155 3000 286semirapide 117 1750 167auxiliaires 92 1000 95couronne 3 180 4000 381			1h

Two simple line drawings of a computer monitor with no text or symbols

wok ∅ 20-32

schnell ∅ 20-26

halbschnell ∅ 14-20

Two 3D mechanical assembly diagrams showing a component being inserted into a housing, with no visible text or symbols.

-1 -2 L N

Fig. 4

Two 3D mechanical assembly diagrams showing a component being inserted into a housing, with no visible text or symbols.

CARACTERISTICAS UTILIZADORES
QUEMADORES DE GAS
ALIMENTACION TIPO PRESION mbar NORM.	QUEMADOR	∅ INYECTORES 1/100	CAPACIDAD TÉRMICA	CONSUMPTION
Gas natural G20 20	rápido 129 3000 286semiràpido 101 1750 167auxiliar 77 1000 95corona 3 150 4000 381			l/h
Gas licuefacto G30/G31 28-30/37	rápido 87 3000 218semiràpido 66 1750 127auxiliar 50 1000 73corona 3 102 4000 291			g/h
Gas natural G25 25	rápido 132 3000 332semiràpido 102 1750 194auxiliar 80 1000 111corona 3 151 4000 443			l/h
G20 10	rápido 155 3000 286semiràpido 117 1750 167auxiliar 92 1000 95corona 3 180 4000 381			l/h

Ex.mo. Sr. Cliente,

Simple line drawings of a computer monitor and its corresponding lamp (no text or symbols)

coroa ∅ 20-32

rápido ∅ 20-26

semi-rápido ∅ 14-20

auxiliar* ∅ 10-14

Fig. 1

Importante

Two 3D mechanical assembly diagrams showing a component being inserted into a housing, with no visible text or symbols.
