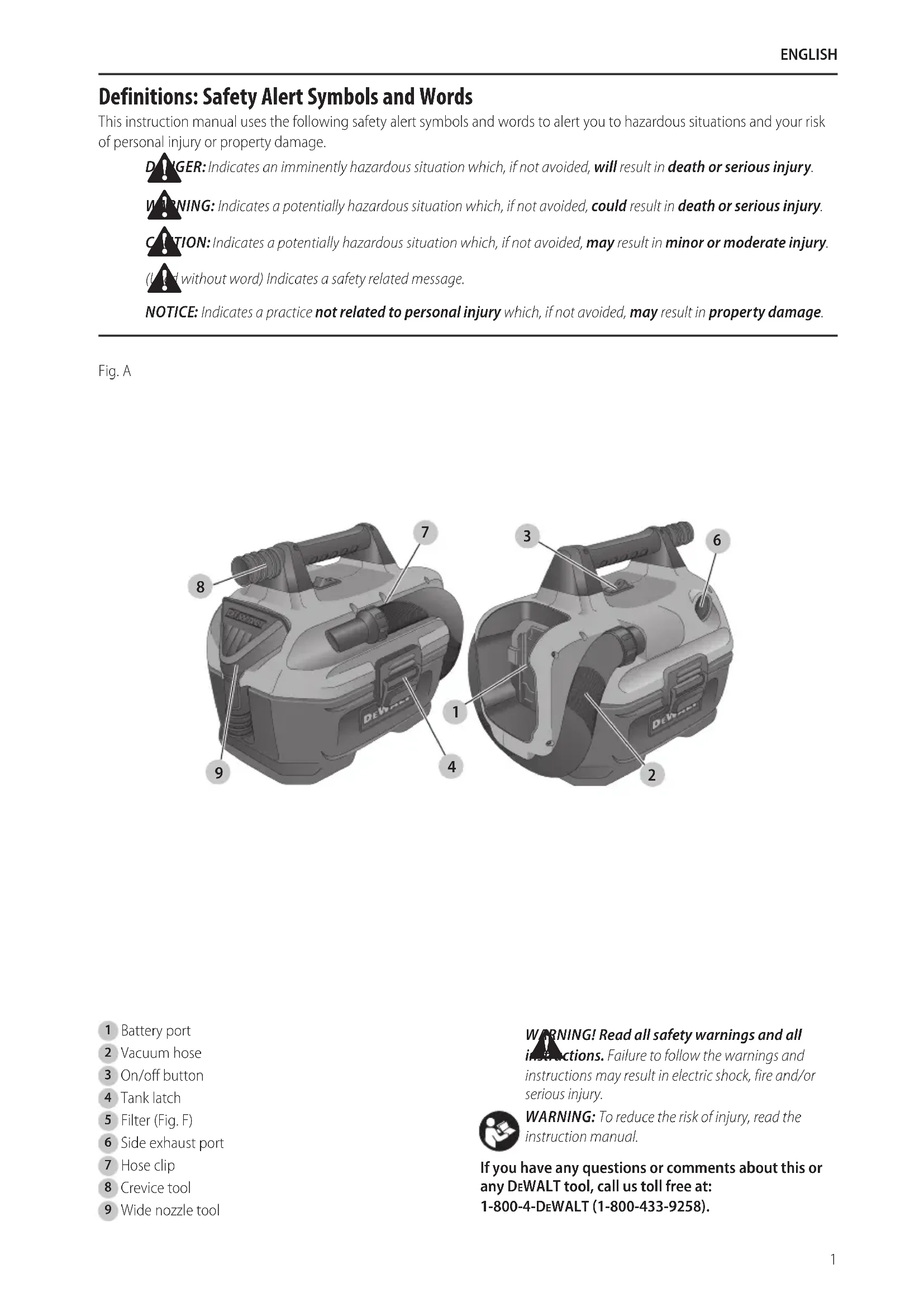

English (original instructions) Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

WARNING: When using electric appliances, always

follow basic safety precautions to reduce the risk of fire, electric shock and personal injury, including thefollowing: To Reduce Risk of Injury

• Before any use, be sure everyone using this vacuum reads and understands all safety instructions and other information contained in thismanual.

• Save these instructions and review frequently prior to use and in instructingothers.

• Instructions for compatible batteries and chargers are included for reference in this manual. Read all instruction manuals included with your battery pack or charger. Read all cautionary markings on the charger and battery pack. Consult the chart at the end of this manual for compatibility of chargers and batterypacks. When using this vacuum, basic safety precautions should always be followed including the following:

WARNING: To reduce the risk of electric shock. Do not

expose to rain. Storeindoors.

• Do not leave the vacuum when connected to power source. Remove the battery pack when not in use and beforeservicing.

• Do not allow vacuum to be used as a toy. Close attention is necessary when used by or nearchildren.

• Use this appliance ONLY as described in the manual. Use only DeWALT recommendedattachments.

• Do not use this appliance if it is showing signs of malfunction in anyway. If the appliance is not working correctly, has been dropped, damaged, left outdoors, or dropped into water, return it to a servicecenter.

• Do not handle the appliance with wethands.

• Do not put any objects into the openings of the appliance. Do not use the appliance with any opening blocked; keep free of dust, lint, hair and anything else that may reduce airflow.

• Keep hair, loose clothing, fingers, and all body parts away from the openings and movingparts.

• Do not place outlet of vacuum near eyes or ears whenoperating.

• The blower operation can result in foreign objects being blown into eyes, which can result in eye damage. Always wear safety goggles when using blowerfeature.

• Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriateconditions.

• Use extra care when cleaning onstairs.

• Do not use without filter inplace.

• Do not use the appliance to pick up flammable or combustible liquids, such as gasoline, or use in areas where flammable or combustible liquids arepresent.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hotashes.

• Do not use in areas where explosive vapors may bepresent.

• Do not use to pick up explosive dust, or in areas where air contains explosive dust such as coal, grain, or other combustiblematerial.

• Static shocks are possible in dry areas or when the relative humidity of the air is low. This is only temporary and does not affect the use of the vacuum. To reduce the frequency of static shocks, add moisture to the air with a console or installedhumidifier.

• To avoid spontaneous combustion, empty canister after eachuse.

• Store idle tools. When not in use, the vacuum should be stored in a dry, high or locked up place – out of the reach ofchildren.

• Disconnect the battery pack from the vacuum before making any adjustments, changing accessories, servicing, moving or storing the vacuum. Such preventative safety measures reduce the risk of starting the applianceaccidentally.

• Avoid accidental starting. Be sure the switch is in the off position before inserting the batterypack.

• Never leave vacuum running unattended. Turn poweroff.

• Keep your work area clean and well lit. Cluttered benches and dark areas inviteaccidents.

• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the vacuum in unexpectedsituations.

• Do not use appliance if switch does not turn it on or off. Any appliance that cannot be controlled with the switch is dangerous and must berepaired.

• Turn off all controls before removing the batterypack.

SAVE THESE INSTRUCTIONS

Additional Safety Information

WARNING: When not in use, place vacuum on a

stable surface where it will not cause a tripping or fallinghazard.

• Do not use vacuum as a stepladder.

• Do not place heavy objects onvacuum.

of it. Damage or personal injury couldresult.

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

WARNING: Some dust created by power sanding,

sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:

• lead from lead-based paints,English

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically- treatedlumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopicparticles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals.

WARNING: Use of this tool can generate and/

or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face andbody.

WARNING: Always wear proper personal hearing

protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute A ......................... amperes W ........................watts or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. Your tool uses a DeWALT charger. Be sure to read all safety instructions before using your charger. Consult the chart at the end of this manual for compatibility of chargers and batterypacks.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings and all

instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/ or seriousinjury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in designated DeWALTchargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not expose battery pack or tool/appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs areburned.

• If battery contents come into contact with the skin, immedicately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be

flammable if exposed to spark orflame.

WARNING: Fire hazard. Never attempt to open the

battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. DoENGLISH

not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Transportation

WARNING: Fire hazard. Do not store or carry

the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a shortcircuit. NOTE: Lithium-ion batteries should not be put in checkedbaggage. Shipping the DeWALT FLEXVOLT™ Battery The DeWALT FLEXVOLT™ battery has two modes: Use and Shipping. Use Mode: When the FLEXVOLT™ battery stands alone or is in a DeWALT 20V Max* product, it will operate as a 20V Max* battery. When the FLEXVOLT™ battery is in a 60V Max* or a 120V Max* (two 60V Max* batteries) product, it will operate as a 60V Max* battery. Shipping Mode: When the cap is attached to the FLEXVOLT™ battery, the battery is in Shipping Mode. Strings of cells are electrically disconnected within the pack resulting in three batteries with a lower Watt hour (Wh) rating as compared to one battery with a higher Watt hour rating. This increased quantity of three batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hourbatteries. The battery label indicates two Watt hour ratings (see example). Depending on how the battery is shipped, the appropriate Watt hour rating must be used to determine the applicable shipping requirements. If utilizing the shipping cap, the pack will be considered 3 batteries at the Watt hour rating indicated for “Shipping”. If shipping without the cap or in a tool, the pack will be considered one battery at the Watt hour rating indicated next to “Use”. USE: 120 Wh Shipping: 3 x 40 Wh Example of Use and Shipping Label Marking For example, Shipping Wh rating might indicate 3 x 40 Wh, meaning 3 batteries of 40 Watt hours each. The Use Wh rating might indicate 120 Wh (1 battery implied). Fuel Gauge Battery Packs (Fig. B) Some DeWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the batterypack. The fuel gauge is an indication of approximate levels of charge remaining in the battery pack according to the followingindicators: 75–100% charged 51–74% charged < 50% charged Pack needs to be charged To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged. Fig. B NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication. For more information regarding fuel gauge battery packs, please call 1-800-4-DeWALT (1-800-433-9258) or visit our website www.dewalt.com. The RBRC® Seal The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium- ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by DeWALT. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call2Recycle® program provides an environmentally consciousalternative. Call 2 Recycle, Inc., in cooperation with DeWALT and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized DeWALT service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle,Inc.ENGLISH

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings and all

instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/ or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging DeWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) 240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4) Ampere Rating American Wire Gauge More Than Not More Than

WARNING: If the plug or power cord is damaged,

it must be replaced by the manufacturer or its representative or by an equally qualified person to avoiddanger.

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

WARNING: Shock hazard. Do not allow any liquid to

WARNING: Burn hazard. Do not submerge the

battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center forrecycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and propertydamage. NOTICE: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean. Charging a Battery

1. Plug the charger into an appropriate outlet before

inserting batterypack.

2. Insert the battery pack into the charger, making sure

the battery pack is fully seated in the charger. The red (charginF) light will blink continuously indicating that the charging process hasstarted.

3. The completion of charge will be indicated by the red

light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger,ENGLISH

push the battery release button on the battery pack and then slide the battery pack out of thecharger. NOTE: To ensure maximum performance and life of lithium- ion battery packs, charge the battery pack fully before firstuse. Charger Operation Refer to the indicators below for the charge status of the batterypack.

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

Charging Fully Charged Hot/Cold Pack Delay*

• DCB107, DCB112, DCB113, DCB115, DCB118, DCB132: The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the chargingprocedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery pack by refusing tolight. NOTE: This could also mean a problem with acharger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorized servicecenter. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery packwarms. The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to becooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of thecharger. Electronic Protection System Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deepdischarge. The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium- ion battery pack on the charger until it is fullycharged. Wall Mounting

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F and 75°F (18° – 24°C). DO NOT charge the battery pack below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65°F – 75°F (18° – 24°C); d. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. The battery pack should be recharged when it fails to

produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the batterypack.

5. Foreign materials of a conductive nature such as, but

not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean.

6. Do not freeze or immerse the charger in water or any

1. The best storage place is one that is cool and dry, away

from direct sunlight and excess heat orcold.

2. For long storage, it is recommended to store a fully

charged battery pack in a cool dry place out of the charger for optimalresults. NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged beforeuse.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE Intended Use The vacuum is designed to operate on a DeWALT 20V Max* Li-Ion battery pack. The battery pack and charger are soldseparately. The vacuum is designed to perform as a wet/dry unit with no component changes required when changing from wet to dry, or dry to wet pick up. This vacuum is for householduse. It is recommended that the tank be emptied of any dry contents prior to being used for wet pick up to facilitate tankcleaning. This product is NOT to be used for filtering of pathogens, for example Covid-19. Follow all local, state, and federal guidance on general cleaning practices. DO NOT use under wet conditions or in presence of flammable liquids orgases. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Installing and Removing the Battery Pack (Fig.C) NOTE: Make sure your battery pack is fullycharged. To install the battery pack into the vaccum, slide battery pack into battery port

. Make sure the battery pack is fullyseated. Fig. C

To remove the battery pack from the vacuum, press and hold the battery release on the battery pack and remove. To charge the pack, insert it into your DeWALTcharger. Using the Appliance (Fig.A,D)

1. Attach the appropriate accessory to the hose

2. Insert the DeWALT batterypack.

3. To turn machine on, press the I/O (on/off) button

Fig. D Vacuum Cleaning To Empty Tank (Fig. E) The sound of the motor changes and suction is reduced when the tank isfull.

1. Turn machine off and remove the batterypack.

2. Unlatch the tank latches

and remove the power head from thetank.

3. Empty the contents of the tank into a suitablecontainer.

4. Clean or change filters

5. Inspect machine for damage by foreign objects. Contact

the nearest DeWALT authorized service center for replacement of damaged or missingparts.

6. Replace power head onto the tank and latchsecurely.

NOTE: The machine must be used in the upright position at all times to prevent unwanted actuation of the Automatic Vacuum Shutoff. If unwanted actuation should happen, turn off the motor and wait until the motor stops turning. Turn the motor on again and suction will berestored. Filter Filter Care (Fig.F) The wet/dry filter

included with this vacuum is a long life filter. To be effective in minimizing dust recirculation the filters MUST be installed correctly and in goodcondition. NOTE: Never operate without a filter in place. A clean filter is the most important factor in the operation and efficiency ofEnglish

any vacuum. If the filter becomes clogged beyond cleaning, damaged, or fails to operate properly, replace only with genuine DeWALT replacementfilters. To Clean or Change the Filter (Fig. E, F)

1. Turn the machine off and remove the batterypack.

2. Unlatch the tank latches

and remove the power head from the tank. Twist the filter

to the right to remove it from the powerhead. Fig.F

3. Clean the filter by shaking off excess dust, tapping into

a waste receptacle, then rinsing under running water. Depending on the condition of the filter, a water wash is not always required. Do not use a brush to cleanfilter.

4. Reinstall and secure the filter onto the power head by

twisting the filter to theleft.

5. Replace power head onto the tank and securelatches.

Blower (Fig.A) The blower function can be used to remove debris from behind small spaces, to dry a damp floor, to blow grass clippings or leaves from an outside walk, patio,etc. To Use as a Blower

1. Empty the tank following the instructions under the

Vacuum Cleaning section of thismanual.

2. Twist the vacuum hose

3. Insert the hose into the side exhaust port

and twist tosecure. MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury.

• Empty the vacuum often, especially when wet debris is in thecanister.

• MAINTAIN TOOL WITH CARE. Keep fan area clean for best and safestperformance.

• Do not attempt to repair the vacuum. To assure product safety and reliability, repairs, maintenance, and adjustments should be performed by authorized DeWALT servicecenters. Hose and Accessory Storage (Fig.A) When the vacuum is not in use, the hose can be wrapped around the appliance, underneath the battery interface, and secured with the hose clip

also located at the back of the vacuum. The two accessories (crevice tool and wide nozzle) can be stored on board the vacuum aswell. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performingthis procedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Accessories

WARNING: Since accessories, other than those

offered by DeWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT recommended accessories should be used with thisproduct. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DeWALT Industrial Tool Co., 701East Joppa Road, Towson, MD 21286, call 1-800-4-DeWALT (1-800-433-9258) or visit our website: www.dewalt.com. The DCV580h includes a 1–1/4" hose, crevice tool (stored in the handle) and widenozzle. A replacement filter is available at extra cost at your local DeWALT servicecenter. Dust Collector (Fig.G) In the vacuum mode, the appliance can also function as a dust collector for power tool applications producing dust ordebris. Install the DWV9000 dust extraction adaptor, available at additional cost, to facilitate connection of a power tool to the vacuum hose

1. Unscrew and remove the standard hosenozzle.

2. Screw on the dust extraction adaptor to thehose.

3. Attach the adaptor to the powertool.English

nOTE: Follow these instructions in reverse to set up the appliance for standard vacuum use. iMPORTAnT! The DWV9000 dust extraction adaptor is designed to work with Dust System Compatible DeWALT power tools. An additional adaptor will be necessary for use with incompatible DeWALTtools. Repairs The charger and battery pack are notserviceable.

WARNING: To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a DeWALT factory service center or a DeWALT authorized service center. Always use identical replacementparts. Register Online Thank you for your purchase. Register your product nowfor:

• WARRAnTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR sAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct. Register online at www.dewalt.com/register. Three Year Limited Warranty DeWALT will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www. dewalt.com or call 1-800-4-DeWALT (1-800-433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS,

INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces. In addition to the warranty, DeWALT tools are covered byour: 1 YEAR FREE sERViCE DeWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year afterpurchase. 2 YEARs FREE sERViCE On DEWAlT BATTERY PACKs DC9096, DCB120, DCB122, DCB124, DCB127, DCB201,

DCB203BT, DCB207, DCB240, DCB361

nOTE: Battery warranty voided if the battery pack is tampered with in any way. DeWALT is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw. 90 DAY MOnEY BACK gUARAnTEE If you are not completely satisfied with the performance of your DeWALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questionsasked. lATin AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARning lABEl REPlACEMEnT: If your warning labels become illegible or are missing, call 1-800-4-DeWALT (1-800-433-9258) for a freereplacement.FRANÇAIS

Le bloc-piles DeWALT FLEXVOLT

DCB203BT, DCB207, DCB240, DCB361

DCB203BT, DCB207, DCB240, DCB361

• Maximum initial battery voltage (measured without a workload) is 20, 60or 120volts. Nominal voltage is 18, 54or 108. (120V Max* is based on using 2DeWALT 60V Max* lithium-ion batteries combined.)

WARNING: Use of any other battery packs may create a risk of injury andfire.
