Product Type	Slush Machine
Brand	Nostalgia
Model	RSM650COKE
Power Supply	120 V, 60 Hz, 20 W
Mixing Chamber Capacity	0.90 L (32 oz)
Certification	ETL Approval
Plug Type	Polarized Plug (wide blade)
Main Functions	Freezing and dispensing frozen drinks (slushies, daiquiris, etc.)
Controls	Two-position ON/OFF switch: FREEZE and DISPENSE
Material	Plastic, aluminum (inner container)
Removable Parts	Mixing chamber, aluminum container, container cage, lid, drip tray
Care and Cleaning	Hand wash removable parts with warm soapy water; do not immerse base; do not put in dishwasher
Safety	Never immerse base in water; do not use near water; sharp blades; do not leave unattended; keep out of reach of children
Included Accessories	Mixing chamber, aluminum container, container cage, lid, drip tray, manual
Warranty	1 year (defects in materials and workmanship); valid in the United States and Canada
Customer Service	Phone: [phone]; website: www.nostalgiaproducts.com

Frequently Asked Questions - RSM650COKE Nostalgia

Why is my drink not freezing in the slush machine?

Several possible reasons: the aluminum container was not cold enough, add more ice and salt. The mixture was too hot, use pre-chilled liquids. Alcohol was added before freezing, alcohol prevents freezing. Make sure to use drinks with enough sugar content (sugar-free drinks do not freeze).

What type of salt to use and how much?

Use regular table salt (fine salt). Add 120 mL (1/2 cup) of salt to the aluminum container, then 120 mL (1/2 cup) of water. You can increase the amount of salt as needed for better freezing.

Can I use alcoholic drinks?

Alcohol does not freeze. Only add alcohol after dispensing the slush into glasses. If you add alcohol into the machine, the drink will not freeze.

How to clean the slush machine?

Unplug the appliance. Wash the mixing chamber, aluminum container, container cage, and lid thoroughly with warm soapy water. Dry well. Never immerse the base in water. Wipe the outside of the base with a non-abrasive damp cloth. Do not put any parts in the dishwasher.

What to do if the spout is stiff or hard to turn?

Apply more force to turn the knob during first use. If the problem persists, check that the mechanism is not obstructed. Make sure the mixing chamber is properly attached to the base.

Why does the appliance not start?

The mixing chamber must be securely attached to the base for the appliance to operate. Check alignment and attachment. Make sure the switch is set to FREEZE.

Can I use carbonated drinks?

Yes, but carbonated drinks freeze slower and are less thick. Avoid carbonated drinks without sugar or low calorie as they will not freeze. Drinks with high sugar content or corn syrup give the best results.

How much liquid should I put?

Do not fill beyond the MAX FILL line located at about 0.5 L (1 pint). Remember that 0.90 L of liquid does not produce 0.90 L of slush: the liquid solidifies into ice.

How long does it take for the drink to freeze?

Allow about 15 minutes of mixing to get the desired consistency. If the mixture does not freeze after 15 minutes, stop the appliance and check possible causes (lack of salt, insufficient ice, liquid too hot).

How to store prepared slush?

Do not store slush in the freezer or refrigerator. They should be consumed immediately. If the slush becomes too thick, add a little liquid through the mixing chamber opening and activate DISPENSE.

USER MANUAL RSM650COKE Nostalgia

OFFICIAL Coca-Cola ®/MD LICENSED PRODUCT Coca-Cola ®/MD Coke ®/MD

All products are trademarks of Nostalgia Products LLC. Worldwide design & utility patented or patents pending.

© 2016 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev. 09/08/16 NW)

NOSTALGIA™

Black and white photo of a Waffle brand minaret with 'Coca-Cola' branding and 'Delicious and Refreshing' label (no additional text or symbols visible)

Coca-Cola® Series Slush Machine Coca-Cola® Máquina de Hielo Picado Coca-Cola® Machine à Barbotine

Instructions and Recipes Instrucciones y Recetas Instructions et Recettes

Make every day a party!

Visit www.nostalgiaproducts.com for more fun products.

CONTENTS

IMPORTANT PRECAUTIONS 3

IMPORTANT SAFEGUARDS 3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE 6

HELPFUL TIPS 7

CLEANING & MAINTENANCE 7

RECIPIES 8

RETURNS & WARRANTY 10

SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

120 Volts, 60 Hz

20 Watts, ETL Approved

THIS PRODUCT IS FOR USE IN 120 V OUTLET ONLY.

IMPORTANT PRECAUTIONS

1. NEVER immerse the base or cord in water.
2. NEVER use near water.
3. NEVER leave unit unattended if used near children.
4. NEVER use a scouring pad on the appliance.
5. NEVER use an abrasive sponge or harsh cleaning products on or inside of the appliance.
6. NEVER use for anything other than what this item was originally intended.
7. Avoid contact with moving parts.
8. DO NOT operate this appliance with a damaged cord or plug, or in the event the appliance ever malfunctions.
9. DO NOT place parts in dishwasher.
10. Keep out of reach of children.
11. Unplug appliance from electrical outlet when not in use and before cleaning. Remove plug by gripping the plug body and pulling out of the outlet. Never yank or twist cord to unplug the unit.
12. This appliance is NOT A TOY.
13. This appliance is not intended for use by young children or cognitively challenged individuals without supervision.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. NEVER put fingers or utensils into feed or discharge areas.
3. Keep hands and utensils out of container while blending to reduce the risk of severe personal injury or damage to the appliance.
4. To protect against electrical shock do not immerse cord, plug or main unit in water or other liquids.
5. Close supervision is necessary when any appliance is used by or near children.
6. Unplug from outlet when not in use and before removing parts for cleaning.
7. DO NOT operate any appliance with a damaged cord or plug or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination or repair.
8. The manufacturer does not recommend the use of accessory attachments. Use of attachments may cause injuries.
9. Blades are sharp. DO NOT touch.
10. DO NOT remove Lid when in use.

11. DO NOT let the cord touch hot surfaces.

12. DO NOT place on or near a hot gas or electric burner, or in a heated oven.

13. Extreme caution must be used when moving this appliance with liquids inside.
14. This unit must be on a level surface to operate properly.
15. DO NOT use this appliance for other than its intended use.
16. DO NOT leave unit unattended while in use or when plugged into an outlet.
17. Check inside of the Blending Chamber for foreign objects prior to use.

18. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

19. Extension cord can be used if care is exercised in use.

20. The marked electrical rating of an extension cord should be at least as great as the electrical rating of the appliance.

21. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

22. Do not attempt to service this appliance yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

23. Always operate the appliance with cover in place.

24. Make sure the Blending Chamber is properly attached to the base before turning on unit.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

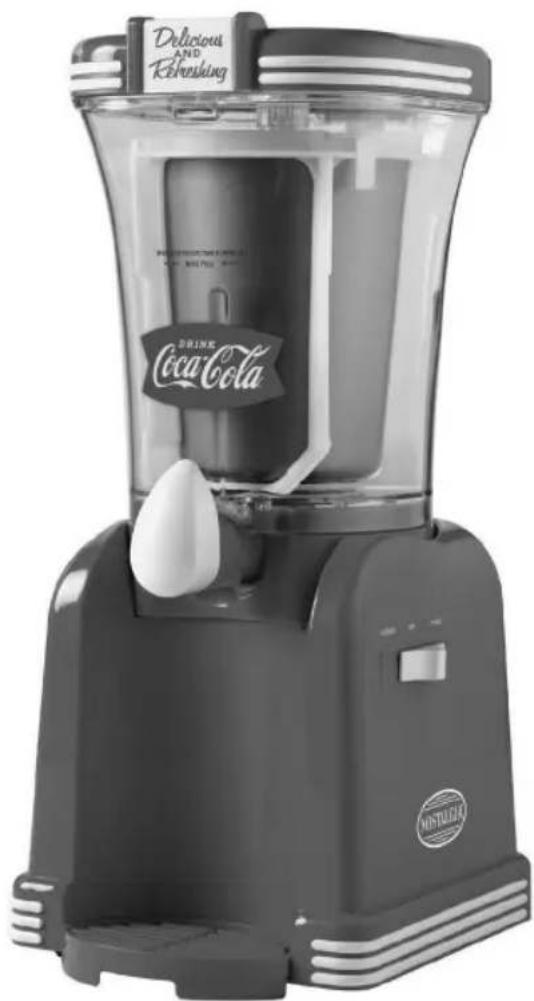

Thank you for purchasing the COCA-COLA® SERIES SLUSH MACHINE from Nostalgia™! This frozen drink maker will add thirst-quenching fun to any occasion! It not only makes fantastic frozen soda drinks, but can also mix up batches of your other favorite frosty beverages such as daiquiris and fruit-flavored slushes for the kids!

Your COCA-COLA® SERIES SLUSH MACHINE has a generous, one quart (32-ounce), clear mixing chamber and is ideal for small groups. It features an attractive, slim, upright design that will take a limited amount of space on the counter.

Features include:

• Tank detaches from base for easy cleanup
• Cup rest also catches drips
• Easy pour spout & convenient cord storage

PARTS & ASSEMBLY

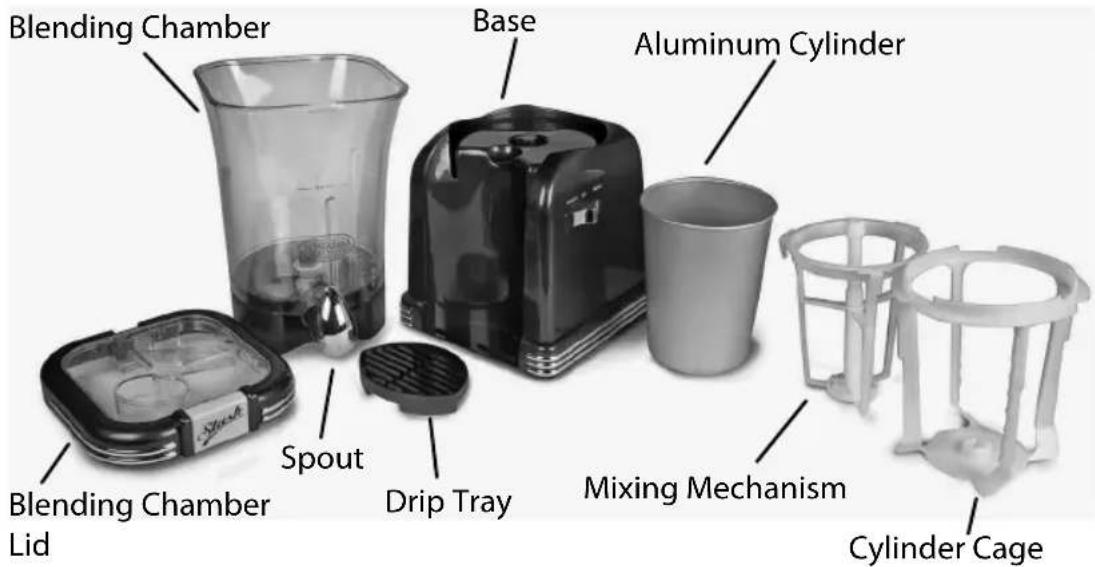

Parts

Blending Chamber Base Aluminum Cylinder Spout Drip Tray Mixing Mechanism Cylinder Cage Blending Chamber Lid

After Taking the Unit Out of the Box

Wipe down the COCA-COLA® SERIES SLUSH MACHINE exterior with a clean, non-abrasive cloth or sponge. Thoroughly wash Blending Chamber, Aluminum Cylinder, Cylinder Cage and Lid in warm, sudsy water and thoroughly dry. DO NOT put the Base in water.

Assembly

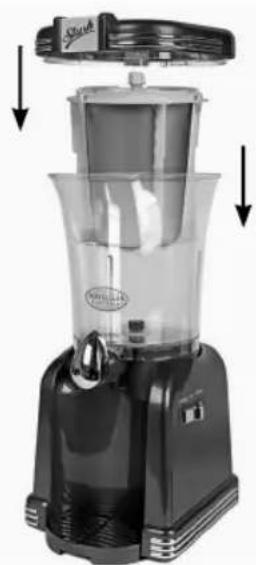

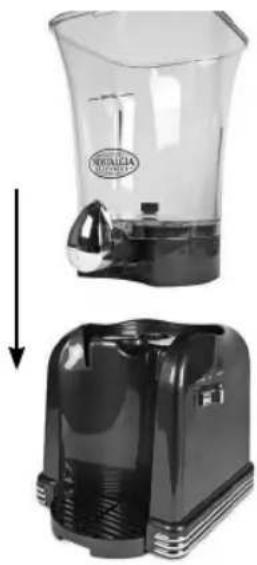

1. After drying, firmly attach Blending Chamber to Base by placing the Blending Chamber on top of Base. If Blending Chamber is attached properly, it will be aligned with Base so that the Spout is over the Drip Tray.

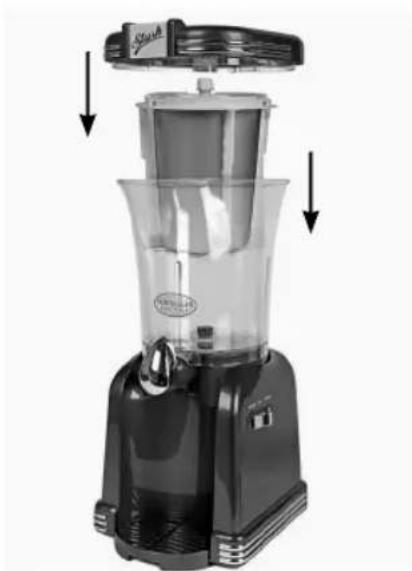

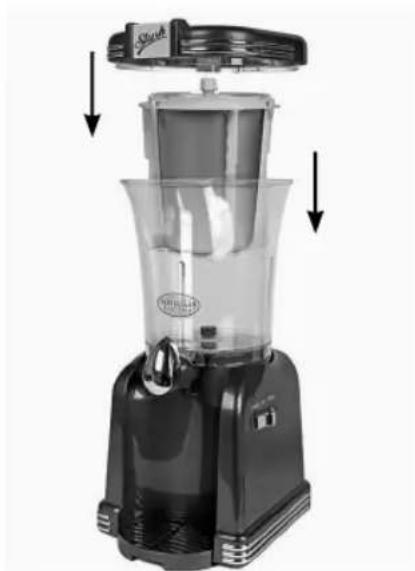

2. Next, put Mixing Mechanism inside of Aluminum Cylinder and put Aluminum Cylinder inside of Cylinder Cage. Then place Cylinder assembly inside of Blending Chamber.

3.

Two views of a glass coffee maker with a black base and a small container, showing a downward arrow (no text or symbols visible)

2.

Black and white photo of a blender with water filter and control panel, no visible text or symbols

HOW TO OPERATE

1. First, find a stable, waterproof surface near an electrical outlet before starting. Make sure the cord is away from any water source.

2. DO NOT place the COCA-COLA® SERIES SLUSH MACHINE near the edge of a table or countertop.

3. Remove the Blending Chamber Lid by pinching the lock tab together while lifting up on the Lid and carefully unhinging the front.

4. Fill the Aluminum Cylinder with small or broken pieces of ice through opening labeled ICE AND SALT, to within 1 inch of the Aluminum Cylinder top. Ensure that the Spout is in the closed position to avoid spillage.

5. Add 12 cup of regular table salt and 12 cup of water in the Aluminum Cylinder (be sure to add salt first then water in order to mix well). Salt is necessary for the freezing process. It may take 12 cup of salt or more for your slush to freeze properly. Return the Lid to Blending Chamber, making sure it is aligned properly over the mixing mechanism, locked down securely to the clear mixing chamber, and lid i

6. Slide the ON/OFF switch back to FREEZE to turn the unit on and begin the slush making process. DO NOT turn the unit OFF during use as the Aluminum Cylinder may freeze.

7. Pour your selected beverage directly into the unit through the molded square indentation located on the top of your COCA-COLA® SERIES SLUSH MACHINE.

DO NOT fill beyond the MAX FILL line (approximately 1 qt. of liquid). Sugar-free beverages and alcoholic beverages will not freeze. DO NOT use them in the machine.

NOTE: Do not use the slush maker to freeze liquids without any sugar (such as water), as this may damage the appliance. Water will freeze very quickly to the exterior of the ice cylinder and could damage the unit.

1. Allow the mixture to blend for up to 15 minutes until you reach the desired slush consistency.

NOTE: You can continually add ice and salt to the unit as you are creating slush by dropping ice and salt into the round, open hole in the Lid above the Aluminum Cylinder. DO NOT exceed filling the Aluminum Cylinder 1 inch from the top as there is a risk that the slush mixture will become contaminated with salt.

1. When mixture reaches desired consistency, place cup under Spout and slide the ON/OFF switch forward to DISPENSE. Turn the slush dispenser handle to the right to dispense drink. Keep unit running until all slush has been dispensed. Be sure to turn handle back to CLOSE after filling each cup.

NOTE: If slush gets too thick, or does not dispense well, add more liquid to the mixing chamber opening.

Close-up of a metal spoon pouring chopped ingredients into a container on a stove (no visible text or symbols)

Close-up of a bottle pouring liquid into a container with a lid (no visible text or symbols)

Black and white photo of a Coca-Cola blender with glass cups and a side drink, no visible text or symbols.

HELPFUL TIPS

• If Spout is stiff during first use, apply more force to turn the knob.
- Add more liquid to Blending Chamber if vacuum occurs around Cylinder during use.
- Blending Chamber must be firmly attached to Base or unit will not turn on.
- A towel placed under your COCA-COLA® SERIES SLUSH MACHINE, will help with clean-up. You should expect some dripping.
• DO NOT store slush drinks in freezer or fridge. They should be consumed immediately.
- REMINDER: 32 ounces of liquid does not produce 32 ounces of slush. You are creating slush and the liquid has solidified into ice.

Liquids

• Drinks with a high sugar or corn syrup base will crystallize faster and produce a thicker slush than those with milk or lower sugar content. Carbonated drinks will set up slower and will not be as thick.
• We recommend adding pre-chilled liquid to your COCA-COLA® SERIES SLUSH MACHINE. This will quicken the slush making process.
• Carbonated diet drinks and alcoholic beverages will not slush. DO NOT add alcohol until the slush is poured into glasses.
  • DO NOT use stiff mixtures such as whipped cream or frozen liquids.

Mixture is Not Freezing

- DO NOT operate the unit longer than required. If after 15 minutes the mixture has not yet achieved the slush consistency or has thawed again, do not continue. Possible reasons for mixture not chilling or freezing:

1. The Aluminum Cylinder was not cold enough. Try adding more ice and salt. Salt is a critical part of the freezing process and you will need plenty of salt added to the ice for the slush to freeze properly.

2. The mixture was too warm.

3. Alcohol was added to the mixture. DO NOT add alcohol until the slush is poured into glasses.

CLEANING & MAINTENANCE

1. After using your COCA-COLA® SERIES SLUSH MACHINE, disconnect from electrical outlet. Remove plug by gripping the plug body and pulling out of the outlet. Never yank or twist cord to unplug the unit.
2. Thoroughly wash the Blending Chamber, Aluminum Cylinder, Cylinder Cage, Mixing Mechanism, Lid and Drip Tray in warm, sudsy water and thoroughly dry. DO NOT put the Base in water. When needed, use a damp, non-abrasive cloth to wipe exterior and then dry thoroughly.
3. Once washing and drying is complete, reassemble your COCA-COLA® SERIES SLUSH MACHINE.
4. NEVER immerse Base in water or put any parts in the dishwasher.

RECIPES

Use your imagination to create many different drinks with your COCA-COLA® SERIES SLUSH MACHINE. Here, you will find several recipes. You can adjust the ingredients to your particular taste, or create your own – so have fun! If you have a recipe for a drink made for one, your COCA-COLA® SERIES SLUSH MACHINE has the capacity for 4 – 8 oz. drinks – so remember to adjust your recipes accordingly.

Suggested liquids: lemonade, orange juice, fruit punch, apple juice, mixed berry fruit drinks, cola, lemon-lime soda, grape soda. DO NOT use diet sodas or drinks with sugar substitutes, as they will not freeze. You can also use gourmet syrups, margarita and daiquiri mix. DO NOT add alcohol until slush has been made, as alcohol does not freeze.

For each recipe below, fill the Aluminum Cylinder with ice and salt up to the max fill line. DO NOT exceed the max fill line.

BASIC MARGARITA

• 6 ounces of Tequila Serves two or three
• 3 ounces of Triple Sec Add alcohol after blending Margarita Mix and Lime Juice.
• 3 Cups of Margarita Mix
• 2 Shots of Freshly Squeezed Lime Juice
• Salt & Lime Wedge for Garnishing

STRAWBERRY MANGO MARGARITA

• 3 ounces of Tequila Serves two
• 16 Ounces Mango Juice Add alcohol after blending Strawberry Syrup and Mango Juice.
• 16 Ounces Strawberry Syrup
• Salt for Rimming Glass (optional)

ORANGE JULIUS SLUSH

• 5 Ounces Rum Serves four
• 24 Ounces Orange Juice Add alcohol after blending Orange Juice and Pineapple Juice.
• 6 Ounces Pineapple Juice
• 4½ Ounces Vodka

APRICOT SMOOTHIE

• 2 Ounces White Rum
Serves two
• 1 Ounce Triple Sec
Add alcohol after blending apricot juice and cream.
• 26 Ounces Apricot Juice
• 1 Ounce Cream

GINGER FRUIT SLUSH

• 8 Ounces Ginger Ale
Serves four
• 8 Ounces Orange Juice
• 12 Ounces of Pineapple Juice

BERRY SLUSH

• 1¼ Cup Strawberry Juice
Serves four
• 1¼ Cup Blueberry Juice
• 1 Cup Peach Juice
• 12 Cup Orange Juice
• 2 Tbsp. Lemon Juice

STRAWBERRY DAIQUIRI

• 12 Cup Simple Syrup
Serves four
• 12 Cup Strawberry Syrup
Add Rum after blending juices and syrups.
• ^1 /8 Cup Lime Juice
• 12 Cup Lemon Juice
• 34 Cup Lemon-Lime Soda
• 34 Cup Rum

GRAPEFRUIT SLUSH

• 6 Ounces Grapefruit Juice
Serves four
• 6 Ounces White Grape Juice
• 3 Cups Club Soda

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

COCA-COLA® SERIES SLUSH MACHINE / RSM650COKE

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

Two views of a vintage coffee maker with a clear glass container and a black base (no visible text or symbols)

2.

Black and white photo of a blender with a side panel, showing liquid level and control buttons (no text or symbols visible)

CÓMO FUNCIONA

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Servicio al cliente

CONSERVEZ CES INSTRUCTIONS!

INTRODUCTION

Two views of a Writto-Stuyler brand water dispenser, showing top-down and side-view assembly (no text or symbols visible)

Exterior view of a black and white blender with a clear glass top and side-mounted lid (no visible text or symbols)

COMMENT FAIRE FONCTIONNER

Close-up of a kitchen utensil being poured into a container (no visible text or symbols)

Close-up of a bottle pouring liquid into a container with a lid (no visible text or symbols)

Black and white photo of a Coca-Cola blender with glass cups and a straw, no visible text or symbols.

CONSEILS PRATIQUES

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685
