3842 - Kitchen scales Taylor - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	Taylor
Model	3842
Maximum Capacity	5 kg / 11 lb
Accuracy	1 g / 0.1 oz
Power Source	2 AAA batteries (included)
Display	LCD screen with auto-backlight
Main Functions	Weighing, tare, unit conversion (g/oz/lb), auto-off, low battery indicator, overload warning
Approximate Dimensions	20 x 15 x 3 cm
Approximate Weight	250 g
Main Material	Plastic and stainless steel
Care and Cleaning	Clean with a soft damp cloth, mild soap. Do not immerse, avoid harsh detergents.
Safety	Do not exceed maximum capacity. Remove batteries if not used for long periods. Keep batteries out of reach of children.
Spare Parts and Repairability	No user-serviceable parts. Opening voids warranty.
Warranty	1 year limited (excluding batteries)
General Information	Household use only. FCC compliant. Made in China.

Frequently Asked Questions - 3842 Taylor

How to change the batteries of the Taylor 3842 scale?

Open the battery compartment on the back of the scale. Replace the used batteries with two new AAA batteries, respecting the indicated polarities. Close the cover. If the display shows Lo, it's time to change the batteries.

What does the display 'Lo' mean on the scale?

The Lo indication means the batteries are low and need to be replaced with new batteries. The scale may still work for a short time, but it is recommended to change the batteries quickly to ensure accurate measurements.

What to do if the scale displays 'o-Ld'?

The o-Ld display indicates overload: the weight placed exceeds the maximum capacity of 5 kg / 11 lb. Immediately remove excess weight to avoid permanently damaging the scale.

How to use the tare function?

Place an empty container on the scale, turn it on, then press the ON/TARE/OFF button until the display returns to zero. Then add the ingredients: only their weight will be shown. You can repeat the operation for multiple ingredients.

How to switch from grams to ounces/pounds?

Press the UNIT button to switch between measurement units: grams (g), ounces (oz), and pounds (lb). The selected unit will be displayed on the screen.

Why does the scale turn off automatically?

The Taylor 3842 scale has an auto-off function to save batteries. It turns off after about 3 minutes with no weight change, or 1 minute after removing weight. To reactivate it, press the ON/TARE/OFF button.

How to clean the scale without damaging it?

Use a soft slightly damp cloth and mild soap to clean the surfaces. Never use harsh detergents, sprays, or chemicals. Avoid contact with acids like citrus juice. Never immerse the scale in water.

Is the Taylor 3842 scale suitable for commercial use?

No, this scale is designed for household use only. It is not intended for commercial or medical use. Commercial use could damage the device and void the warranty.

How to activate the backlight?

The backlight turns on automatically when the scale is turned on and stays on for about one minute, then turns off to save batteries. There is no manual button to control it.

What to do if the scale does not turn on?

Check that the batteries are installed correctly and in good condition. If the display remains off, replace the batteries with new ones. Ensure the battery contacts are clean. If the problem persists, contact customer service.

USER MANUAL 3842 Taylor

Leading the Way in Accuracy®

Thank you for purchasing a Taylor® Kitchen Scale. Your Taylor® scale is an example of superior design and craftsmanship. Please read this instruction manual carefully before use. Keep these instructions handy for future reference.

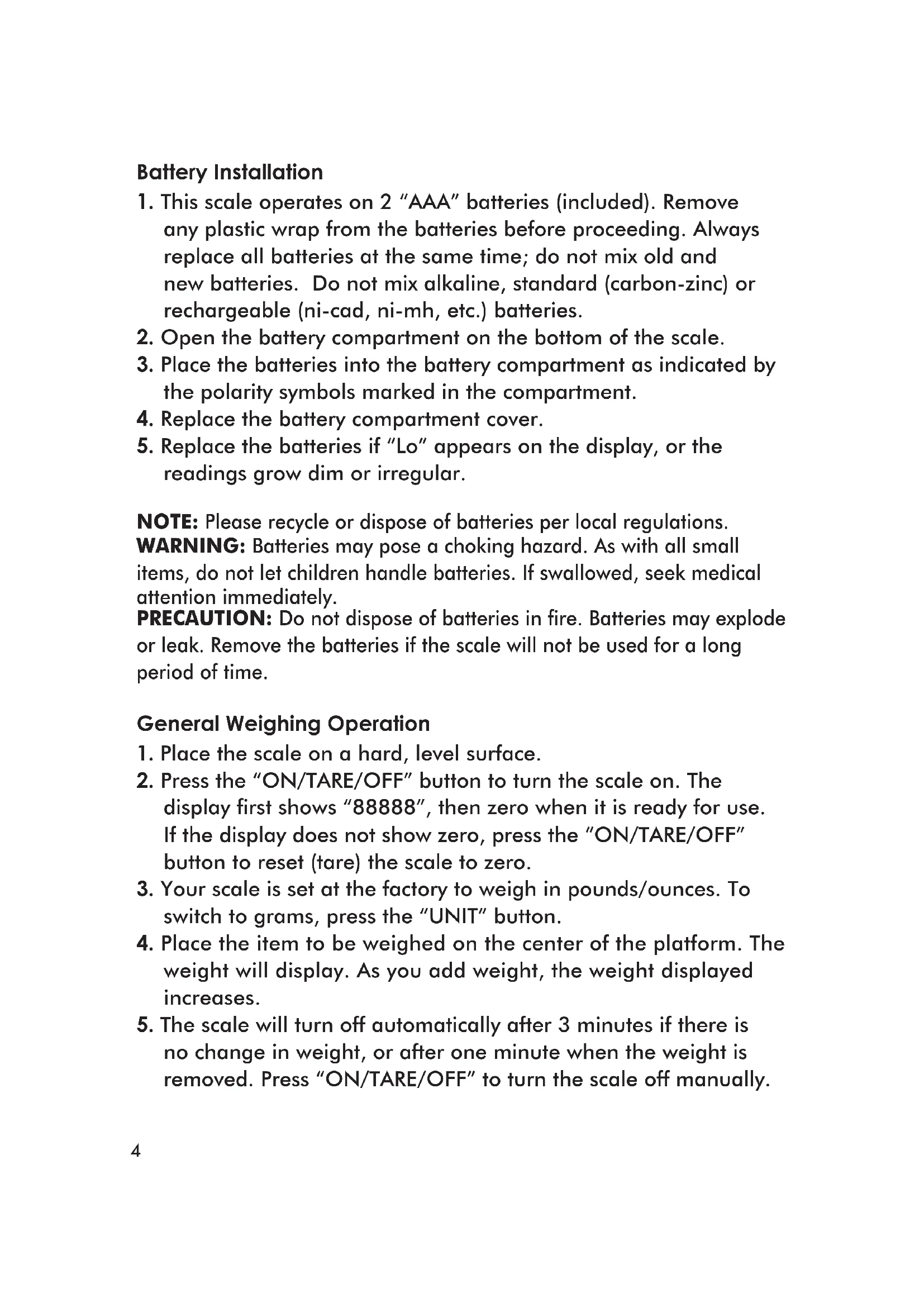

Battery Installation

1. This scale operates on 2 "AAA" batteries (included). Remove any plastic wrap from the batteries before proceeding. Always replace all batteries at the same time; do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc.) batteries.
2. Open the battery compartment on the bottom of the scale.
3. Place the batteries into the battery compartment as indicated by the polarity symbols marked in the compartment.
4. Replace the battery compartment cover.
5. Replace the batteries if "Lo" appears on the display, or the readings grow dim or irregular.

NOTE: Please recycle or dispose of batteries per local regulations.

WARNING: Batteries may pose a choking hazard. As with all small items, do not let children handle batteries. If swallowed, seek medical attention immediately.

PRECAUTION: Do not dispose of batteries in fire. Batteries may explode or leak. Remove the batteries if the scale will not be used for a long period of time.

General Weighing Operation

1. Place the scale on a hard, level surface.
2. Press the "ON/TARE/OFF" button to turn the scale on. The display first shows "88888", then zero when it is ready for use. If the display does not show zero, press the "ON/TARE/OFF" button to reset (tare) the scale to zero.
3. Your scale is set at the factory to weigh in pounds/ounces. To switch to grams, press the "UNIT" button.
4. Place the item to be weighed on the center of the platform. The weight will display. As you add weight, the weight displayed increases.
5. The scale will turn off automatically after 3 minutes if there is no change in weight, or after one minute when the weight is removed. Press "ON/TARE/OFF" to turn the scale off manually.

Tare Operation

You may wish to weigh ingredients in a bowl or other container (not included). In this case, you will need to tare, or offset, the weight of the bowl so that only the weight of the ingredients is displayed.

1. Choose a container that will safely balance on the platform without tipping or falling. Do not use a heavy container, as this might reduce the maximum capacity of the scale.
2. While the scale is off, place the empty container on the scale platform. Turn the scale on. The display will show "88888" then zero. The weight of the container has been zeroed out.
3. Add the ingredient to be weighed. The weight of the ingredient alone will display.
4. The weight of additional ingredients may be tared out as well. For example, if a recipe calls for 5 lb rice and 5 lb beans, place the rice into the bowl. Once the correct amount of rice is weighed, press the "ON/TARE/OFF" button until the display resets to zero. Add the 5 lbs of beans. Both ingredients have been accurately weighed in the same bowl.
5. When weights have been tared out, the display will show a negative number when the items are removed from the scale. To reset the scale back to zero for a new measurement, press the "ON/TARE/OFF" button until the display resets to zero.

Backlight Feature

Your Taylor® scale is equipped with a convenient backlight feature. The backlight will automatically light up for 5 seconds when a button is pressed or when there is a change in weight. The backlight will then turn off automatically to conserve battery power.

Precautions

1. Clean exposed parts with a soft, slightly damp cloth. To remove stains, use a mild soap. Never use detergents, excess water, treated cloths, harsh cleaning agents, or sprays. Avoid contact with acids, such as citrus juices.
2. Do not tamper with the scale's internal components. Doing so will void the warranty on this unit and may cause damage. The scale contains no user-serviceable parts
3. Although your scale is designed to be maintenance-free, it contains sensitive electronic parts. Avoid rough treatment. Treat it with care to ensure the best performance.
4. This scale is intended for home/consumer use only. It is not intended for commercial or medical use.
5. This scale is designed to read weights up to 11 lbs/5 kgs. To prevent damage, do not place more than 11 lbs/5 kgs on it.
6. Do not store scale where you store cleaning chemicals. The vapors from some household products may affect the electronic components of your scale. Do not store scale on its side.
7. This scale is an extremely sensitive weighing device. In order to prevent unnecessary depletion of the batteries, do not store anything on the scale.
8. Do not dispose of batteries in fire. Batteries may explode or leak. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc.) batteries. Remove the batteries if the scale will not be used for a long period of time.
9. Overload Warning: Should "o-Ld" appear on the display during a weighing, this indicates that the maximum weighing capacity of the scale has been exceeded. Remove the weight immediately; otherwise, permanent damage could occur.

Installation des Piles

Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

One Year Limited Warranty

Taylor® warrants this product to be free from defects in material or workmanship (excluding batteries) for one (1) year for the original purchaser from date of original purchase. It does not cover damages or wear resulting from accident, misuse, abuse, commercial use, or unauthorized adjustment and/or repair. If service is required, do not return to retailer. Should this product require service (or replacement at our option), please pack the item carefully and return it prepaid, along with store receipt showing the date of purchase and a note explaining reason for return to:

Taylor® Precision Products 2220 Entrada Del Sol, Suite A Las Cruces, New Mexico 88001 USA www.shoptaylorusa.com

There are no expressed warranties except as listed above. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

For additional product information, or warranty information outside the USA, please contact us through www.shoptaylorusa.com.

© 2016 Taylor Precision Products and its affiliated companies, all rights reserved. Taylor® and Leading the Way in Accuracy® are registered trademarks of Taylor Precision Products and its affiliated companies. All rights reserved.

Made to our exact specifications in China. Not legal for trade.
