MOD-39 - Vacuum Cleaner MPM - Free user manual and instructions

Brand	MPM
Model	MOD-39
Device type	Canister vacuum cleaner
Use	Household only
Power supply	Mains
Cable length	6 meters
Operating radius	6.5 meters
Filter type	EPA filter + round synthetic motor filter
Dust bin capacity	Approximately 1.5 L (estimate)
Included accessories	Floor/carpet brush, flat crevice tool, small multi-purpose brush
Features	Dry vacuuming only
Control type	On/off switch
Assembly	Insert tube into the latch, then attach the brush
Maintenance	Empty the bin after each use; clean the EPA filter regularly (do not wash with water)
Safety	Do not vacuum liquids, sharp objects, or flammable materials; unplug before cleaning; keep out of reach of children
Electrostatic	Natural phenomenon in low humidity; discharge by touching a metal object
Housing material	Plastic
Weight	Approximately 4.5 kg (estimate)
Dimensions (L x W x H)	Not specified
Noise level	Not specified
Warranty	Not specified
Disposal	Do not dispose of with household waste; take to a WEEE collection point

Frequently Asked Questions - MOD-39 MPM

How to assemble the MPM MOD-39 vacuum cleaner?

Insert the tube into the latch on the dust bin and close the latch. Then attach the desired brush to the end of the tube.

Can I use the vacuum cleaner to pick up liquids?

No, the vacuum cleaner is designed only for dry vacuuming. Never vacuum liquids, as this could damage the appliance and cause a fire.

What to do if suction power decreases?

First check the fill level of the dust bin. If it is full, empty it. Then check the permeability of the filters and accessories. An overfilled bin or clogged filters reduce efficiency.

How to clean the EPA filter?

The EPA filter is cleaned regularly, but should not be washed with water. Tap it gently to remove dust or replace it if necessary.

Can the vacuum cleaner be used by children?

Yes, from age 8 under supervision. Children under 8 must be kept away from the appliance and the cord. Never leave the vacuum cleaner unattended around children.

How to empty the dust bin?

Turn off and unplug the vacuum cleaner. Press the dust bin release button, open it, and empty its contents into a trash bin.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with a floor and carpet brush, a flat crevice tool for hard-to-reach areas, and a small multi-purpose brush for curtains, furniture, etc.

Why does my vacuum cleaner produce electrostatic discharges?

This is a natural phenomenon that occurs in low humidity. To reduce it, discharge the appliance by frequently touching a metal object with the hose, or increase the humidity in the room.

How to maintain the vacuum cleaner after each use?

After each use, empty the dust bin and clean the EPA filter regularly. Wipe the exterior surfaces and accessories with a damp cloth and mild detergent if necessary.

What to do if the power cord is damaged?

Do not use the appliance if the cord or plug is damaged. Have it repaired by an authorized service center to avoid any risk.

USER MANUAL MOD-39 MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Exterior view of a black and white vacuum cleaner with red handle (no text or symbols visible)

MOD-39

VERTIKAI N VYSAVAC VERTIKALER STAUBSAUGER VERTIKAA N FIO MUMFJA OPOIA HAEK PIKH ZKOMTA UPRIGH VACUUM CLLANER

ASPIRADOL VERTICAL ASPIRATUR VERTICAL FUGCOLL CSPORSIVO ASPIRAPOLVEL VERTICAL RITIKALUS DULK Q SURELYS

VERTICALL STOJ ZUCER ODKURZACZ PIOKOWY ASPIRATOR VLETICAL ВЕРТИКАЛЕНИЙ ПИЛОСОС VERNIKALNY VYSAWAC ВЕРТИКАЛЕНИЙ ПИЛОСОС

cz NÁVOD K OBSLUZE 3

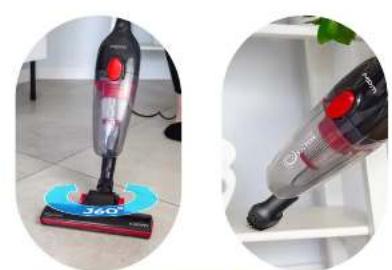

Two views of a vacuum cleaner on tiled floor, one with blue filter and red button, the other with black handle (no visible text or symbols)

Floor and carpet brush 360" Small multifunctional brush

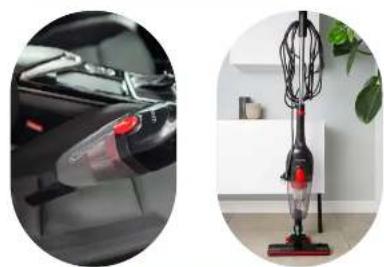

Two circular photos: one showing a black car hood with a red light, the other showing a white vacuum cleaner in a room with green plants and shelves (no visible text or symbols)

Crevice tool Vacuum cleaner reach: 6.5 m

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

Black and white handheld vacuum cleaner with label 'Obr. 1' (no other text or symbols visible)

ČIŠTĚNÍ A ÚDRŽBA

Black and white vacuum cleaner with attached arm, labeled Abb. 1 (no other text or symbols visible)

LEEREN DES STAUBBEHÄLTERS

Black and white image of a Joonis 1 vacuum cleaner (no text or symbols visible on the device body)

TOLMUMAHUTI TÜHJENDAMINE

Black and white vacuum cleaner with a label 'Σχήμα 1' (no other text or symbols visible)

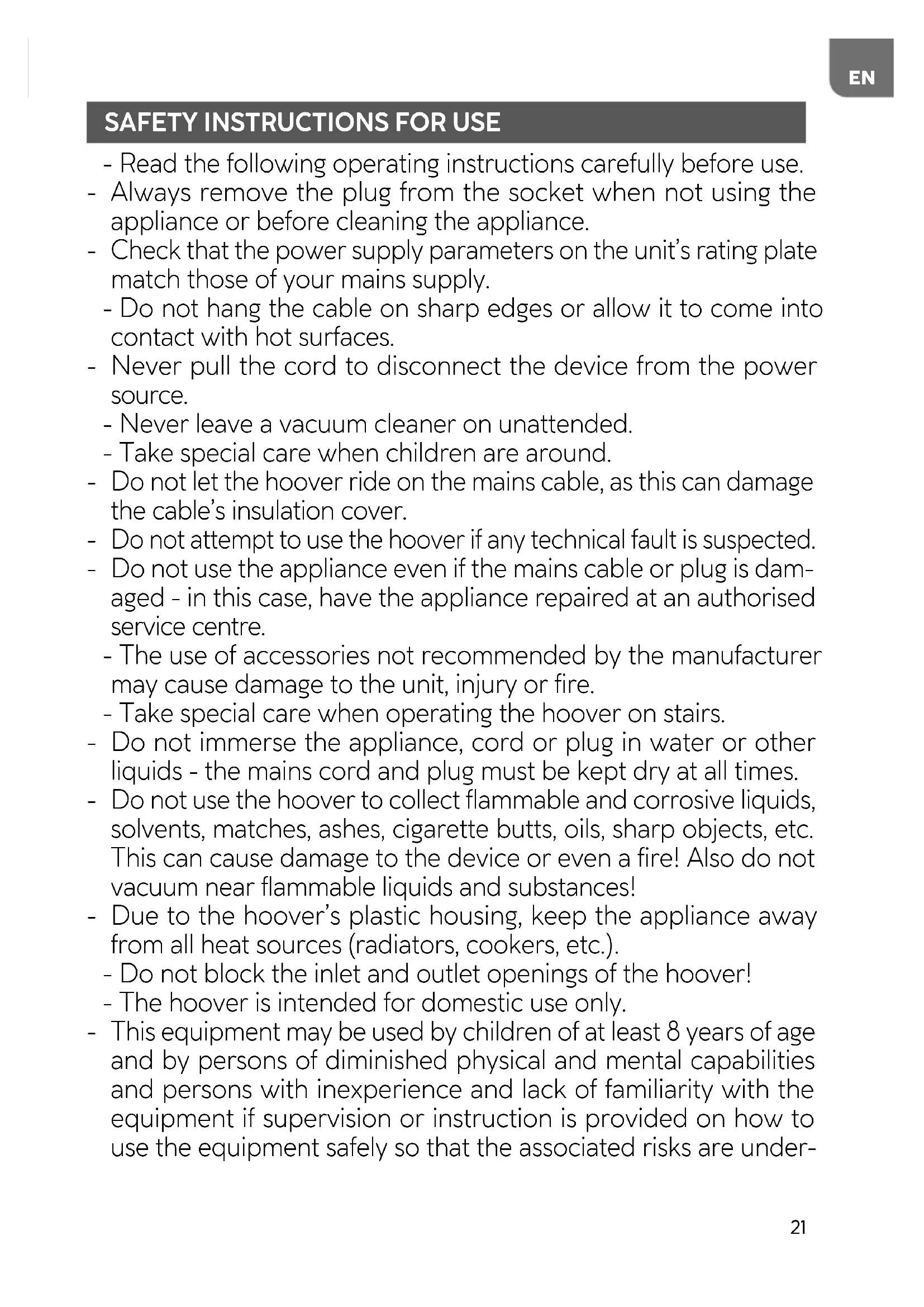

SAFETY INSTRUCTIONS FOR USE

• Read the following operating instructions carefully before use.
• Always remove the plug from the socket when not using the appliance or before cleaning the appliance.
• Check that the power supply parameters on the unit's rating plate match those of your mains supply.
• Do not hang the cable on sharp edges or allow it to come into contact with hot surfaces.
• Never pull the cord to disconnect the device from the power source.
• Never leave a vacuum cleaner on unattended.
• Take special care when children are around.

- Do not let the hoover ride on the mains cable, as this can damage the cable's insulation cover.

- Do not attempt to use the hoover if any technical fault is suspected.

- Do not use the appliance even if the mains cable or plug is damaged - in this case, have the appliance repaired at an authorised service centre.

- The use of accessories not recommended by the manufacturer may cause damage to the unit, injury or fire.

- Take special care when operating the hoover on stairs.

- Do not immerse the appliance, cord or plug in water or other liquids - the mains cord and plug must be kept dry at all times.

- Do not use the hoover to collect flammable and corrosive liquids, solvents, matches, ashes, cigarette butts, oils, sharp objects, etc. This can cause damage to the device or even a fire! Also do not vacuum near flammable liquids and substances!

- Due to the hoover's plastic housing, keep the appliance away from all heat sources (radiators, cookers, etc.).

- Do not block the inlet and outlet openings of the hoover!

- The hoover is intended for domestic use only.

- This equipment may be used by children of at least 8 years of age and by persons of diminished physical and mental capabilities and persons with inexperience and lack of familiarity with the equipment if supervision or instruction is provided on how to use the equipment safely so that the associated risks are under-

stood. Unsupervised children should not carry out cleaning and maintenance of the equipment.

• Children are not allowed to play with the device.
• Keep the device and its cable out of the reach of children under 8 years of age.
• Do not vacuum people or pets, and be especially careful not to bring the suction tips close to your eyes and ears.

- Before replacing equipment, turn off the equipment and disconnect it from the power supply.

- Do not vacuum without a bag, filters or if they are damaged.

- Check the suction hose, pipes and squeegees - remove debris inside.

- Use the vacuum cleaner only indoors and only for vacuuming dry surfaces. Wet cleaned carpets dry before vacuuming.

- For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).

-WARNING! Do not allow children to play with the film. Danger of suffocation!

DEVICE DESCRIPTION

1. Switch

2. Handle

3. Pipe

4. Dust container

5. Floor and carpet brush

6. Pipe mounting clip

7. Dust container release button

8. Slot attachment

9. Small multifunctional brush

10. EPA filter

11. Round synthetic motor filter

ELECTROSTATICS

Vacuuming certain surfaces in low-humidity conditions may result in a slight charge of the device. This is a natural phenomenon, does not damage the device and is not a defect. In order to minimize this phenomenon, it is recommended to:

• discharge of the device by frequently touching metal objects in the room with the pipe
  -increasing the humidity of the air in the room
  -use of generally available antistatic agents.

BEFORE FIRST USE

1. Take the vacuum cleaner out of the packaging, remove all stickers, shipping locks, bags and fillers.

2. Check the vacuum cleaner for any damage that may have occurred during transport. Contact your retailer if you suspect damage.

3. Assemble the vacuum cleaner correctly (see chapter: „ASSEMBLING (DISASSEMBLY) OF THE VACUUM CLEANER“).

4. Make sure that the parameters of your power supply correspond to the data on the rating plate of the device.

ASSEMBLY (DISASSEMBLY) OF THE VACUUM CLEANER

1. Insert the tube (3) into the latch (6) and close the latch.
2. Install the selected brush on the end of the tube in the dust container (4).

USING THE DEVICE

1. Make sure the vacuum cleaner is properly assembled, the filters are in place.

2. Choose the most suitable accessories for your cleaning tasks. For the most effective cleaning, use the following accessories:

3. floor and carpet brush (5) - vacuuming carpets and hard surfaces such as stoneware or terracotta

4. crevice attachment (8) - vacuuming in hard-to-reach places.

5. small multifunctional brush (9) – vacuuming curtains, upholstery, clothing, furniture, blinds.

6. Insert the plug of the vacuum cleaner into the power socket and turn on the device with the switch (1).

ATTENTION! The device is only intended for vacuuming dry surfaces!

1. Check the filling level of the dust container (4) on an ongoing basis, if it is full, stop vacuuming and empty the dust container. Working with an overfilled container reduces the efficiency of vacuuming (reducing the centrifugal force that throws impurities into the container) and leads to premature clogging of the filters.
2. If during operation you notice a clear decrease in suction power and the dust container is empty, be sure to check the patency and the currently used equipment.
3. Depending on your needs, you can use the vacuum cleaner without the tube (3) with the handle (4) fig. 1. In this way, you reduce the dimensions of the vacuum cleaner and thus you can vacuum hard-to-reach places.
4. After finishing vacuuming, turn off the device with the switch (1) and then disconnect it from the mains.

EMPTYING THE DUST CONTAINER

1. Turn off the vacuum cleaner with the switch (1) and disconnect it from the power source.
2. Open the vacuum cleaner with the button (7) and empty the dust into the garbage.

CLEANING AND MAINTENANCE

1. Clean the outer surfaces of the vacuum cleaner, the inside of the dust container and accessories with a damp cloth and then wipe them dry. For heavy soiling, use a mild detergent.
2. After each vacuuming, empty the dust container and clean the EPA filter (10) on a regular basis.

ATTENTION! Do not wet clean the EPA filter (10).

Black and white vacuum cleaner device with handle and clasp (no visible text or symbols)

ATTENTION! Do not use sharp objects, abrasive pastes, solvents and other strong chemicals for cleaning - their use may damage the device.

ATTENTION! Always turn off the device and remove the plug from the mains socket before carrying out any maintenance or cleaning activities. Do not immerse the device in water!

TECHNICAL DATA

Technical parameters are given on the product nameplate.

Mains cable length: 6 meters

The range of the vacuum cleaner: 6,5 m

ATTENTION! MPM agd SA reserves the right to make technical changes.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

Black and white photo of a vacuum cleaner (no text or symbols visible)

Black and white handheld vacuum cleaner with a black handle and white body, labeled Fig. 1 (no text on device body)

Black and white photo of a vacuum cleaner (labeled 'Ábra. 1') with no visible text or symbols on the device itself.

A PORTARTÁLY KIÜRÍTÉSE

Black and white photo of a vacuum cleaner (no text or symbols visible)

Black and white vacuum cleaner with attached arm, labeled '1 pav.' (no other text or symbols visible)

IŠTUŠTINTI DULKIŲ KONTEINERI

Black and white photo of a vacuum cleaner with attached arm, no visible text or symbols on the device itself

IZTUKŠOT PUTEKŁU TVERTNI

BESCHRIJVING VAN HET APPARAAT

Black and white photo of a vacuum cleaner with a labeled section 'fig. 1' (no other text or symbols visible)

DE STOFCONTAINER LEGEN

Black and white photo of a vacuum cleaner with a visible label 'rys. 1' (no other text or symbols)

CZYSZCZENIE I KONSERWACJA

Black and white photo of a vacuum cleaner (no text or symbols visible)

Black and white vacuum cleaner with visible arm and base, no text or symbols on device body

Black and white vacuum cleaner with label 'Obr. 1' (no other text or symbols visible)

VYPRÁZDŇOVANIE NÁDOBY NA PRACH

Black and white photo of a vacuum cleaner (no visible text or symbols)

Legible signature of the buyer
