Friggisano Show G10171 - Deep fryer G3 Ferrari - Free user manual and instructions

Product type	Oil-free fryer (air fryer)
Brand	G3 Ferrari
Model	Friggisano Show G10171
Power supply	230 V ~ 50 Hz
Power	1200 W
Container capacity	5 litres
Temperature range	80 °C to 200 °C
Timer	Up to 60 minutes
Preset programs	8 (meat, poultry, shellfish, fish, fries, toast, hot dog)
Display	Digital panel with screen
Coating	Non-stick on container and tray
Viewing window	Yes
Handle	Insulated, cool-touch type
Materials	Heat-resistant plastic body
Estimated net weight	Approximately 4.5 kg
Estimated dimensions (L×W×H)	30 × 28 × 32 cm
Cable length	Approximately 80 cm
Cleaning	Container and tray hand washable (dishwasher not recommended)
Safety	Automatic shut-off when container is removed; lockable lid
Usage	Household only, indoors
Warranty	Standard manufacturer warranty (see manual)

Frequently Asked Questions - Friggisano Show G10171 G3 Ferrari

How to use the fryer for the first time?

Carefully wash all accessories that come into contact with food. Run the appliance empty at maximum temperature for 10 minutes to eliminate manufacturing odors, then let it cool and air out for 30 minutes.

Can oil be used in the fryer?

It is not recommended to fill the container with oil. For crispy fries, you can add a very thin layer of oil on the food before cooking.

How to set the temperature and cooking time?

Use the Temperature (H) and Time (G) buttons with the + and - keys (E/F). You can also choose one of the 8 preset programs by pressing Menu (I).

What to do if the appliance does not turn on?

Check that the container is correctly inserted into the body (otherwise a safety switch prevents operation). Make sure the electrical outlet works and that the appliance is in standby mode: press the ⏻ button.

How to clean the fryer?

Unplug and wait for complete cooling. Clean the exterior with a damp cloth. Wash the container and tray with hot water and a non-abrasive sponge (avoid dishwasher). Brush the heating element to remove residue.

Which foods are not suitable for cooking?

Very fatty foods like sausages are not recommended. Avoid placing foods that could easily melt or burn without supervision.

Should ingredients be stirred during cooking?

Some foods, such as frozen fries, need to be stirred halfway through cooking for even cooking. The cooking chart in the manual indicates 'Yes' or 'No' depending on the food.

Can the appliance be left unattended?

No, never leave the appliance unattended while operating. Unplug it after each use.

What is the meaning of the 8 preset programs?

The programs correspond to optimal temperature and time settings for: meat, poultry, shellfish, fish, fries, toast, hot dog. You can adjust them manually according to your taste.

How to dispose of the appliance at the end of its life?

Do not throw the appliance with household waste. Follow local recycling guidelines (WEEE). The symbol on the appliance indicates that it must be collected separately.

USER MANUAL Friggisano Show G10171 G3 Ferrari

Exterior view of a black and silver G Ferrari air fryer with digital display (no text or symbols on the device itself)

Friggitrice ad aria

Air fryer

FRIGGISANO SHOW

ITA: INDICE

Simbologia.... p. 2

Safety Instructions.... p. 8

General information.... p. 11

G10171....p. 12

Cooking.... p. 12

Control panel.... p. 12

Functioning....p. 12

Settings....p. 13

Cleaning....p. 14

Technical features.... p. 14

Waste of electric and electronic equipment (WEEE

Directive).... p. 39

PORTUGUES:....p. 14

ESPAÑOL....p. 20

FRANCAIS ......p. 26

DEUTSCH p. 33

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

COTTURA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this

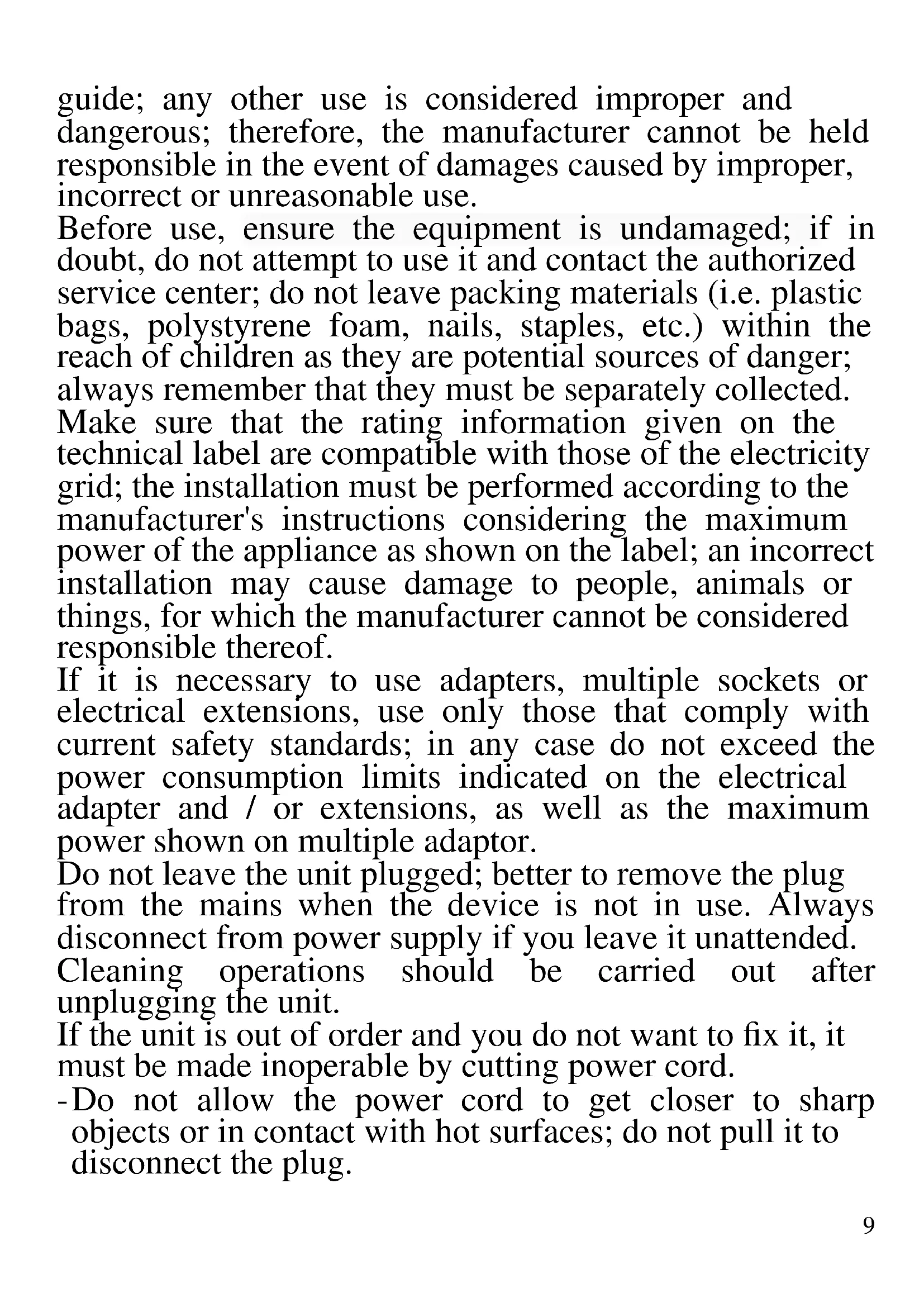

guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

-Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

The surfaces of appliance shall not be placed against a wall. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance.

Never touch the inside of the appliance while it is operating.

The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

Do not place anything on top of the appliance.

Handle with care fresh-cooked food to avoid risk of burning.

Never leave the appliance unattended while it is running. Remove the plug after each use.

Do not place the oven in water or other liquids and avoid splashing of liquids on the unit.

Do not fill the pan with oil as this may cause a fire hazard During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from air outlet. Also be careful of hot steam when you remove the pan from appliance.

Before every use, unroll the power cord.

Do not cover the air inlet and the air outlet openings while the appliance is operating.

Do not use the appliance as a heating unit. Do not insert anything in the ventilation windows.

Before cleaning, always unplug the unit from the

electrical outlet and wait for the complete cooling of each part of the appliance.

Remove all packaging materials from the cooking compartment. Put on solid and stable surfaces only.

Always leave enough space at every side of the oven when the unit is working.

Do not use the oven as shelf support for objects or as place to store food, pots, containers, etc..

G10171

1 Air inlet

5 Tray

2 Control panel

6 Container

3 Housing

7 Air outlet (on the back)

4 Window

8 Handle

COOKING

Carefully wash all accessories and the inner housing first. Allow to ventilate the internal compartment keeping the container (6) away for about 30 minutes. Before starting with the first cooking, turn on the appliance for 10 minutes at the maximum temperature.

- Connect to a suitable and earthed power socket.

- Extract container (6) with care and check that the tray (5) is properly mounted on the base of container.

- Insert food in the container (6) and replace the container into the housing (3).

- If appliance went in standby, press on the control panel (2).

- Set program, temperature, time of cooking, as explained in following paragraphs. Press ⏻ to start cooking.

Caution: Never use container (6) without tray (5). Do not touch container or inner parts of appliance during cooking and until complete cooling. Touch only the handle (8).

- Some foods should be mixed and shaken at half cooking. Take the handle (8) and extract container (6). Shake it, then replace in its position.

- When you ear the timer sound (5 beeps), cooking time is finished. Extract container and check if food is ready. If not ready, replace container in its position and set additional cooking of some more minutes.

Note: appliance can be switched off manually, pressing ⏻ on the control panel (2).

- To remove food, take out container pour food in a dish.

Be careful to the hot steam when you remove container after cooking.

Don't turn the container (6) upside down, because oil and cooking residues on the bottom of container could drip on the foods.

- Once cooking finished, if you want to start another one, air fryer is immediately ready.

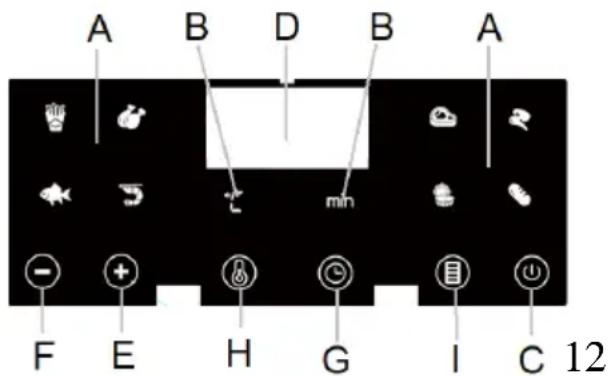

CONTROL PANEL

A. Icons for 8 preset programs

D. Display

G. Time button

B. Icon time and temperature

E. Increase button

H. Temperature button

C. ON/OFF Button

F. Decrease button

I. Button MENU'

FUNCTIONING

MANUAL FUNCTION

- If appliance went in standby, press on control panel (2).

- Press temperature button (H) and set temperature with the buttons (E and F). Press Time button (G) and set time with the buttons (E and F).

- Press to start cooking..

PRESET PROGRAMS FUNCTION

• If appliance went in standby, press on the control panel (2).
• On the display the first menu (fries) lights up.
• Pressing button Menù (H), you can choose between 8 preset programs: chips, chicken, meat, chicken wings, shellfishes, fish, toast, hot dogs.
• Once the program is chosen, press to start cooking, or:

o Press temperature button (H) and set temperature with the buttons (E and F).
- Press Time button (G) and set time with the buttons (E and F).
o Press to start cooking..

Note. Time and temperature set on each program are studied to have correct cookings for the relative food. It is advised to change time and temperature only based on experience (eg. Previous cookings not finished or too long).

During cooking:

• Do not extract the container if not necessary to mix or check food cooking.
• You can stop appliance pressing button ( ). You can change time and temperature.
• If you extract container (6), to mix as example, cooking goes in standby and when you the replace container it restarts from the stopping point.

SETTINGS

This table below will help you to select the basic settings for the ingredients.

Note: these settings are indications, as depend on personal taste, origin and type of food, ecc.

	Min-max Amount (g)	Time (min.)	Temp (/°C)	Shake	Extra information
Potato & fries
Thin frozen fries	400-800	10-18	200	Yes
Thick frozen fries	400-800	12-20	200	Yes
Potato gratin	700	15-20	200	Yes
Meat
Steak	100-700	8-12	200	No
Pork chops	100-700	10-14	180	No
Hamburger	100-700	7-14	200	No
Chicken breast	100-700	12-18	180	No
Snacks
Frozen chicken nuggets	100-700	8-14	200	Yes	Use oven-ready
Frozen fish fingers	100-600	6-10	200	No
Frozen bread crumbed cheese snacks	100-600	8-10	180	No
Stuffed vegetables	100-600	15-18	160	No
Baking
Cake	500	20-25	180	No	Use additional baking tin
Quiche	600	20-22	200	No
Muffins	500	20-25	180	No	Use additional baking tin/oven dish
Sweet snacks	600	20	180	No

Note: Add 3 minutes to the preparation time when you start frying while the Hot-air fryer is still cold.

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time.
• Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer within a few minutes after you added the oil.

• Do not prepare extremely greasy ingredients such as sausages in the Hot-air fryer.

• Place a baking tin or oven dish in the Hot-air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients

• To reheat ingredients, set the temperature to 150 °C for up to 10 minutes.

CLEANING

Clean after every use. Unplug the unit from the electrical outlet and allow each part to cool down before starting any cleaning procedure. Remove container to make the unit cool down faster

• Do not place oven in water. In any case prevent splashes of water or other liquids from reaching the unit.
• Wipe the outside of the appliance with a moist cloth.
• Clean the heating element with a cleaning brush to remove any food residues.
• Clean the inside of the appliance with hot water and non-abrasive sponge.
• Container and tray can be washed as normal non-stick pans, but we suggest to not use dishwasher. Do not use metal kitchen utensils or abrasive sponges or abrasive cleaning materials to clean them, as this may damage the non-stick coating

TECHNICAL FEATURES

• Power supply: AC 230V\~50Hz. Power: 1200W
• Non stick container and tray – Capacity 5 L
- Adjustable temperature (80° - 200°C) - Timer 60 minutes
• Digital Display - 8 preset programs

PORTUGUES: ADVERTÊNCIAS

FUNÇÃO DE PROGRAMAS PREDEFINIDOS

FONCTIONNEMENT FONCTIONNEMENT MANUEL

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
